The Puma C6250ZX EVS x 1500mm Lathes are a medium duty 1.5m between centre lathe ideal for any engineering and maintenance workshop. They come with an array of features and standard inclusions to enhance productivity and speed up the machining process. A great machine packed with features. The bed is 1 piece cast iron for greater absorption of vibration.
Coming as standard with digital readout, quick change tool post, taper turning attachment its easy to see why the Puma range of lathes represent such great value for money.

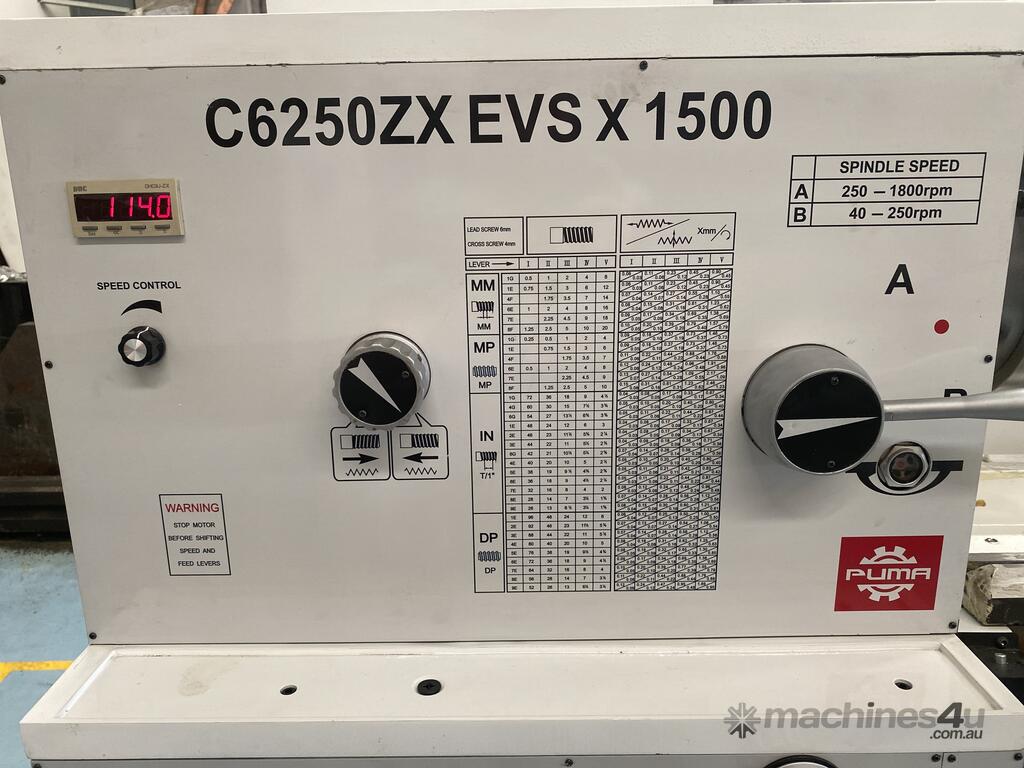

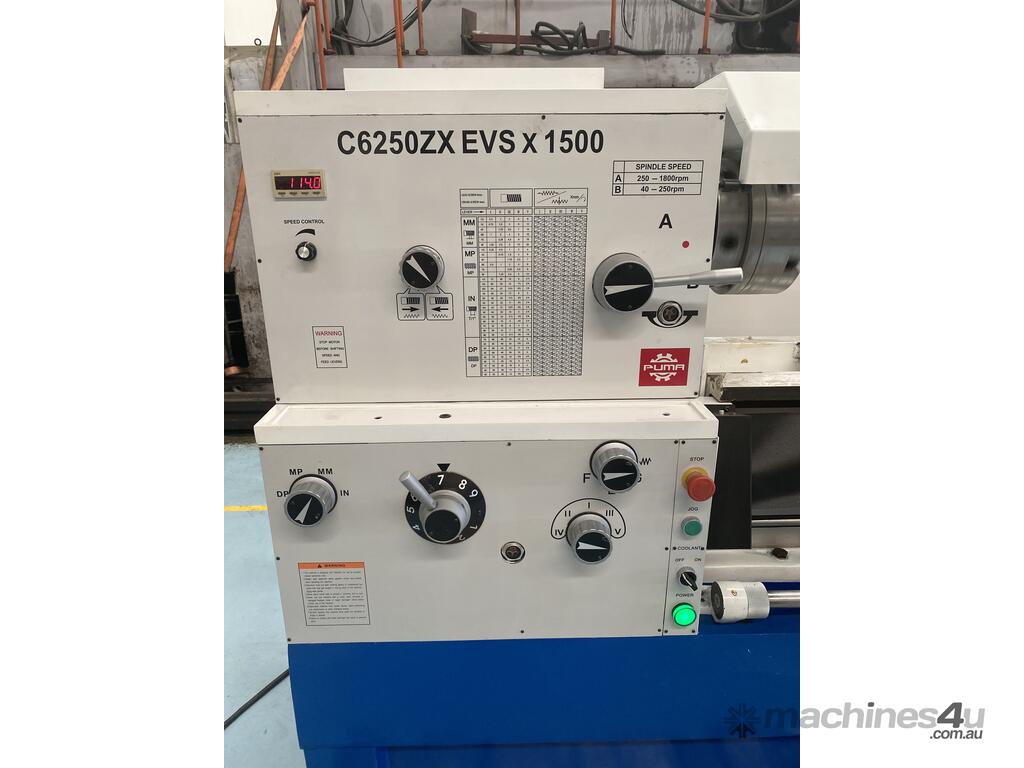

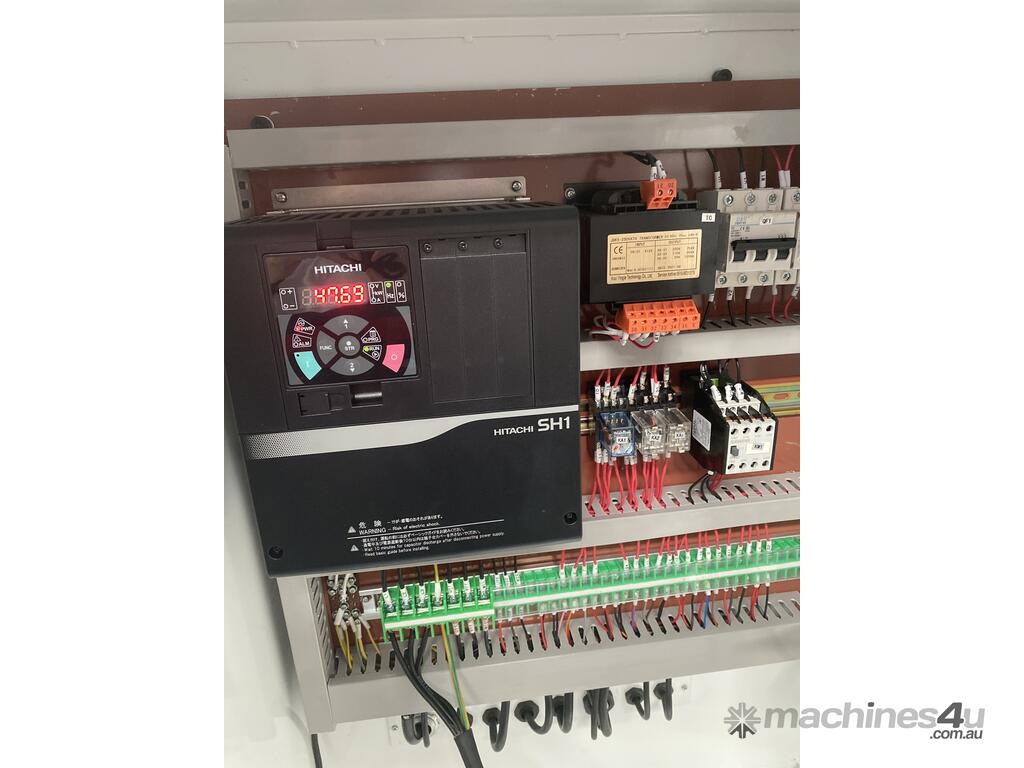

The stand out feature on this machine is that it has electronic variable speed for your spindle and chuck. On the headstock there is a gear change for 2 different speed ranges, within these ranges it is infinitely variable and can be run an any desired speed the operator wants. On traditional lathes you have defined speeds and they are fixed because of the gear ratios but because the EVS lathe uses an inverter to control the speed the fixed speeds are non existent on this lathe.

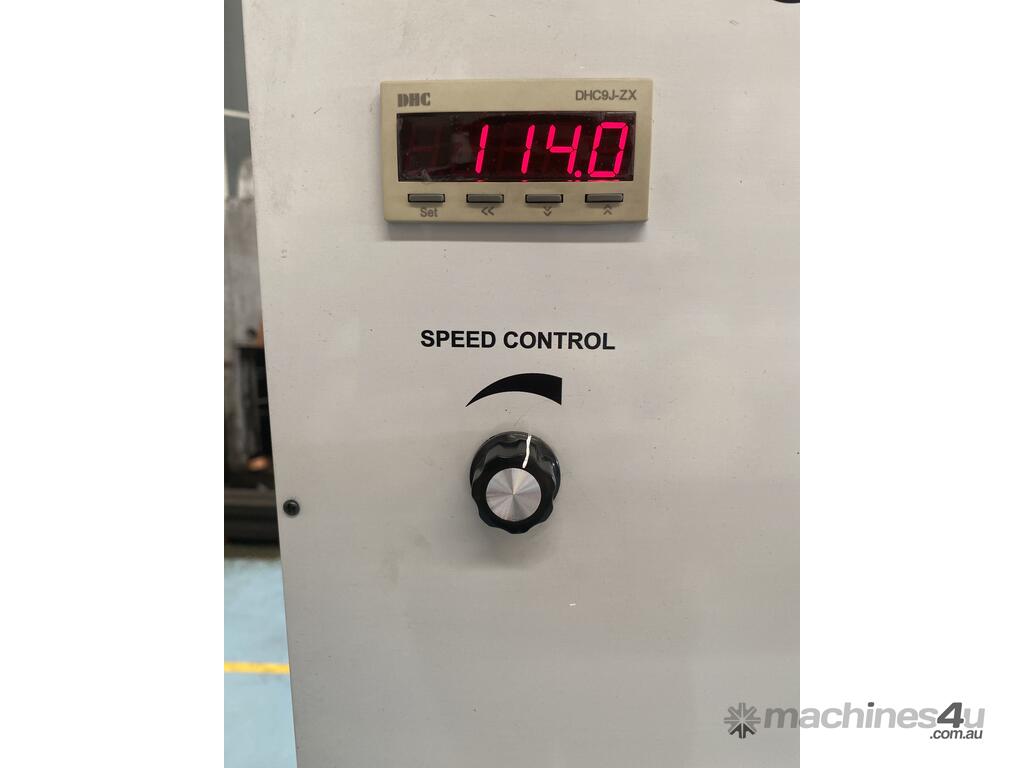

Another advantage is the reduced time of gear changes to change spindle speed, its as simple as turning a knob and viewing the speed on a readout. Quicker setup times and adjustment times mean more productivity, jobs out the door quicker and a better bottom line. The ability to do work quicker and get more jobs done means a quicker ROI on this lathe.
Features -
1. 3-jaw chuck
2. 4-jaw chuck
3. Face place
4. Steady rest
5. Following rest
6. Oil gun.
7. Hardened beds
8. Operation manual.
9. One set of wrenches.
10. Dead center
11. Sleeve.
12. Foot brake.
13. Coolant pump.

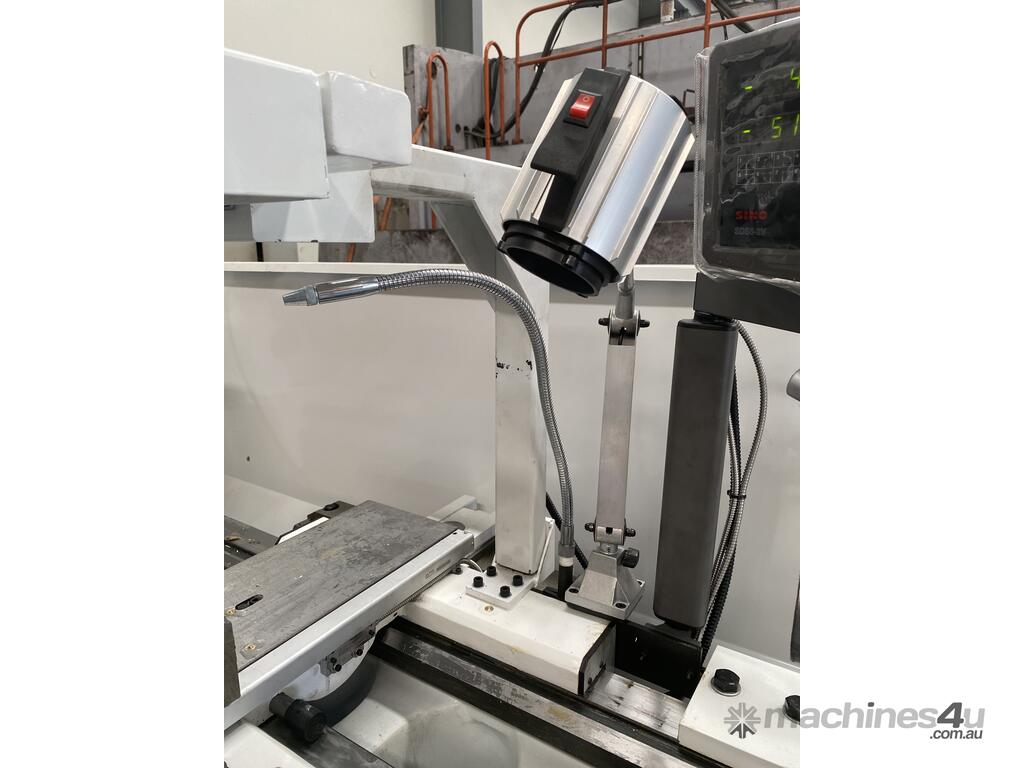

14. Work lamp.

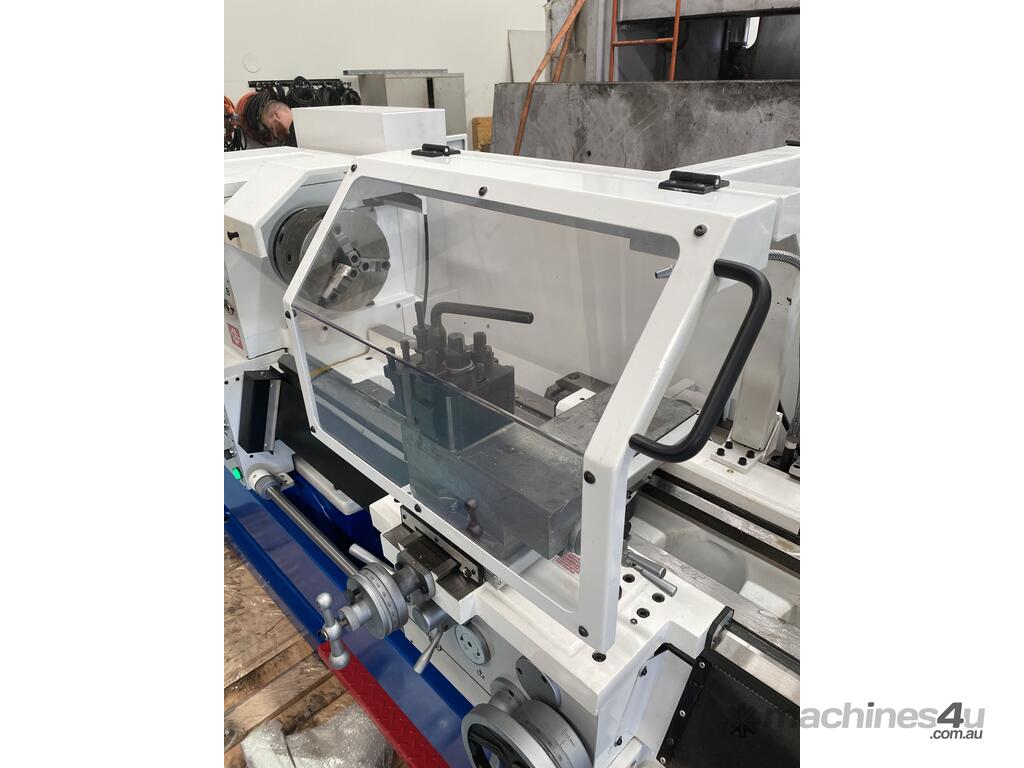

15. Splash guard.
16. One piece iron cast bed

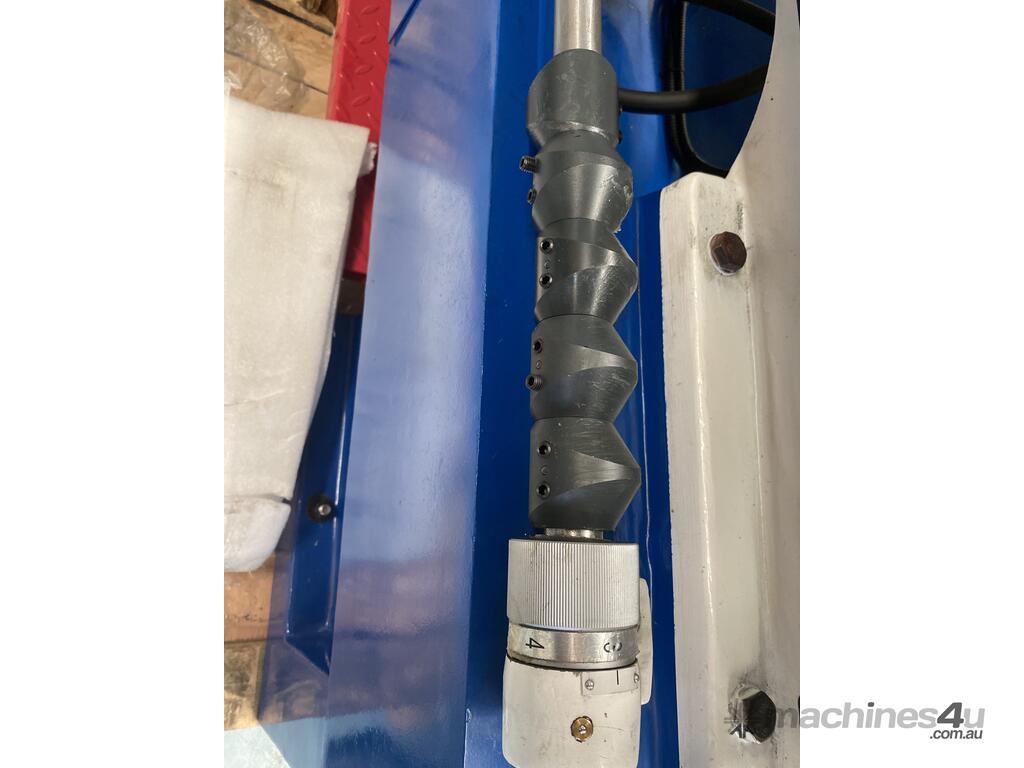

17. Micro carriage stop.
18. Direct mount camlock.

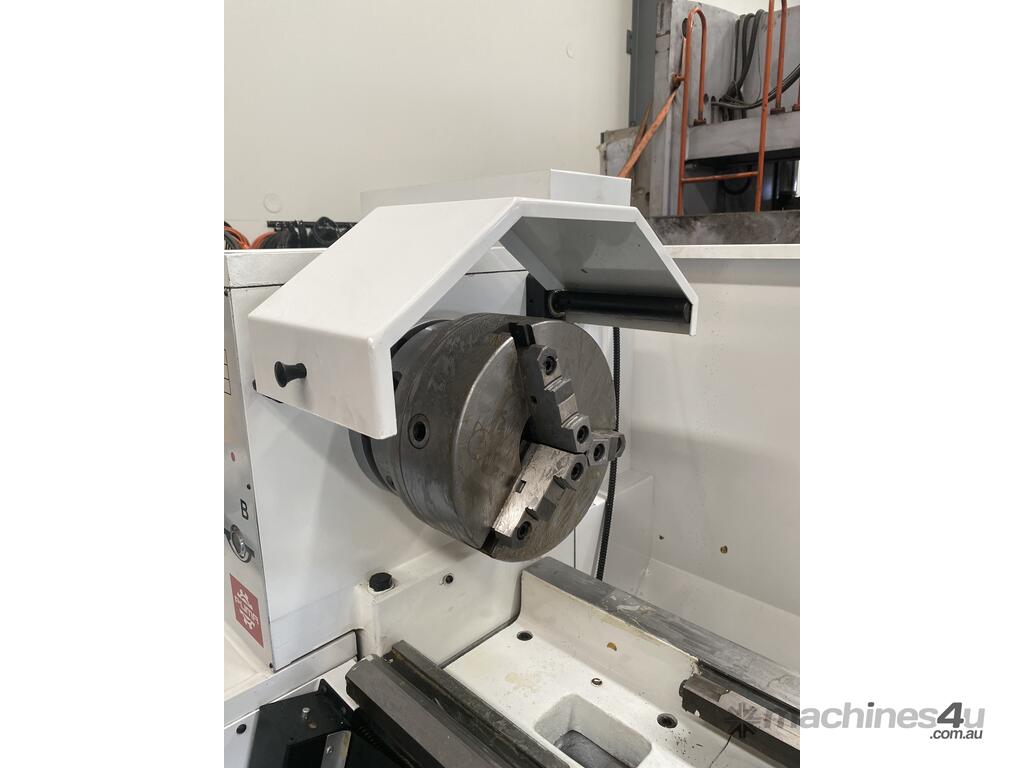

19. Chuck cover.
20. Lead screw cover.
21. Tool post cover.
22. Live centre.

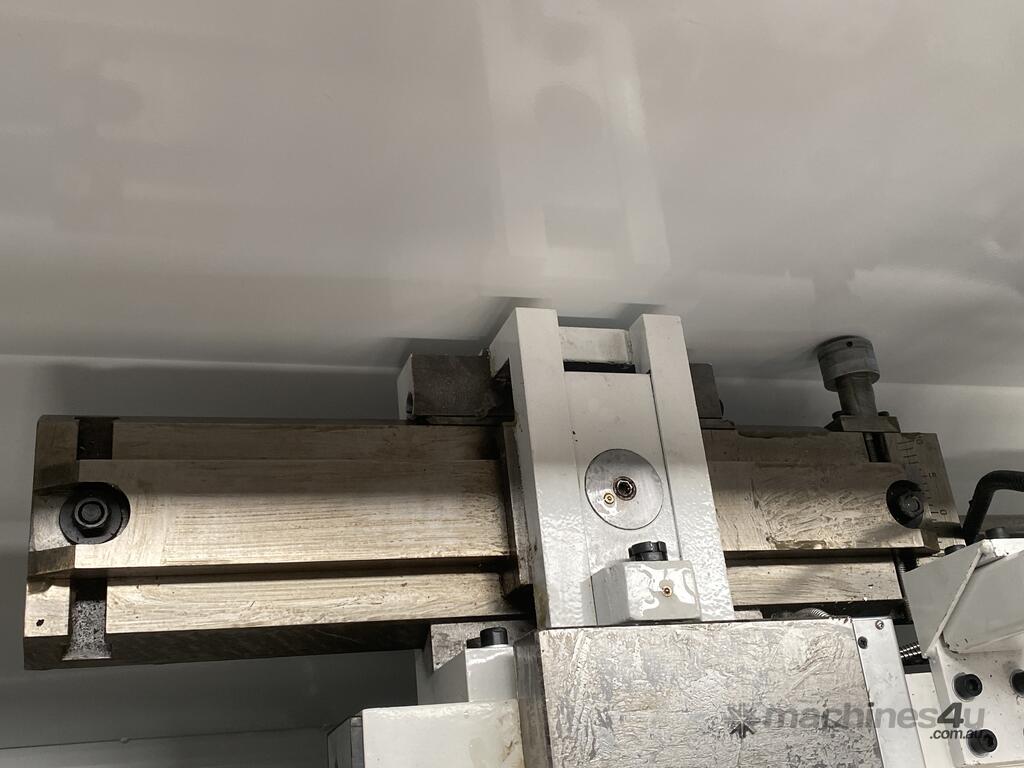

23. Taper turning attachment.

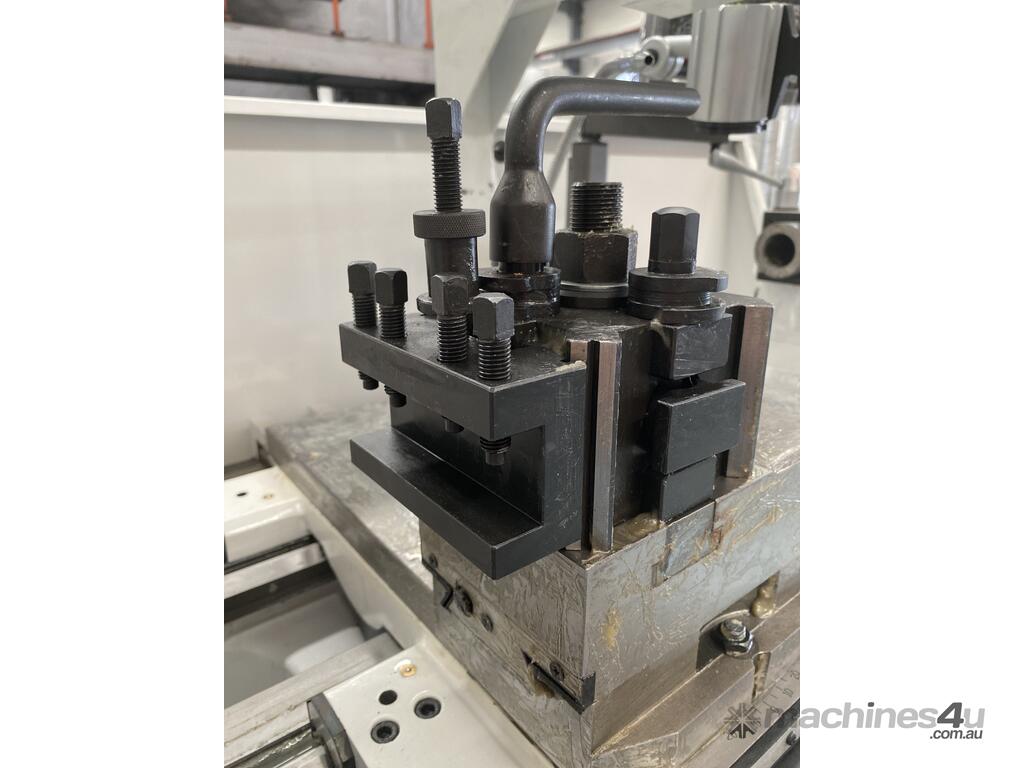

24. Italian QCTP with 4pcs tool holders.

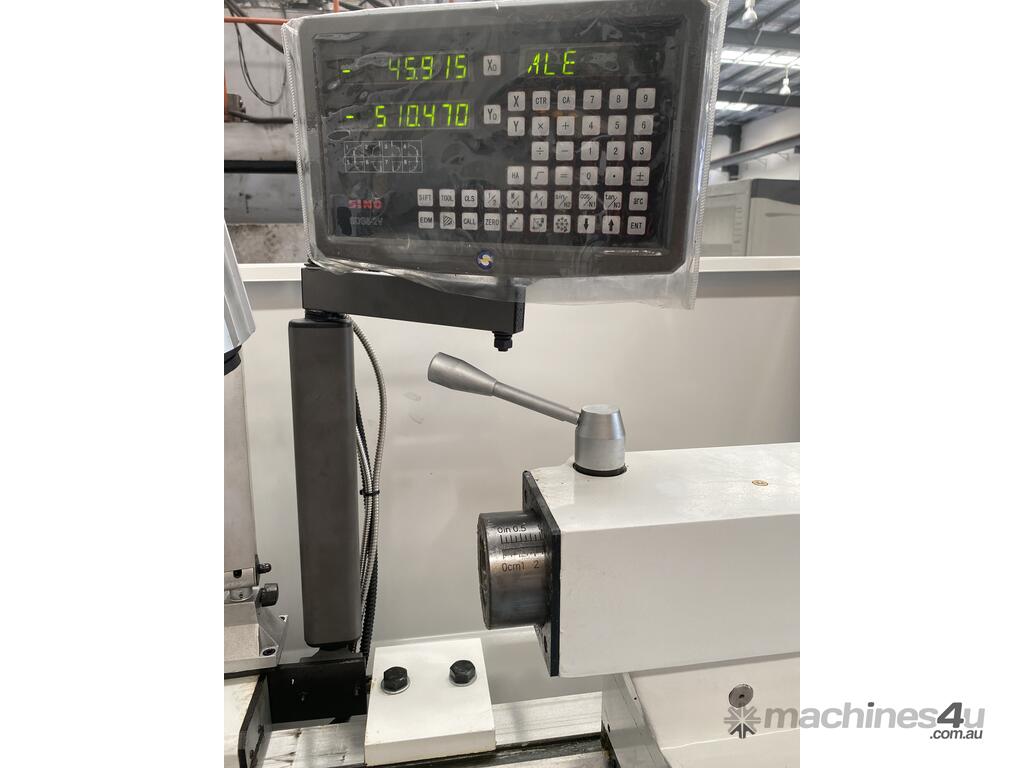

25. SINO 2 axis Dro..
26. Rapid traverse on carriage in 4 directions.

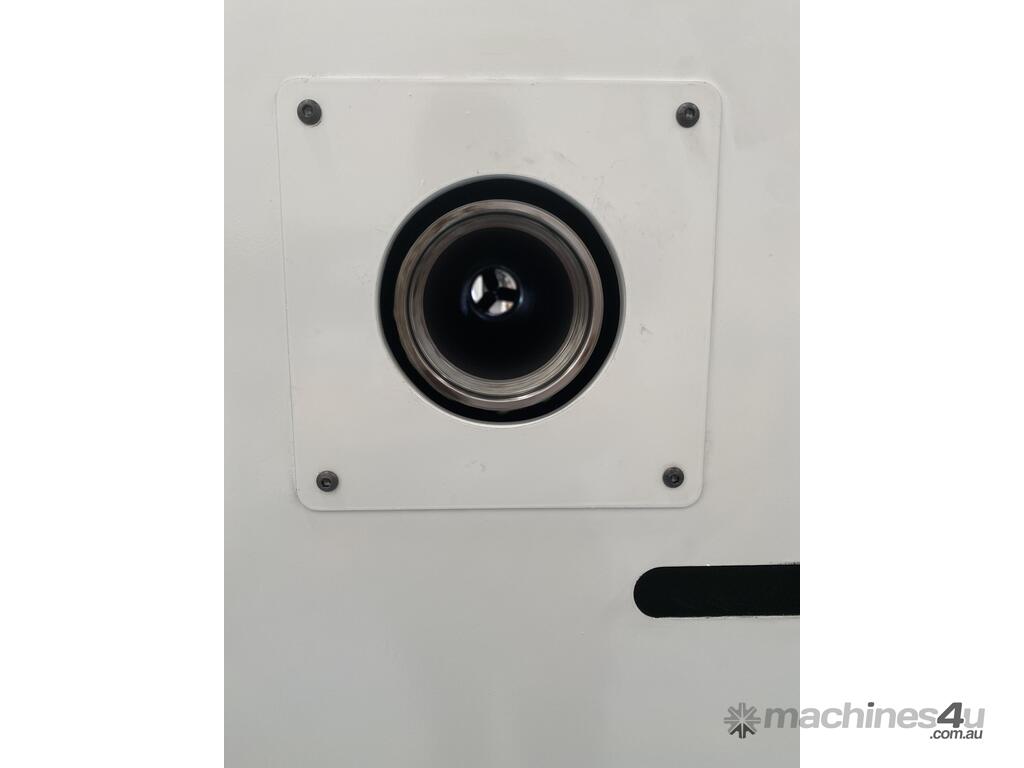

27. 105mm spindle bore.
Specifications -
Swing over bed 500 mm
Swing over cross slide 330 mm
Centre distance 1500 mm
Swing over gap 740 mm
Bed width 336 mm
Spindle nose D8
Spindle bore 80 mm
Spindle bore taper No.7 morse
Spindle speed 2 steps
Spindle speed range 40 - 400 and 200 - 2000 r/min
Metric thread range 24 kinds, 0.5 - 20 mm
Longitudinal feed range 0.04 - 2.46 mm
Cross feed range 35 kinds, 0.02 - 1.23 mm

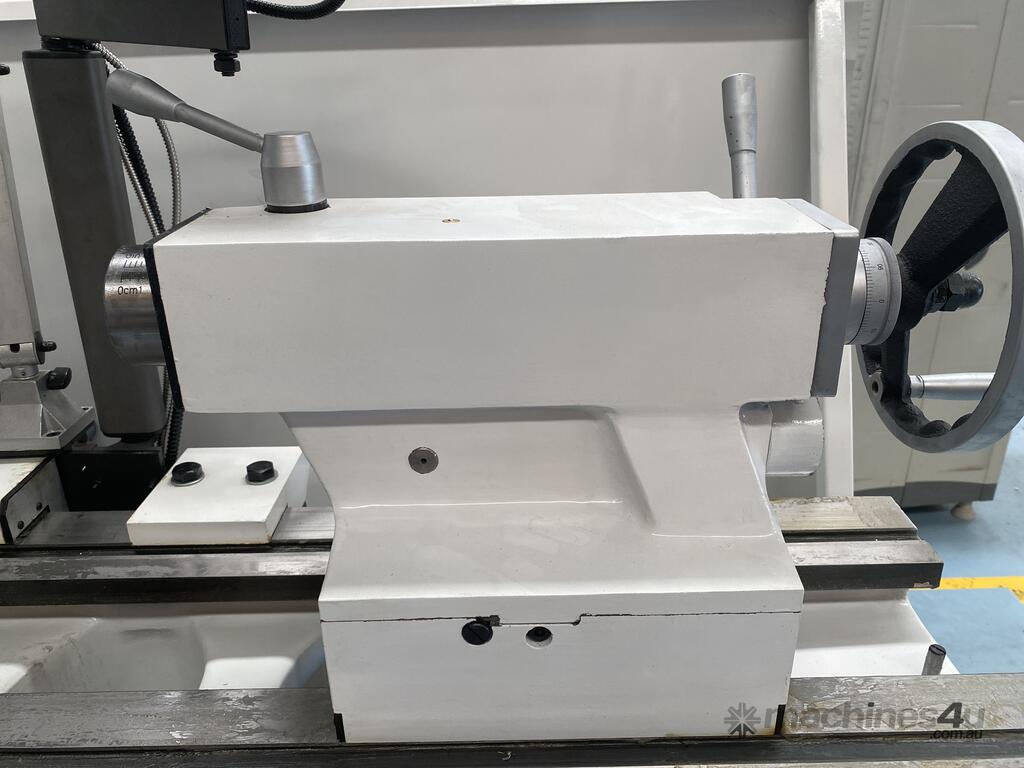

Tailstock sleeve taper No. 5 morse
Tailstock sleeve travel 130 mm
Cross slide travel 280 mm
Main motor - 7.5KW
