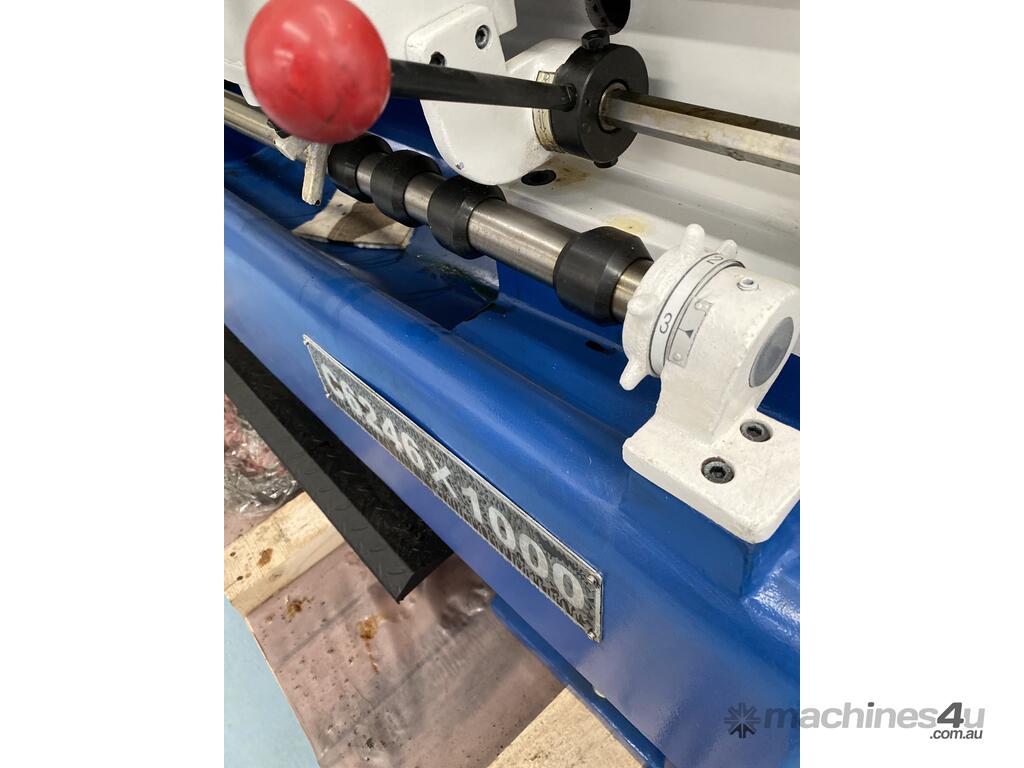

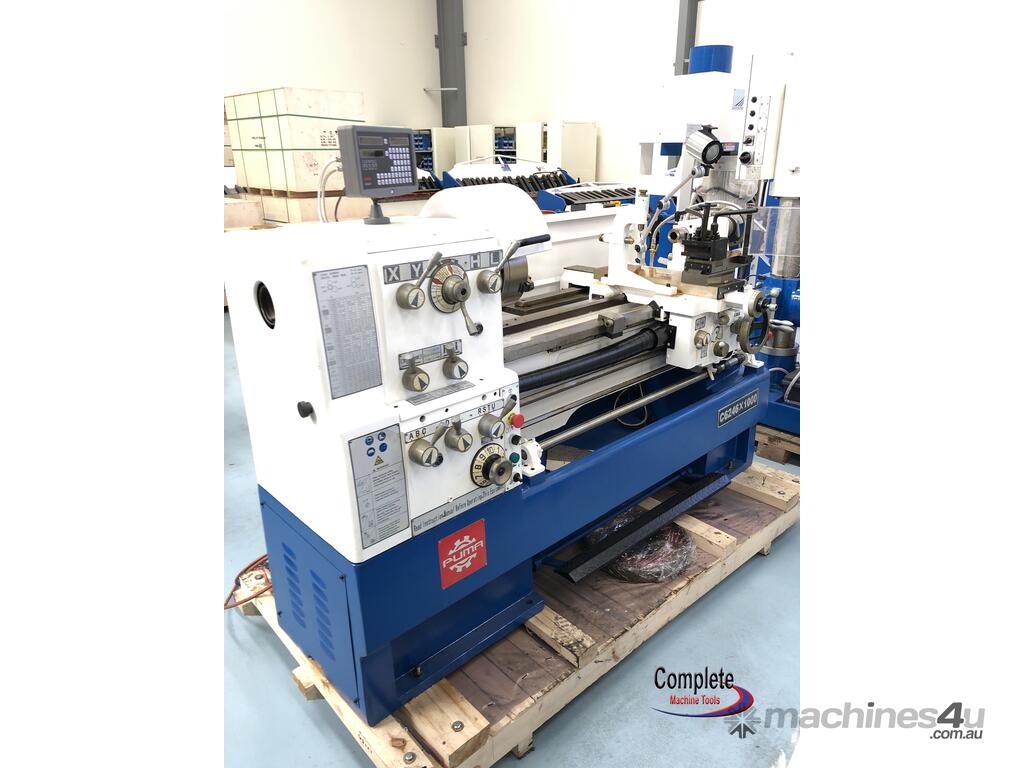

New Puma C6246 x 1000 Lathes are a heavy duty 1m between centre lathe ideal for any engineering and maintenance workshop. They come with an array of features and standard inclusions to enhance productivity and speed up the machining process. A great little machine packed with features. (Machine pictures display brown grease on the rust able steel parts)
Features-
Chuck Cover

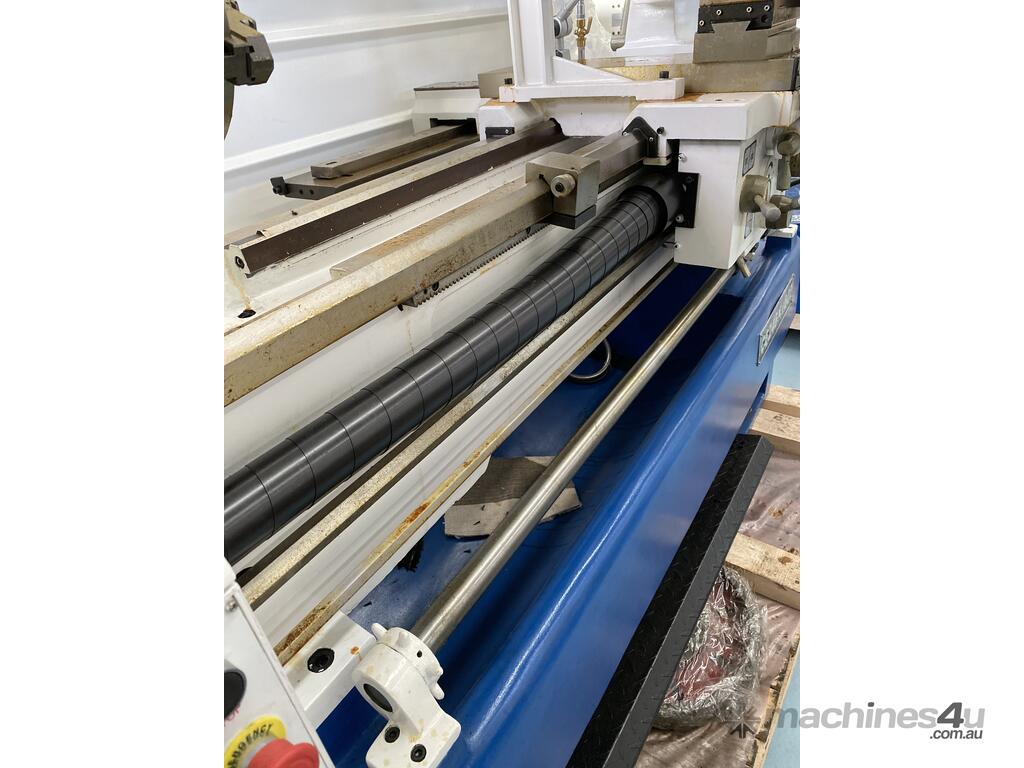

Lead Screw Cover

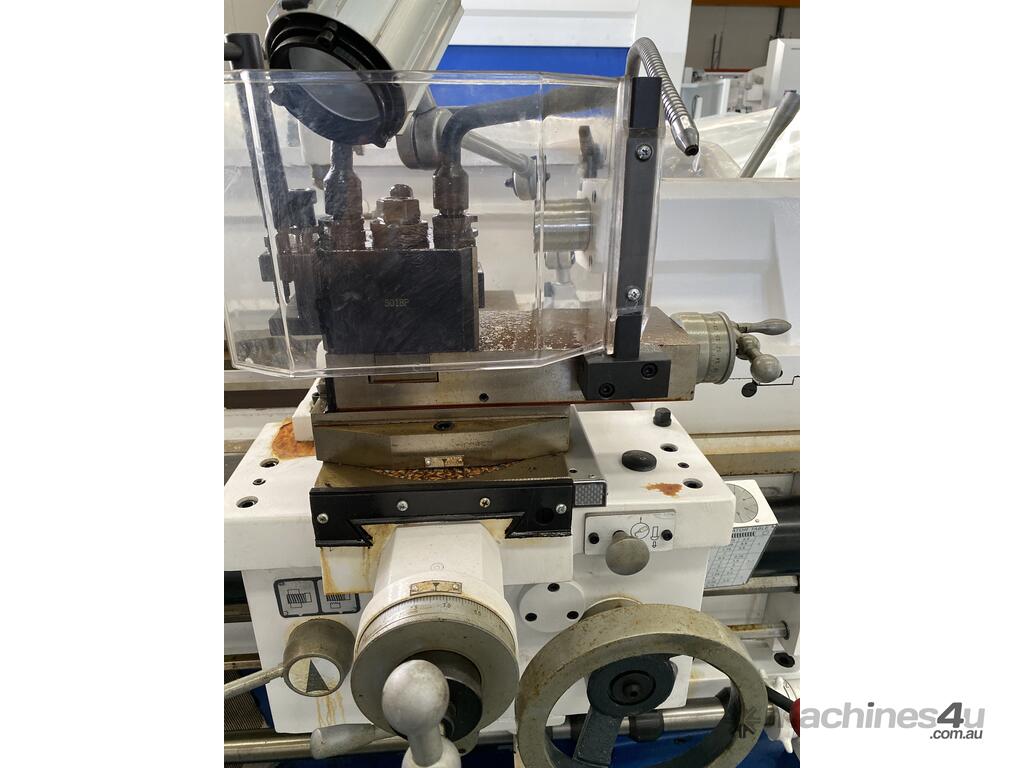

Tool Post Cover
Live Center

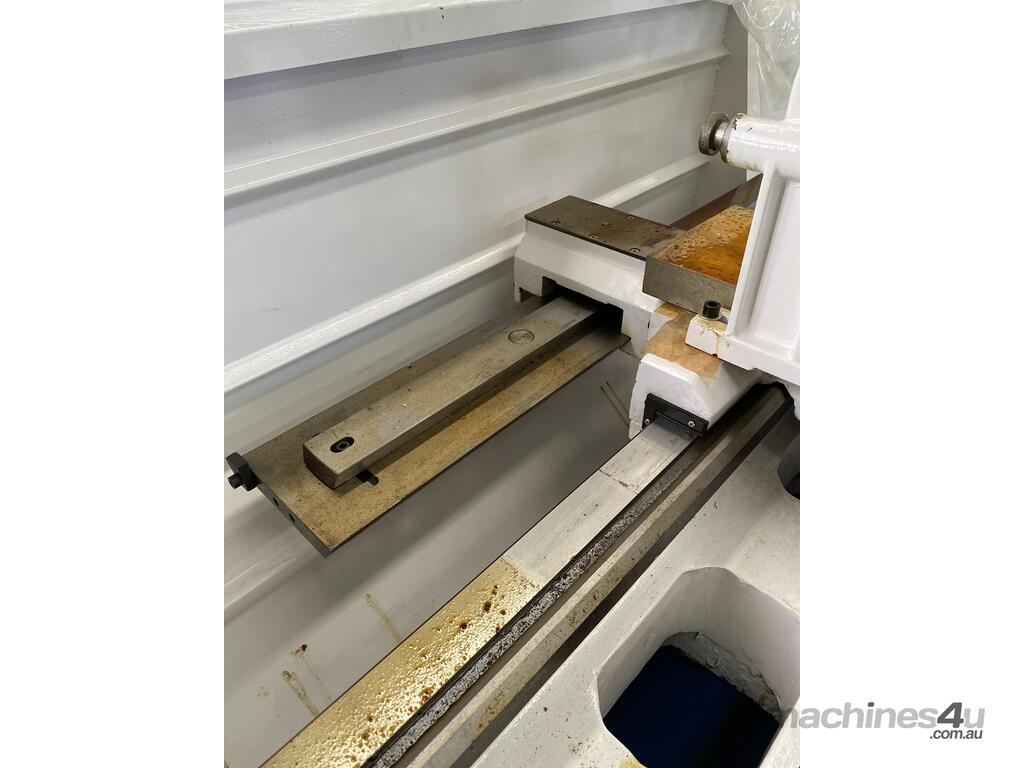

Taper Turning Attachment

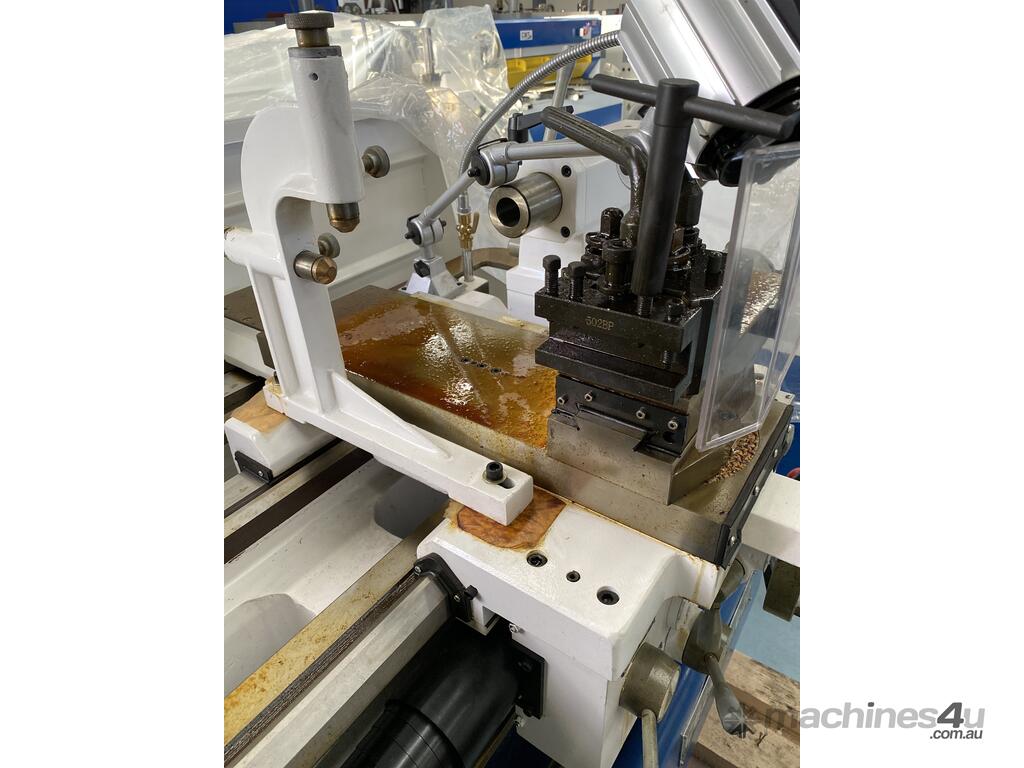

Italian style Quick change tool post with 4Pc tool holders

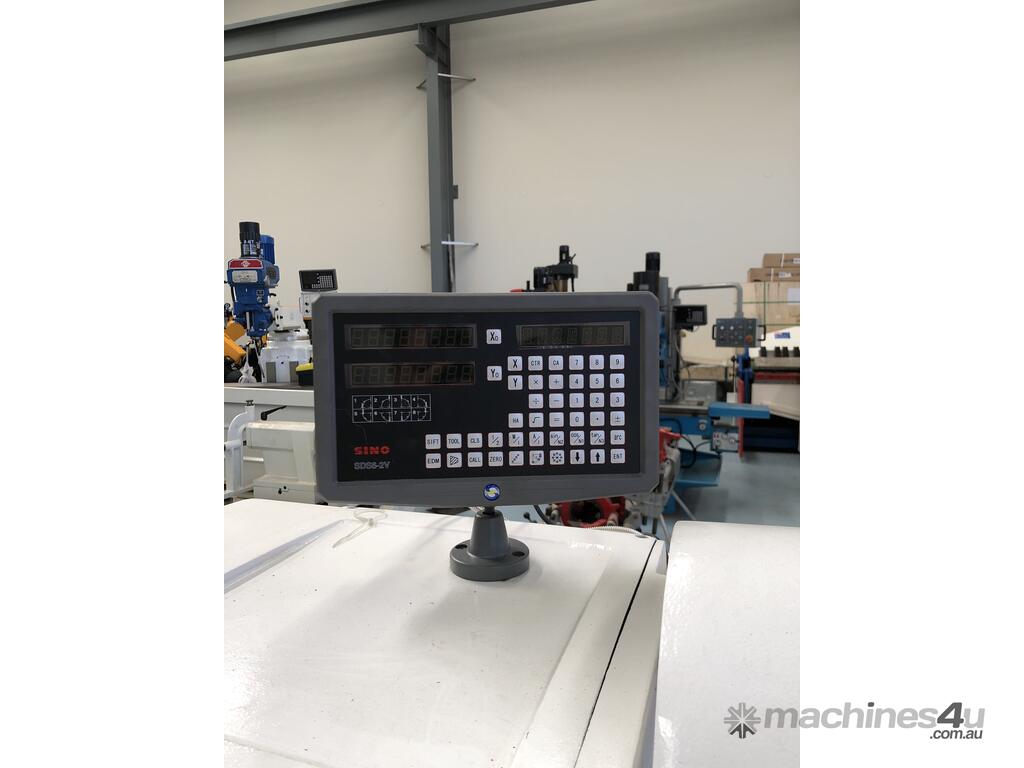

Sino 2 Axis Digital readout
80mm spindle bore

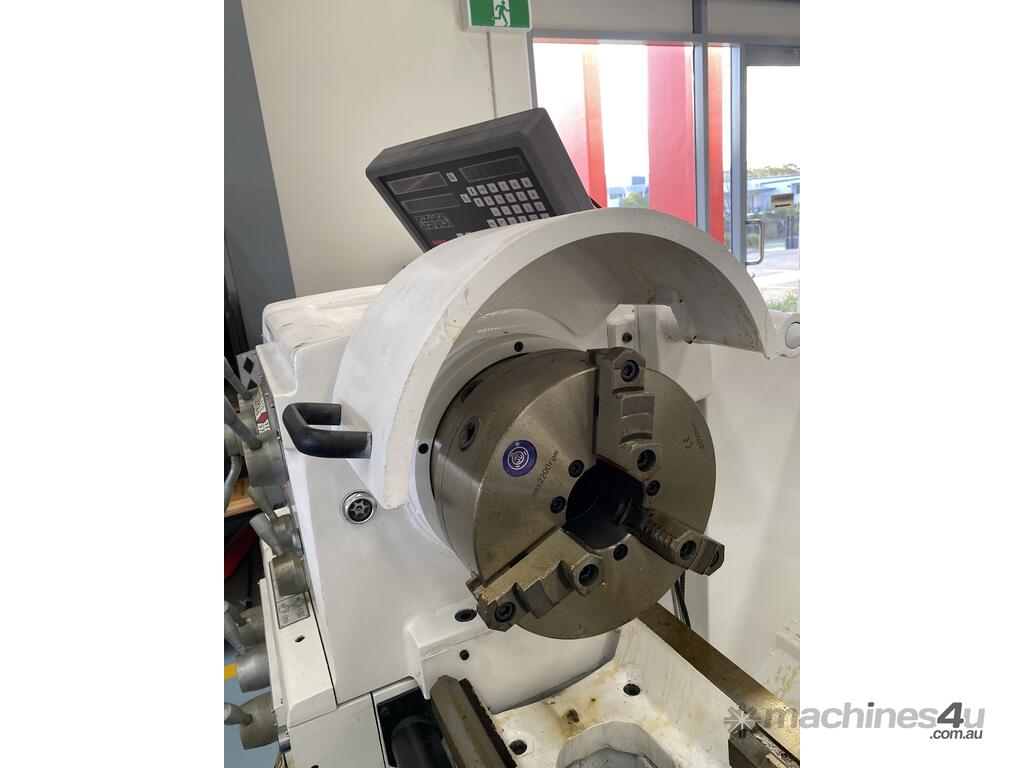

3 Jaw Chuck
Soft Jaw 3 Jaw Chucks
4 Jaw Chuck
Face Plate

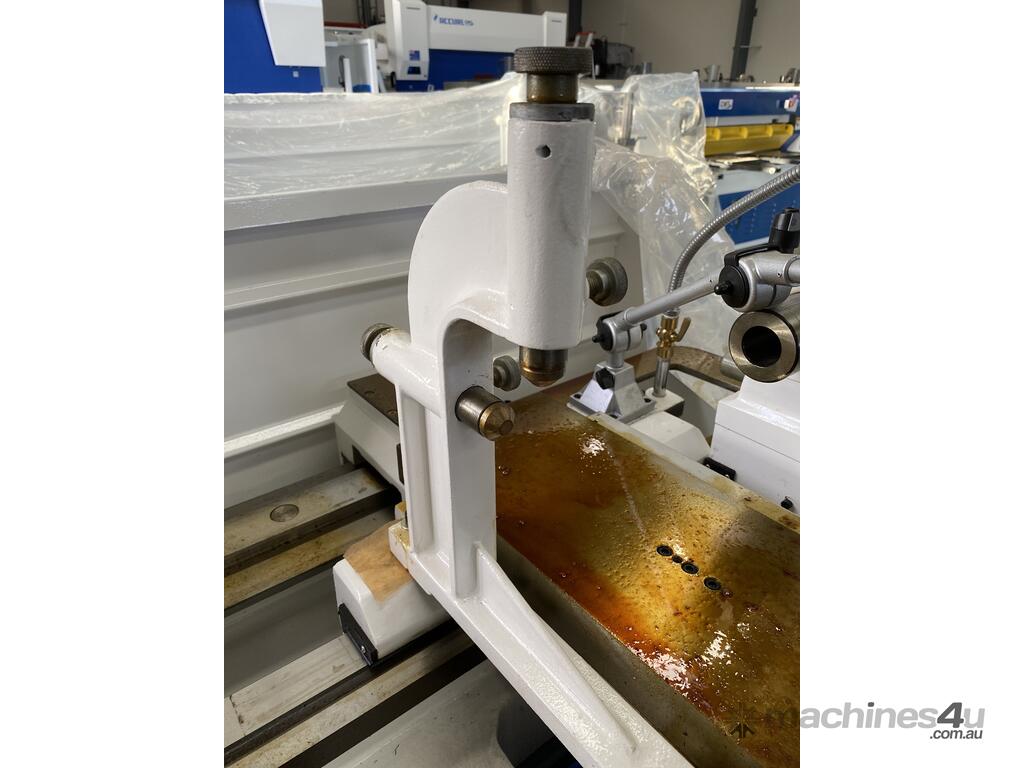

Steady Rest
Follow Rest

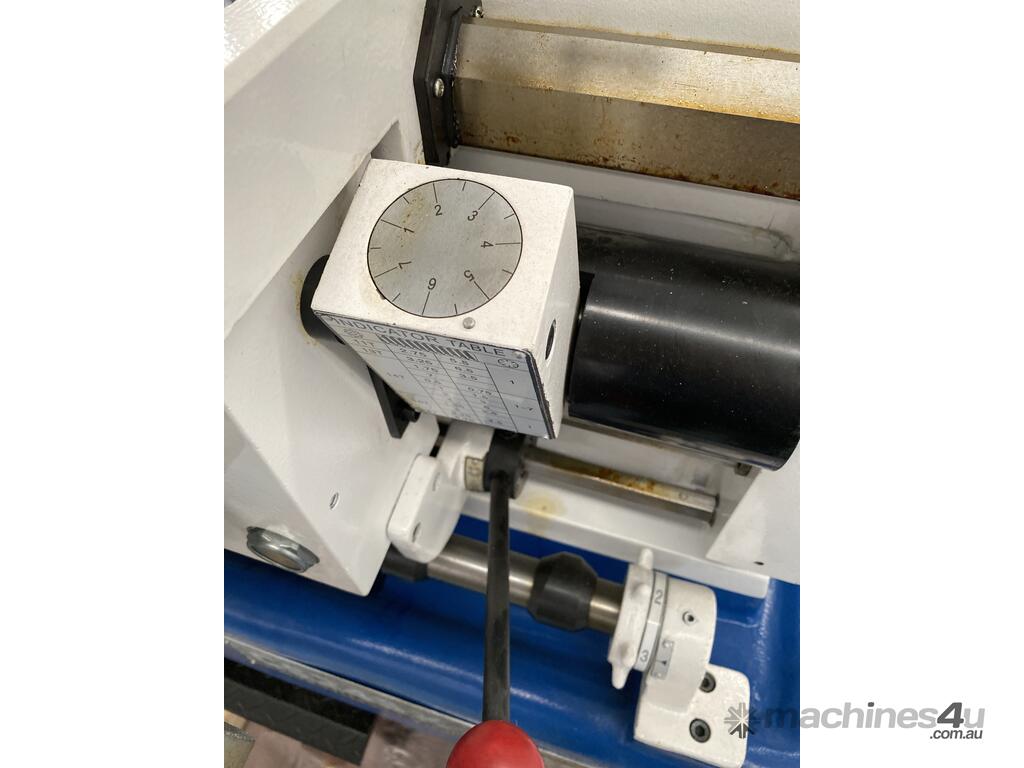

Thread Chasing Dial
2 Dead Centers
Center Sleeve
Foot Brake
Coolant Pump
Halogen Lamp
Splash Guard
One-piece Iron Casting Stand

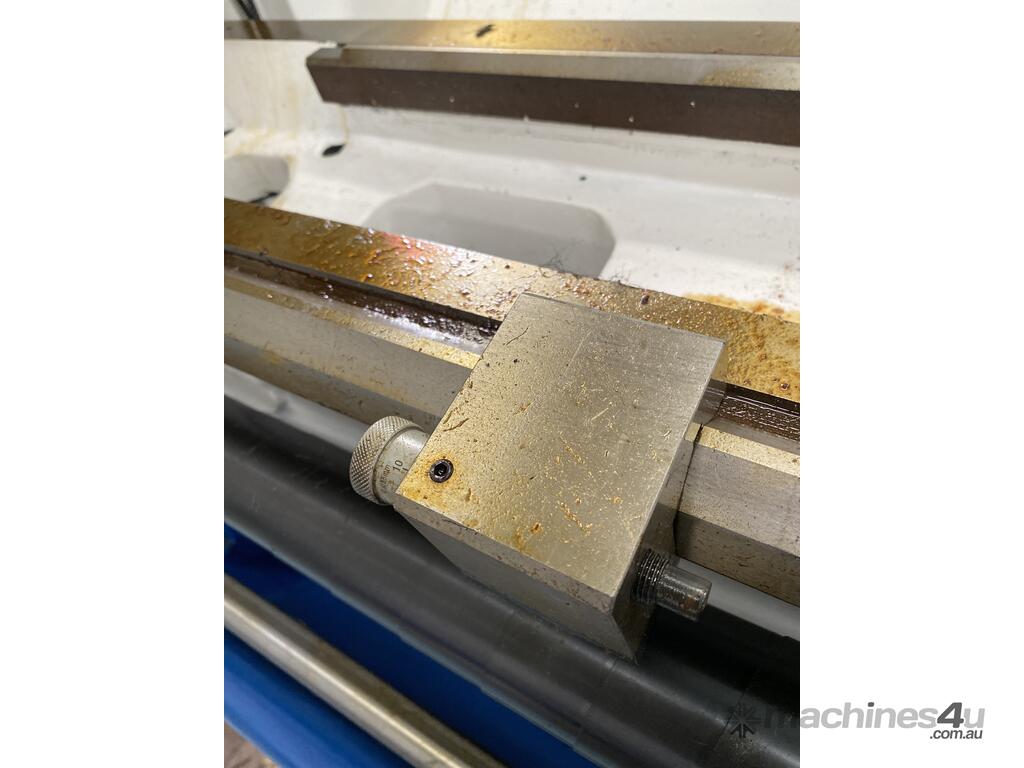

Micro Carriage Stop
Chuck - Direct Mount Camlock with no Backing Plate
Oil Gun
Tool Box
Specifications-
Swing over bed - 460 mm
Centre distance - 1000 mm
Length of gap - 165 mm
Spindle bore - 80 mm
Spindle nose - D1-6
Spindle bore taper- Morse6
Range of spindle speed - 12 steps; 25-2000 r/min
Max. travel of top slide - 128 mm
Max. travel of cross slide - 285 mm
Max section of tool - 25 x 25 mm
Inch thread range 60 kinds; 2 – 112 TPI
Metric thread range 47 kinds; 0.1 – 14 mm
Longitudinal feed range 42 kinds; 0.031-1.7 mm/rev
Cross feed range 42 kinds; 0.014-0.784 mm
Diametrical pitches range 50 kinds; 4 – 112 DP
Module pitches range 34 kinds; 0.1 – 7 MP

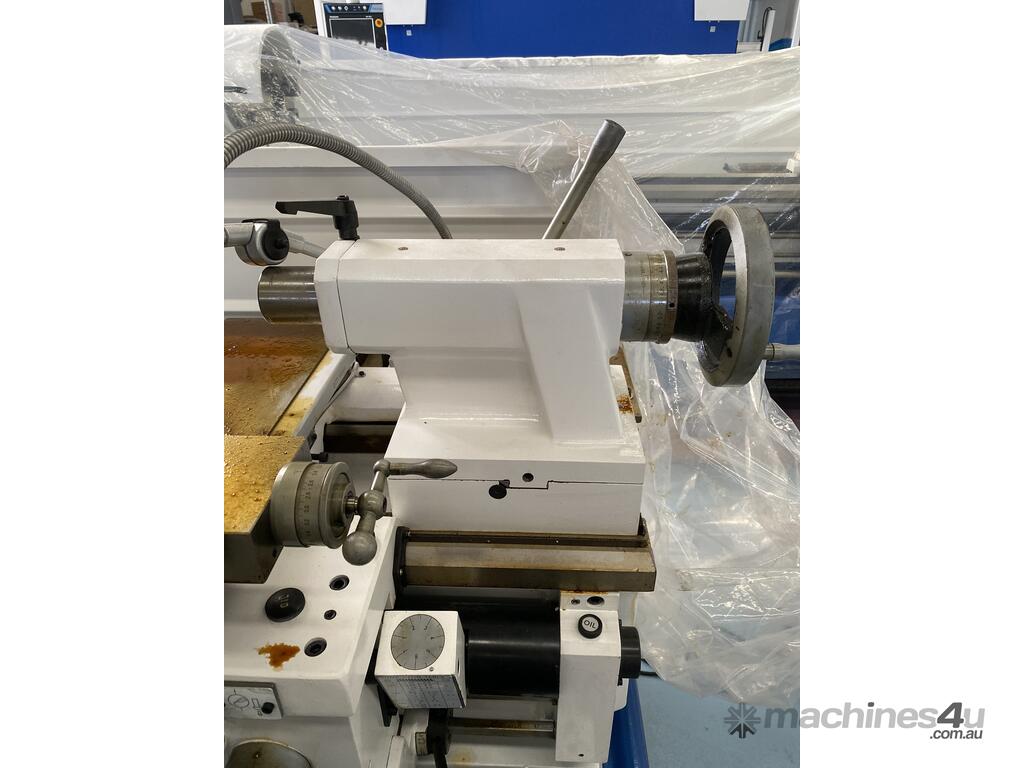

Taper of tailstock sleeve - Morse4
Travel of tailstock sleeve - 128 mm
Dia. of tailstock sleeve - 60 mm
Main drive motor - 5.5 Kw
Machine weight - 2045 kg
Machine dimensions- 2200 x 1080 x 1370 mm
