PUMA MANUAL LATHE | 3000MM BC | 660MM SWING | 105MM SPINDLE BORE | DIGI READOUT | QUICK CHANGE TP

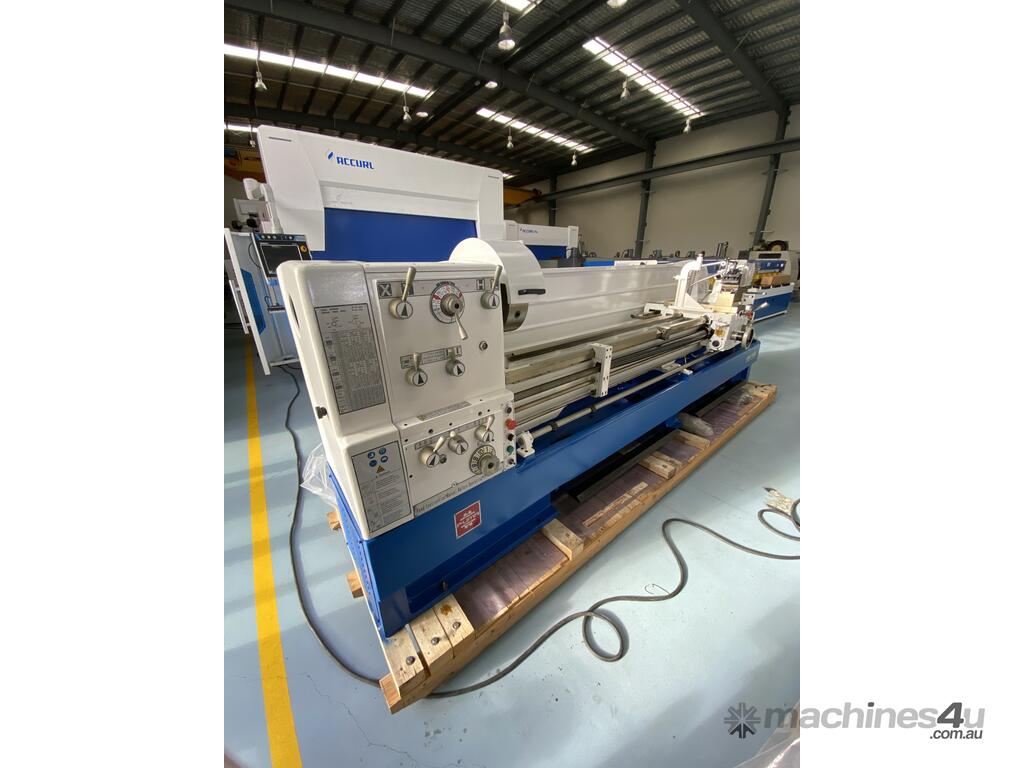

New Puma C6266 x 3000mm Lathes are a medium duty 3m between centre lathe ideal for any engineering and maintenance workshop. They come with an array of features and standard inclusions to enhance productivity and speed up the machining process. A great machine packed with features.

Features -

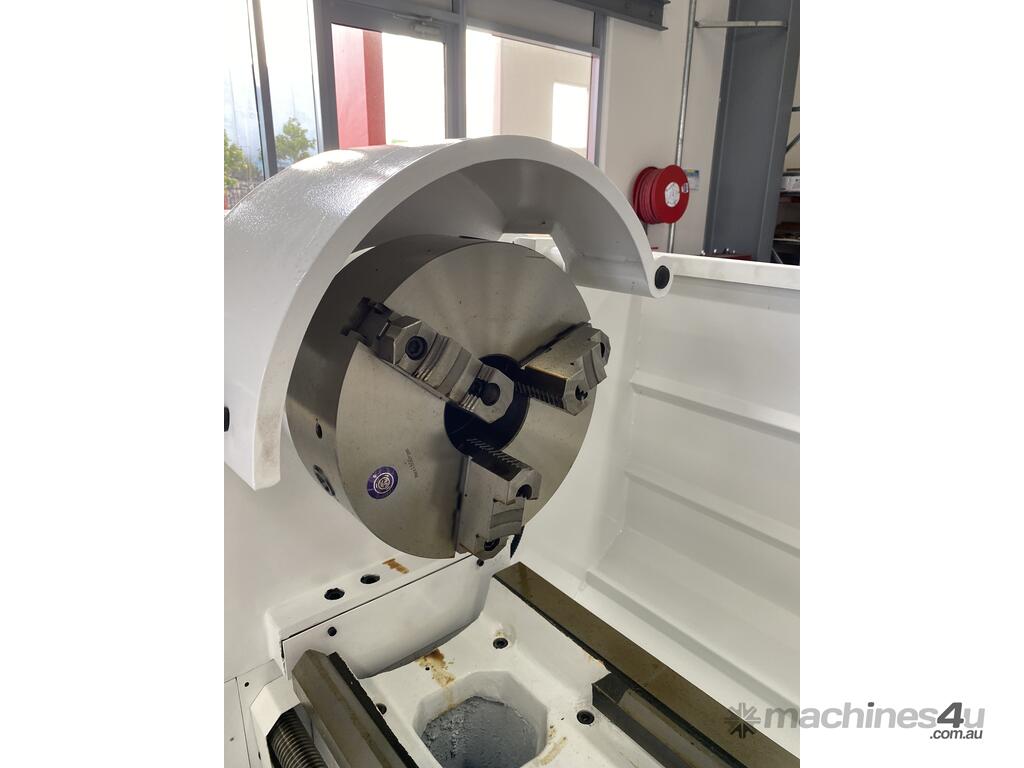

1. With standard 3-jaw chuck.
2. 400mm 4-jaw chuck.
3. Face place.
4. Steady rest.

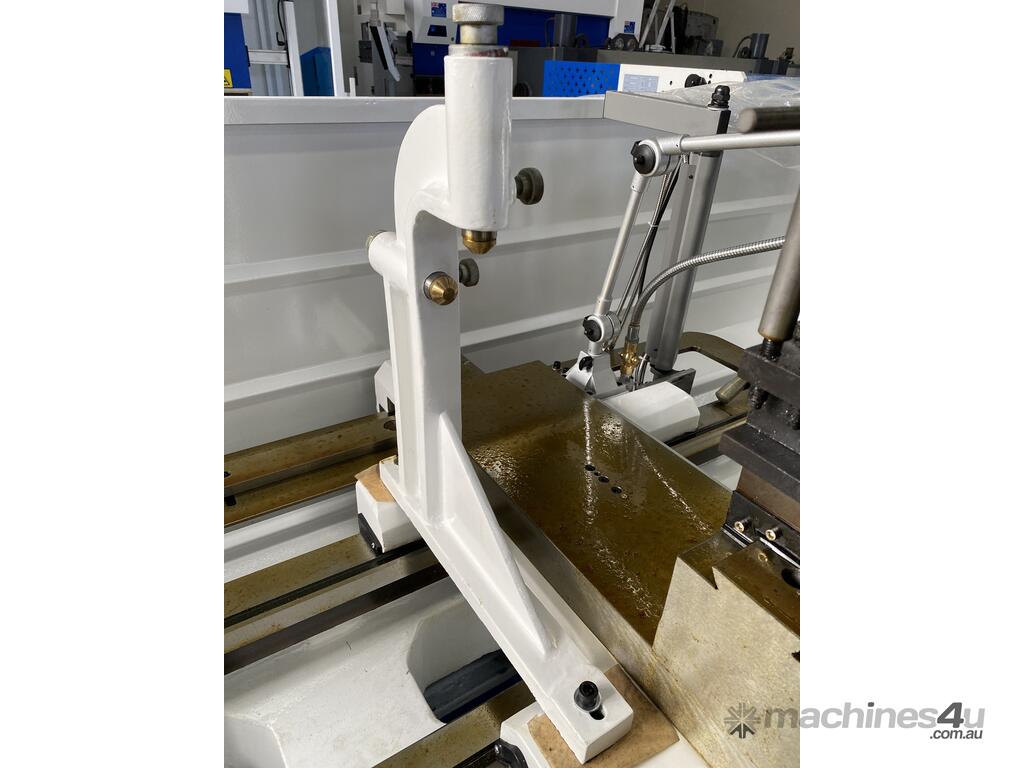

5. Following rest.
6. Oil gun.
7. Thread chasing dial.
8. Operation manual.
9. One set of wrenches.
10. 2 dead centers.
11. Sleeve.
12. Foot brake.
13. Coolant pump.
14. Halogen lamp.
15. Splash guard.
16. One piece iron casting stand.

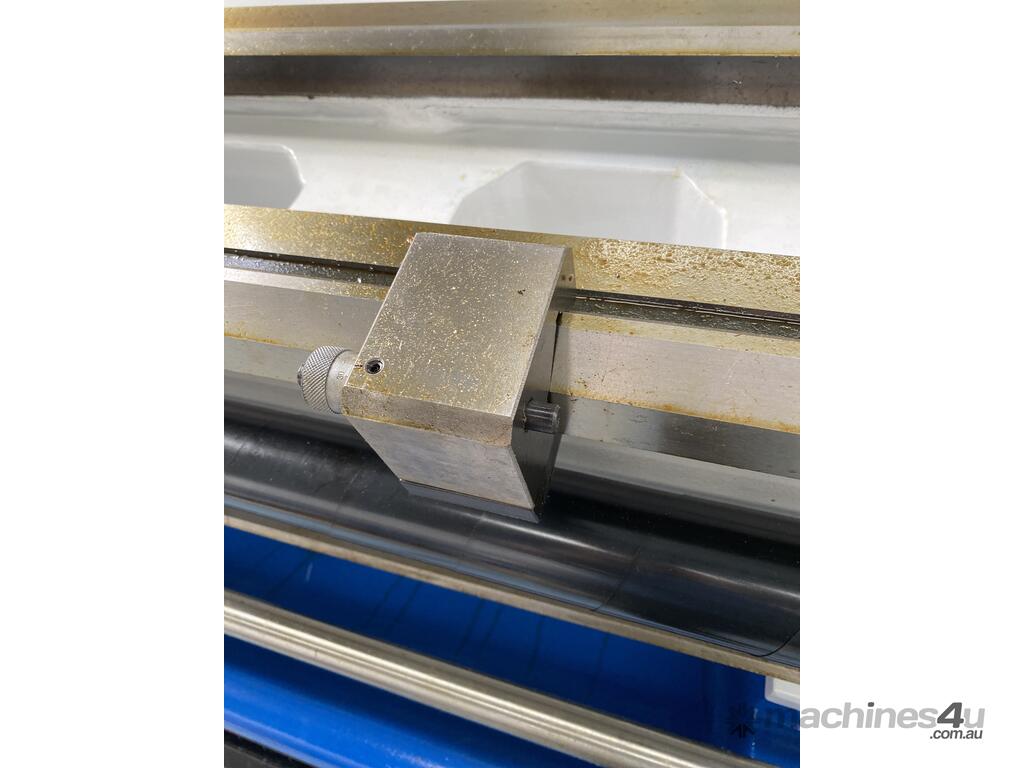

17. Micro carriage stop.
18. Direct mount camlock.
19. Chuck cover.

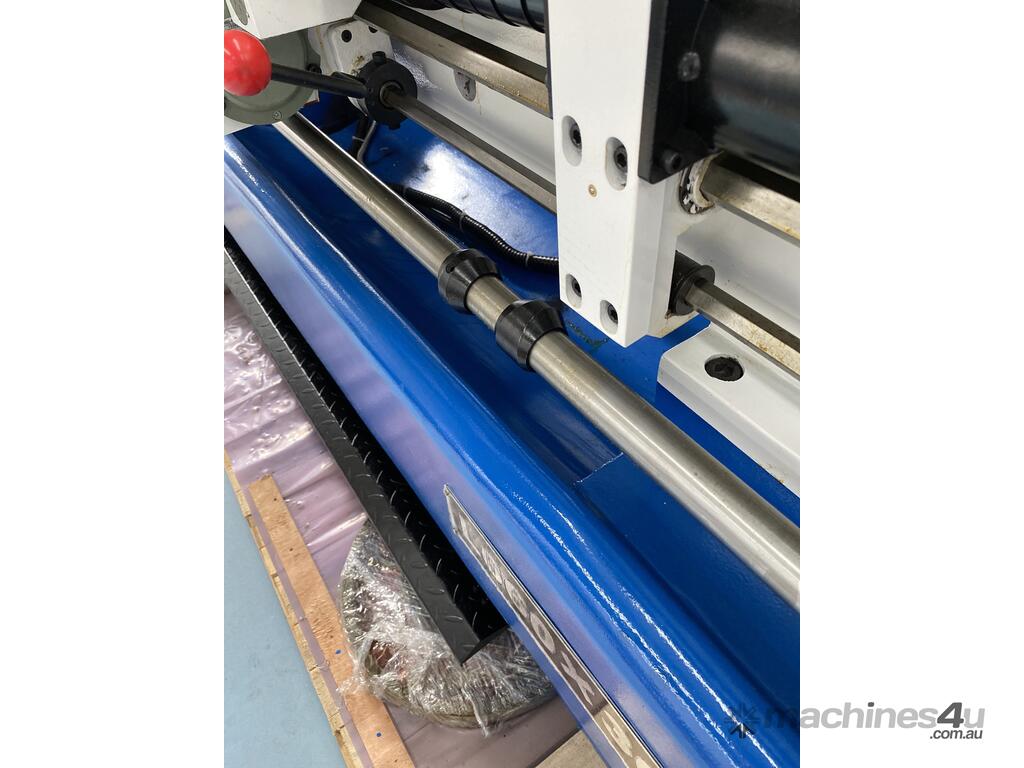

20. Lead screw cover.
21. Tool post cover.
22. Live centre.
23. Taper turning attachment.
24. Italian QCTP with 4pcs tool holders.

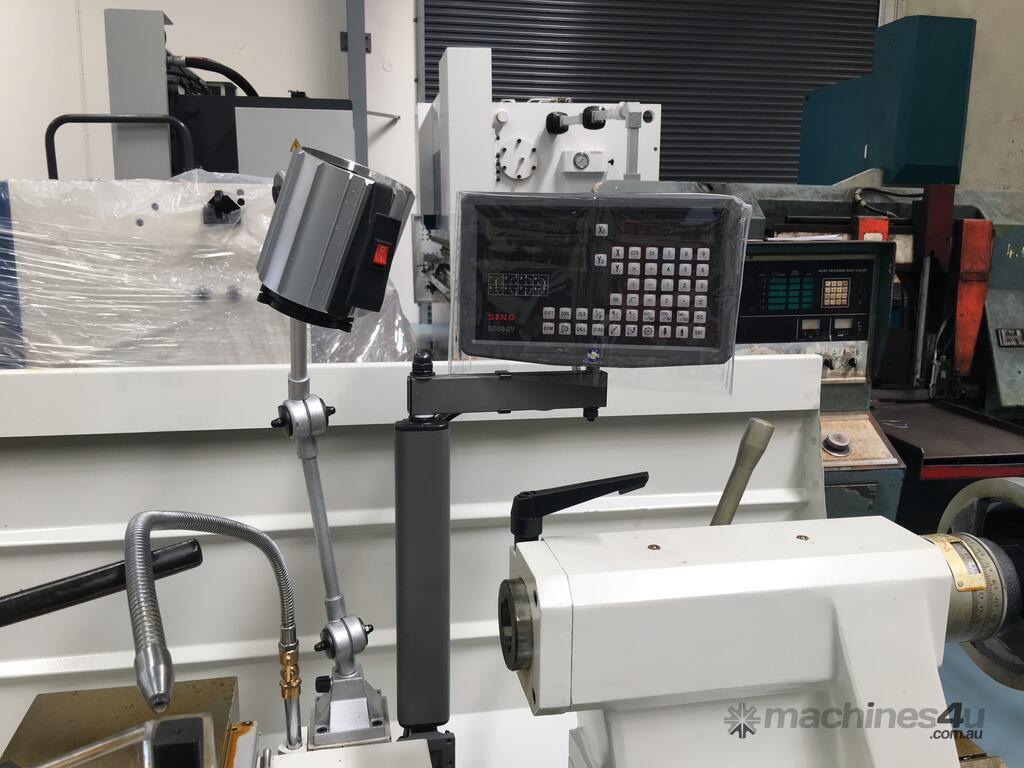

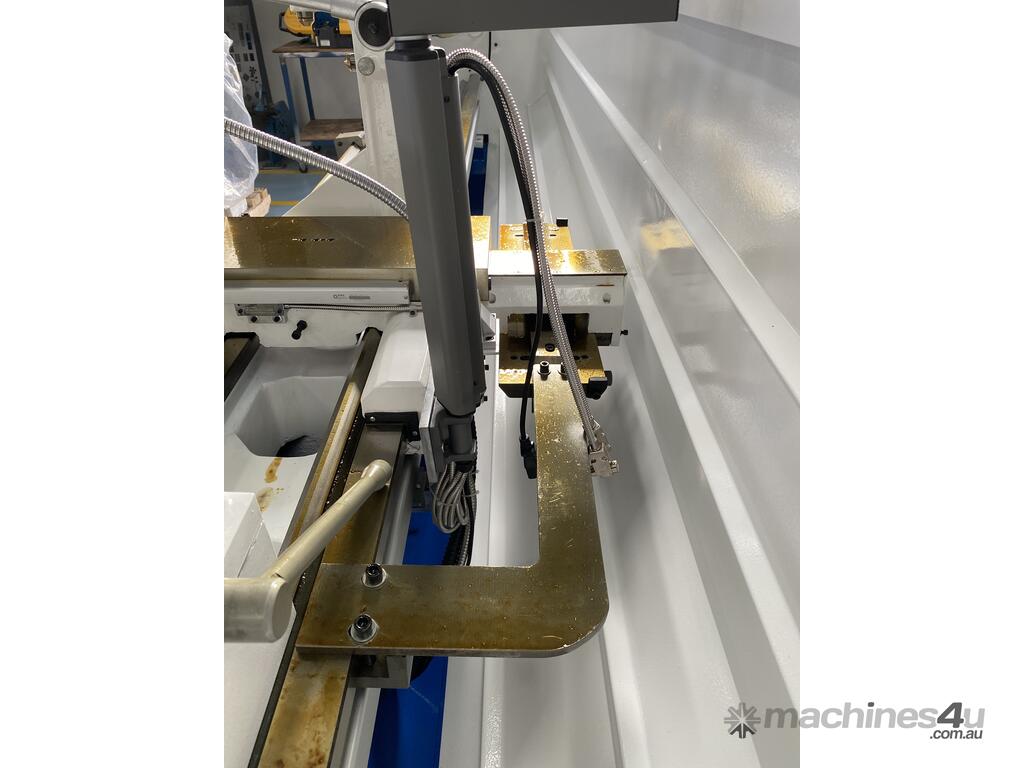

25. SINO 2 axis Dro..

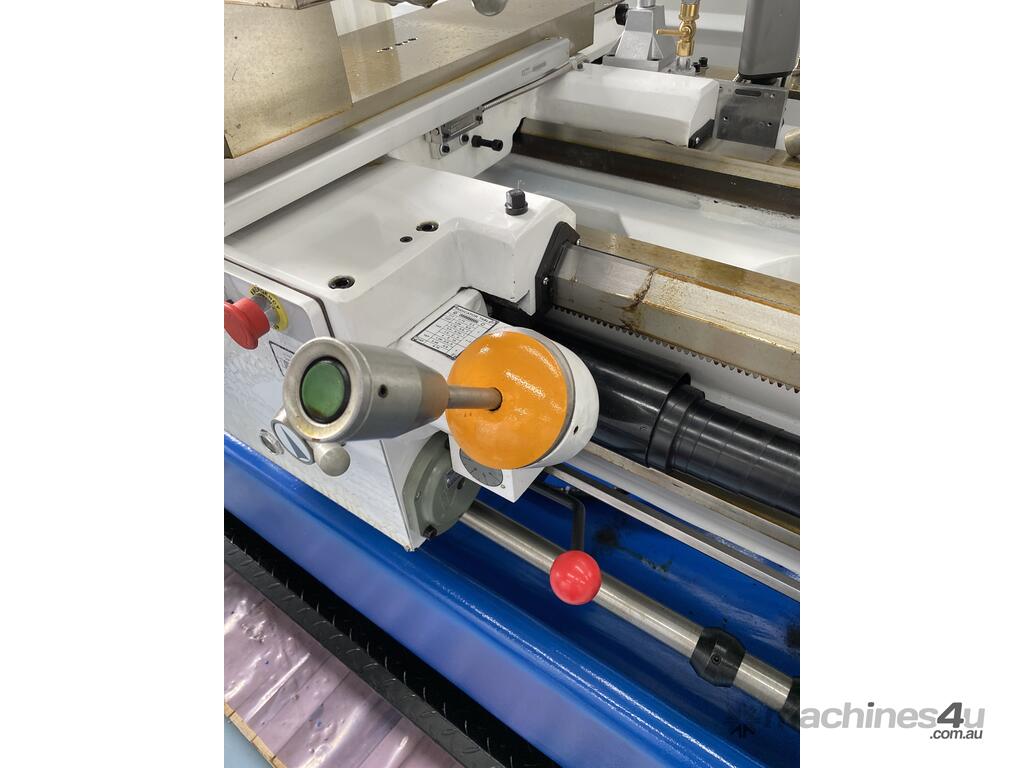

26. Rapid traverse on carriage in 4 directions.
27. 103mm spindle bore.

Specifications -

Swing over bed 660 mm
Swing over cross slide 455 mm
Centre distance 3000 mm
Swing over gap 885 mm
Length of gap 200 mm
Bed width 350 mm
Spindle nose D 1-8
Spindle bore 103 mm
Spindle bore taper No.7 morse

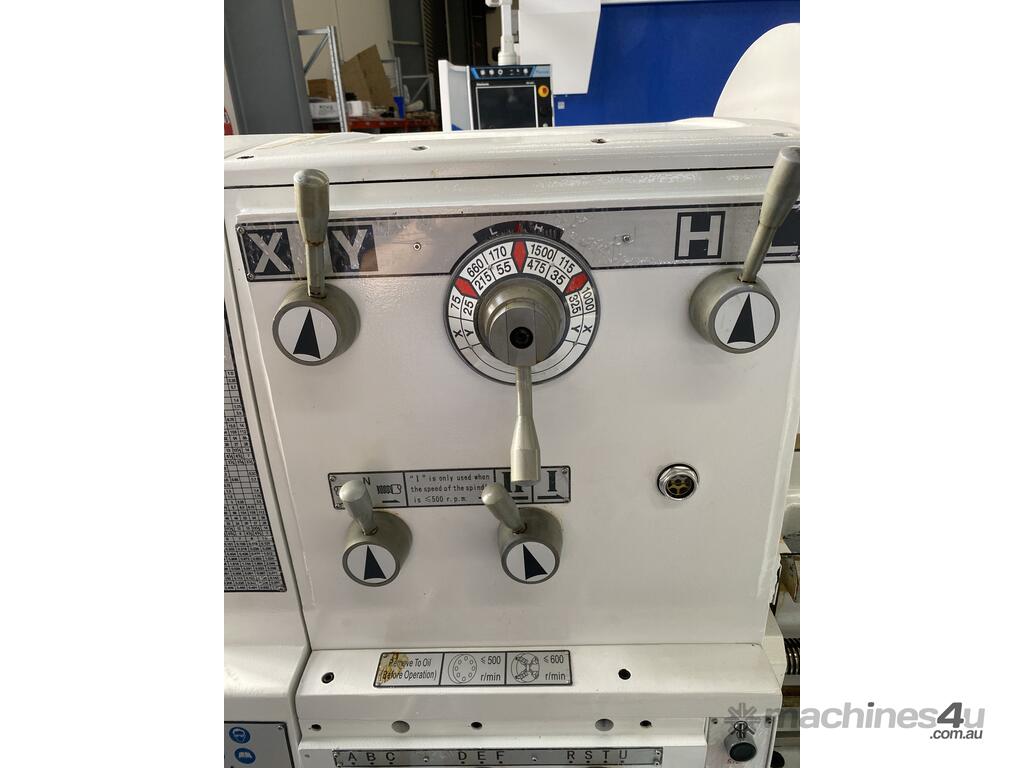

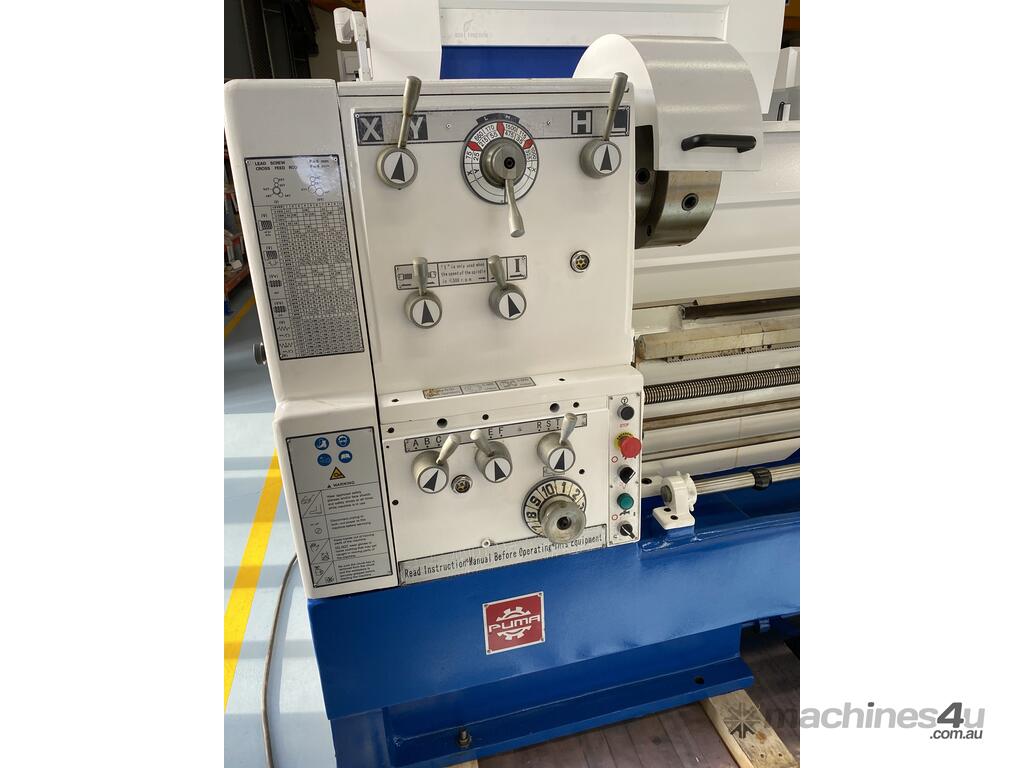

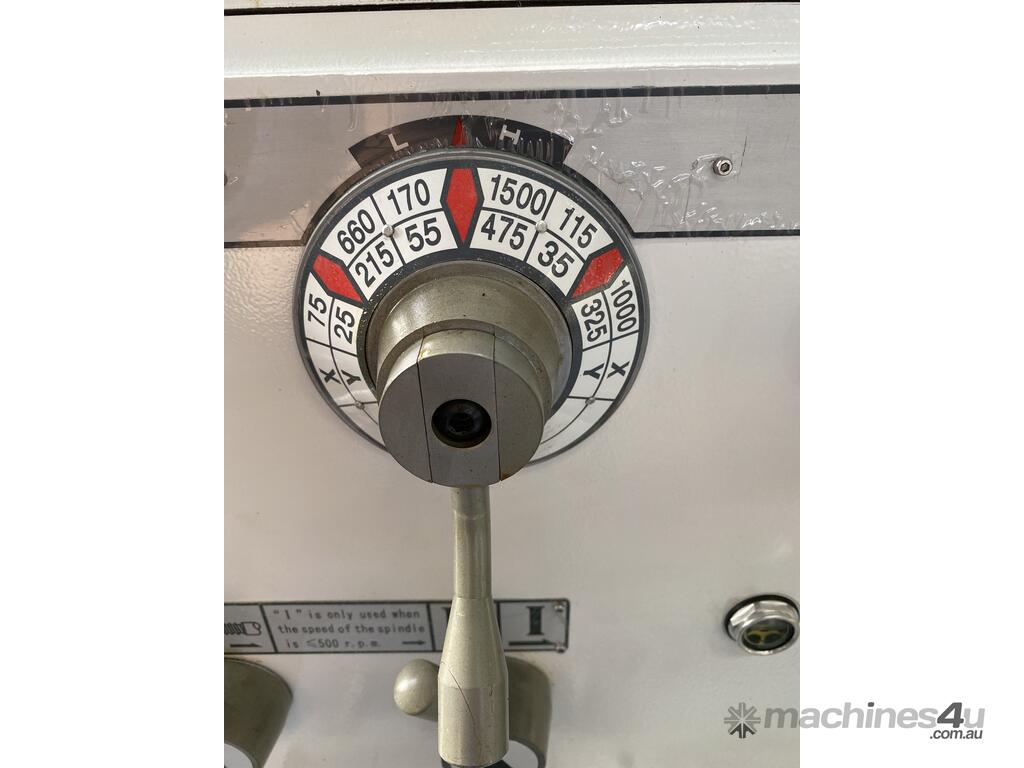

Spindle speed 12 steps
Spindle speed range 25 - 1600 r/min
Metric thread range 47 kinds, 0.2 - 14 mm
Imperial thread range 60 kinds, 2 - 112 TPI
Longitudinal feed range 35 kinds, 0.059 - 1.646 mm/rev
Cross feed range 35 kinds, 0.020 - 0.573 mm/rev
Tailstock sleeve diameter 75 mm
Tailstock sleeve taper No. 5 morse
Tailstock sleeve travel 180 mm
Compound rest travel 130 mm
Cross slide travel 355 mm
Machine weight 3200 kg
Machine dimensions 4350 x 1150 x 1510 mm
