PUNCH & SHEAR Q35Y-16 H-66

ACCESSORIES:
8 sets of Punch & dies 9,11,15,17,19,22,25,28mm,Larger Punch Holder,60mm die,68mm punch length,Head dia 35mm,Neck 30mm

OPTIONAL ACCESSORIES:
Punches & Dies,Larger Punch Table,Bigger Throat Depth,More Powerful Motor,Single Vee Pressbrake,Angle Bending press,Chennel Punch Die holder,Pipe Notcher Die Holder,Vee Notcher

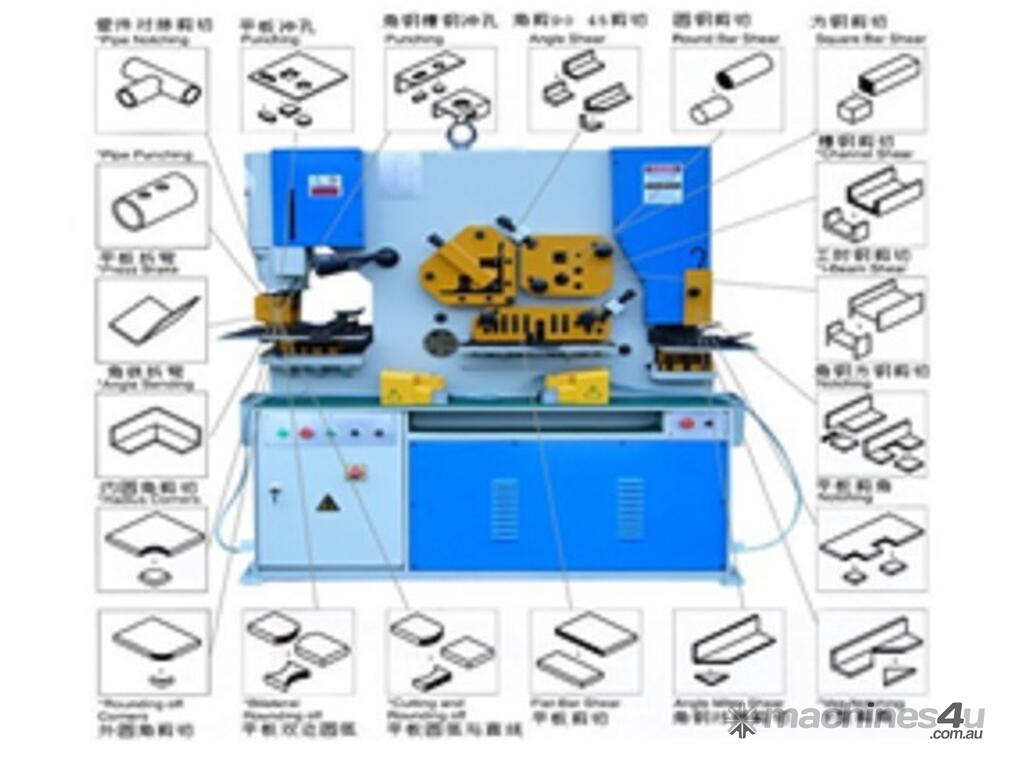

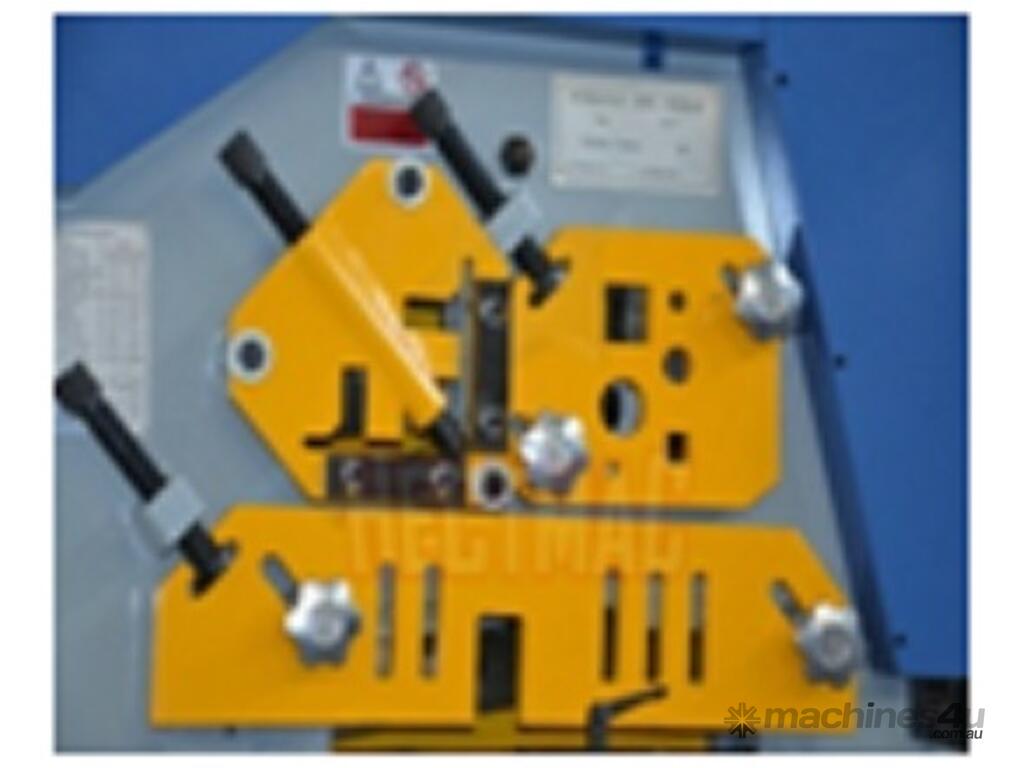

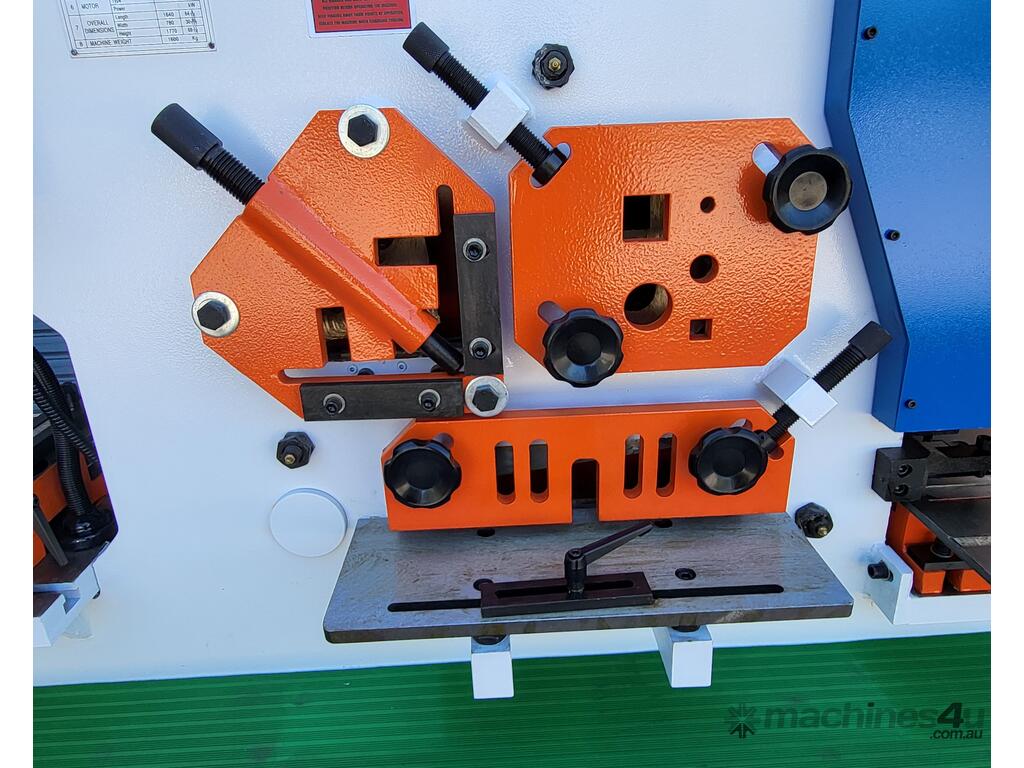

FEATURES:* Double Cylinder machines are well designed and engineered with high power for rigidity and reliability.*Two Control foot padels for different stations which allows seperated operations to be carried on simultaneously.Work stations are for Punching,Notching,Angle Iron Shearing,Plate/Flat bar shearing,Round/Square Bar Shearing.*Adjustable Length Stops with back Gauge.*Adustable Strokes can increase punching speed.*Mitre cutting option for angle iron. *Punches as large as 50mm can be accomodated.

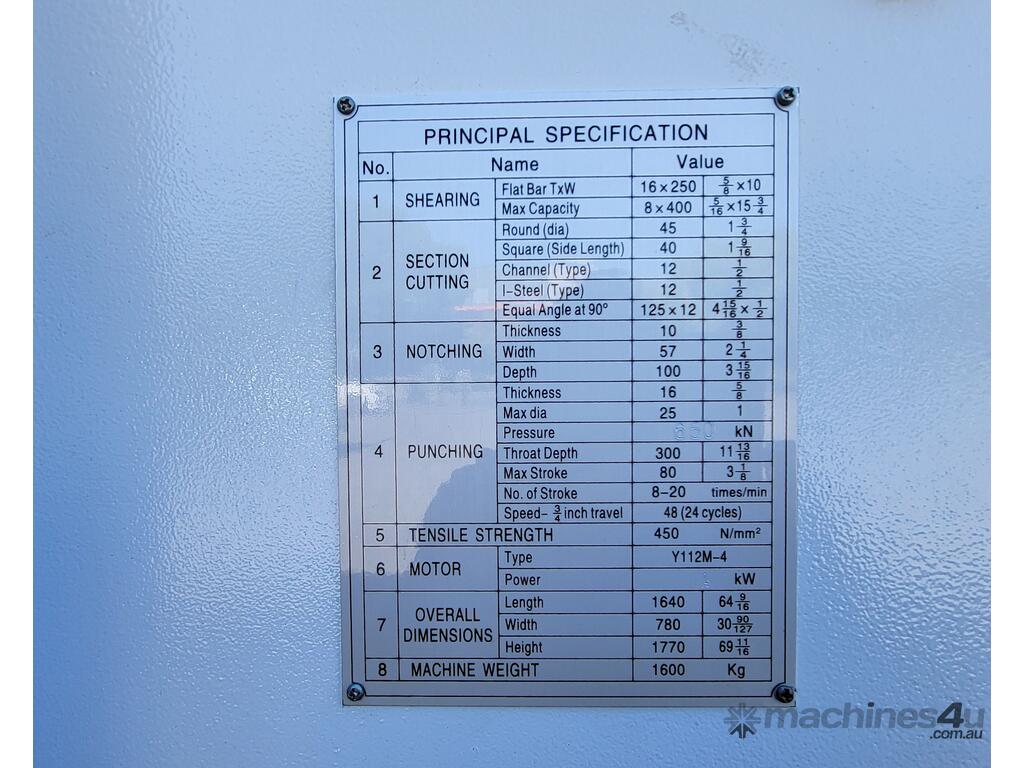

Parameters of Category: Sheetmetal Machinery
Punching Force 66Ton
Punching Capacity Dia22x20mm/Dia50x9mm
Throat Depth 300mm
Max Stroke 80mm
Flat Shearing 16x250mm/8x400mm
Angle Shearing 125x12mm90/60x6mm45
Mitre Shearing 60x6mm45deg
Round Bar Shear 45mm
Square Bar Shear 40x40mm
Channel Shear 126x53mm
HBeam Shear 126x74mm I beam
Motor 4kw 3ph
Weight Nett/Gross 1600/1600
Volume 2.3222
