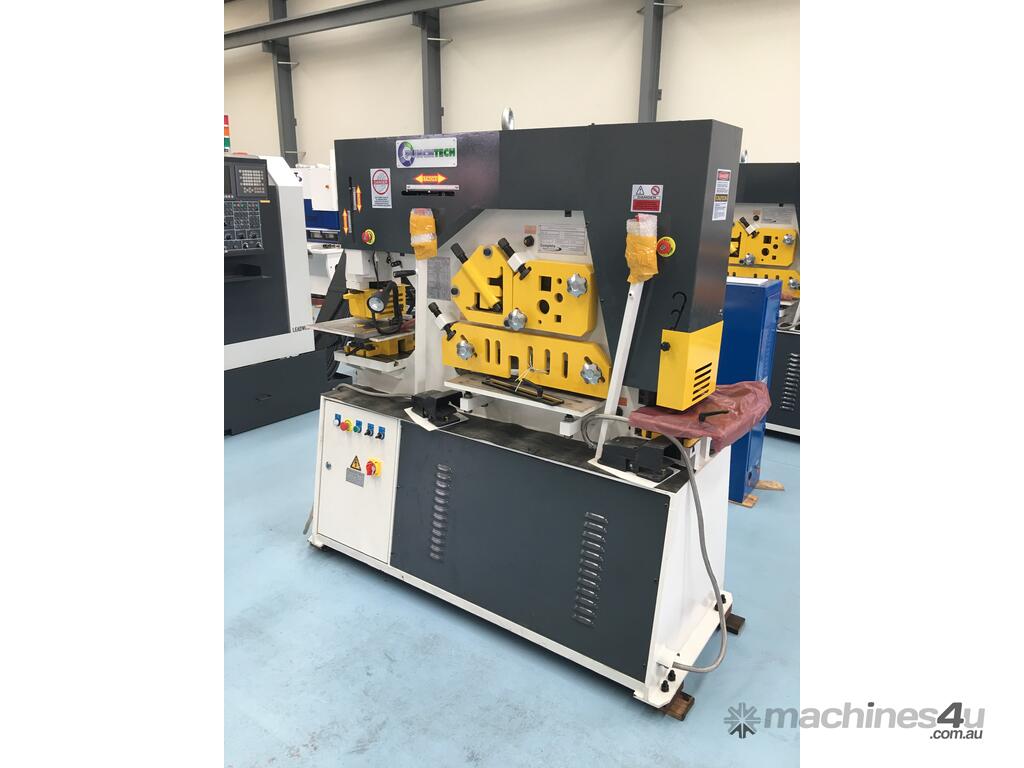

Punchtech punch and shears offer value for money with optional features our competitors offer as extras included on our machine at very competitive prices.

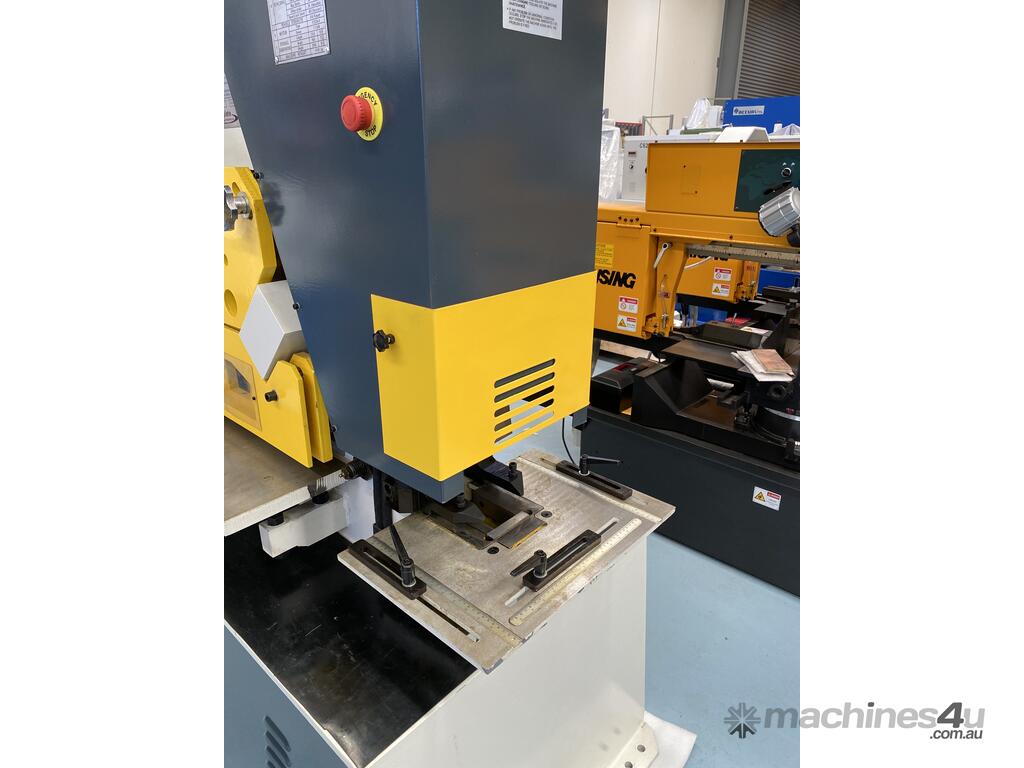

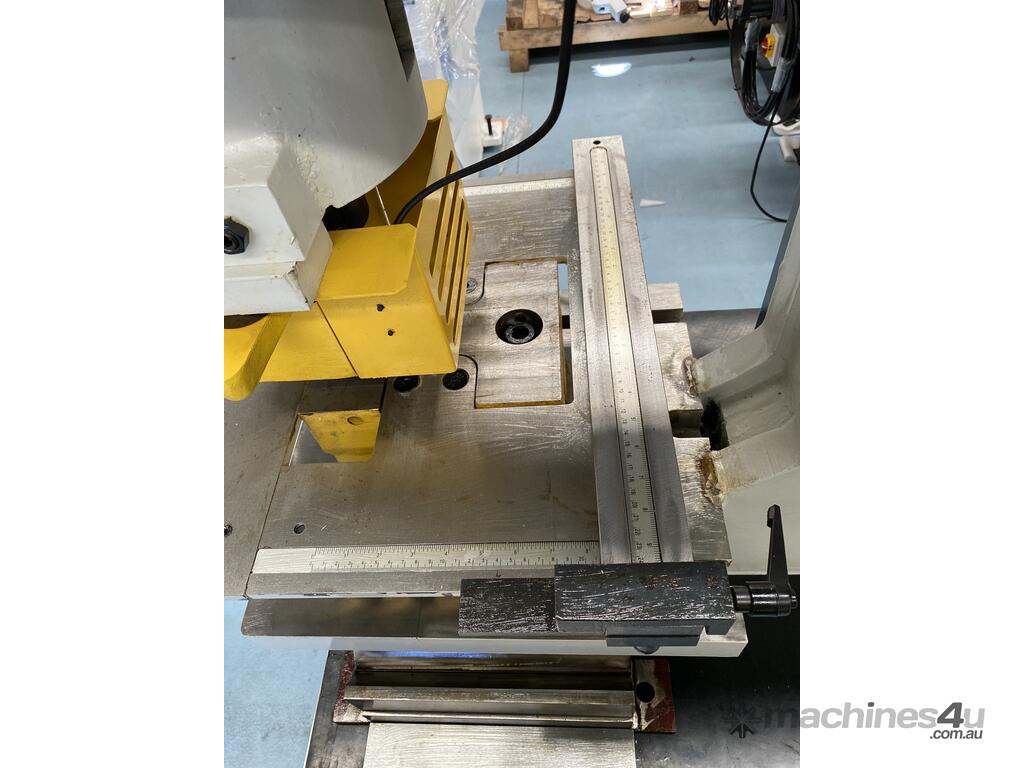

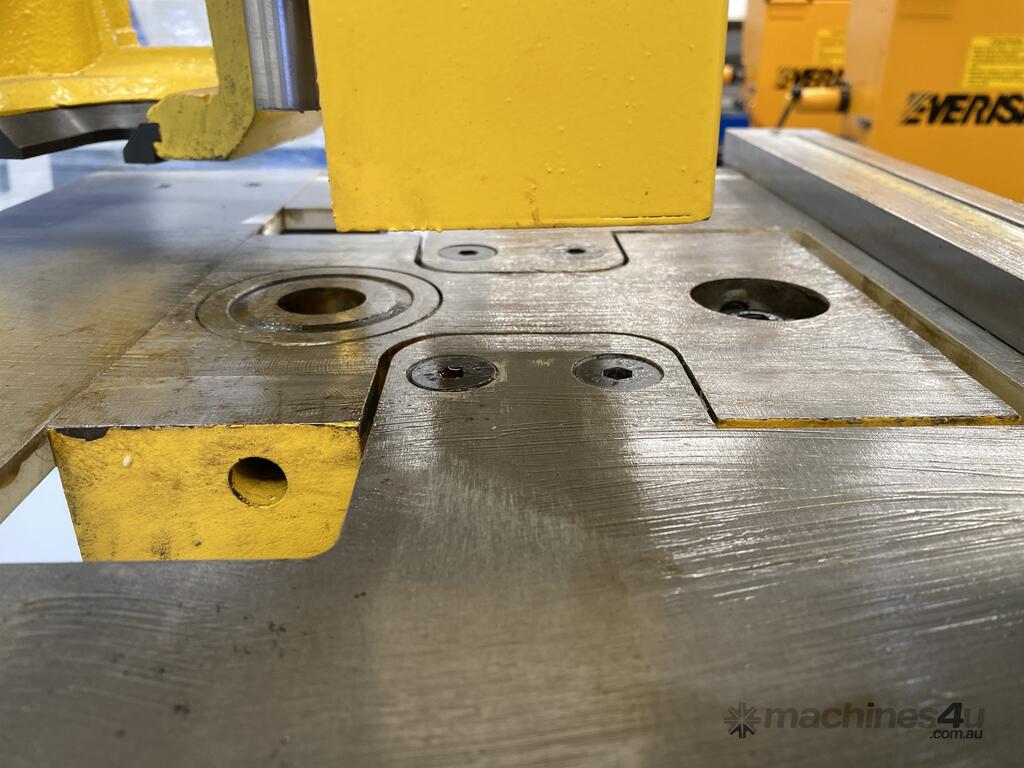

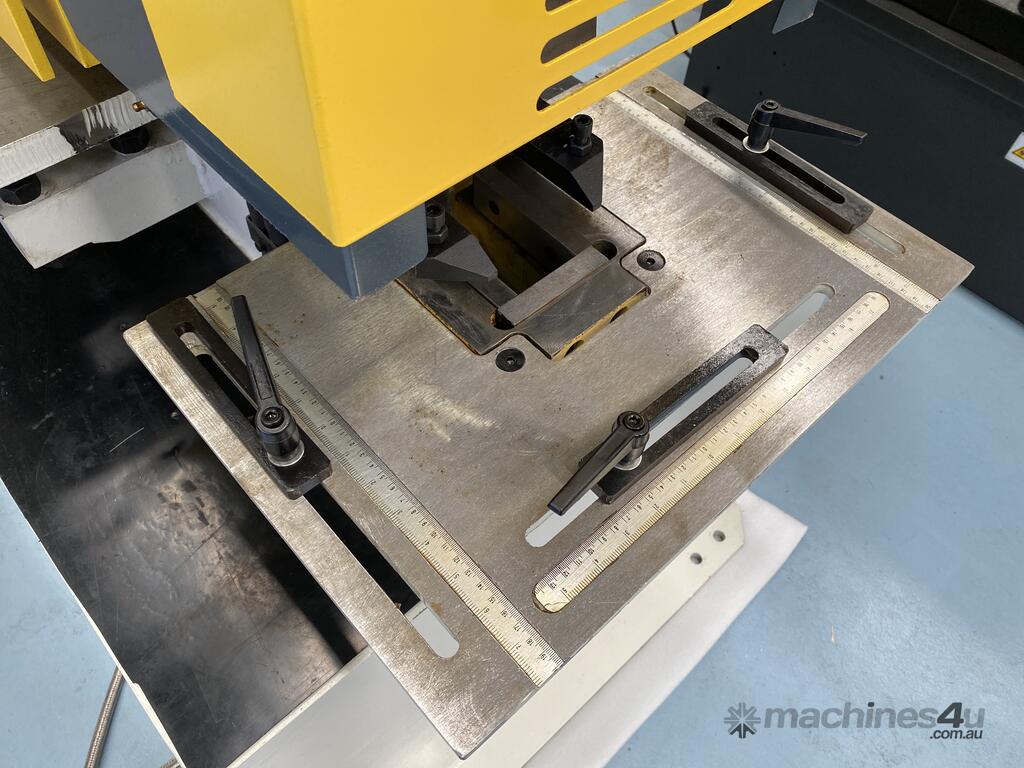

The punching table has the ability to use over sized punch and dies up to 50mm as standard giving flexability when getting large hole requirements. The punching and notching tables have rules on them so when getting repetitive jobs it can be a set and forget exercise.

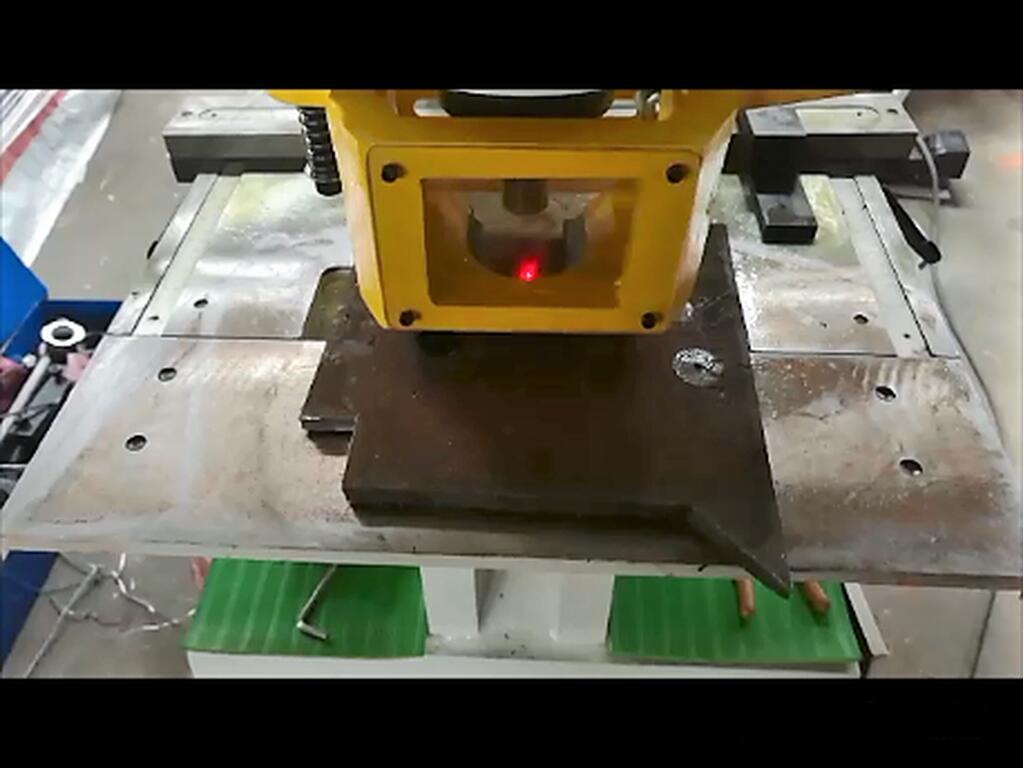

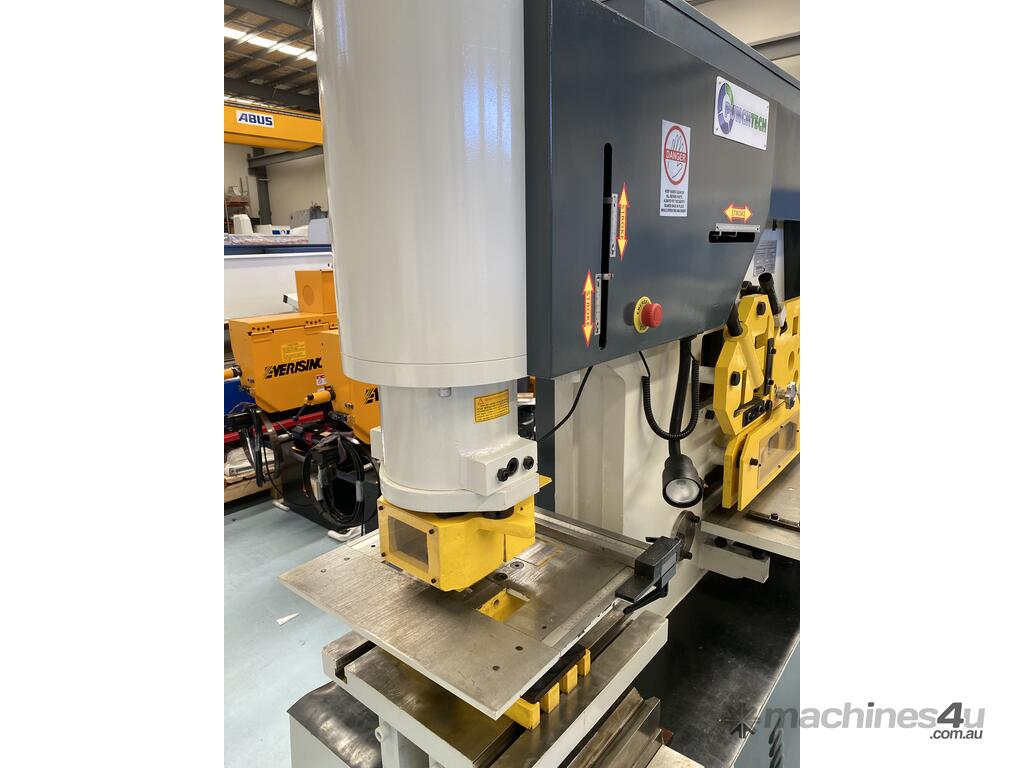

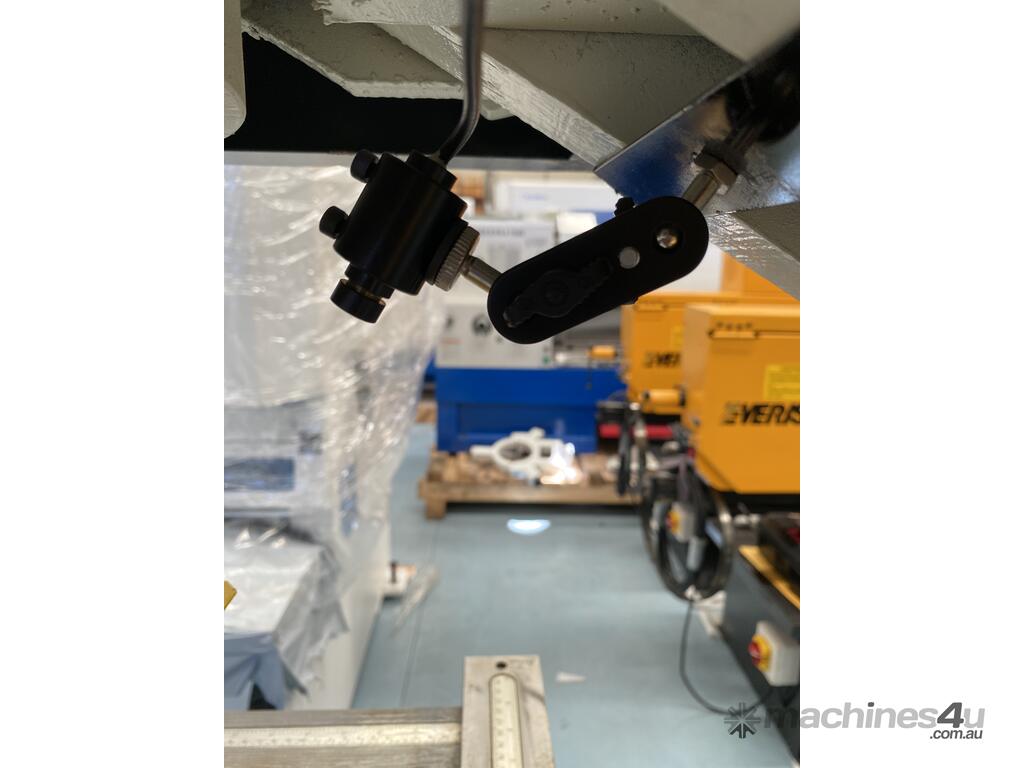

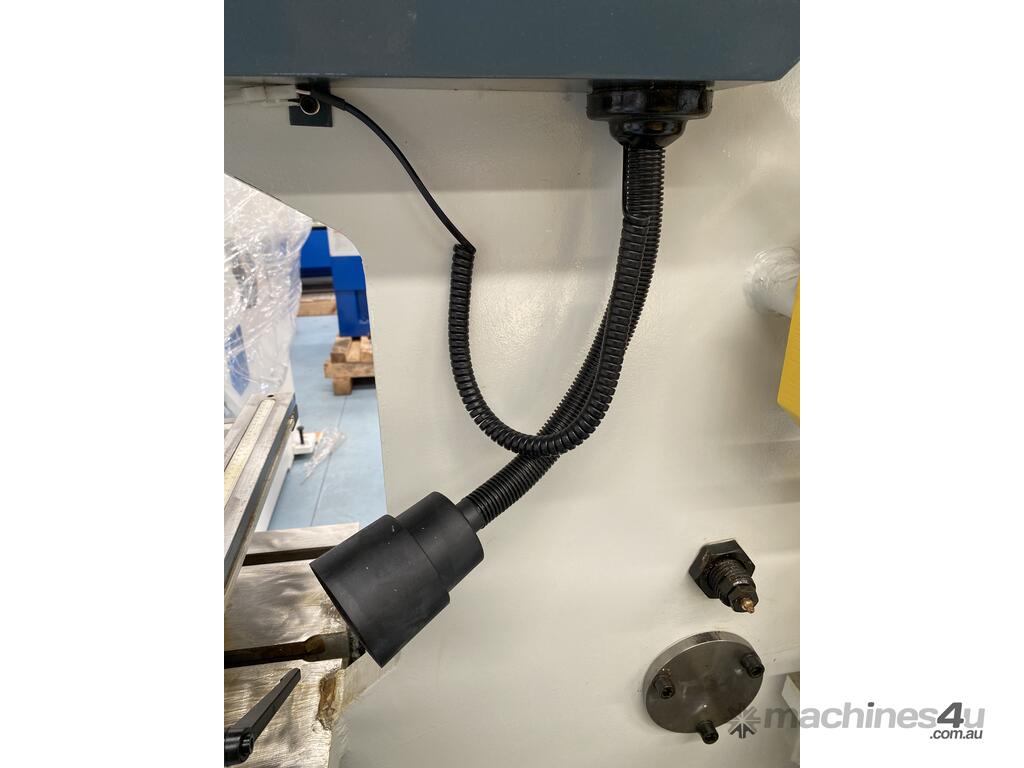

The punching head is equipped with a laser light which emits a red laser onto the plate so you know exactly where the punch will penetrate the plate so you dont need to inch the punch down enabling quicker punching times.

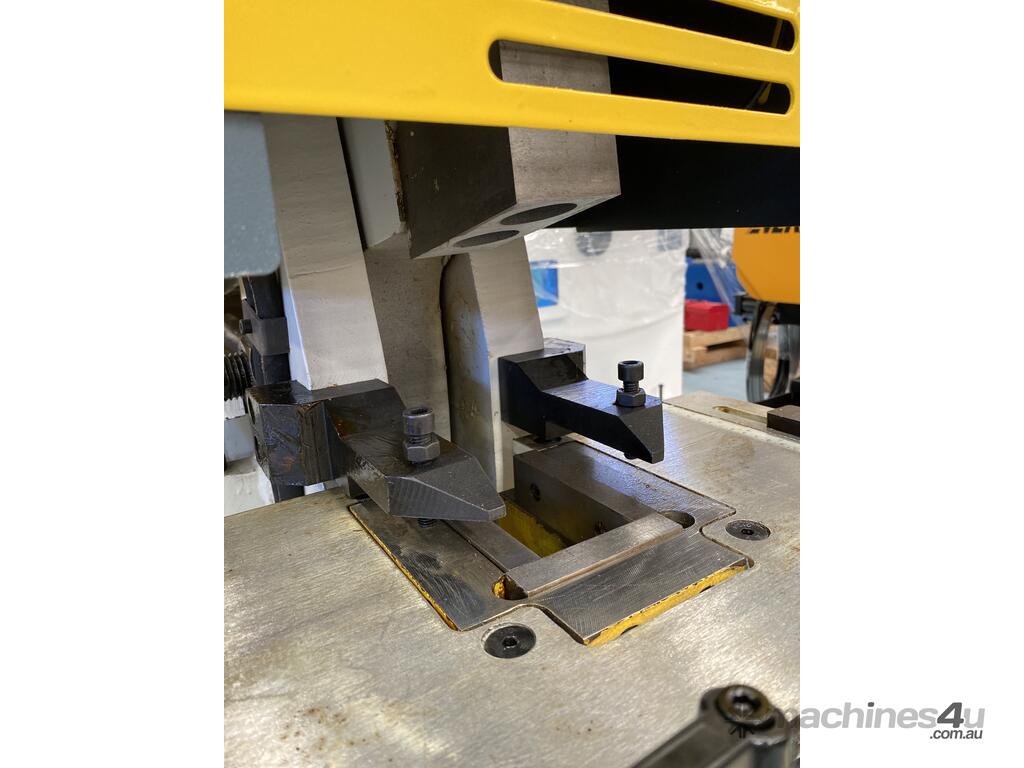

The plate clamping is hydraulic so again this is a convenient feature and also time saving because no adjustment is needed to accomodate different plate thickness.

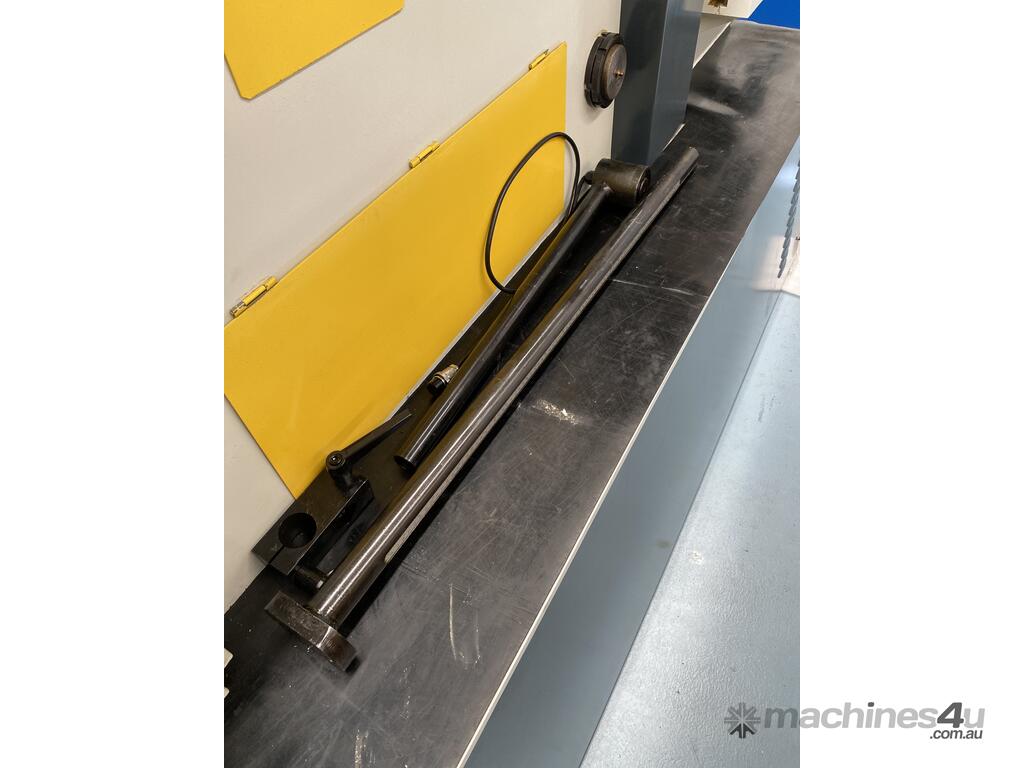

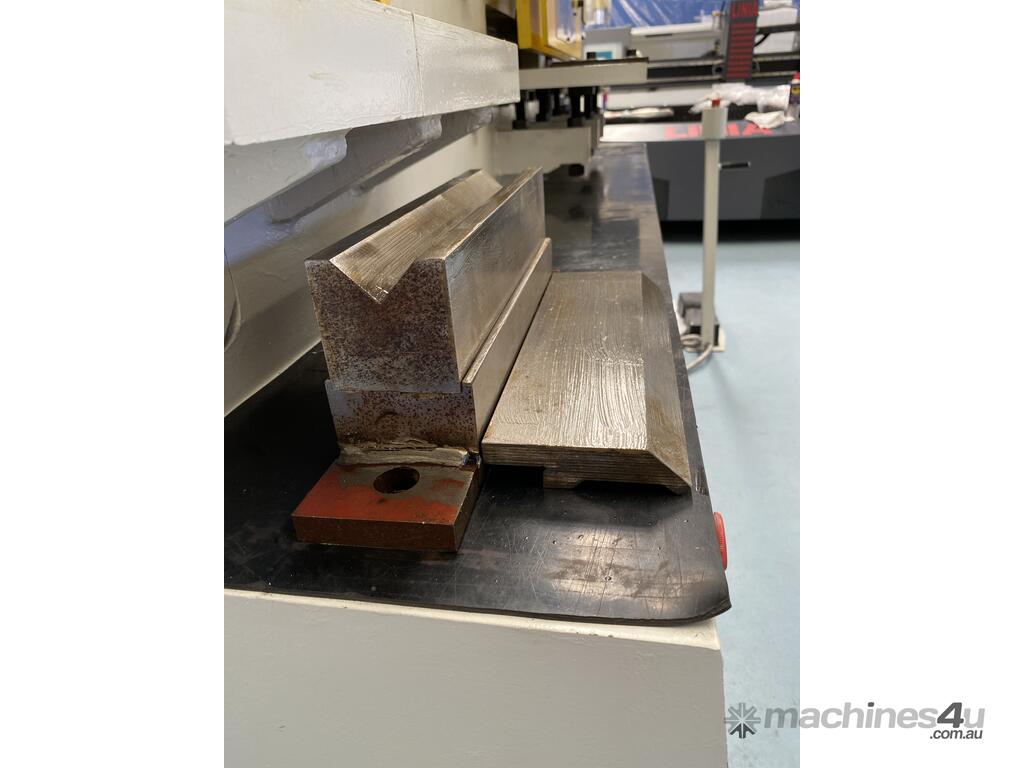

A press brake tool attachment is standard which enables bending of short plate further enhancing value adding this machine offers!
Features -
- PRESS BRAKE BENDING ATTACHMENT
- LASER PUNCH ALIGNMENT SYSTEM
- TWIN CYLINDER DESIGN
- DUAL FOOT PEDALS
- INDEPENDANT OPERATION (PUNCHING - SHEARING/NOTCHING)

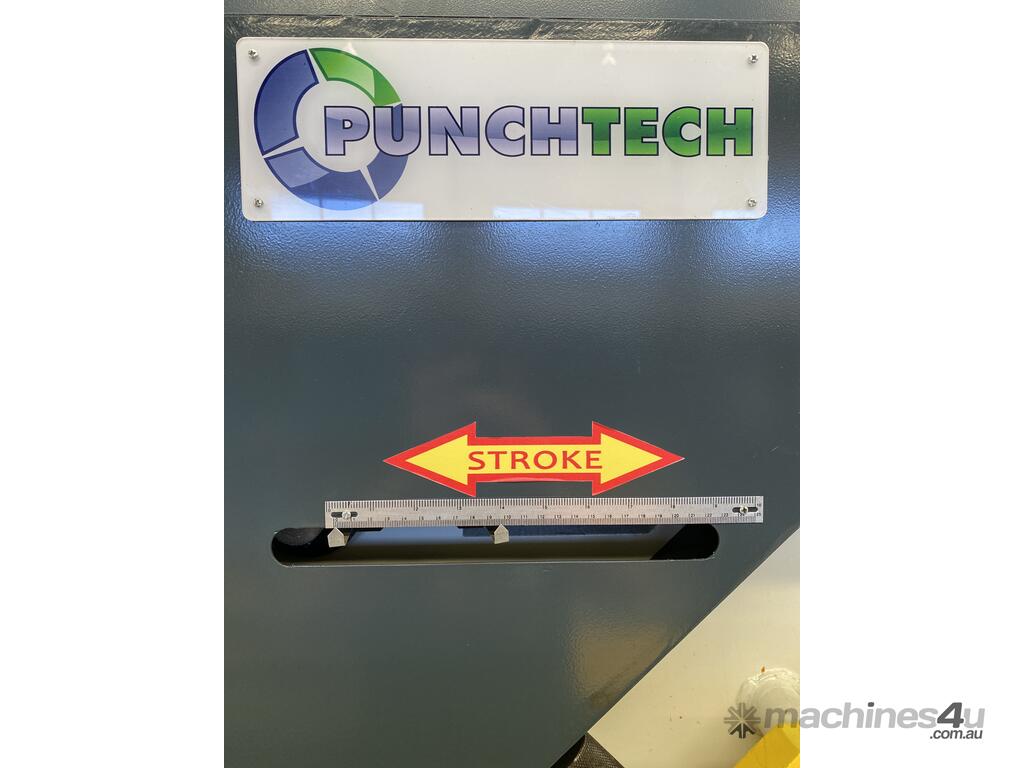

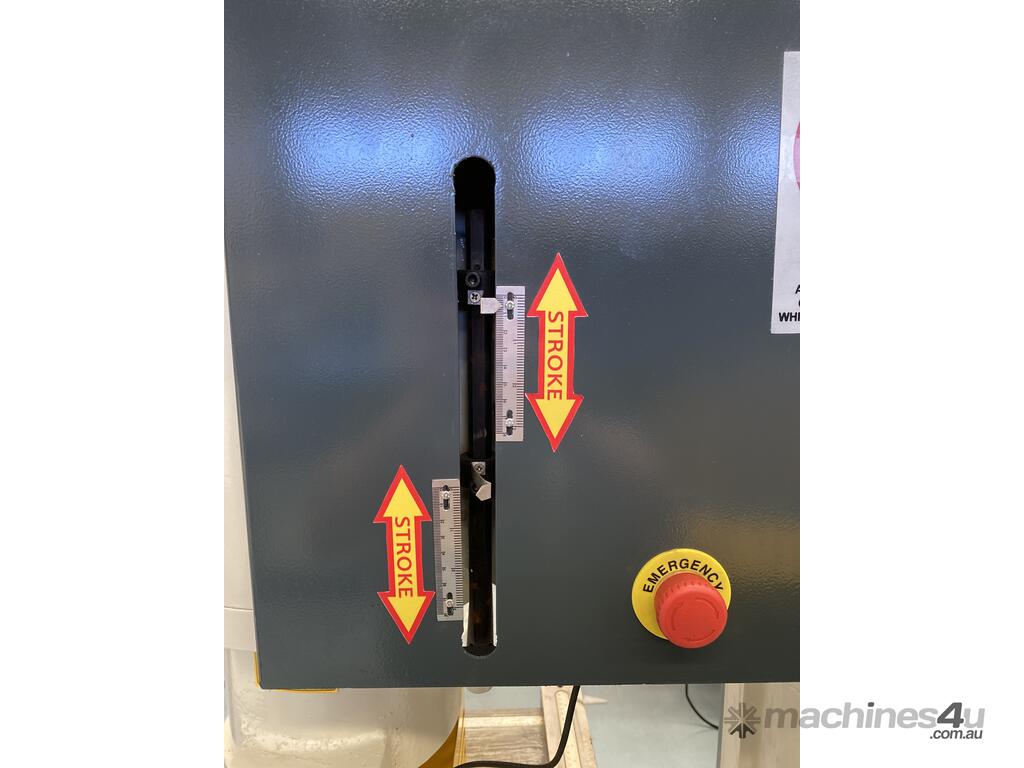

- ADJUSTABLE STROKE WITH RULES
- 10 SETS OF ROUND PUNCHES AND DIES UP TO 30MM INCLUDED
- DUAL PUNCHING TABLE UP TO 50MM OVERSIZED HOLES
- SAFETY COVERS WITH SWITCHES
- TOUCH AND CUT AUTO LENGTH STOP

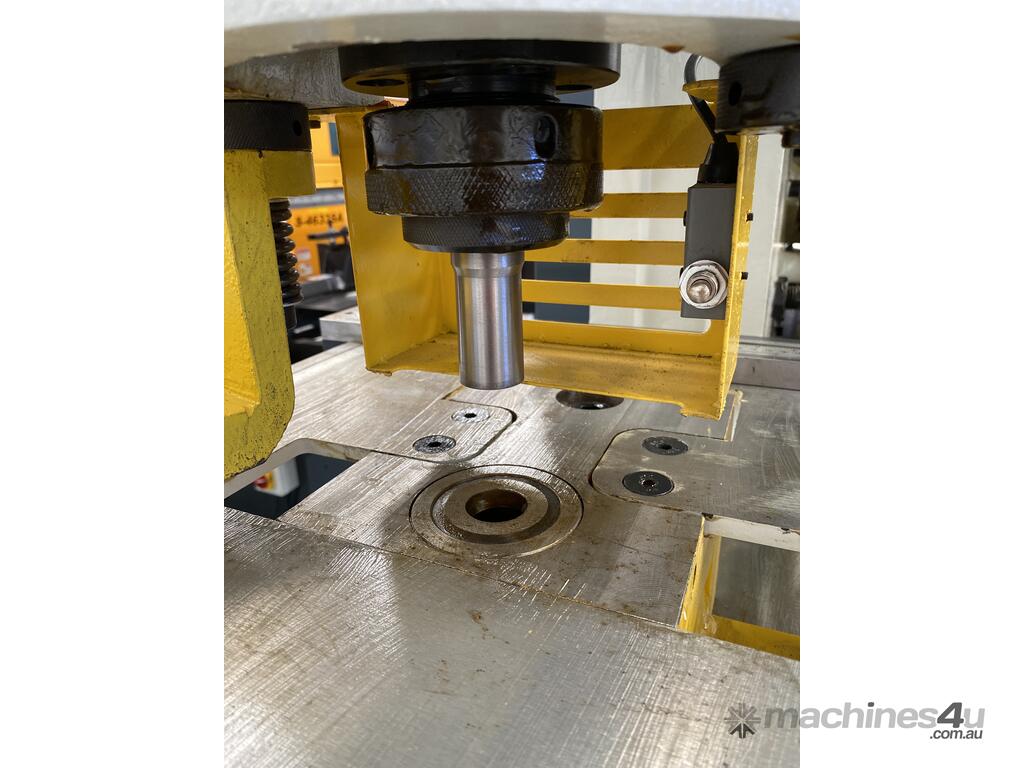

- QUICK RELEASE PUNCH HOLDER
- HYDRAULIC CLAMPING ON PLATE
- RULES AND STOPS ON PUNCHING, SHEARING AND NOTCHING TABLES
- LARGE THROAT DEPTH
- PRESS BRAKE TOOLING ATTACHMENT
Specs -
- CAPACITY - 90 TON
- WORKING PRESSURE - 900KN
- PUNCHING CAPACITY - 30 DIA X 20 mm
- MAX STROKE - 80
- THROAT DEPTH - 355 MM
- ROUND BAR CUTTING CAPACITY - 50 mm
- SQUARE BAR CUTTING CAPACITY - 50 X 50 MM
- NOTCHING THICKNESS - 13 MM
- NOTCHING WIDTH - 57 MM
- ANGLE CUTTING AT 90° - 140 X 140 X 12 MM
- ANGLE CUTTING AT 45° - 50 X 50 X 5 MM
- SHEARING MAX THICKNESS - 20MM
- SHEARING MAX WIDTH - 480 MM
- MOTOR - 5.5 KW
- WEIGHT - 2200 KG
- DIMENSIONS - 790 X 1860 X 1900 MM
