Pipe & Tube Notcher PNM-1/2, Up to 3" OD Capacity

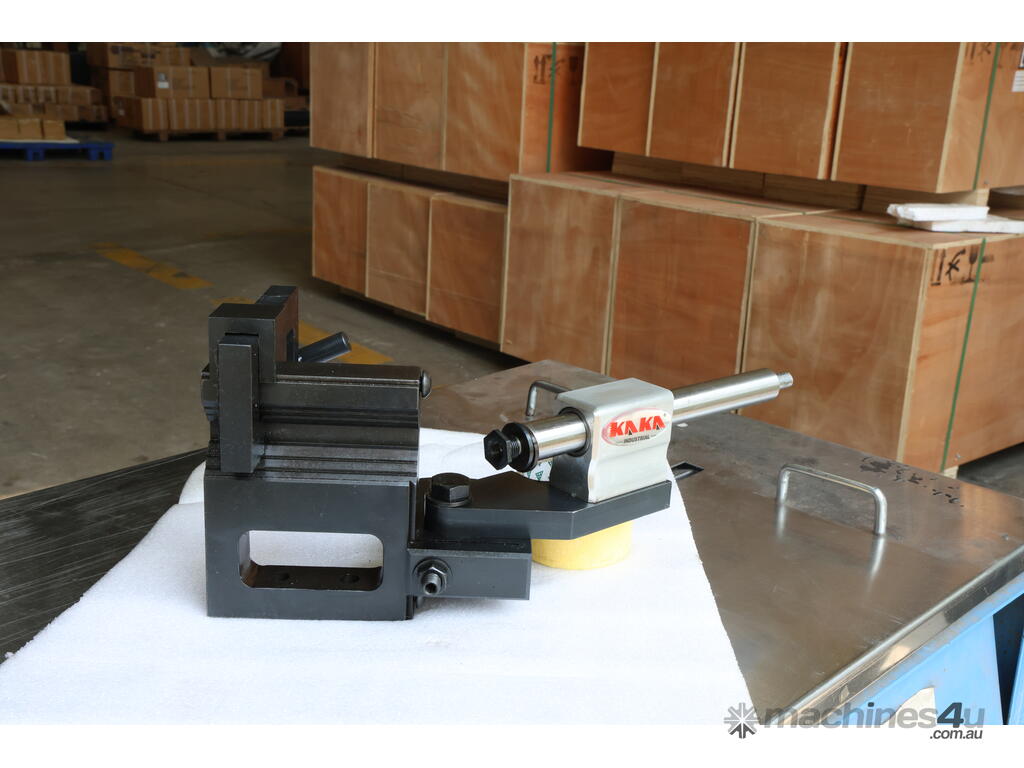

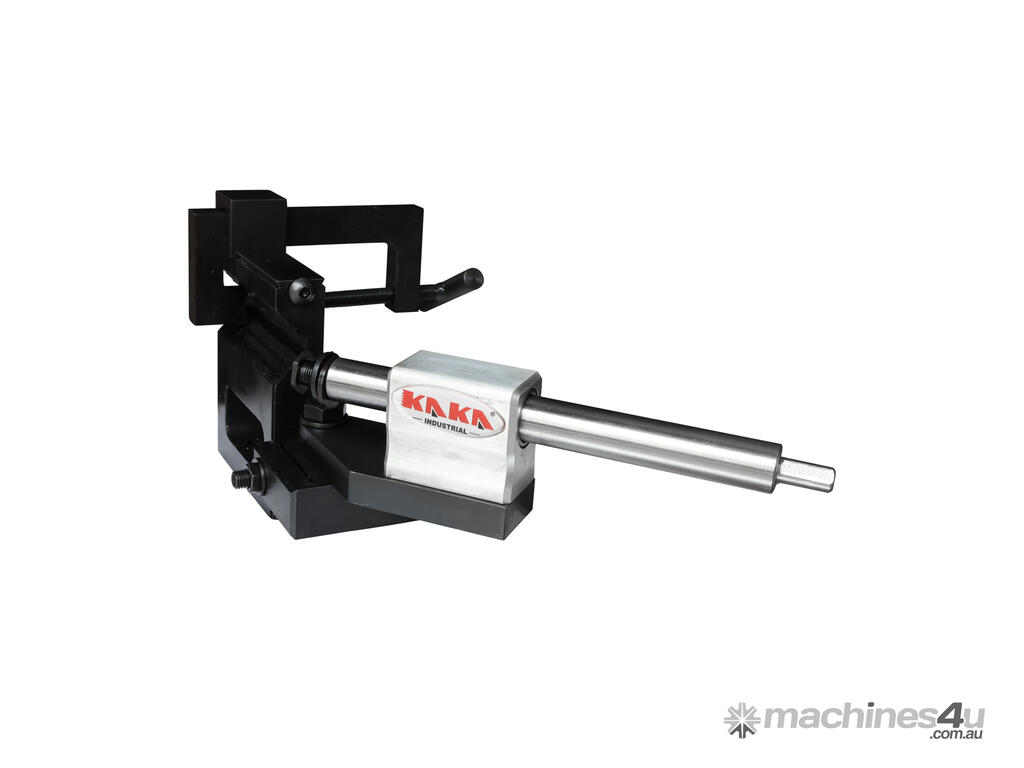

Kang Industrial Pipe & Tube Notcher PNM-1/2"

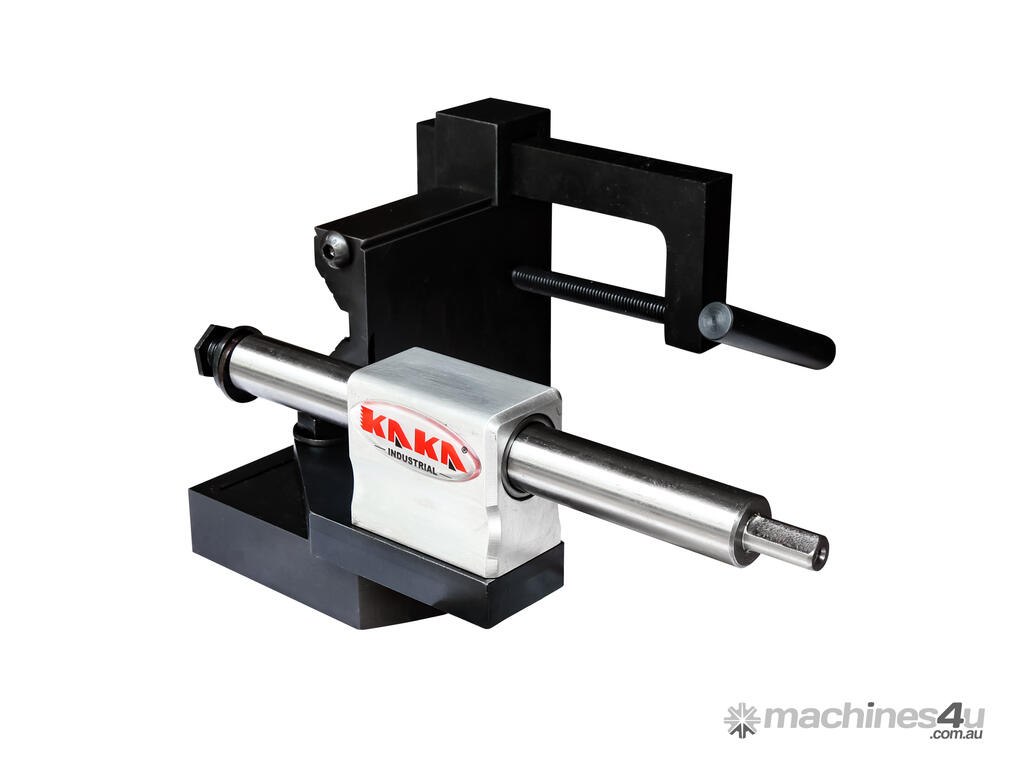

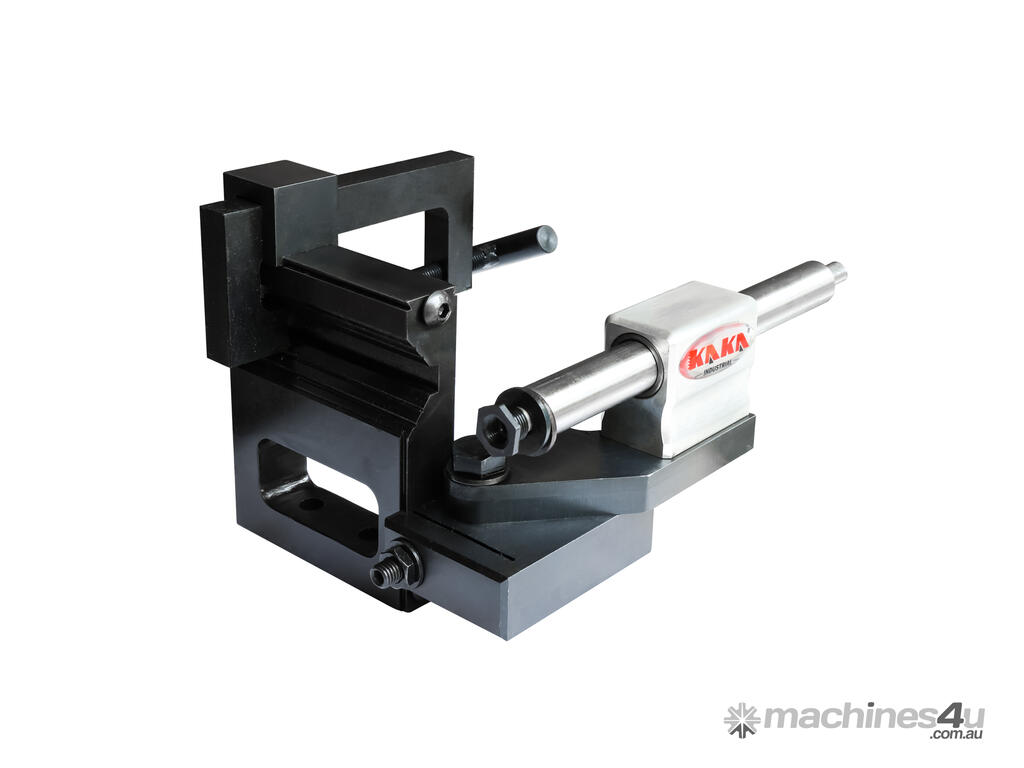

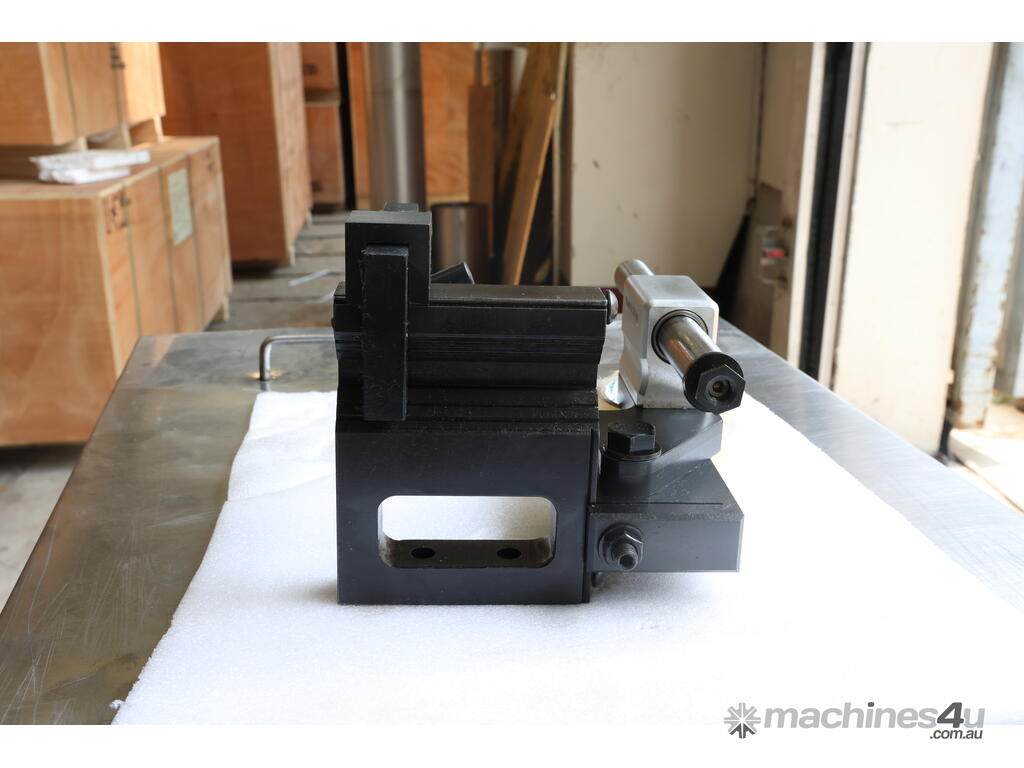

The KANG PNM-1/2" is a versatile, heavy-duty offset manual pipe and tube notcher that uses a standard power drill and hole saws to create precise angled notches. Unlike traditional 90° saddle notchers, this model allows variable angles from 0° to 50° and offset notching up to ±25mm from the centerline, making it highly flexible for complex fabrications.

Versatile Angled & Offset Notching. The 0–50° angle adjustment plus offset capability allows complex joints that fixed 90° notchers can't handle. Ideal for projects needing mitred or offset connections in railings, frames, and custom builds.

Wide Pipe Range Notcher. Covers 19-76.2mm OD,  broader than most manual notchers. Perfect for common Australian galvanised pipe, stainless tube, and structural sizes used in fencing, trailers, and rural construction.

Drill-Powered & Portable. Works with any standard 12mm chuck drill you likely already own. No need for dedicated motors or compressors.

Professional Notching at Low Cost. Produces clean, accurate notches ready for welding. Reduces grinding time, improves joint strength and appearance.

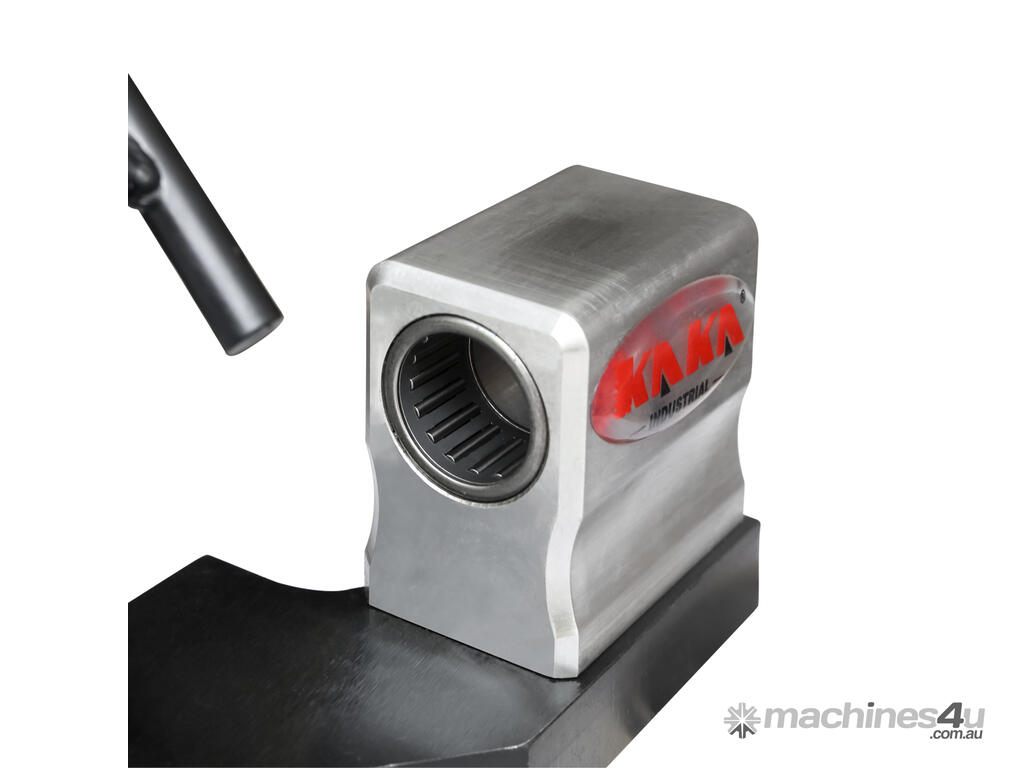

Robust Build Pipe Notcher. Solid steel construction with quality bearings ensures smooth, repeatable performance and durability under regular use in tough Aussie workshop or farm conditions.


Features

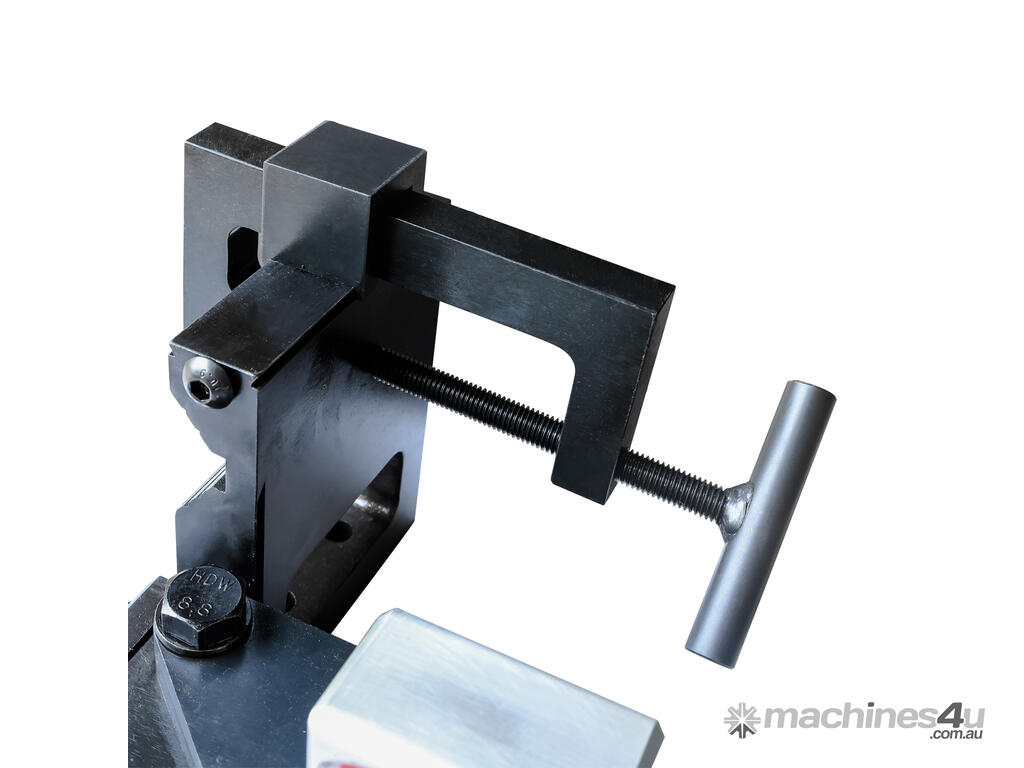

Sturdy heavy-duty 31.75mm thick steel frame

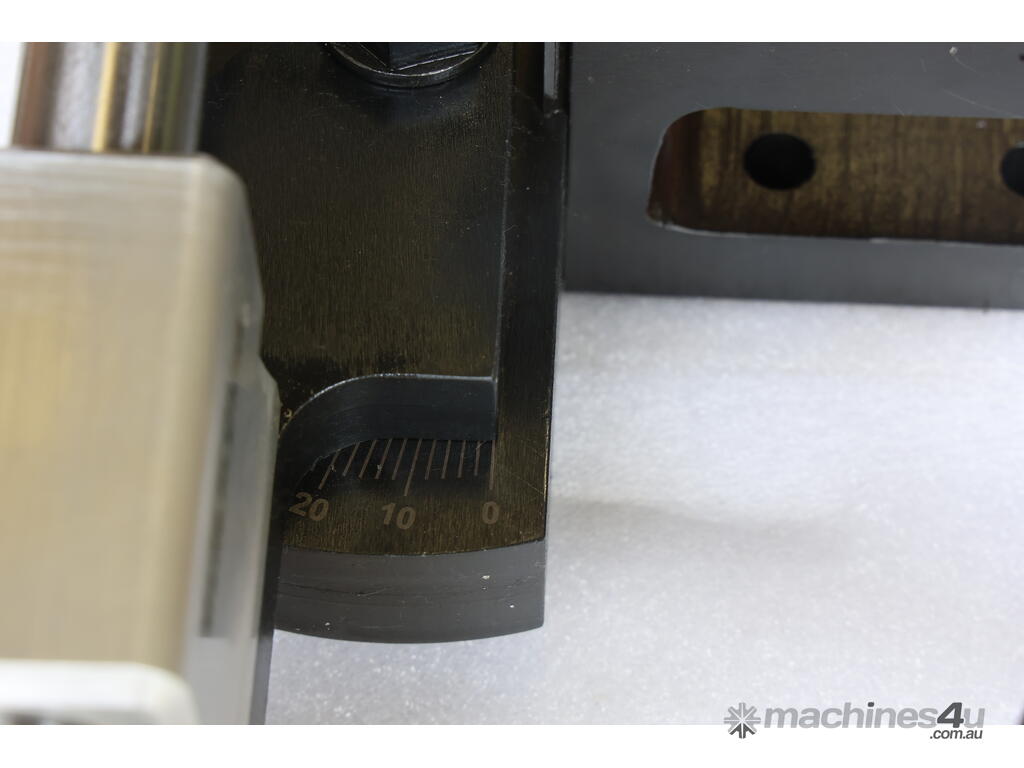

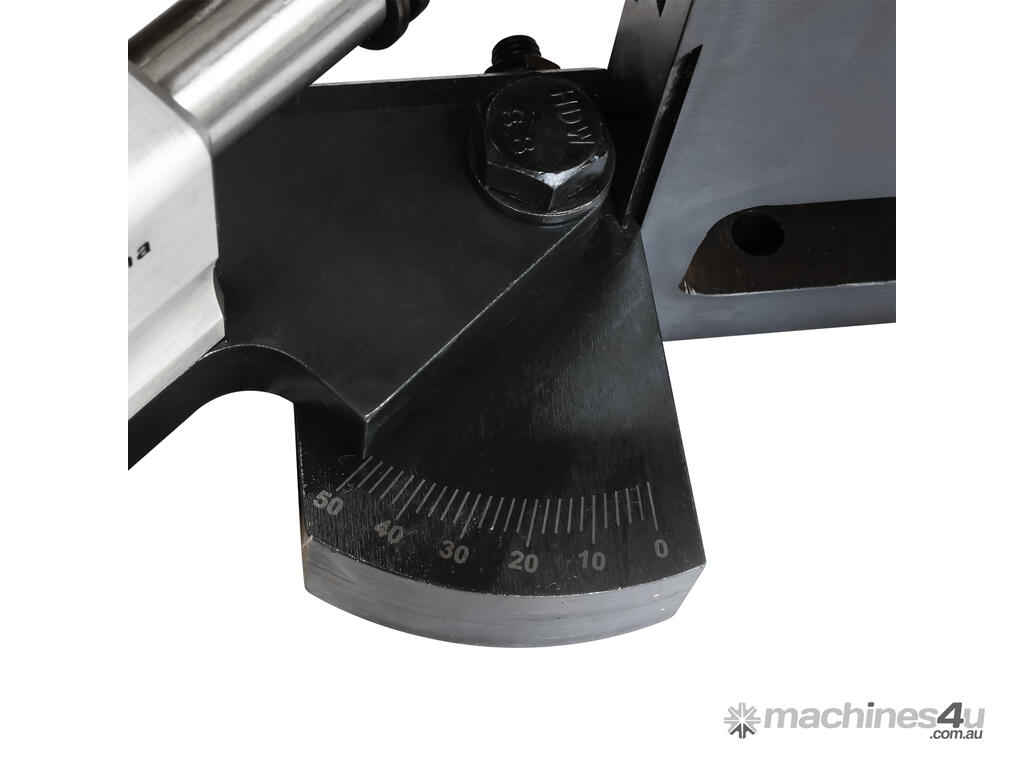

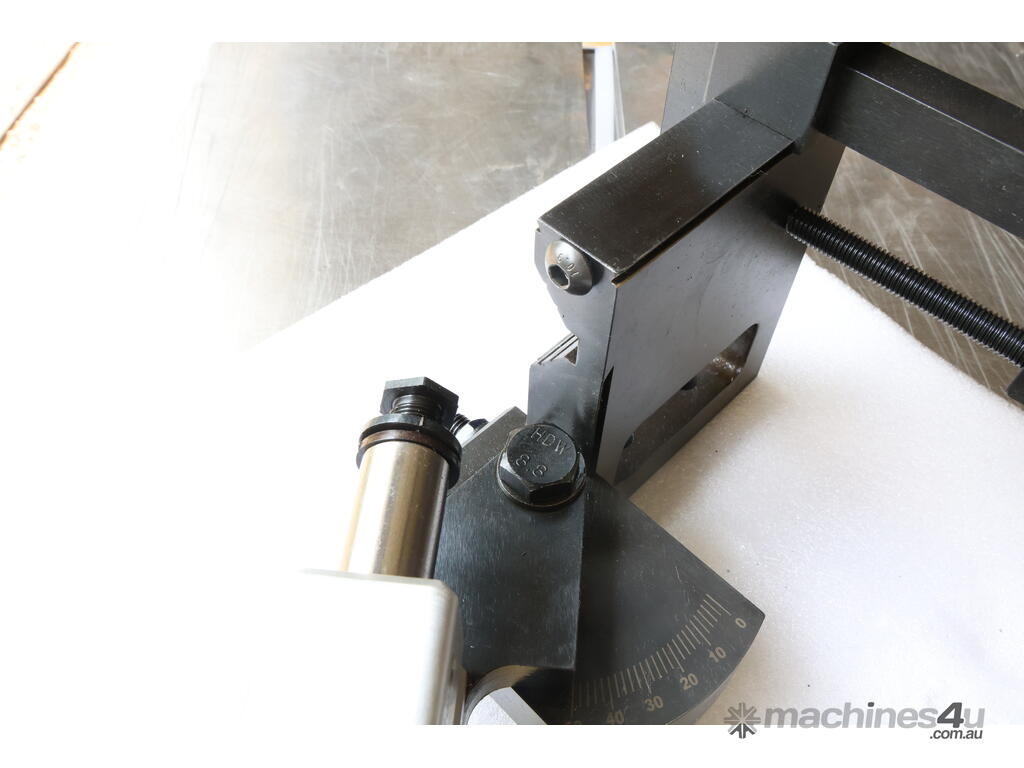

Adjustable cutting angle up to 50 degrees

25mm stainless steel shaft

Requires an ordinary 1/2" hand drill

Accepts 1/2" x 20tpi and 5/8" x 18tpi threaded hole saws

Specifications
SKU 176208
Model PNM-1/2"
Tube capacity 19-76.2 mm (OD)
Angle adjustment 0-50 degrees

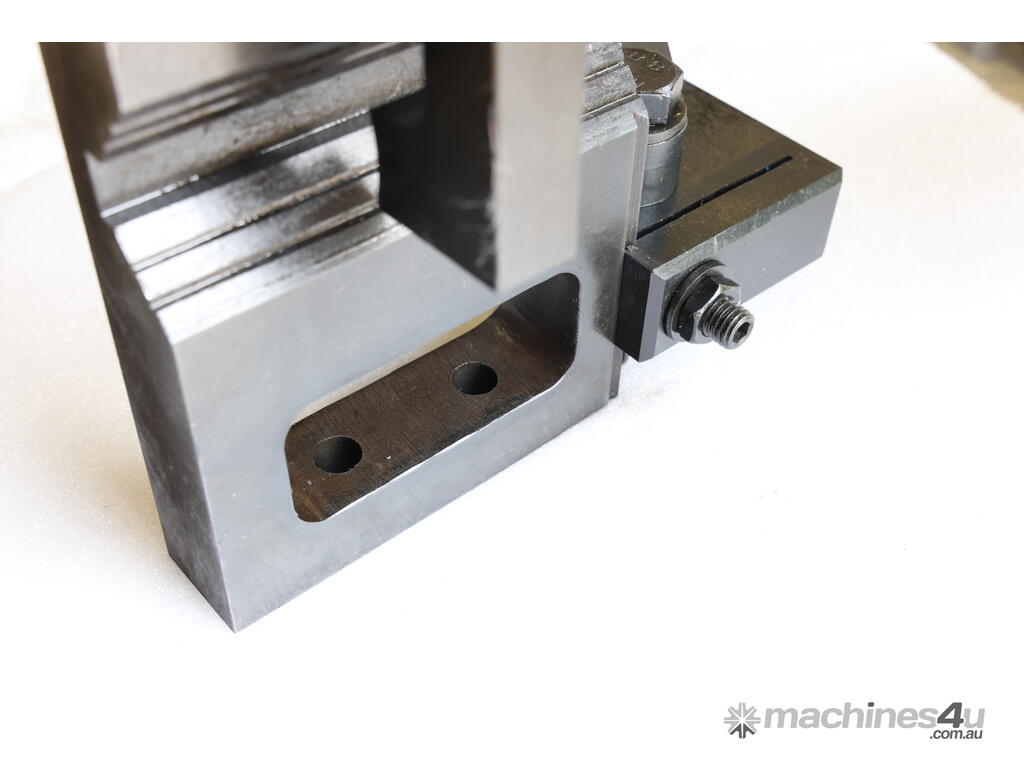

Offset capacity ±25mm from the centerline

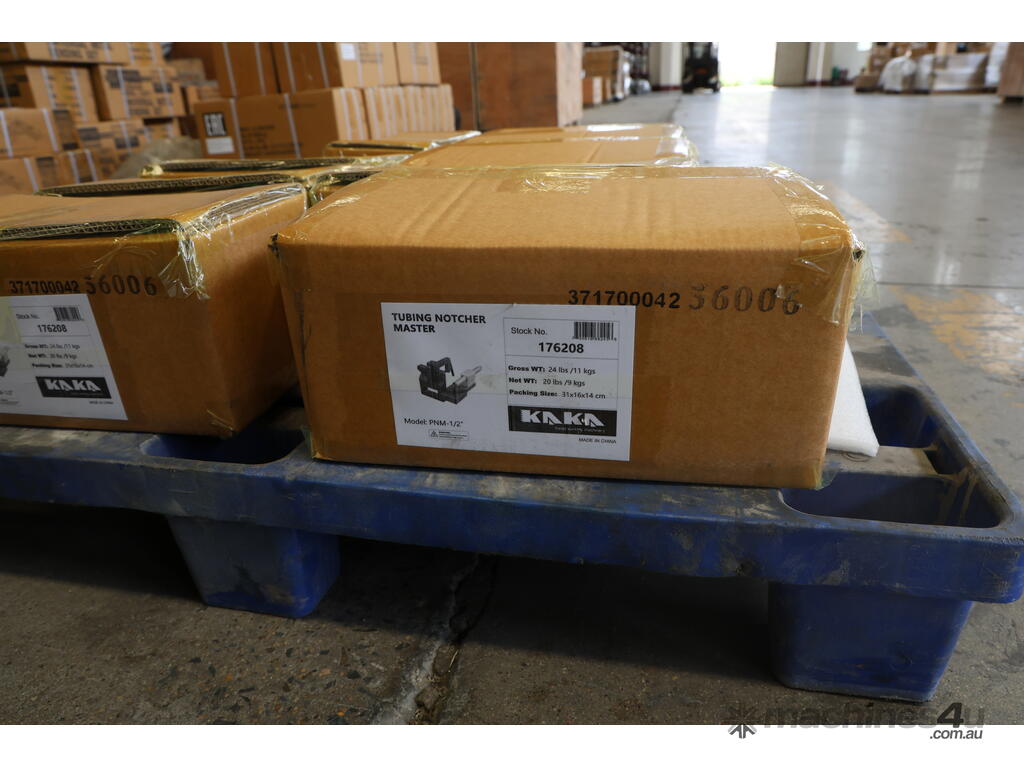

Packing size 31x16x14 cm
N.W./G.W. 9/10 kg
