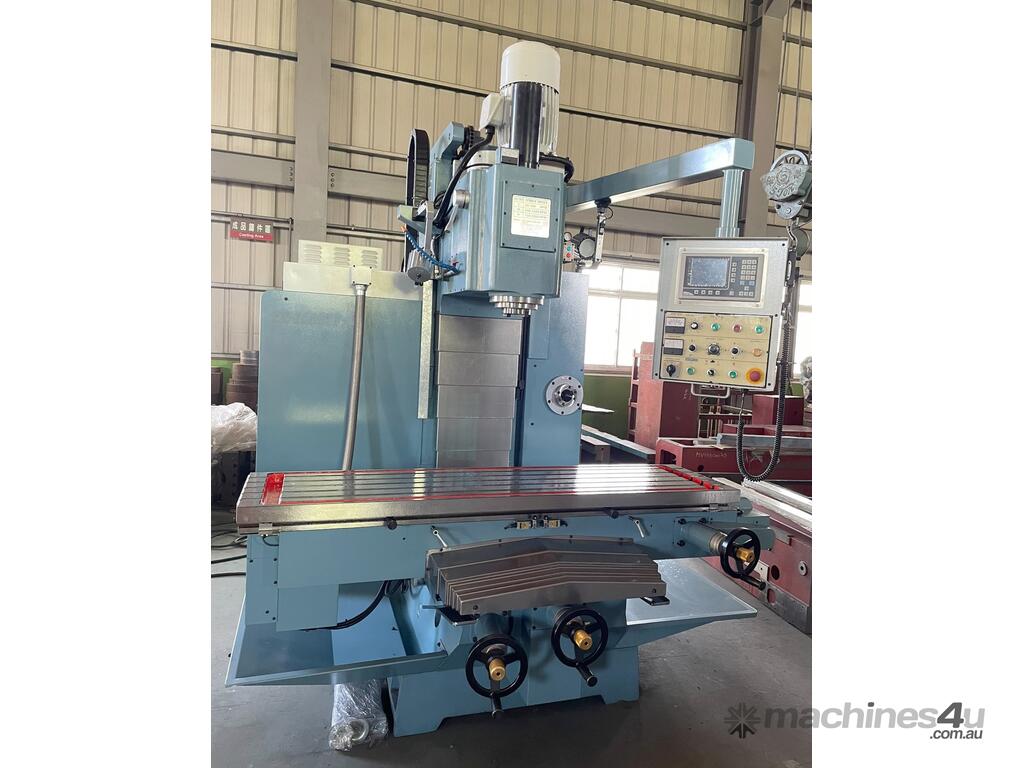

QUANTUM Fixed Head Taiwanese Bed Mills.
Ex-works Special 1660VF-H
X/Y/Z Travels 1600mm x 650mm x 800mm
Work table size 510mm x 1900mm
Vertical milling head:
(1) Spindle speed: 3 steps (60-400rpm, 240-1600rpm, 720-3000rpm)
(2) Spindle nose: NT50

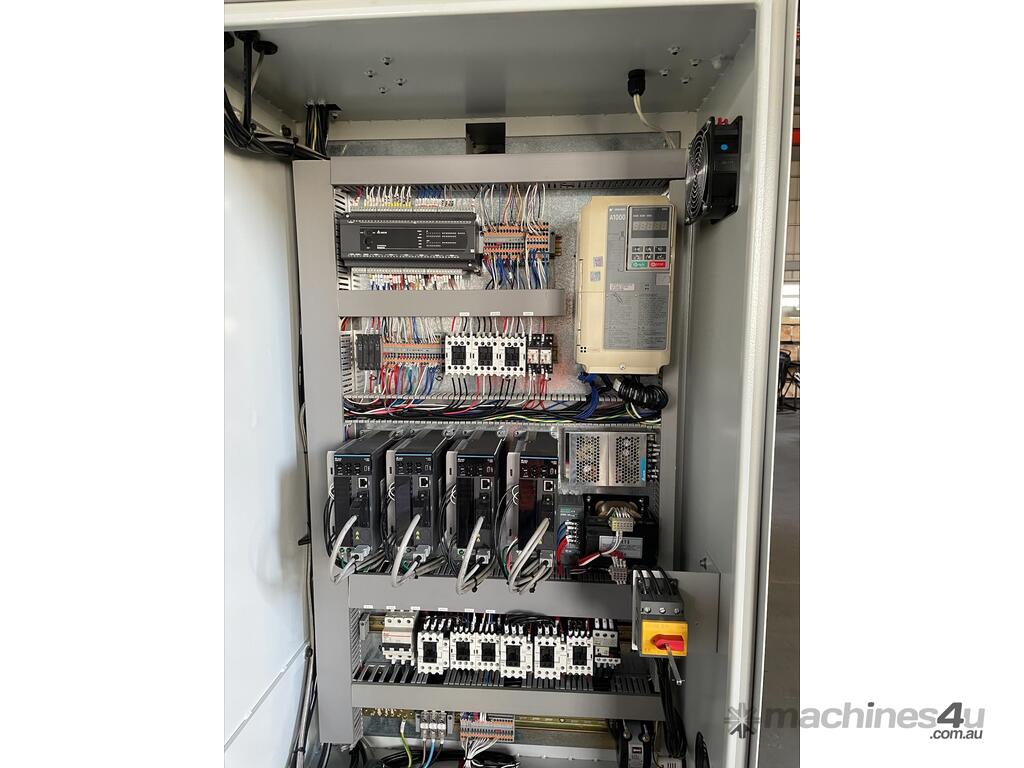

(3) Spindle motor: 10HP*4P (using 10HP Yaskawa inverter)
(4) Air draw bar

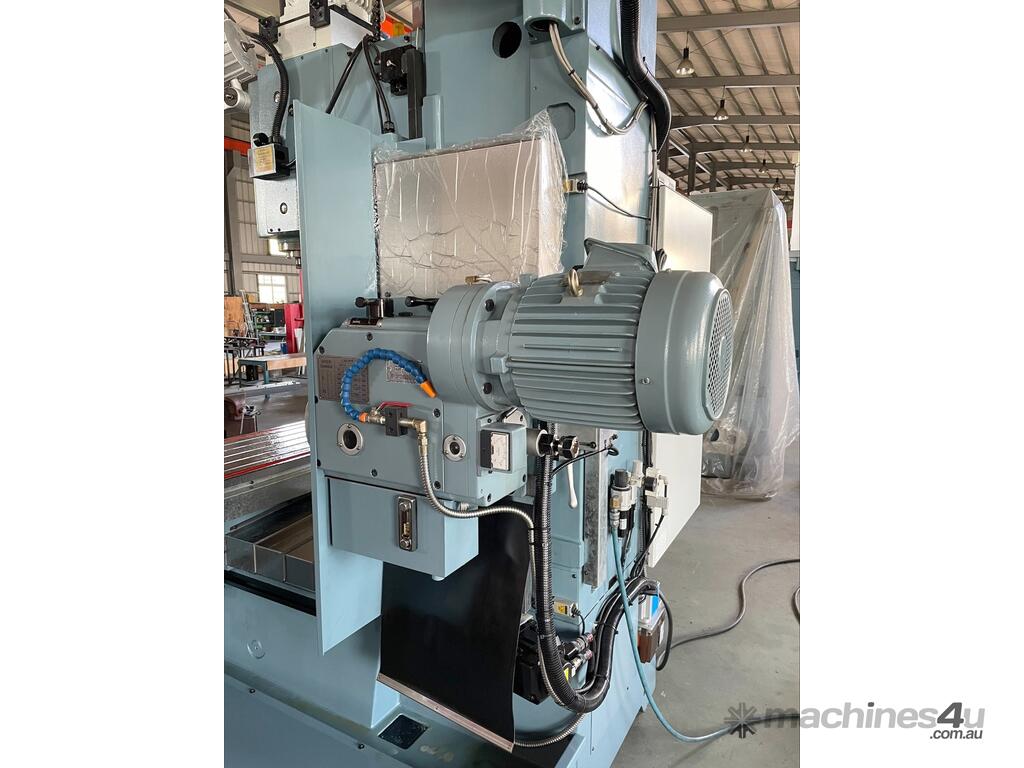

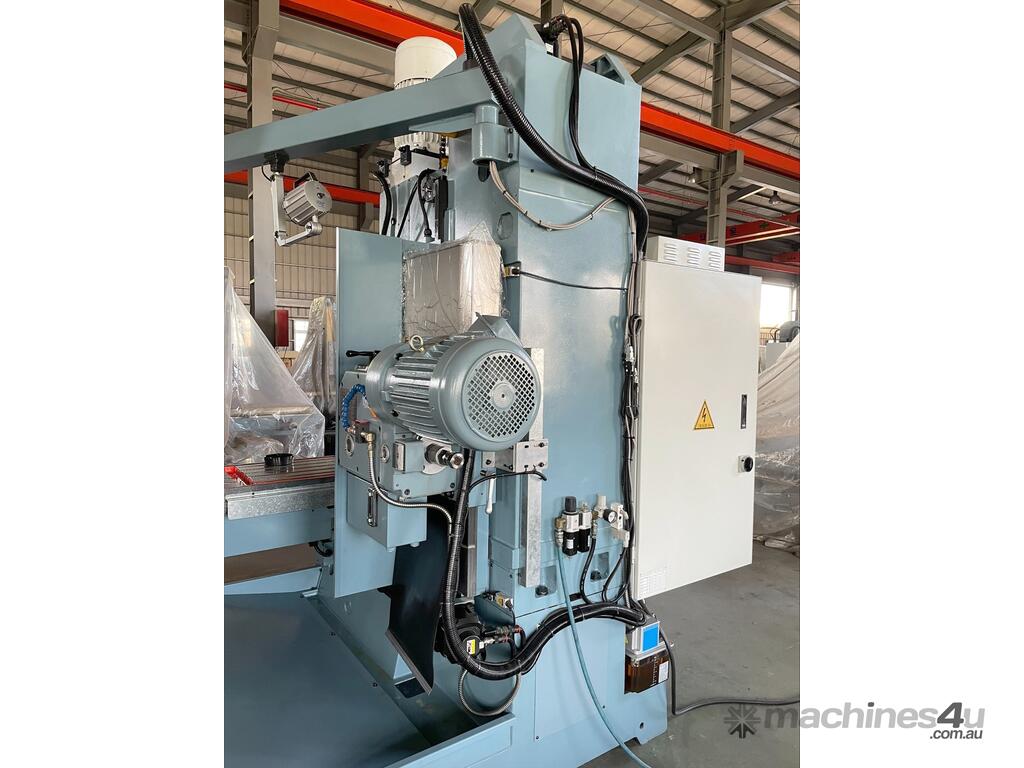

Horizontal headstock (W axis):
(1) Spindle nose: NT50
(2) Spindle speed: 104-1400 rpm (6 steps / 12 kinds) 50HZ
(3) Main motor: 7.5HP*2P/4P
(4) Travel: 500mm
(5) Driving motor: AC servo motor
(6) Vertical feed speed: 10-1000 mm/min
Accessories
Coolant system 1/8 HP
Auto. Lubrication system 2L
Halogen lamp *2 sets
Draw bar
X/Y/Z ball screw ?40mm C6 grade double nut
Z axis brake cylinder
X axis left & right side telescopic steel cover
Y axis front & rear side telescopic steel cover
Z axis lower telescopic steel cover
Chip pan
Rear splash guard of left side
X/Y/Z/W axis linear scale (FAGOR)

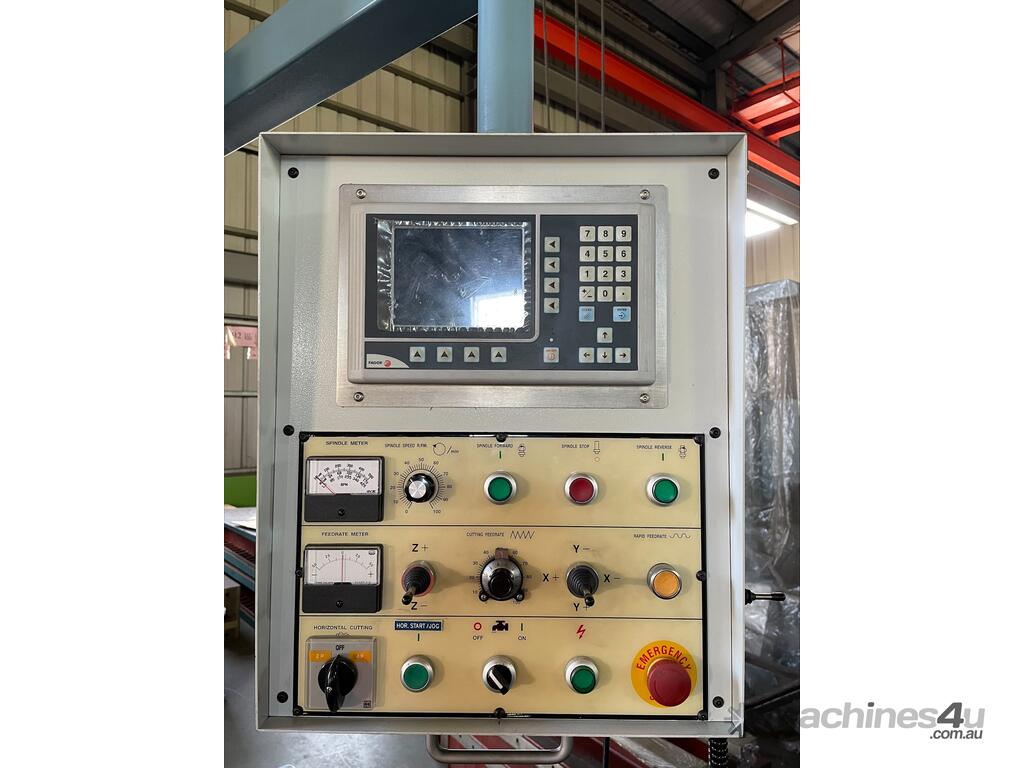

Remote MPG (available for X, Y, Z, and W axis)
X, Y, Z axis AC servo motors (1.5 kw)
Tools and tool box
Featuring:
X,Y,Z axis fitted with DC servo motors, providing variable feed speed change and rapid feed.
These generate greater torque output at low speed compared to inverter controlled motors. Can be fitted with optional MPG hand wheel. (opt.}
The VF type head provides a 3-step gearbox and inverter for the spindle motor.
This arrangement is suitable for heavy duty machining and high speed machining.
Available equipped with a H type powerful horizontal cutting mechanism.
This is driven with gear head drive, servo motor drive on vertical feed and handwheel control.
Other capacities available.
Delivery, commissioning, training and ongoing support Australia wide.
Please call for more information.
