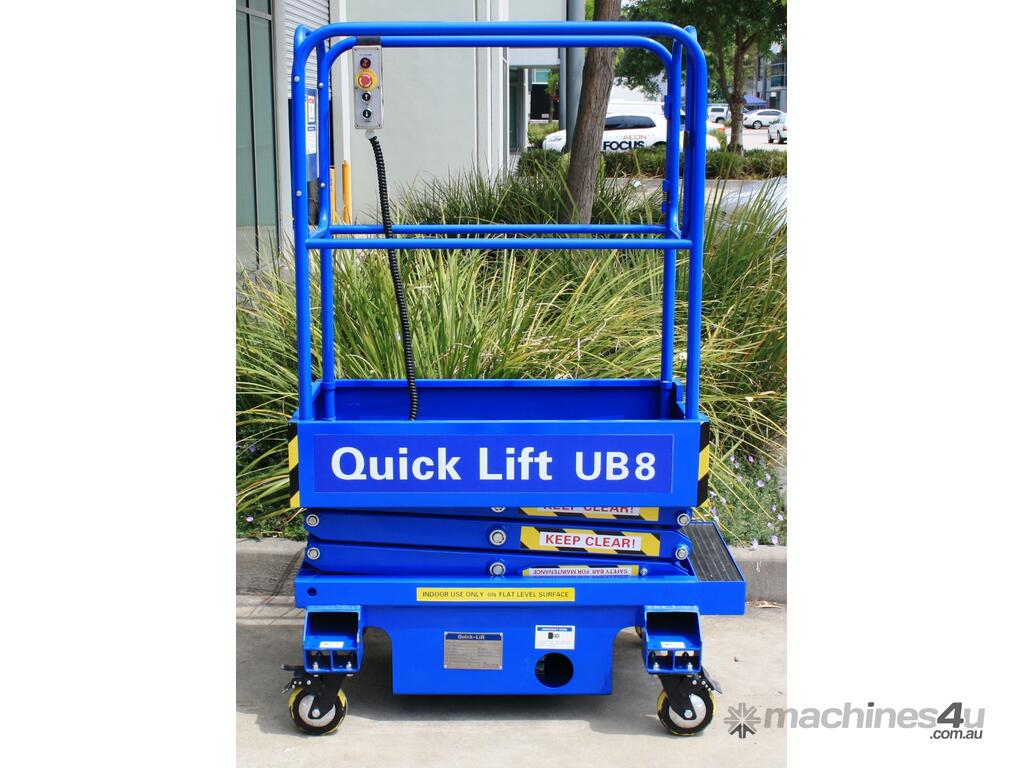

Quick Lift UB8 4.5 metre Mini Scissor Lift

UB8 Push Around Scissor Lift 2.5mtr Platform Height/4.5mtr Working Height

UB SERIES (MANUALLY-PROPELLED)

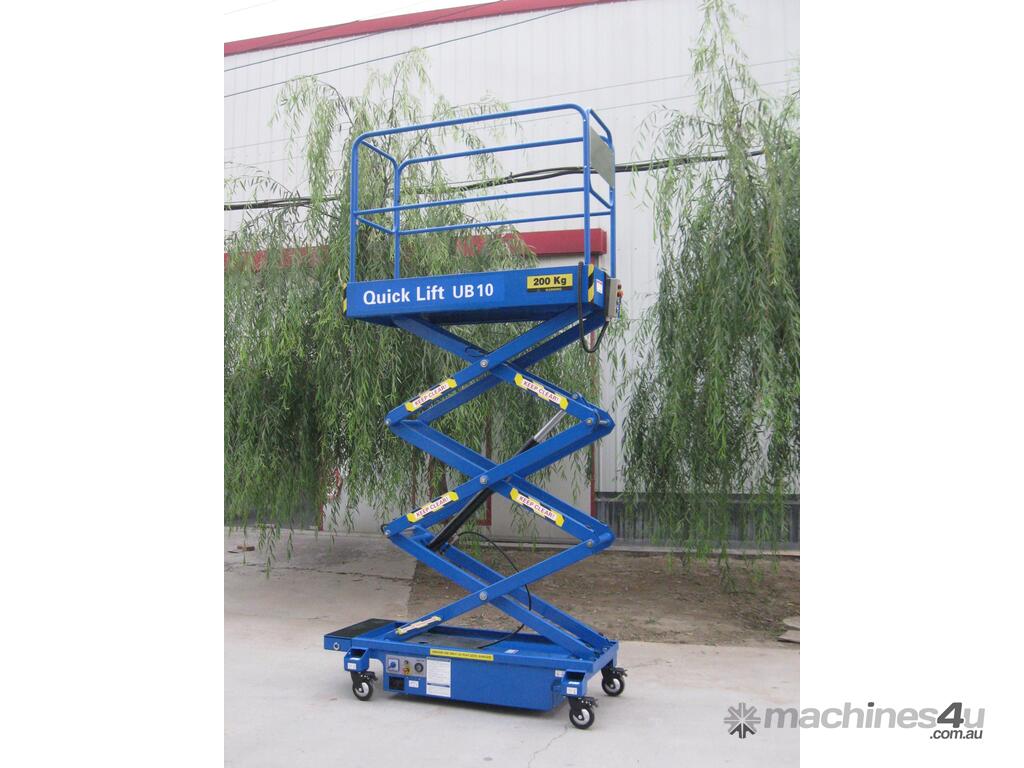

Also available are the UB6 (3.8mtr working ht.) & UB10 (5mtr working ht.) P.O.A.

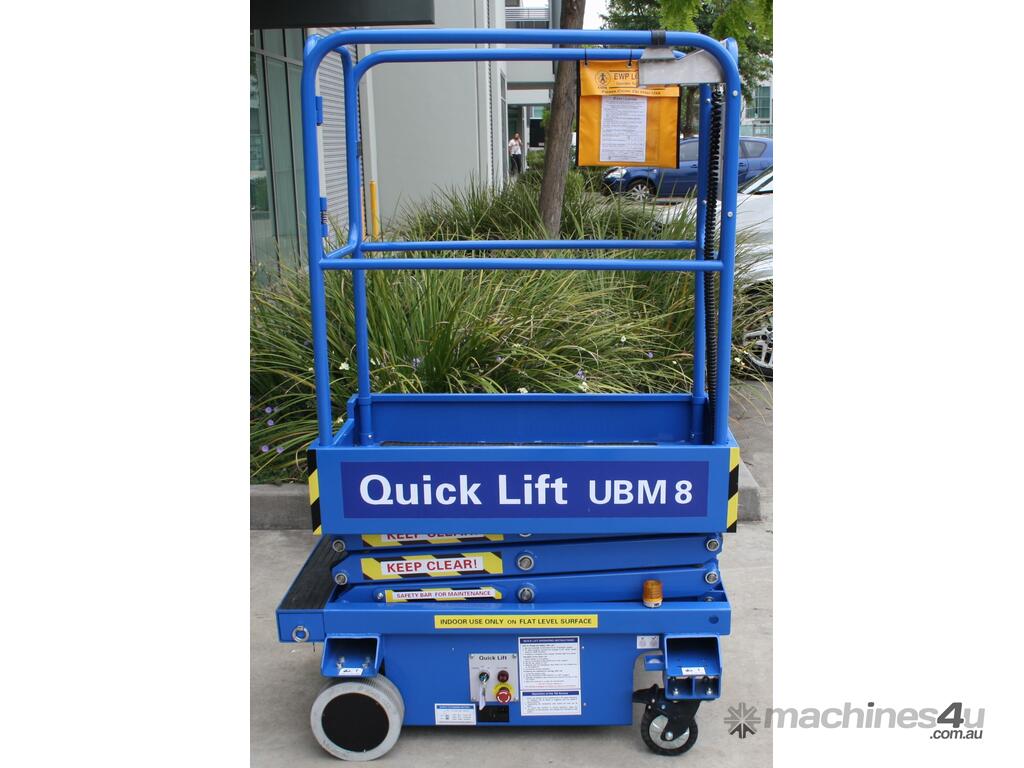

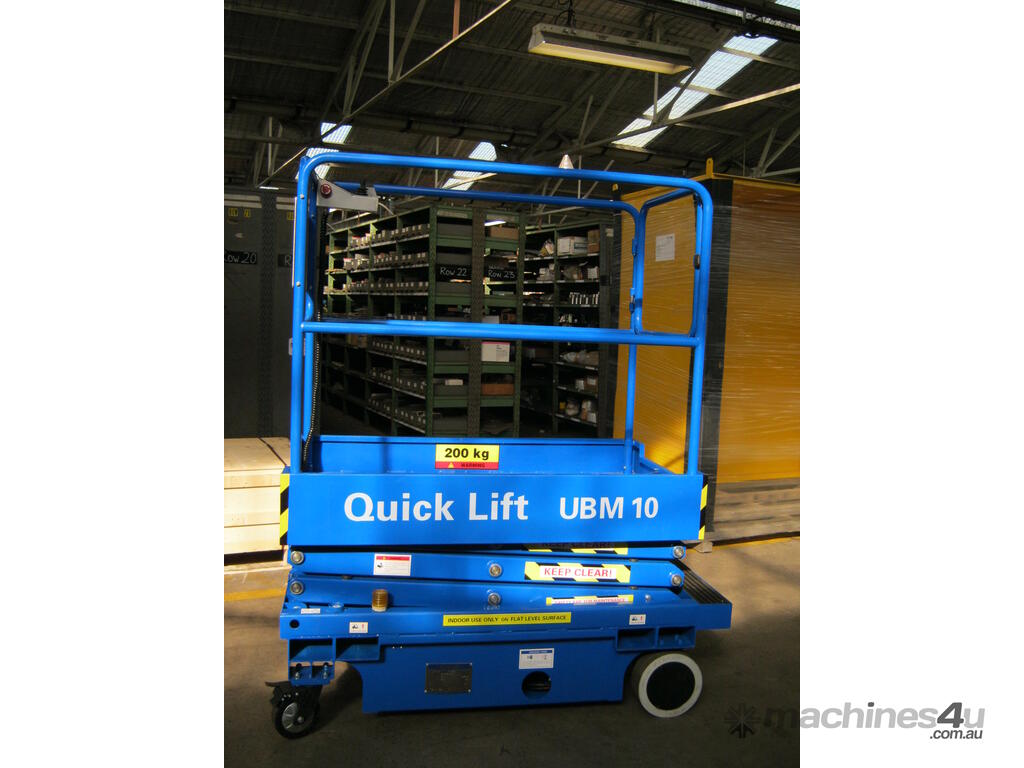

SELF PROPELLED MODELS ALSO AVAILABLE - UB6M, UB8M, UB10M. P.O.A.

Quick Lift mini scissors are the smart alternative to ladders and scaffolds. Their design and manufacture deliver uncompromised safety, benchmark performance, easy operation, outstanding reliability and lifetime economy.
Manually-propelled UB Quick Lift mini scissors are ideal for workers requiring safe, vertical access at heights up to 5 metres. All Quick Lifts pass through standard doorways and are easily operated by one person. Application environments include warehouses, supermarkets, department stores, offices, hotels, restaurants, construction fields, railway stations, subways, hospitals, universities and schools.

Key Features:
Free-standing operation, with rechargeable 12V battery power.
Minimum 200 operating cycles at rated loading.
Quick and smooth ascent or descent. Compact 1.2m x 0.7m footprint.

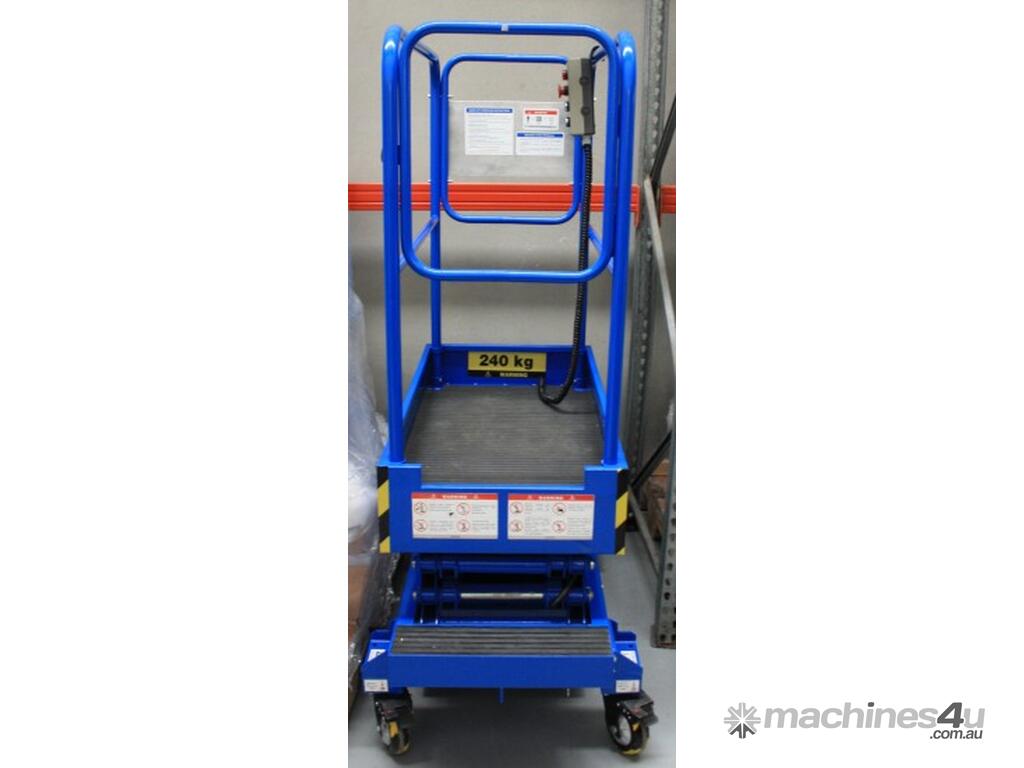

Ergonomic platform with non-slip floor and secure gating.

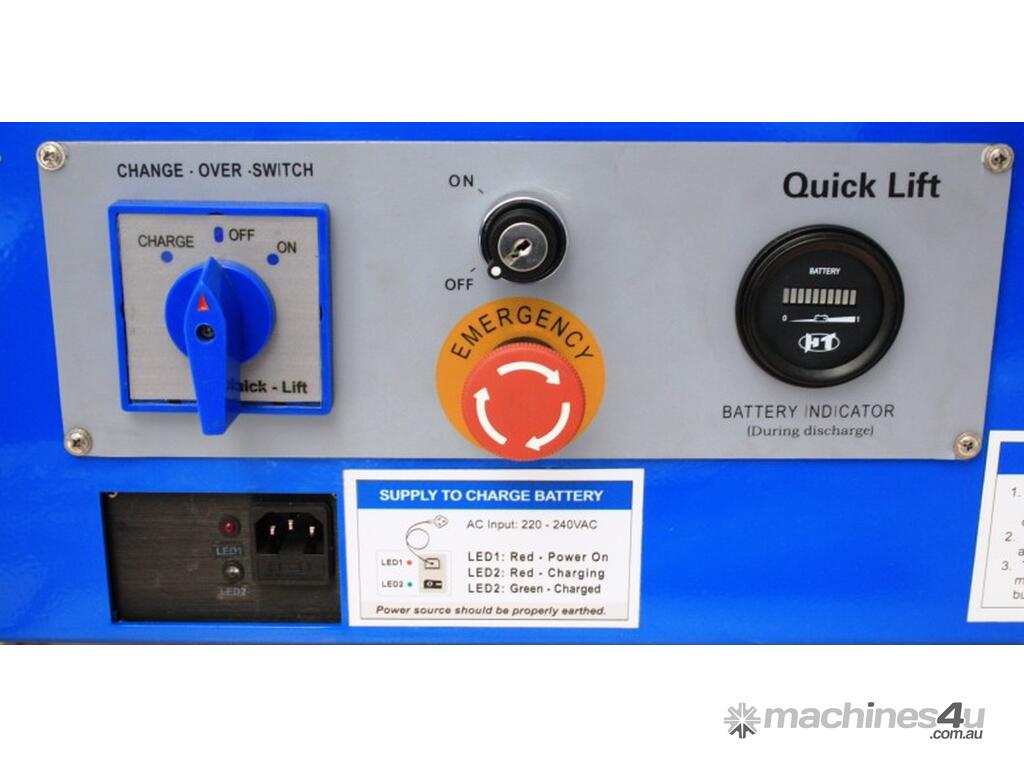

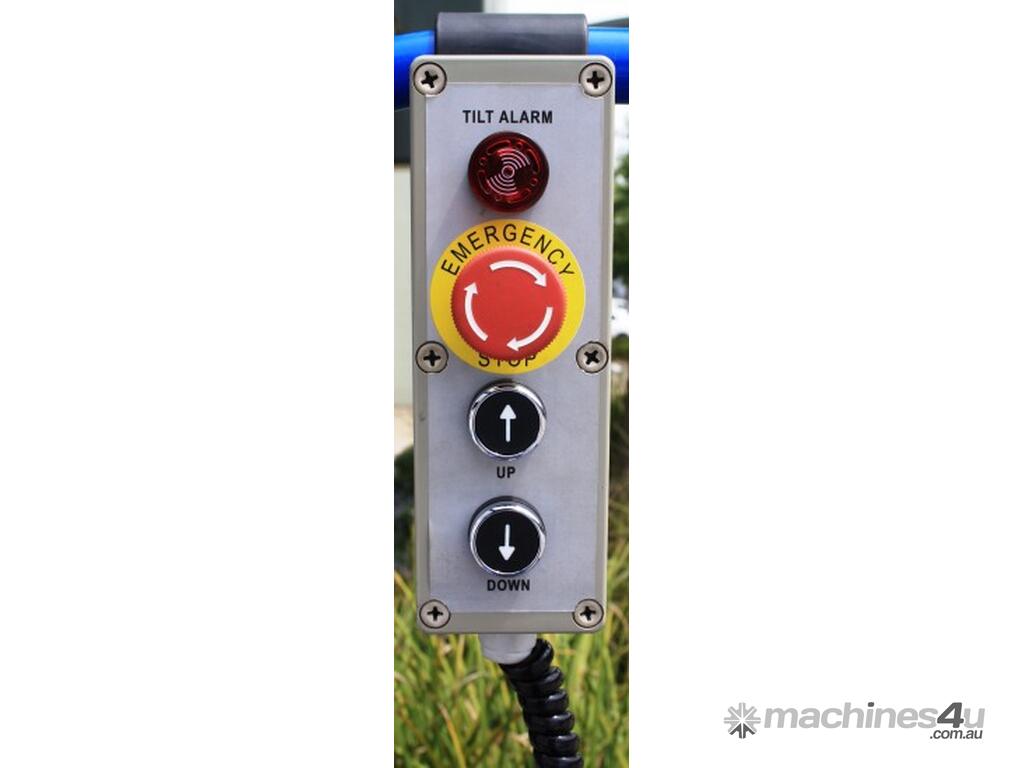

Dual control points including emergency stops. Audible descend and tilt alerts.
Spiral cable connection to the platform control unit. Emergency down valve

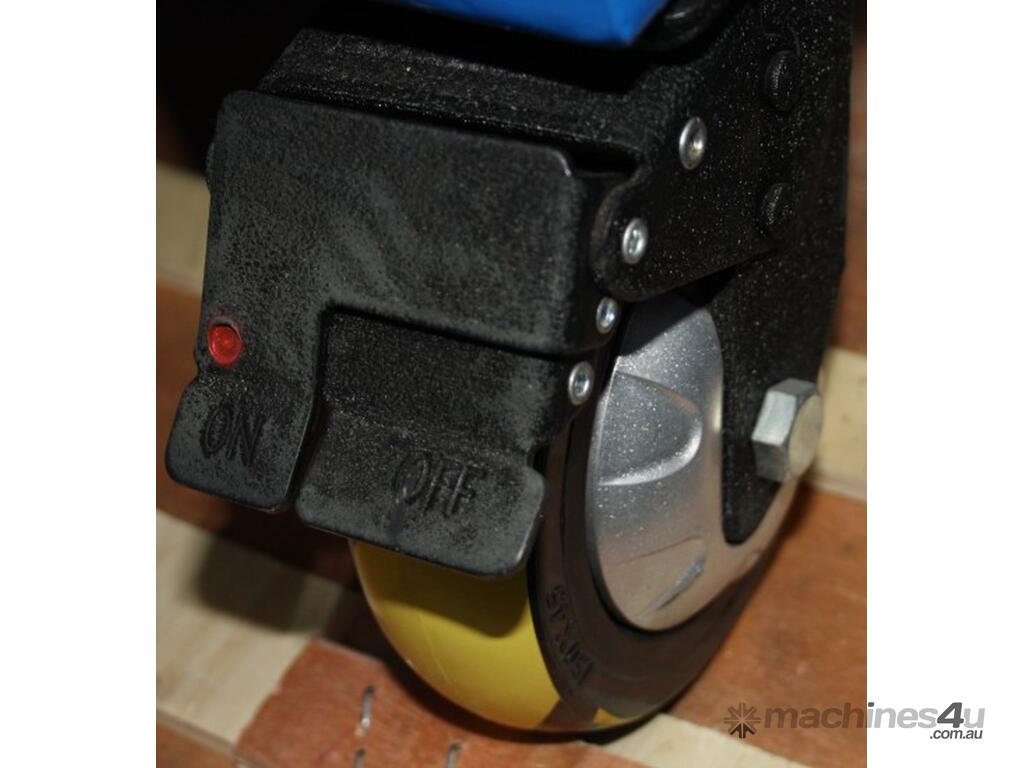

Non-marking wheels, all 4 with brakes including 2 for steering.

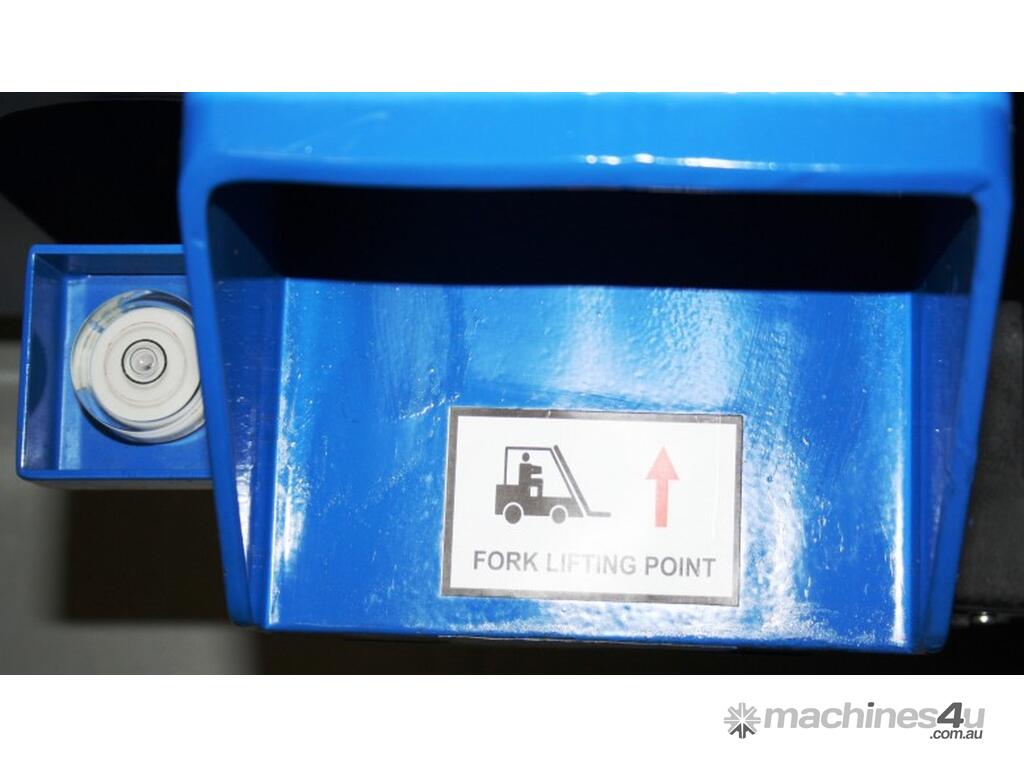

Prominent decals promoting responsible use. Forklift pockets and tool box.

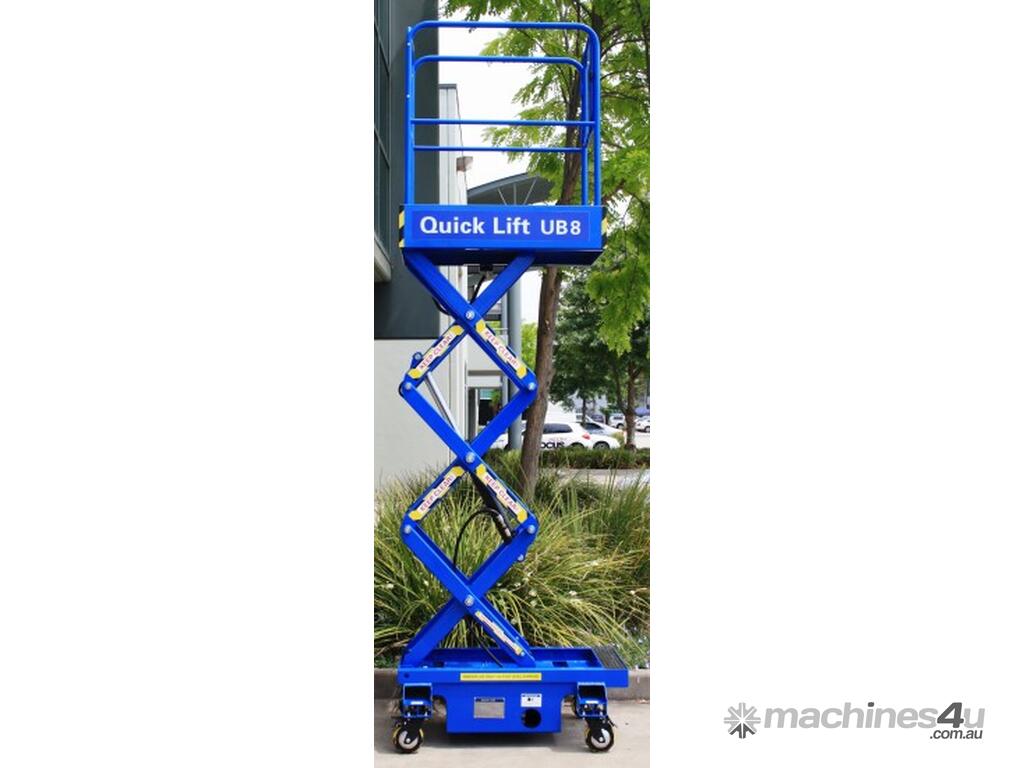

UB8 Specifications:

Max Platform Height: 2.5m

Max Working Height: 4.5m

Rated Load: 240kg

Stored Dimensions: 1.2m x 0.7m x 1.7m

Platform Dimensions: 1.04m x 0.57m

Voltage: 12DC

Total Weight: 315kg

Power Rating (kW): 1.2
