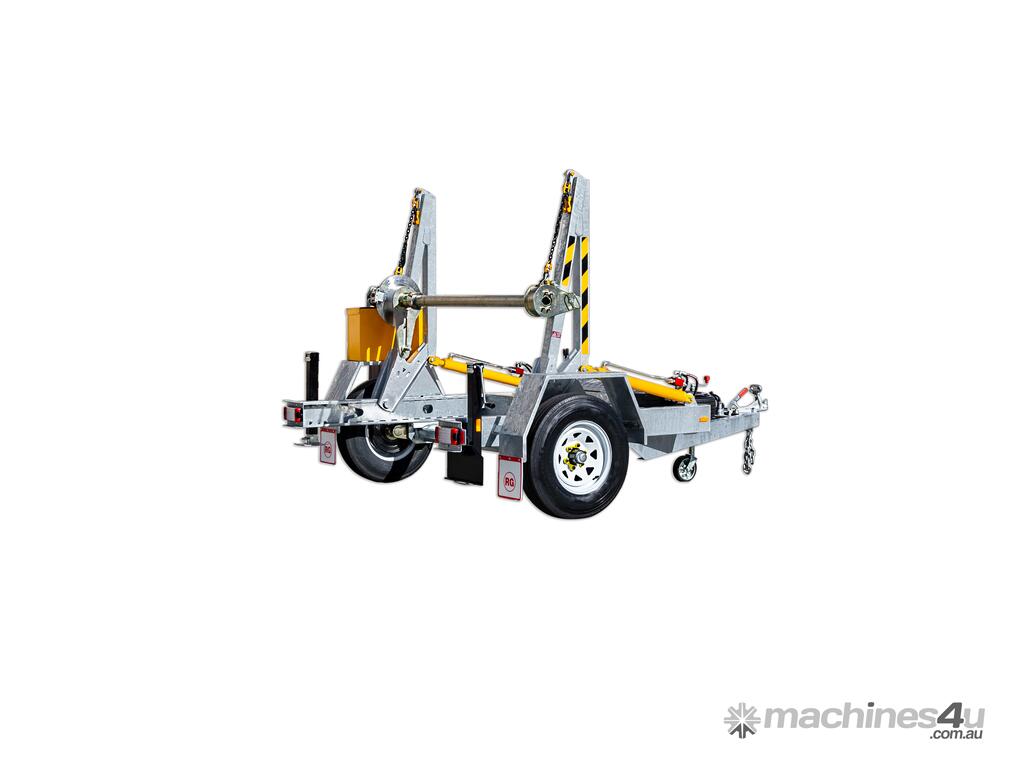

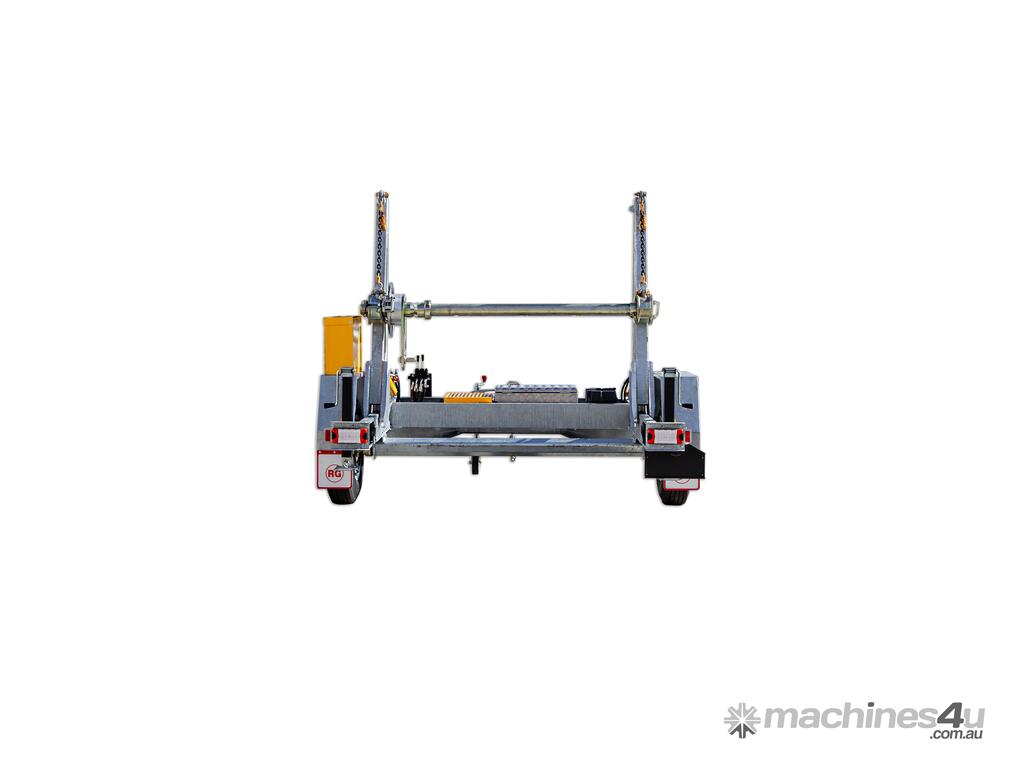

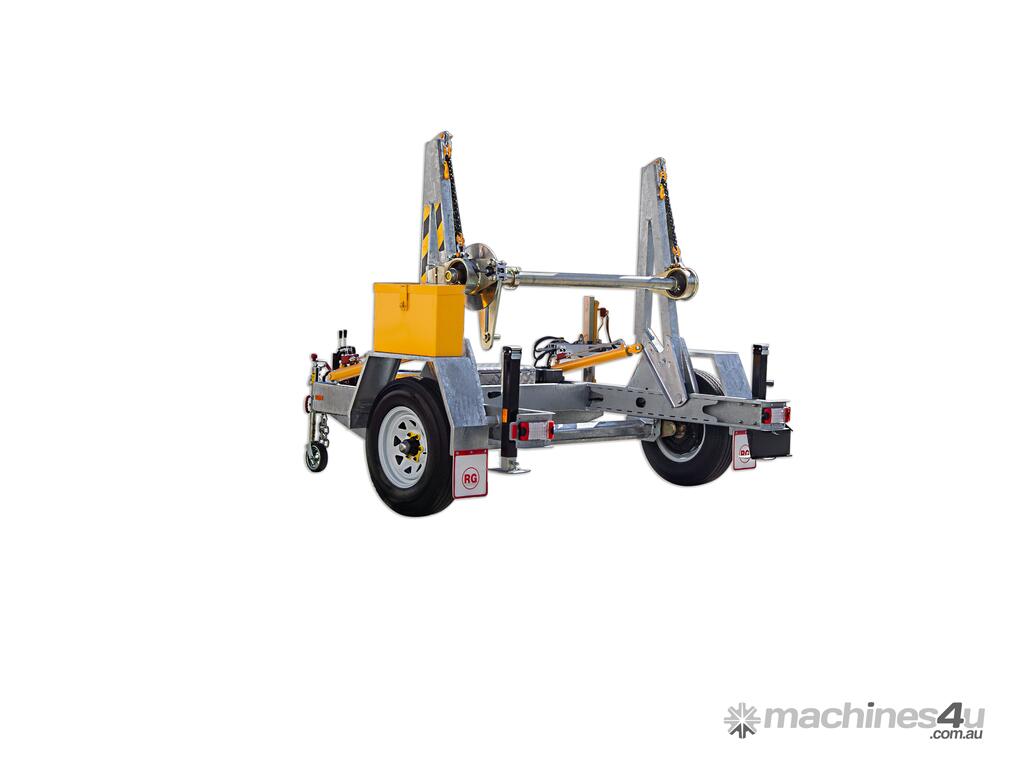

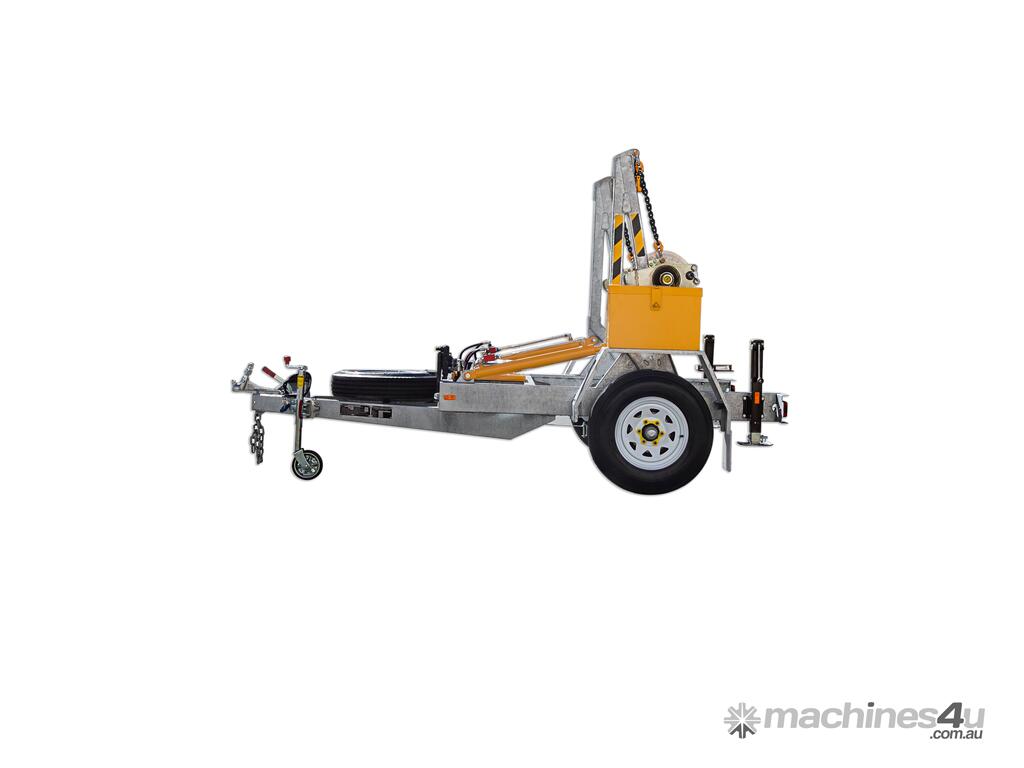

REDMOND GARY 1.7 Tonne Self Loading Cable Trailer
The standard trailer will be supplied with a 12volt DC electric-hydraulic Power pack.

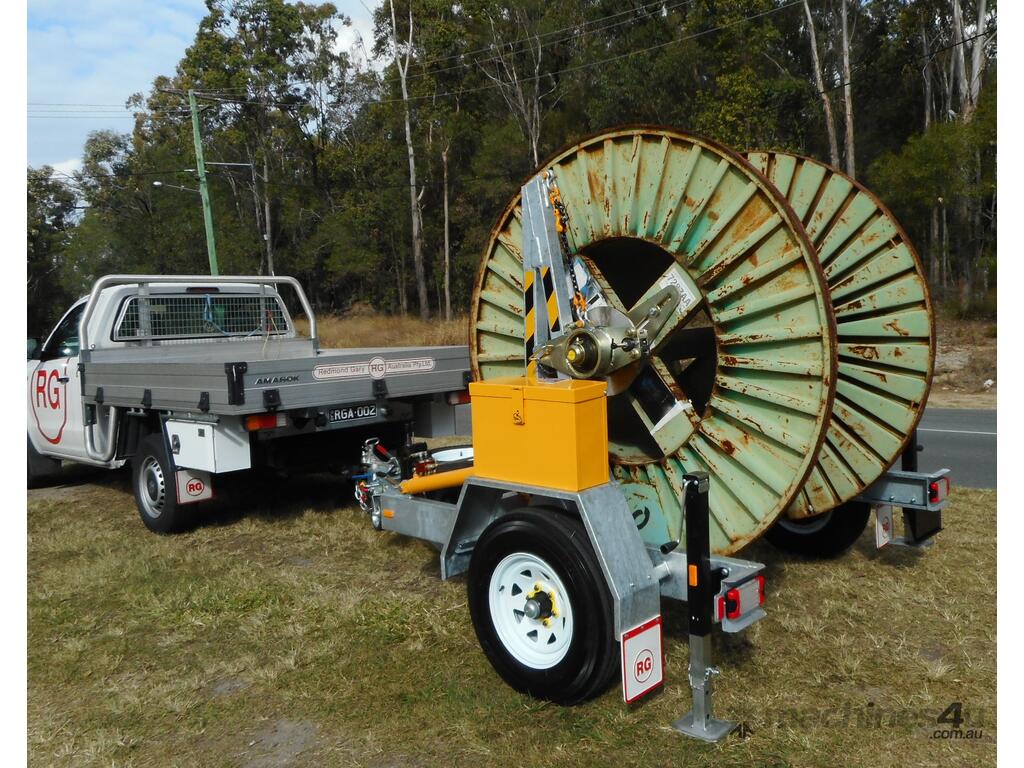

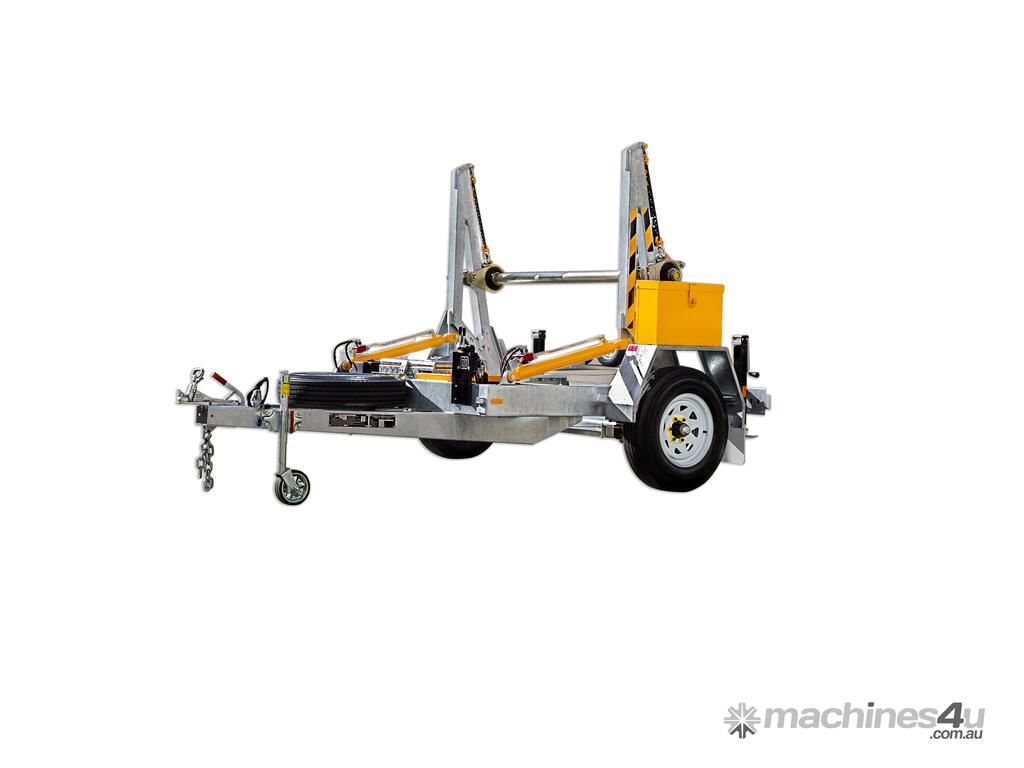

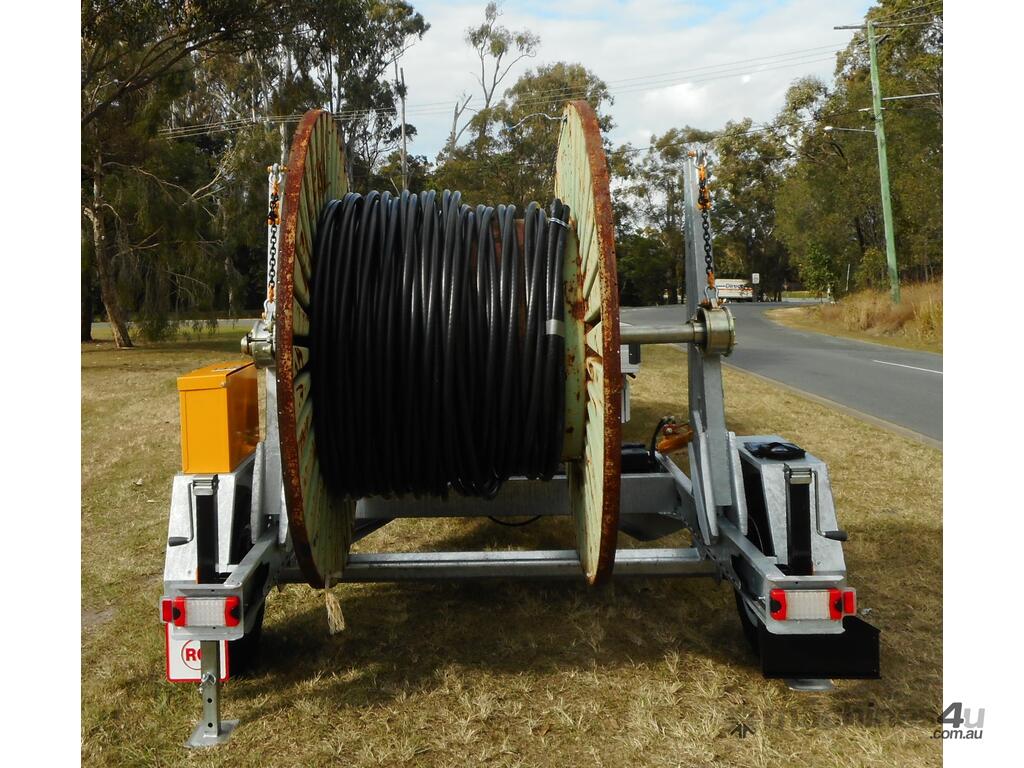

Two lifting arms fitted with hydraulic cylinders are used to raise or lower the cable drum as necessary during drum replacement.
The arms can operate together or independently to allow for drum spindle misalignment or uneven ground.
2 x rear stabilisers and a front jockey wheel provide stability during use and while in storage."
The trailer chassis and lifting arms are fully galvanised to resist corrosion. The lifting arm hydraulic cylinders are painted in 2-pack enamel. All instructions and Warning labels are made with UV Stable Acrylic.
A hydraulic Drum Rotator kit powered by petrol engine - can be supplied as an optional extra. It attaches to end of the drum spindle to assist with paying out the cable, or even cable recovery. The Drum Rotator is capable of max line pull of 200kg 1mØ. Hydraulic hoses allow easy connection of drive motor to the Power pack. The rotator motor is easily removed & securely stored on the trailer for transport.
Standard Features:

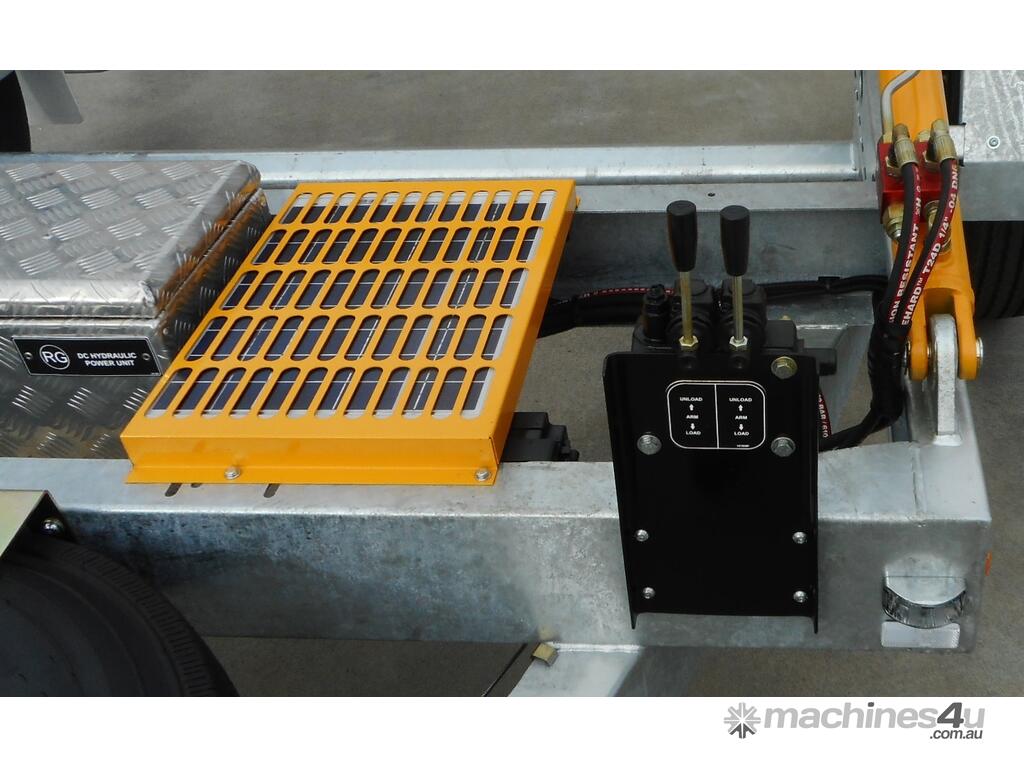

Spindle arms operated from a Hydraulic Directional Control Valve.

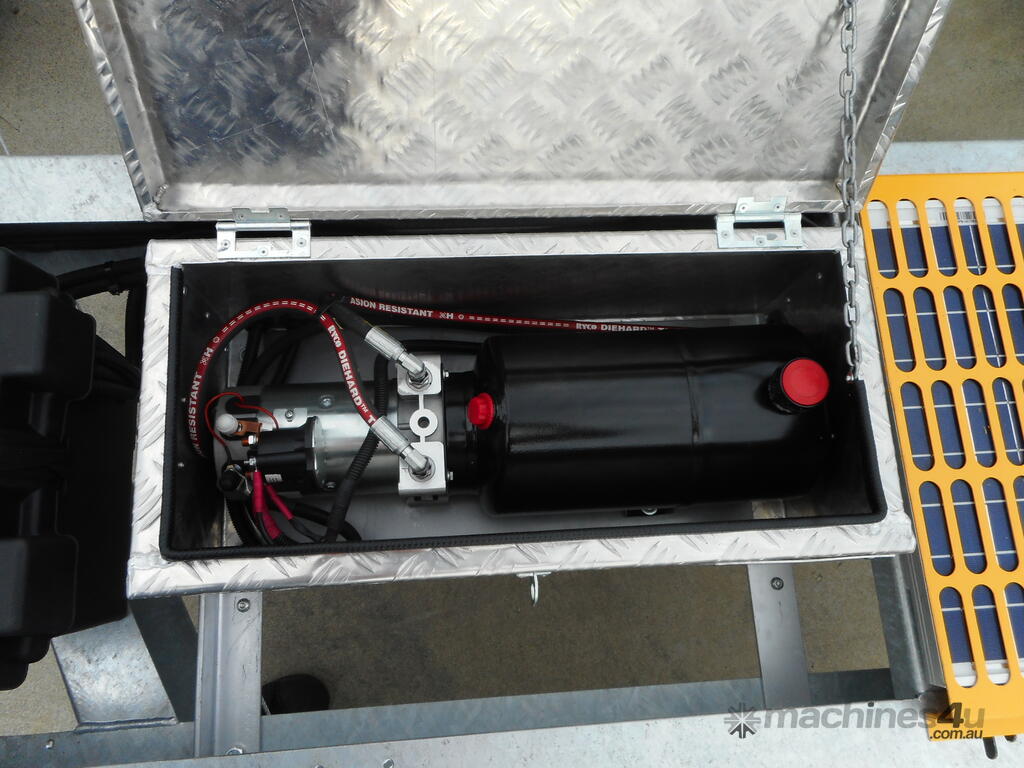

• 12 Volt DC electric Hydraulic Power pack c/w oil tank. All mounted with storage battery in enclosure with lockable lid.
• Drum lifting arms can be operated together or individually to assist with misaligned drums or uneven ground.
• 76 Ø Spindle c/w 2 x Spindle Clamps and 2 x Drum Spacers.
• ADR approved single axle with Electric Disc Brakes.

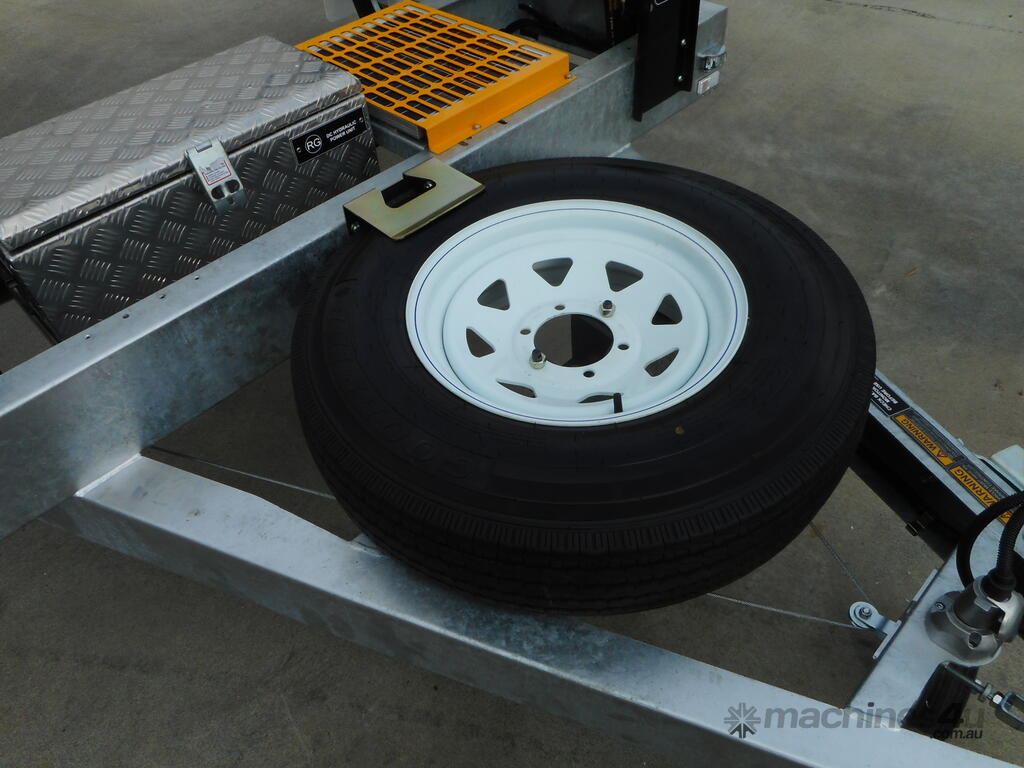

• 16" x 6.0" Rims, with 7.00 R16 Tyres.

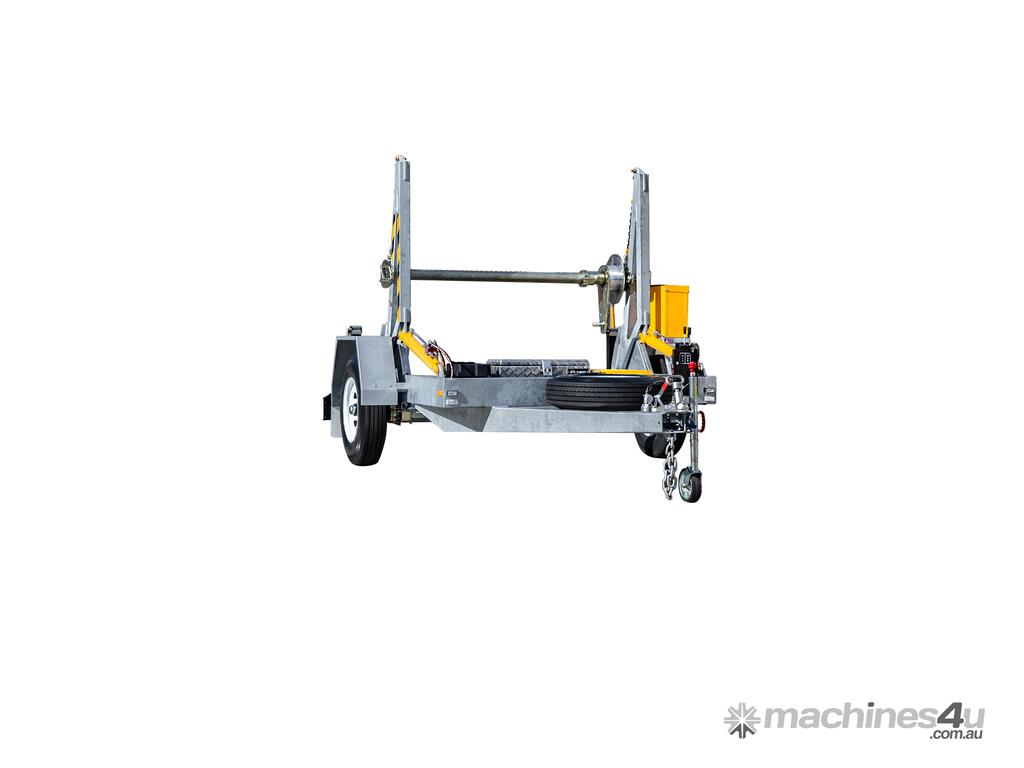

• Wind down front Jockey wheel.
• 2 x rear Stabilisers.
• 50mm Ball Coupling.
• Laden Coupling height - 460mm (approximately) to AS4177.1-2004.
• 1 x Trailer Safety Chain with D Shackle.
• 7 Pin Flat Trailer Plug.
• LED lights.
• Safety and Operational signage.
• Trailer frame finished in hot dip galvanising.
• All tanks and hydraulic cylinders finished in 2-pack enamel. (Interpon, Safety Yellow - Product Code ME096A)
• All operation controls are mounted on a bracket at front kerb side of the trailer.
• One(1) set of Operation Manuals.
