20kN (2 Tonne) Trailer-Mounted Recovery Winch

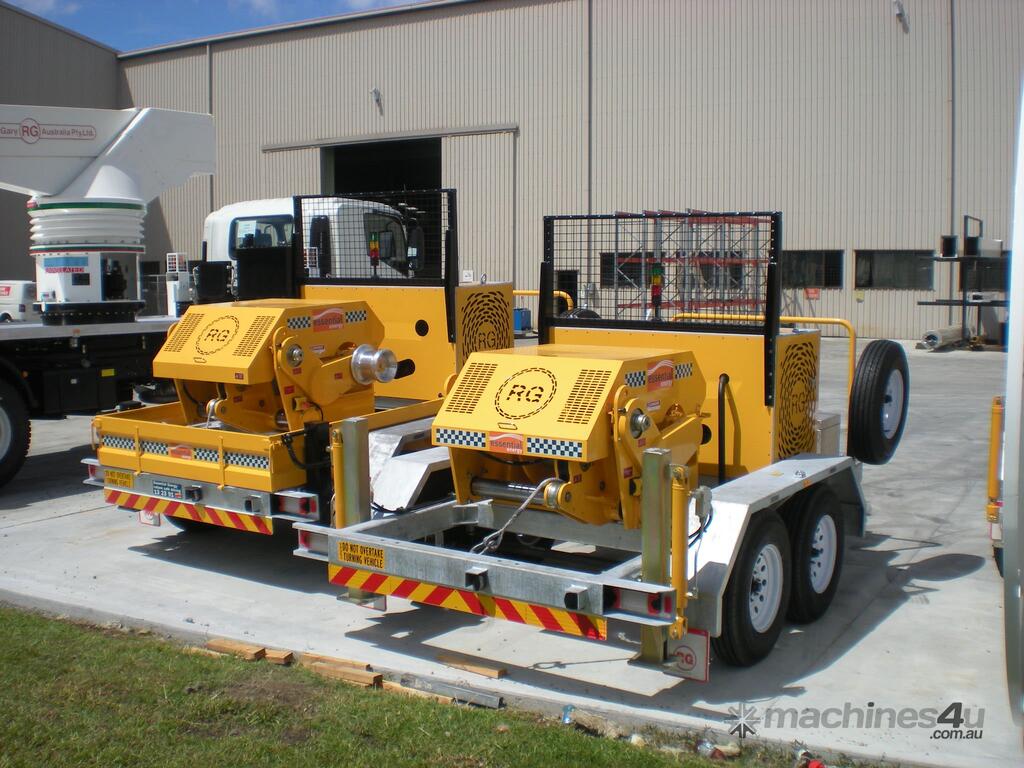

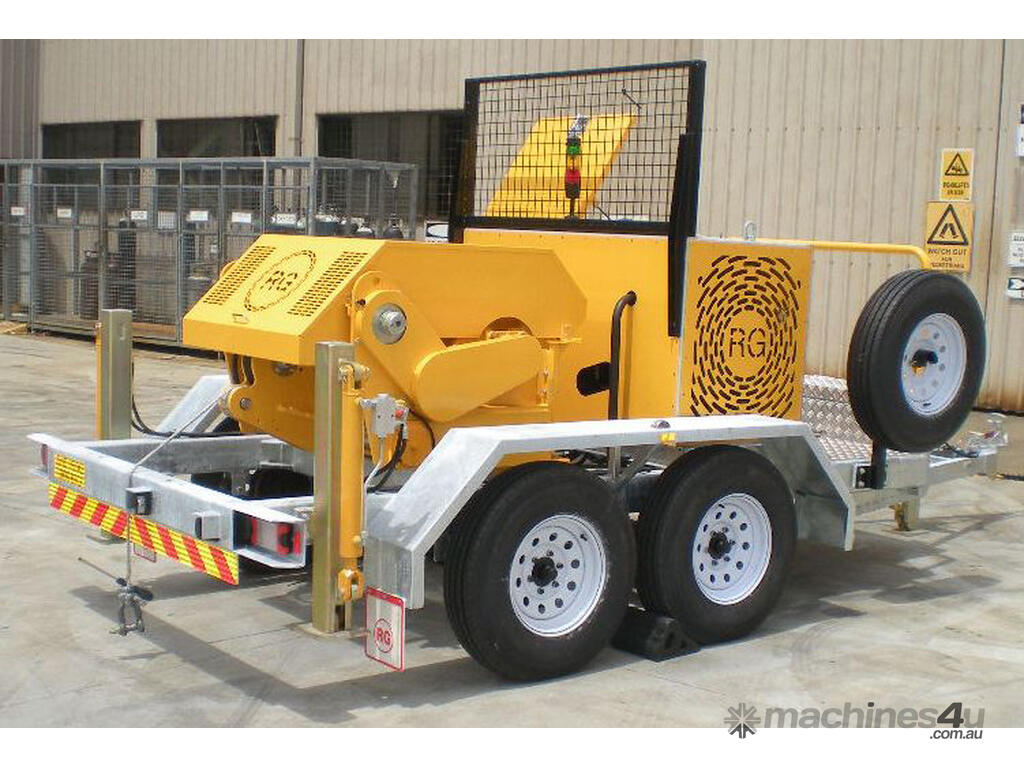

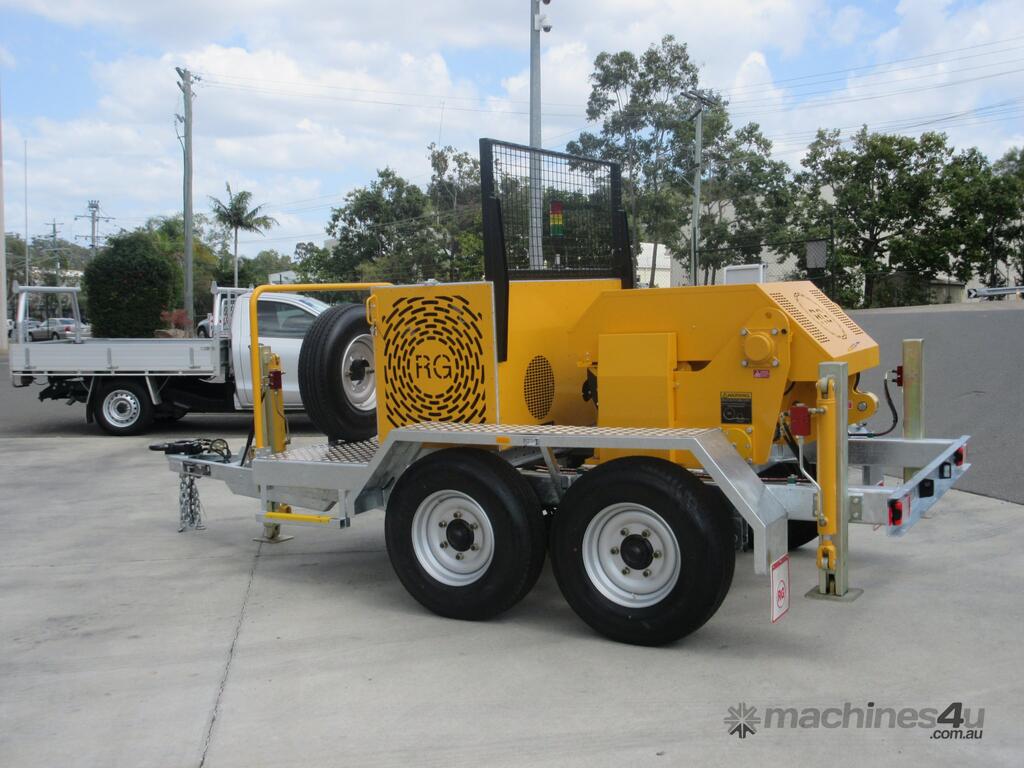

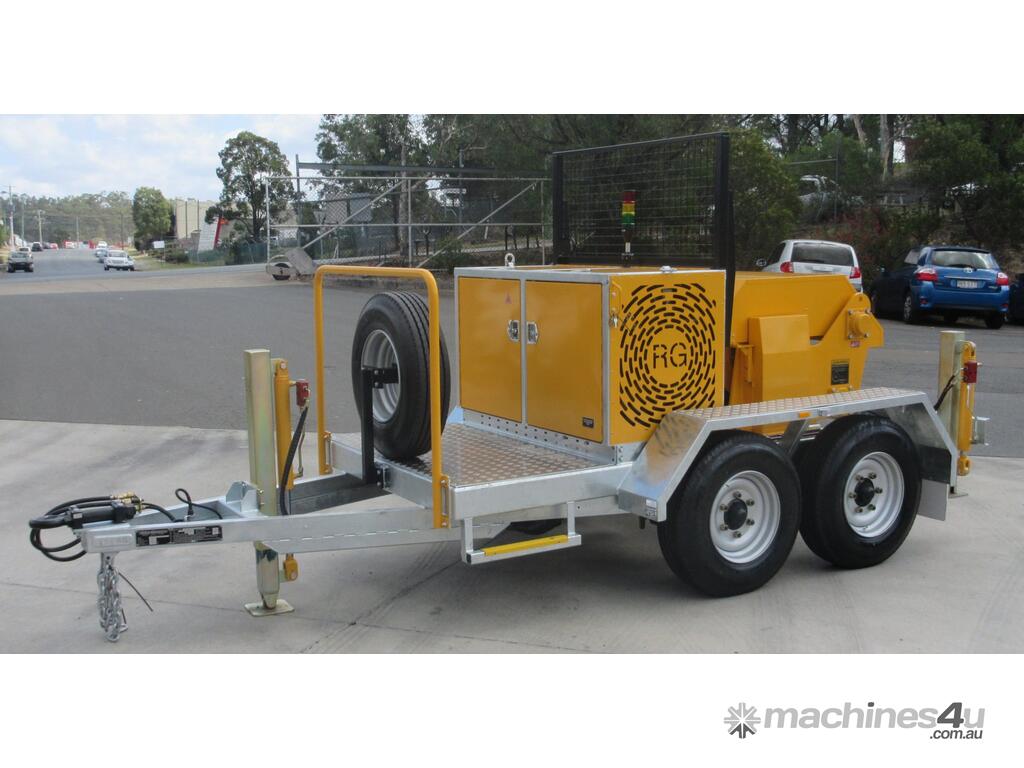

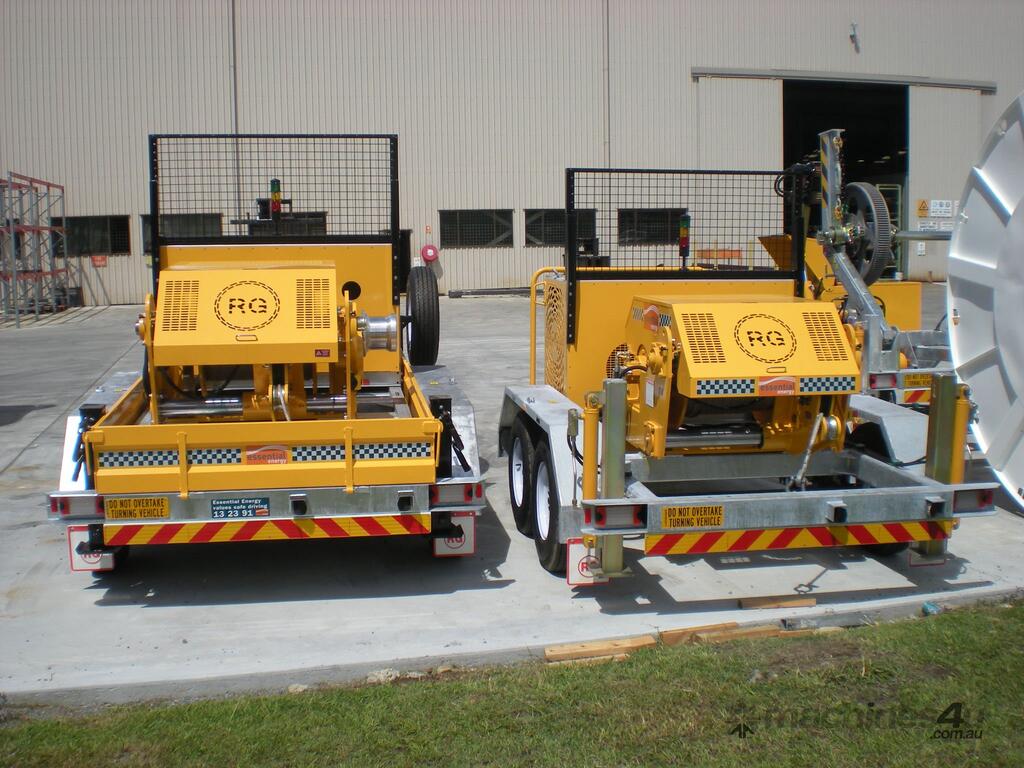

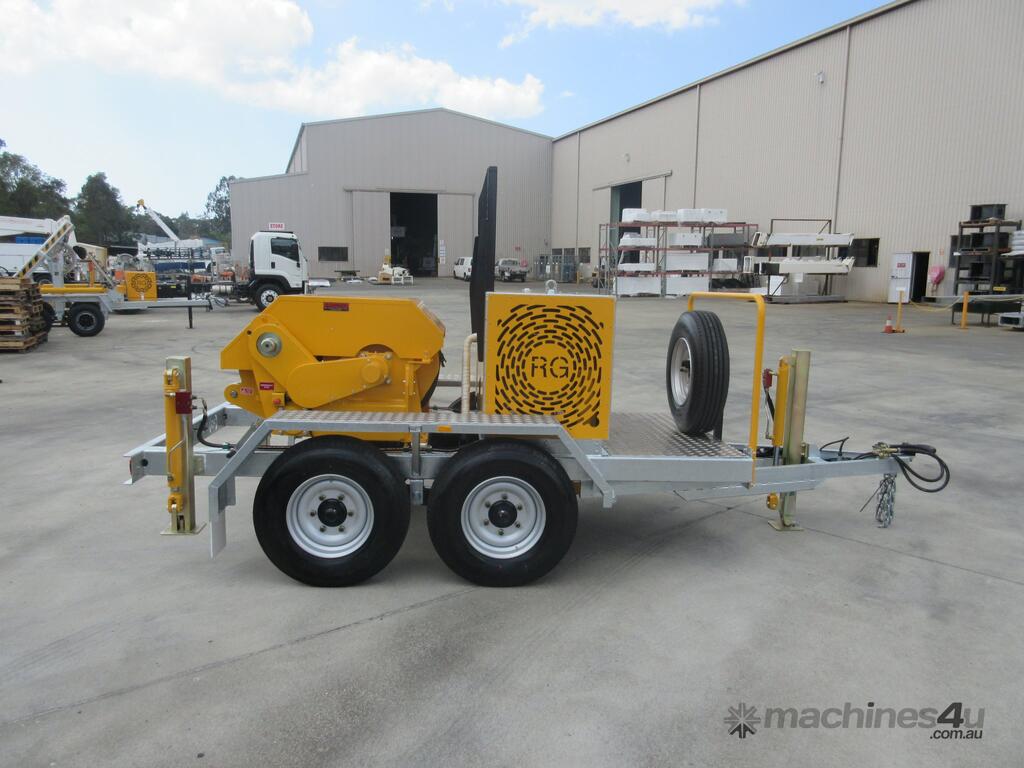

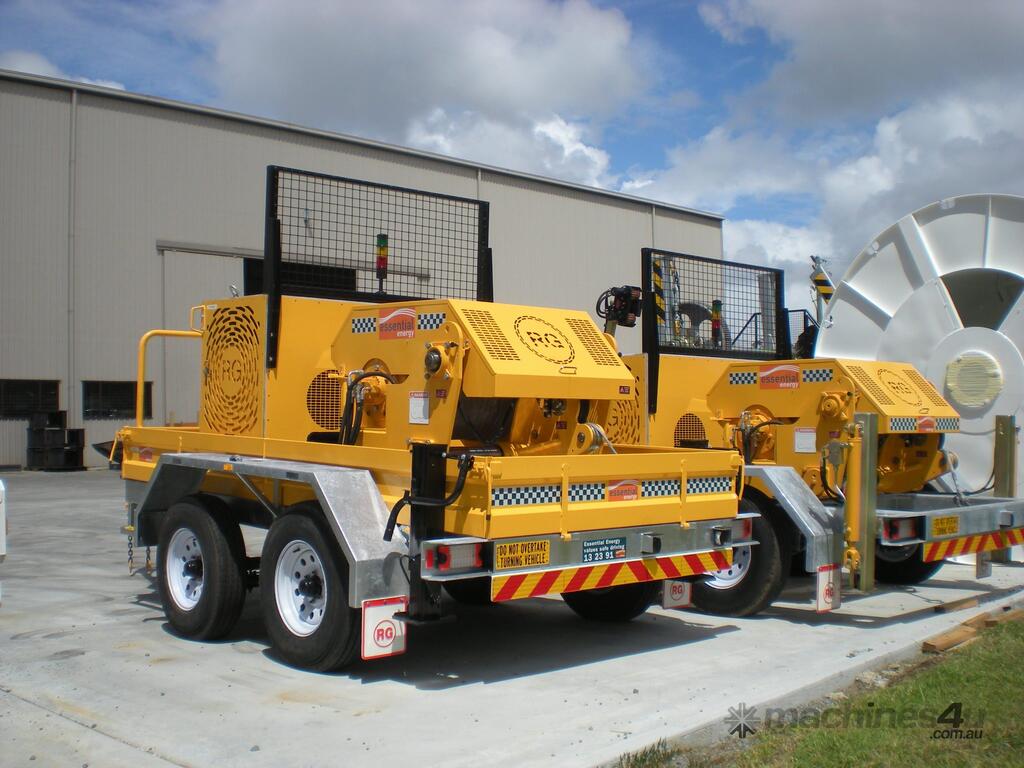

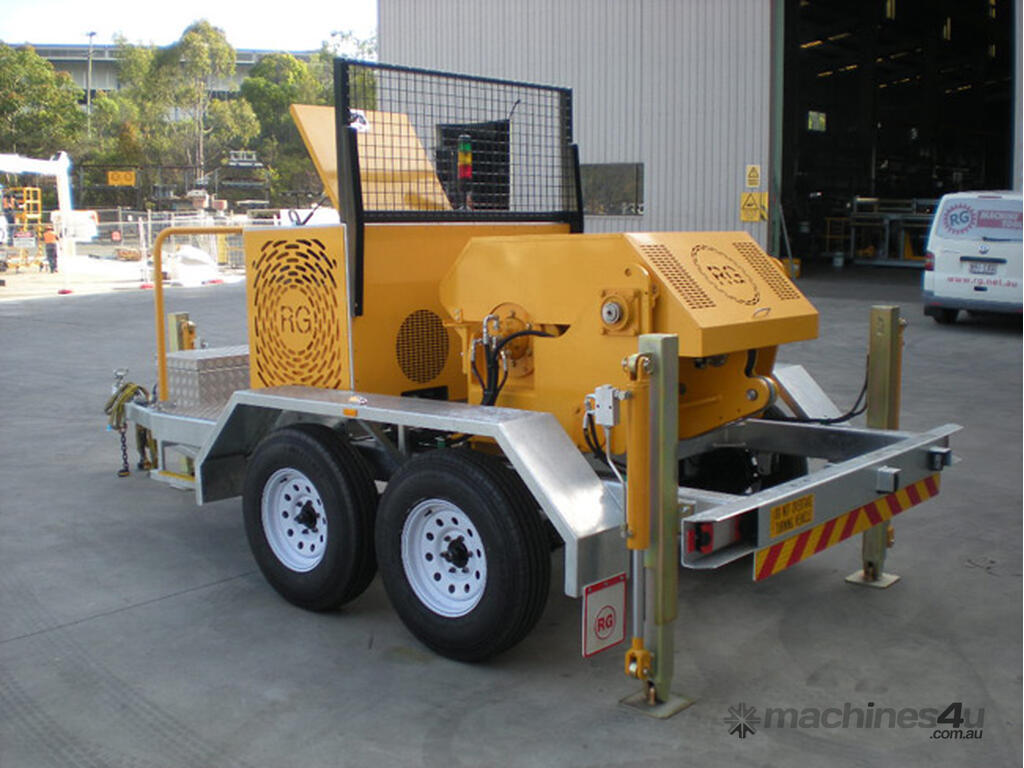

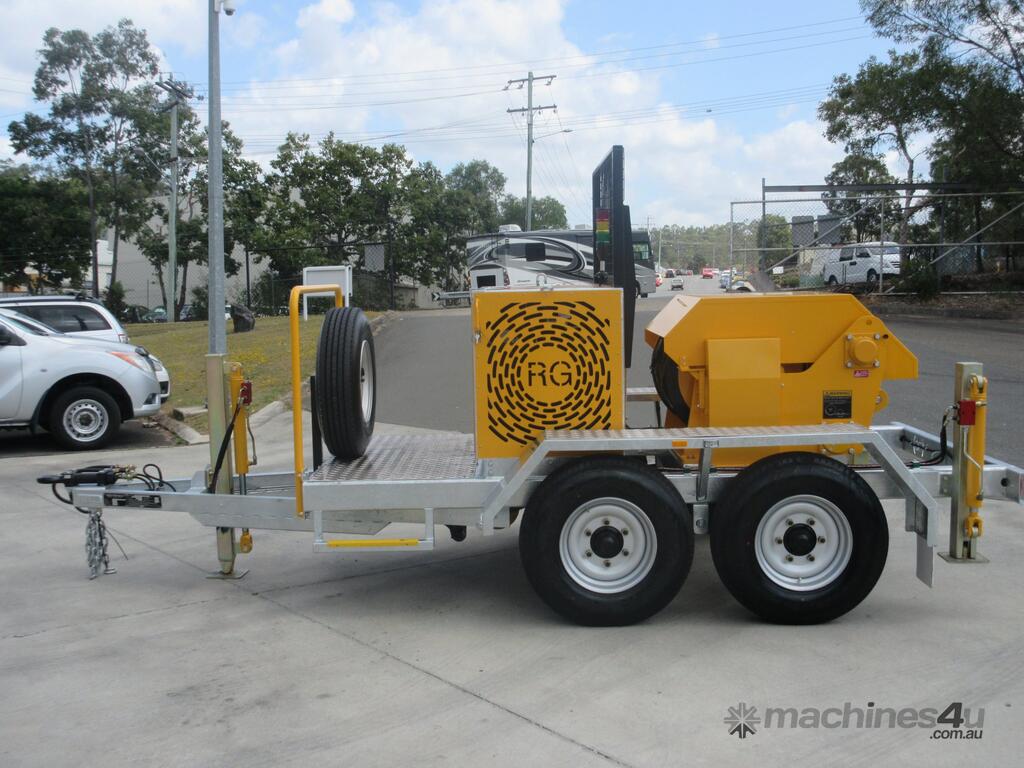

This trailer-mounted 20kN recovery winch can be used for a variety of applications. The winch is mounted onto a sturdy hot dip galvanized trailer utilizing Landcruiser wheels. The trailer is provided with a storage cabinet and an operator’s platform incorporating safety guard that gives the operator excellent visibility of the winch operations from the control console.
Specifications
Trailer Frame
Overall Length 5525 mm
Overall Width 2230 mm
Overall Height
2410 mm
Aggregate Trailer mass (ATM)
2900 kg
Finish Hot Dip Galvanised
Front Stabiliser Manual – Wind down
Rear Stabilisers (Two) Manual – Wind down
Tow Coupling 50 mm Ball
Axle ADR approved dual axle with electric brakes
Tyres 7.5 x 16 tyres (Land cruiser)

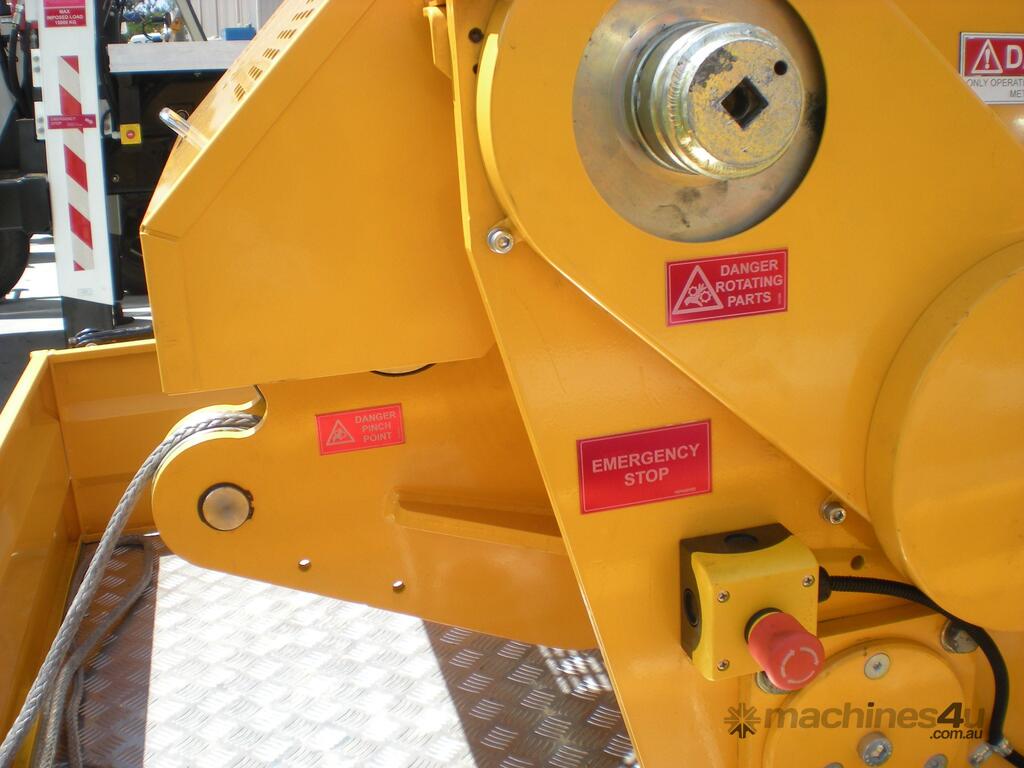

Controls Operational controls positioned behind protective guard
Engine Water cooled Diesel 11kW
Fuel Tank 32 lt
Hydraulic oil reservoir 58 litres with 12 Volt oil cooler
Start Electric
Transmission Hydraulic
Toolbox Option on A-Frame
Final Coat Finish. Powder Coating and 2 pack Enamel. Yellow, Interpon, Safety Yellow, Product Code ME096A

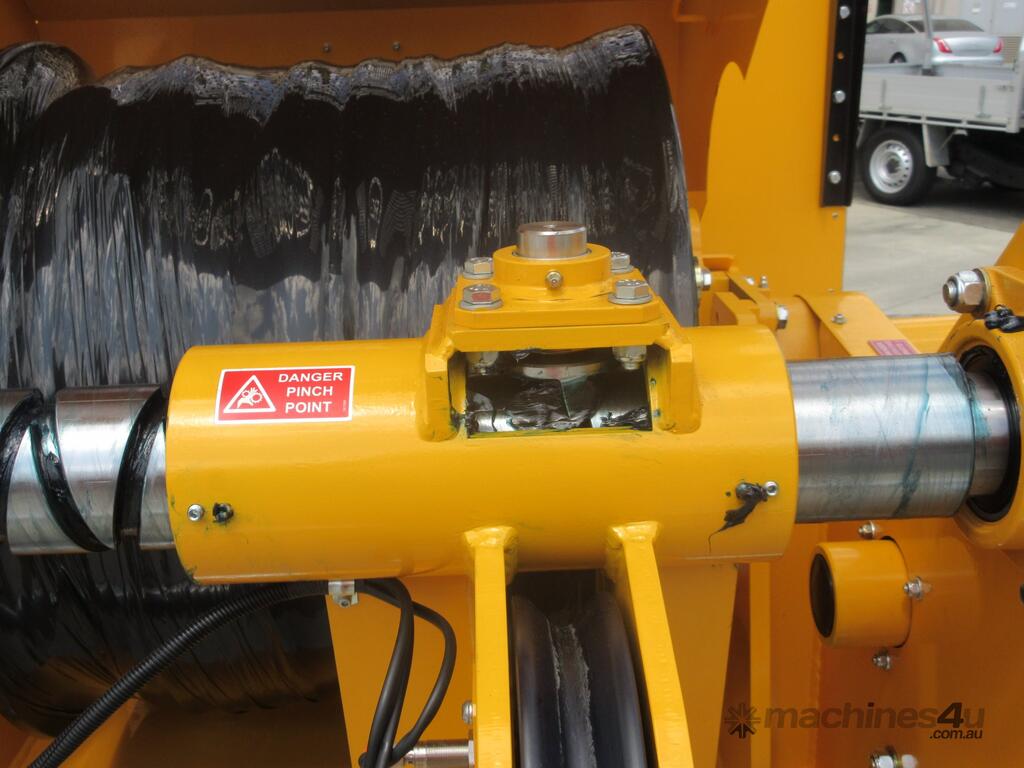

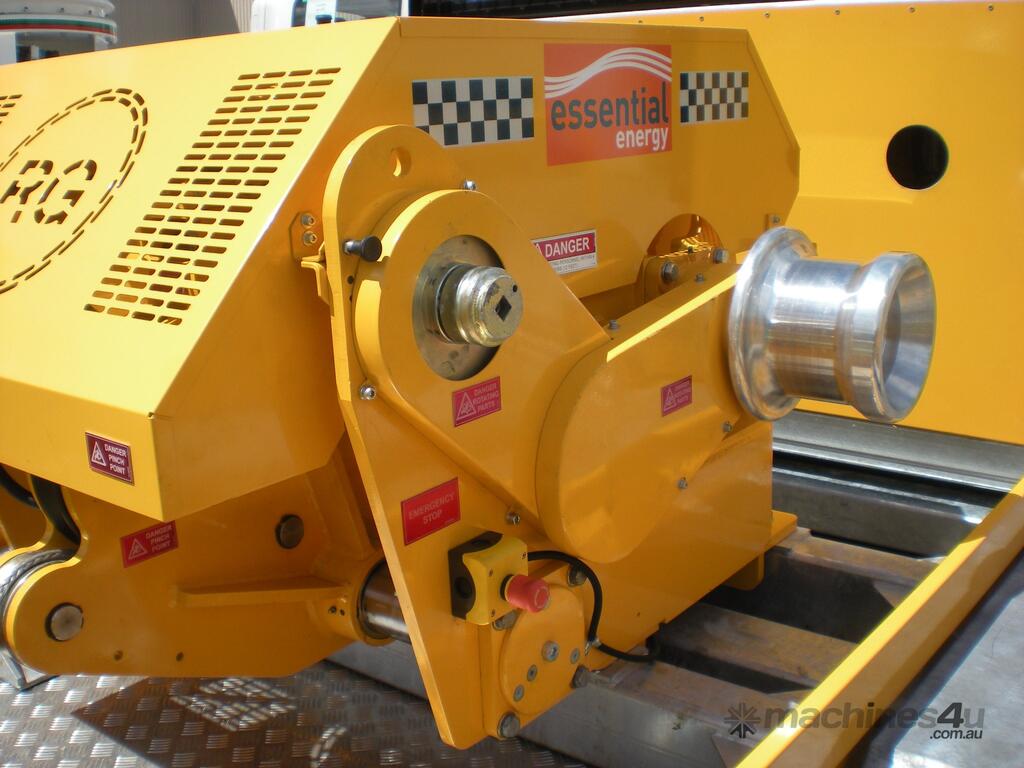

Winch
Tension (Pull) 20kN (2000kg) constant at low speed
Line Speed (2 Speed auto change via dual hydraulic pump)
- High speed full drum 46 m/min at 10kN
- Low Speed full drum 24m/min at 20kN
Drum Capacity
Rope 12mm 750 metres
(Rope not included)
Parts Books & Operating Instructions
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.
Change in Specification
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its' representatives.
Warranty
12 months parts and labour in accordance with guarantee and sales conditions.
