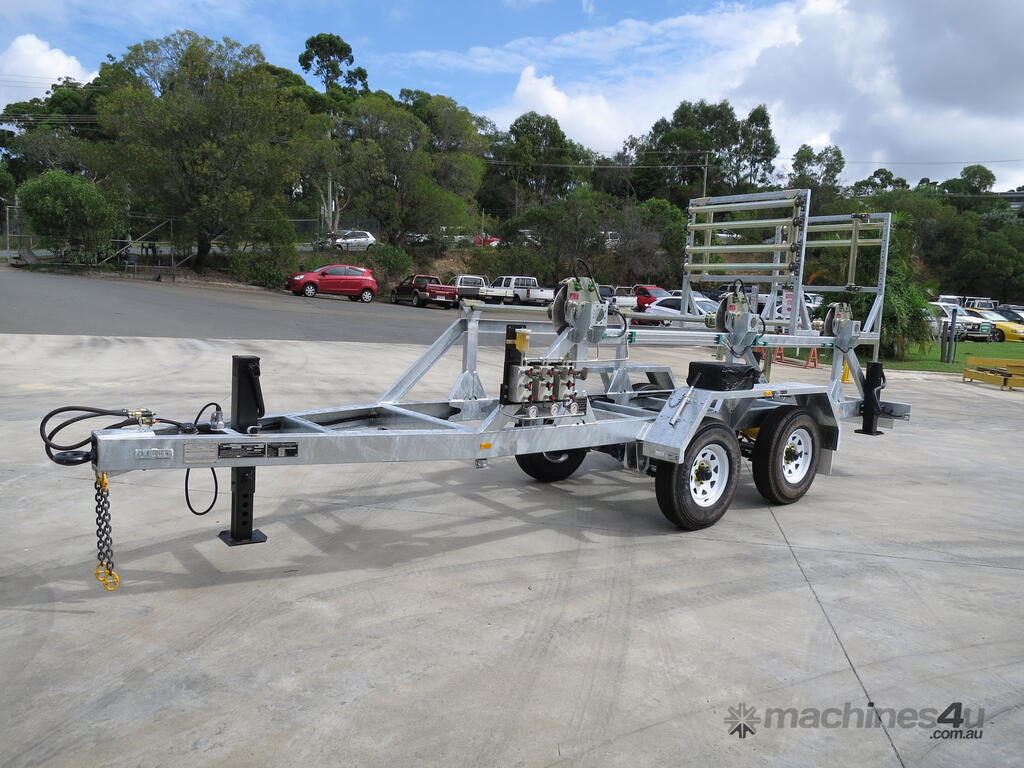

STANDARD FEATURES:
> Trailer frame finished in hot dip galvanising.
> ADR approved tandem axle with electric brakes. Note: "S" cam air brakes are required for trailers carrying drums heavier than 1 tonne each.
> Landcruiser radial rims with 7.5 x 16 tyres.
> Wind down front jackleg/stabiliser.
> Two wind down rear jackleg/stabilisers.
> Tow eye type.
75mm ring type swivel tow coupling.
Coupling height - 600mm.
> 10mm Herc-Alloy safety chain - no ends - suits 10mm Bartlett connection on tow bar.
> Multi-voltage LED lights.
> Safety and operational signage - screen printed anodised aluminium or UV stable acrylic.
> Final coat finish: powder coating and/or 2 pack enamel.
> One set of operational manuals.
ADDITIONAL OPTIONS:
> Set of 3 emergency triangle (Navara ME41) with high visibility vest.
> Set of 4 wheel chocks Trelleborg, Qld Rubber and holder.

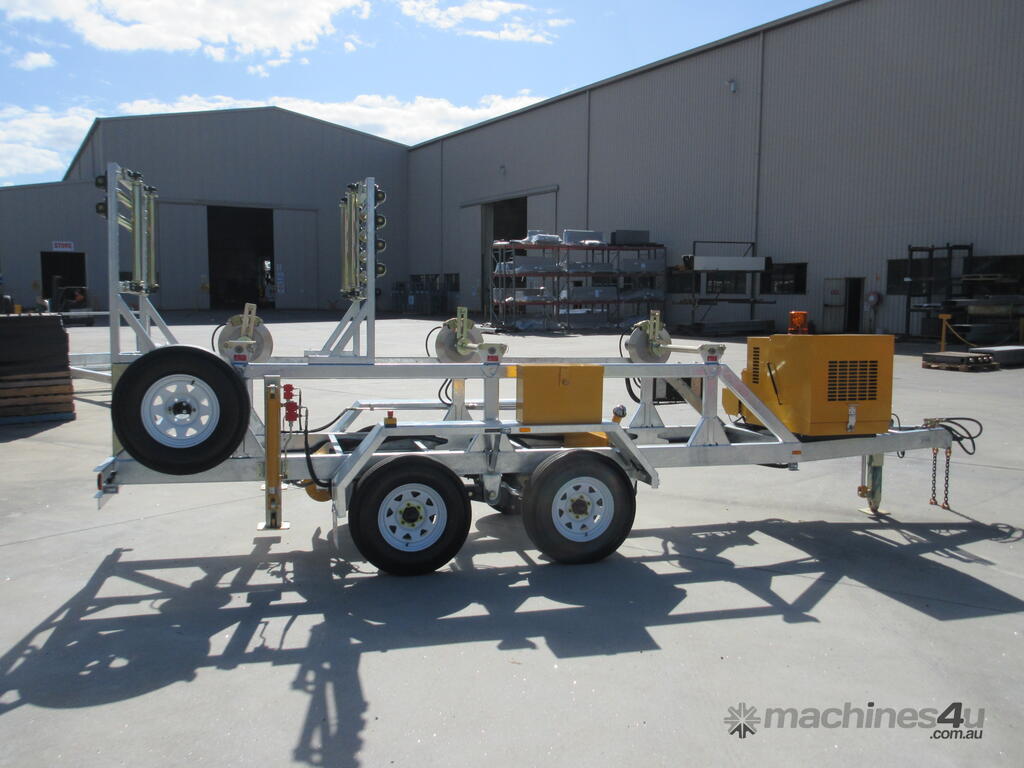

> Spare wheel and mount-rim 16x6, Tyre 7.50 x 16 14PR 122/121L.
> Heavy duty lockable toolbox.
> S Cam airbrakes with ABS, springbrake boosters on top of axles.
> Overhead roller support stand Type 1.
> Overhead roller support stand Type 2.
> Overhead roller support Type 3.

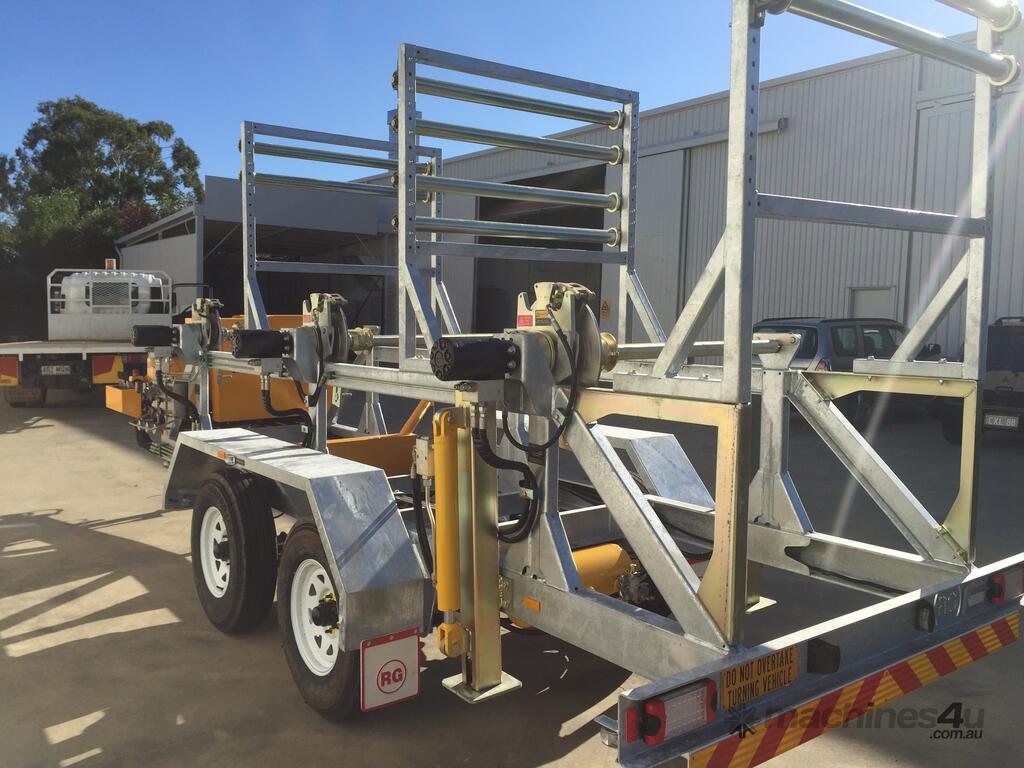

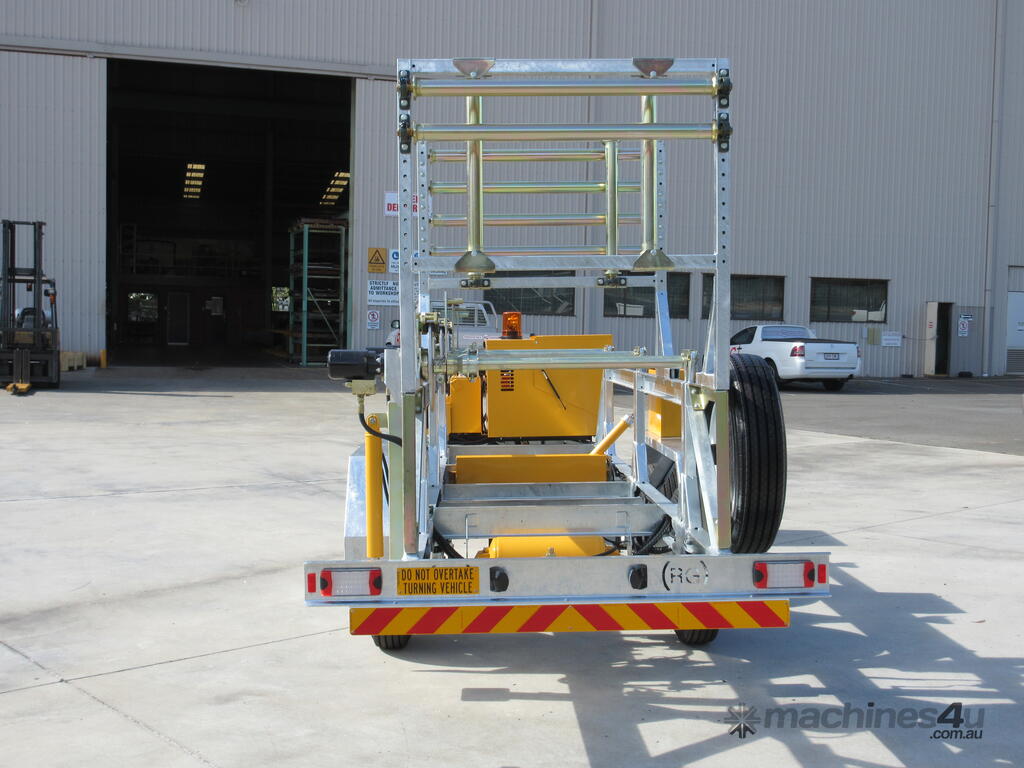

> Overhead roller support stand with vertical roller guides Type 4.
> Overhead roller support stand with vertical roller guides Type 5.
> Overhead roller support stand with vertical roller guides Type 6.
> Wheel brace suit 16" 6 stud wheels.
> 75mm fixed tow eye.
> 40mm fixed tow eye.
> Hydraulic spindle brake kit.

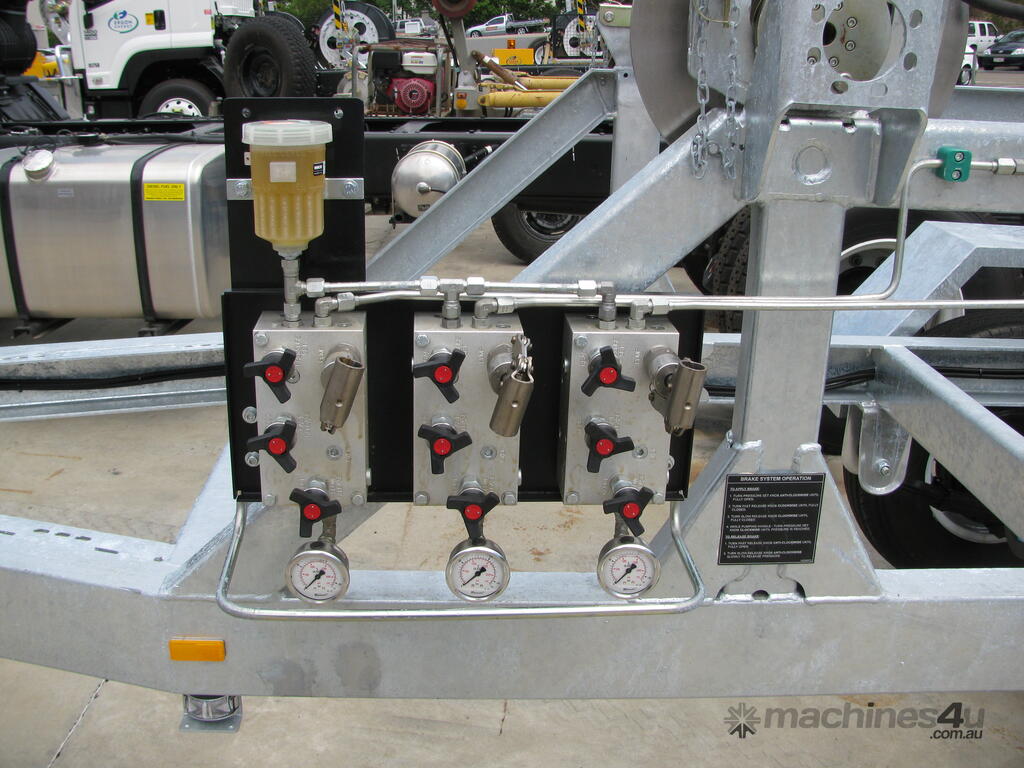

> 3 x 400kg dual caliper hydraulic spindle brake kits with individual hand pumps.
> Split drum 1200mm dia., 93mm dia. spindle bore.
> Additional set of operational manuals.
> Vinyl manual / log book holder.
> Large 7 pin electrical trailer plug.
> Rectangular electrical trailer plug.
> Safety chain ends - 100mm Hammerlocks.
OPTIONAL DIESEL/HYDRAULIC FEATURES:

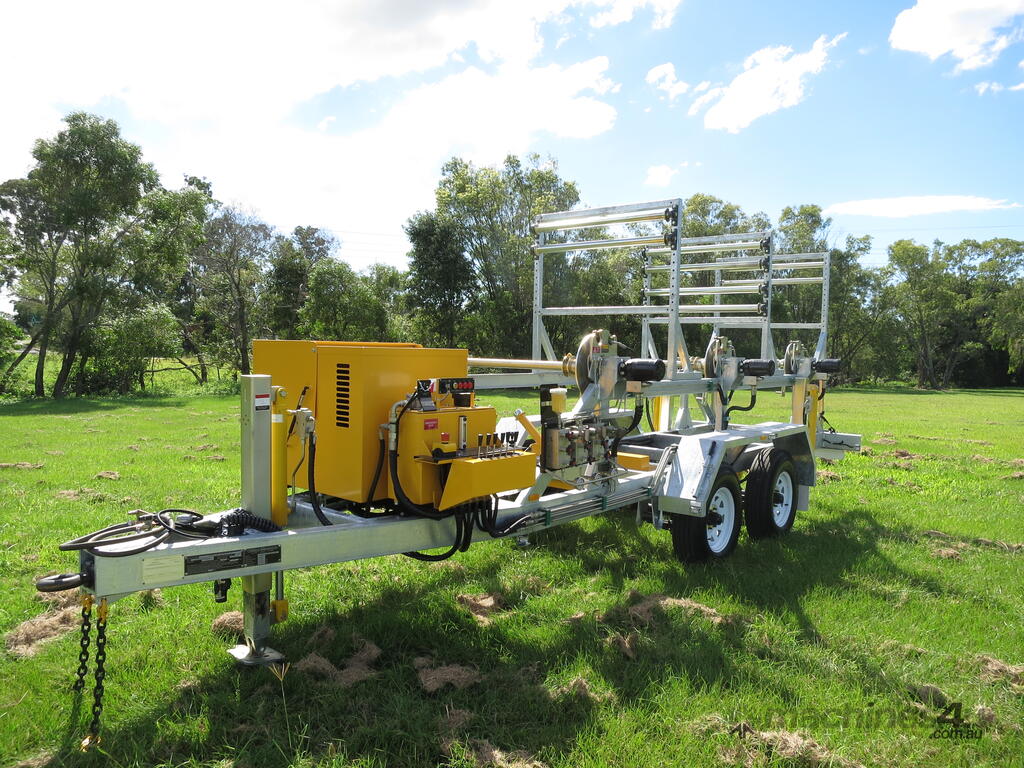

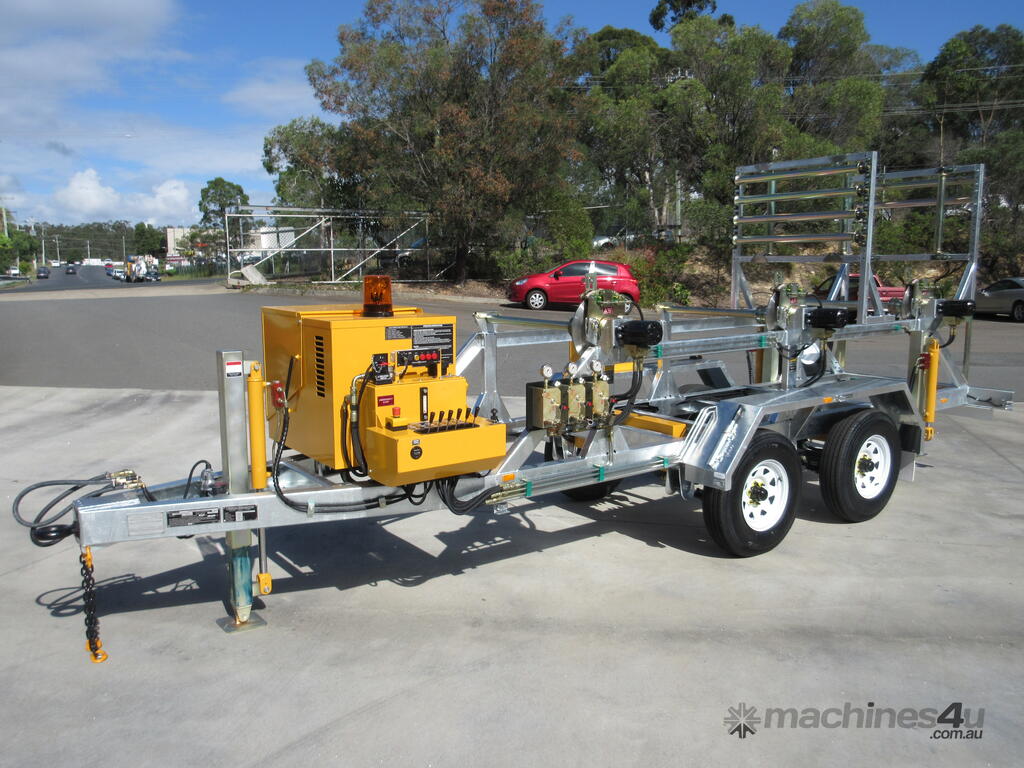

> Hydraulic drum drive x 1 with 6hp petrol p/u and drive motor.

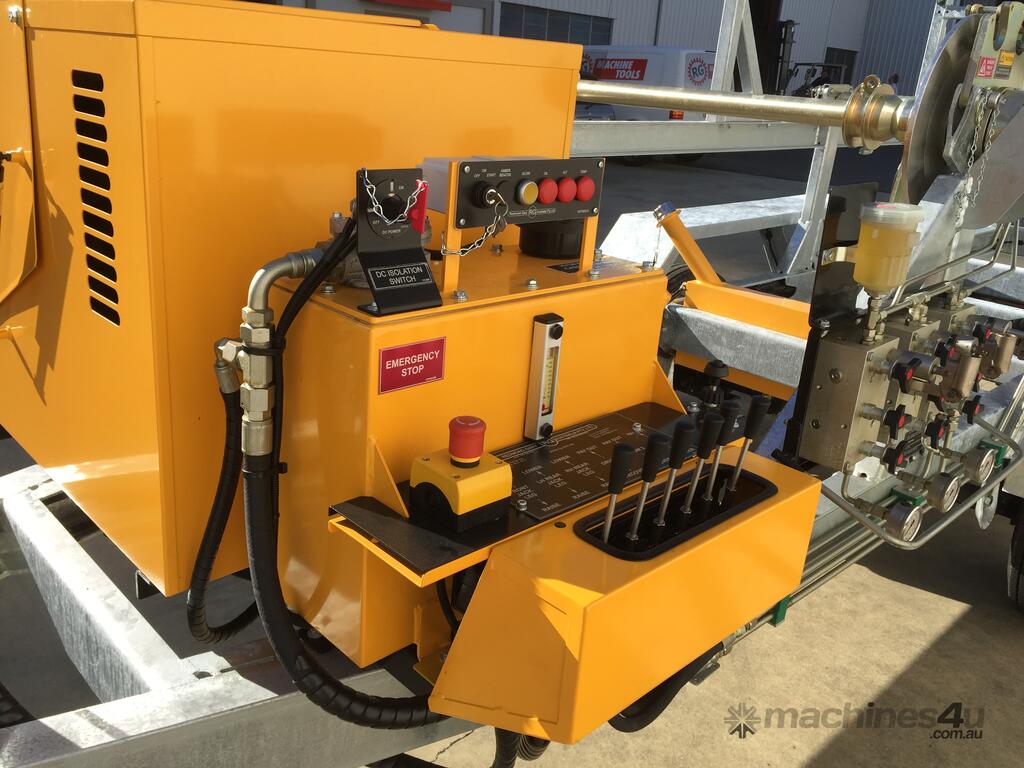

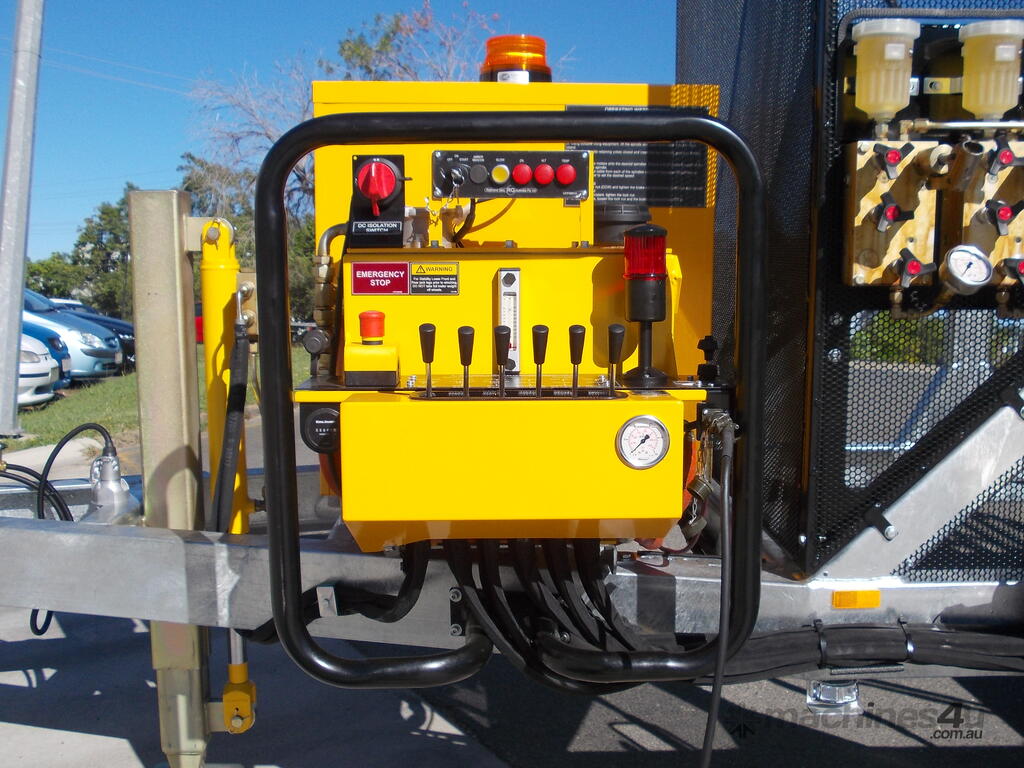

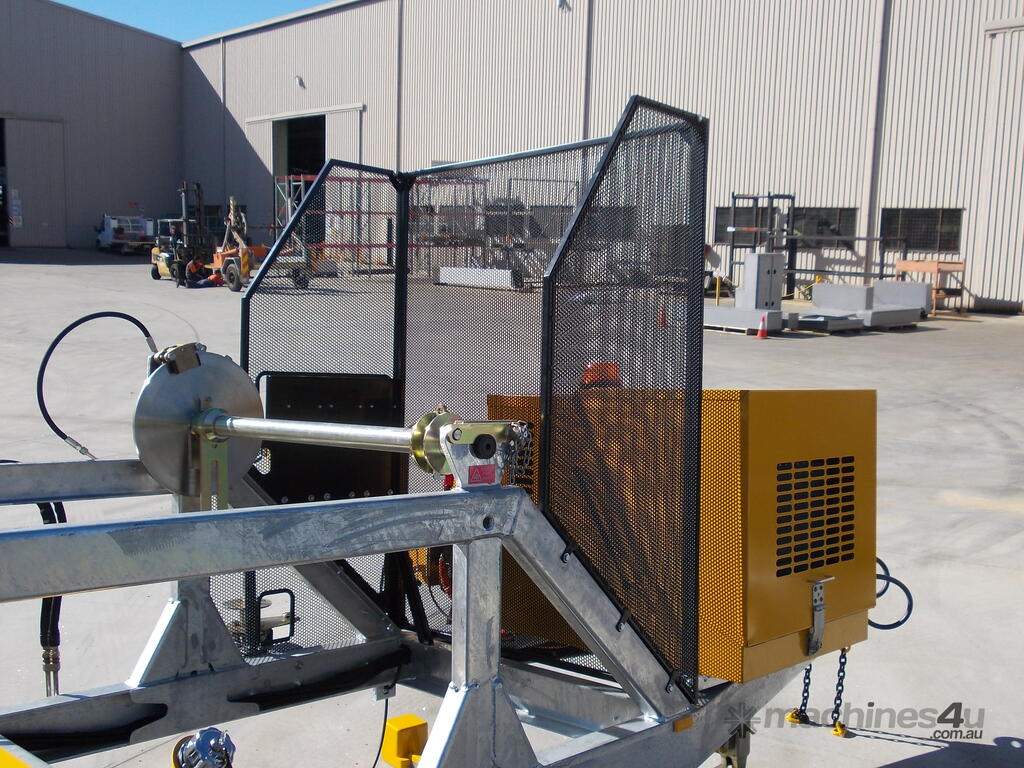

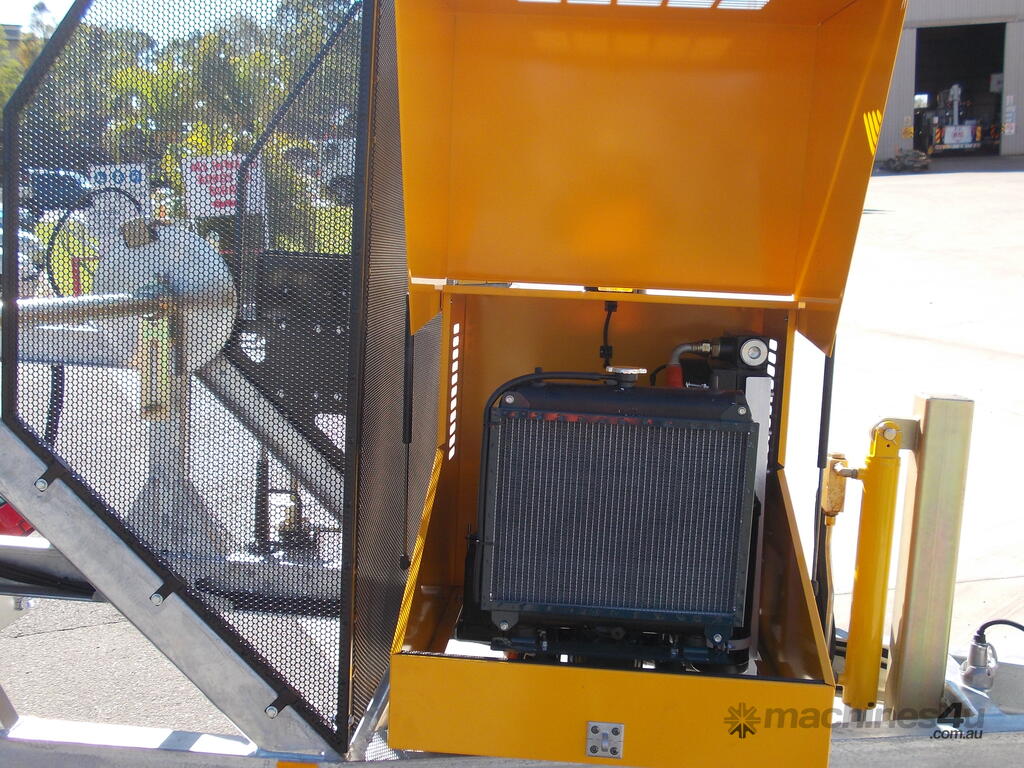

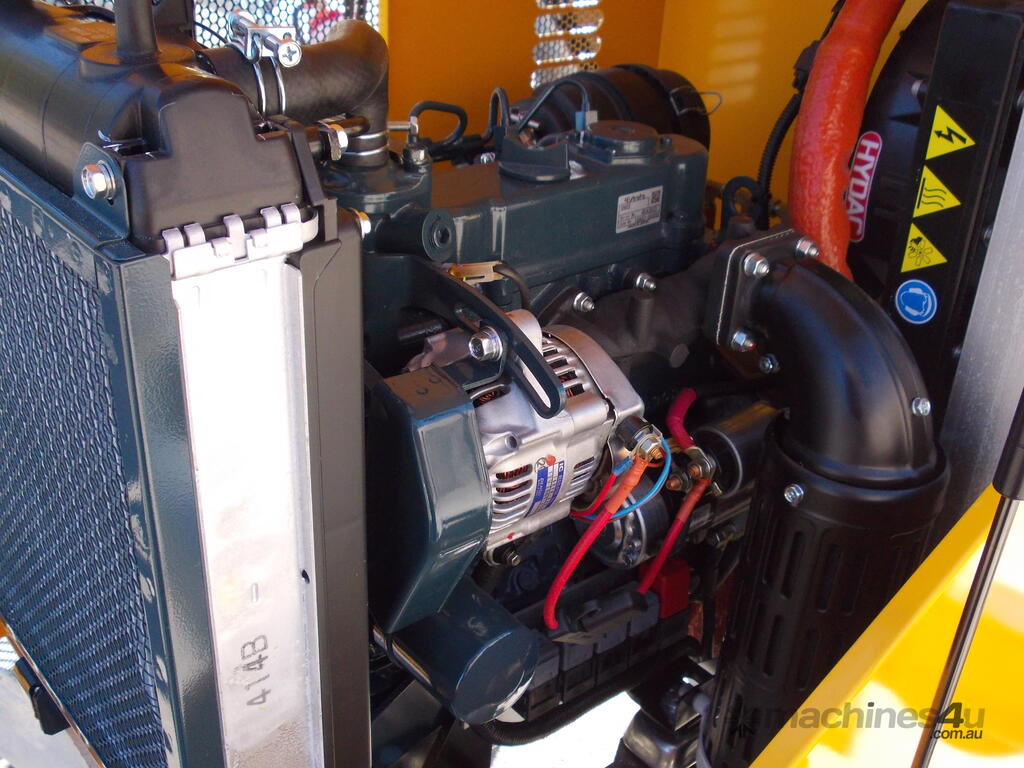

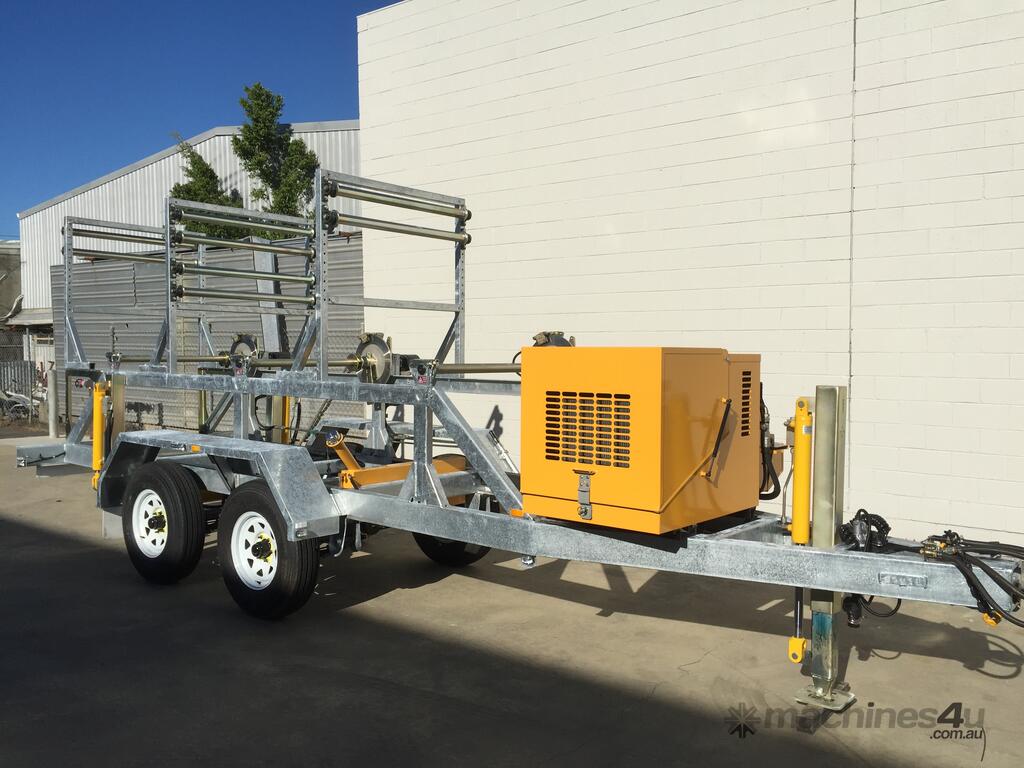

> Hydraulic drum drive x 3 with 20hp water cooled diesel power unit.
> Hydraulic front jackleg/stabiliser (only applicable if drum drive selected).
> Hydraulic rear jackleg/stabiliser (drum drive must be selected).
> Additional emergency stop (engine).
> Amber LED strobe lamp.
> Rotating amber light.
> Hour meter.
> Operator present foot pedal (Deadman).
> Oil spill kit - 50 litre.
> Oil spill kit - 21 litre.
TECHNICAL DATA:
Max drum mass: 1.3 tonne.
Max drum diameter: 1400mm.
Max drum width: 950mm.
Standard spindle diameter: 54mm.
Overall length: 6500mm.
Overall width: 1820mm.
Height (with roller guide stand): 2560mm.
Standard trailer brake type: Electric.
Mass fully laden (max electric brakes): 4500kg.
Mass fully laden (max air brakes): 6000kg.
Mass unladen: 1650-2200kg. (The mass of this trailer will depend on the combination of additional options chosen.)
Payload (electric brakes): 3 x 950kg.
Payload (air brakes): 3 x 1250 - 1450kg.
