35kN Bull Wheel Winch - Skid-mount

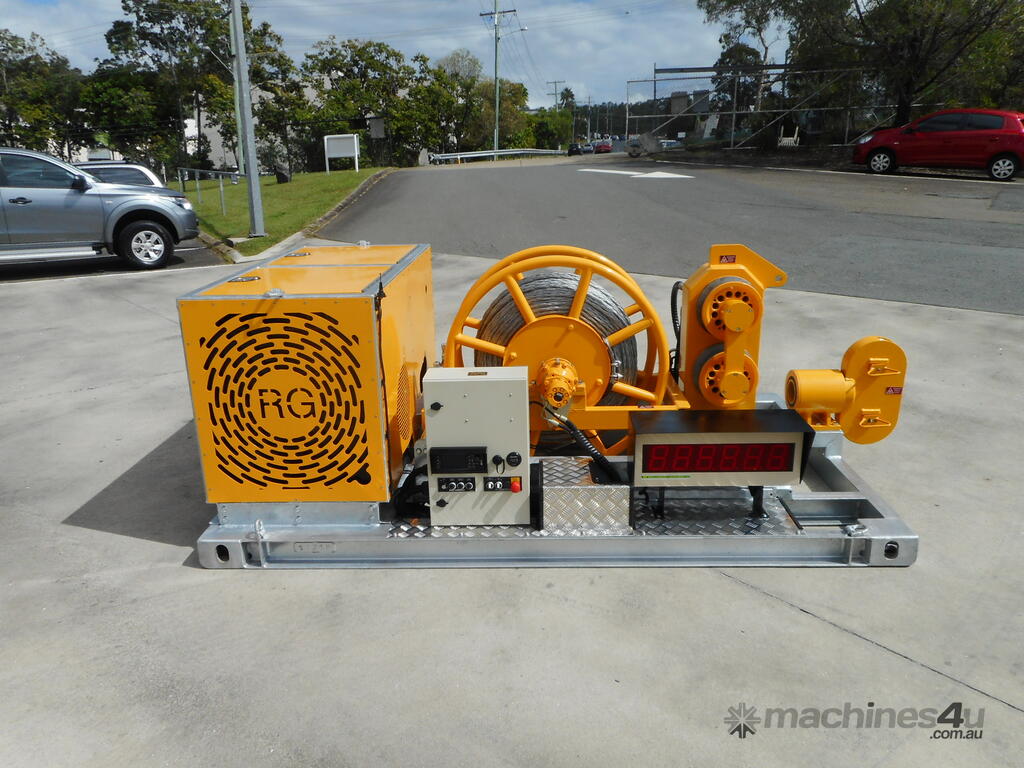

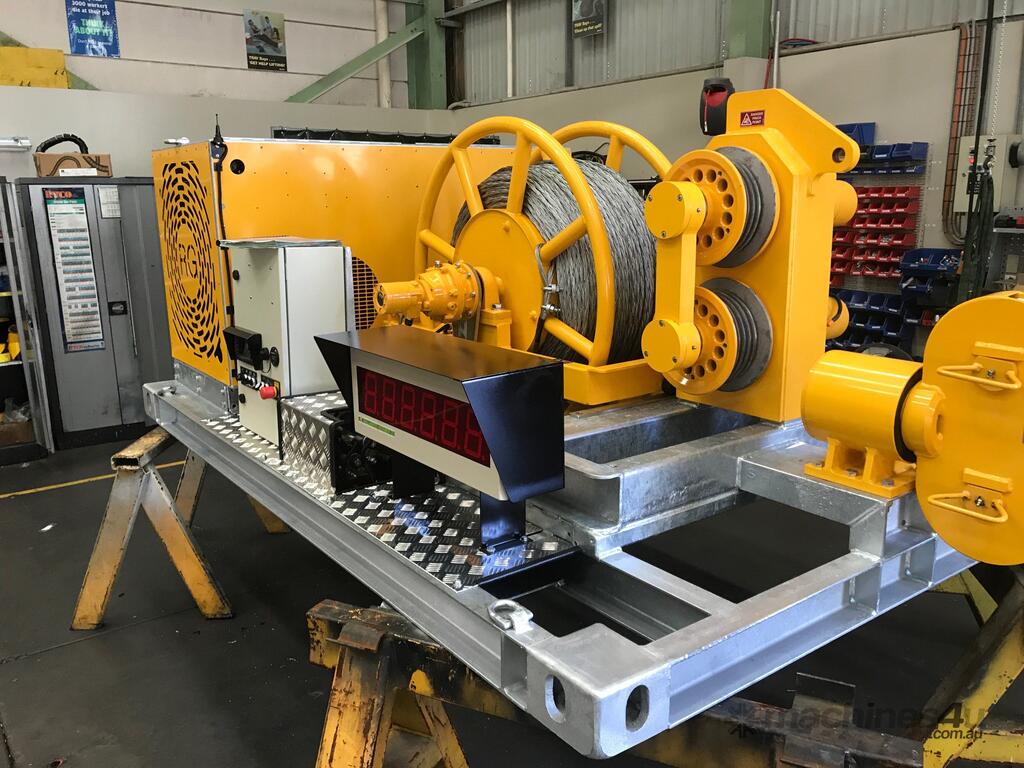

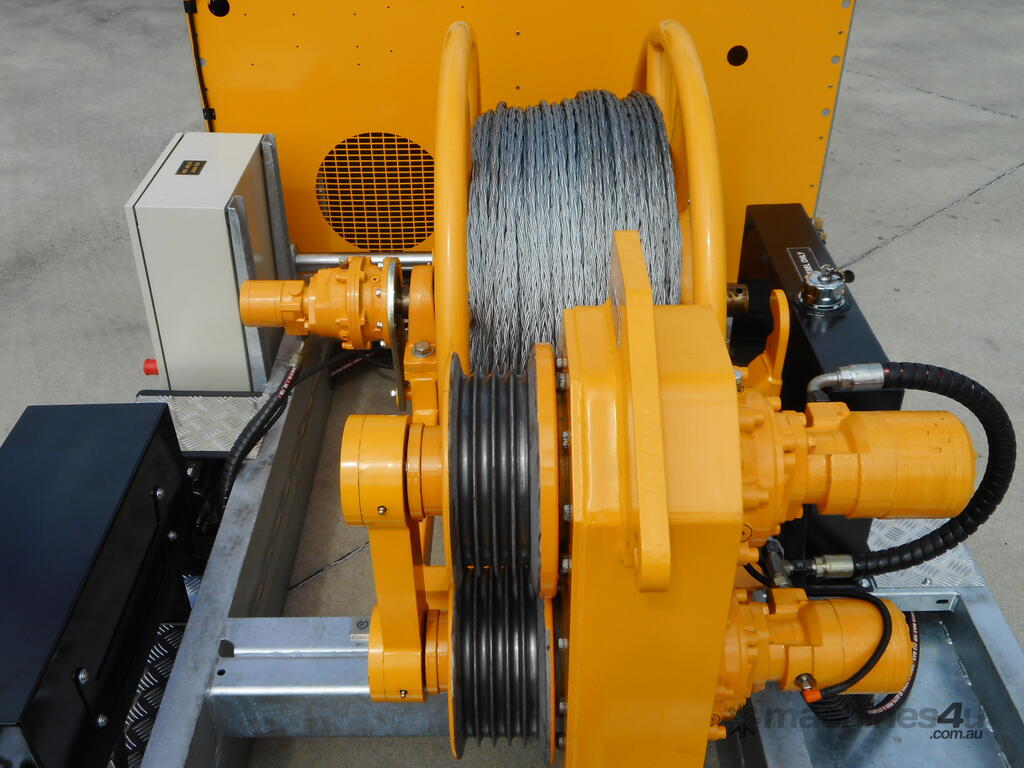

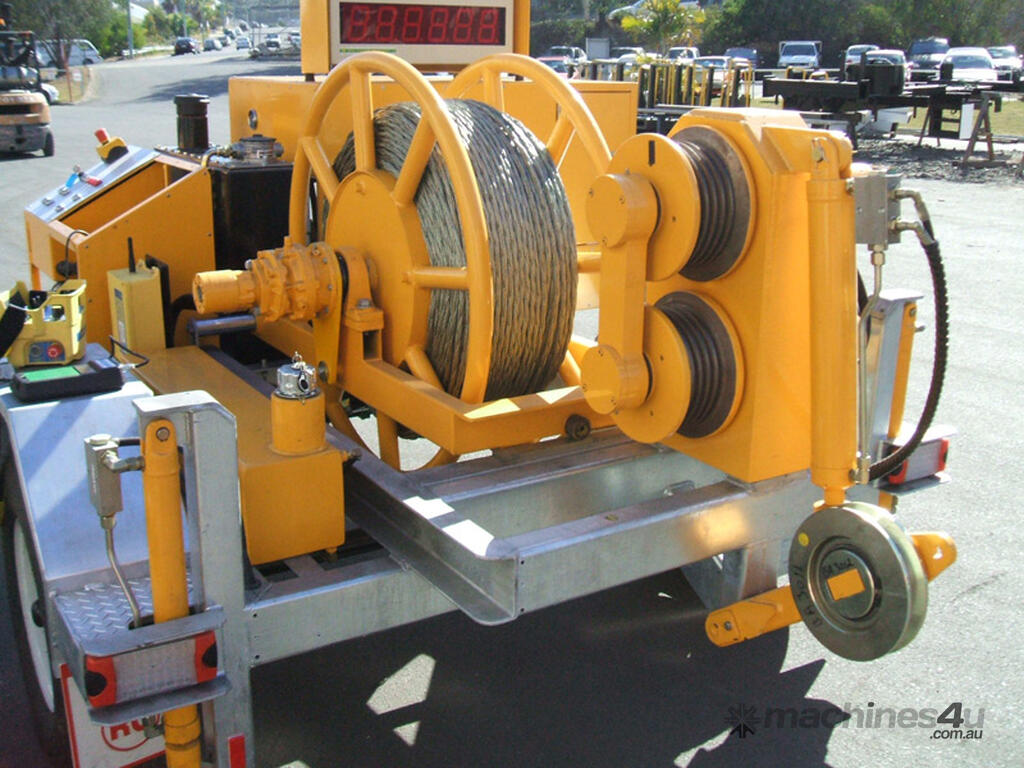

These winches are specifically designed to haul cable through ducts and use a double bull-wheel configuration with storage reel. The proportional hydraulic system is diesel driven with electric start. The winches are fully self-contained and can be supplied with container locks for fixing to the tray of a flat-top truck. They are also provided with lifting points for easy loading and unloading.

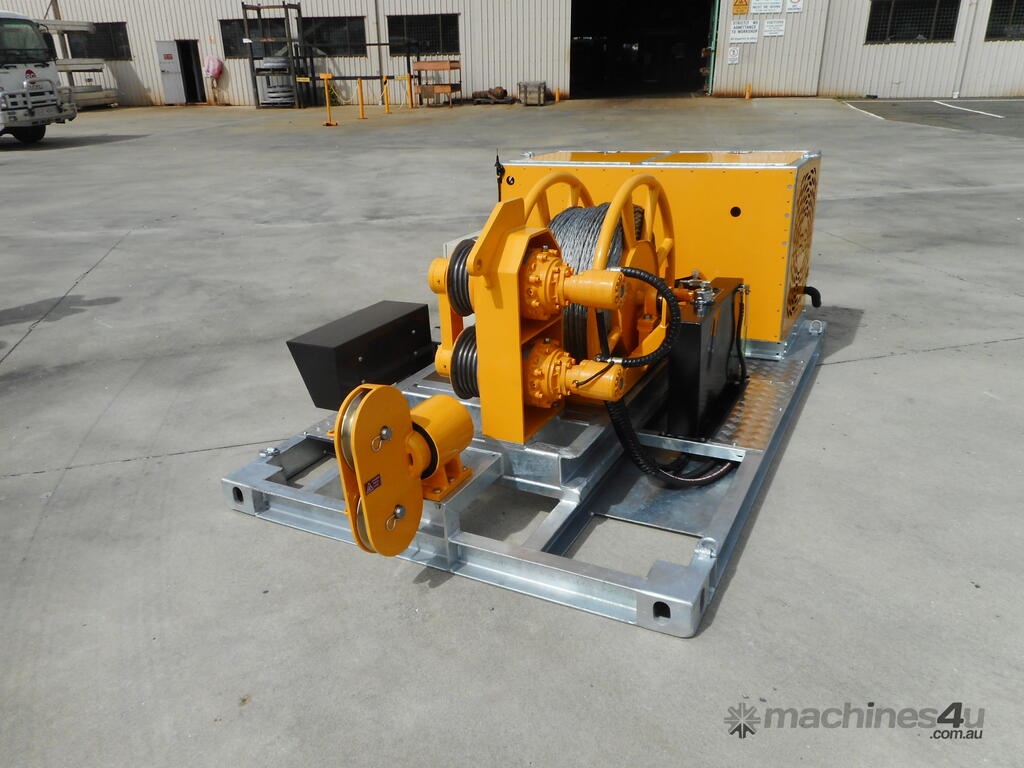

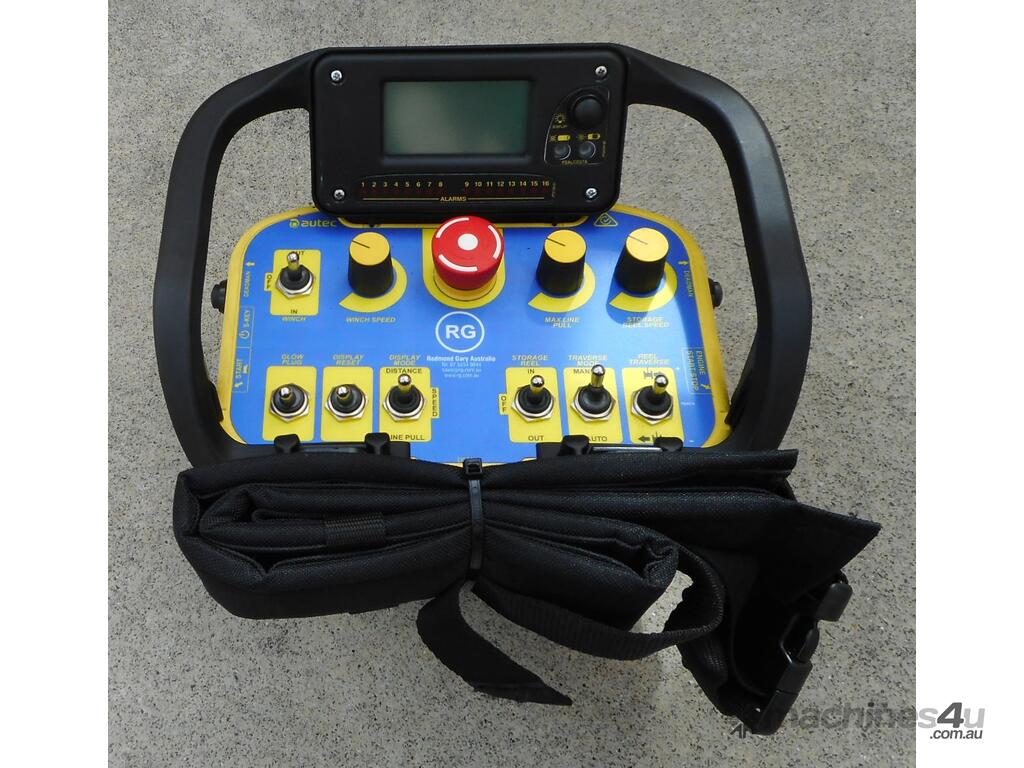

The units are provided with either manual controls or can be provided with radio control.
The winches are provided with 12mm Andromeda non-rotating plaited wire pulling rope or alternatively can be provided with fibre rope. Standard configuration holds 500 metres of rope. The bull wheel winch can be preset for line tension between 0 and 35kN and maintain the line pull at a constant for the entire pull.

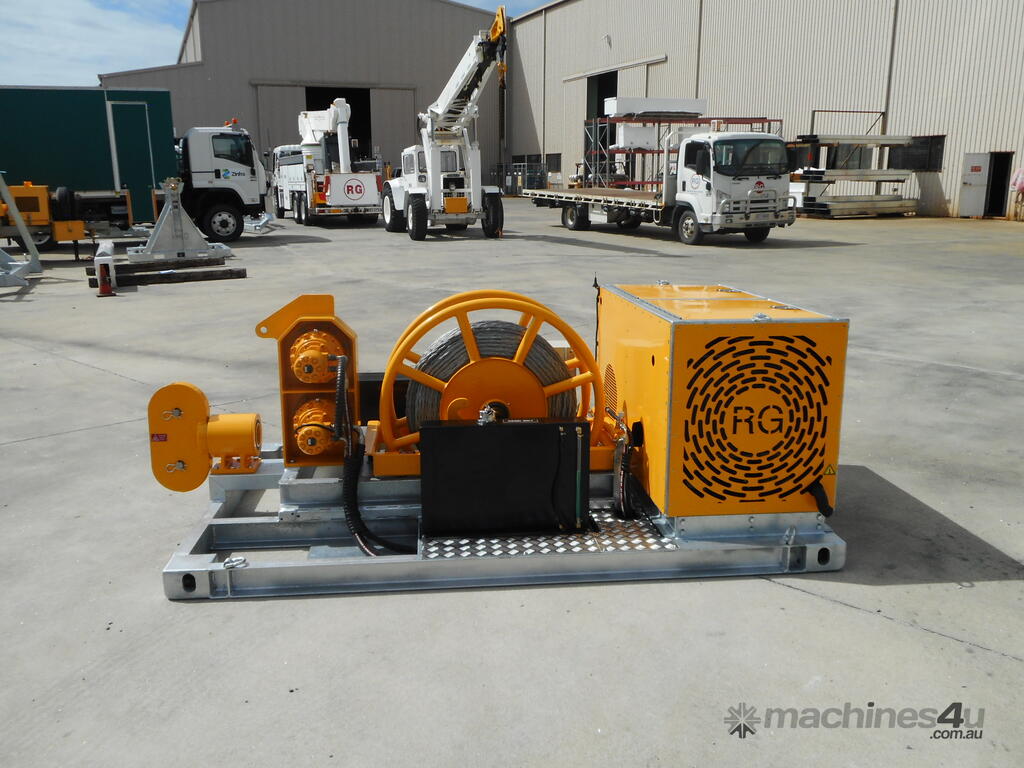

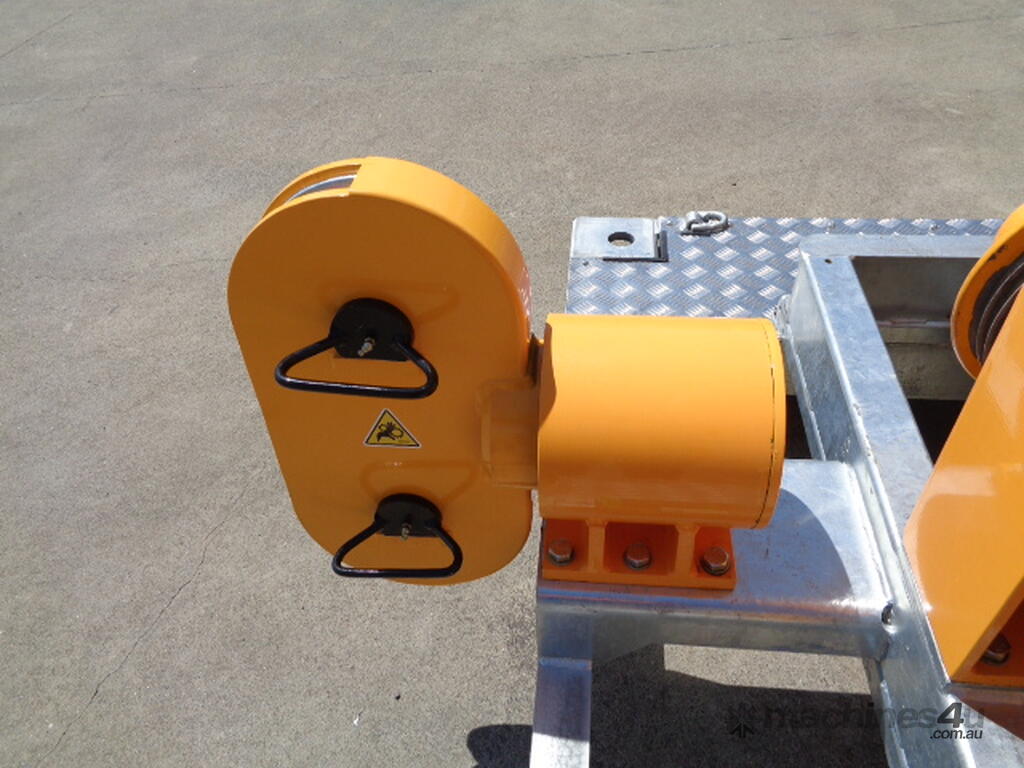

As an option, bull wheel winches can be provided with a special rotation fairlead. This fairlead gives the ability of rotary pull at any angle into the bull-wheel winch.
Construction of the bull wheel winch is designed for outdoor use featuring hot dip galvanized frame, all components are powdercoated, the power pack is enclosed in a lockable weatherproof cubicle with sound insulation to give maximum operator protection with sound emitting at no more than 85 dBa at operator's ear. All electrical equipment is IP65 or better.

Scope of Supply
The unit consists of:

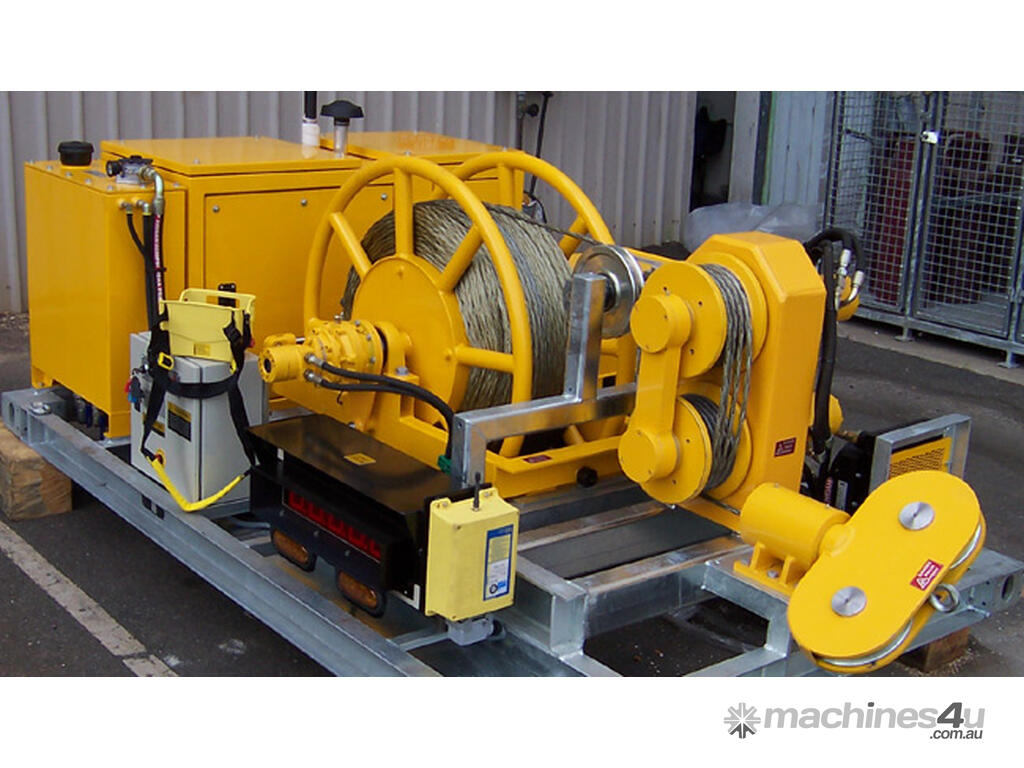

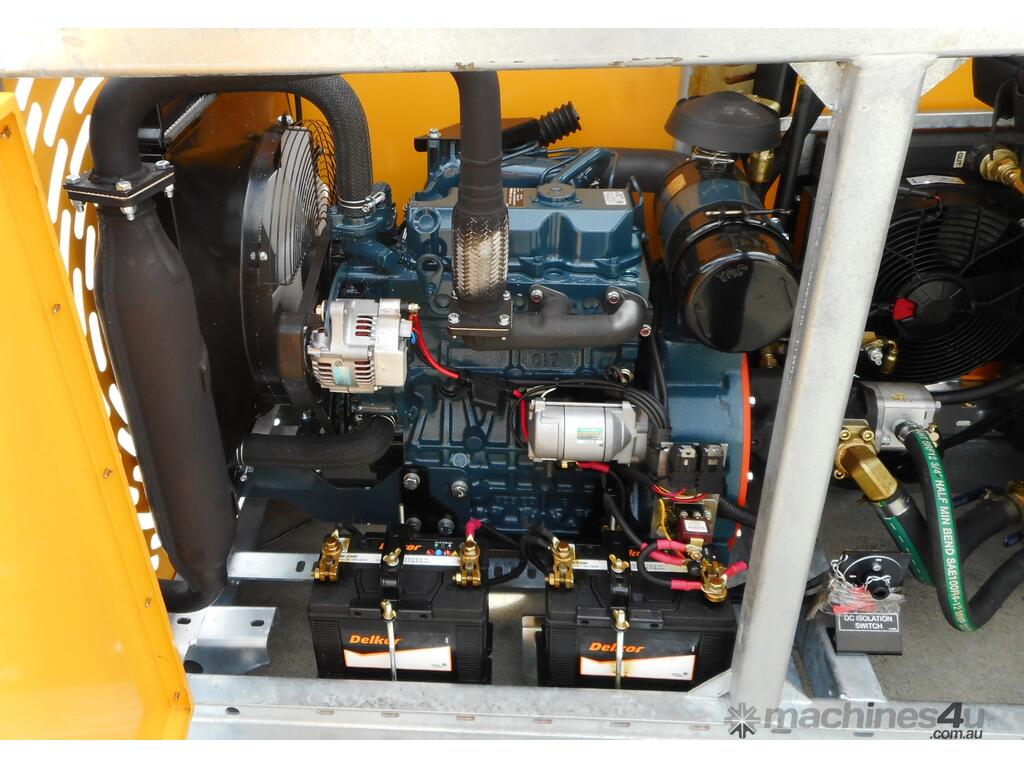

36.3 HP 3000 rpm (max) Diesel engine driving proportional hydraulic system
Skid frame fully hot dip galvanized
12 VDC Electric brake system on trailer
600 m of 13 mm plaited wire rope
Maximum line pull 35KN
Maximum line speed 10 m/min
A Programmable Logic Controller (PLC) controlled level wind mechanism to ensure even distribution of wire rope in reel. (Housed in a protective enclosure)
An auxiliary fuel tank would be fitted with a capacity of 40 litres minimum
A hydraulic oil tank would be fitted with a capacity of 120 litres minimum
The maximum line tension would be set by a relief valve
The line speed would be fully variable in each direction
The control panel would be fitted with the following:
- Engine hour meter
- line speed/distance readout
- Ignition key switch
- Engine throttle control
- Storage reel control switch
- Bull wheel control lever

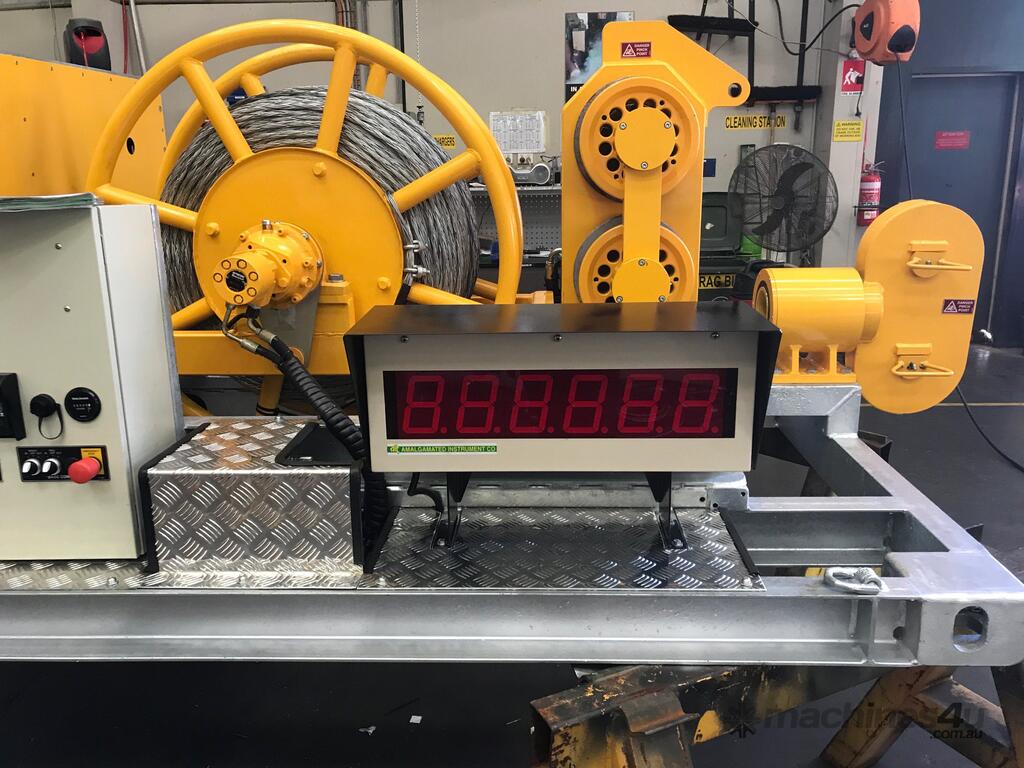

- Sunlight readable, red LED display that indicates line pull in kN
Designed for underground or overhead operation with pivoting rear idler pulley

Parts Books & Operating Instructions
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.

Change in Specification
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its' representatives.

Warranty
12 months parts and labour in accordance with guarantee and sales conditions.
