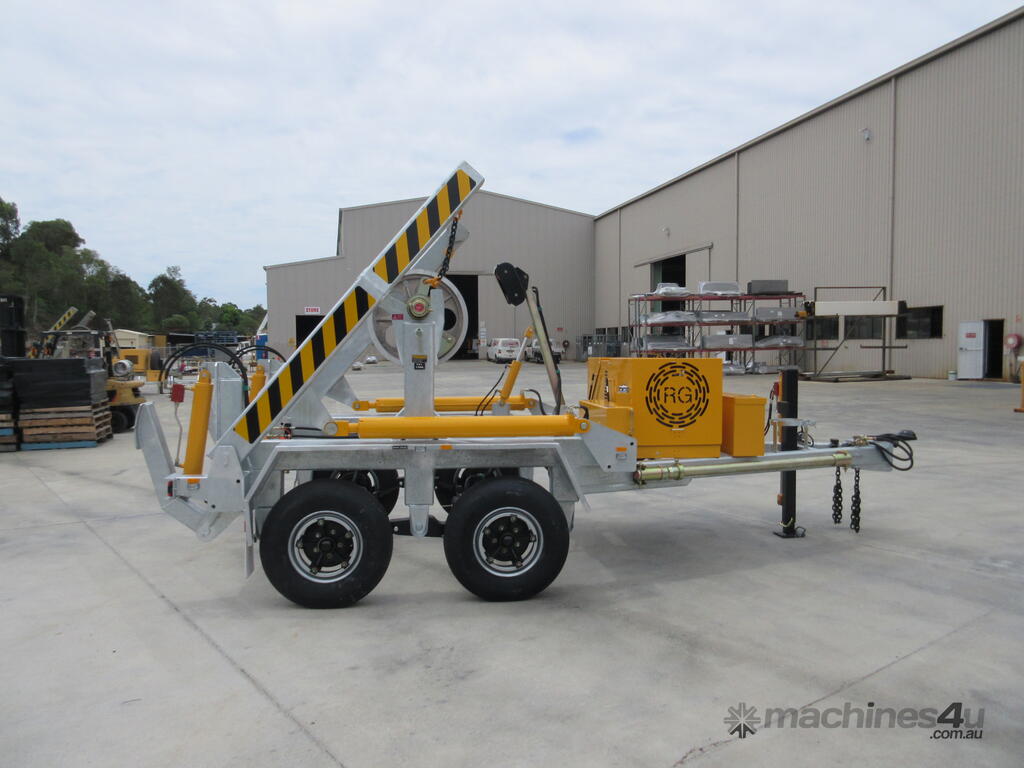

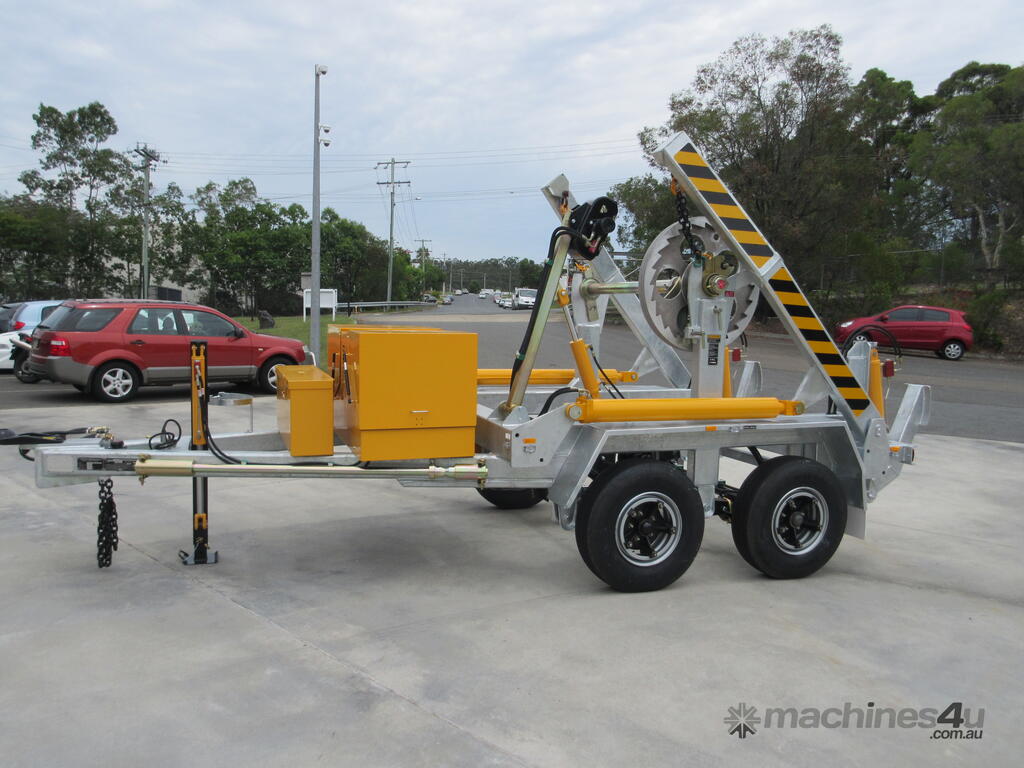

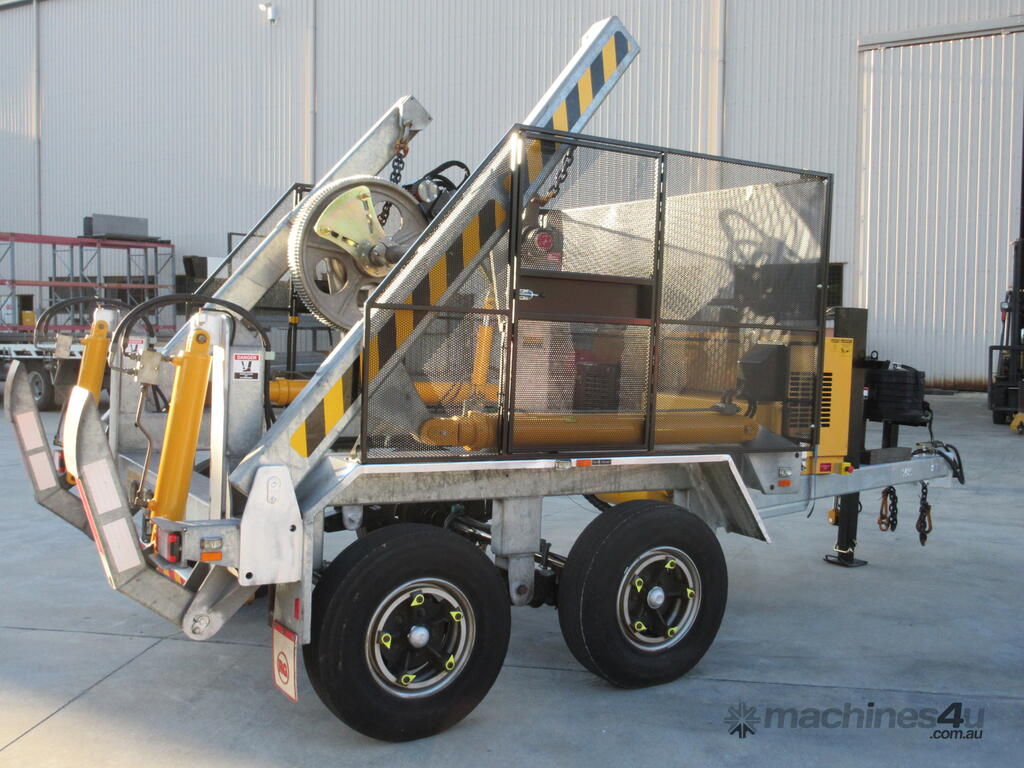

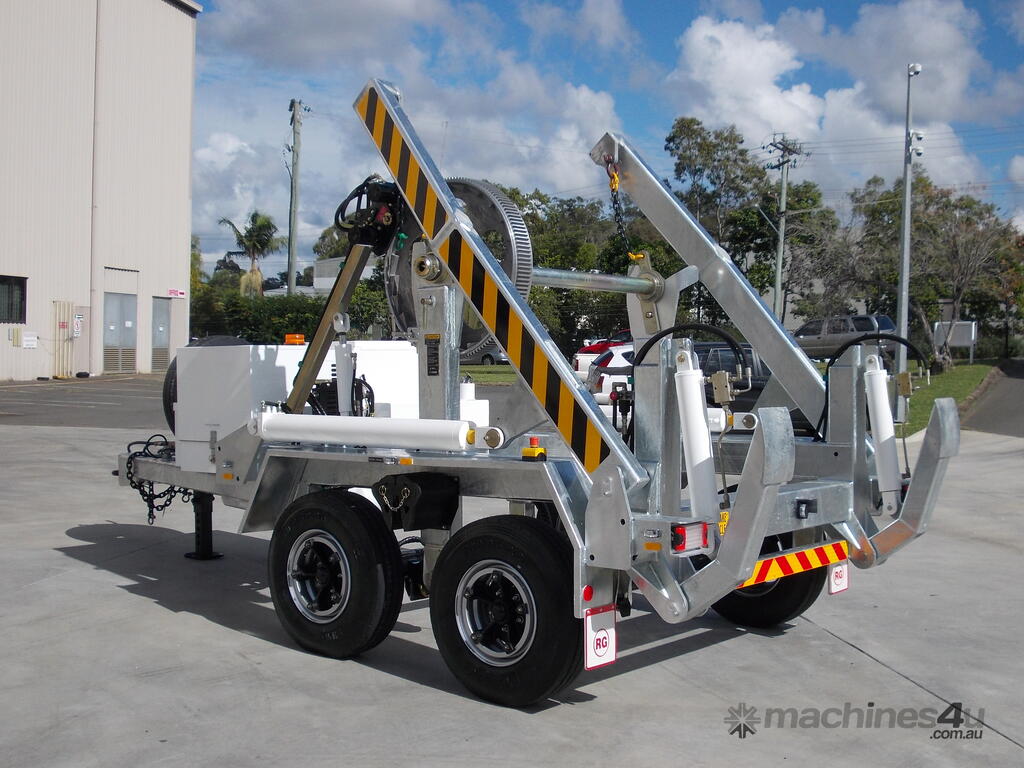

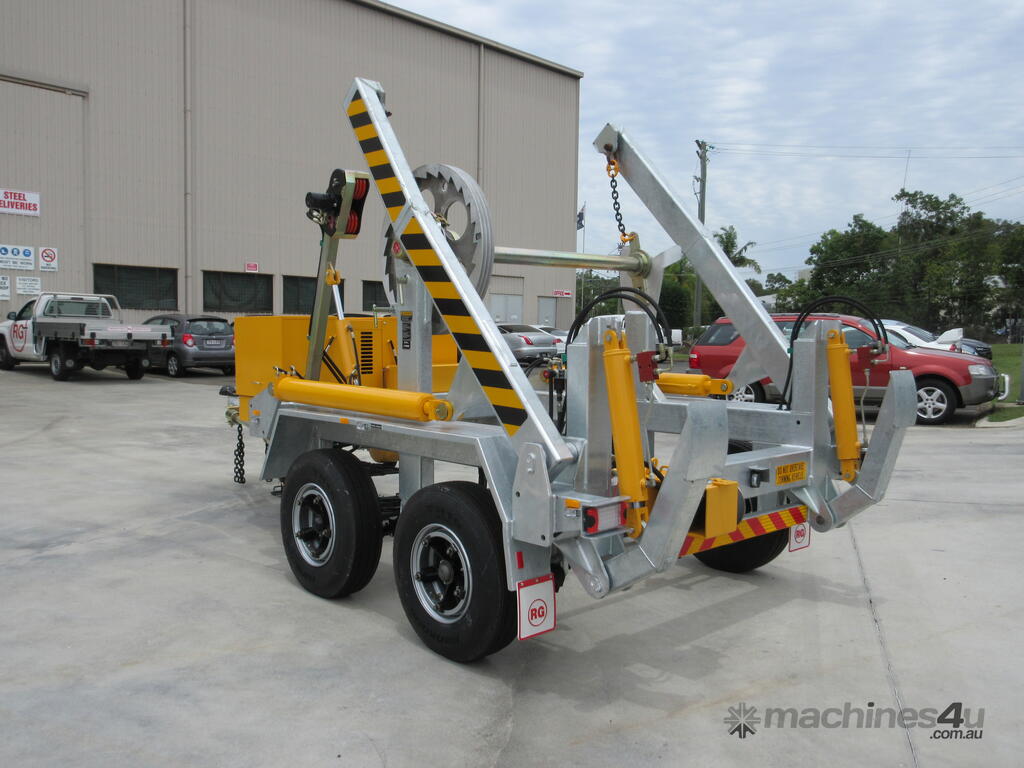

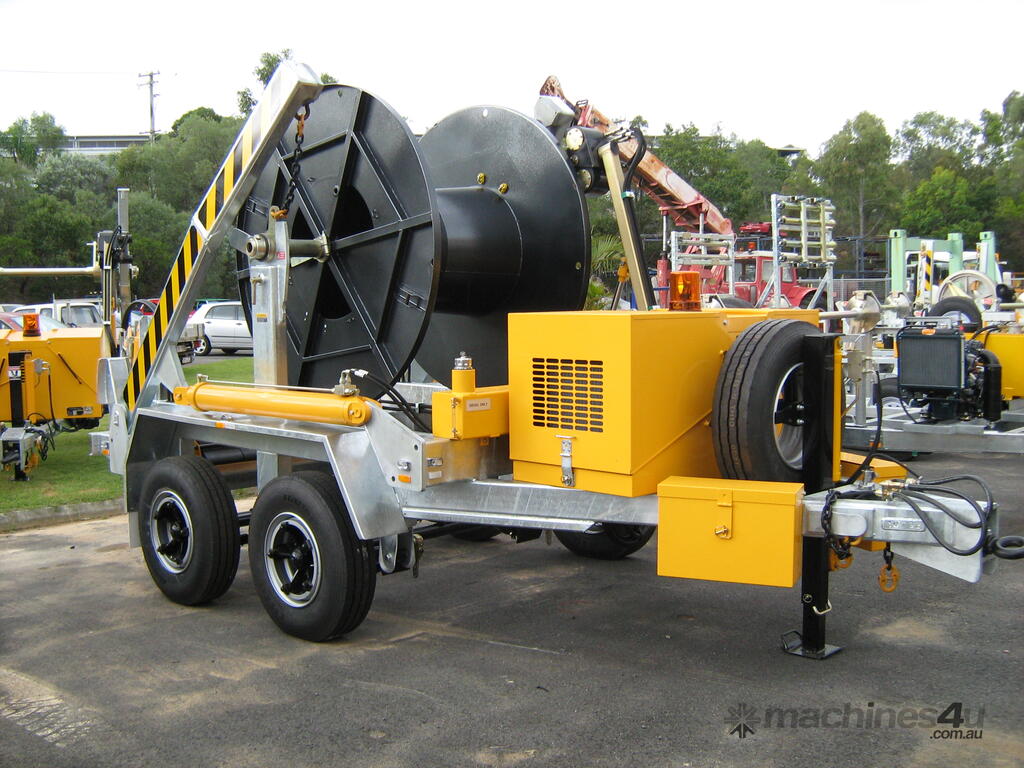

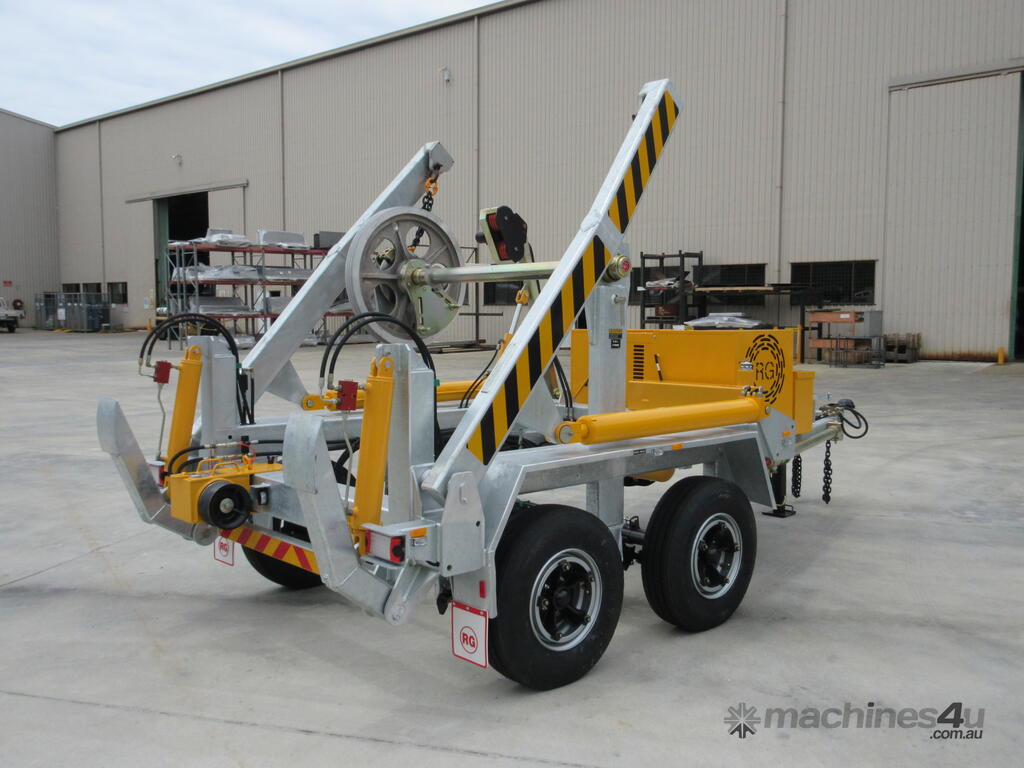

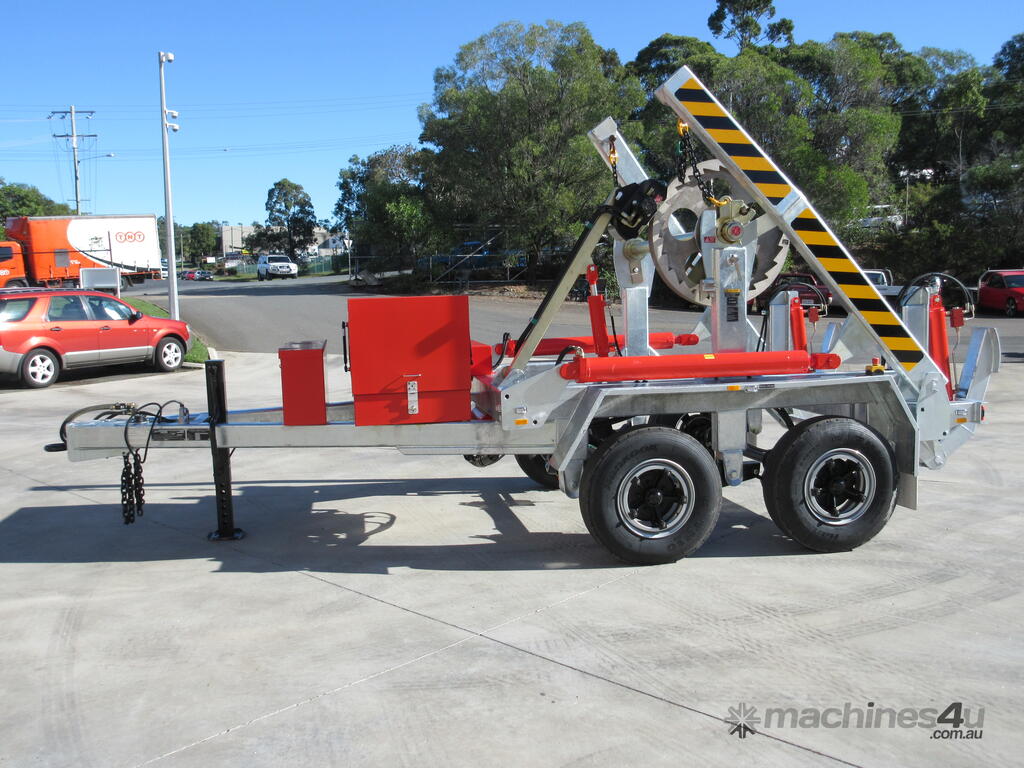

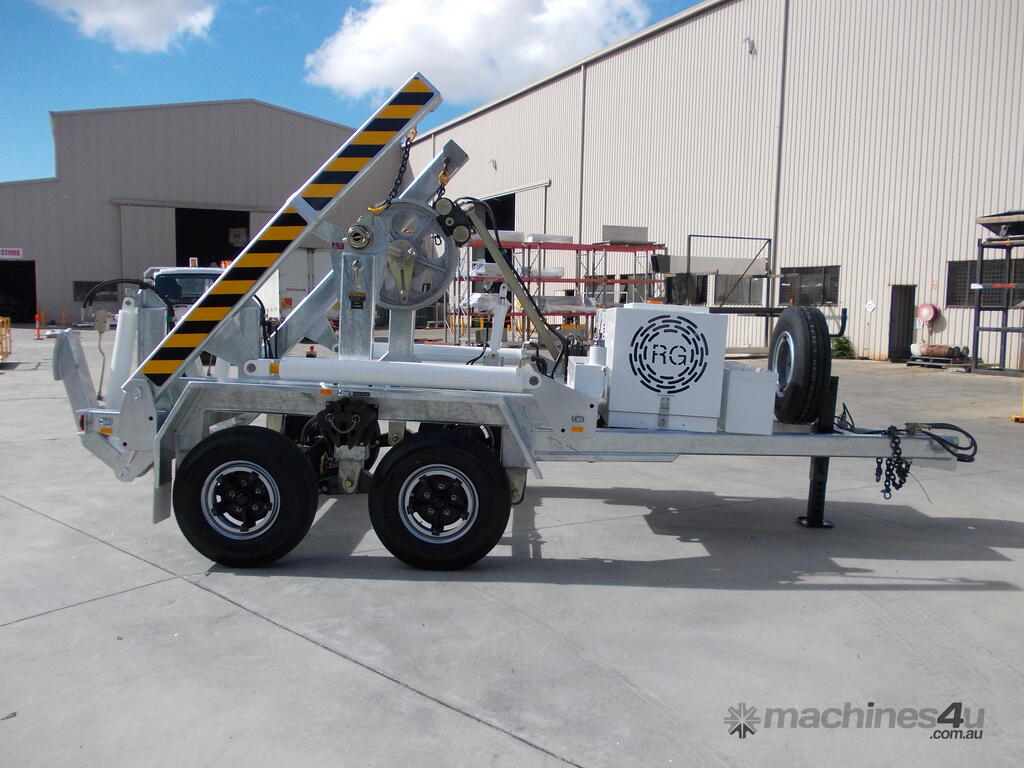

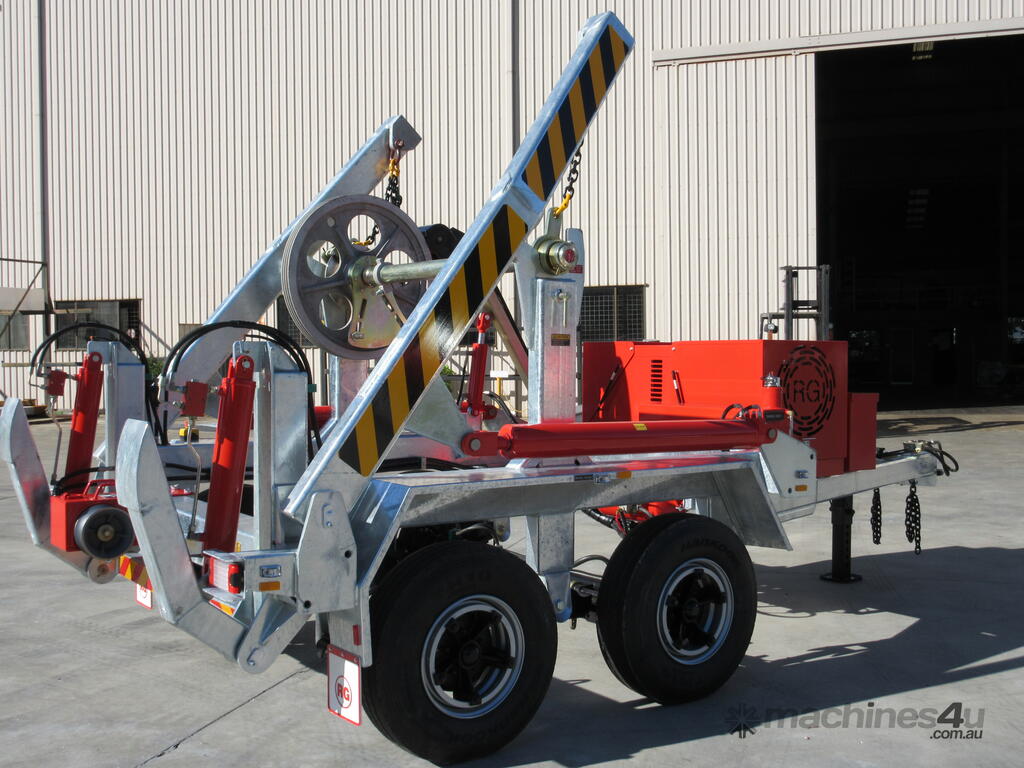

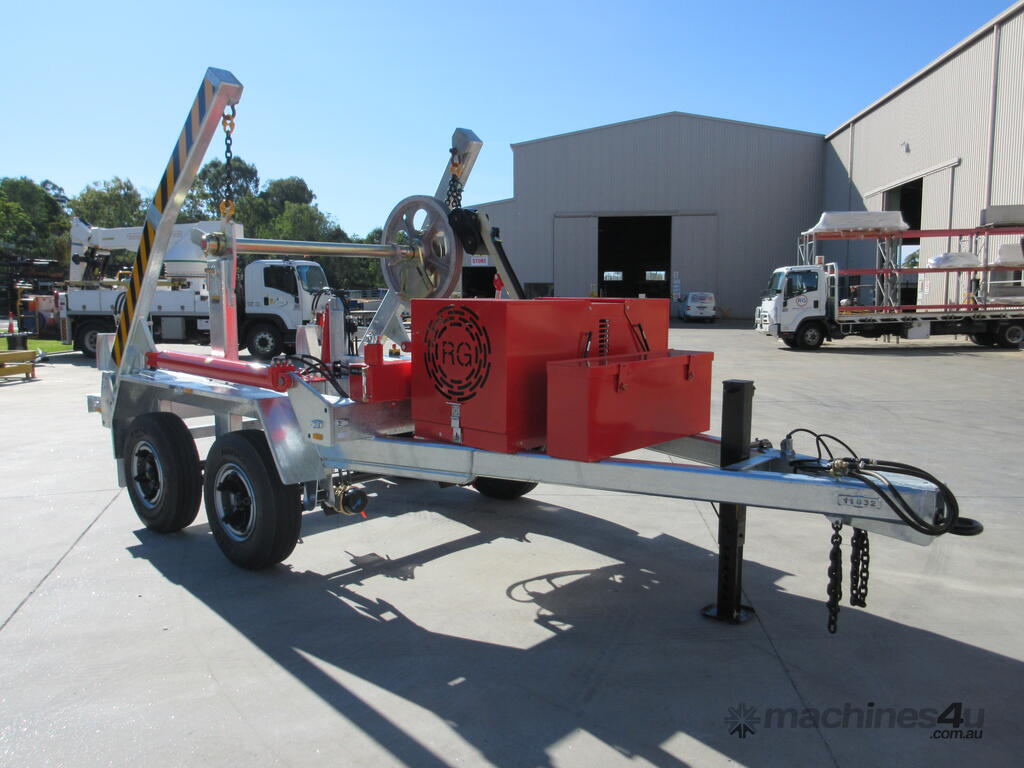

REDMOND GARY 6.0 Tonne Self Loading Cable Drum Trailer

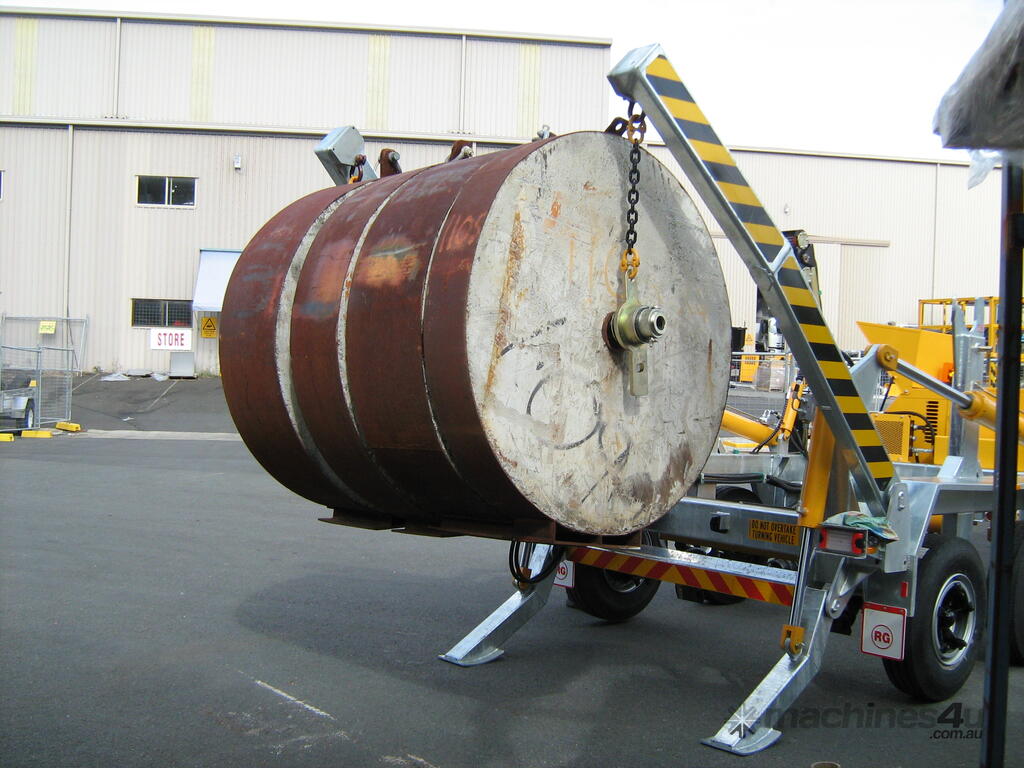

Redmond Gary 6 Tonne Self Loading Cable Drum Trailer in accordance with the unit indicated on our . The trailer will be supplied with water-cooled diesel engine and have a maximum drum capacity of 2800mm diameter** x 1600mm wide and have a drum spindle complete with stainless steel disc brake assembly.
Trailer frame finished in hot dip galvanising.

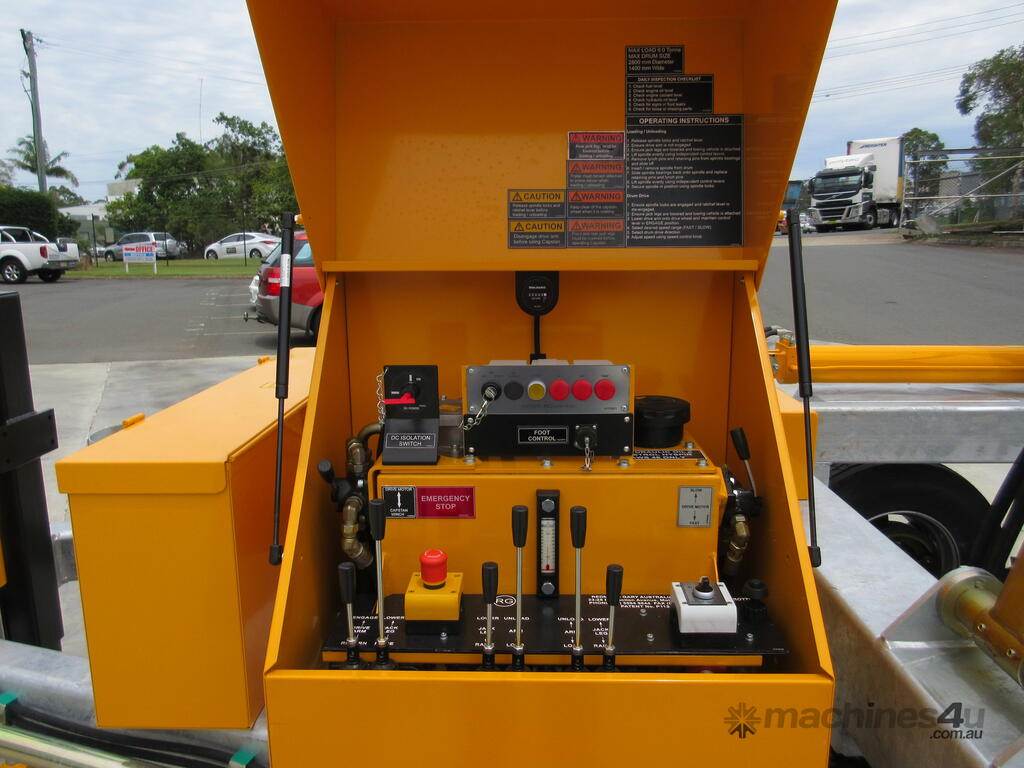

Operation controls housed in weather secured cabinet located on kerb side of the trailer.
Control cabinet manufactured from 1.6mm zinc anneal sheeting finished with powder coating - all seams and edges sandblasted, primed prior to powder coating.
ADR approved dual axle with "S" Cam brakes. ***
6.75"x 17.5" tubeless rims with 9.5R17.5 18PR tyres.
Wind down front Jackleg/Stabilisers.

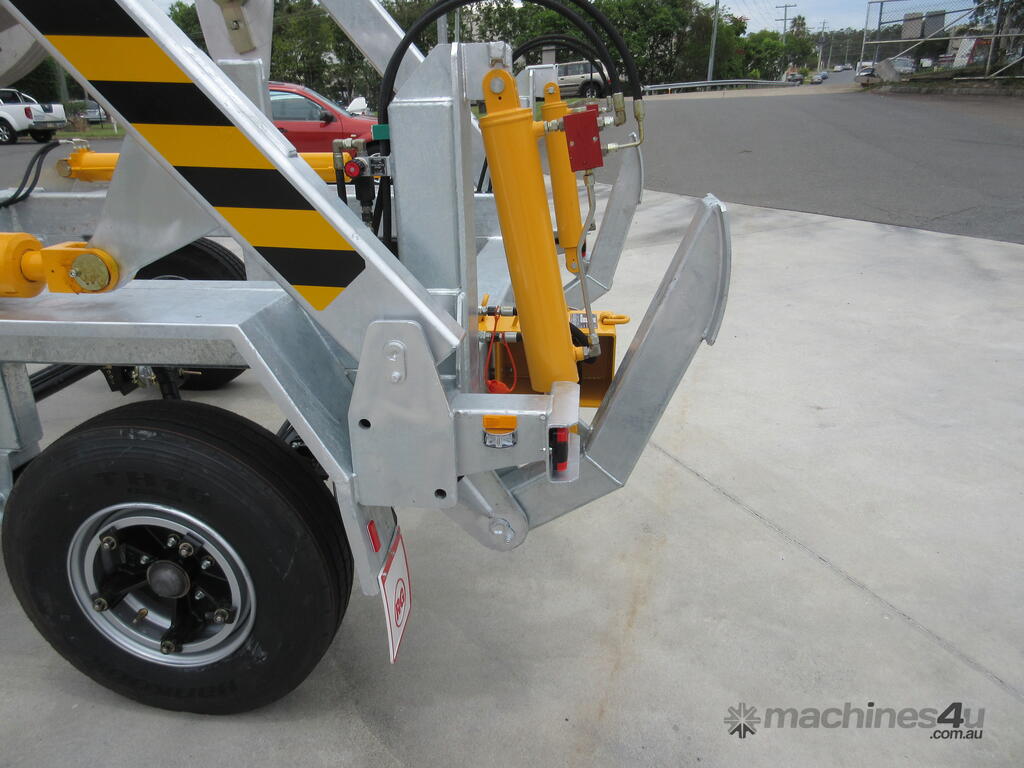

Two heavy duty hydraulically operated rear Jackleg/Stabilisers.
75mm Ring Type, Swivel Bolt On Coupling (WILLEX P/N WE1101).
13mm Herc-Alloy Safety Chain - No Ends - Suits 13mm Bartlett connection on towbar.
7 Pin Large Round Trailer Plug (35mm dia.).
LED lights.
Coupling height - 650mm.

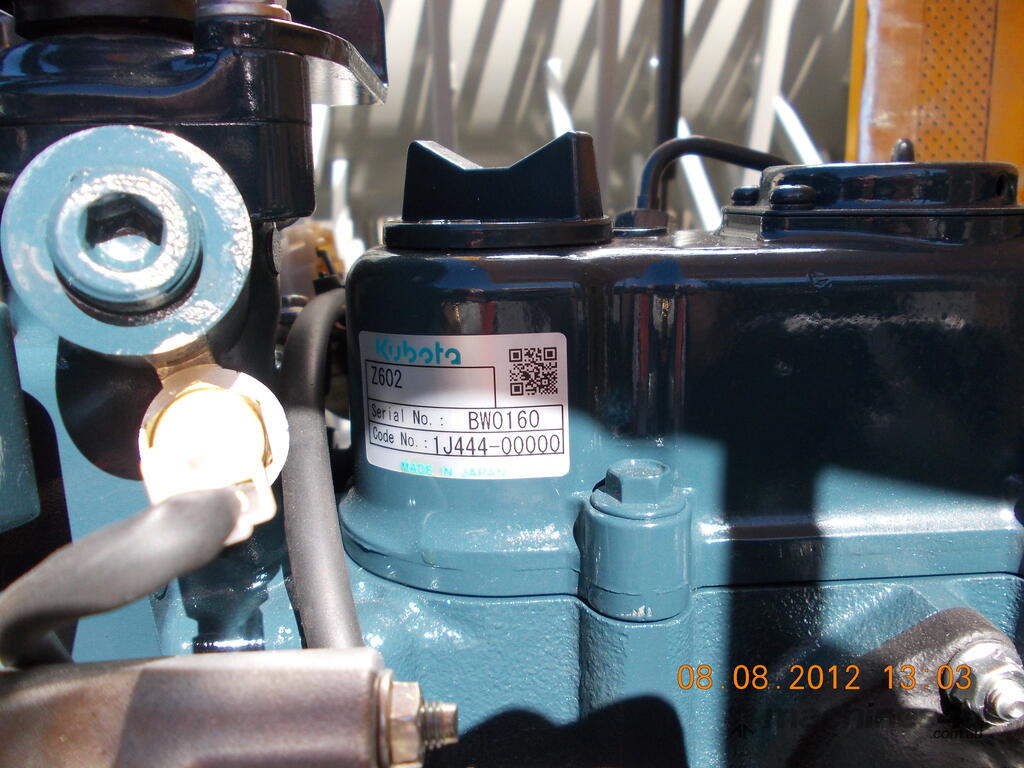

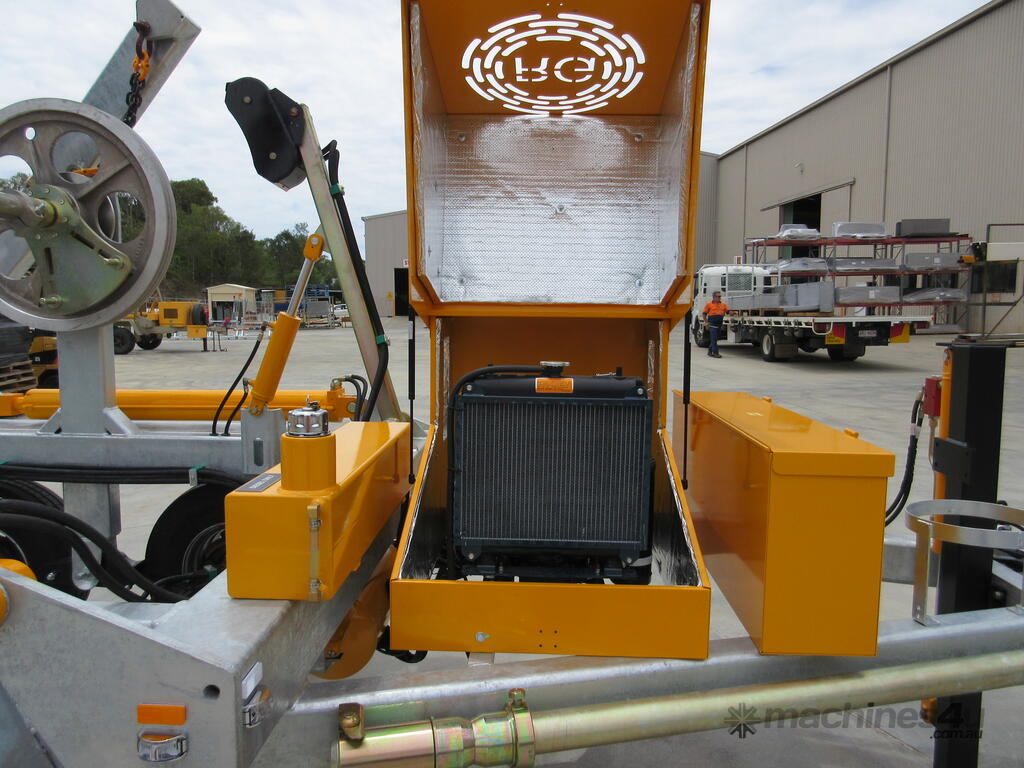

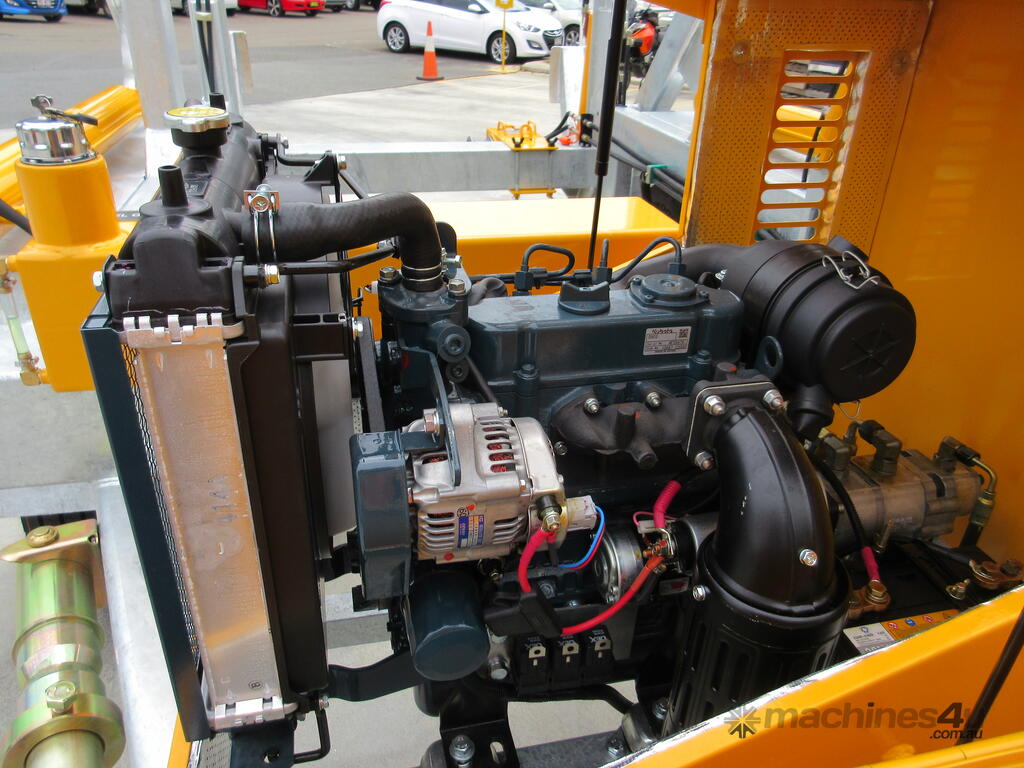

Water cooled Diesel Engine, Kubota, 15kW.
E-Stop inside Engine Cabinet.
Battery Isolation Switch.
Engine Hour Meter.
10 hour fuel tank.
Safety and Operational signage - Anodised Aluminium or UV Stable Acrylic.

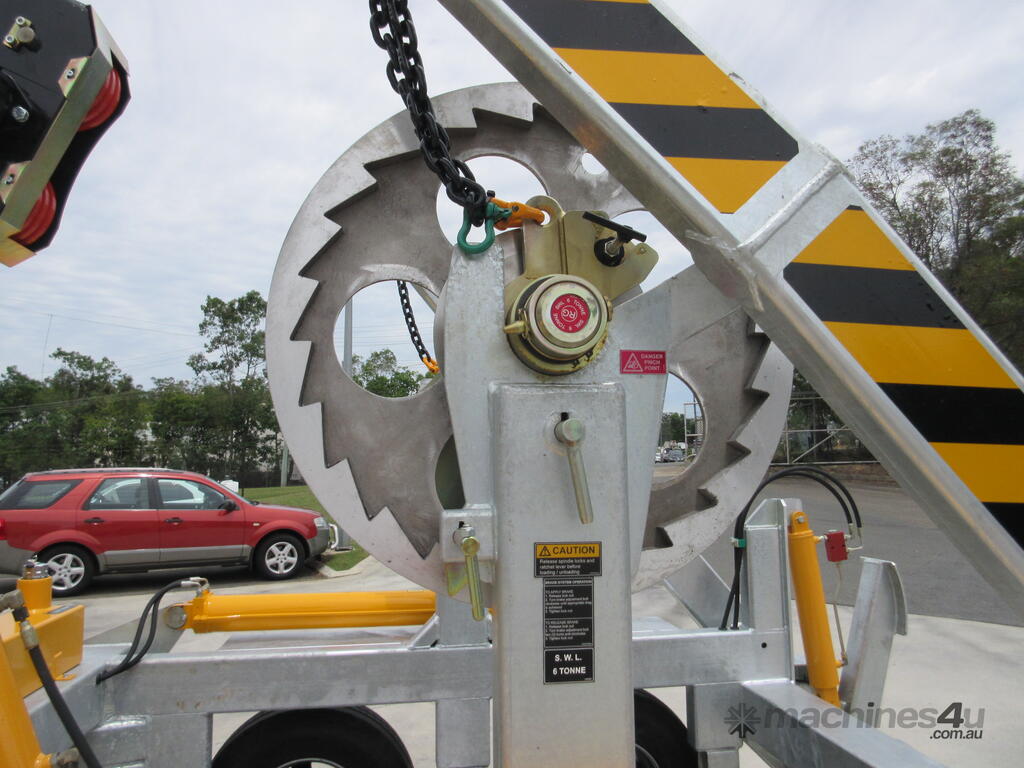

95mm Spindle complete with mechanically operated stainless steel disk brake assembly.
Final coat finish - Powder Coating and 2 pack enamel (Interpon, Safety Yellow)
One(1) set of Operation Manuals.

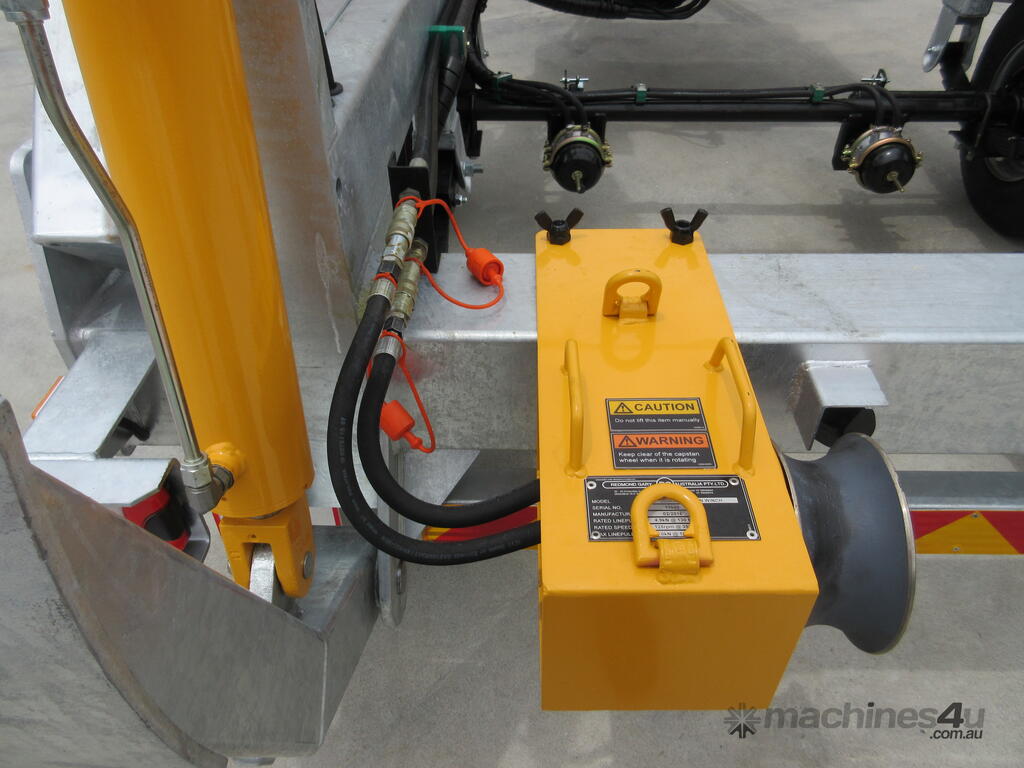

**2800mmØ is achievable when the airbrake maxis are mounted under the axles and the 2000kg capstan is NOT a selected option.
