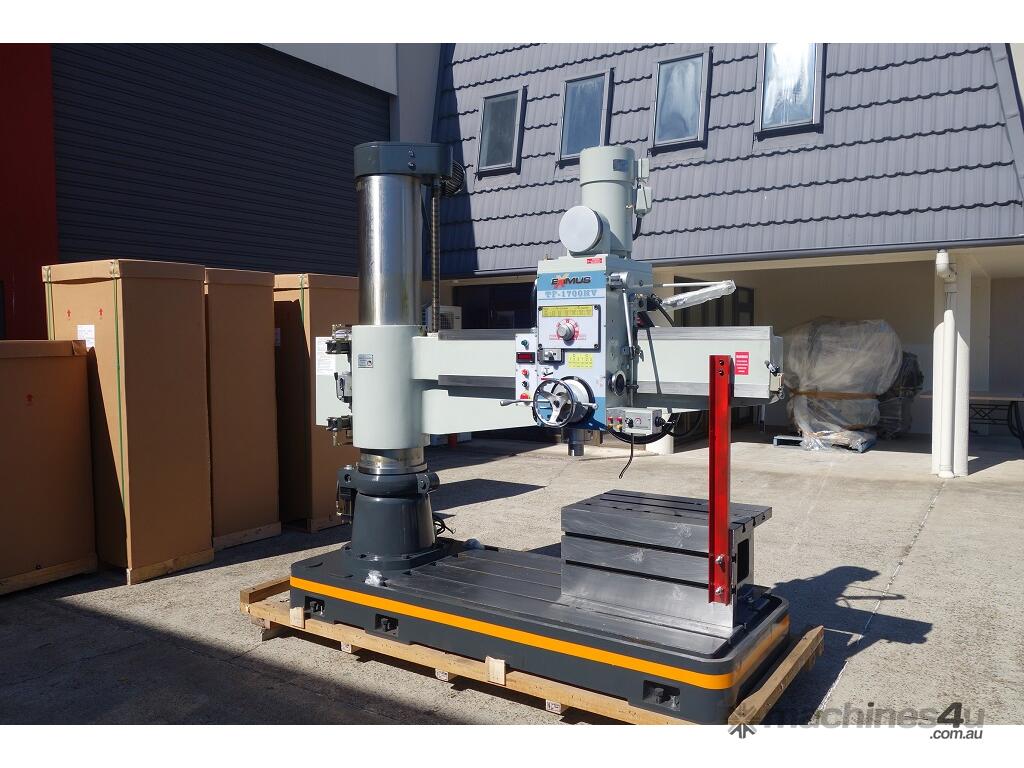

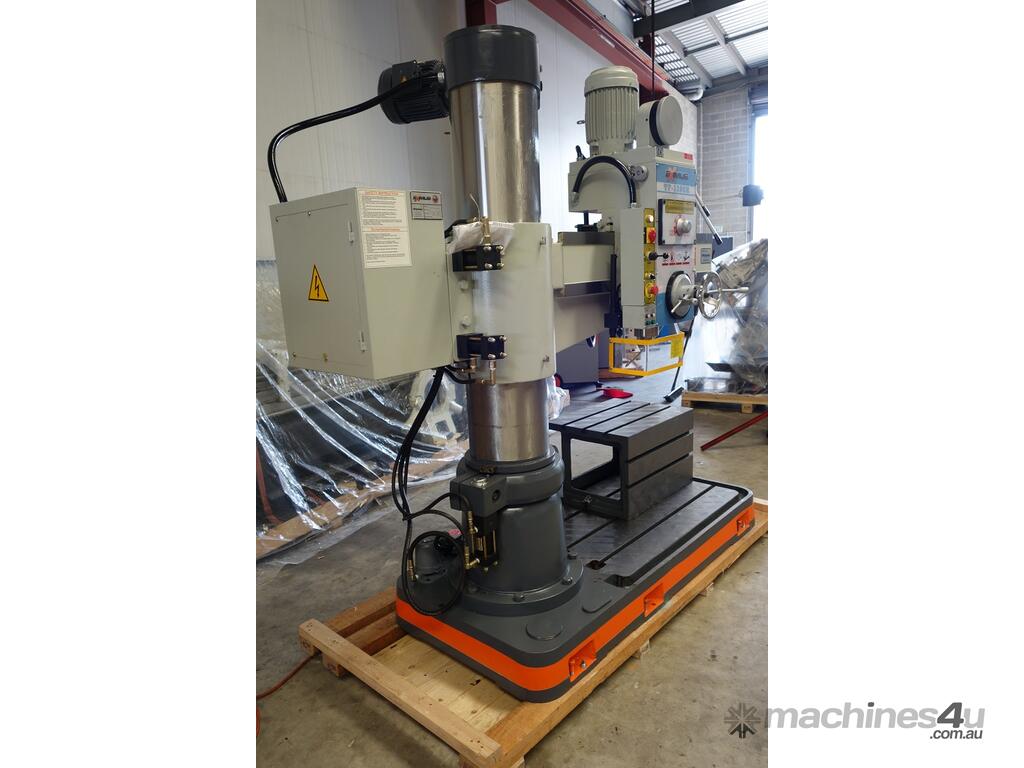

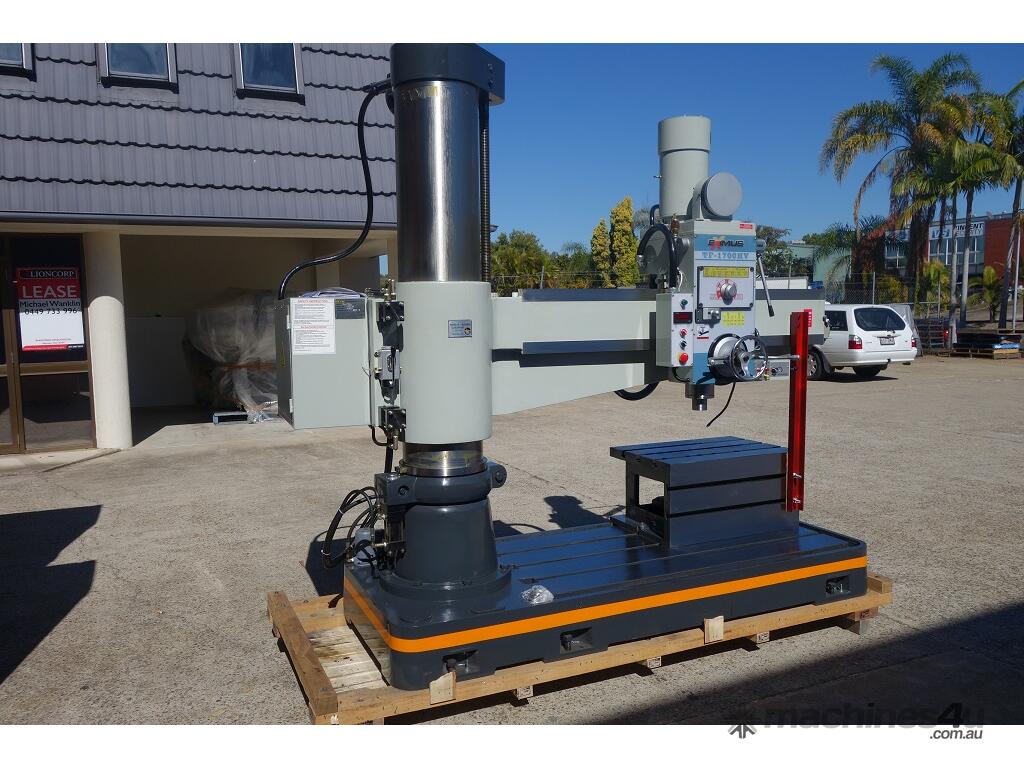

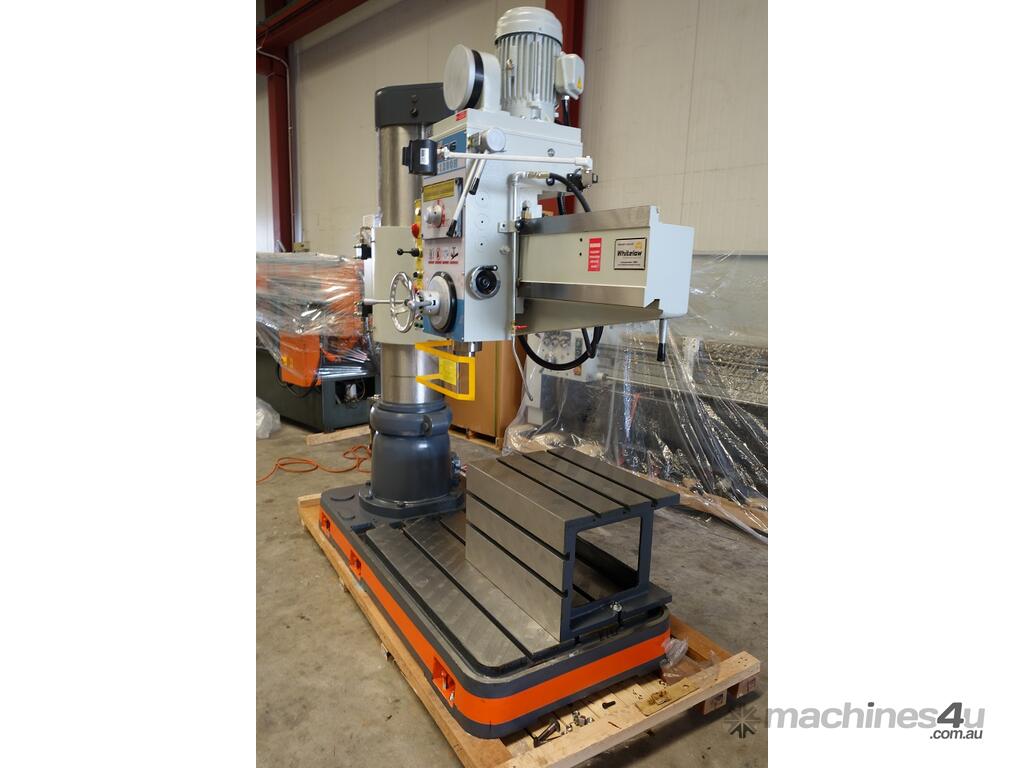

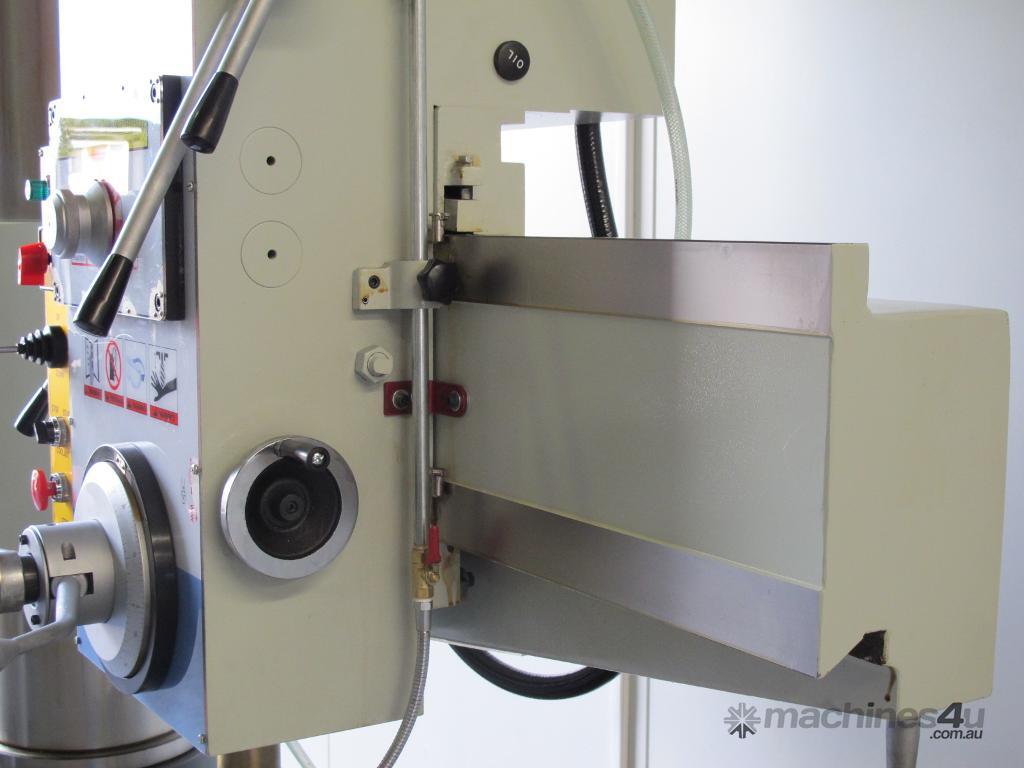

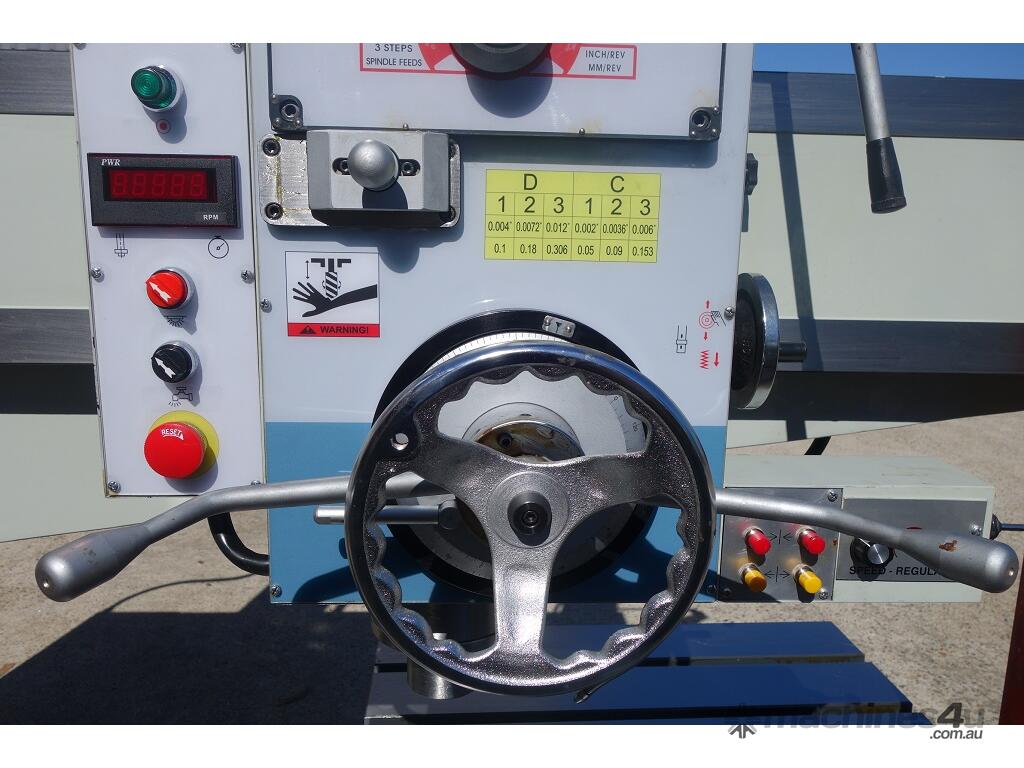

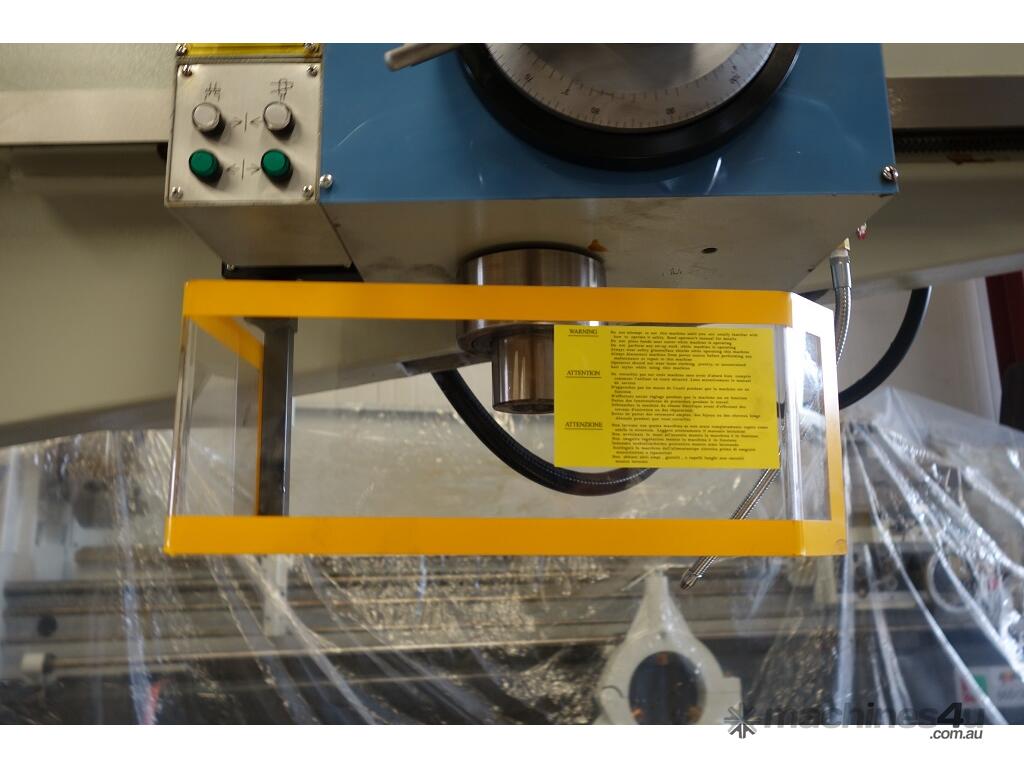

Radial Arm Drills, Huge Range 750-1600 arm

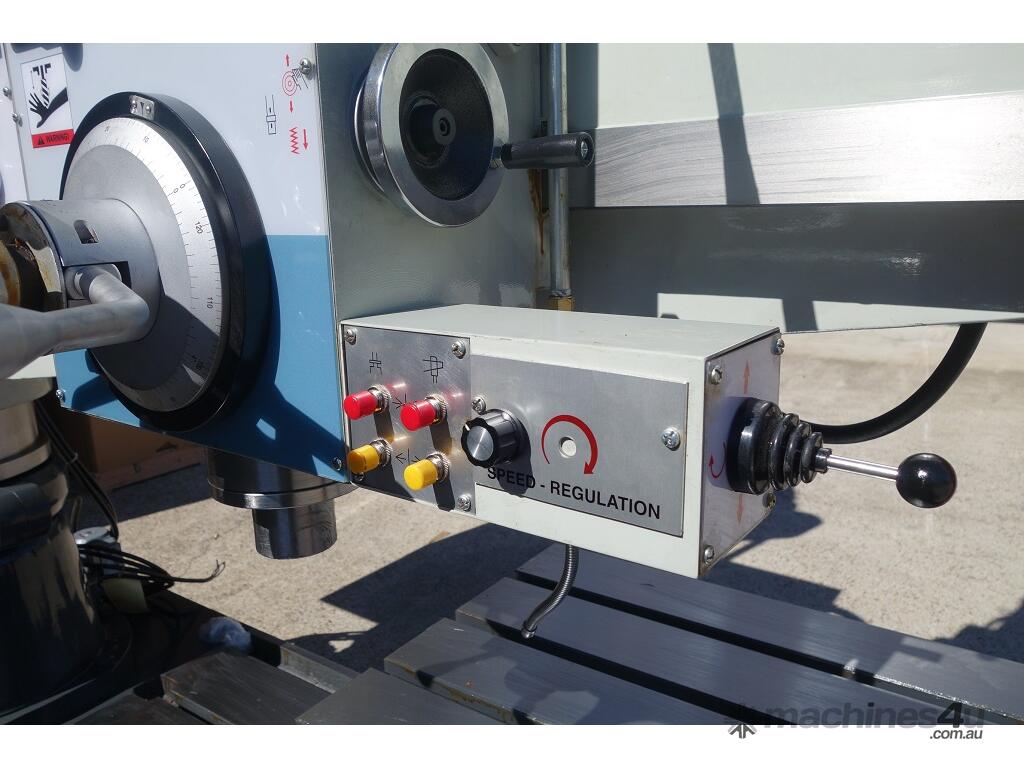

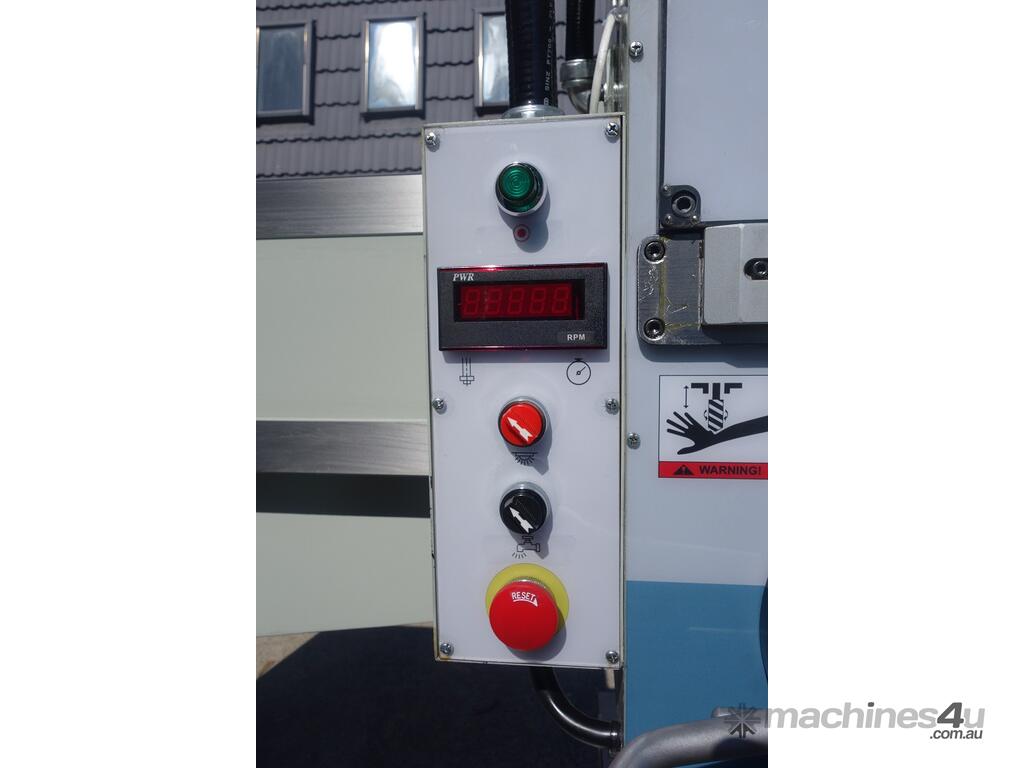

Taiwanese Radial Arm Drilling Machines with a max drilling capacity up to 66mm, featuring spindle power down feed, tapping, hydraulic clamping on selected models and optional infinitely variable speed via inverter.

Models available

TF-750S 2HP, 4MT
Drilling capacity up to: …Ø 50mm
Tapping capacity up to: …30mm
Boring capacity up to: … 105mm
Spindle Stroke: … 200mm
Spindle Morse Taper: …No. 4
Spindle Speed: …88~1500 rpm (6 speeds)
Spindle Feeds: …0.05, 0.09, 0.15
Column Dia: … Ø 210mm
Max. Distance Column Surface to Spindle Centre: …775mm
Min. Distance Column Surface to Spindle Centre: …290mm
Horizontal Travel of Headstock: …500mm
Max. Distance Base to Spindle: …1110mm
Min. Distance Base to Spindle: …282mm
Overall height of column: …1850mm
Machine Height from Floor: …2175mm
Dimensions of the Base: …1280x640x150mm

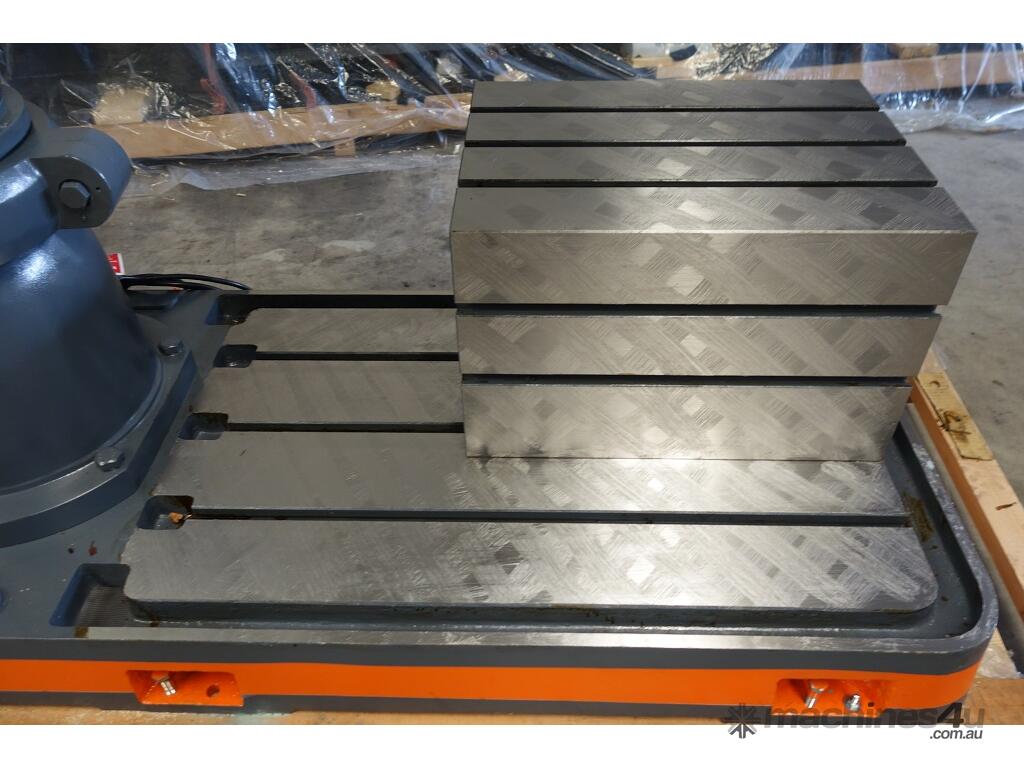

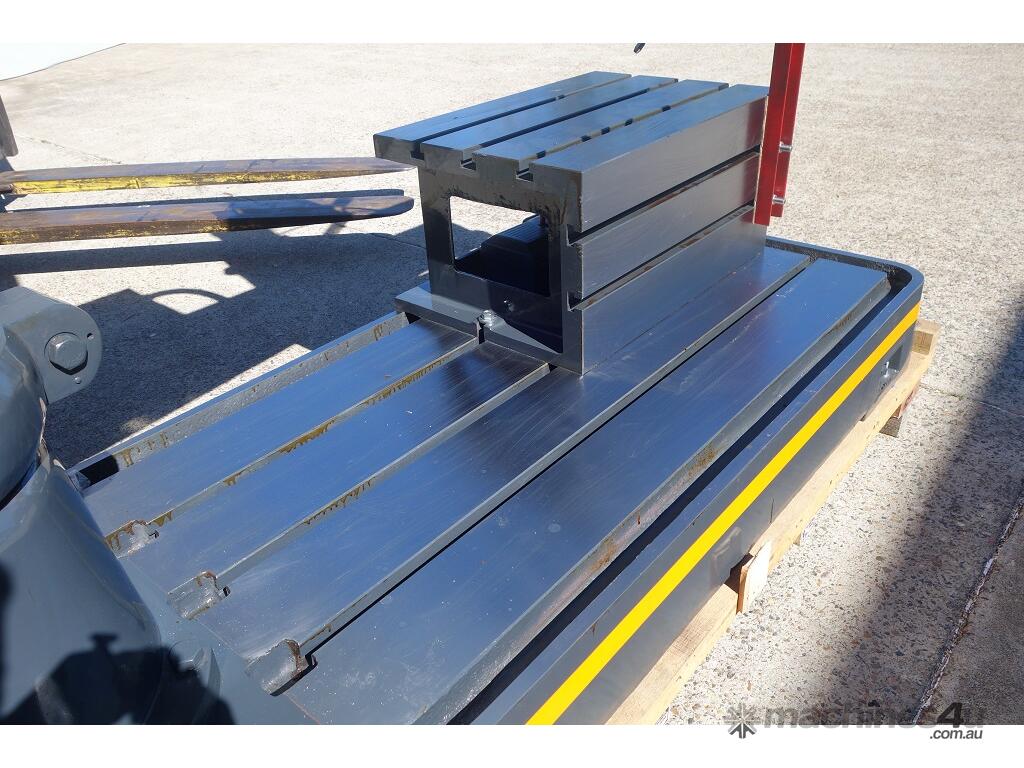

Table Surface: …550x405x315mm


TF-900S 2HP, 4MT
Drilling capacity up to: …Ø 50mm
Tapping capacity up to: …30mm
Boring capacity up to: … 105mm
Spindle Stroke: … 200mm
Spindle Morse Taper: …No. 4
Spindle Speed: …88~1500 rpm (6 speeds)
Spindle Feeds: …0.05, 0.09, 0.15
Column Dia: … Ø 210mm
Max. Distance Column Surface to Spindle Centre: …920mm
Min. Distance Column Surface to Spindle Centre: …290mm
Horizontal Travel of Headstock: …650mm
Max. Distance Base to Spindle: …1110mm
Min. Distance Base to Spindle: …282mm
Overall height of column: …1850mm
Machine Height from Floor: …2175mm
Dimensions of the Base: …1435x640x150mm
Table Surface: …550x405x315mm

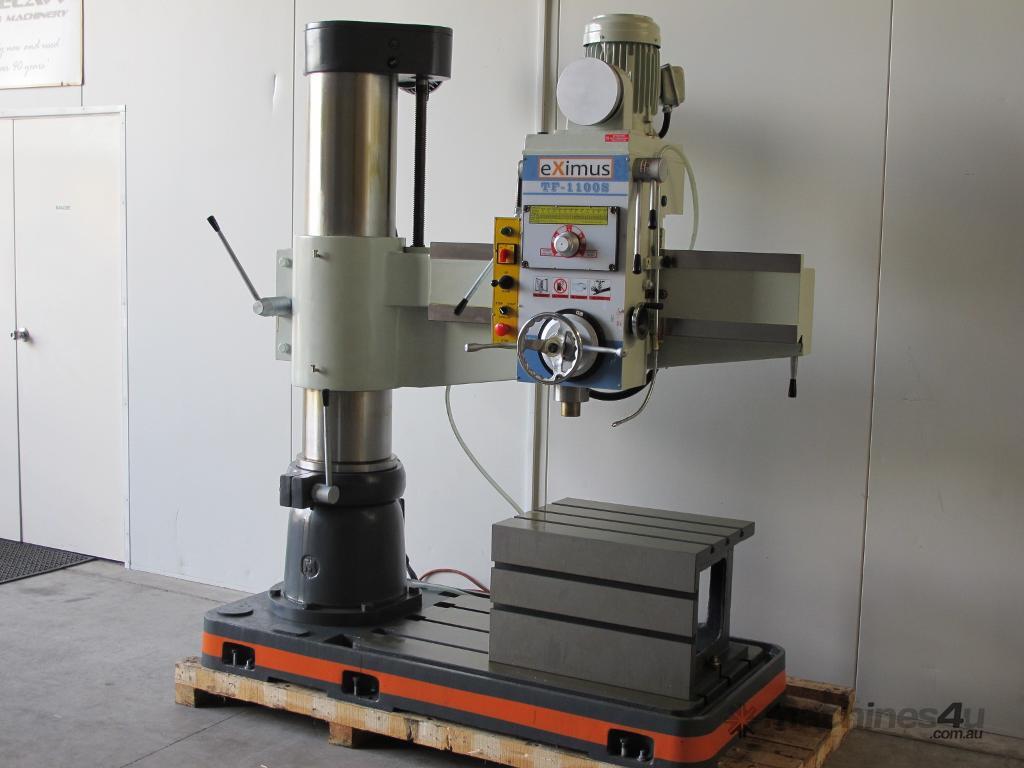

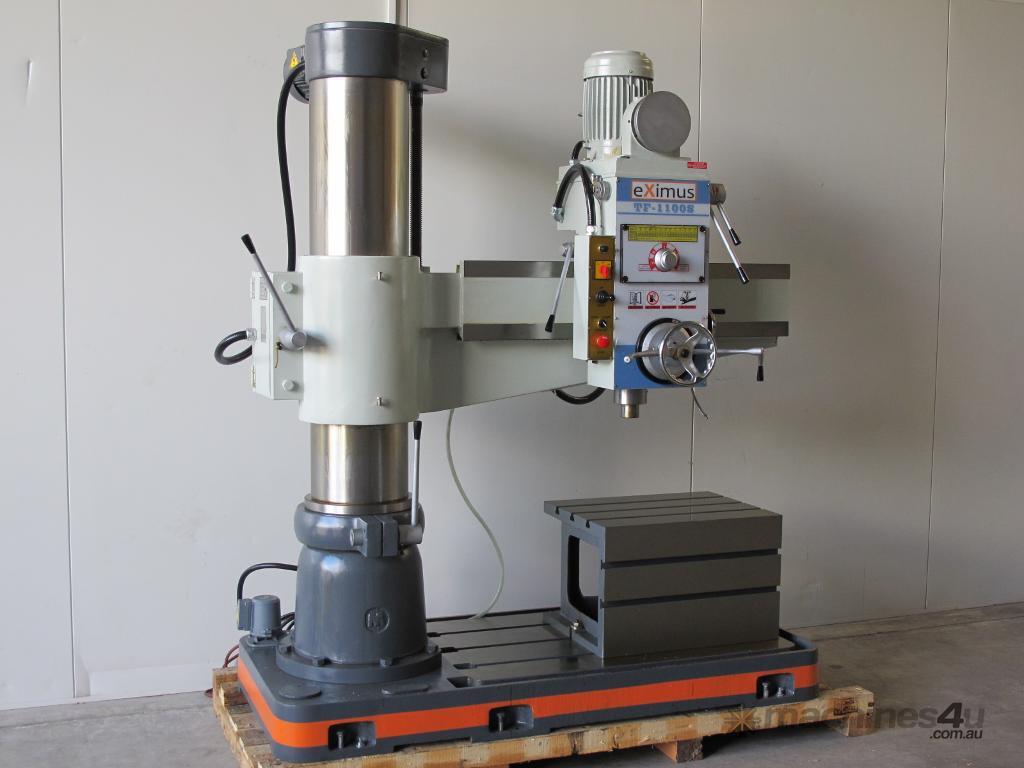

TF1100S 3HP, 4MT
Drilling capacity up to: …Ø 60mm
Tapping capacity up to: …36mm
Boring capacity up to: … 120mm
Spindle Stroke: … 250mm
Spindle Morse Taper: …No. 4
Spindle Speed: …44~1500 rpm (12 speeds)
Spindle Feeds: …0.05, 0.09, 0.15
Column Dia: … Ø 300mm
Max. Distance Column Surface to Spindle Centre: …1145mm
Min. Distance Column Surface to Spindle Centre: …330mm
Horizontal Travel of Headstock: …810mm
Max. Distance Base to Spindle: …1230mm
Min. Distance Base to Spindle: …540mm
Overall height of column: …2160mm
Machine Height from Floor: …2585mm
Dimensions of the Base: …1800x800x170mm
Table Surface: …650x500x410mm

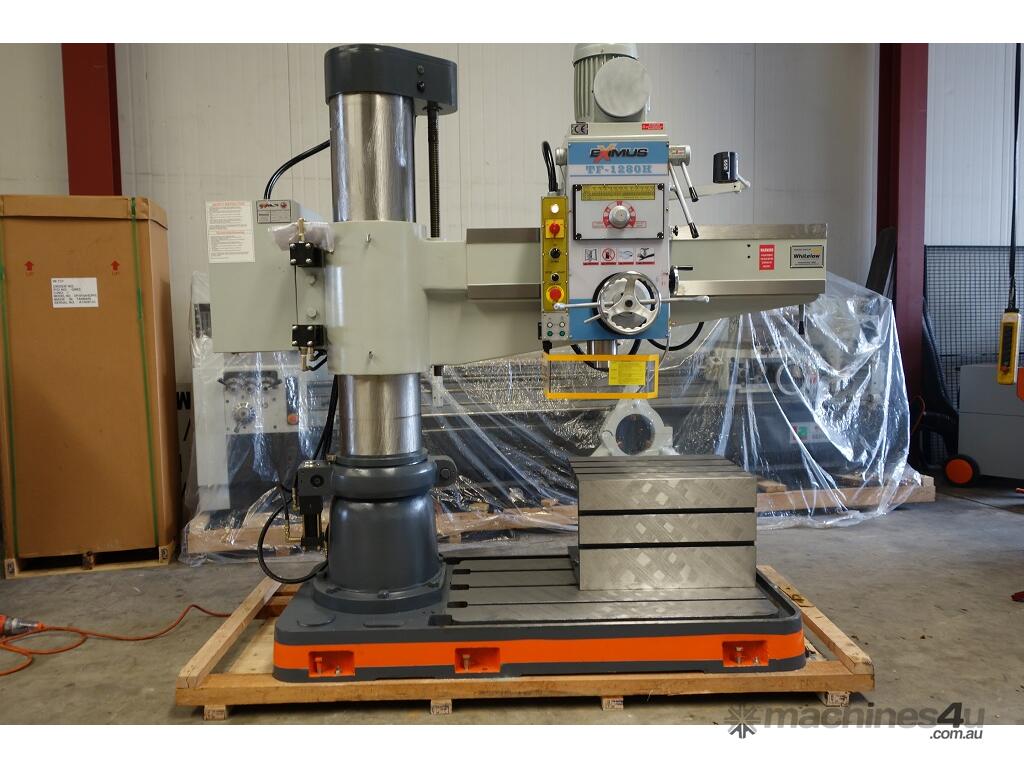

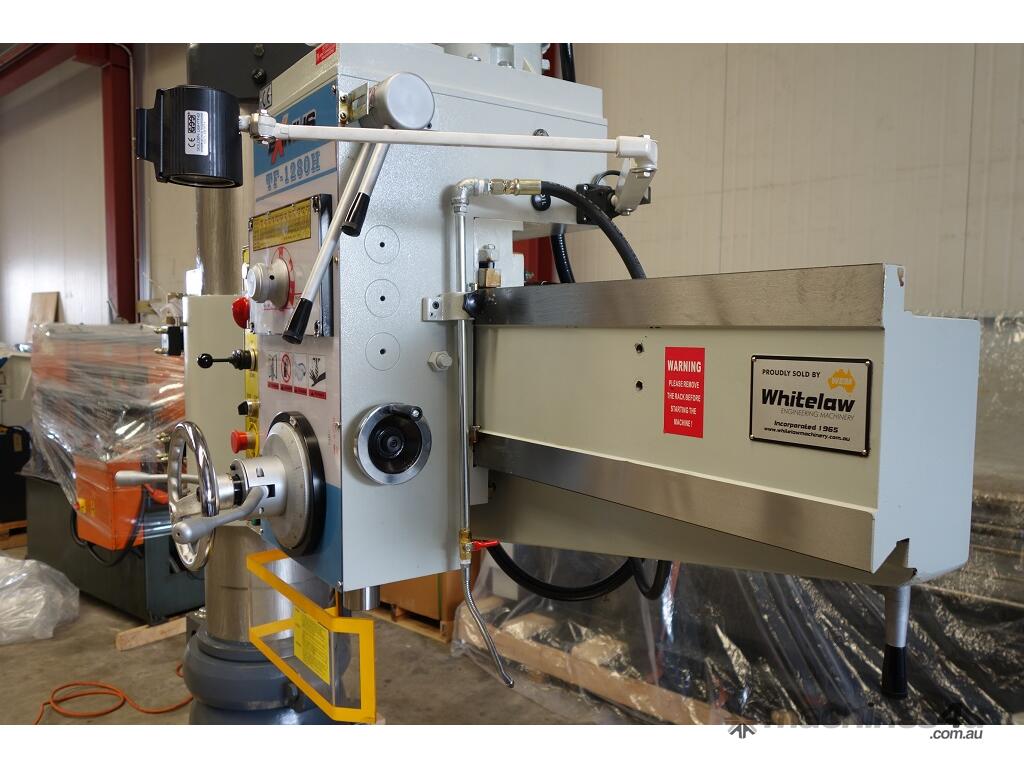

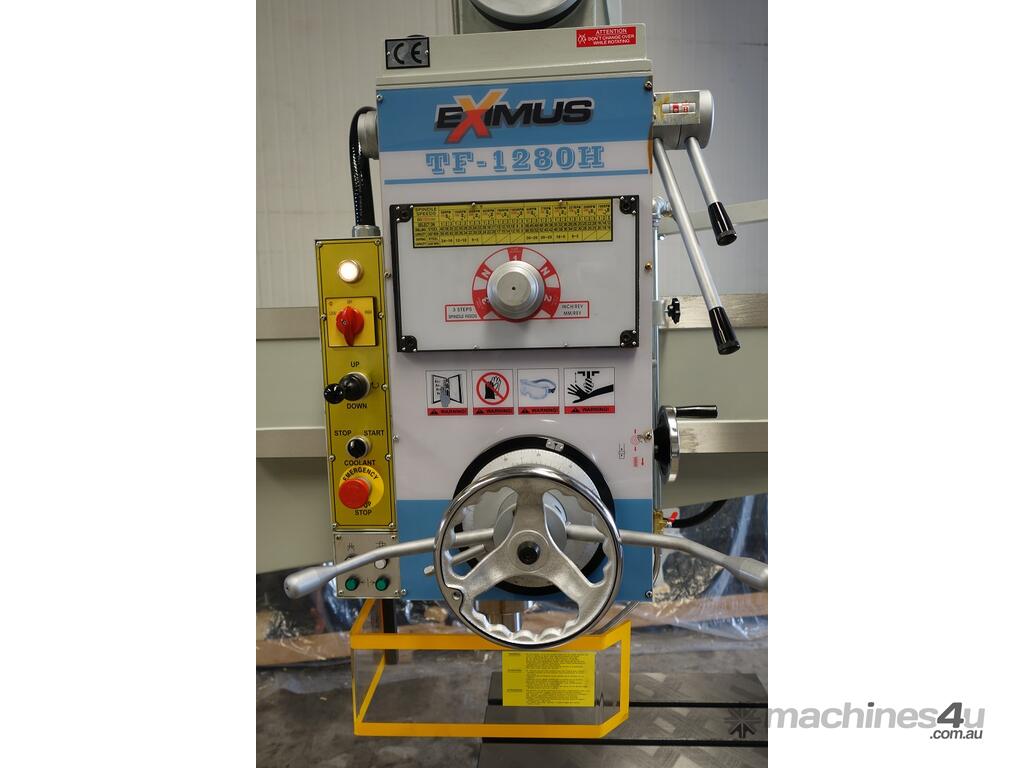

TF-1280H 3HP, 4MT, HYDRAULIC CLAMPING
Drilling capacity up to: …Ø 60mm
Tapping capacity up to: …36mm
Boring capacity up to: … 120mm
Spindle Stroke: … 250mm
Spindle Morse Taper: …No. 4
Spindle Speed: …44~1500 rpm (12 speeds)
Spindle Feeds: …0.05, 0.09, 0.15
Column Dia: … Ø 300mm
Max. Distance Column Surface to Spindle Centre: …1240mm
Min. Distance Column Surface to Spindle Centre: …330mm
Horizontal Travel of Headstock: …920mm
Max. Distance Base to Spindle: …1230mm
Min. Distance Base to Spindle: …540mm
Overall height of column: …2160mm
Machine Height from Floor: …2585mm
Dimensions of the Base: …1800x800x170mm
Table Surface: …650x500x410mm


TF-1300H 5HP, 5MT, HYDRAULIC CLAMPING
Drilling capacity up to: …Ø 66mm
Tapping capacity up to: …60mm
Boring capacity up to: … 175mm
Spindle Stroke: … 250mm
Spindle Morse Taper: …No. 5
Spindle Speed: …44~1500 rpm (12 speeds)
Spindle Feeds: …0.05, 0.09, 0.15
Column Dia: … Ø 300mm
Max. Distance Column Surface to Spindle Centre: …1240mm
Min. Distance Column Surface to Spindle Centre: …330mm
Horizontal Travel of Headstock: …920mm
Max. Distance Base to Spindle: …1230mm
Min. Distance Base to Spindle: …540mm
Overall height of column: …2160mm
Machine Height from Floor: …2585mm
Dimensions of the Base: …1800x800x170mm
Table Surface: …650x500x410mm

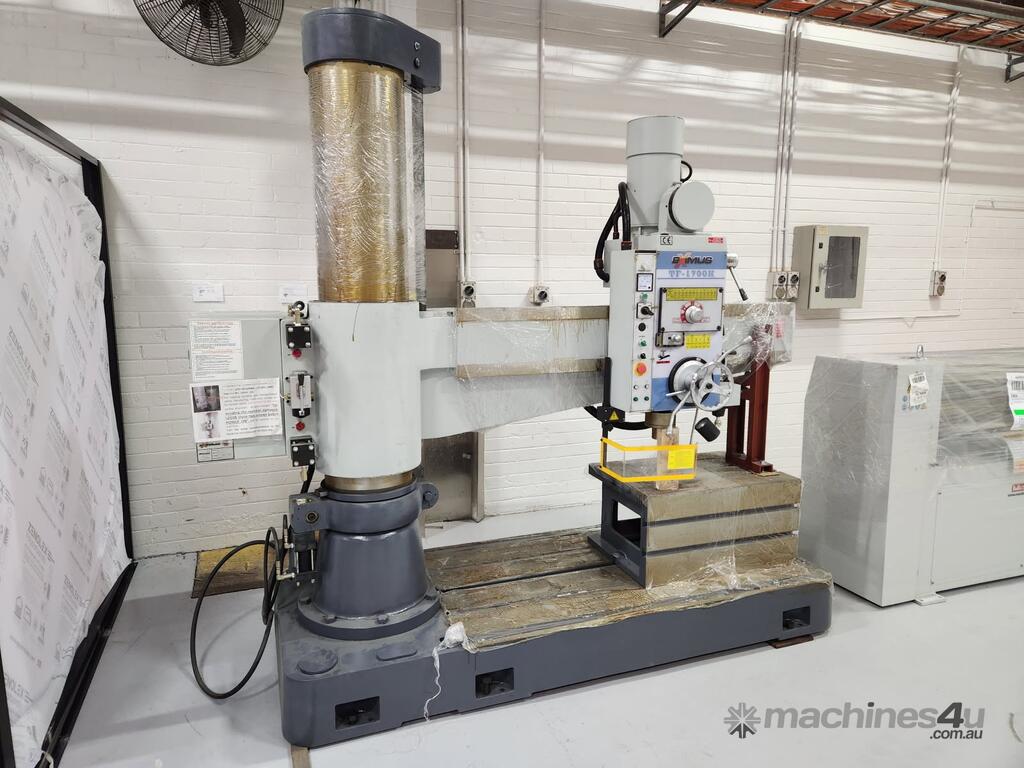

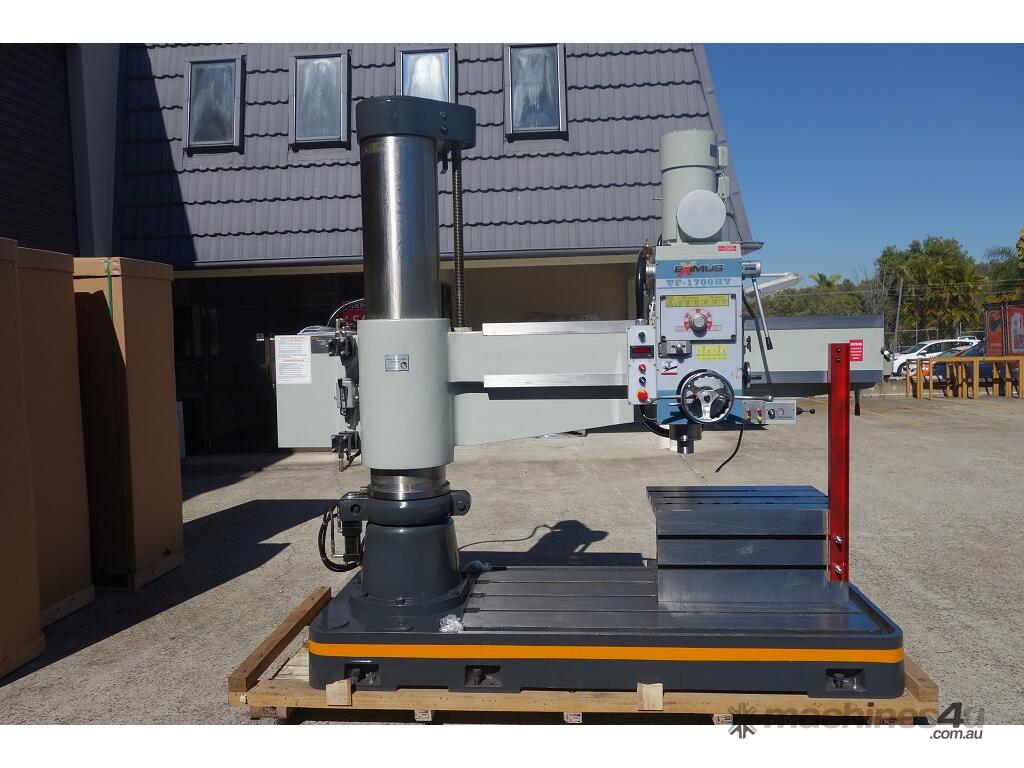

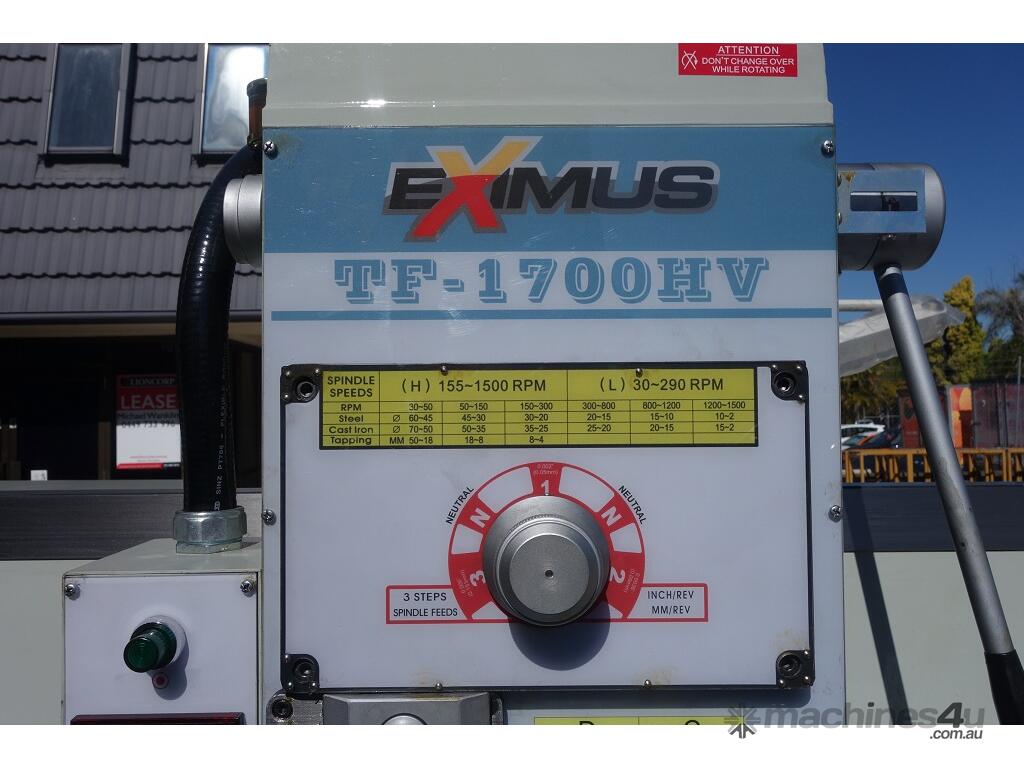

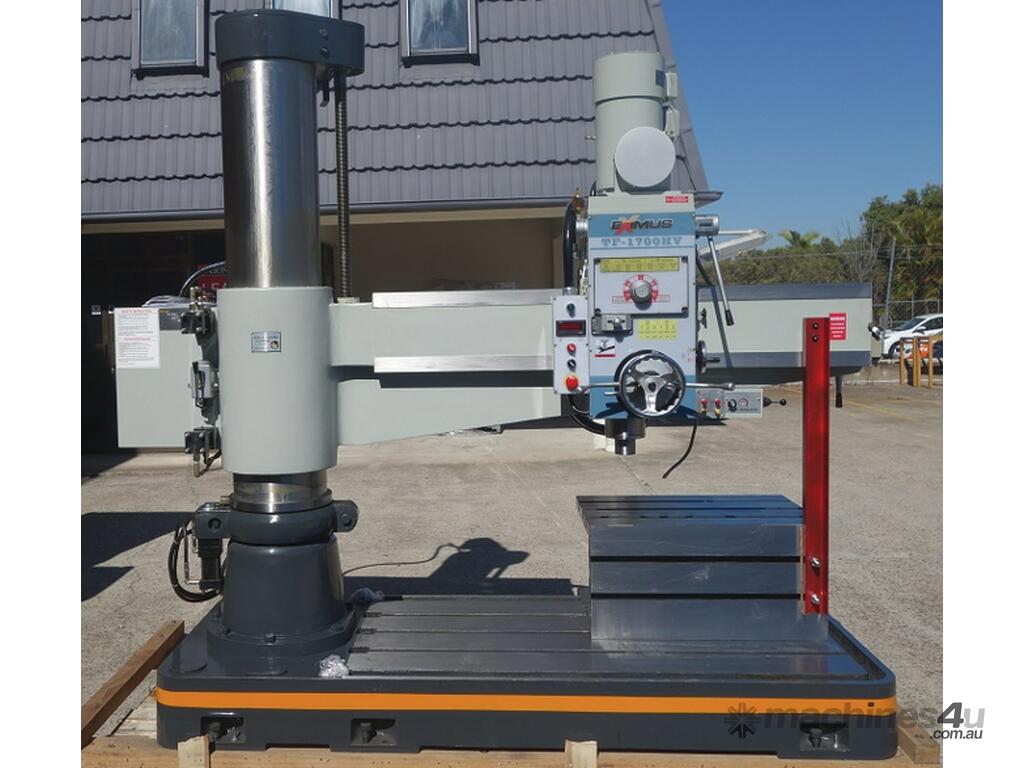

TF1700H 5HP, 5MT, HYDRAULIC CLAMPING
Drilling capacity up to: …Ø 66mm
Tapping capacity up to: …60mm
Boring capacity up to: … 175mm
Spindle Stroke: … 250mm
Spindle Morse Taper: …No. 5
Spindle Speed: …30~1500 rpm (12 speeds)
Spindle Feeds: …0.05, 0.09, 0.15
Column Dia: … Ø 336mm
Max. Distance Column Surface to Spindle Centre: …1700mm
Min. Distance Column Surface to Spindle Centre: …400mm
Horizontal Travel of Headstock: …1310mm
Max. Distance Base to Spindle: …1420mm
Min. Distance Base to Spindle: …260mm
Overall height of column: …2410mm
Machine Height from Floor: …3150mm
Dimensions of the Base: …2370x940x220mm
Table Surface: …800x540x400mm

Call today to discuss.
