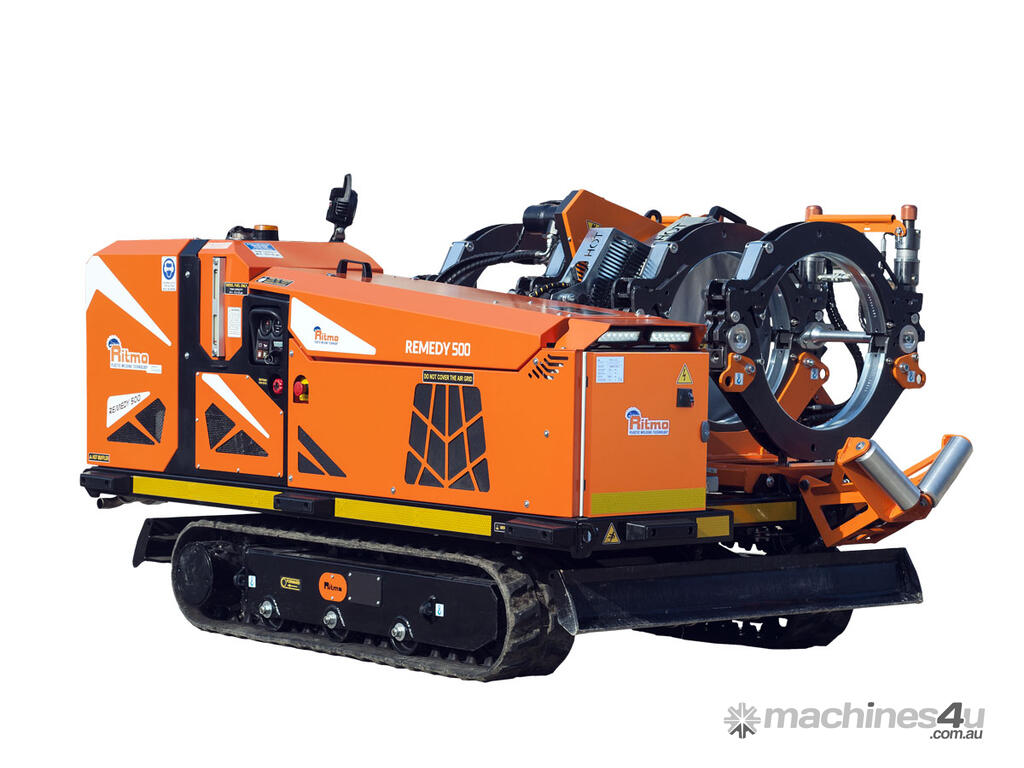

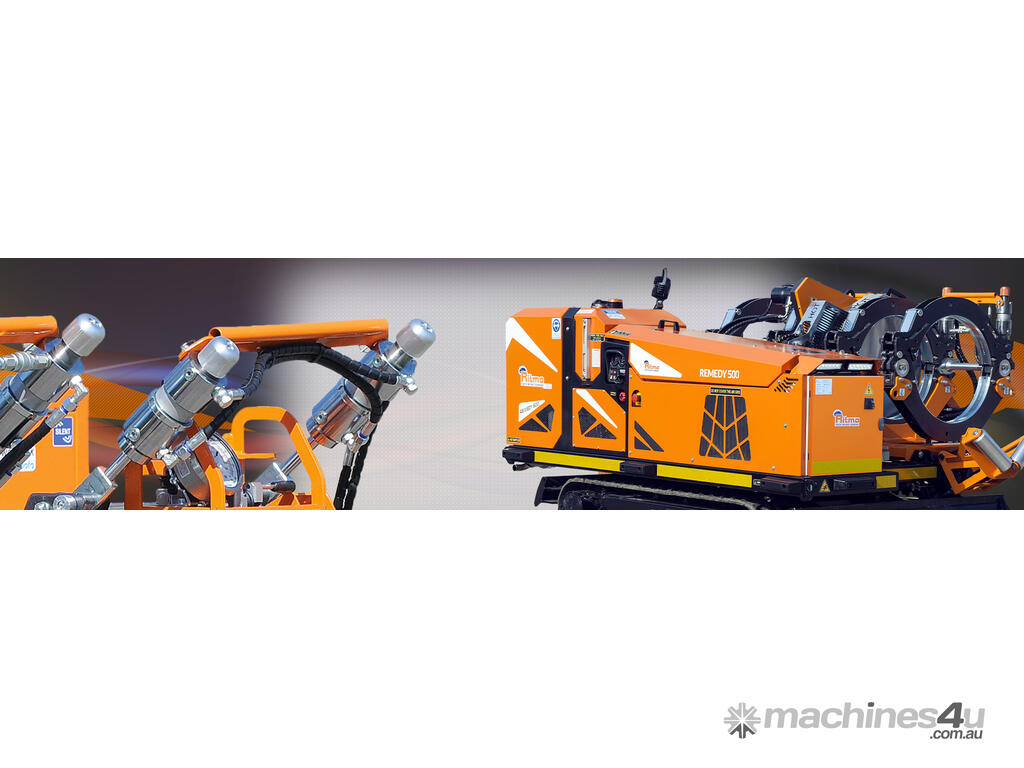

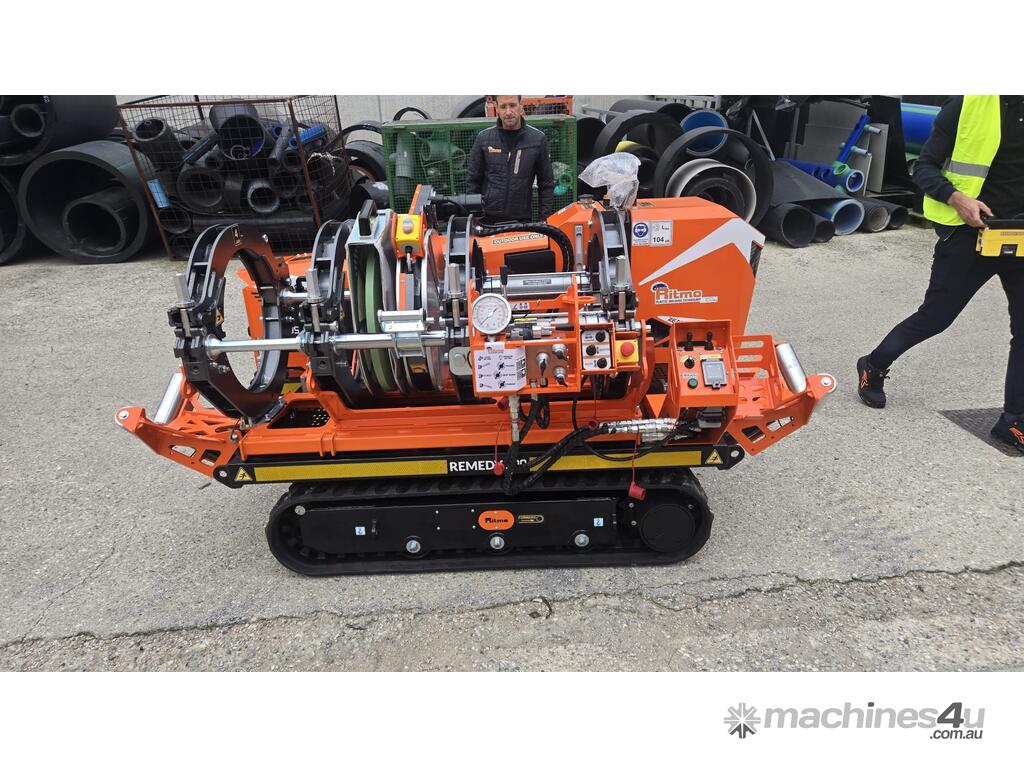

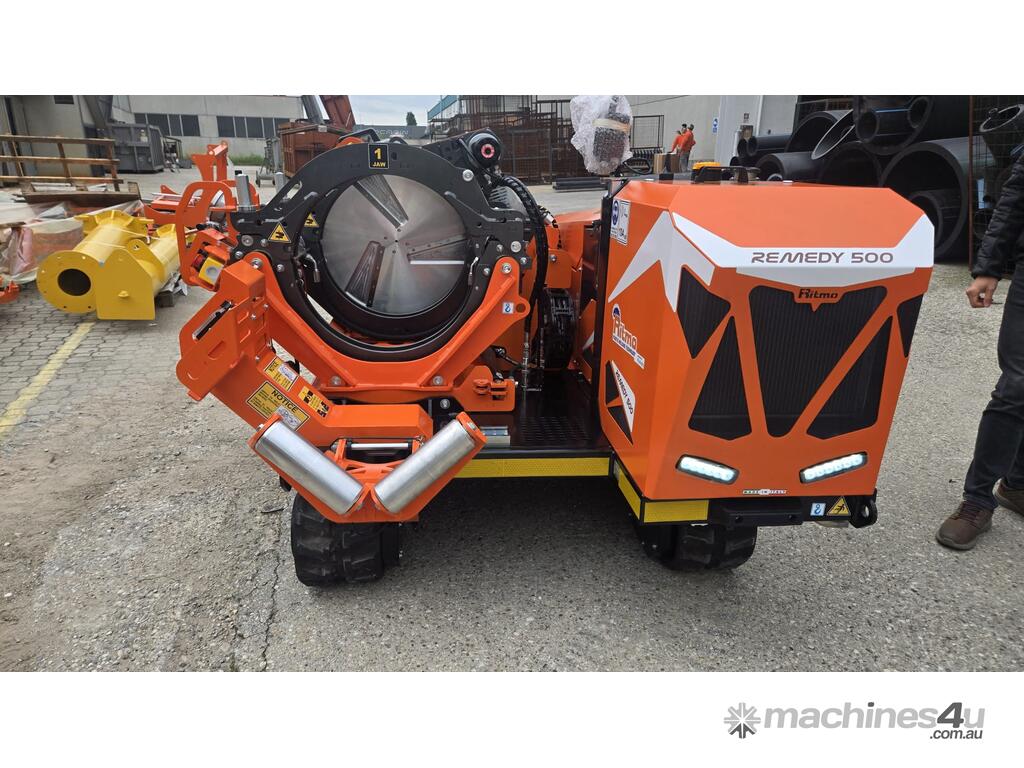

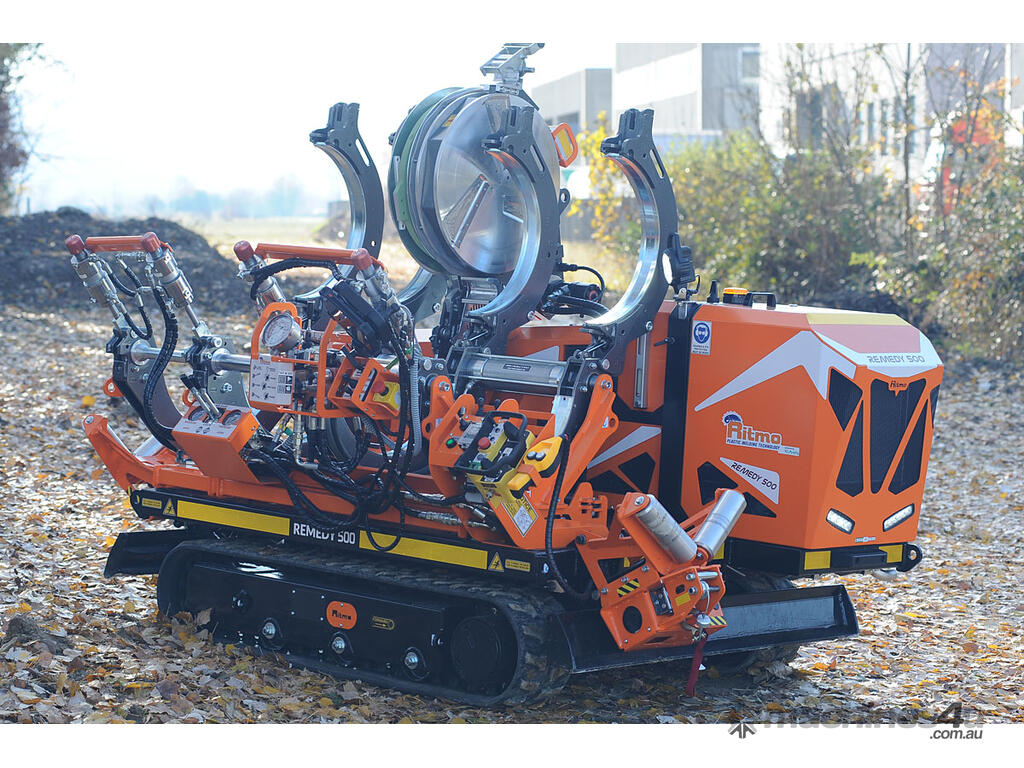

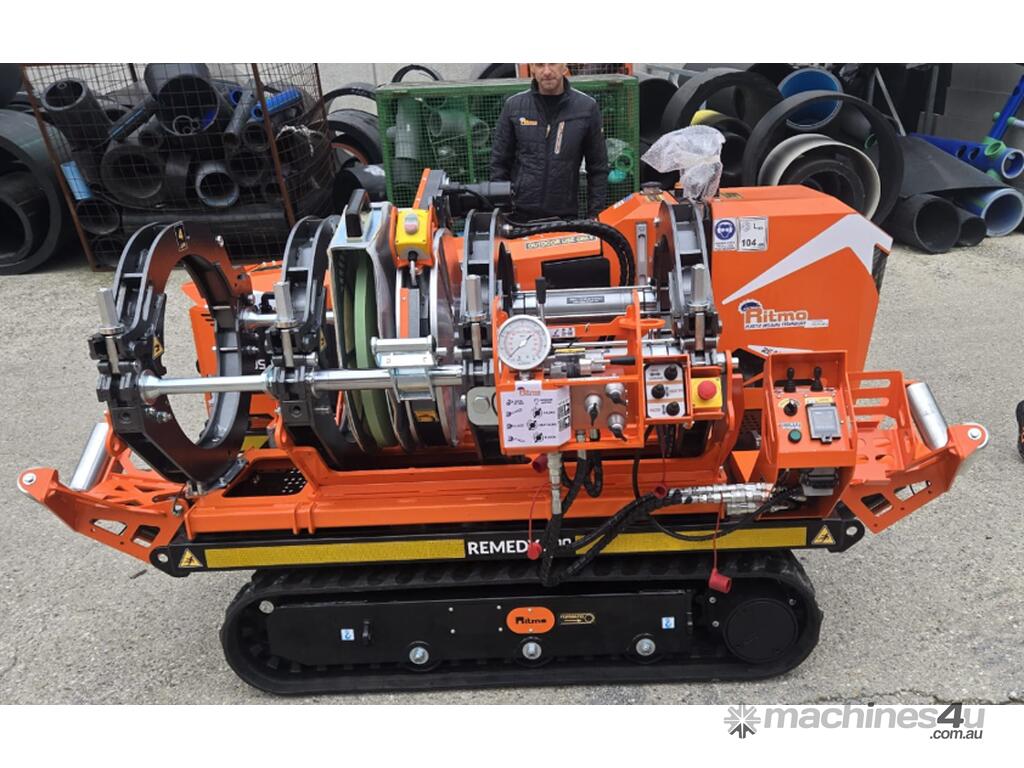

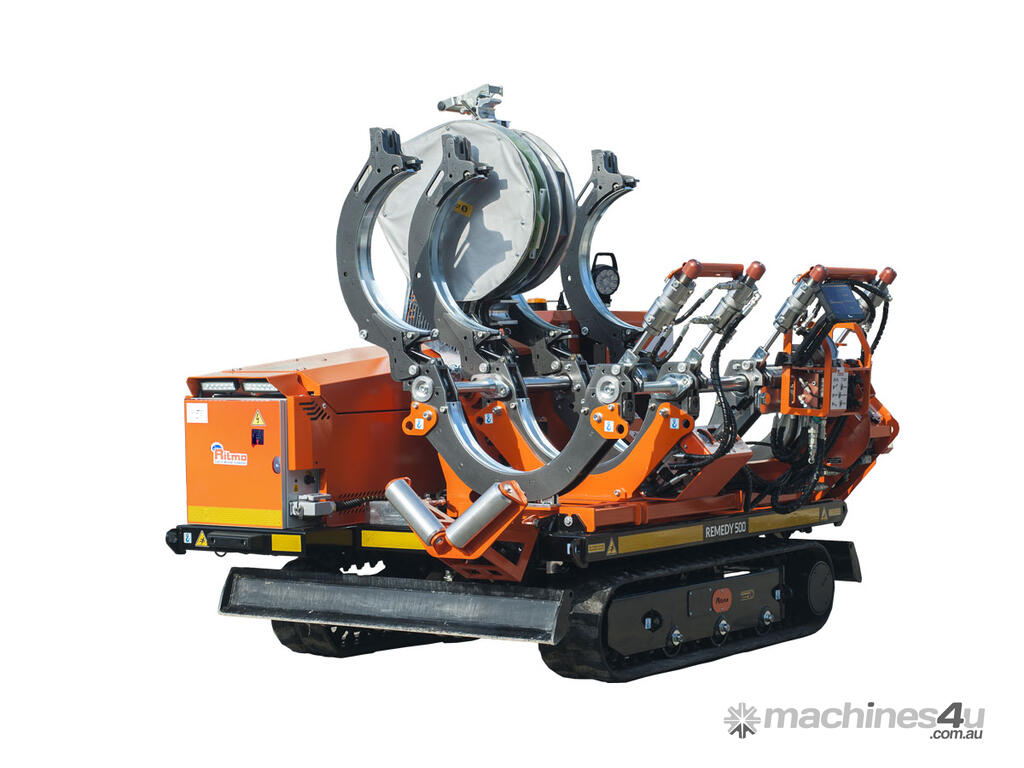

Remedy 500 V1 High pressure Butt Fusion (TRACK)

REMEDY 500 HIGH PRESSURE BUTT FUSION WELDING MACHINE - PIPE SIZES FROM 200-500mm PE.


Unique style and design with REMEDY 500 V1
High-productivity welder for small and medium diameters.

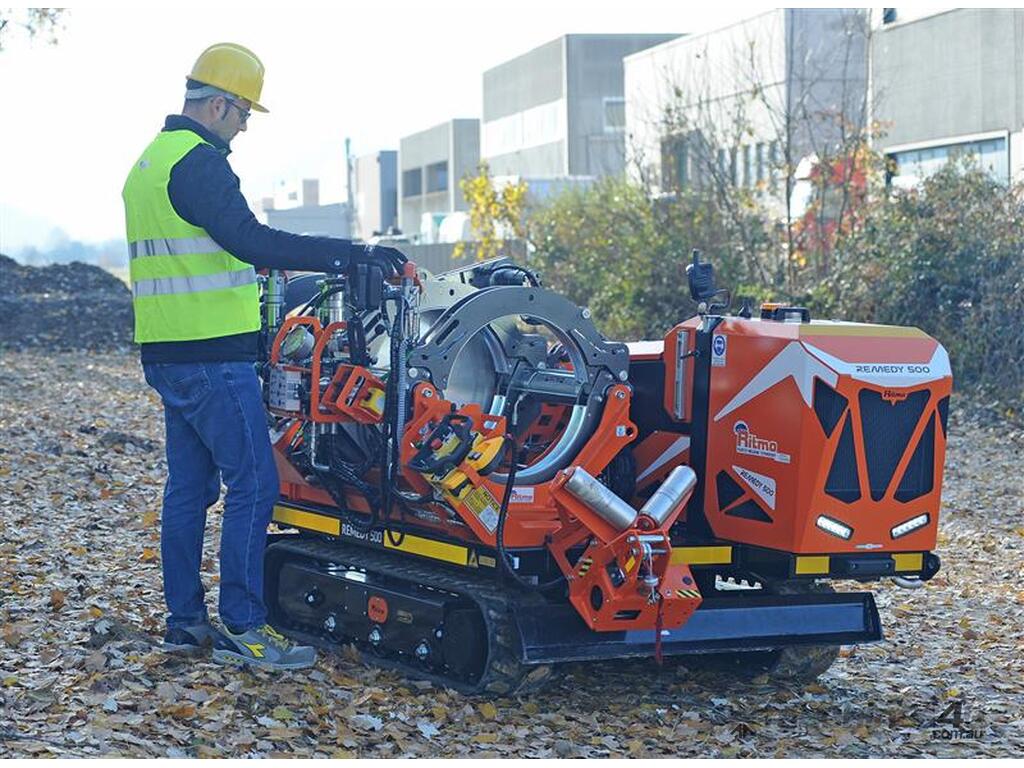

Handy, compact, with on-board generator and track traction Made in Ritmo, introduce our best welding technology into your jobsite.

Maximum performance

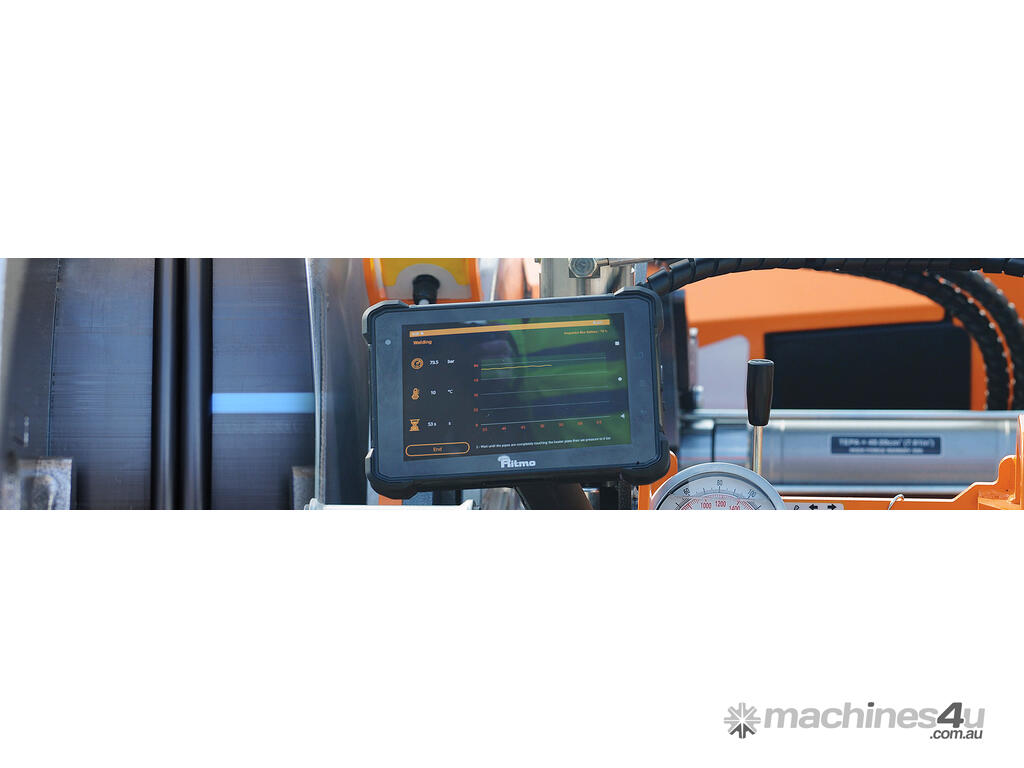

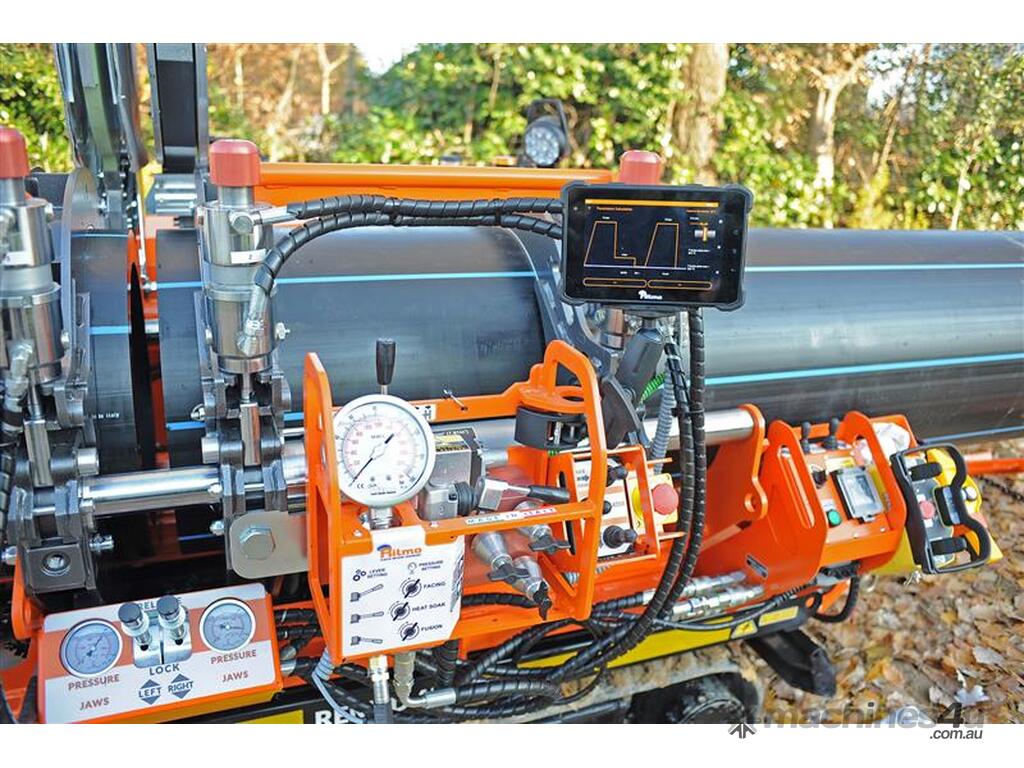

REMEDY 500 V1 for a manual welding cycle in compliance with International Standards ISO 21307 High Pressure and ASTM F2620 for pipes from 200mm up to 500mm. To certify your welds, you have the support of the innovative Datalogging Inspector 2.0 system and cloud-based data storage/analysis.

A Complete Solution

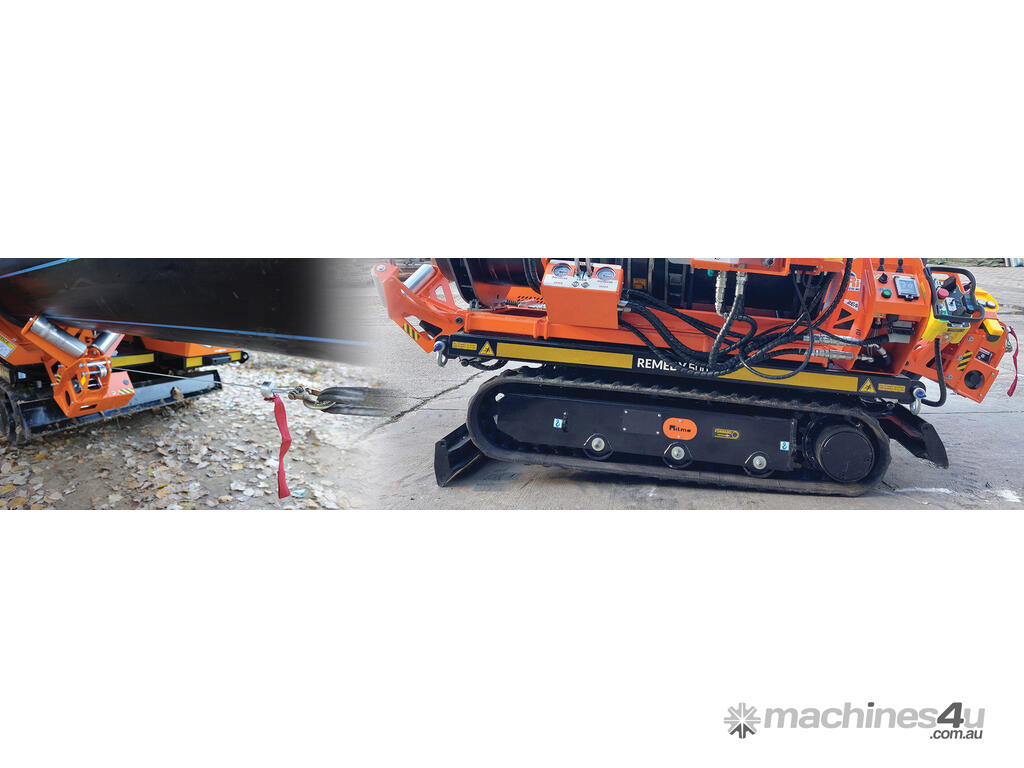

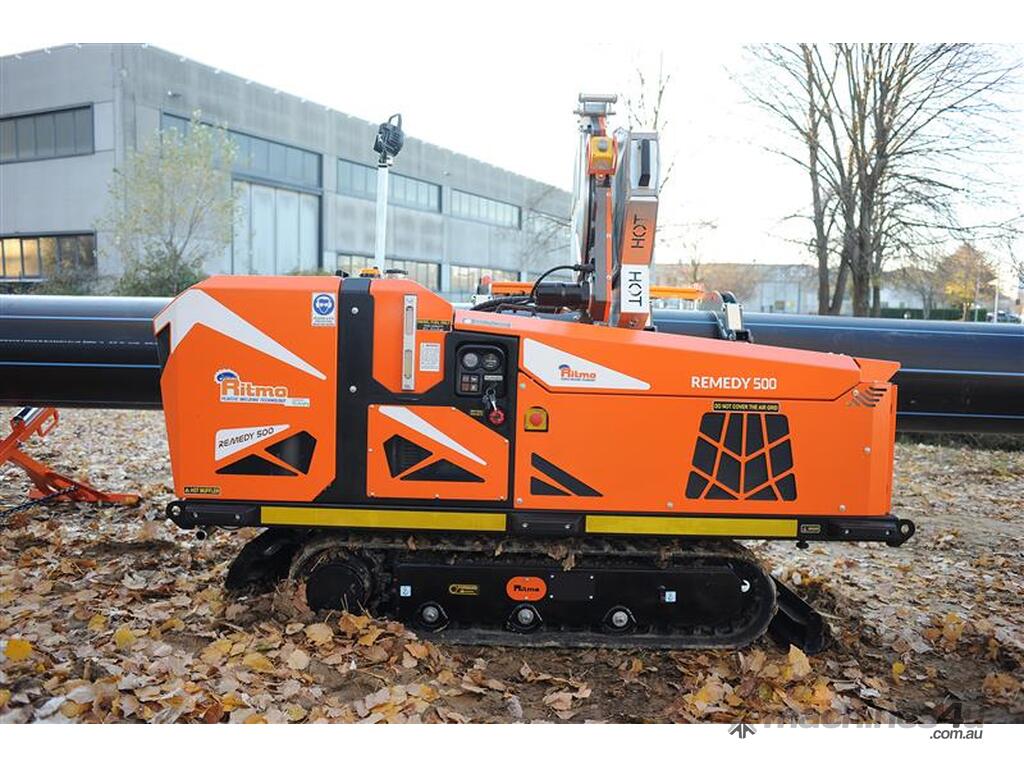

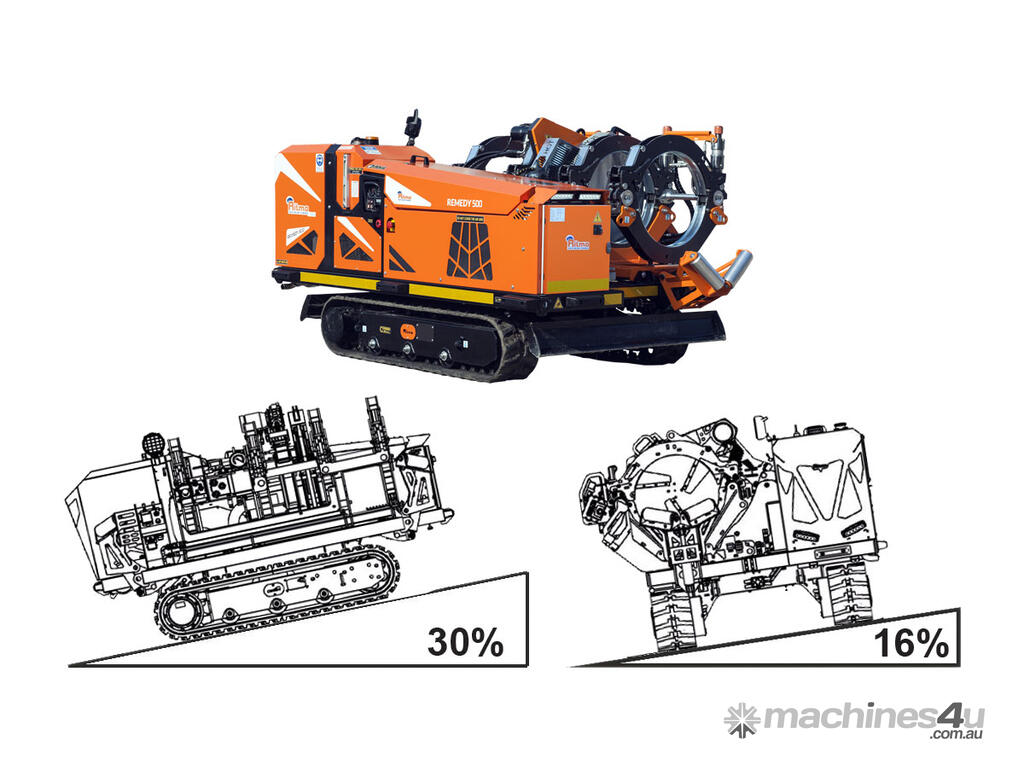

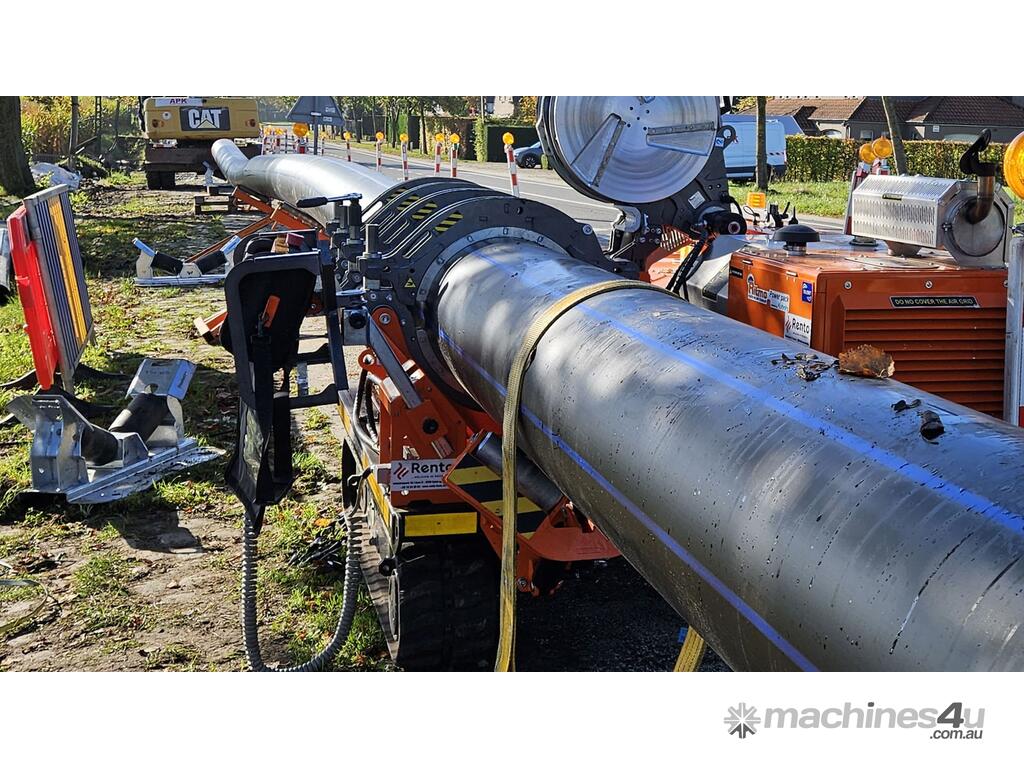

REMEDY 500 V1 is robust and reliable. With its 17 kW engine, you are ready for the toughest challenges; with a full tank of diesel, you have an autonomy of 13 hours and you can overcome gradients of up to 30%. With the Remedy 500, you can weld HDPE and PP pipes Ø 200 ÷ 500 mm, 6" ÷ 20" IPS, 6" ÷ 18" DIPS.

A Complete Solution
REMEDY 500 V1 is robust and reliable. With its 17 kW engine, you are ready for the toughest challenges; with a full tank of diesel, you have an autonomy of 13 hours and you can overcome gradients of up to 30%. With the Remedy 500, you can weld HDPE and PP pipes Ø 200 ÷ 500 mm, 6" ÷ 20" IPS, 6" ÷ 18" DIPS.

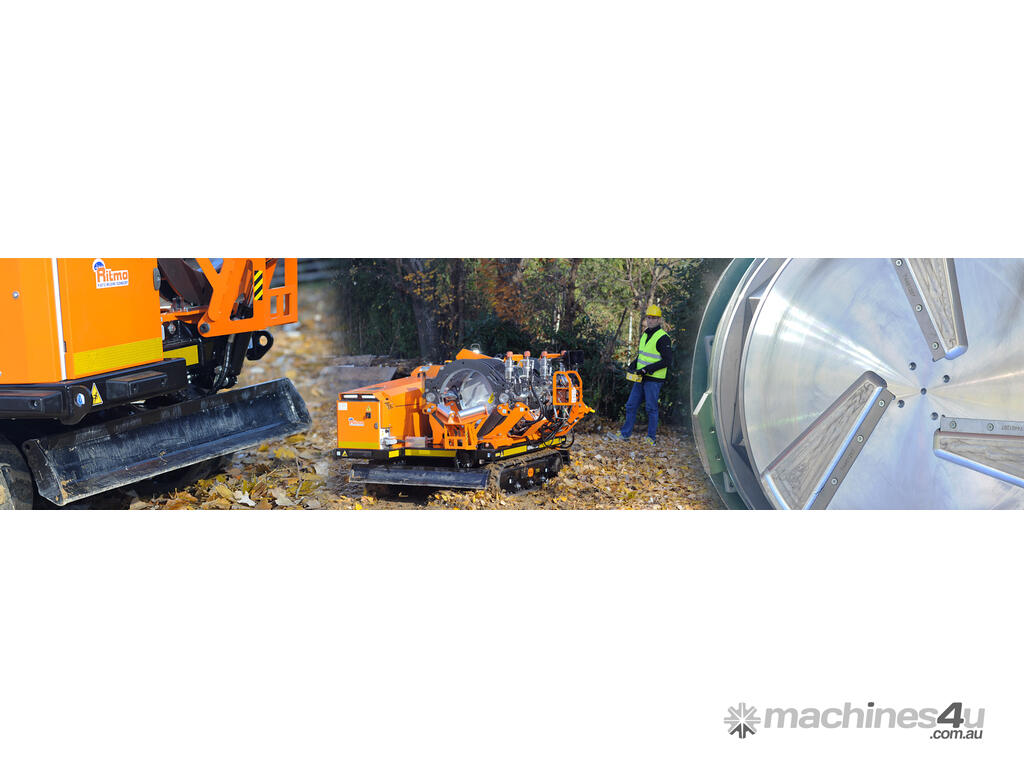

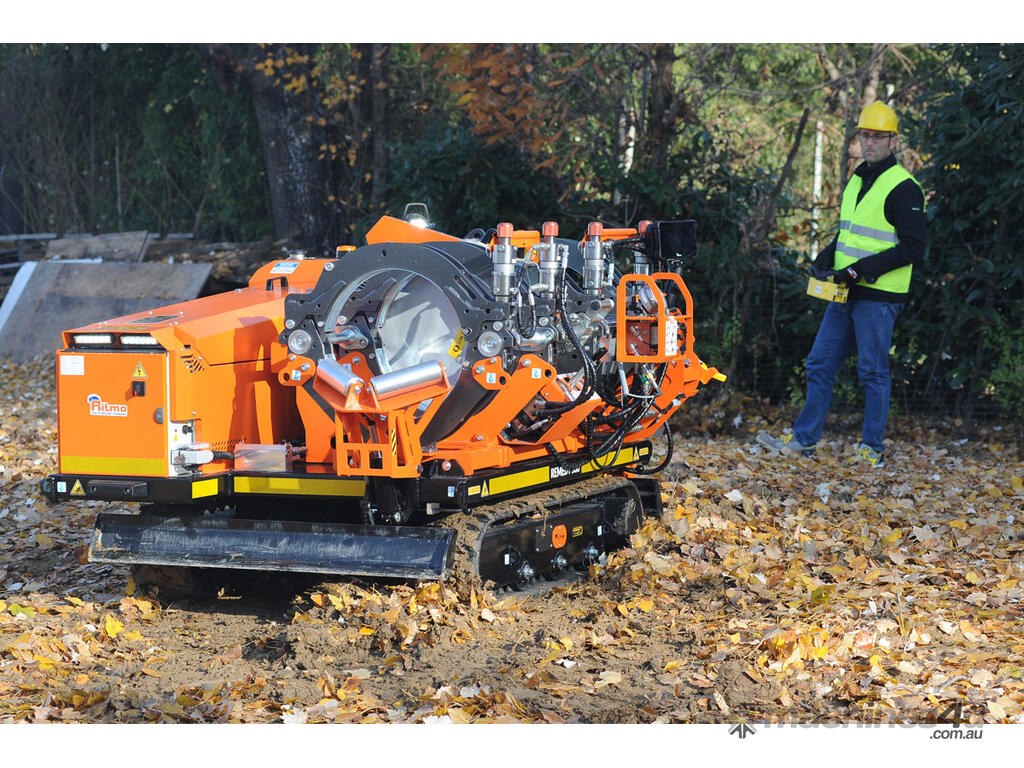

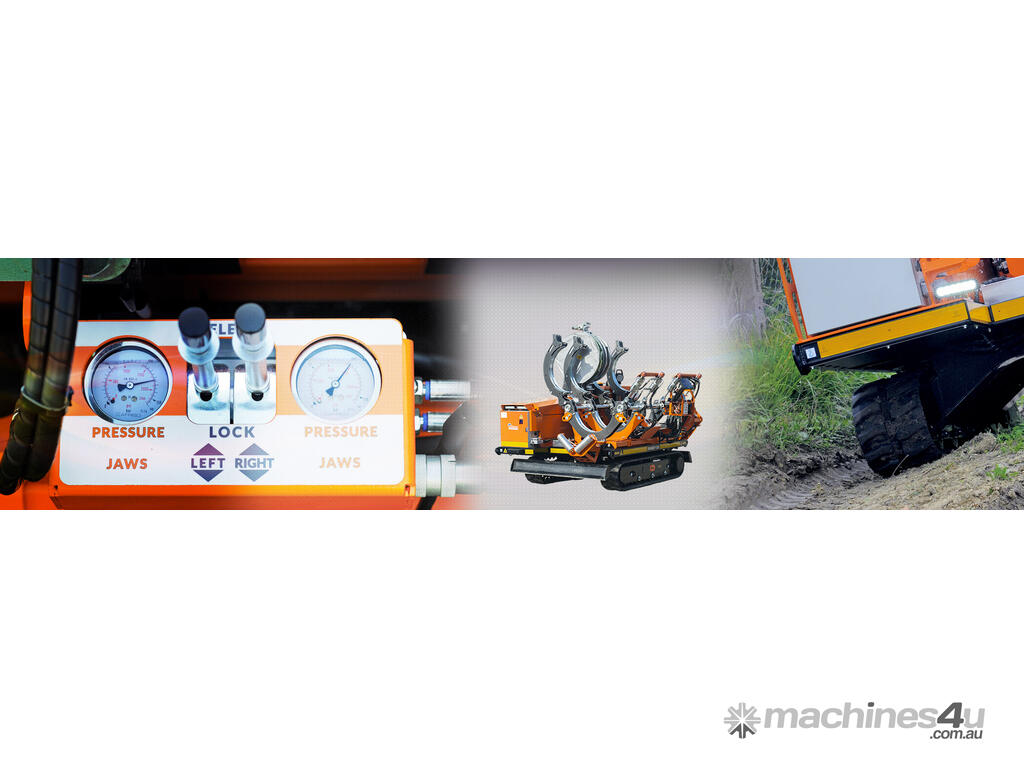

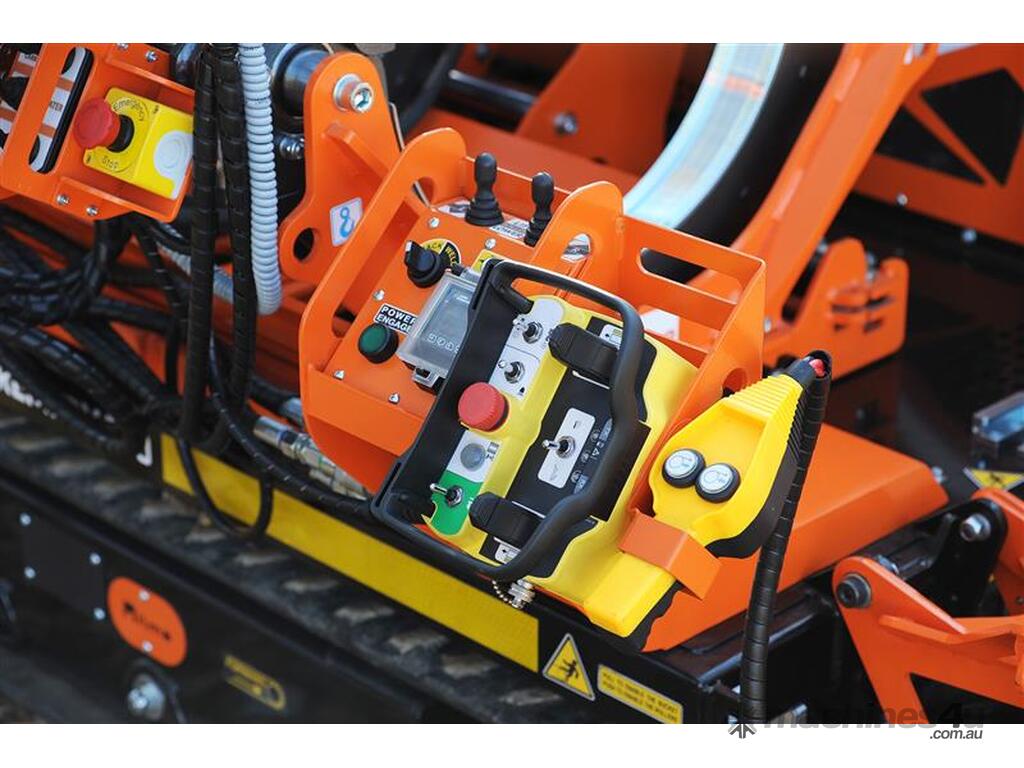

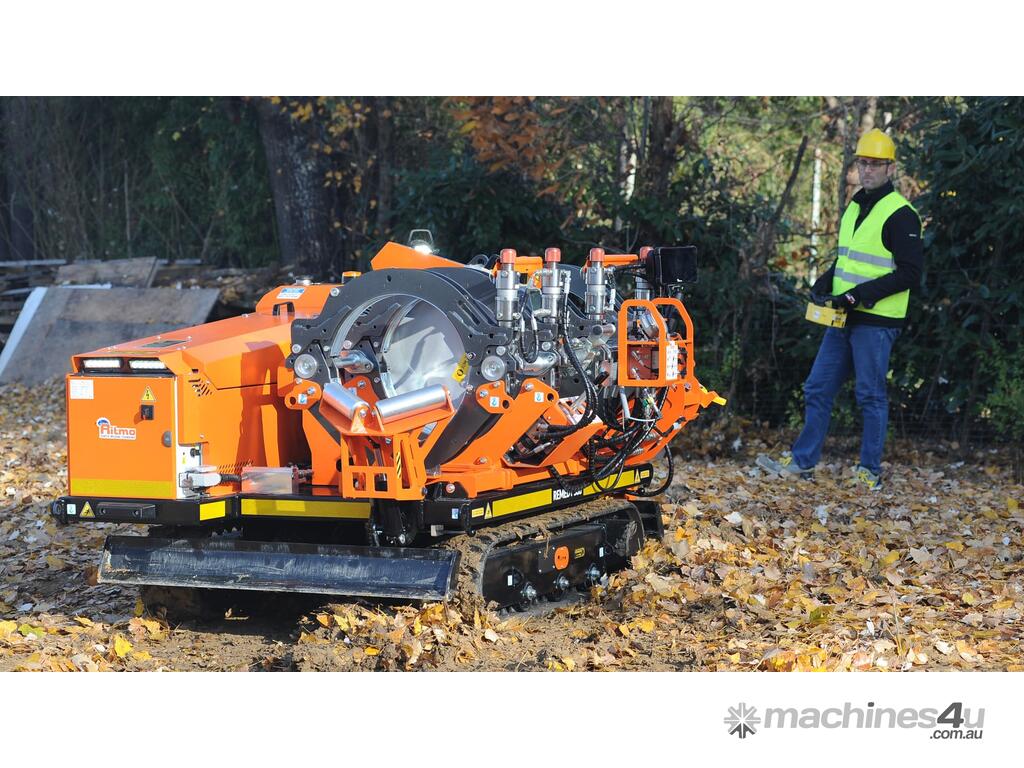

Remote Control up to 100 m
The wireless control allows the operator to always move the tracked welding machine safely and guarantees better management during the positioning.

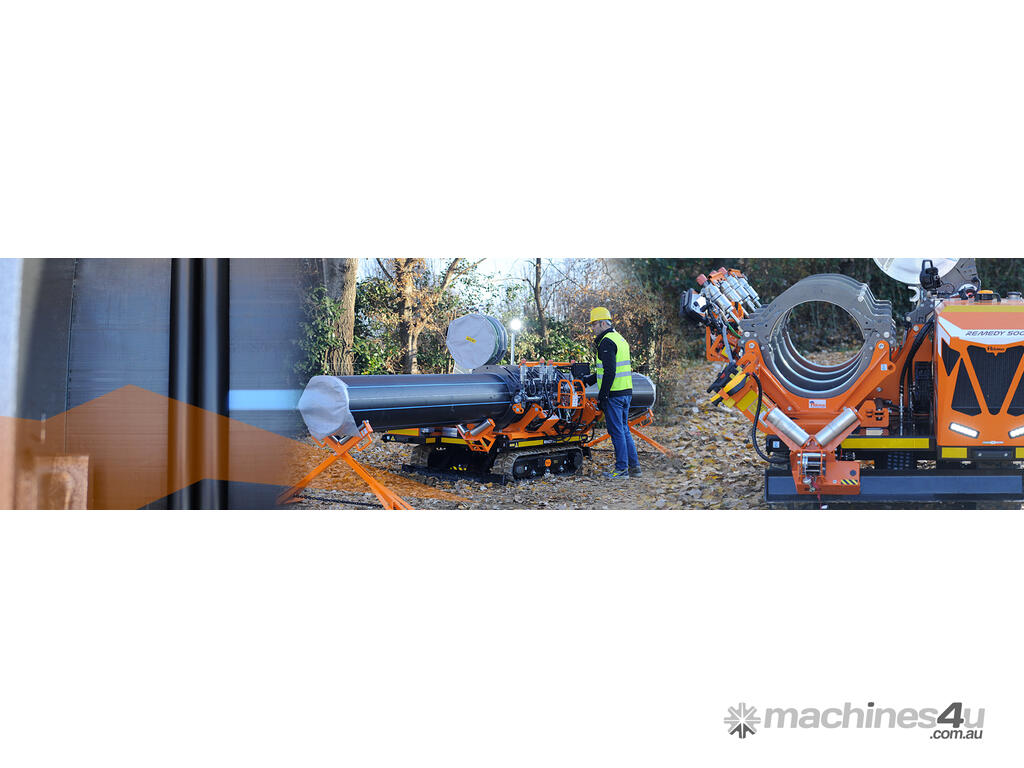

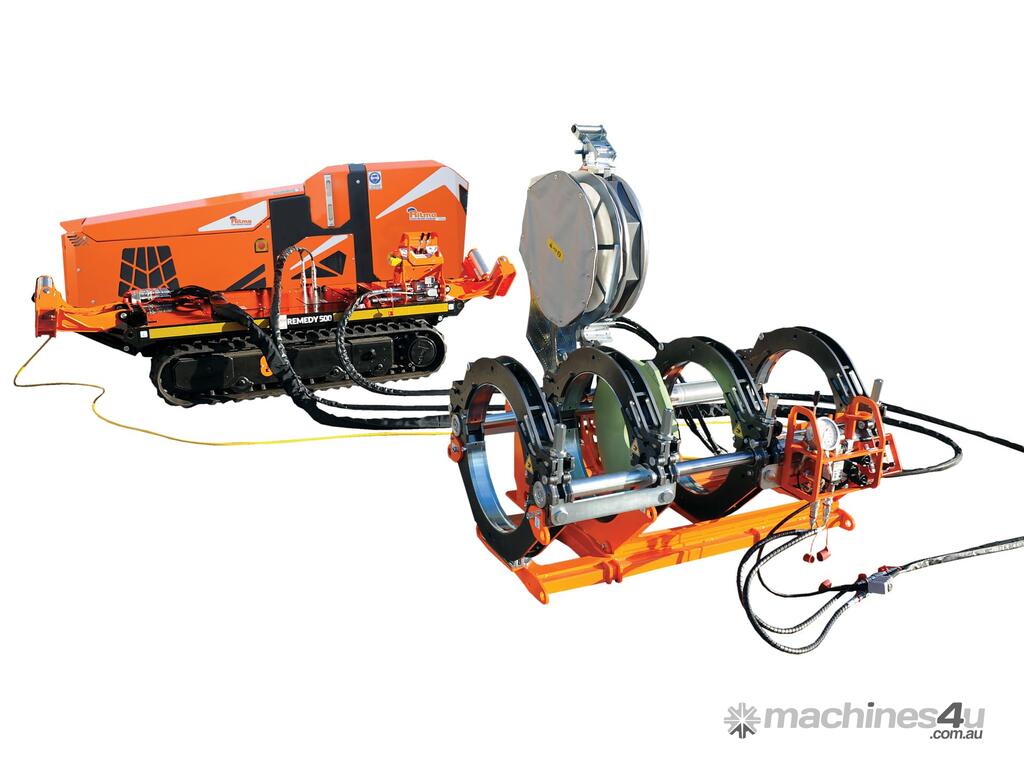

In-Ditch use
A few simple steps and the welding unit can be detached from the trolley to operate in-ditch. If necessary, the welder can become even more compact with the release of the 4th clamp. Dedicated cables and extensions up to 7 meters (on request) allow you to continue to remotely manage the welding cycle.

In-Ditch use
A few simple steps and the welding unit can be detached from the trolley to operate in-ditch. If necessary, the welder can become even more compact with the release of the 4th clamp. Dedicated cables and extensions up to 7 meters (on request) allow you to continue to remotely manage the welding cycle.

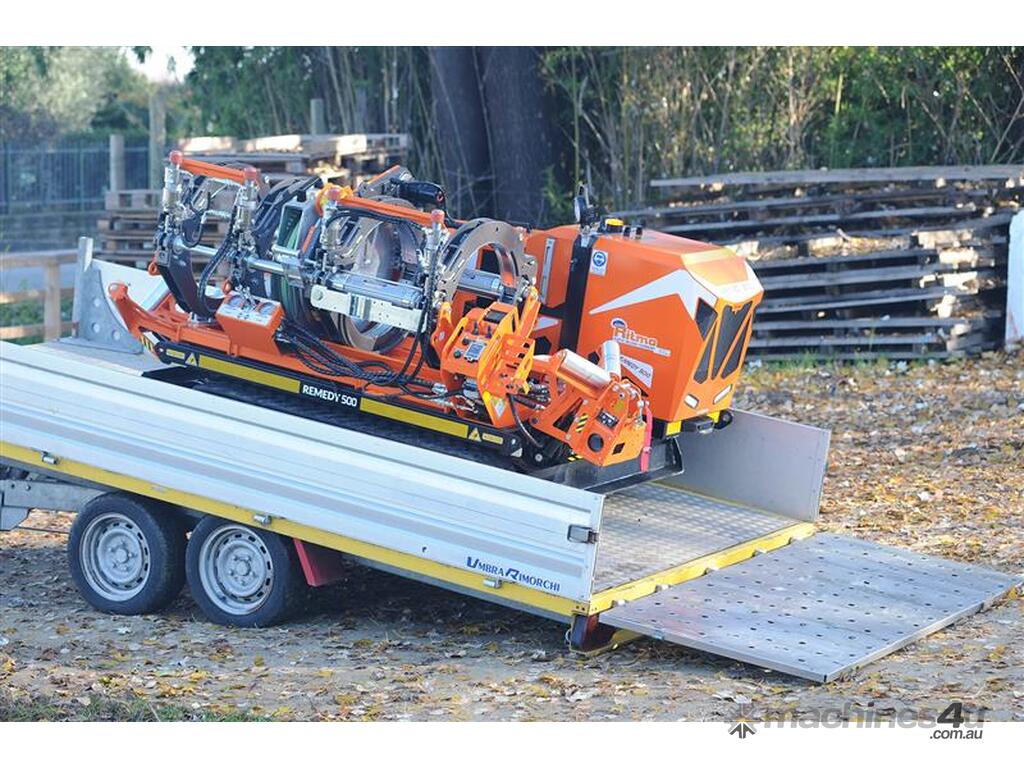

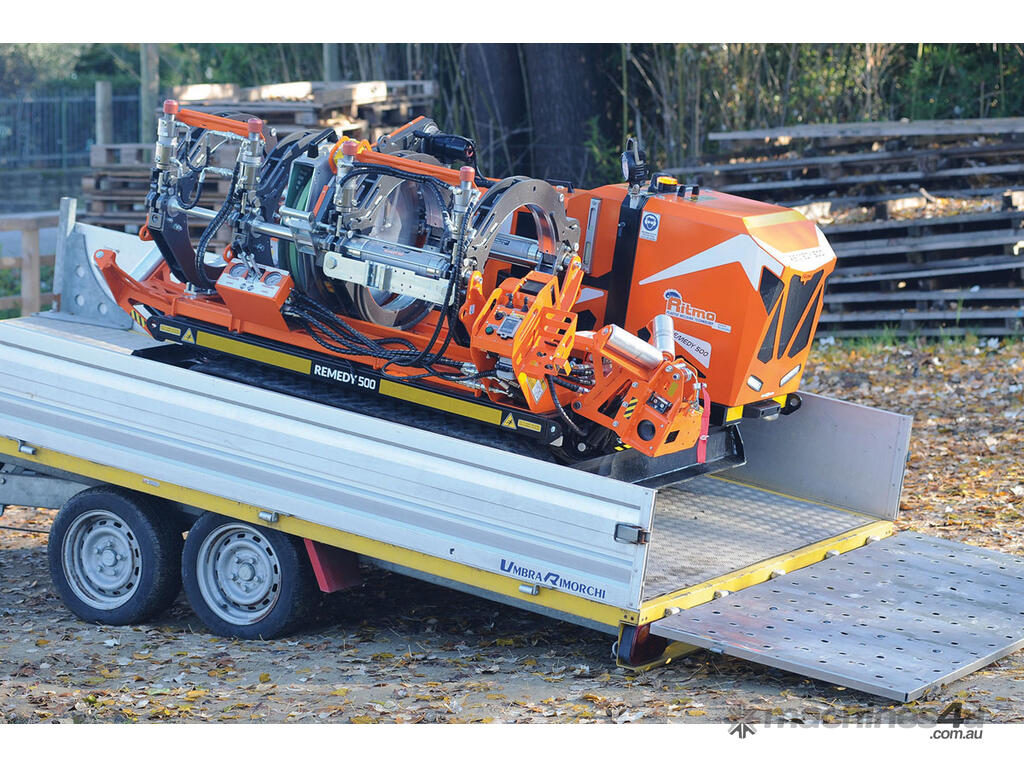

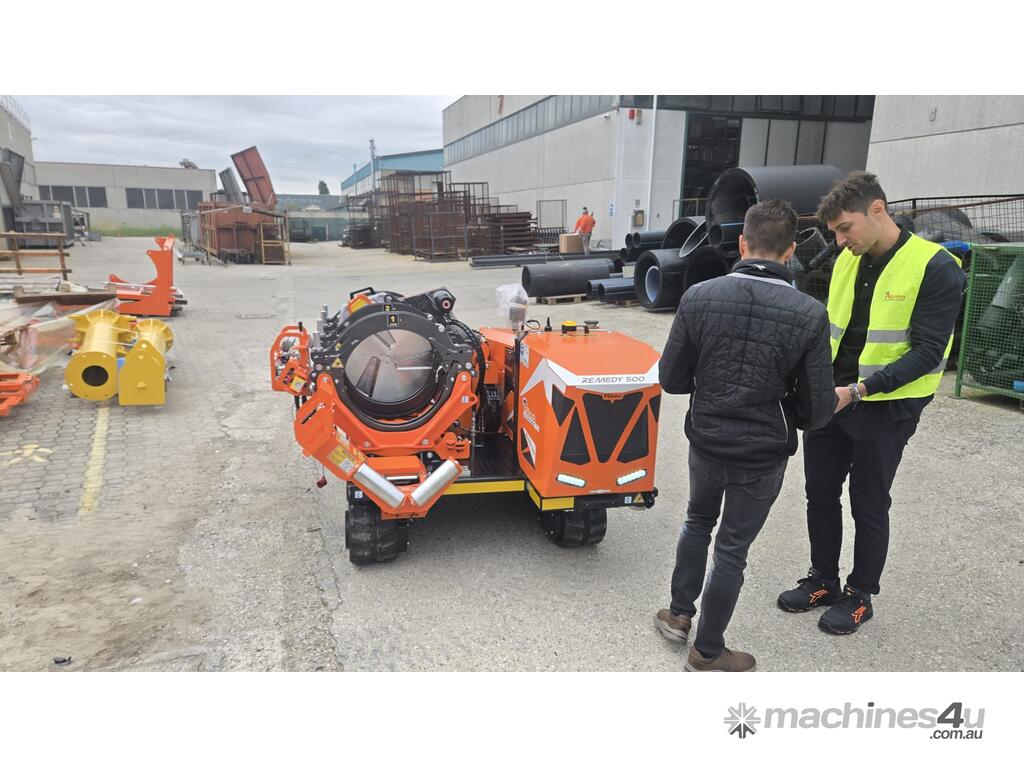

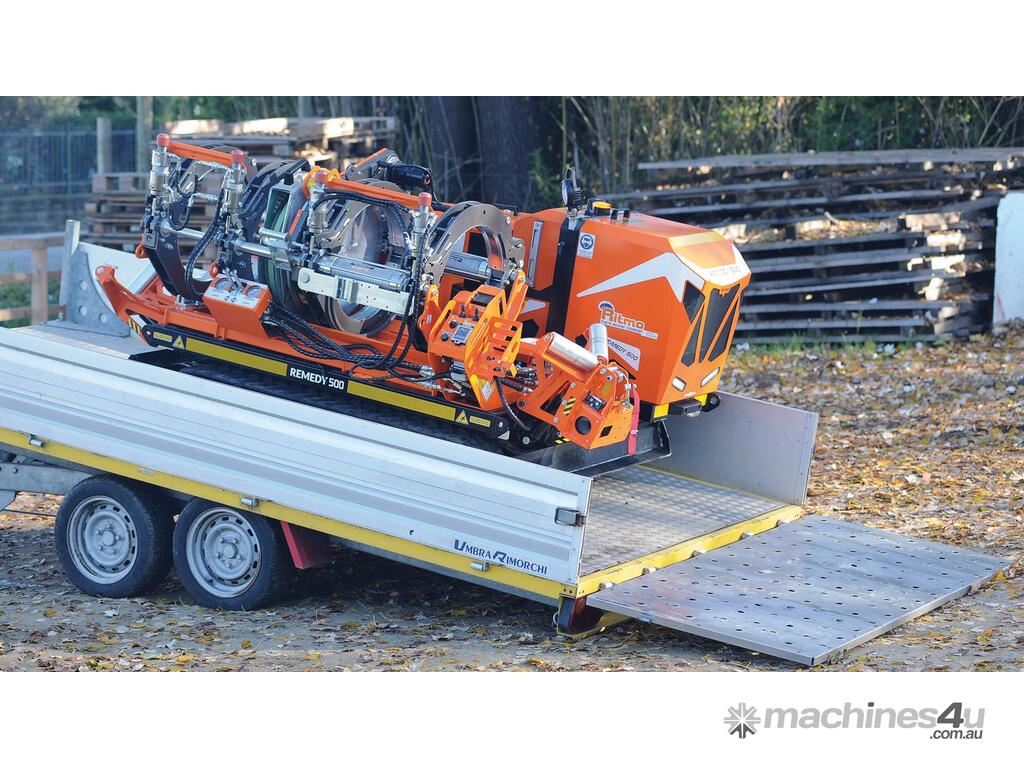

Shipping Flexibility
Thanks to its compact dimensions and lightweight, the Remedy 500 V1 can be easily transported with a simple trolley.

TECHNICAL SPECS

Working range: 200 ÷ 500 mm; 6” ÷ 20” IPS 6” ÷ 18” DIPS
On board generator: 1123 cc - 17 Kw
Fuel: Diesel

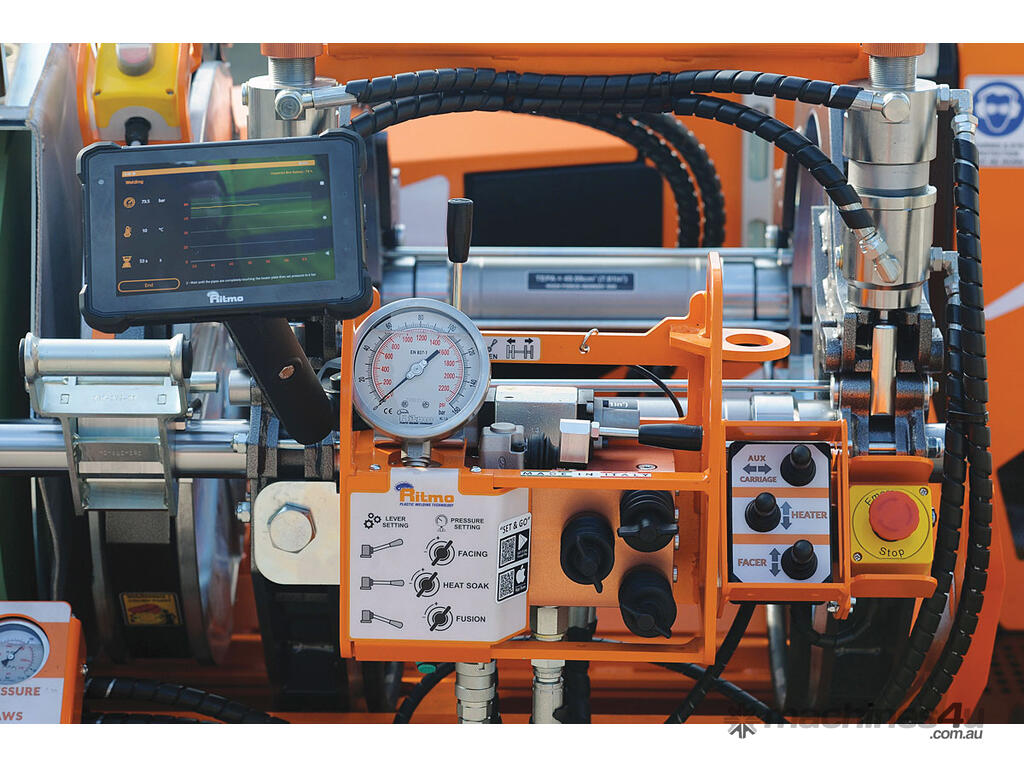

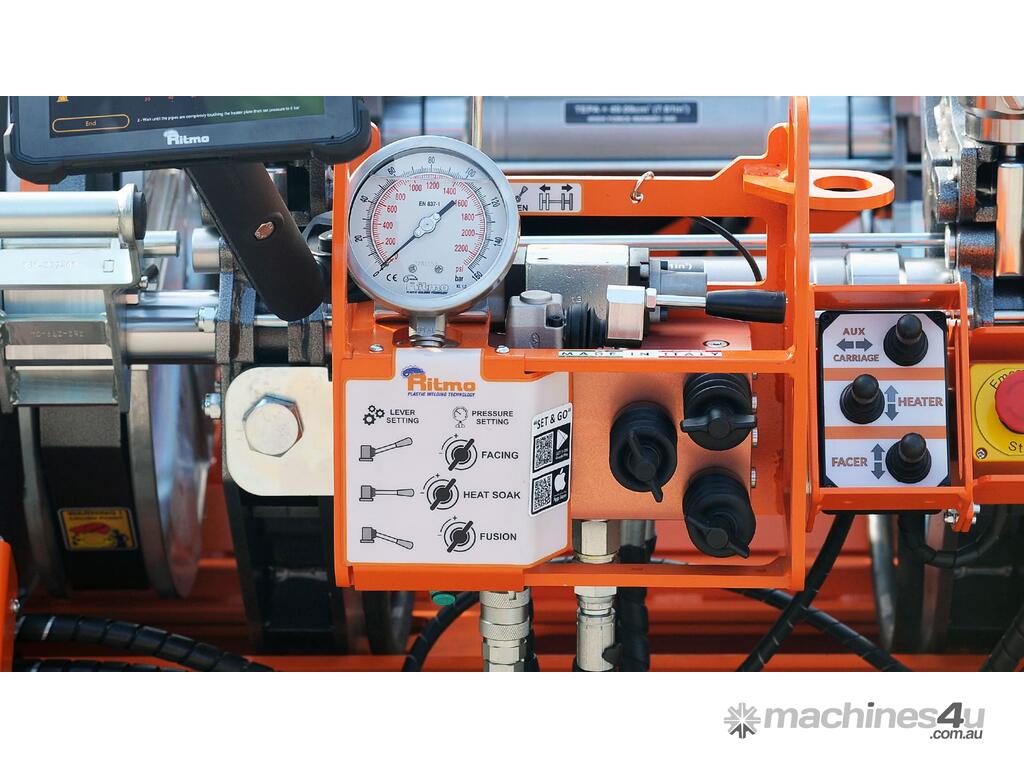

Manual welding cycle: Yes
Traceability GPS:With Inspector 2.0 on request
Memory With Inspector 2.0 on request
Working temperature 180° ÷ 260° C (356° ÷ 500° F)
Outside temperature range -5 ÷ +40°C (23 ÷ 104°F)
Pressure up to 150 bar
Fuel tank 40 L (10.56 gal)
Autonomy 13 hours
Max operating slope 30%
Dimensions standard composition (W x D x H) 2286 x 1668 x 1930 mm 7.5 x 5.5 x 6.3 ft
Weight standard composition 1750 Kg (3858 lb)
