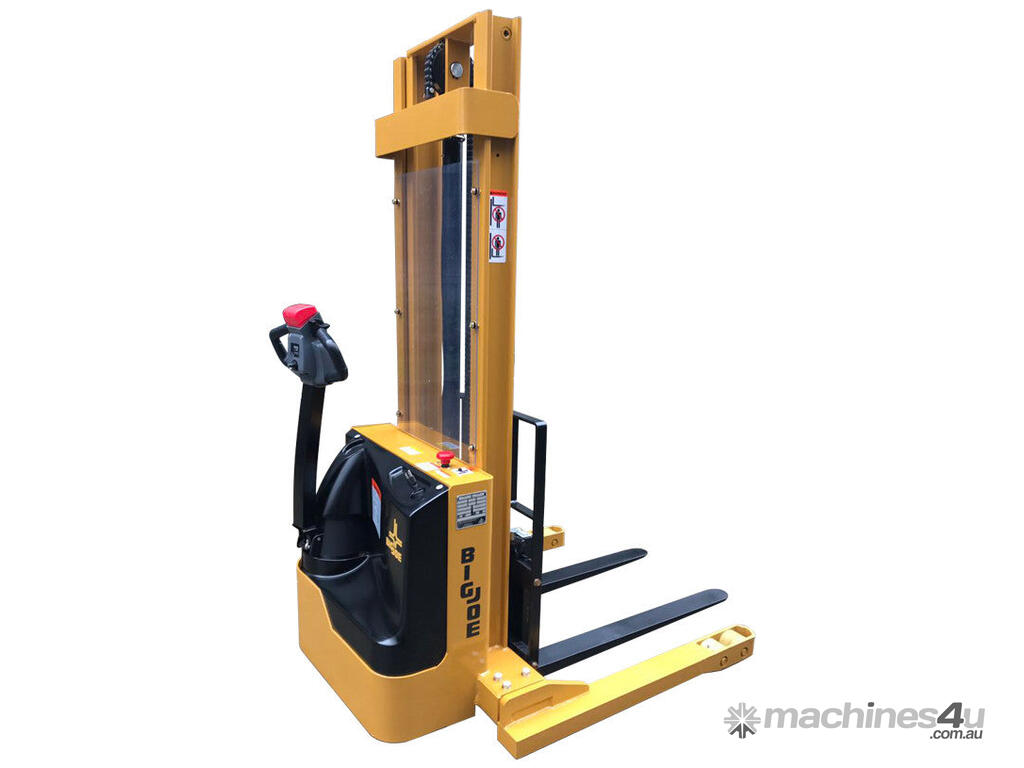

Choose A Compact S30 Stacker For Light To Medium Duty Use In Tight Areas.
S30 3,000lb. capactiy model with a maximum lift height of 128".
An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.
The S30 Features:
• 24volt system
• High efficientcy drive motors.
• Adjustable straddles. S22-62R Fork over configuraion available.
• Infinitely variable speed operation for tight turning in close quarters
• Ergonomic handle with safety reversing switch and horn
• Maintenace free integral batteries and 110volt charger
• Battery discharge indicator, Emergency power disconnect
• Key switch to limit access to approved personnel
The S30 Specifications:
• Vehicle Type
Walkie Straddle Stackers
• Capacity
3,000lbs. 24” load center
• Power
24 volt - S22 DC / S30 AC
• Max. Lift Heights
/ S30 128"
• Fork Dimensions
42" x 4" x 1.5"
• Vehicle Dimensions
See model specification sheet
• Turning Radius
See model specification sheet
• Travel Speed
2.5 mph
• Battery Compartment
Integral
• Battery Capacity
100AH
• Charger
Integral to pack, 110v plug-in
