SCM Si40 Nova Manual Panel Saw

The Si40 Nova is Proudly Made in Italy by the SCM Group.

The Si40 Nova is a circular saw with a 400mm tilting saw blade with professional performance, for a quality without compromise.

This machine has "Big Cutting Qualities" without breaking the bank!

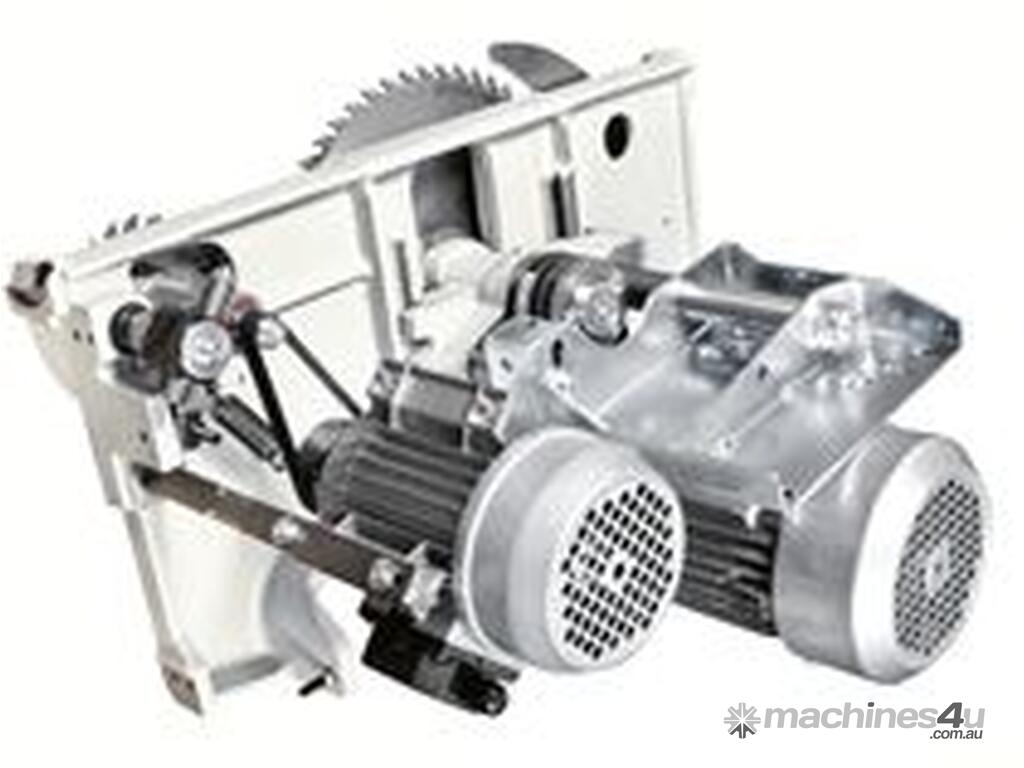

Unique in the world in its category, with a cutting height of 118 mm. The cast iron saw unit with a rigid closed loop structure can accommodate a blade of 315 and 350 mm diameter with the scoring blade mounted, ensuring perfect and easy cutting of veneer panels and thick solid wood material. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard. The rotation fulcrums of the saw unit have a 120 mm diameter and stand on steady crescent shaped rests that separate it from the base: a rigid reliable solution.

Unrivalled cutting finishing

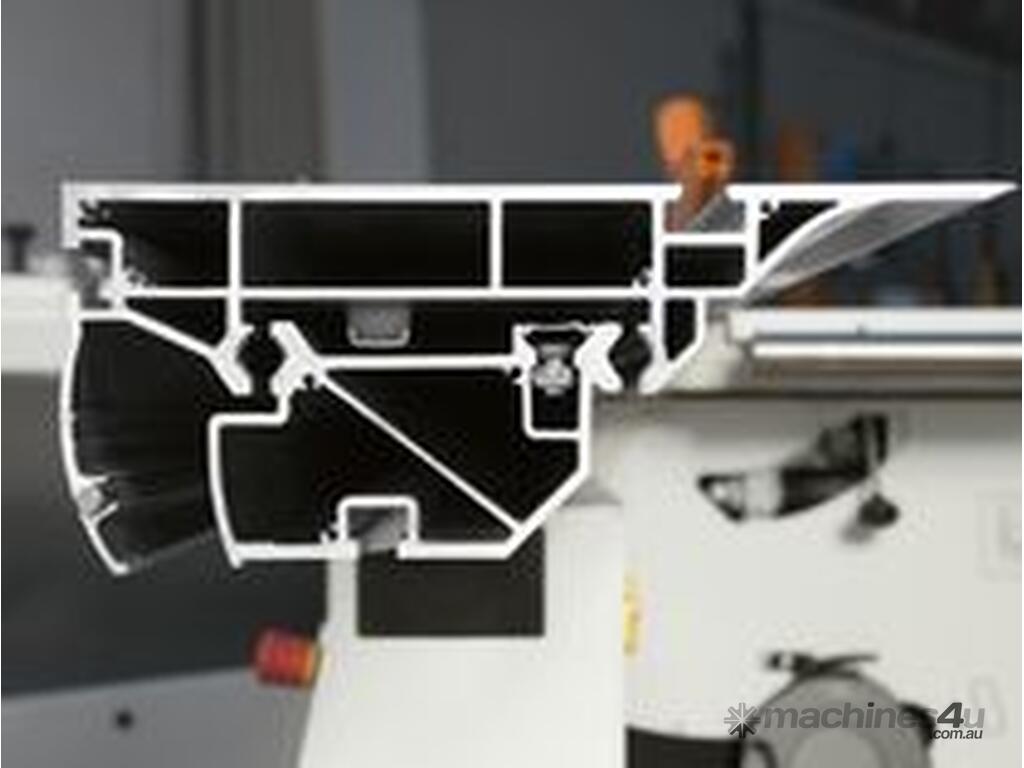

Optimal support also to larger pieces, with the sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminium riveting.

Immediate control

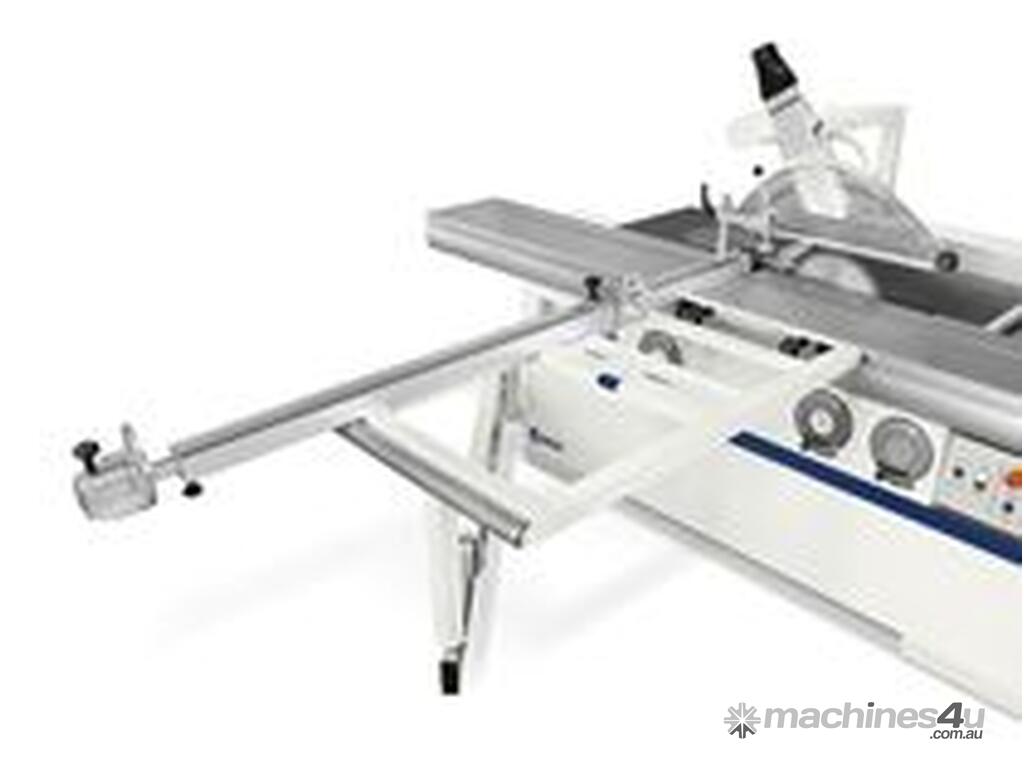

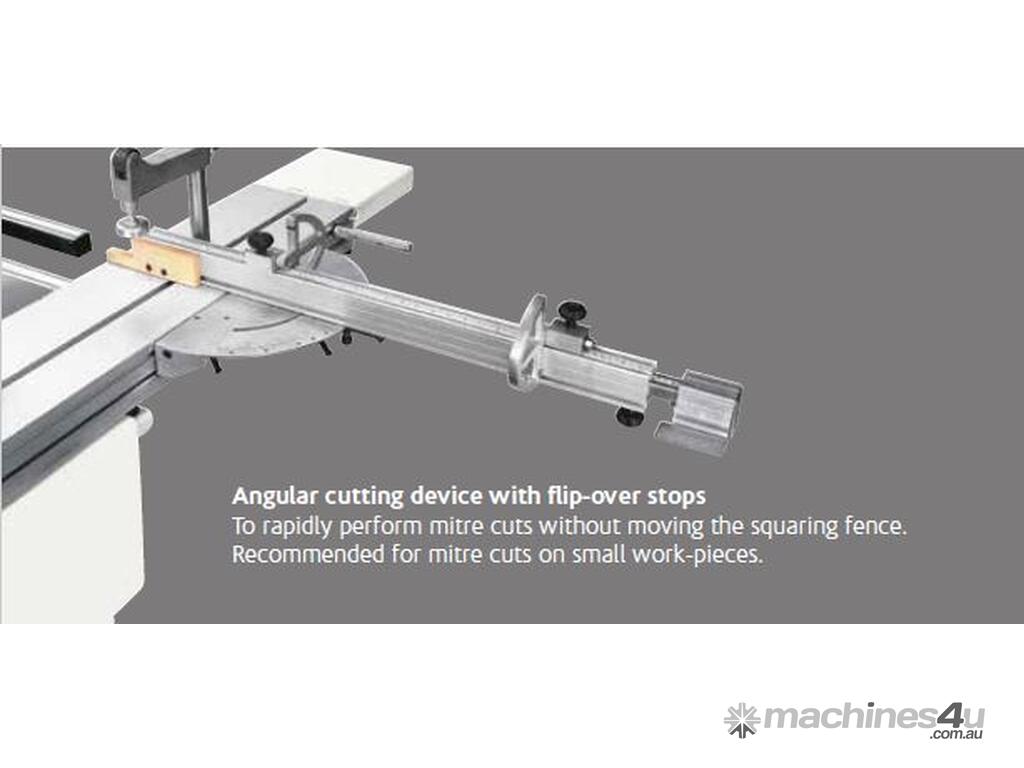

Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence with the inclined metric scale and two reversible stops can be used to square panels measuring 3200 x 3200 mm and for mitre cuts at up to 45° on both sides of the frame.

High-tech devices
Wide range of high-tech devices to make your Elite S even more powerful and personalized, like the start/stop pushbuttons for the main blade and scoring blade integrated in the sliding carriage; very useful when machining large dimensioned work pieces that prevent an easy and safe access tothe main machine control panel.

si 40 Nova
Max. sawblade diameter 400mm
2 Blade Speeds 3500/5000 Rpm
Max. sawblade projection from table at 90°/45° 136/97mm
Cutting width on parallel fence 1270mm
Sliding Table lengths either 2600mm or 3200mm
Three-phase main blade kW/Hp 7 (9.5Hp)
Separate Scoring Motor
