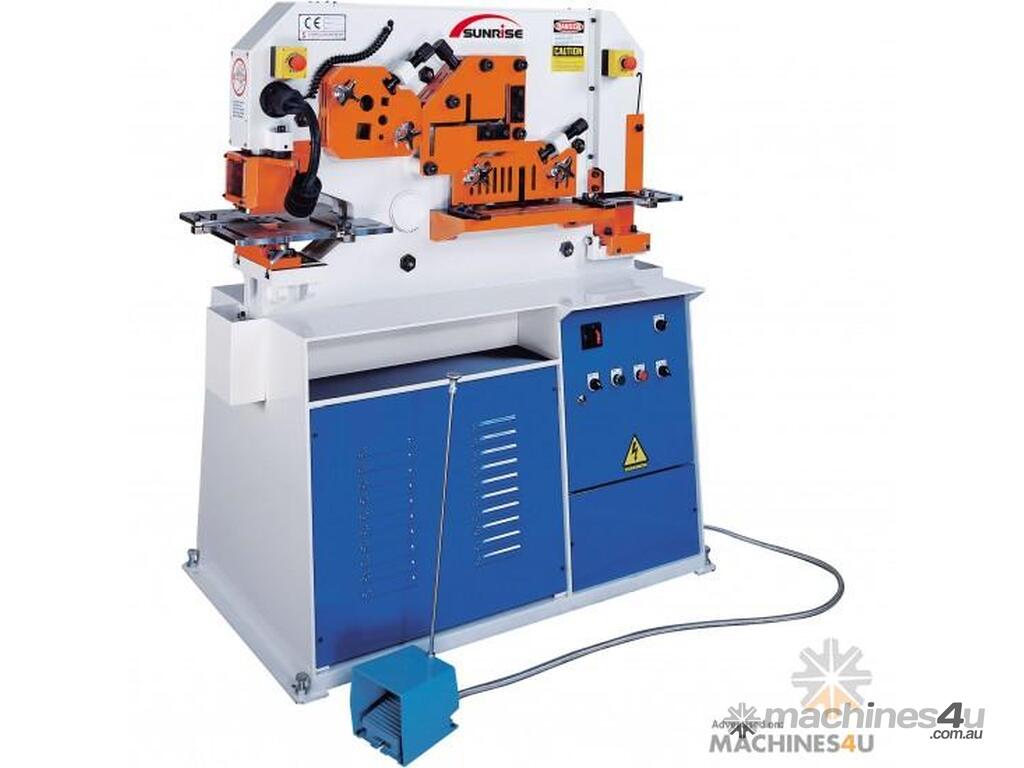

New Sunrise 60 Ton Punch & Shear
Taiwanese, 2 Year Warranty
"CALL FOR OUR BEST PRICE"
Features
Punching capacity up to 40mm standard.
Power inching for easy job set up
Adjustable stroke for faster punching
Punch table and shear table both fitted with guides as standard
All work stations guarded
Most cutting blades are four-sided for long life
Adjustable length stop with rule
Five work stations, including notcher (Four stations on 45MQ)
Fully-filtered hydraulic system

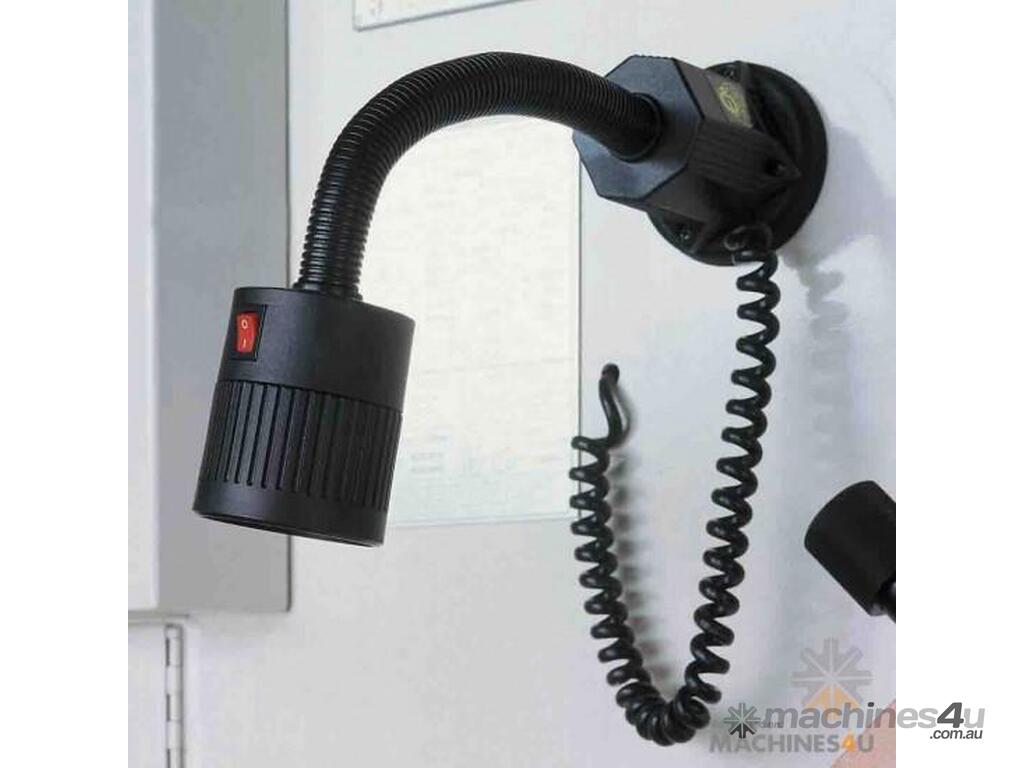

Magnetic-base work lamp (60H only)
Internal and external mitre cutting of angle iron (60H only)
Telemecanique electrical components
NOTE: Specifications based on material strength of 45kg/mm2 tensile.
Standard Accessories
Full safety guarding at all workstations 1 metre length stop for shear/crop stations
Tooling to all workstations,
Punch, Shear and Notch support tables
2 year warranty
Specifications:
CODE:P173
MODEL:IW-60H
PUNCHING
PUNCHING PRESSURE:60T
PUNCHING CAPACITY (Diameter x Thickness):ø28 x 15mm / ø40 x 11mm
THROAT DEPTH: 220mm
MAXIMUM STROKE LENGTH:55mm
CYCLE/Min (15mm Stroke):29

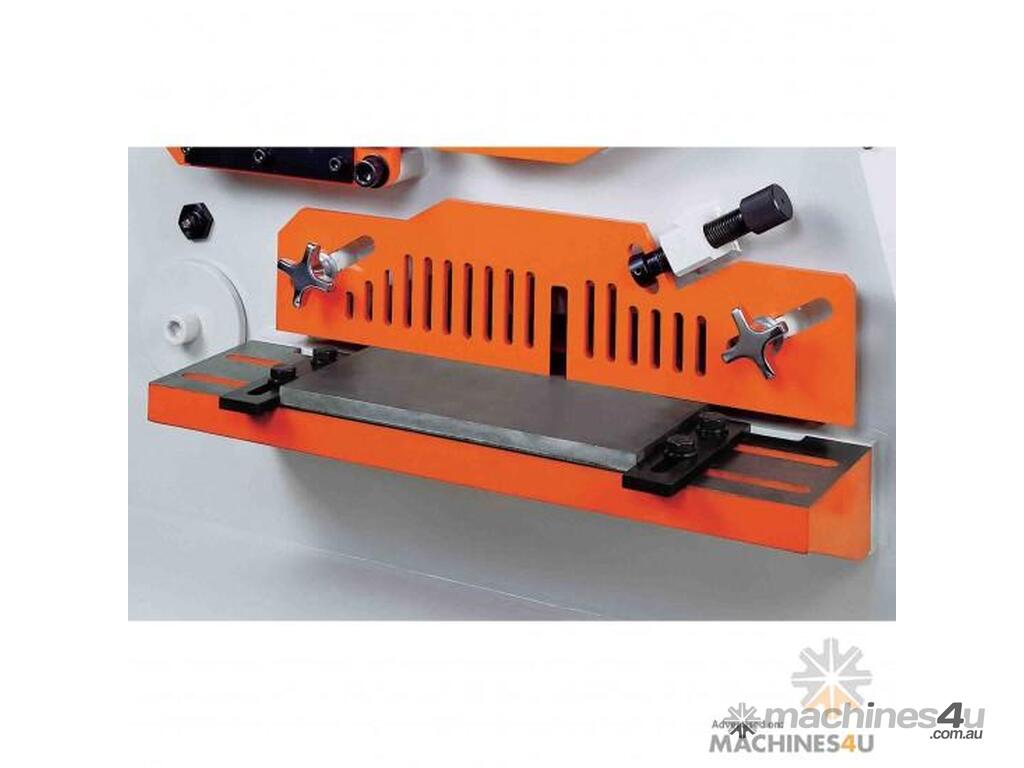

FLAT BAR SHEARING
FLAT BAR SHEAR (Width x Thickness):350 x 15mm / 210 x 20mm
BLADE LENGTH:360mm

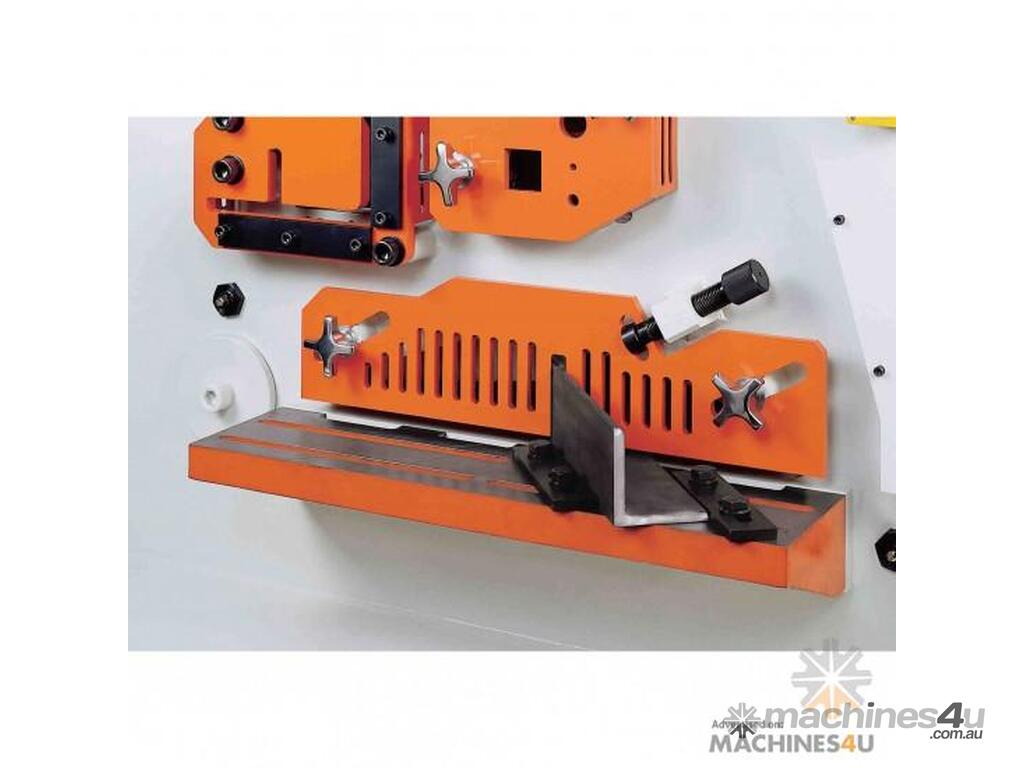

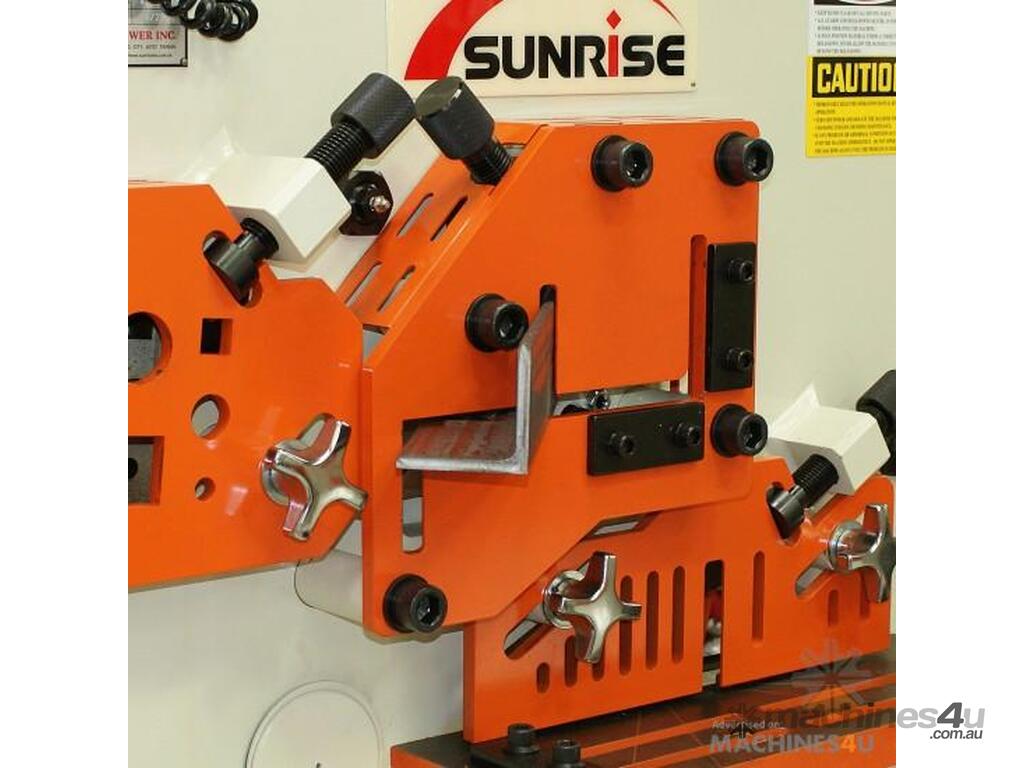

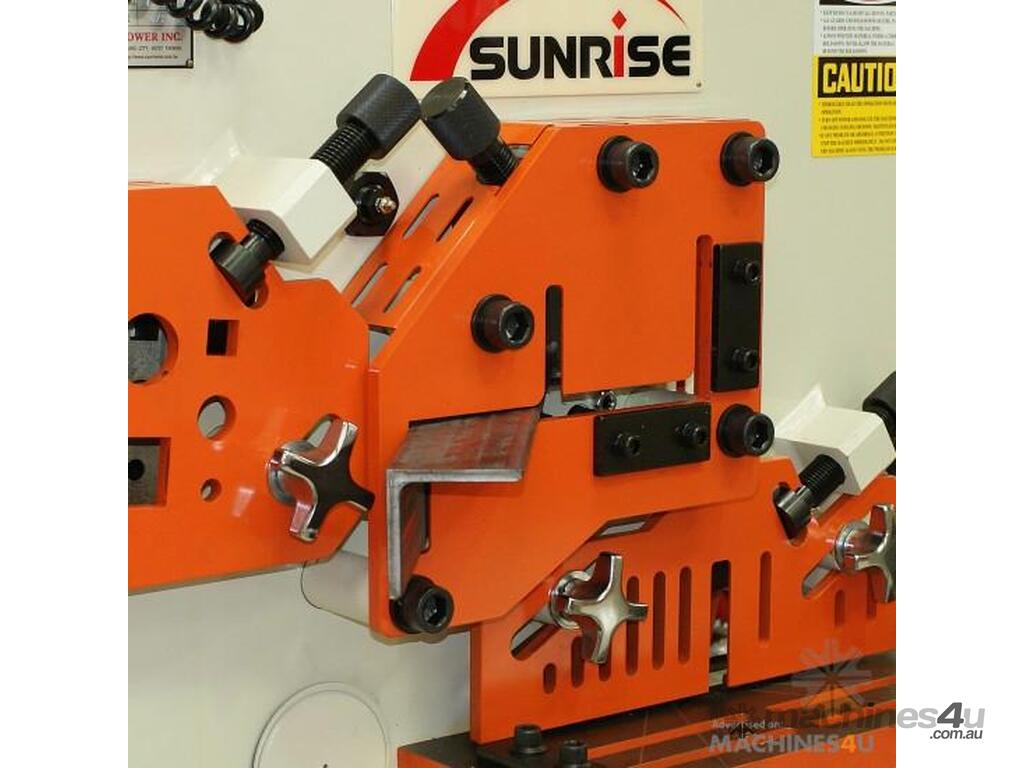

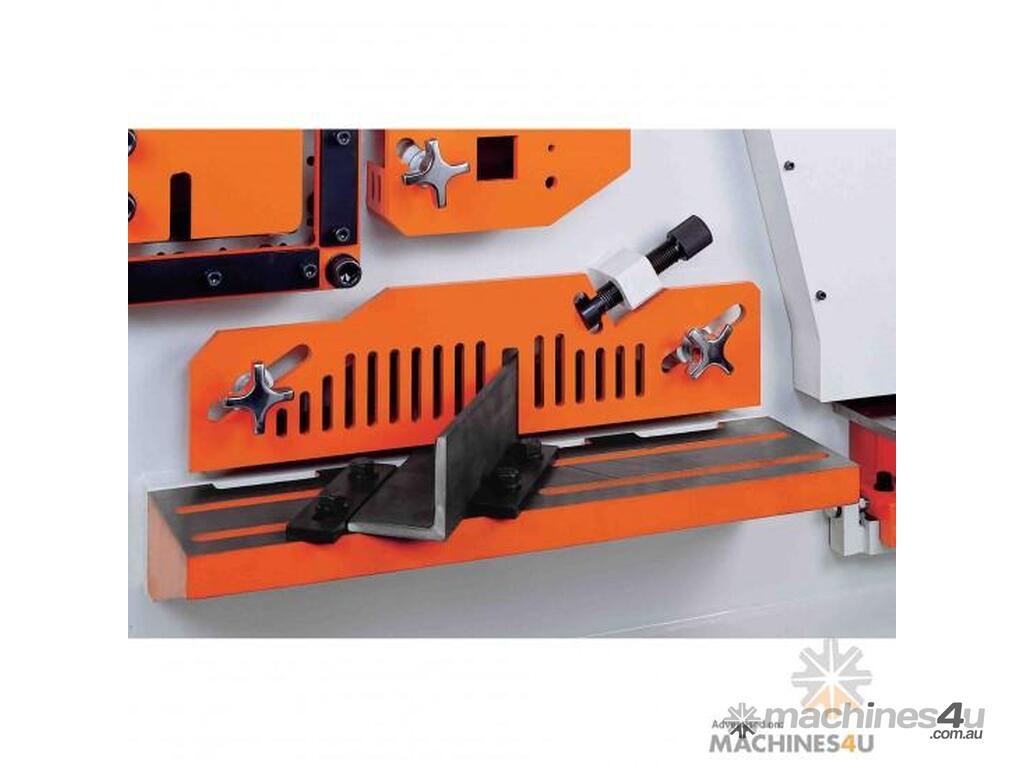

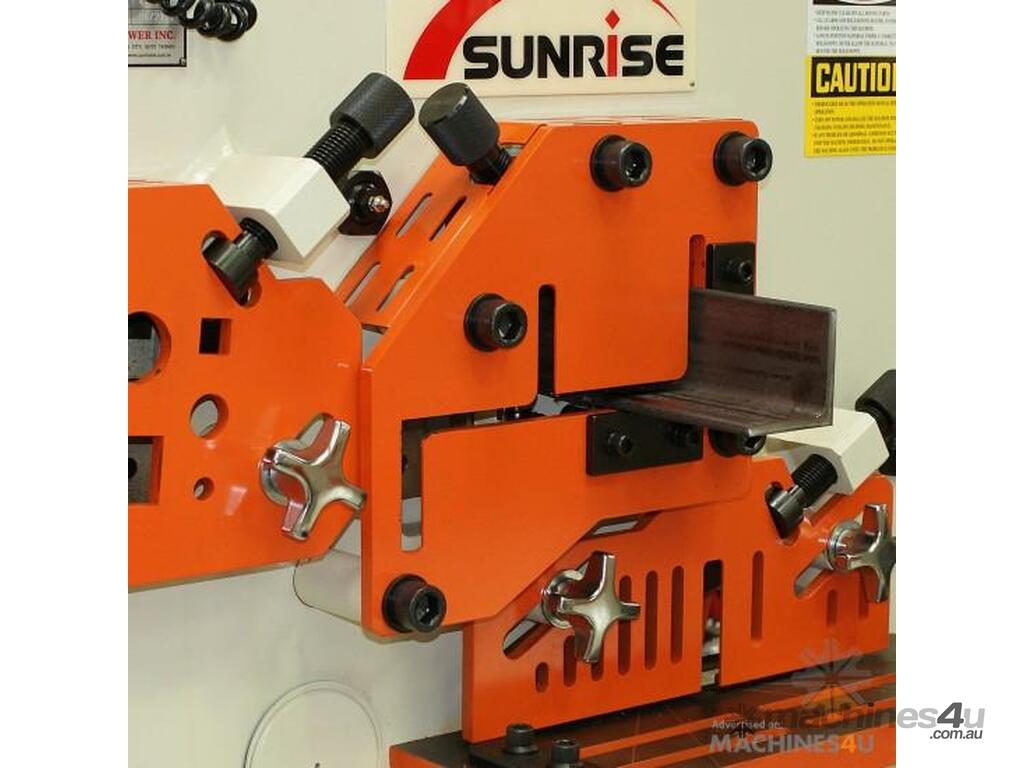

ANGLE SHEARING
AT 90º SHEARING:100x100x13mm
AT 45º SHEARING:80x80x8mm
BAR SHEARING

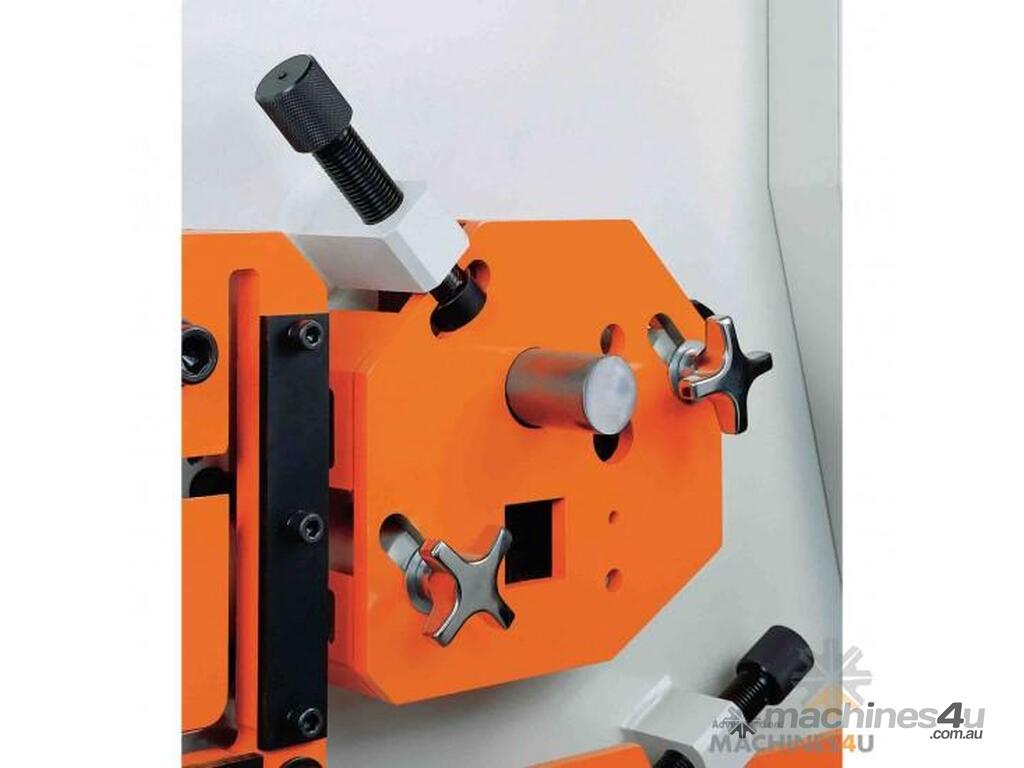

ROUND BAR SHEAR:ø40

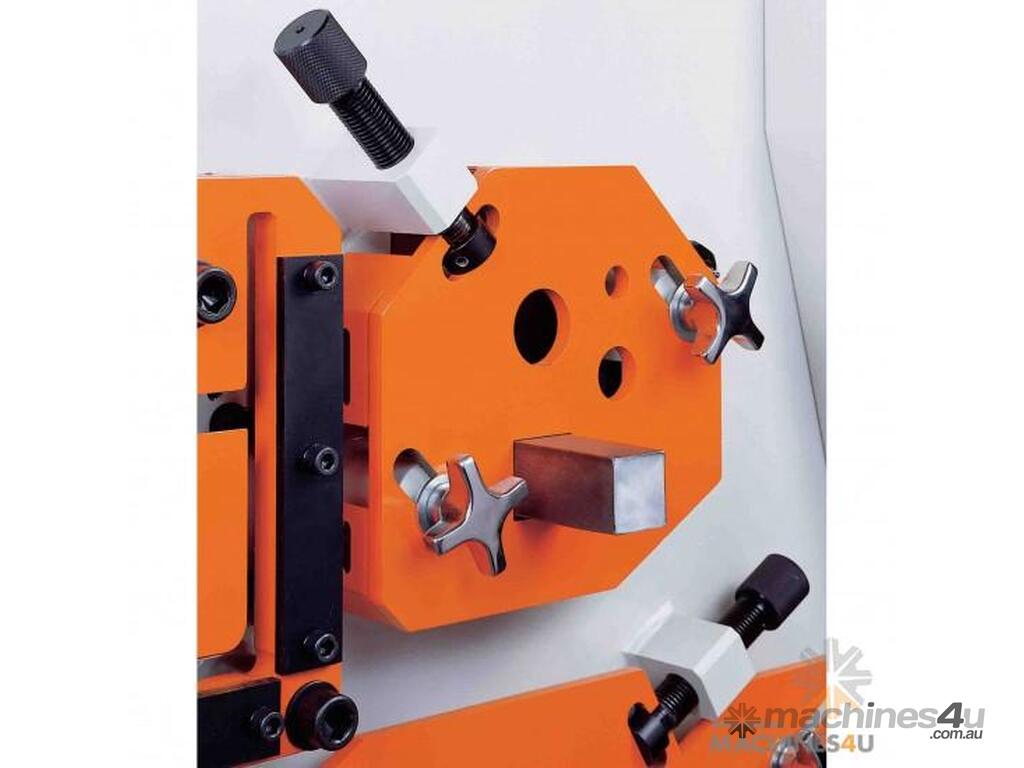

SQUARE BAR SHEAR:38x38mm
Shaw Machinery supplies New & Used Metal working Machinery world wide.
We offer full overhaul of machinery, services & on site repairs.
We carry large range in stock of machinery and tooling, we specialise in finding that specific machine for your requirements.
