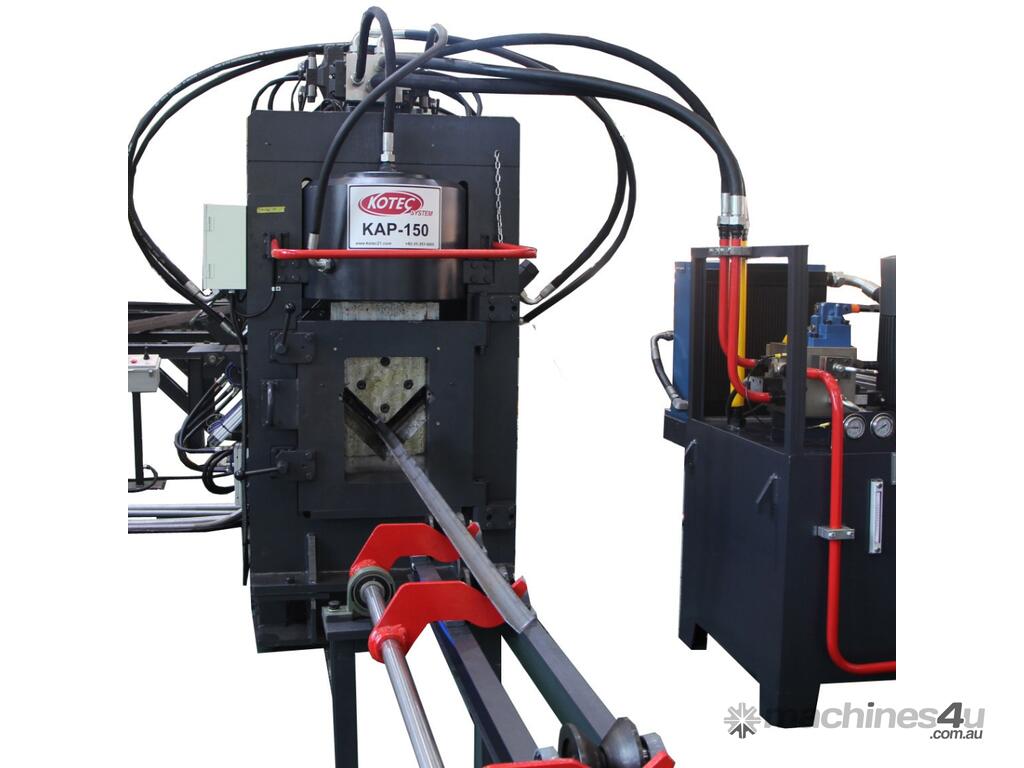

SUPERIOR Angle Punching Machine

The SUPERIOR Angle Series is a heavy-duty CNC production line designed for the automated processing of angle steel. By integrating high-pressure hydraulic punching with a precision shearing unit and a character-marking station, it delivers finished parts ready for galvanising or assembly. It is the essential tool for high-volume structural engineering and power transmission projects.

Key Technical Specifications:
Process: Combined CNC Punching, Marking, and Shearing.
Punching Power: Heavy-duty hydraulic units (dual or triple-press options).
Marking Unit: Integrated character-stamping (part numbering) for permanent ID.
Shearing Unit: Single-cut or double-cut hydraulic shear for burr-free ends.
Capacity: Models available for angles from 40x40mm up to 200x200mm+ (up to 25mm thickness).
Measuring: High-speed CNC carriage/gripper feed with encoder feedback for ± 0.5mm accuracy.
Software: Easy-to-use CNC controller with direct CAD/DSTV import capabilities.

Top 5 "SUPERIOR Angle" Advantages:
Massive Production Speed: Punching is up to 10x faster than drilling. This machine can churn out finished cleats and tower components while your competitors are still sharpening their drill bits.
Zero-Layout Automation: No more tape measures or soapstone. Load the program, and the CNC handles the positioning, hole spacing, and cut length automatically.
Permanent Part ID: The integrated marking station stamps part numbers into the steel before shearing, making sorting and site assembly foolproof, even after galvanising.
Waste-Reducing Shearing: Precision CNC shearing ensures minimal scrap between parts, maximising your material yield and lowering your cost-per-cleat.
Triple-Station Versatility: Most models feature multiple punch stations per side, allowing you to punch different hole diameters in the same part without stopping for a tool change.

Contact Specialist Machinery Sales today for a technical consultation and to see how the SUPERIOR Angle Punching Machine integrates into your current workflow.
