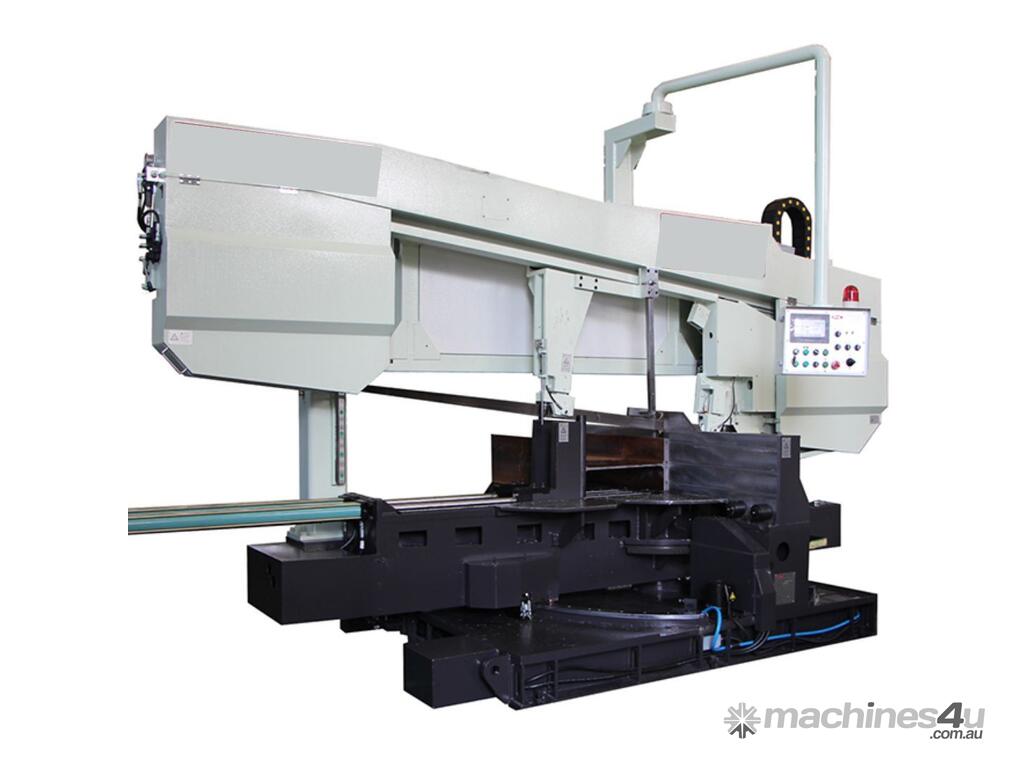

The Diamond DT-Series is a high-performance, double-column bandsaw designed for high-precision mitre cutting in both directions. Unlike standard saws, the DT-Series utilises Servo-Drive technology to rotate the saw frame to precise angles automatically. Paired with a heavy-duty shuttle feed, it handles massive structural sections (UB, RHS, PFC) with unmatched speed and squareness.
Key Technical Specifications:
Mitre Capability: Double Mitre (cuts angles in both directions without flipping the beam).
Control: Servo-Controlled mitre positioning for sub-degree accuracy.
Design: Rigid Double-Column (Pillar) construction for vibration-free cutting.
Feed System: Servo-driven shuttle gripper for precision length positioning.
Blade Protection: Inverter-controlled blade speed with hydraulic tensioning and breakage sensors.
HMI: User-friendly NC Touchscreen for programming multi-cut sequences.
Cooling: Integrated micro-mist or flood coolant systems for maximum blade life.
Top 5 "Diamond DT" Advantages:
Servo-Precision Angles: No more manual locking and unlocking of the saw head. The servo-drive rotates the frame to the exact decimal degree, ensuring "first-time" fit-up on complex joints.
Double Mitre Versatility: Cut a 45° left and a 30° right on the same beam without ever having to crane-lift and flip the material. This saves hours of handling time per week.
Vibration-Free Double Column: The dual-pillar design ensures the blade stays perfectly vertical even during heavy mitre cuts in thick-walled sections, drastically improving blade life over "swing" style saws.
Automated Length & Angle Sync: The NC controller coordinates the shuttle feed and the mitre angle. Just load the cut list, and the saw manages the rest.
Clean, Weld-Ready Cuts: Precision guides and high-torque drives deliver a surface finish so clean that parts can go from the saw straight to the welding jig.
Contact Specialist Machinery Sales today for a technical consultation and to see how the SUPERIOR Bandsawing Machine integrates into your current workflow.
