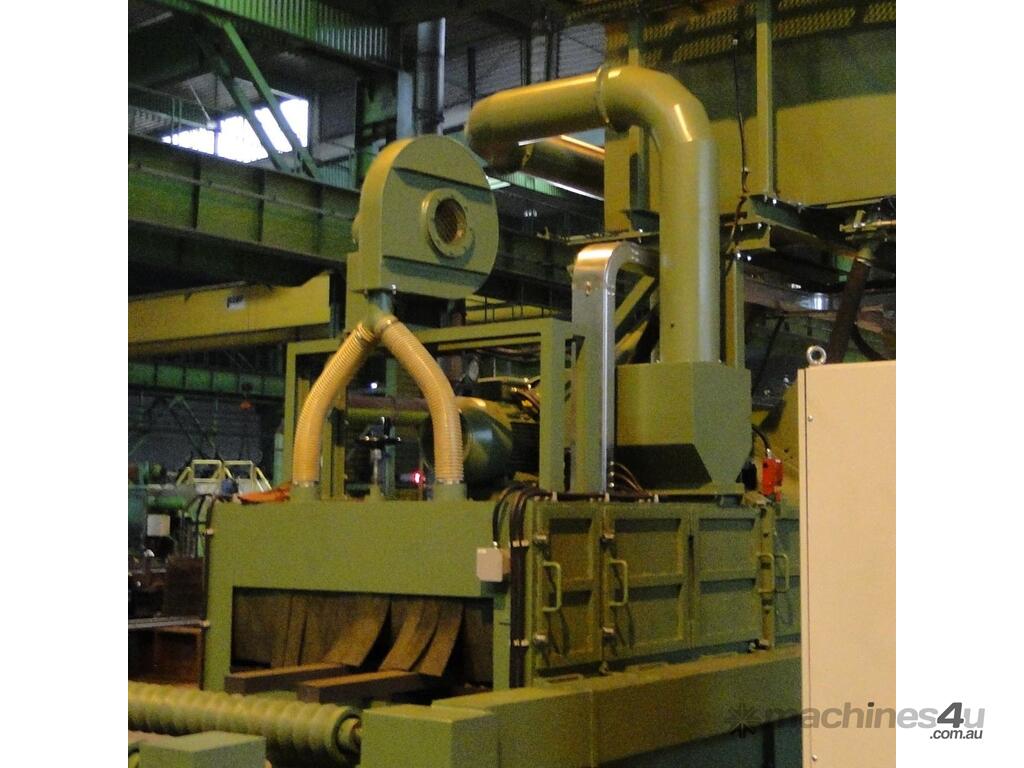

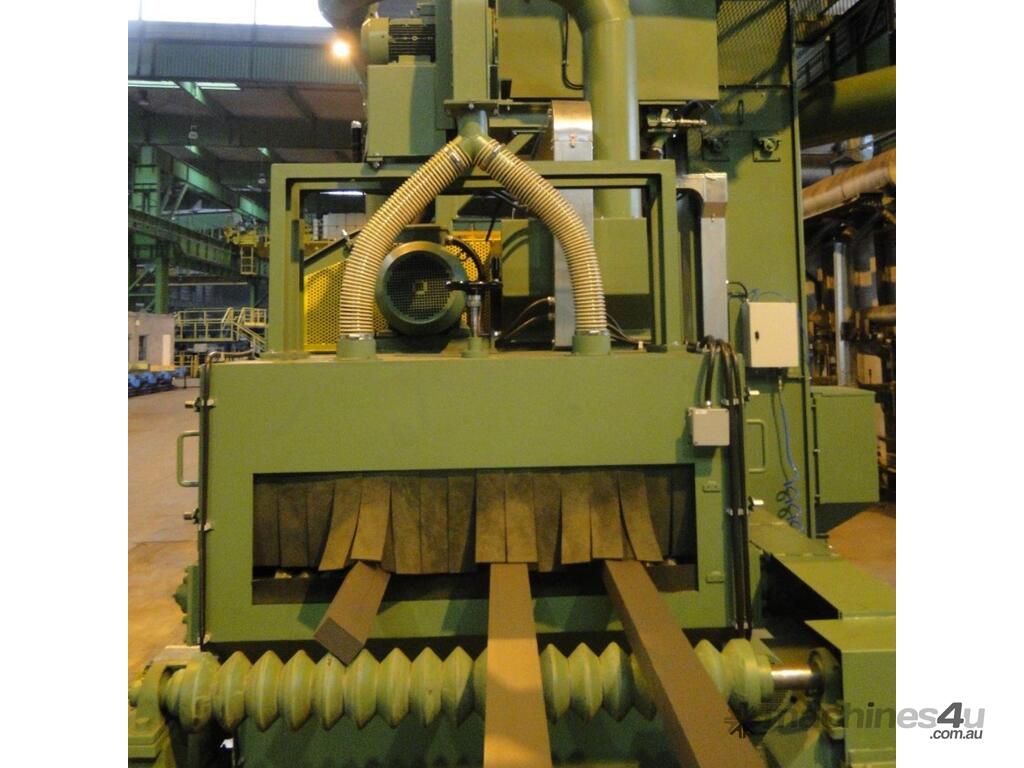

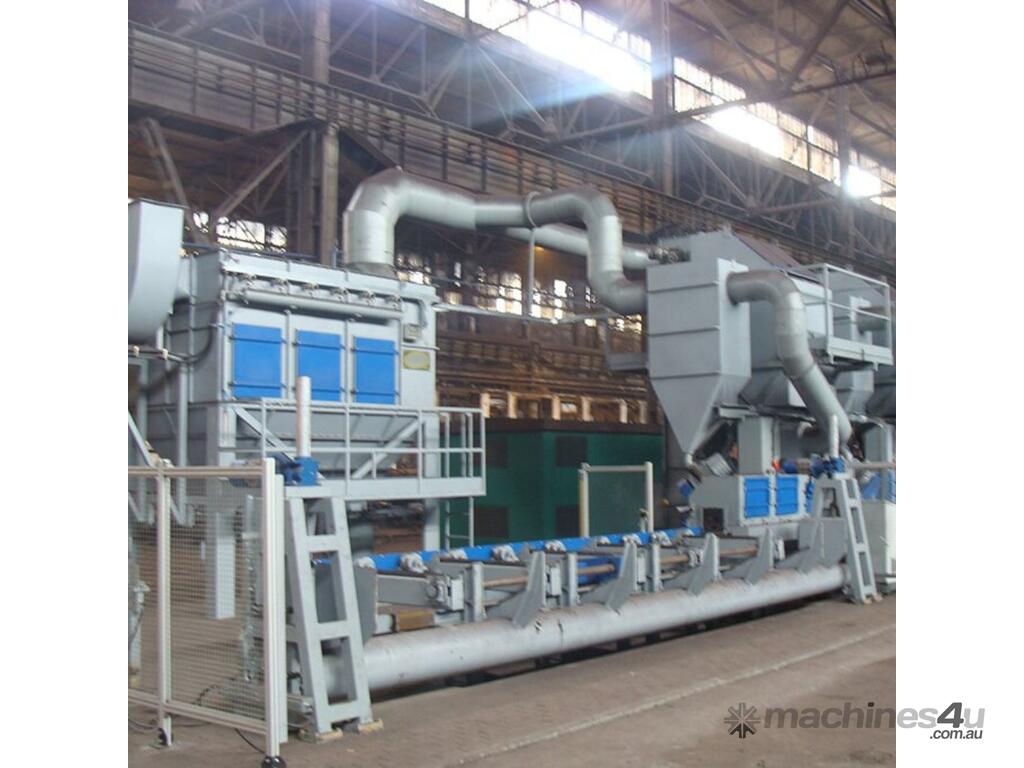

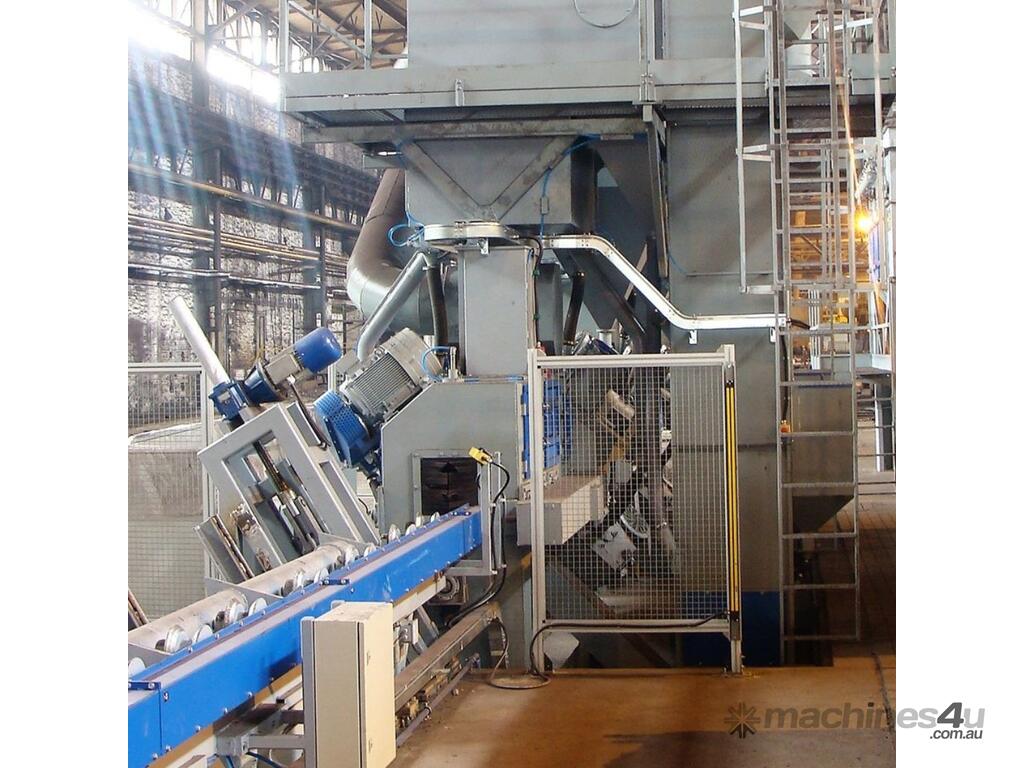

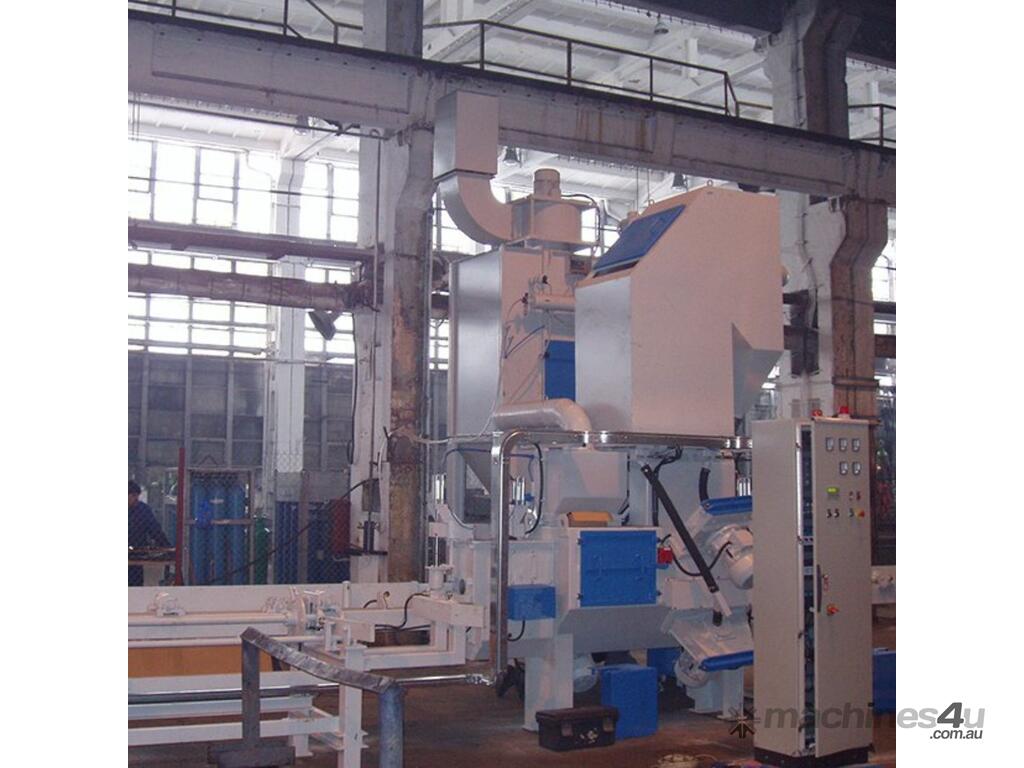

SUPERIOR EdgeBlast Bars Shotblasting Machine

The EdgeBlast Bar Series is a specialised centrifugal shotblasting system engineered for the high-volume processing of solid bars, rods, and wire coils. By utilising a high-velocity turbine arrangement and a precision guide-roller system, it ensures 100% circumferential cleaning. This machine is the industry standard for steel service centres and manufacturers who require "Ready-to-Process" bright bar quality.

Key Technical Specifications:
Process: High-speed continuous pass-through (Circumferential Blasting).
Material Range: Optimised for Round Bar, Hexagonal Bar, Square Bar, and Wire.
Feed System: V-type or Skew-roll conveyor for precise, vibration-free material travel.
Blast Wheels: High-RPM turbines positioned for uniform 360° coverage.
Finish Standard: Achieves Sa 2.5 (Class 2.5) for superior surface bonding and cleanliness.
Chamber Lining: Replaceable high-manganese wear plates for 24/7 industrial durability.
Control: Variable speed drive to match the throughput of your drawing or peeling lines.

Top 5 "EdgeBlast Bar" Advantages:
360° Circumferential Cleaning: The specific turbine alignment ensures no "dead spots." Whether it's a round rod or a hexagonal bar, the surface is uniformly blasted on all faces.
Multiply Your Tool Life: Removing abrasive scale before machining or drawing can increase your die and tool life by up to 300%. The machine pays for itself in consumable savings alone.
Eco-Friendly Alternative to Pickling: Eliminate the need for hazardous acid baths. Shotblasting is a mechanical, dry process that is safer for your staff and the environment.
Integrated Guide Technology: Specialised entry and exit guides prevent material "whip" and vibration, ensuring the bar stays centred in the blast stream for a consistent finish.
Small Footprint, High Output: Designed to fit into narrow production lines, the Bar Series delivers massive linear-meter throughput without taking up your entire workshop.

Contact Specialist Machinery Sales today for a technical consultation and to see how the EdgeBlast Bars Shotblasting System integrates into your current workflow.
