SUPERIOR EdgeBlast Pipes Shotblasting Machine

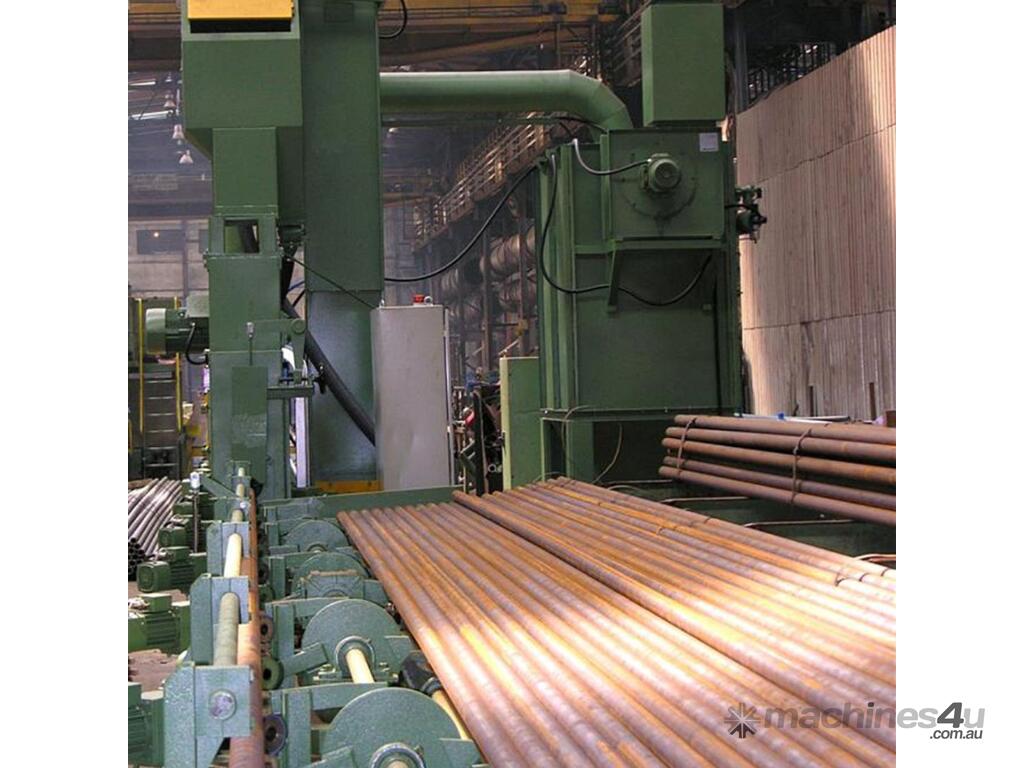

The EdgeBlast Pipe Series is a dedicated centrifugal shotblasting system designed for the continuous cleaning of pipes, tubes, and cylindrical sections. By combining high-velocity turbines with a rotating feed system, it removes rust, scale, and contaminants with unmatched speed. It is the go-to solution for high-volume pipe spooling and foundation piling fabrication.

Key Technical Specifications:
Process: Automatic Rotating (Skew-Roll) Pass-through Blasting.
Pipe Diameter Range: Models available from 50mm up to 2500mm+.
Blast Wheels: Strategically positioned high-efficiency turbines for 360° coverage.

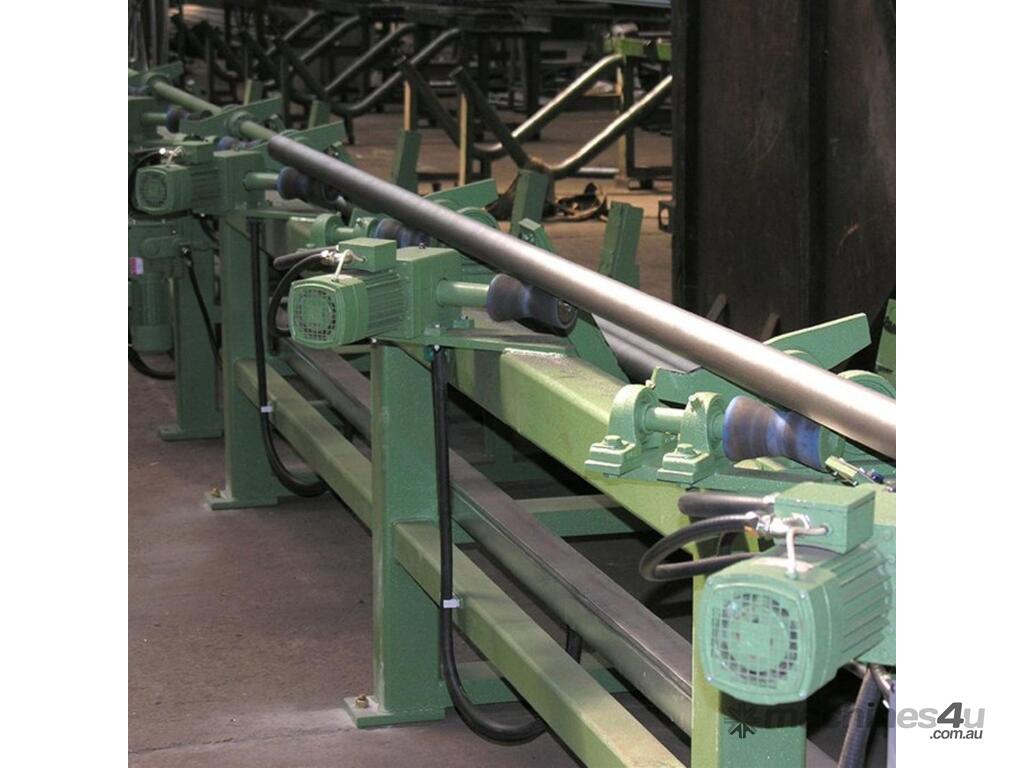

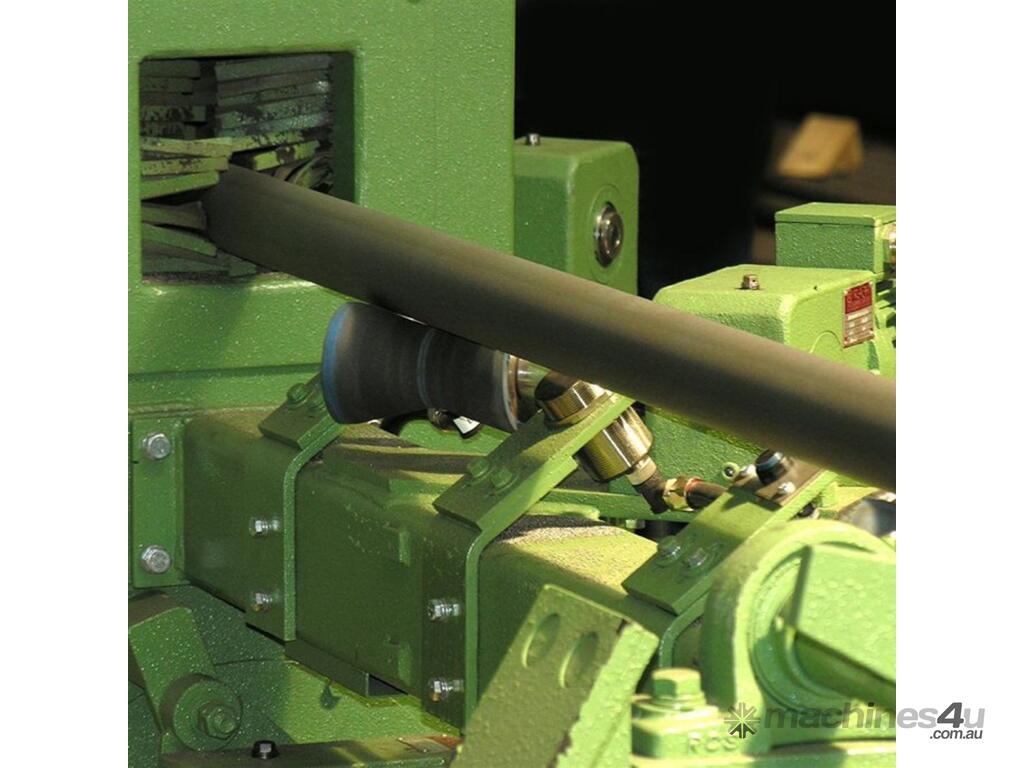

Conveyor: V-type skew-roller system (synchronously rotates and feeds the pipe).
Finish Standard: Achieves Sa 2.5 (Class 2.5) "Near White Metal" finish.
Abrasive Recovery: Full-cycle recovery with air-wash separator and bucket elevator.

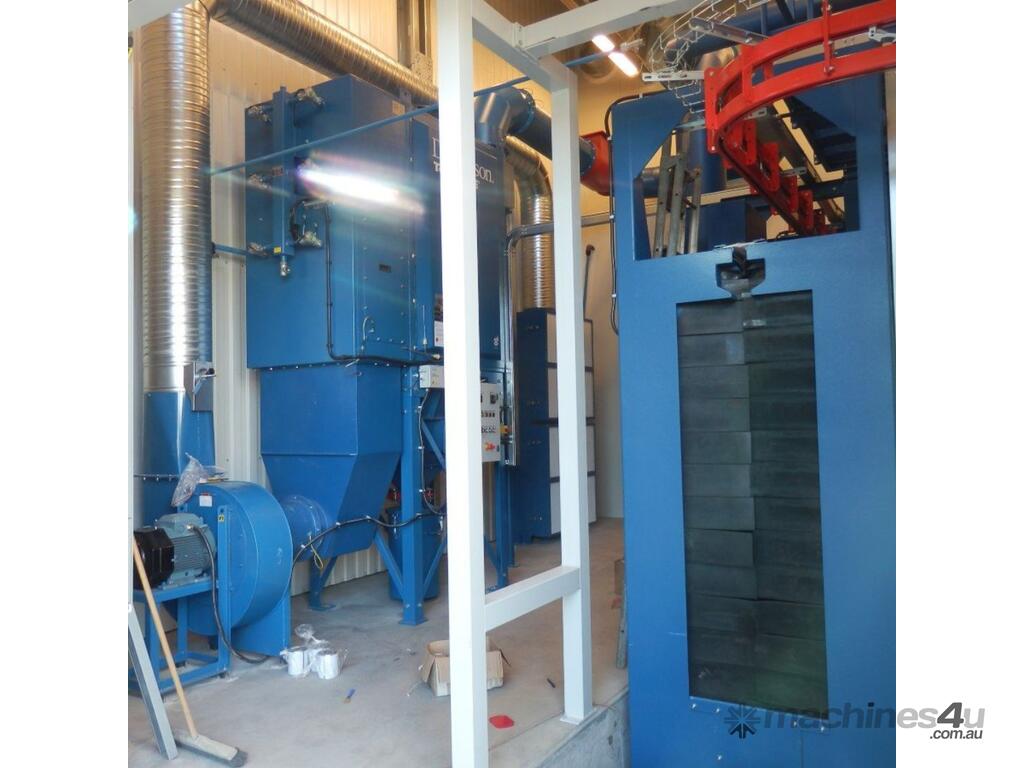

Dust Control: Integrated pulse-jet cartridge filter system (Environmental Grade).

Top 5 "EdgeBlast Pipes" Advantages:
Concentric Uniformity: The skew-roll conveyor ensures the pipe rotates at a constant speed, eliminating "shadowing" and ensuring a perfectly even anchor pattern around the entire circumference.
High-Speed Throughput: Capable of processing meters of pipe per minute. One EdgeBlast can outperform a crew of ten manual blasters while using significantly less abrasive media.
Adjustable Feed & Rotation: Fine-tune the feed speed and rotation rate to suit the initial condition of the steel—from light surface rust to heavy heat-scale.
Heavy-Duty "Armoured" Chamber: The blast zone is lined with high-manganese wear plates, designed to handle 24/7 industrial use with minimal maintenance.
Environmentally Friendly: A fully enclosed system with high-end dust extraction means no more grit in the air or on the floor. It’s a cleaner, safer, and more compliant way to work.

Contact Specialist Machinery Sales today for a technical consultation and to see how the EdgeBlast Pipes Shotblasting System integrates into your current workflow.
