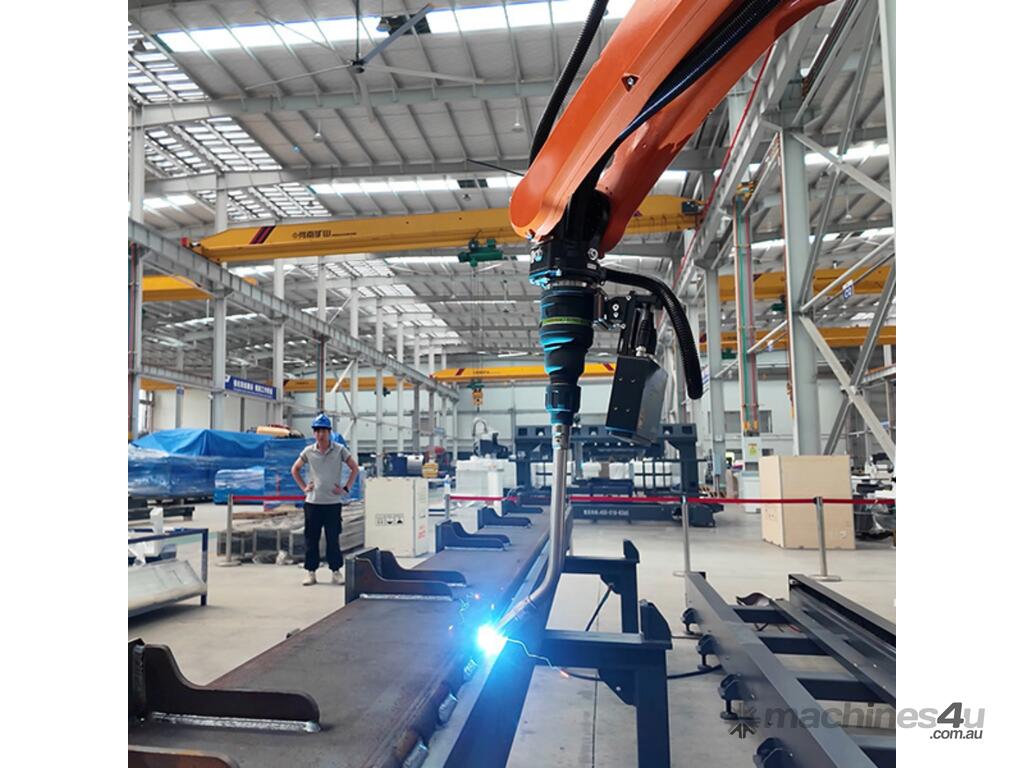

The SUPERIOR Fab & WeldX Series represents the absolute pinnacle of structural steel assembly and welding automation. Specifically engineered to eliminate manual bottlenecks in H-beam stiffening plate and rib attachment workflows, this 7-axis intelligent robotic system combines high-precision fit-up, material handling, and code-compliant MIG/MAG welding into a single automated cell. The entire system operates on a zero-programming, "one-button start" framework, allowing your workshop to execute highly complex geometries with zero manual teaching or programming overhead.
Key Technical Specifications:
Control Platform: Intelligent industrial TCP/IP communication architecture coordinating advanced 3D vision scanning and automatic drawing recognition.
Welding Power: Integrated heavy-duty 500 MPR intelligent welding machines delivering a maximum current of 500A for deep penetration gas-shielded welding.
Sensing & Trajectory Tech: Automated drawing parsing coupled with integrated Arc Tracking technology that dynamically adjusts the torch trajectory to compensate for part variations without requiring cost-heavy 3D visual hardware.
Assembly Capacity: High-speed handling robot with a 3.2m arm reach and 180kg maximum load capacity.

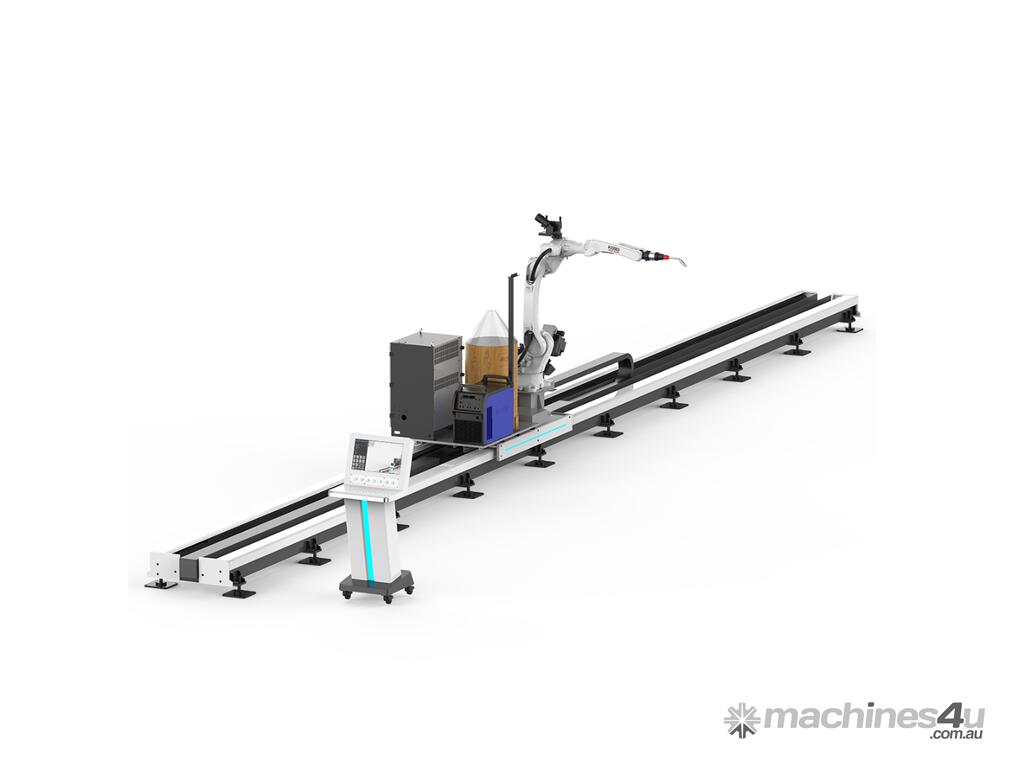

Workpiece Envelope: Configurable with ground rails spanning 15m to 21m to handle maximum structural section lengths of 12m or 18m.
Software Integration: Direct, seamless TEKLA model parsing via MES or USB; the system instantly auto-calculates rib positions, web/flange parameters, and weld paths.
Top 5 "Fab&WeldX" Advantages:
Zero-Programming Automation: Drop the offline programming and pendant teaching. The system automatically reads CAD/BIM metadata, maps its own path planning, and executes precise fit-ups with ±1trajectory accuracy.
Surgical Precision & Flange Correction: An integrated automatic shaping function mechanically corrects flange deviations (Correction Range: Web Width + 1mm) before placing and locking rib blocks at an average assembly speed of just 30 seconds per piece.

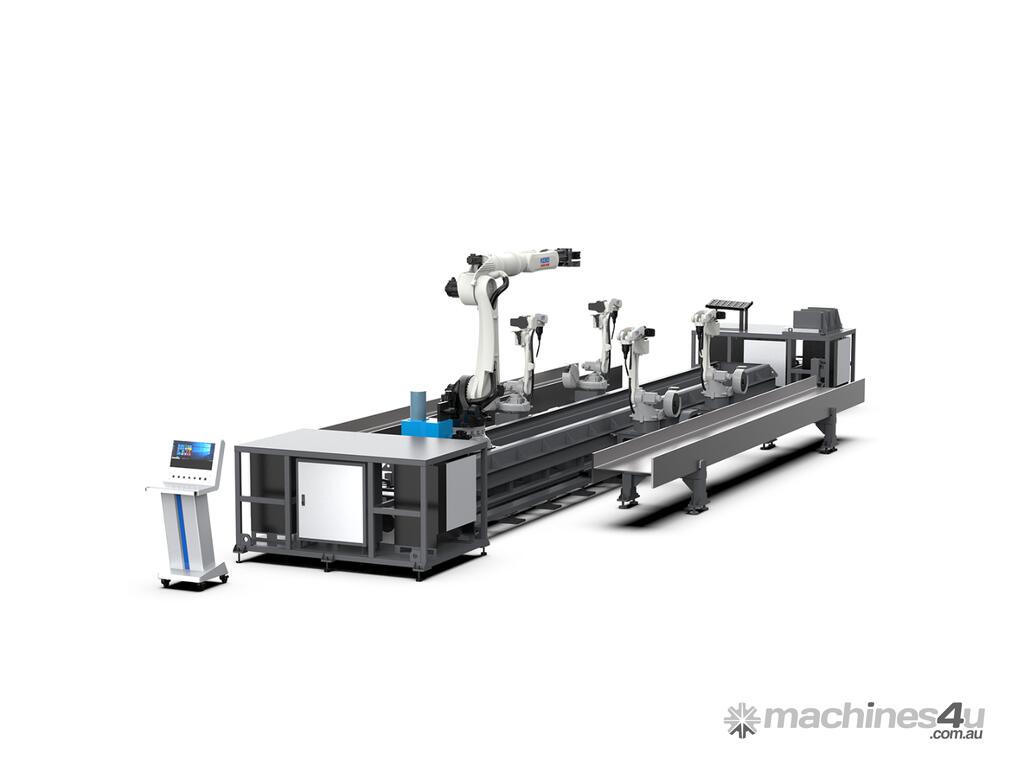

Simultaneous Multi-Robot Scaling: Engineered as a high-velocity work island where a central 7-axis assembly robot flawlessly pipes raw stock to multiple welding robots operating simultaneously on the same section to multiply structural throughput.
Automated Consumable Maintenance: Features a dedicated, automated torch cleaning station that handles wire cutting, slag/sludge clearing, and anti-spatter oil spraying entirely on the fly to maximise continuous "arc-on" velocity.
Massive Labour Displacement: Bypasses the critical skills shortage entirely. A single cell allows one lone operator to manage the entire processing layout, successfully replacing 4 to 8 skilled structural welders and 2 to 4 layout fitters.
Contact Specialist Machinery Sales today for a technical consultation and to see how the SUPERIOR FabSeries integrates into your current workflow.
