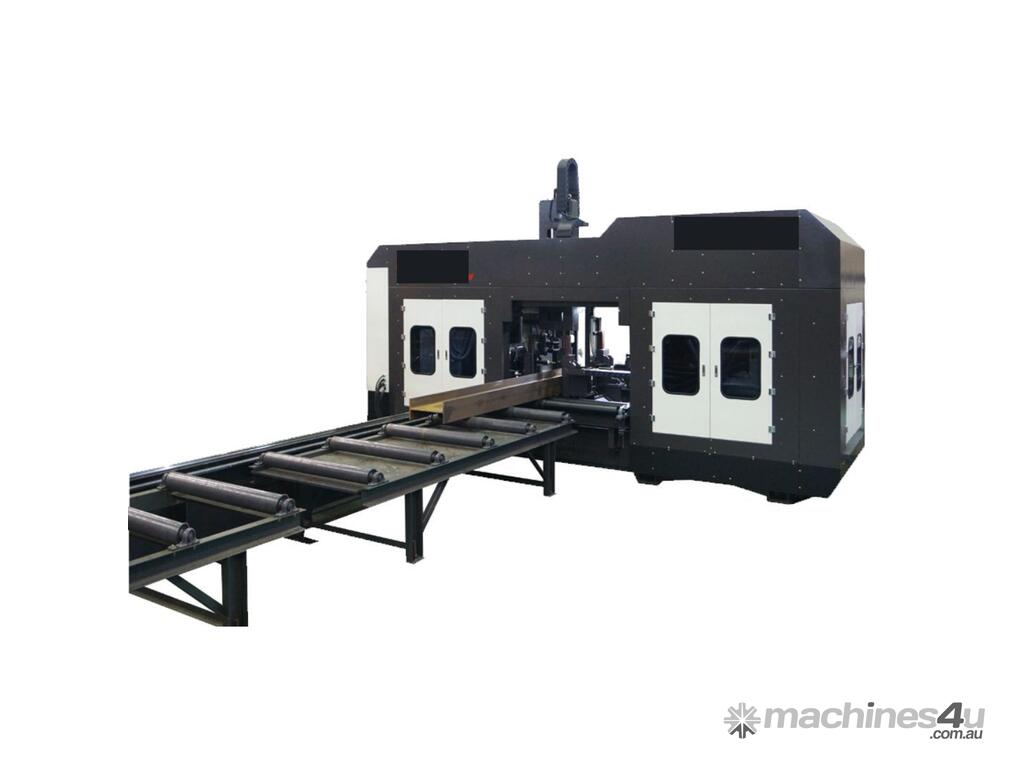

The NewRun S-Series is a dedicated, high-performance CNC beam drilling line. Engineered for the 24/7 demands of structural steel processing, it features three high-torque spindles equipped with automatic tool changers. This allows for high-speed carbide drilling, tapping, countersinking, and scribing across all three sides of the profile in a single pass, without ever needing to flip the beam.
Key Technical Specifications:
Configuration: 3-Axis Simultaneous Drilling (Web + Top Flange + Bottom Flange).
Tooling: Optimised for High-Speed Carbide (70% faster than HSS).
Tool Changer: 3x Automatic Tool Changers (ATC) for seamless multi-tool jobs.
Process Capabilities: Drilling, Tapping, Countersinking, and 4-Side Scribing (Marking).
Control: Industrial CNC with direct DSTV / Tekla integration.
Capacity: Models available for profiles up to 1250mm wide.
Accuracy: Servo-driven positioning with laser-checked part detection.
Top 5 "NewRun S" Advantages:
Triple-Spindle Power: Why wait for a single spindle to move around the beam? The S-Series hits three sides at once, delivering finished beams in a fraction of the time of traditional machines.
Carbide-Speed Production: Designed for high-RPM carbide drilling. You’ll go from a "drilling" mindset to a "punching" speed, making hole production nearly instantaneous.
Automatic 4-Side Scribing: The machine can scribe layout lines and part numbers on all four sides. Your fit-up team can stop using tape measures and start welding immediately.
Zero Manual Teaching: Import your Tekla or CAD files . The CNC software calculates the paths, tool changes, and speeds automatically.

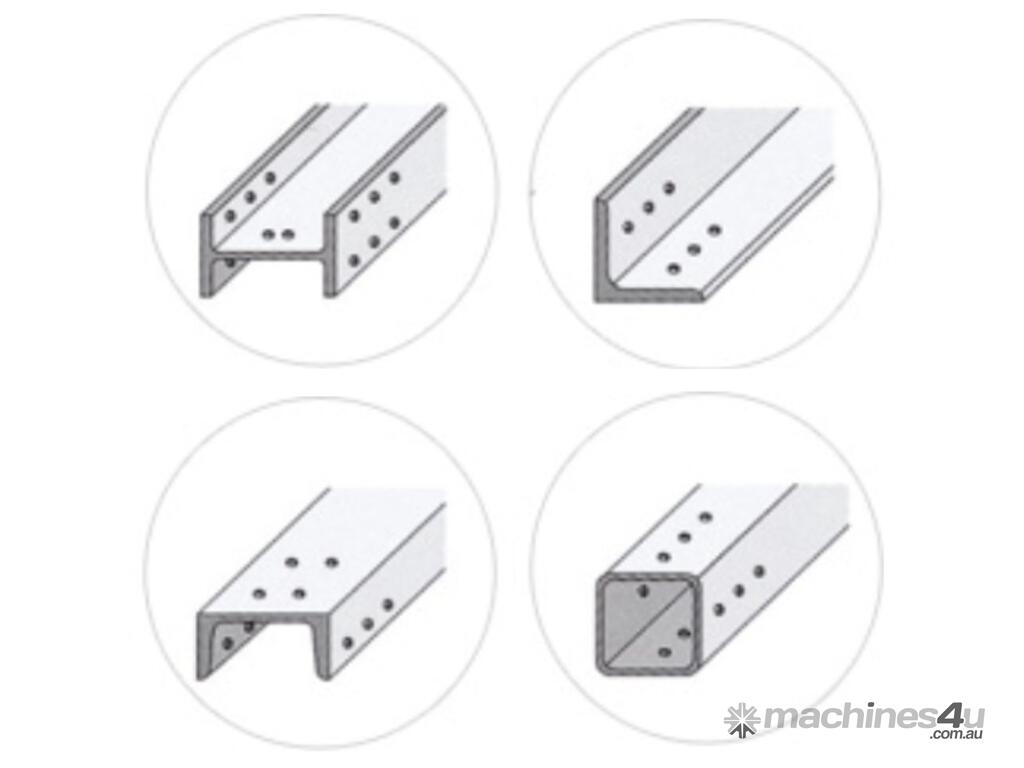

Robust Material Handling: Features a heavy-duty feed system that handles massive UBs, PFCs, and SHS sections with millimetre-perfect repeatability.
Contact Specialist Machinery Sales today for a technical consultation and to see how the SUPERIOR Beam Drilling Machine integrates into your current workflow.
