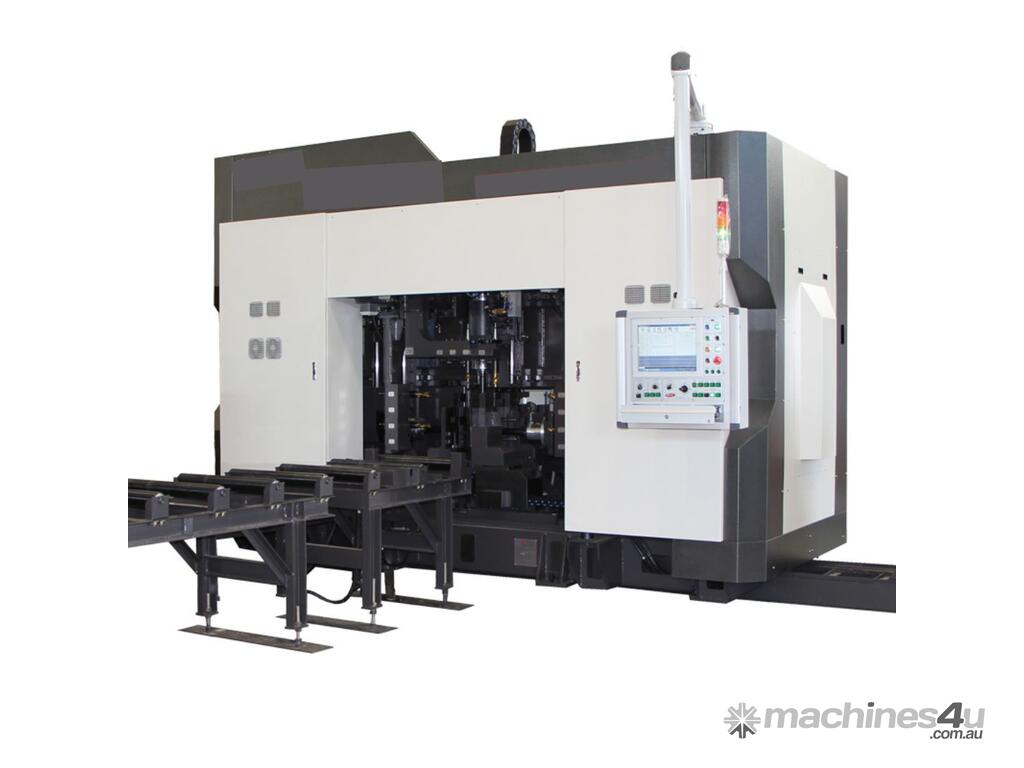

The NewRun 5 is a high-efficiency structural steel processing centre. It features a triple-spindle CNC drilling unit (capable of drilling the web and both flanges simultaneously) followed by a high-torque, mitre-cutting bandsaw. This "Tandem" setup is controlled by a single CNC interface, ensuring that hole patterns and cut lengths are perfectly synchronised from your Tekla or CAD data.
Key Technical Specifications:
Process: Combined 3-Axis CNC Drilling & Automatic Mitre Sawing.

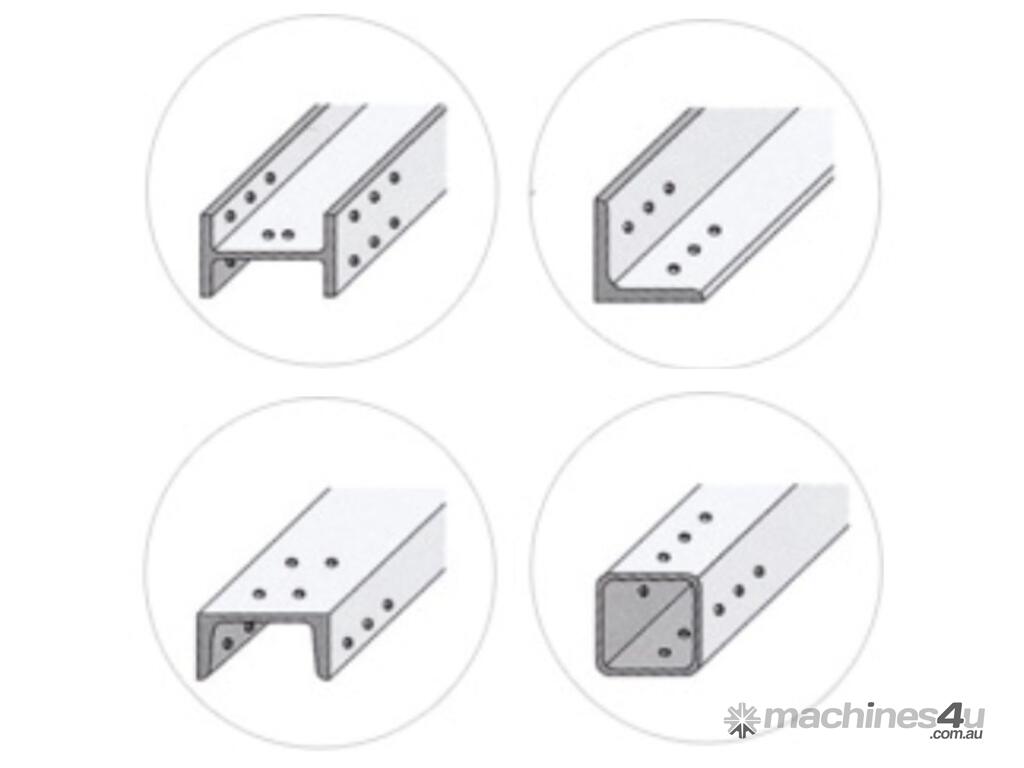

Drilling Unit: 3 Spindles (Web + 2 Flanges) for simultaneous processing.
Tooling: Optimised for high-speed Carbide drilling and tapping.
Sawing Unit: Heavy-duty double-column bandsaw with automatic mitre capability.
Capacity: Handles profiles up to 1000mm+ (depending on specific model configuration).
Software: Direct DSTV/CAD/CAM integration (Tekla-ready).
Control: Industrial CNC system with real-time process monitoring.
Top 5 "NewRun 5" Advantages:
Eliminate Secondary Handling: The machine moves the steel for you. One operator manages the entire process from raw material to finished, drilled part.
Triple-Spindle Speed: Why drill one hole at a time? The NewRun 5 drills the web and both flanges at once, cutting your drilling time by 66% compared to single-spindle machines.
Perfect Accuracy Sync: Because the drill and saw share the same measuring system, the distance from the end of the beam to the first hole is always 100% accurate. No "tape measure" errors.
Space-Saving Design: Combining two major machines into one footprint clears up massive amounts of floor space for your welding and assembly bays.
Automated Marking & Layout: The system can mark layout lines and part numbers using the drill spindles, making the job for your fit-up team significantly faster and easier.
Contact Specialist Machinery Sales today for a technical consultation and to see how the SUPERIOR Beamline System integrates into your current workflow.
