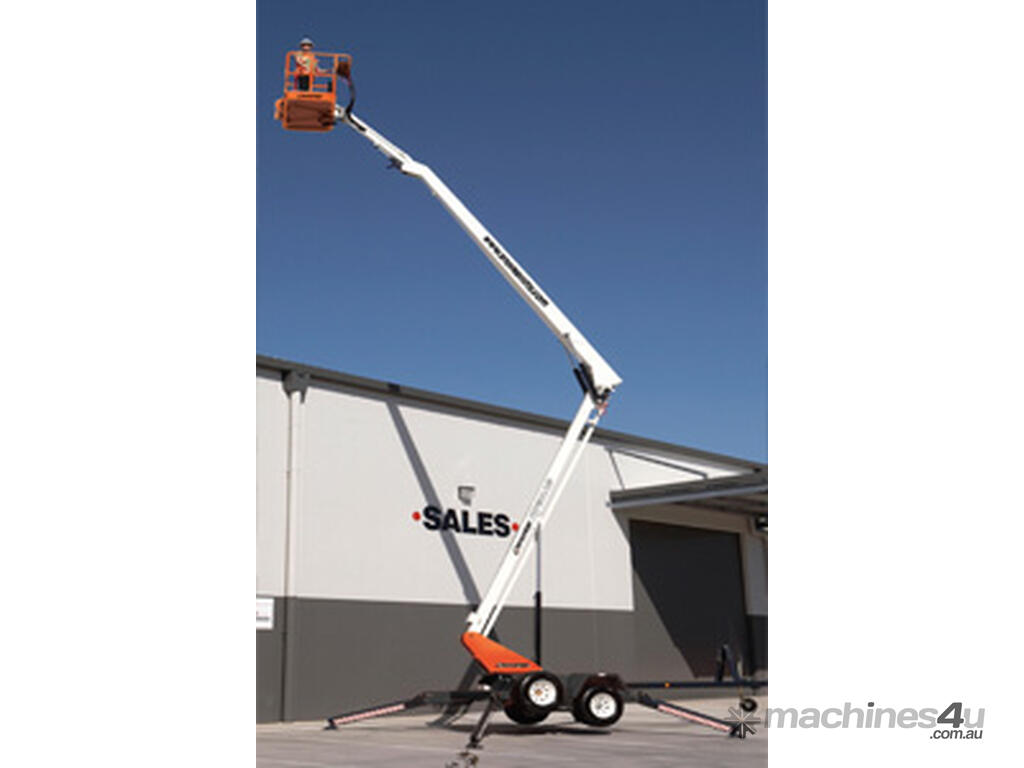

Snorkel MHP15HD Boom Lifts

Max. Working Height: 14.8m
Max. Working Outreach: 7m at 8m
Platform Capacity: 200kg
Weight: 1,840kg

Manufactured for the Australian market, the MHP15HD is a heavy duty trailer mounted boom lift. The towable cherry picker provides quick access and delivers precision on the jobsite.

Rugged and reliable, the machine by Snorkel Ahern Australia is ideal for general maintenance and construction. Automatic self-leveling capabilities are suitable for safe and versatile working at height. Independently operated, the hydraulic outriggers are also equipped with pot hole protection.

A durable two-man steel platform can lift a safe load up to 200kg. A 600V AC rated wire platform allows operators to use power tools up high. Well-suited for a wide range of applications, the MHP15HD can be used for building maintenance, construction sites and other elevated work.

The MHP15HD is also equipped with fully proportional speed controls for added flexibility. A versatile jib with 140° rotation delivers smooth and accurate precision. Enhanced side-to-side maneuverability provide even more access to hard-to-reach places.

An articulated boom makes the MHP15HD easy to store. Designed to be lightweight, it is also easy to transport between jobs. The towable trailer mounted boom can go and work anywhere with ease.

Fitted with a superb 5hp efficient engine, this trailer boom provides reliable performance. Optional bi-energy power offers clean and quiet operation in low emission environments.

MHP15HD TRAILER MOUNTED BOOM LIFT FEATURES
Two man steel platform
Heavy duty tow coupling
Heavy duty jockey wheel
Hydraulic disc brakes
Reliable petrol engine
Platform rotator
Automatic self-levelling stabilizers
Hour meter
Rotating basket mount

Working Height
14.8m

Platform Height
12.8m

Max. Working Outreach
7m at 8m

Platform Size
1.24m x 0.77m 1.1m

Outrigger Footprint
3.7m x 3.6m

Overall Width (outriggers extended)
3.7m

Overall Width (outriggers stowed)
1.77m

Overall Length
7.45m

Transport Height
1.9m

Platform Capacity (SWL)
200kg

Max. Wind Speed
12.5m/s

Levelling
auto

Turntable Rotation
540° non-continuous

Tyres
235/75 R15

Brakes
Hydraulic disc

Insulation Rating
Nil

Power Source
Honda petrol engine 5.5hp

Hydraulic System
Proportional live/hydraulic

Weight
1,840kg
