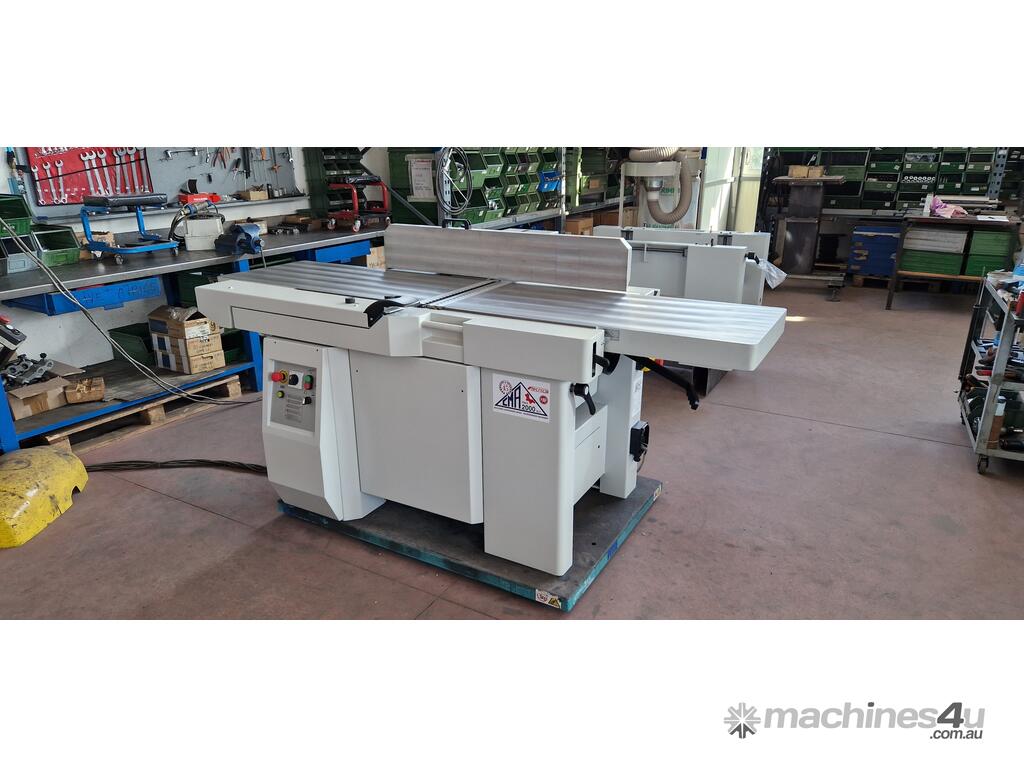

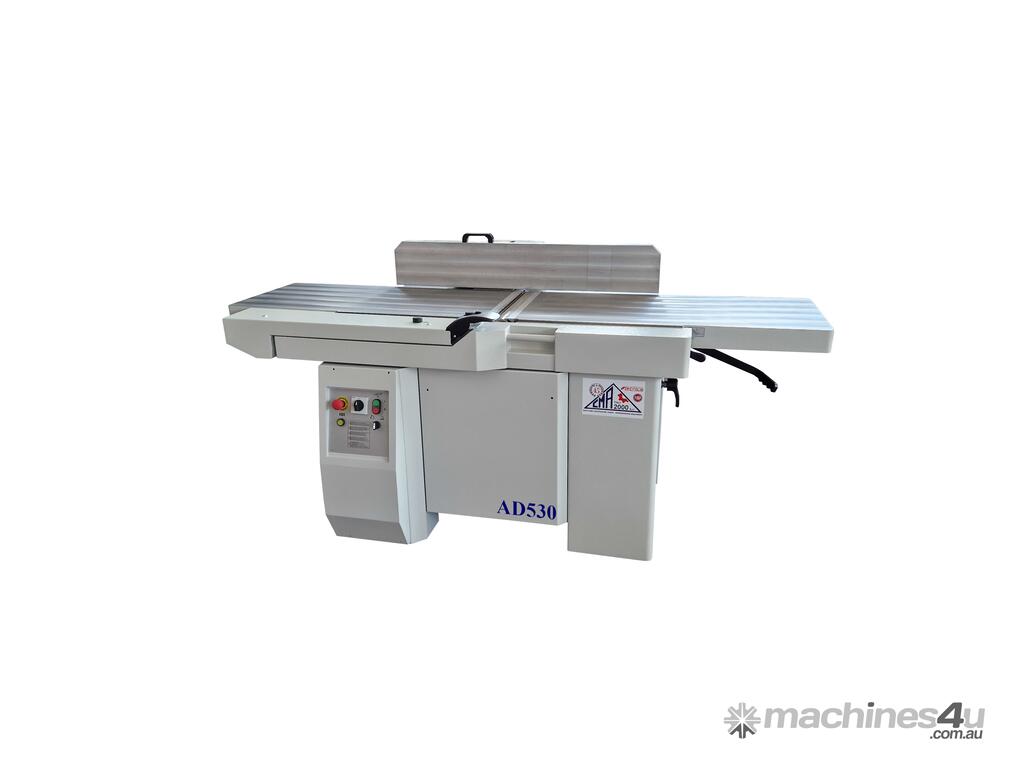

Surface planer/Thicknesser CMA Made in Italy

SPECIAL FACTORY PRICE OFFER NOW ON (1 Machine Only) SUPER HEAVY DUTY
C.M.A. 2000 S.R.L. company, born in 1975 as a craft activity, has become in a few years a leading company in the production of slot-cutting machines for window- shutters. The company, thanks to the constant improvement of its products, has affirmed itself on both the national and the foreign market. With the renewal occurred in the year 2000 our commitment to achieve always bigger goals has strengthened, aimed at achieving full customer satisfaction. With 40 years of experience, it is nowadays a leader in manufacturing of traditional woodworking machinery. The production, completely managed internally, allows to accomplish every type of working, from the machine in series to the customized one. The supervising of each step guarantees a good functioning of the machine and all the details are carefully curated. In 2010 has incorporated the FBR Rimini’s belt-sanding line and in 2016 TECNICA’s machines line.

Our manufacturer does not shim the tables of the surface planer. They are perfectly ground and then set/leveled with special leveling screws.

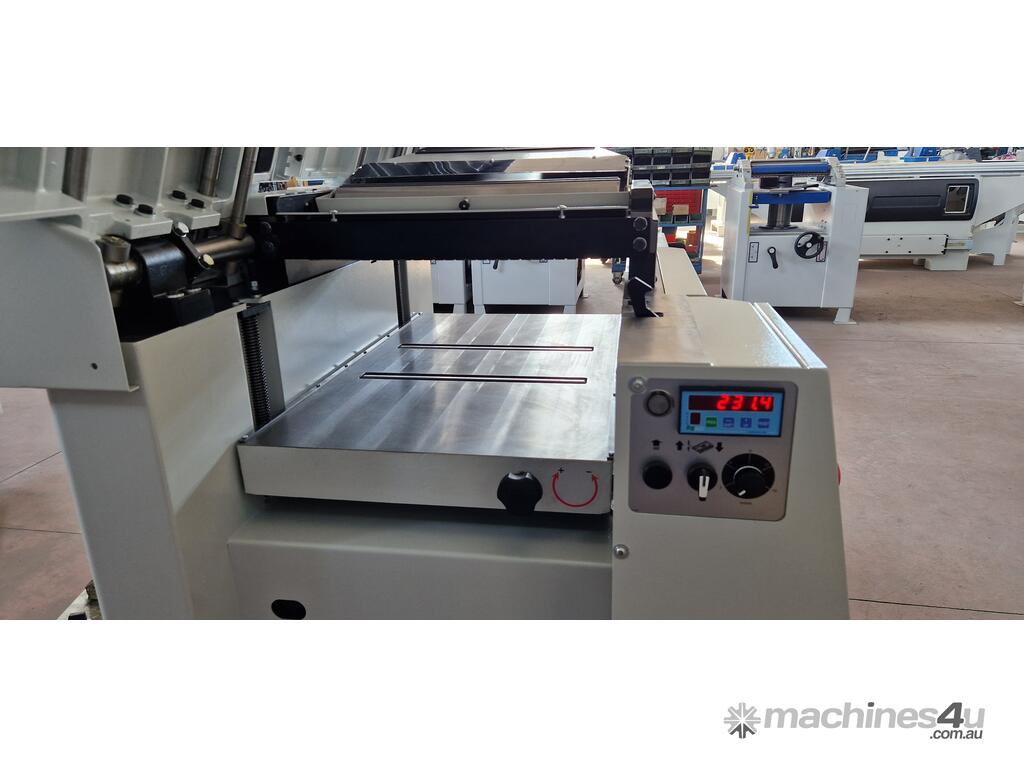

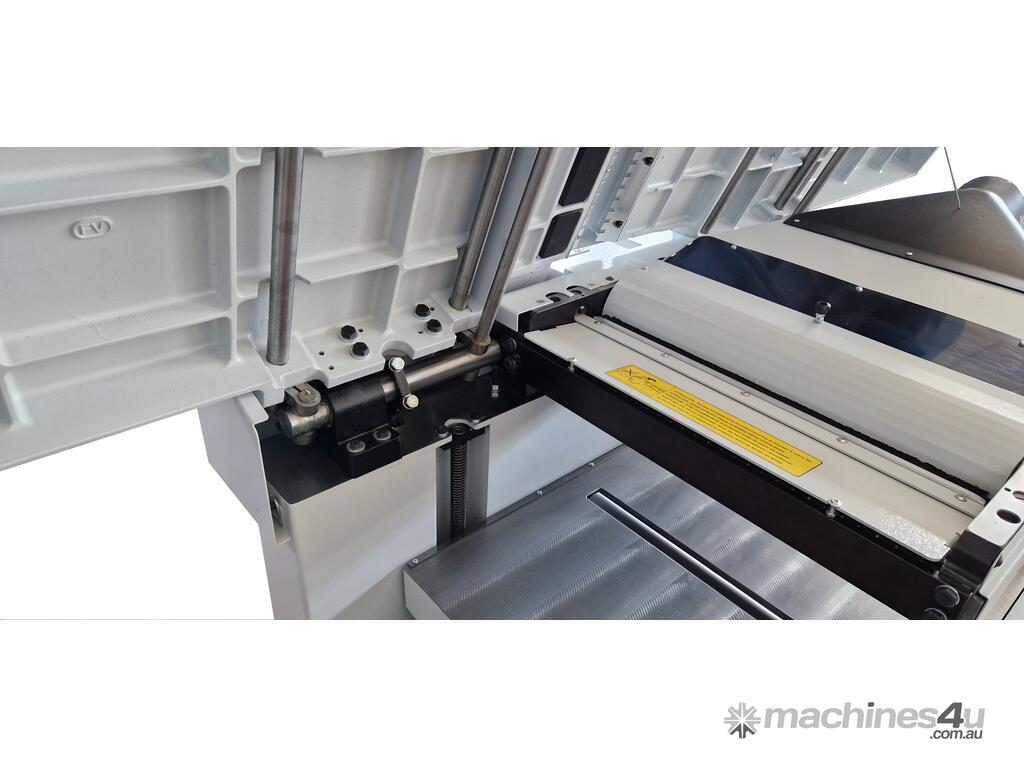

RAISING THE THICKNESSING TABLE

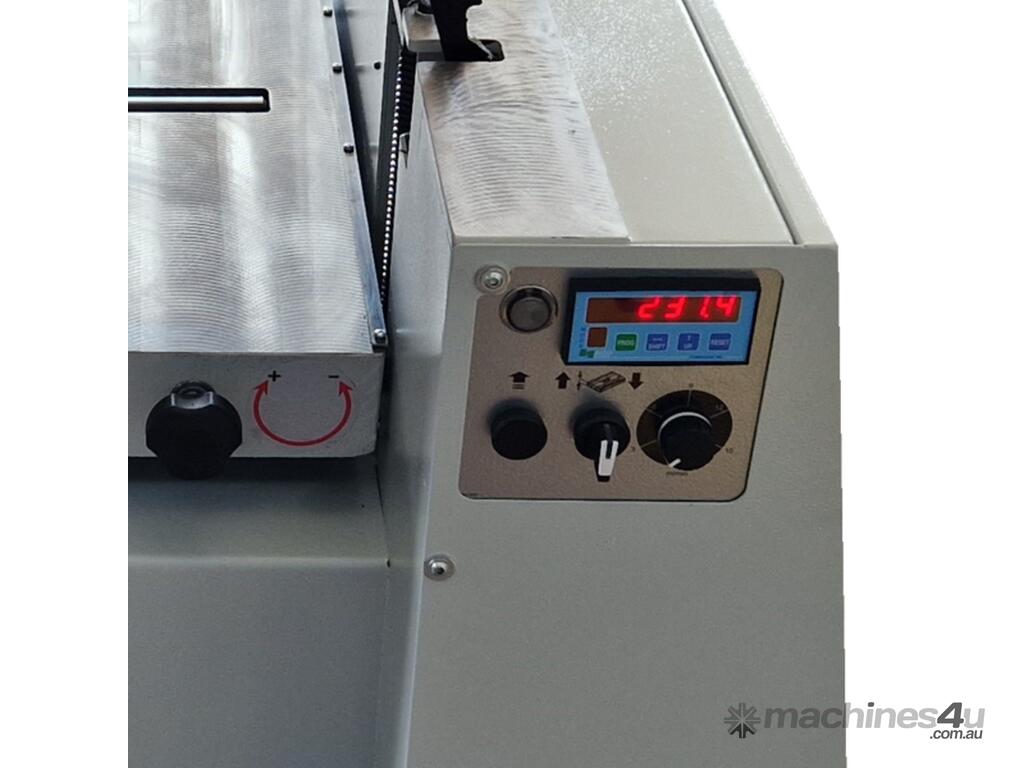

The electrical system of raising the thicknessing table is quick
and accurate with decimally adjusted impulse and electronic
readout supplied as standard. The thicknessing table is raised by
4 screws with double fixings to increase stability and to enhance
the level of finish on the work piece at maximum feed rates.

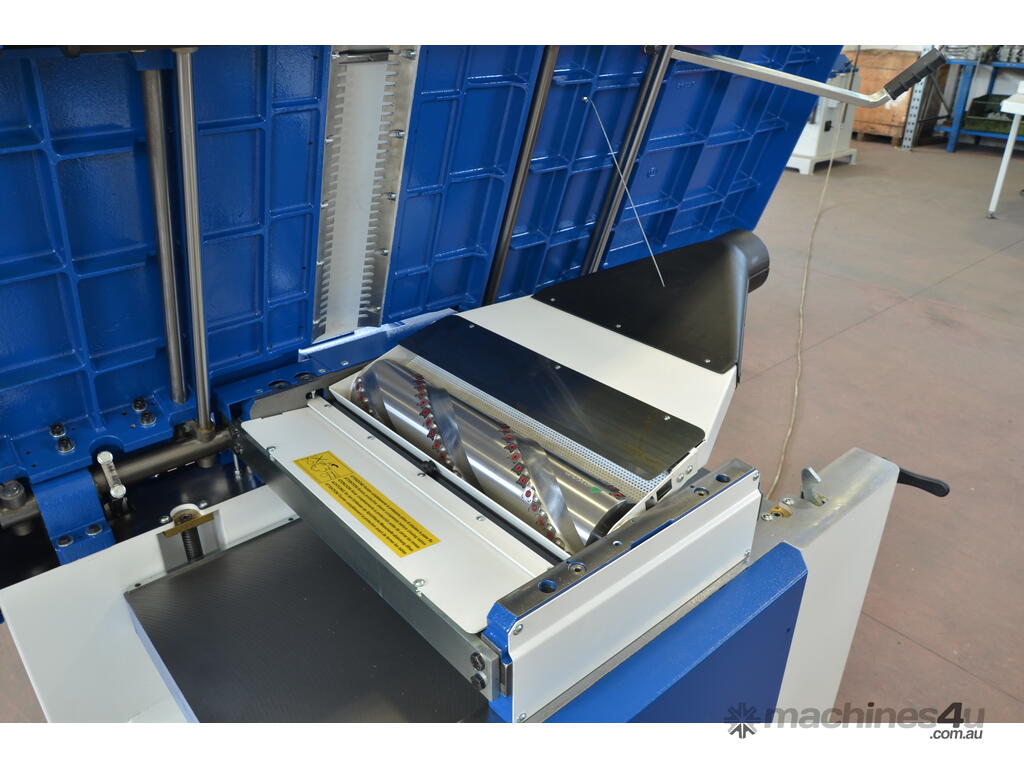

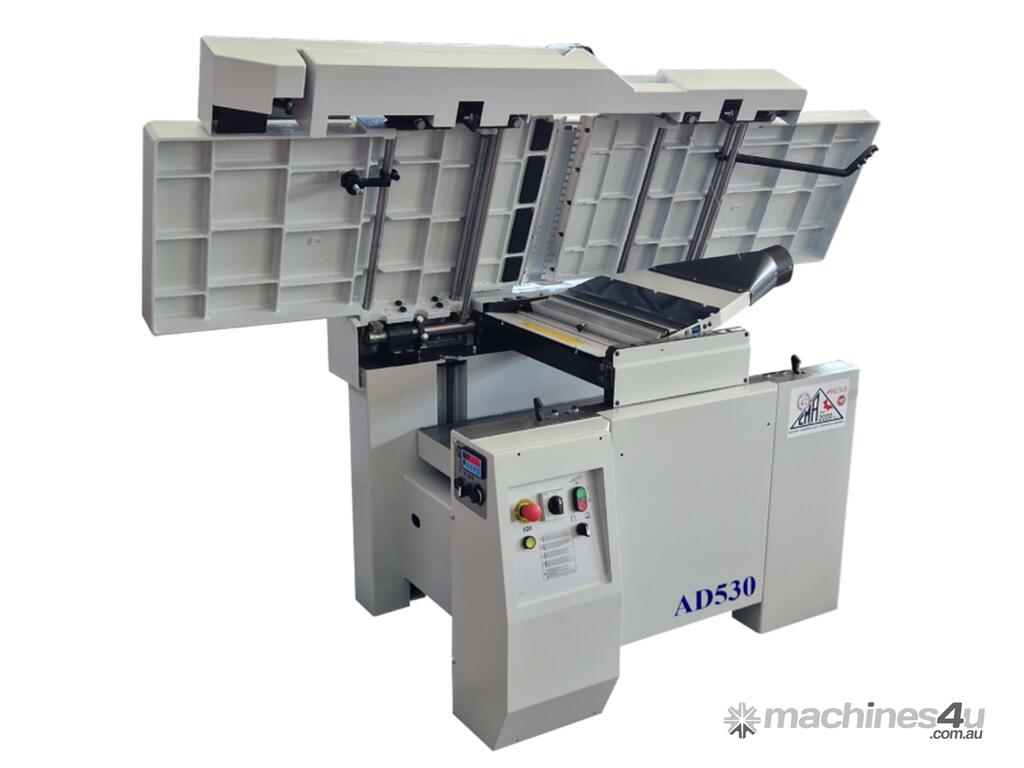

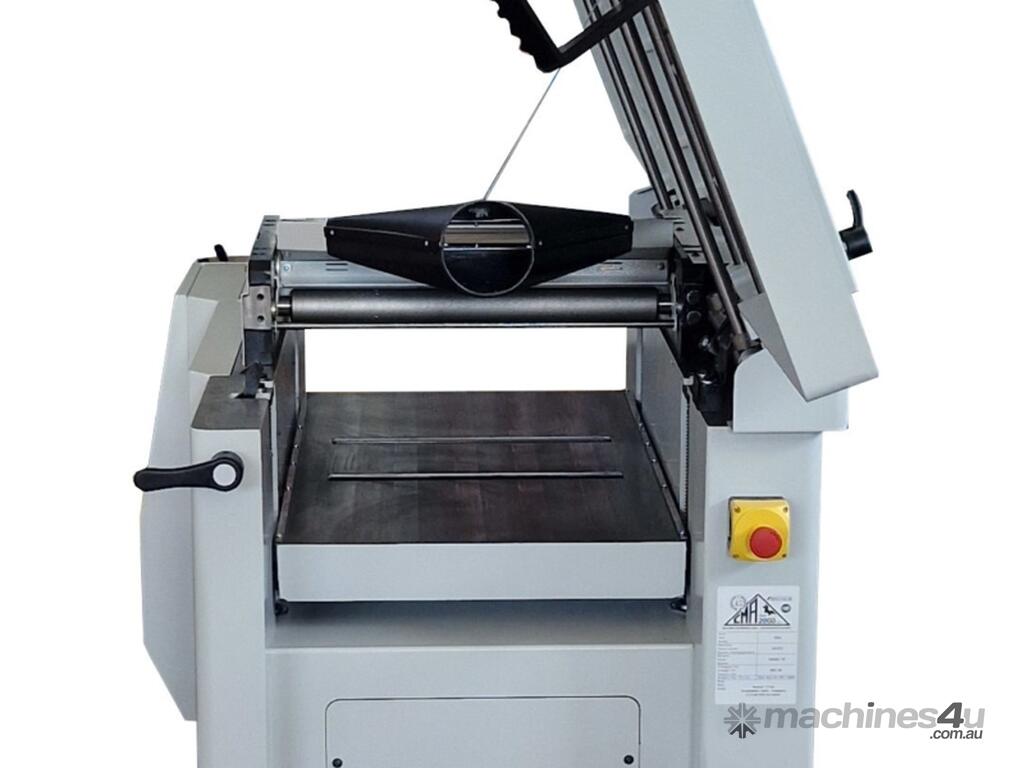

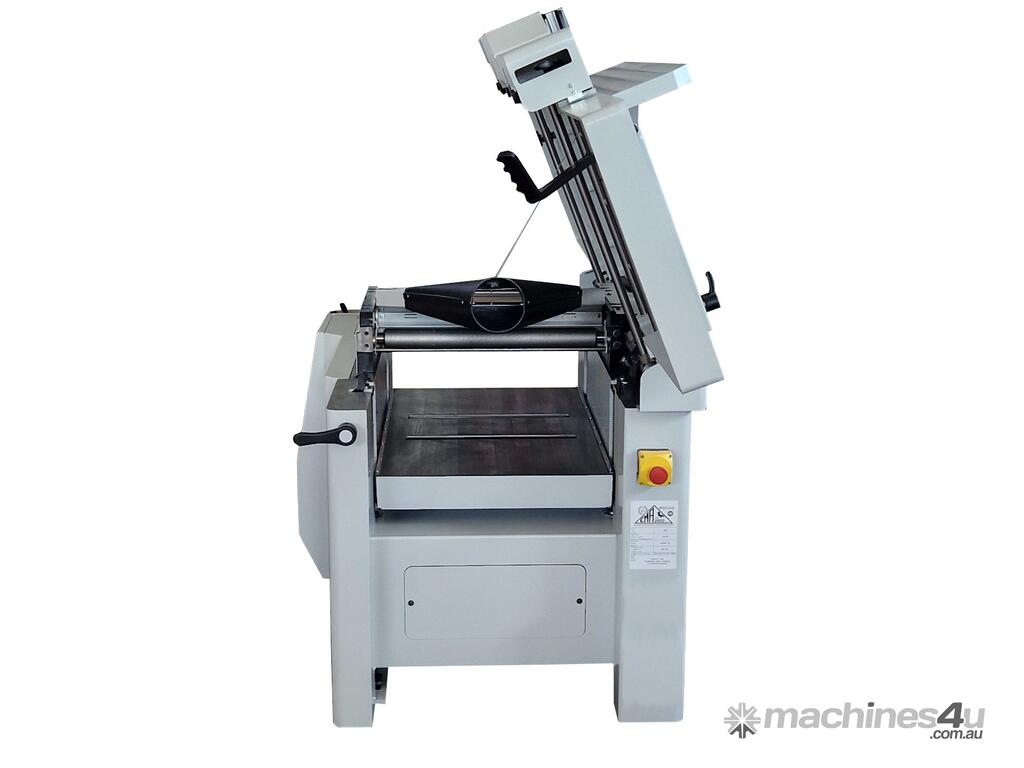

QUICK AND PRECISE CHANGEOVER FROM SURFACE
PLANING TO THICKNESSING
Quick changeover, it takes just a few seconds to move from
surface planning to thicknessing or vice versa, thanks to:
a) simultaneous and electrical raising of the surfacing tables;
b) easy positioning of the safety guards that protect the shaft
c) a single extractor hood for both surfacing and thicknessing.

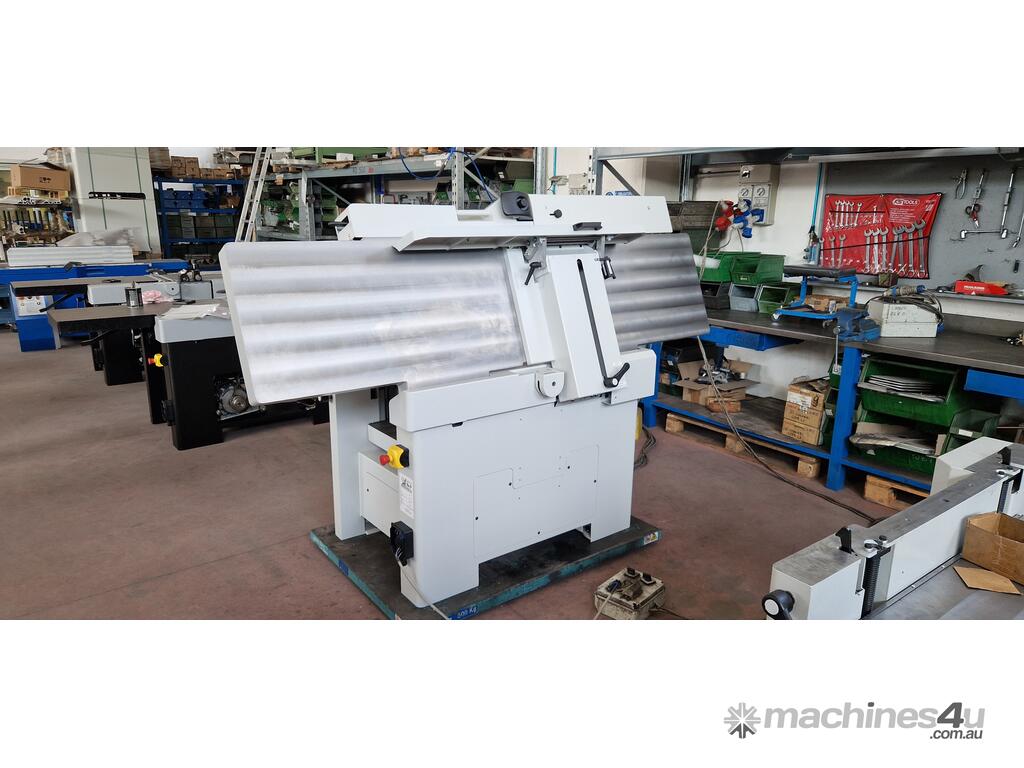

PLANER FENCE
The planer fence is a large anodized aluminium
extrusion. Fence tilting is fast and easy thanks to a
solid and reliable handle. The tilting locking/unlocking lever is
very quick. Tilting precision is guaranteed
by a graduated scale and reference stops at 0° and 45°.



- Made in ITALY by CMA
- 530mm planer width.
- 250mm maximum planer depth.
- Maximum stock thickness removal mm 8.

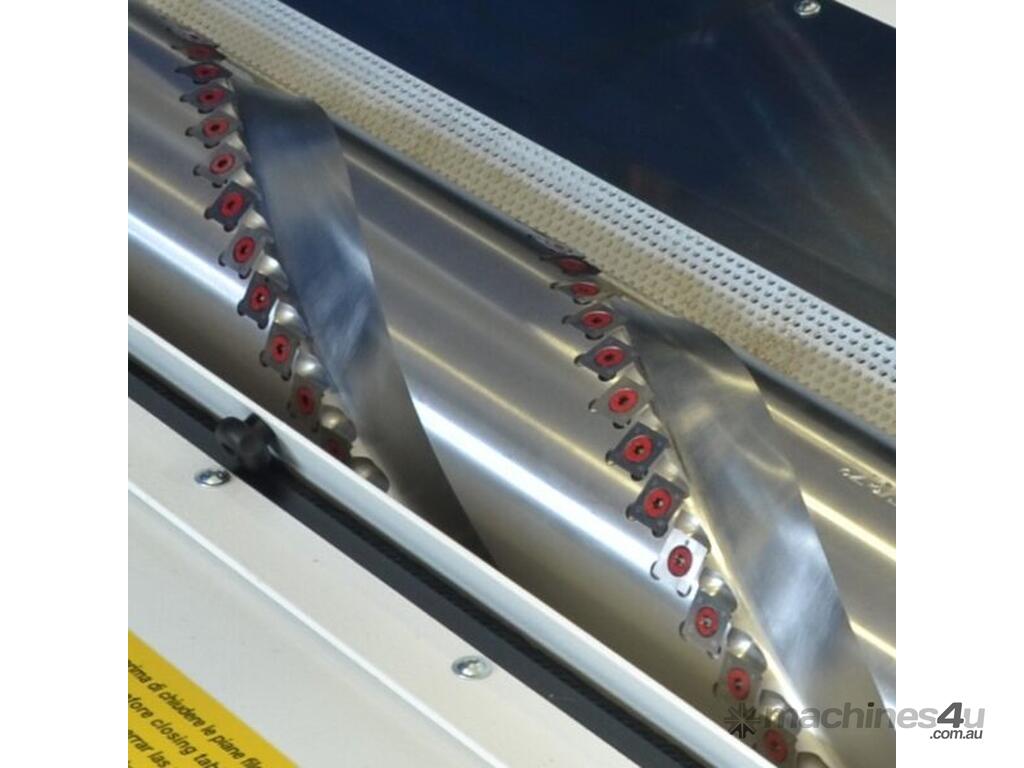

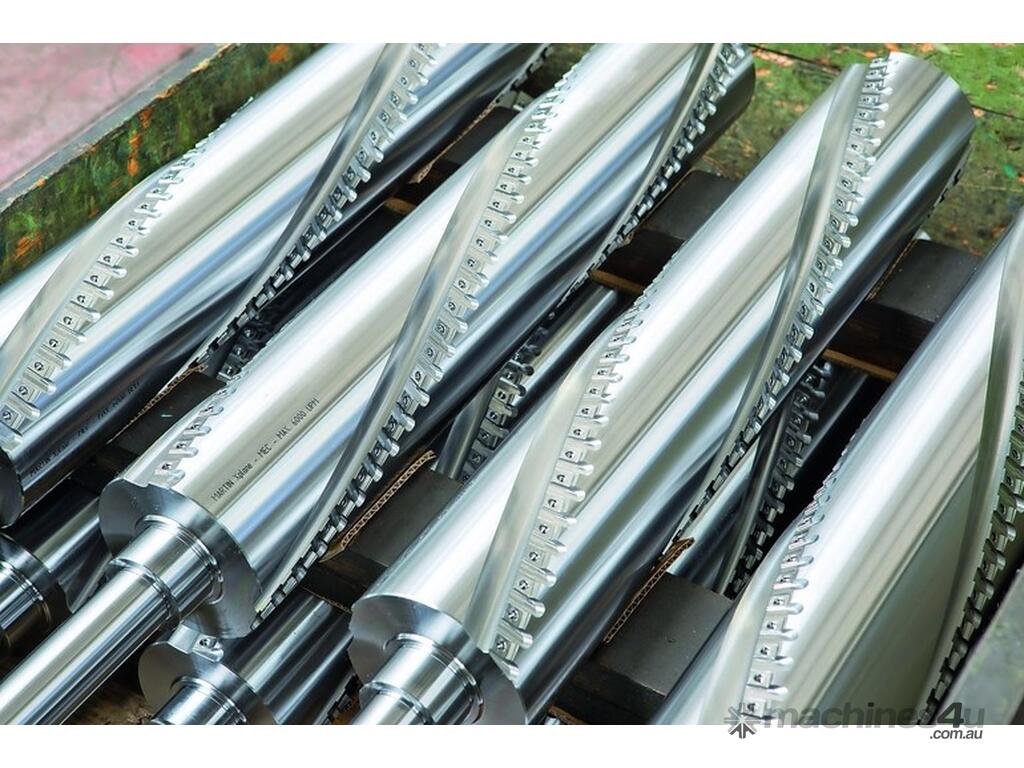

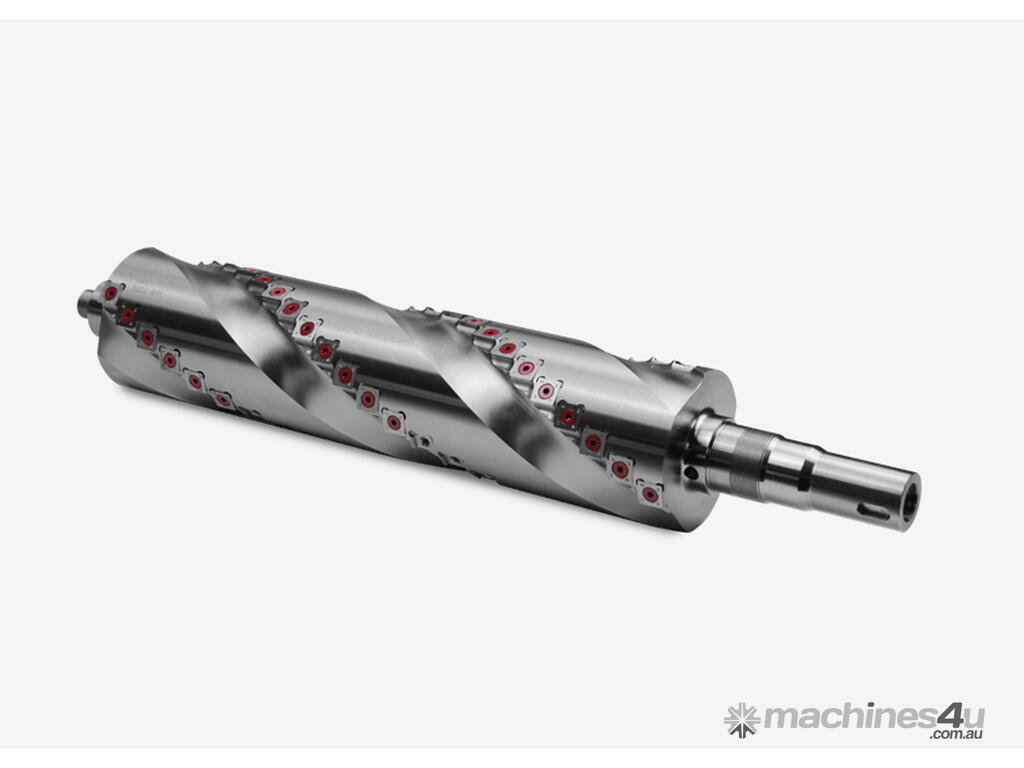

- Cutter-block “SPIRAL” Cutter-block.
- Surface planer in cast iron with table 2300mm length x 530mm width.
- Maximum stock surface removal 8mm.
- Feed speeds m/min x 4 - 5/7/9/12.
- Planer motor 10HP 400 Volt 50 Hz.
- Power rise & fall of thicknesser with LED readout.
- Special easy adjustable bridge type guard.
- Electronic raising of the thicknesser tables.

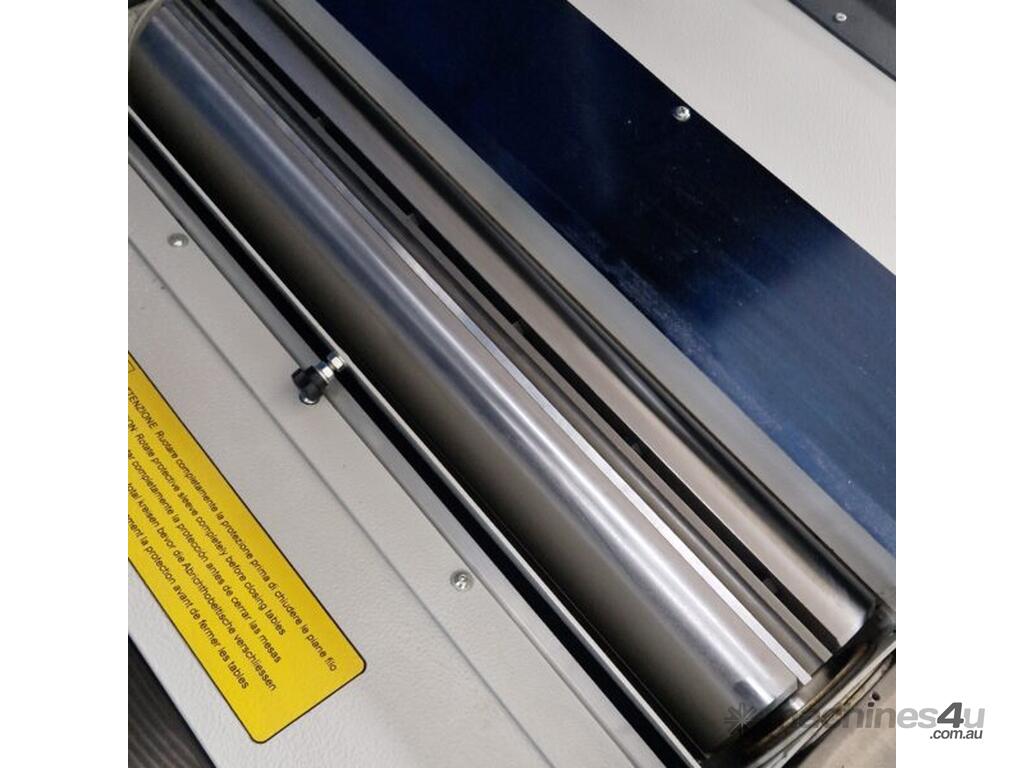

- Rubber out-feed roller.
