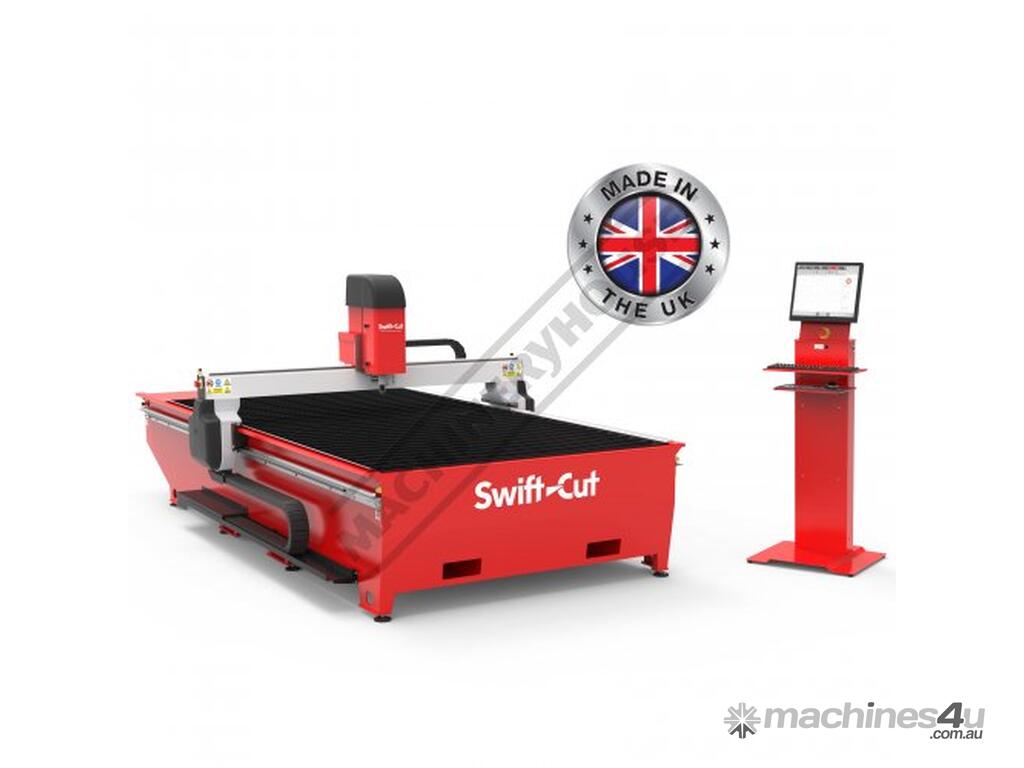

Swiftcut PRO 3000WT CNC Plasma Cutting Table 3000 x 1500mm Water Table System Hypertherm Powermax125

SWIFTCUT Swiftcut PRO 3000WT CNC Plasma Cutting Table 3000 x 1500mm Water Table System Hypertherm Powermax125 - Cuts up to 25mm Mild Steel Plate
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P9034

Cutting area – 3000 x 1500mm

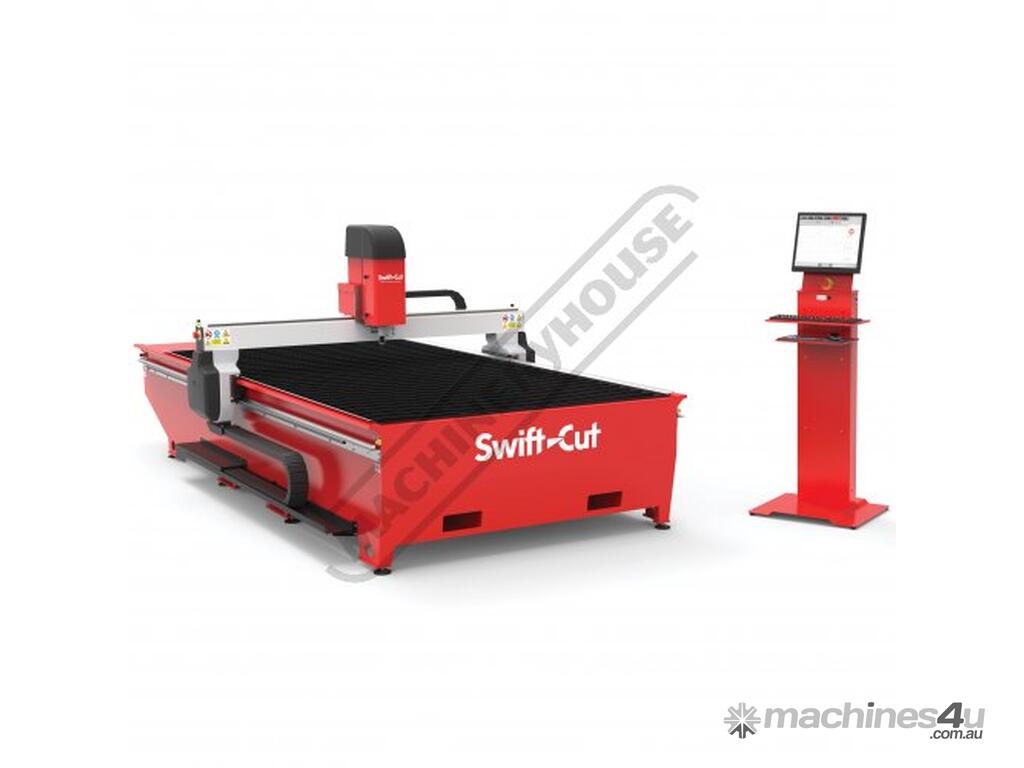

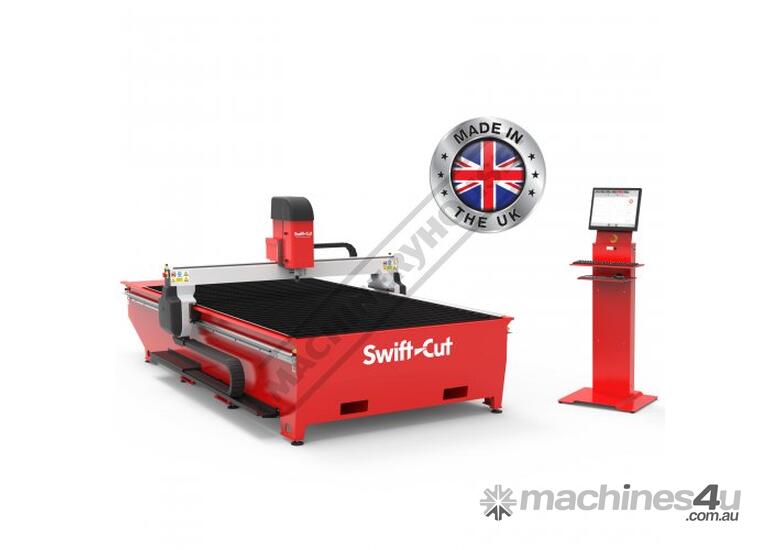

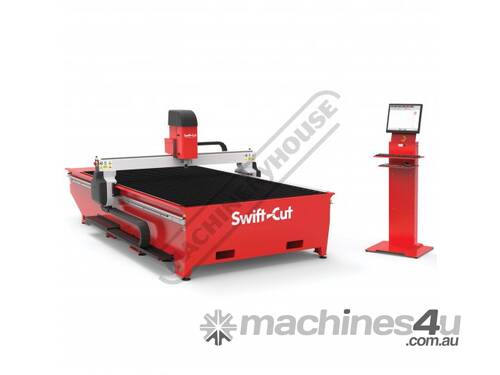

With a 3000 x 1500mm cutting area, the Swift-Cut PRO 3000 is a feature packed plasma cutting table with the ability and power to cut for as long as required. With a robust steel fabricated, fully welded frame and free standing operators console, making it ideal for workshops, metal fabricators, educational establishments, designers and artists.

With gantry parking to allow a full sheet to be loaded overhead and a dropped rail for ease of loading, not to mention the simple on-going maintenance, the Swift-Cut PRO 3000 really is the answer to all your cutting needs.

Our supreme build quality and unique to Swift-Cut operating software allows you to:
• Cut all metals: stainless and mild steel, aluminium, copper, brass, zinc etc.
• Cut thicknesses from 0.5mm to 25mm (Depending on Plasma selected)
• Deliver excellent cut quality


SOFTWARE: Standard Version

• Auto Arc voltage capture and regulation to automatically adjust the cut settings to suit varied material characteristics
• Program recovery function automates starting part way through a program
• Sheet Trim function to easily trim off excess skeleton
• G code browser & editor for the novice operator
• G code favourites – user customised
• DXF, DWG & JPEG photo import function
• 3D part Viewer
• Advanced importer with ability to re-export and save the filtered DXF
• 5 user assigned reference points for jigs and fixtures
• Sheet rotation function
• Automatic lead in / out of cut paths
• Dry run capability for testing prior to cutting
• Parametric shapes library with over 80 shapes
• Automatic cutting consumable recommendations based on material and thickness
• Manual nesting of parts
• Team viewer software for remote support


SOFTWARE: Advanced Version (Optional Extra)

• All of the Standard version features
• Multiple simultaneous DXF import
• Automatic part in part nesting for best sheet utilisation

Features:
Fully fabricated and welded steel frame
Water tray for efficient control of sparks and fumes
Removable stainless steel splash guards for side rail protection
Dropped rails for ease of loading full sheets
Gantry parking to allow full sheet to be loaded overhead
Heavy duty steel construction with durable paint finish

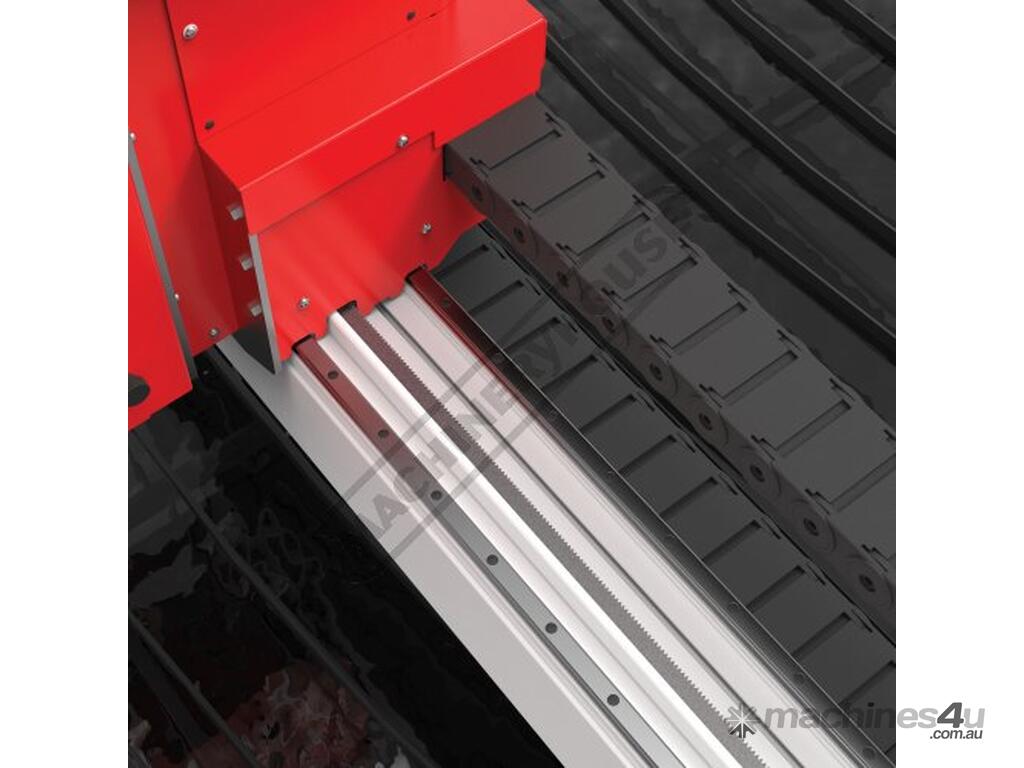

Linear guideways for fast accurate motion
High speed axis motors with closed loop feedback (encoder) for accuracy and reliability
Dual drive Y-axis

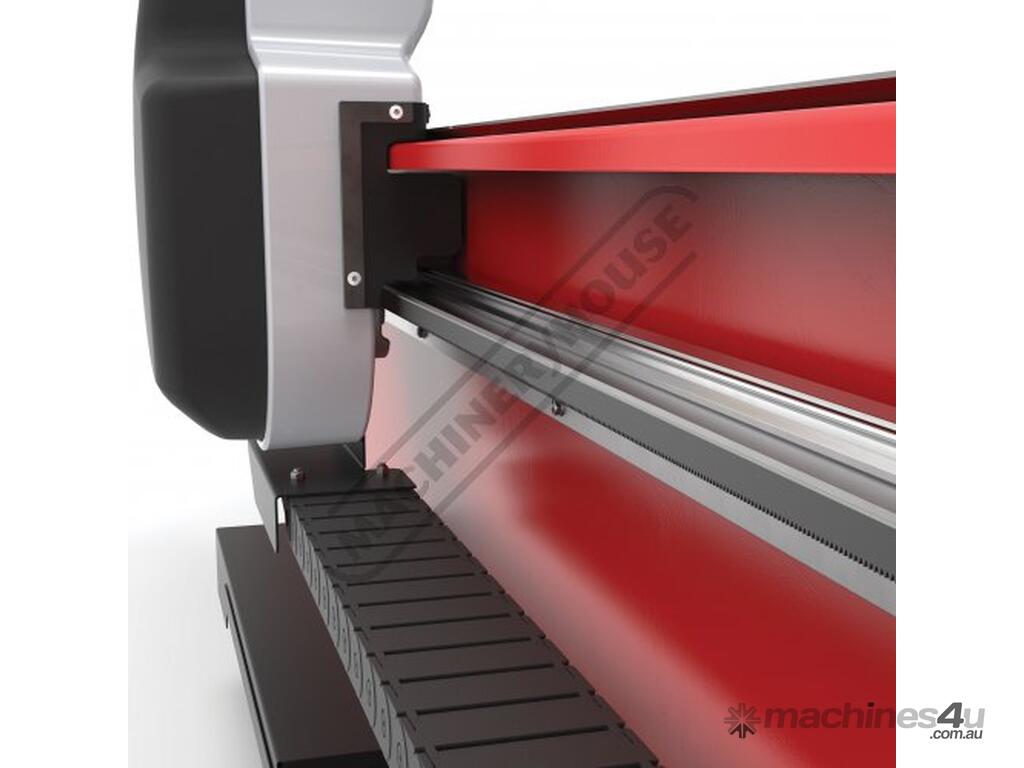

Rack and pinion drive system

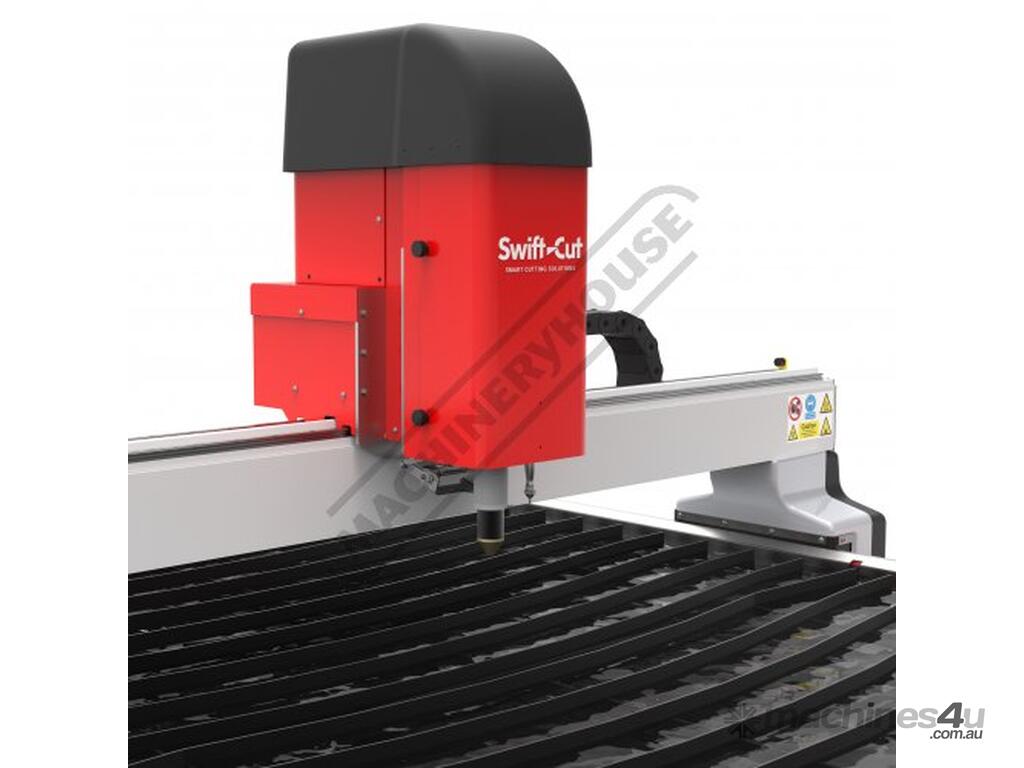

Breakaway head eliminates damage to torch and improves safety
Laser guide for easy sheet positioning
Cut metal up to 25mm thick depending on the Hypertherm Powermax unit selected

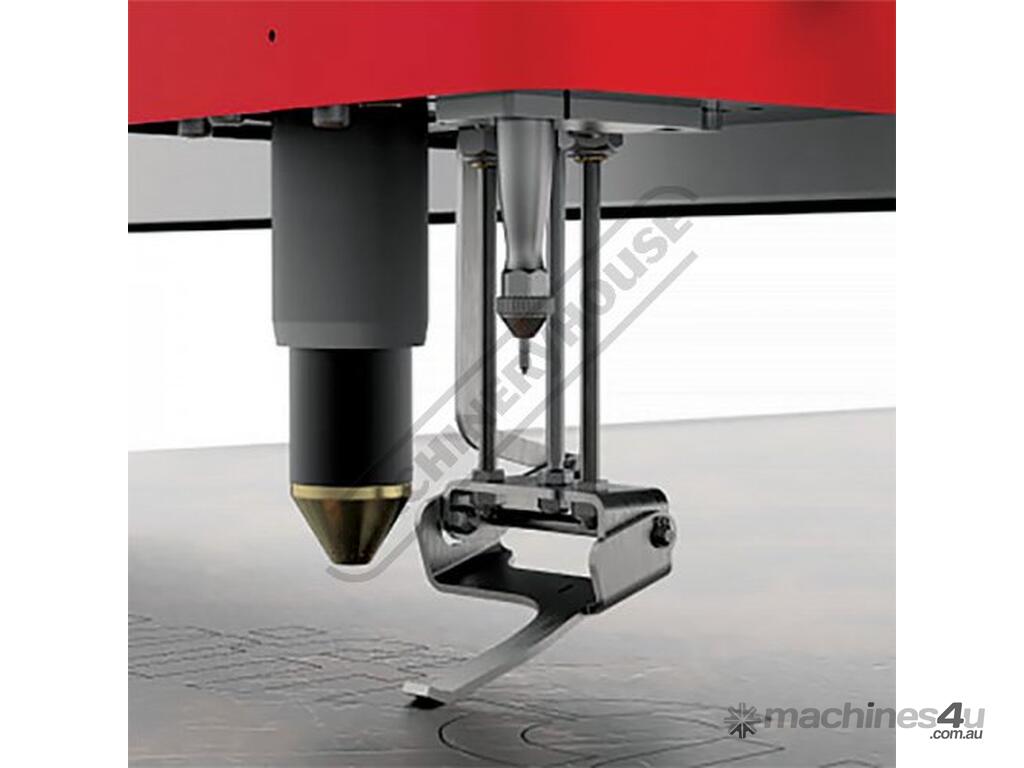

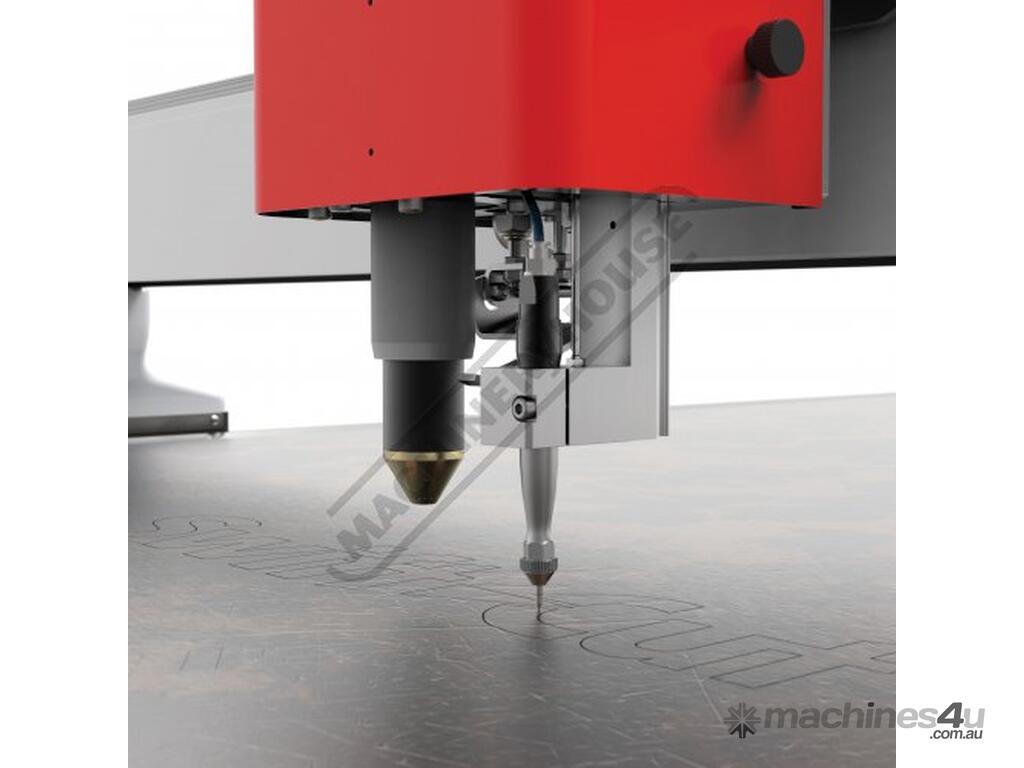

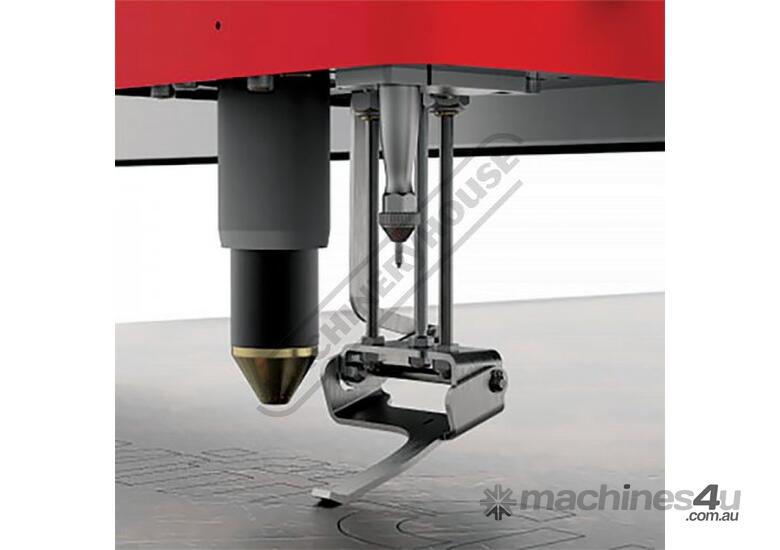

Soft sense Digital Torch-Height Control (DTHC) Quick response for improved cut quantity and improved torch consumable life. This unique touch sensing is so soft and accurate even the thinnest sheet metal will not deflect while sensing.
Dynamic Cut Control (DCC) is available on all Swiftcut PRO machines This feature enables Software control of cutting amps and air pressure Error messages air pressures and critical data from the plasma unit is displayed on Swiftcut control screen for operator convenience On the fly arc voltage air pressure and cutting speed control ensures the highest quality cut at all times. INDUSTRY 1st UNIQUE TO SWIFT-CUT


OPERATORS PANEL:

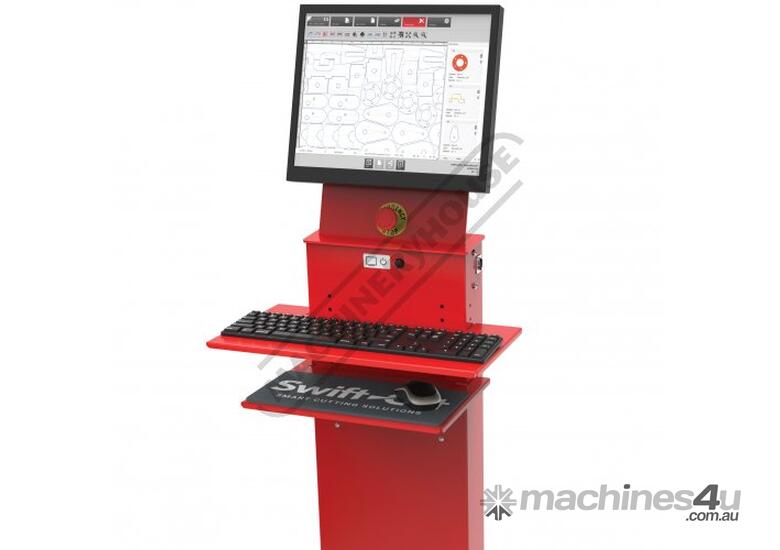

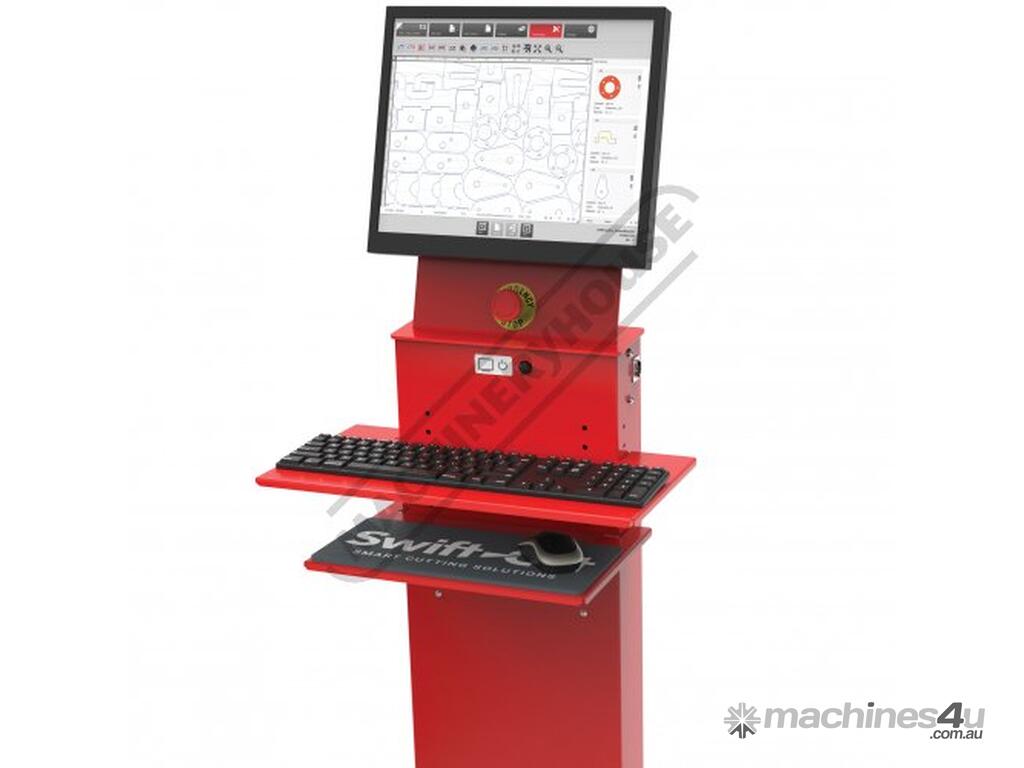

Free-Standing Operators Console
LCD TOUCHSCREEN control monitor
Built in controller with dual CPU
Wireless keyboard and mouse

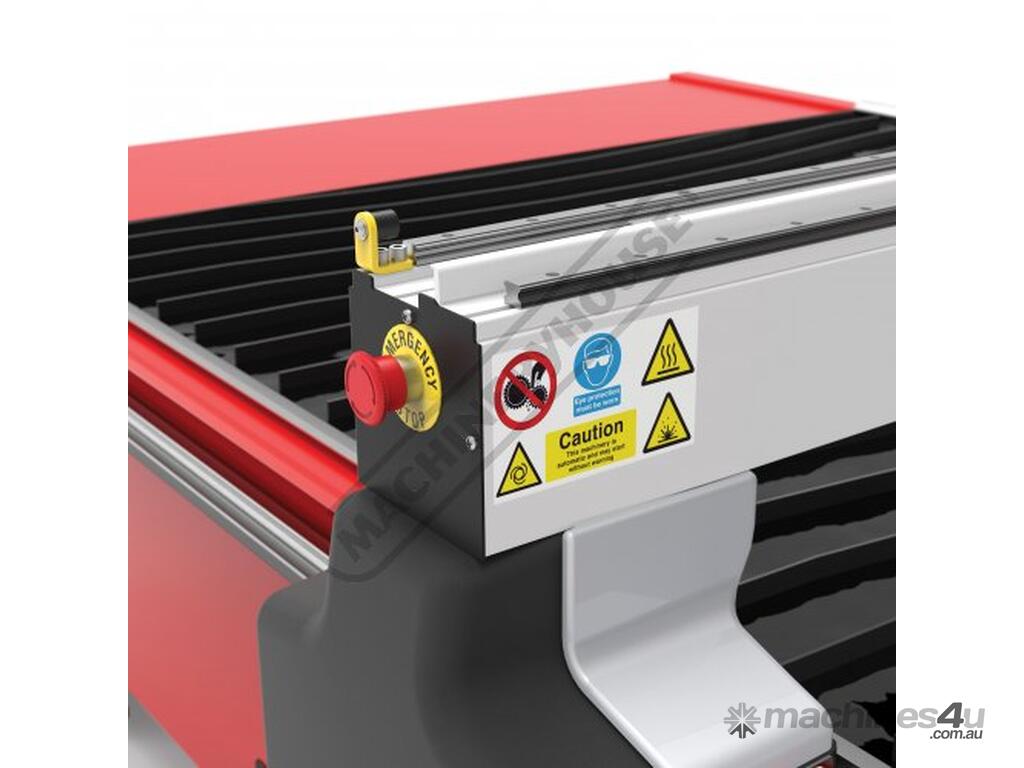

E-Stop safety button
External USB port for transfer of files
Easy access for maintenance


Specifications:
ORDER CODE: P9034
MODEL: Swift-Cut 3000WT
Cutting Table Capacity (mm): 3000 x 1500
Cutting Capacity - Mild Steel (mm): 25

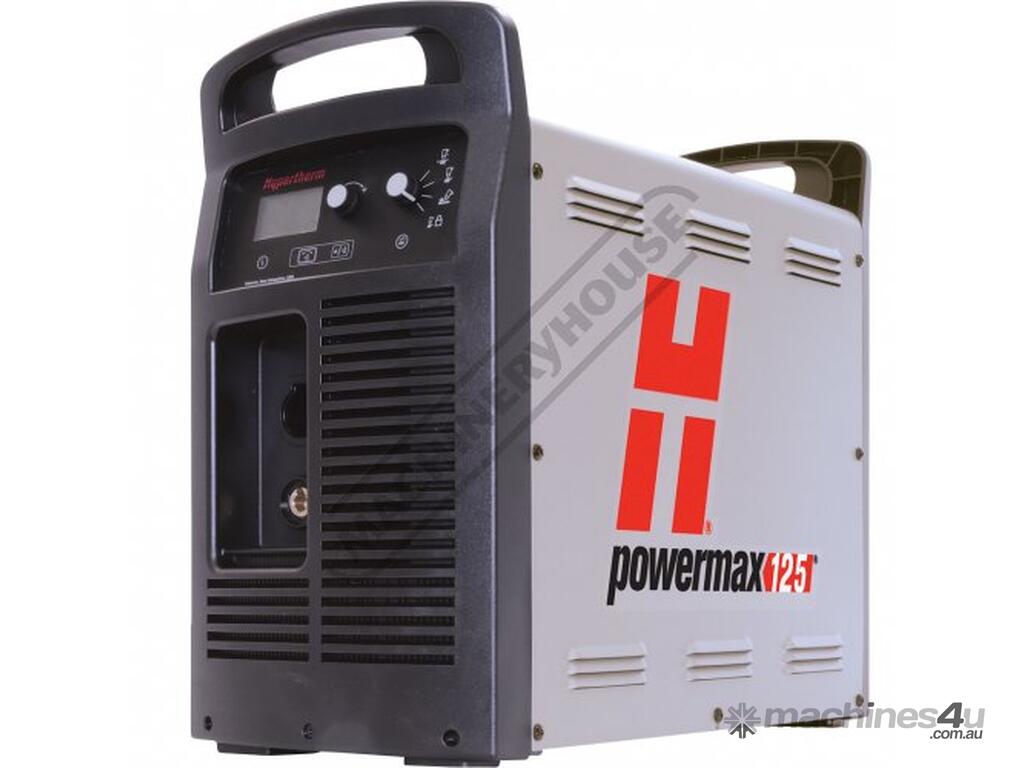

Plasma Cutting Unit: Powermax 125
Current Output (amp): 30 - 125
Duty Cycle (Typical): 100% 125A
Duty Cycle (Typical): ~
Fume Management (Type): Water Tray System
Fume Management (Type): ~
Cutting Gas (Type): Air
Plasma Unit Input Voltage (V): 415V with Neutral
Plasma Unit Input Amperage (amp): 36
Shipping Dimensions (L x W x H) (cm): 367 x 236 x 150
Nett Weight (kg): 1100
