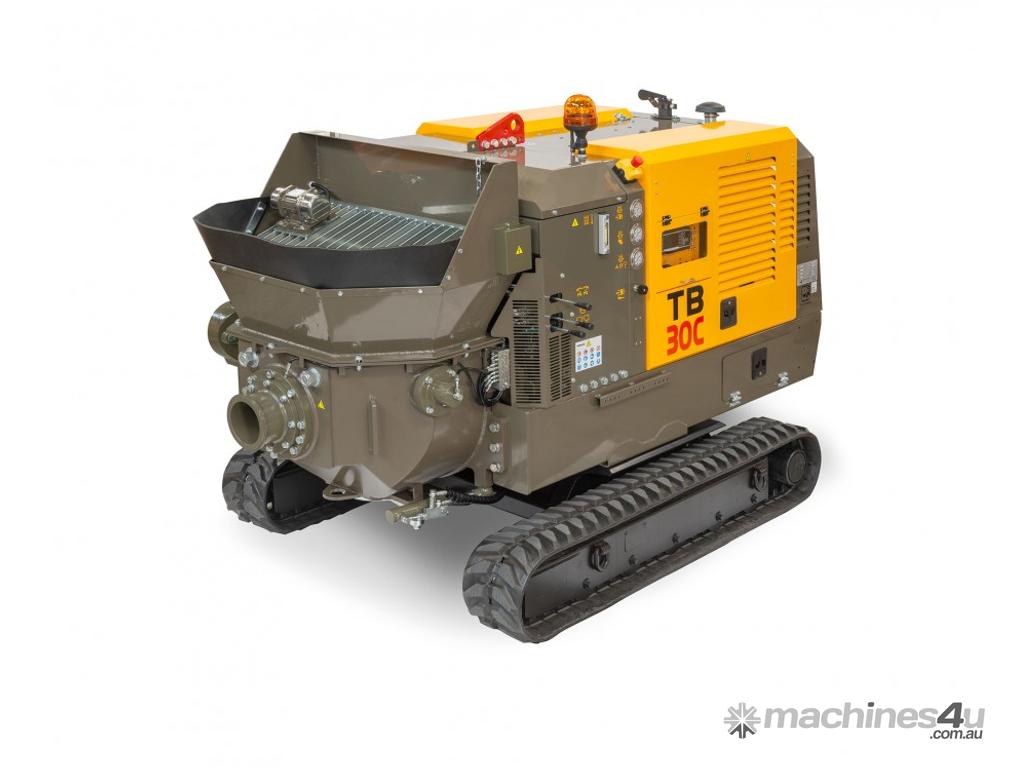

TB30C Crawler Concrete Pump with S- Valve and Admixture Pump.

Supported by Australia's trusted equipment dealer for all things Concrete, Grout and Screed

The TB30 is an S-valve, piston pump with infinitely variable output designed for concrete and shotcrete works. State-of-the-art hydraulic system, solid structure, radio remote, reliable controls, high-level performance.

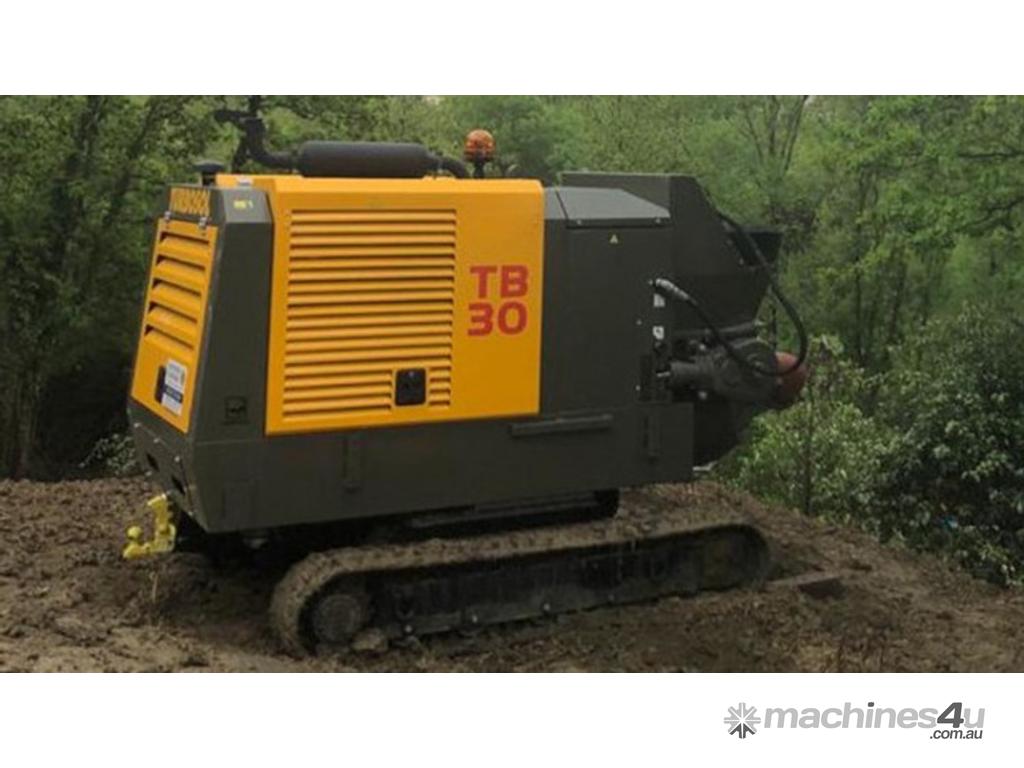

Available as either a trailer-mounted or track-mounted version.

Turbosol TB30 specifications are as follows:

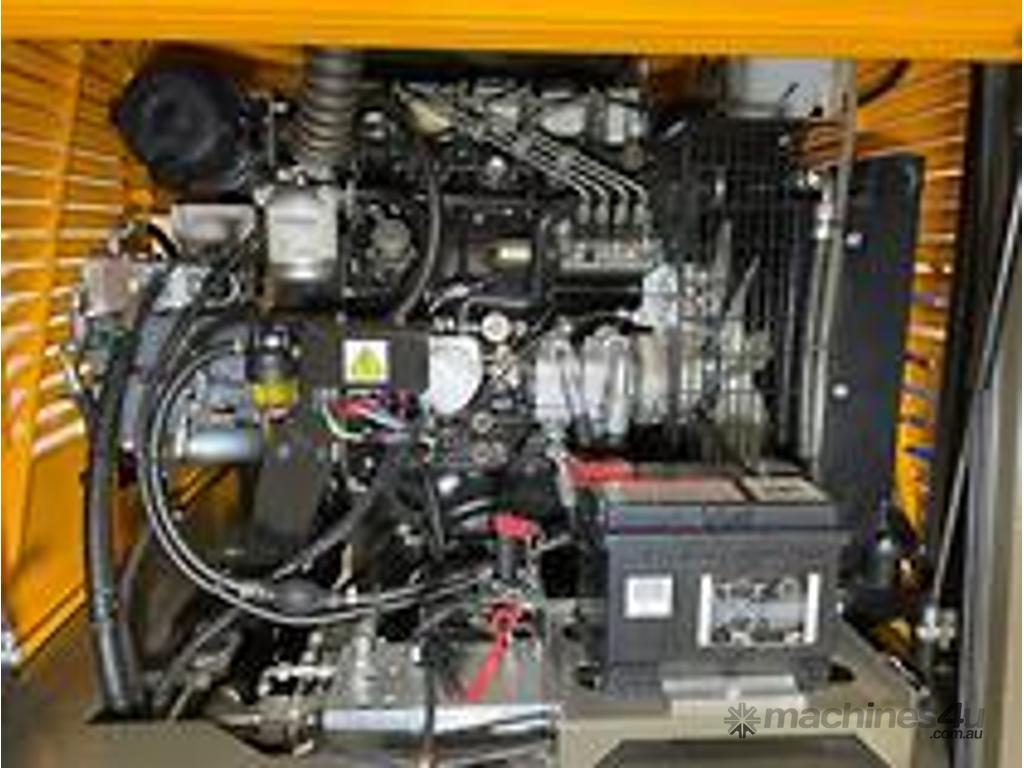

• 36.4 kW Yanmar diesel engine
• 35mm max aggregate
• Powerful piston pump - 200mm diameter, 570mm stroke
• Infinetely adjustable output up to 30m3/hr
• Horizontal delivery distance up to 200m
• Vertical delivery distance up to 100m

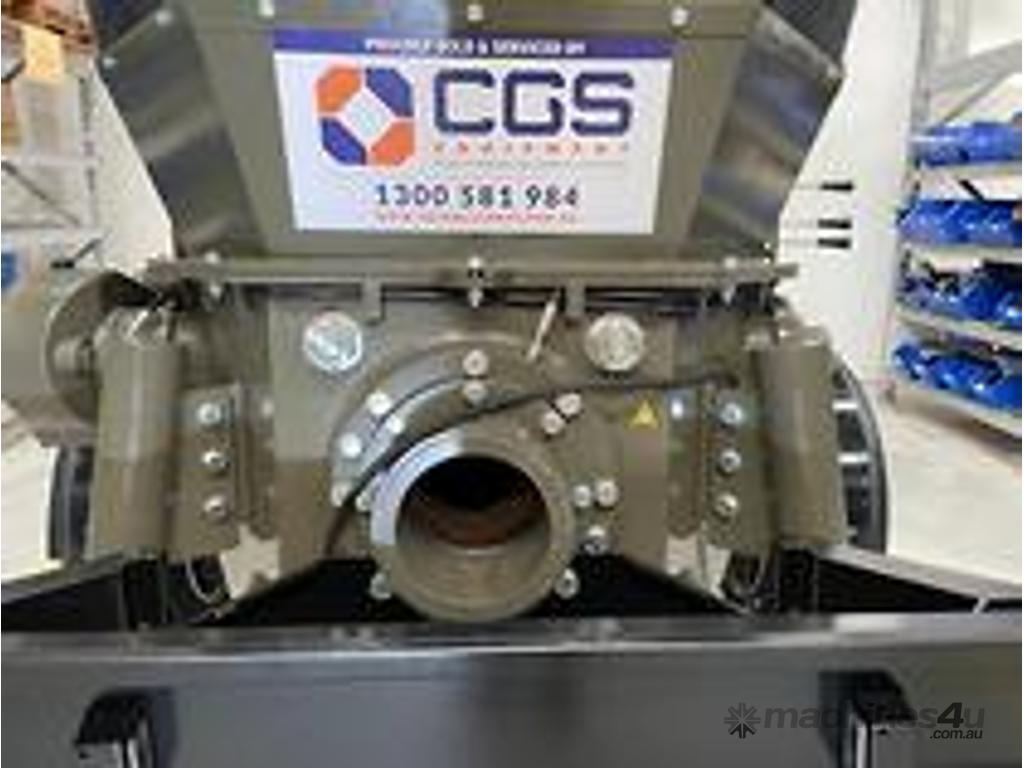

• Hopper assembly with S-valve and agitator

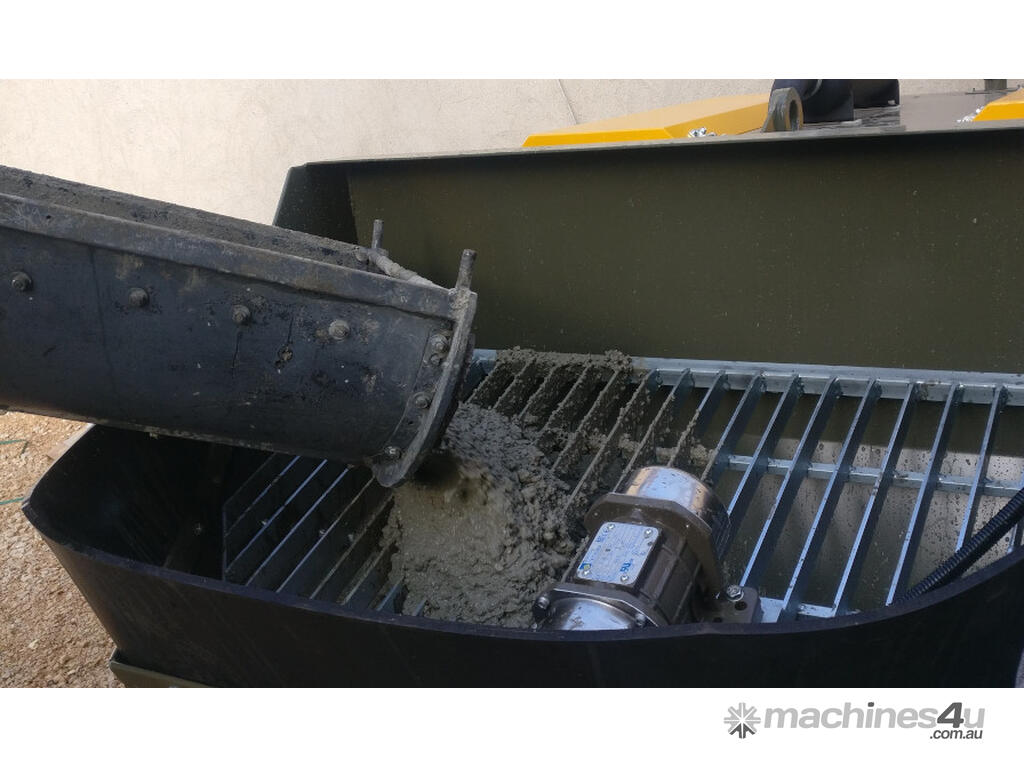

• Concrete grill with vibrator
• Centralised lubrication system
• Outlet collector ø 150 mm with Victaulic couplings
• Hydraulic discharge door
• 2 manual front stabilisers
• Safety horn
• Hydraulic circuit with optimised exchange sequence

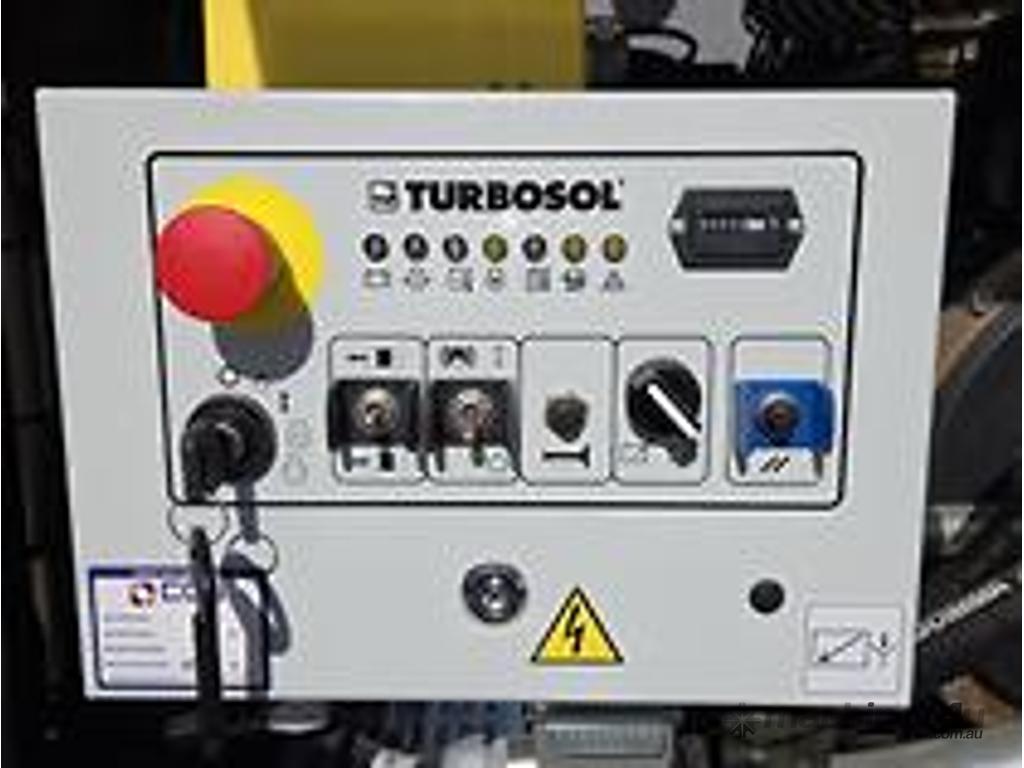

• Electromechanical control board
• Bosch Rexroth variable displacement pump

Applications
Pumping up to 35 mm of concrete
Grout
Self-levelling floor screeds
Land reinforcement
Micro-piles, pressurised injection of mortars and slurries
Compaction grouting

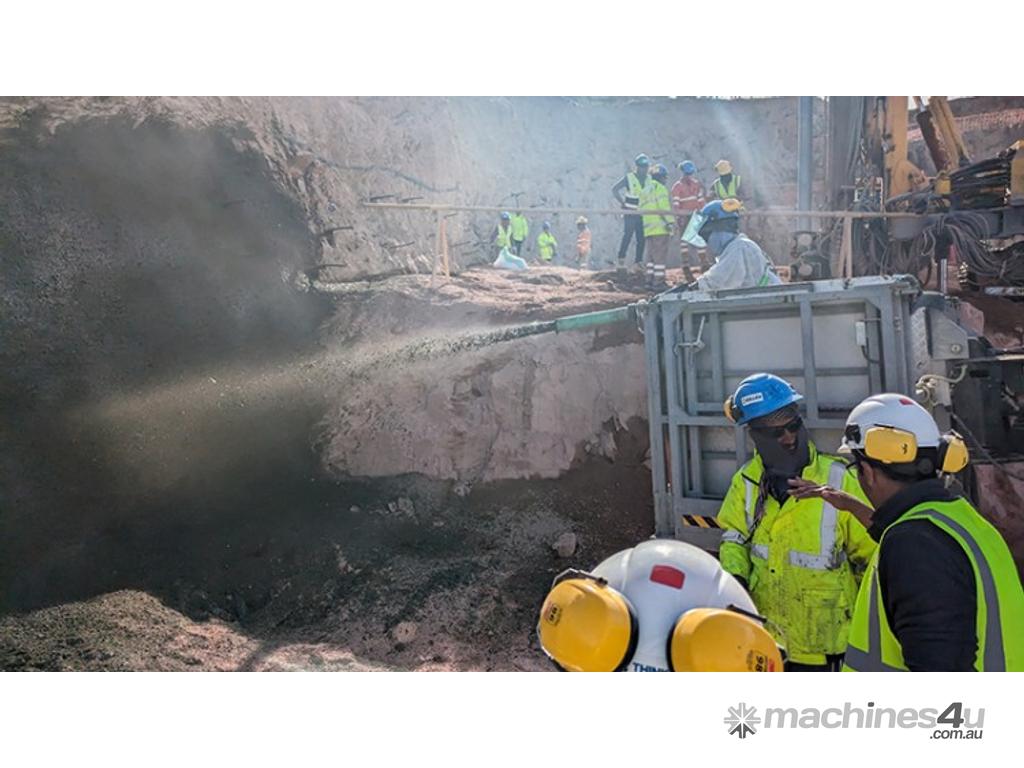

Shotcrete works
