TECMOR S4-Series Rebar Bending Machines - Made in Italy

Heavy-Duty Reinforcing Steel Bending Machines for High Production Rebar Fabrication.

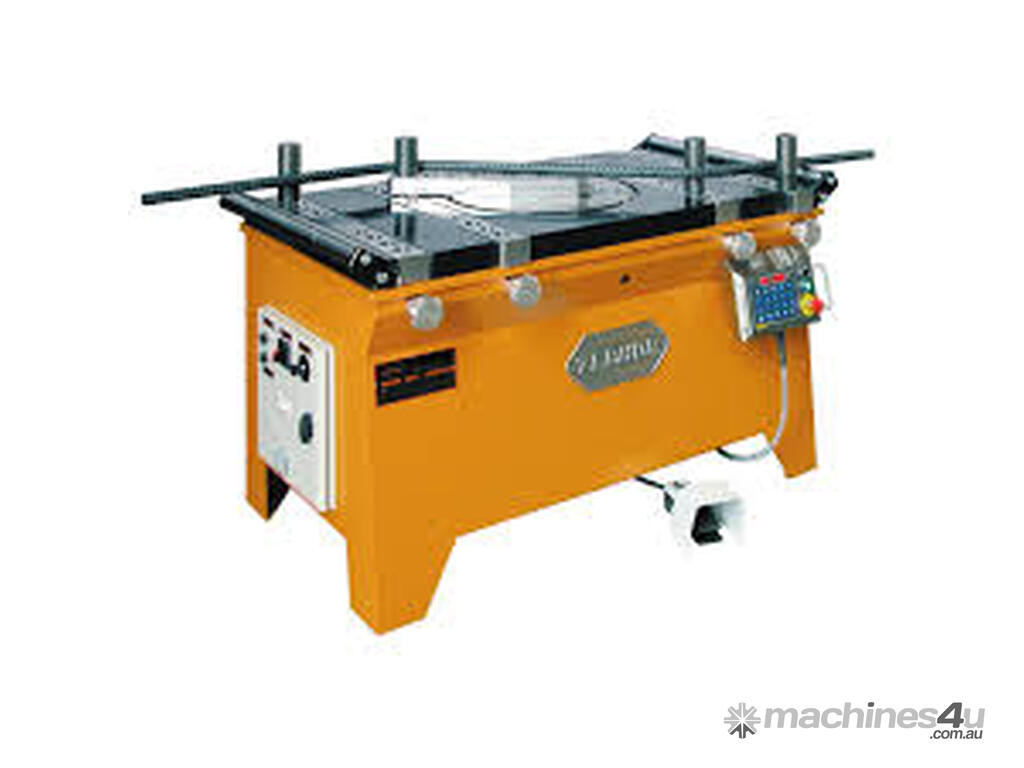

The TECMOR S4-Series Rebar Bending Machines represent the top of the Tecmor bending machine range, designed for high-capacity reinforcing steel processing in demanding industrial environments.
These machines are characterised by four slides on the work surface and by their large, heavy-duty construction, making them a symbol of robustness and long-term durability.
Manufactured in Italy by TECMOR, the S4-Series machines are engineered for continuous operation in rebar fabrication plants and precast concrete manufacturing facilities, where large-diameter reinforcing bars must be processed efficiently and reliably.
________________________________________
Heavy-Duty Industrial Construction
The S4-Series machines are built to operate continuously throughout the working day, even in harsh industrial environments and varying weather conditions.
Their strong mechanical design ensures stable bending performance and long service life, making them ideal for companies that regularly process large-diameter reinforcing bars.
________________________________________
Four-Slide Work Surface for Complex Bending

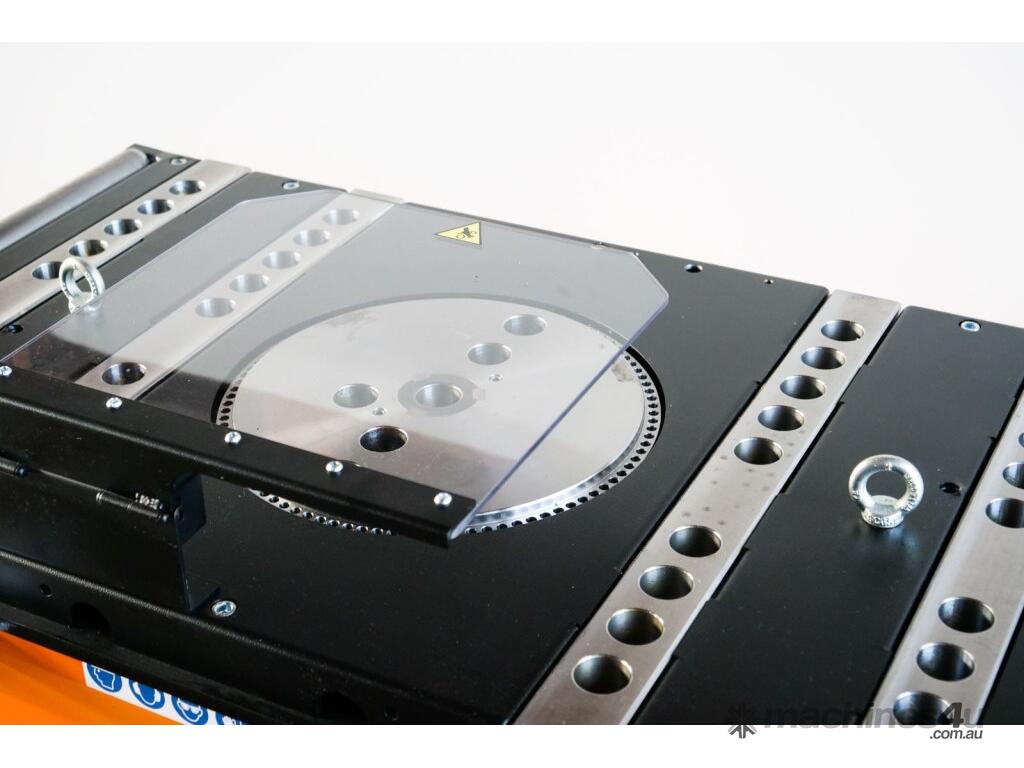

A key feature of the S4-Series is the four-slide work surface, which allows reinforcing bars to be positioned accurately and enables multiple bending operations to be performed efficiently.
This configuration improves production flexibility and allows operators to complete complex bending operations with greater control.
________________________________________
Flexible Operator Access
Operators can work from both sides of the machine, improving flexibility and workflow efficiency during production.
This dual-side operation simplifies the handling of reinforcing bars and allows faster processing during high-volume production.
________________________________________
Advanced Control System

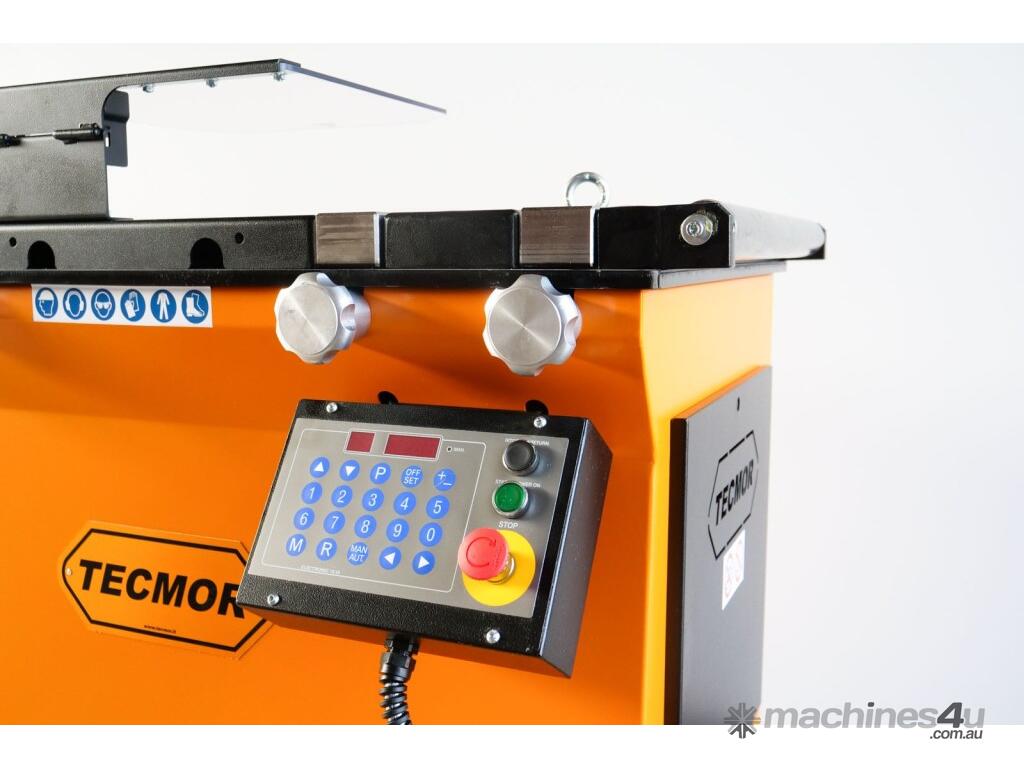

The machines are equipped with the 10/50 control panel, which allows operators to store up to 50 different bending programs. This eliminates the need to continually reposition bending pins and greatly improves productivity during repetitive bending operations.
________________________________________
Efficient Processing of Smaller Diameter Bars

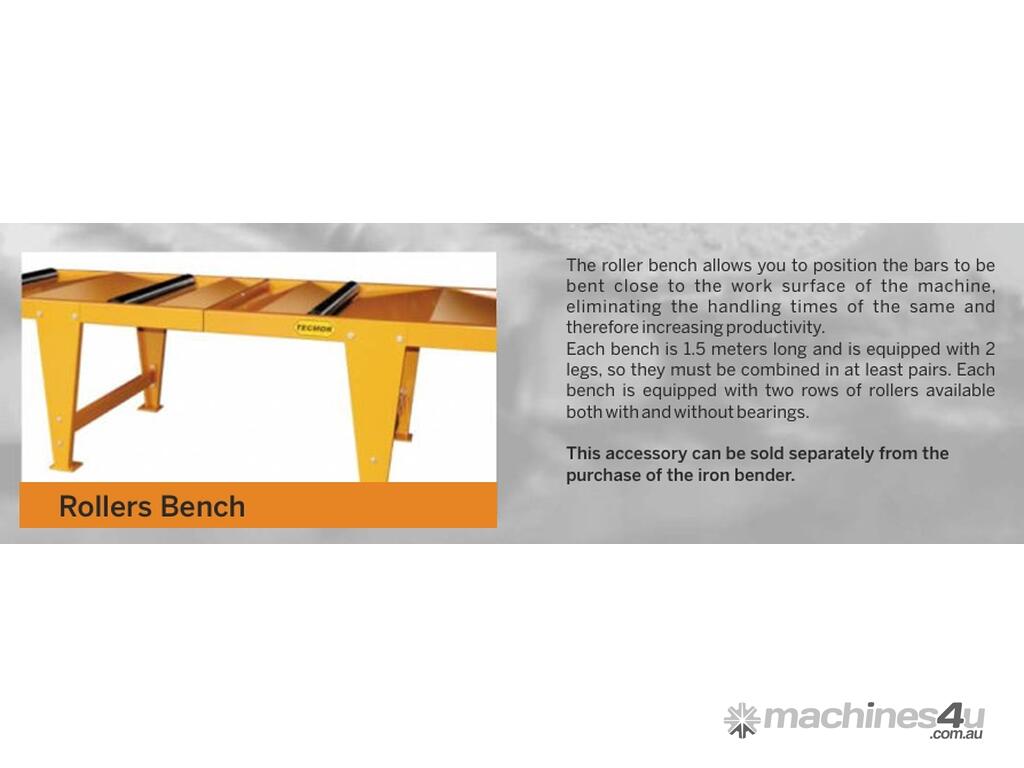

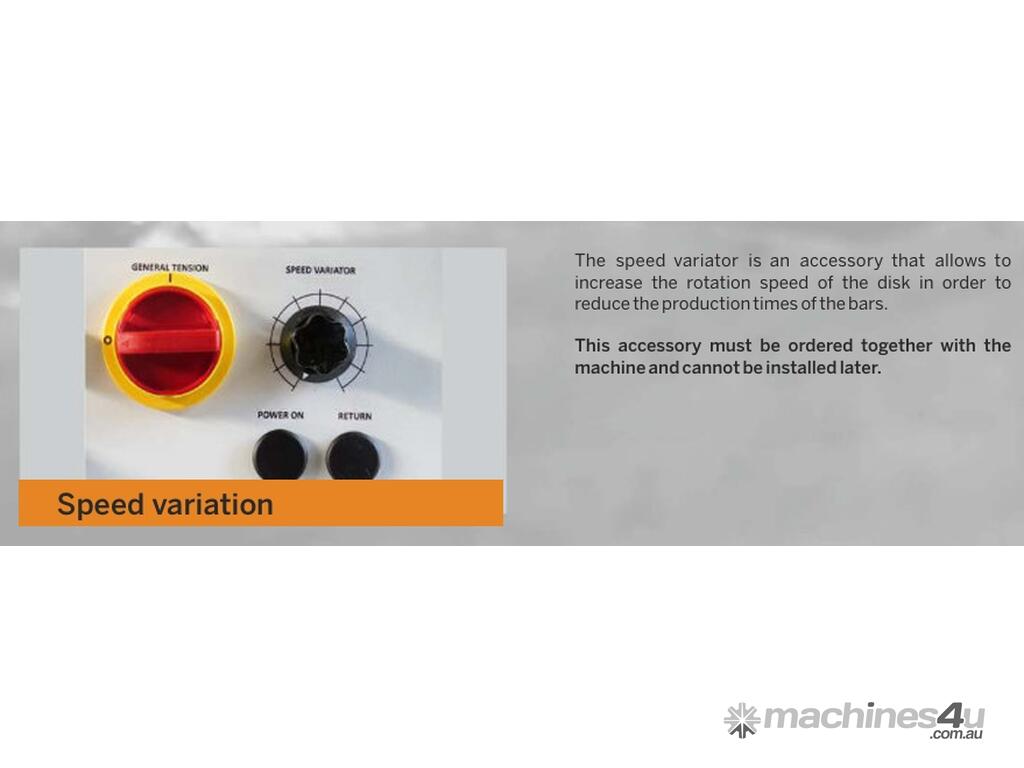

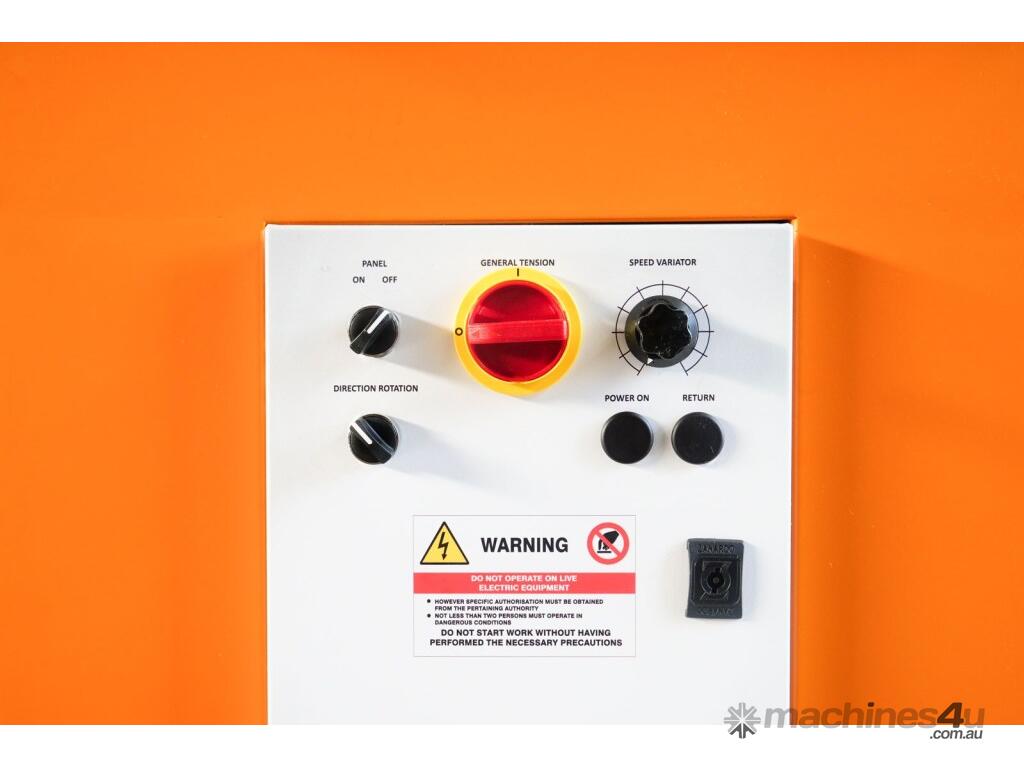

Standard equipment includes side rollers and a variable speed drive, allowing faster processing of smaller diameter reinforcing bars.
The machines are also fitted with a double foot pedal, enabling the operator to quickly reverse the rotation of the bending disc during operation for improved bending control.
________________________________________
TECMOR S4-Series Models and Bending Capacity
Model Maximum Bending Capacity
PF44-S4 Up to Ø36 mm rebar
PF48-S4 Up to Ø40 mm rebar
PF55-S4 Up to Ø46 mm rebar
PF62-S4 Up to Ø52 mm rebar
The S4-Series range is designed for reinforcing steel fabrication plants that require maximum bending capacity and high production reliability.
________________________________________
Key Features
• Heavy-duty rebar bending machines for high production environments
• Four-slide work surface for complex bending operations
• 10/50 control panel storing up to 50 bending programs
• Side rollers for improved bar handling
• Variable speed drive for efficient bending of smaller bars
• Double foot pedal for quick reversal of bending disc rotation
• Dual-side operator access for improved workflow
• Robust Italian engineering for long service life
________________________________________
Applications
TECMOR S4-Series rebar bending machines are widely used in:
• Reinforcing steel fabrication plants
• Precast concrete manufacturing facilities
• Infrastructure and construction projects
• High-production reinforcing steel workshops
________________________________________
Made in Italy
For more than 60 years, TECMOR has specialised in the design and manufacture of rebar processing machinery, supplying high-quality reinforcing steel equipment to companies around the world.
________________________________________
Available in Australia and New Zealand
A&S Machinery Sales Pty Ltd supplies TECMOR rebar processing equipment throughout Australia and New Zealand, including:
• Rebar bending machines
• Rebar cutting machines
• Spiral bending machines
• Complete cut and bend production lines
________________________________________
Contact A&S Machinery Sales for more information on TECMOR rebar bending machines.
