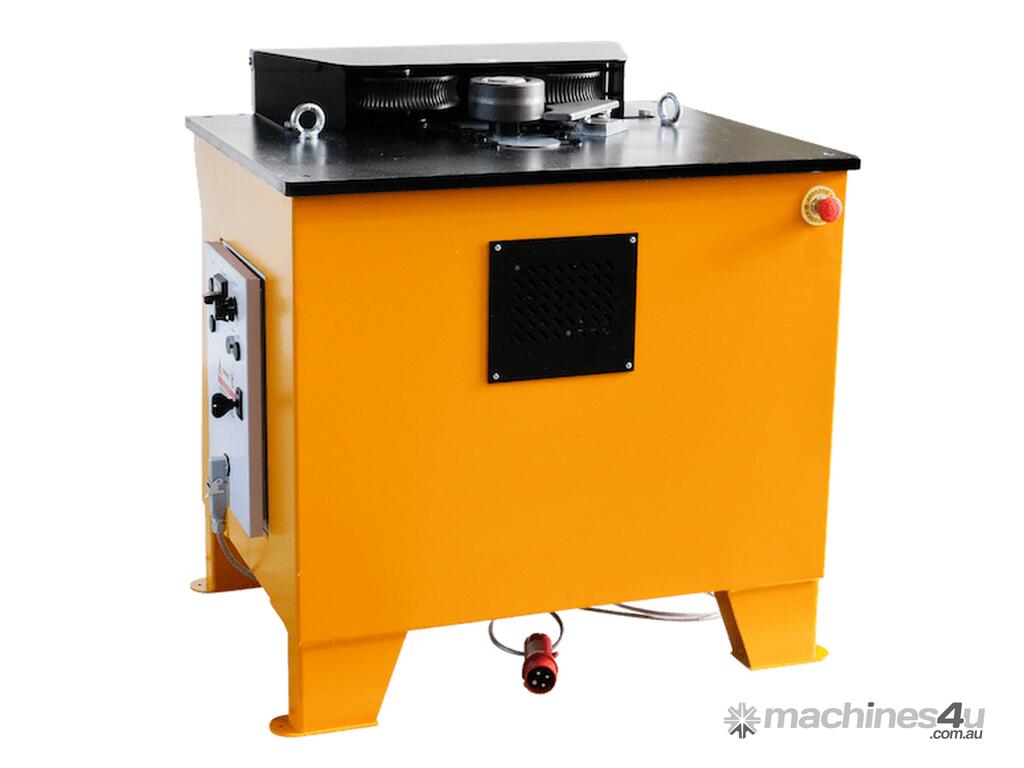

TECMOR SP22 & SP30 Spiral Machines | Rebar Spiral Benders Ø6–36mm - Made in Italy

Reinforcing Steel Spiral Bending Machines – Up to Ø36mm

The TECMOR SP22 and SP30 Spiral Machines are designed for producing reinforcing steel spirals, arches and circular reinforcement used in columns, cages, tunnels and structural applications.

Manufactured in Italy by TECMOR, these machines deliver high precision, repeatability and reliability, making them ideal for reinforcing steel fabrication workshops, precast concrete manufacturers and construction companies.

The range allows users to select the most suitable machine depending on bar diameter and production requirements, from light spiral work through to heavy-duty industrial applications.

Key Features

• Designed for spirals, arches and circular reinforcement
• Suitable for columns, cages, tunnels and structural work

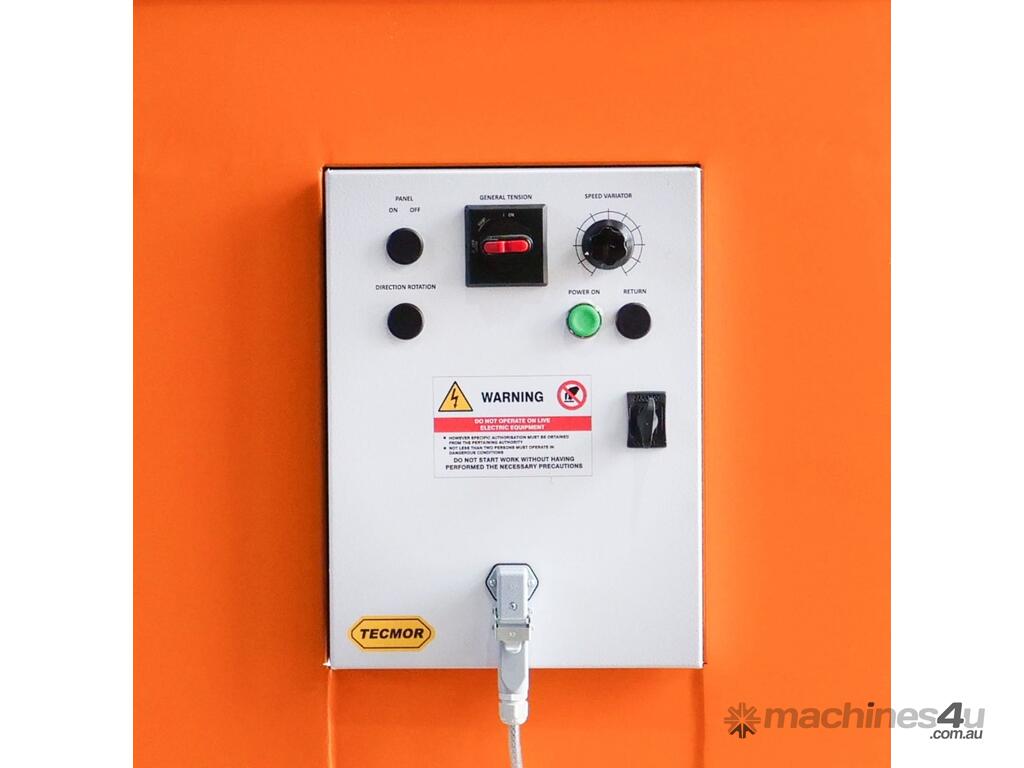

• Speed variator fitted as standard for flexible operation

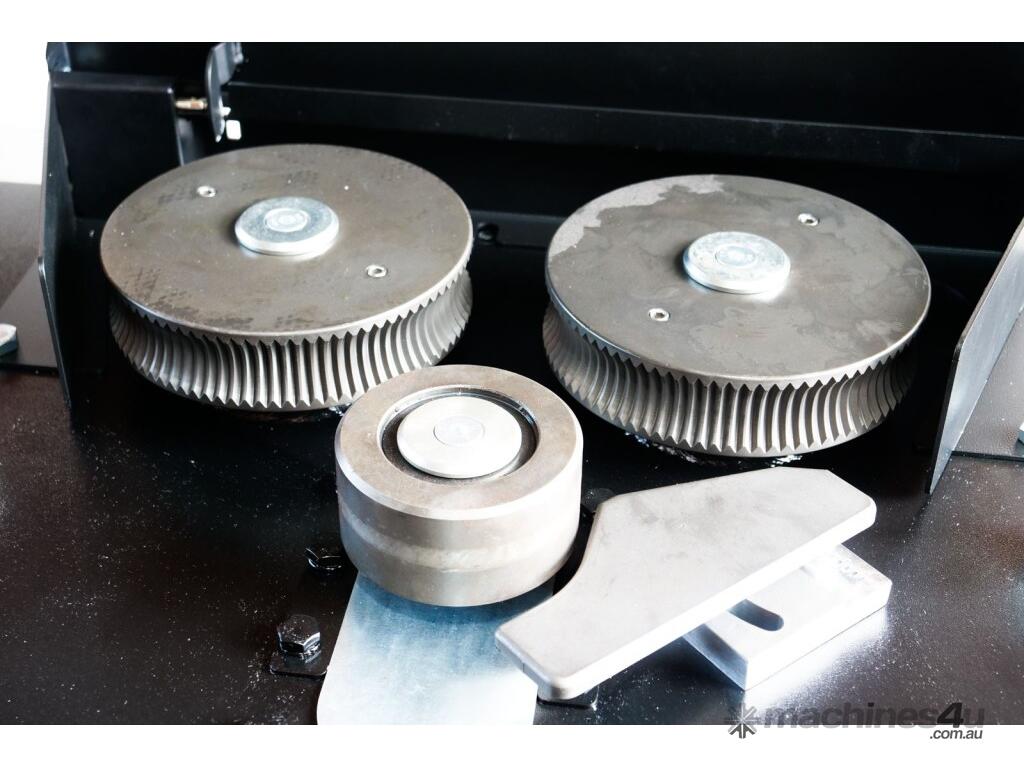

• Adjustable clamps for precise control of bending radius
• High accuracy and repeatability in spiral production
• Heavy-duty Italian construction for long service life
• Suitable for both workshop and industrial environments

Bending Capacity – SP22

(Material: R = 650 N/mm² | Speed: 20 RPM)

Bar Diameter Min Spiral Diameter Max Spiral Diameter
Ø6 mm 120 mm 600 mm
Ø8 mm 120 mm 600 mm
Ø10 mm 140 mm 900 mm
Ø12 mm 150 mm 900 mm

Bending Capacity – SP30
(Material: R = 650 N/mm² | Speed: 20 RPM)

Bar Diameter Min Spiral Diameter
Ø6 mm 160 mm
Ø10 mm 180 mm
Ø14 mm 200 mm
Ø18 mm 240 mm
Ø20 mm 280 mm
Ø22 mm 350 mm
Ø26 mm 500 mm
Ø28 mm 800 mm
Ø30 mm 1300 mm
Ø32 mm 1600 mm
Ø34 mm 2000 mm
Ø36 mm 3000 mm
Applications

• Reinforcing steel fabrication workshops
• Precast concrete manufacturers
• Infrastructure and tunnel construction
• Civil engineering contractors
• Reinforcing steel processing plants

Built for Precision & Production

The TECMOR SP Series spiral machines are engineered to provide accurate and repeatable spiral production, allowing operators to produce reinforcing cages and curved steel efficiently.

The SP22 is ideal for smaller diameter spirals and workshop use, while the SP30 is designed for larger diameter bars and higher production applications.

Made in Italy

TECMOR has been manufacturing rebar processing machinery for over 60 years, supplying high-quality and durable equipment to the global construction industry.

Available in Australia & New Zealand

A&S Machinery Sales Pty Ltd supplies TECMOR reinforcing steel processing machinery including:

• Spiral machines
• Rebar bending machines
• Rebar cutting machines
• Combined cut and bend machines

Contact A&S Machinery Sales today for pricing, availability and specifications.
