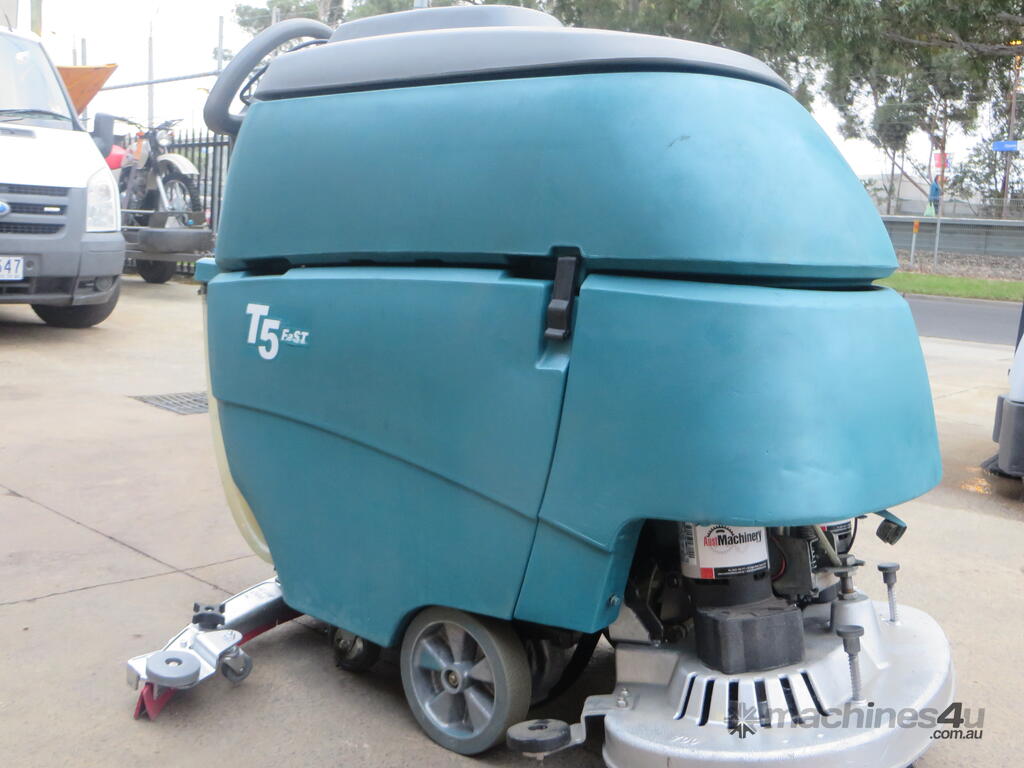

Great machine with low hours ready for work
98 hours
Set new standards of cleaning with the versatile T5 scrubber, enhanced by Tennant innovative scrubbing technologies:
Meet your facility’s needs with disk or cylindrical scrubbing, ranging from 24 in / 60cm to 32 in / 80 cm cleaning paths
Increase productivity with optional sealed batteries that provide up to 4.5 hours of run time and eliminate hazardous leaking in your environment
Clean up to three times longer with a single tank of water with innovative ec-H2O or FaST technologies that use 70% less water
Key machine features of the T5 walk behind floor scrubber:

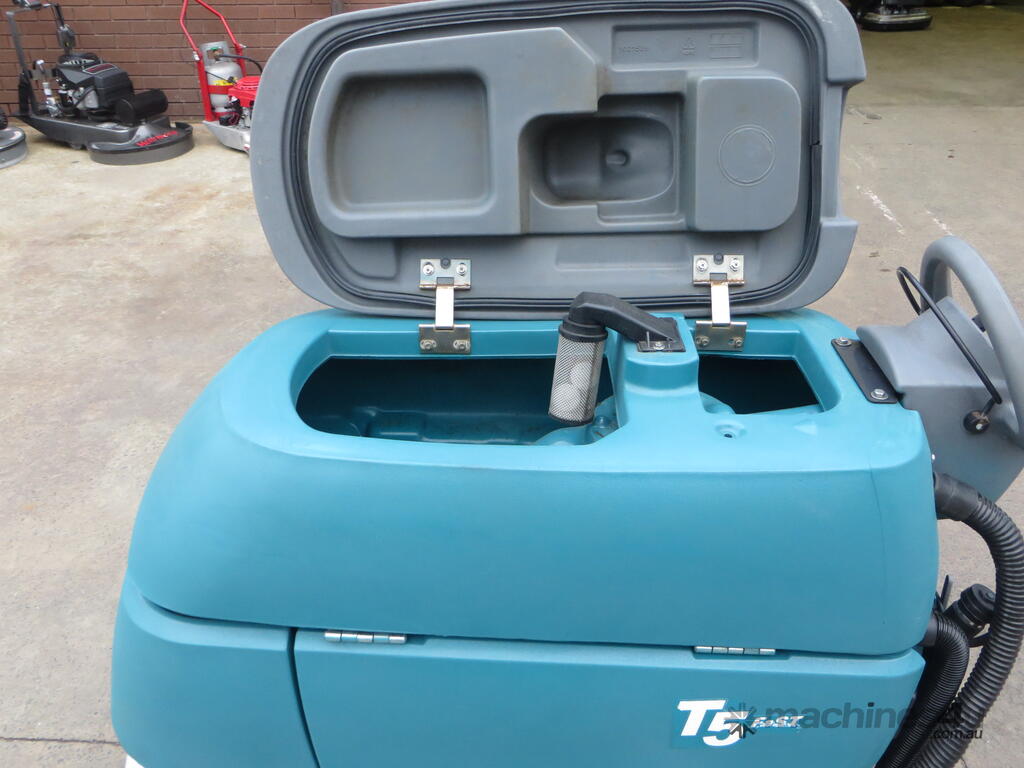

Hygenic® tank can reduce mold, bacteria, and odors with easy access for cleaning
QA Controls® provide quality assurance regardless of operator experience
Superior squeegee design provides maximum solution recovery, even on 180 degree turns
ennant T5 Floor Scrubber Specs:
Tennant T5 Scrubbing System
Cleaning path 24 in / 600 mm 26 in / 650 mm
28 in / 700 mm 32 in / 800mm
32 in / 800 mm
Solution tank capacity 22.5 gal / 85 L 22.5 gal / 85 L
Productivity (per hour)
Theoretical max (24 in) 26,400 ft2 / 2,500 m2 (26 in) 28,600 ft2 / 2,700 m2
(28 in) 30,800 ft2 / 2,900 m2 (32 in) 35,200 ft2 / 3,300 m2
(32 in) 35,200 ft2 / 3,300 m2
Estimated actual* (24 in) 17,875 ft2 / 1,660 m2 (26 in) 19,200 ft2 / 1,790 m2
(conventional) (28 in) 20,800 ft2 / 1,900 m2 (32 in) 24,000 ft2 / 2,200 m2
(32 in) 24,000 ft2 / 2,200 m2
Estimated actual* (24 in) 20,075 ft2 / 1,900 m2 (26 in) 21,000 ft2 / 2,000 m2
(ec-H2O or FaST) (28 in) 22,750 ft2 / 2,100 m2 (32 in) 26,250 ft2 / 2,400 m2
(32 in) 26,250 ft2 / 2,400 m2

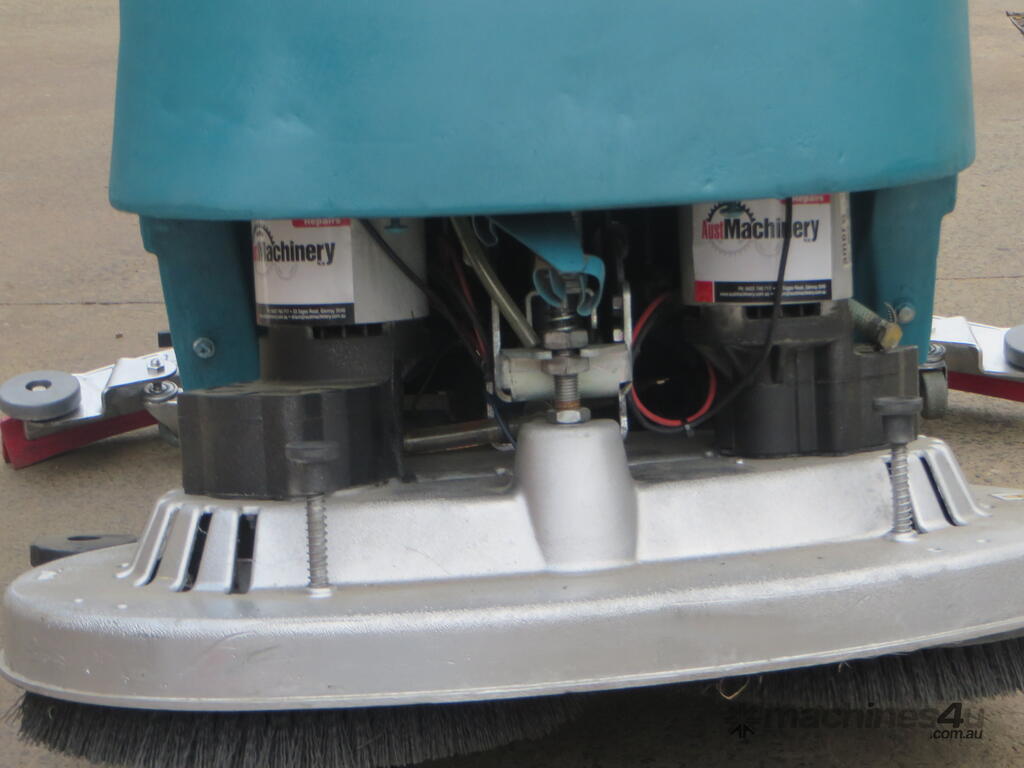

Scrub motors (2) 0.75 hp / 0.56 kW (2) 0.63 hp / 0.47 kW
Scrub motor speed 220 rpm 1500 rpm
Brush/pad down pressure (3 settings) 40, 80 and 120 lb / 18, 36 and 54 kg
Recovery System
Recovery tank capacity (includes demisting chamber) 27 gal / 102 L
Vacuum motor 0.85 hp / 0.64 kW, 3-stage
Waterlift 62 in / 1,570 mm
Propelling & Power System
Propel speed (variable to)
Transport 2.7 mph / 4.3 km/h
Scrubbing 2.5 mph / 4.0 km/h

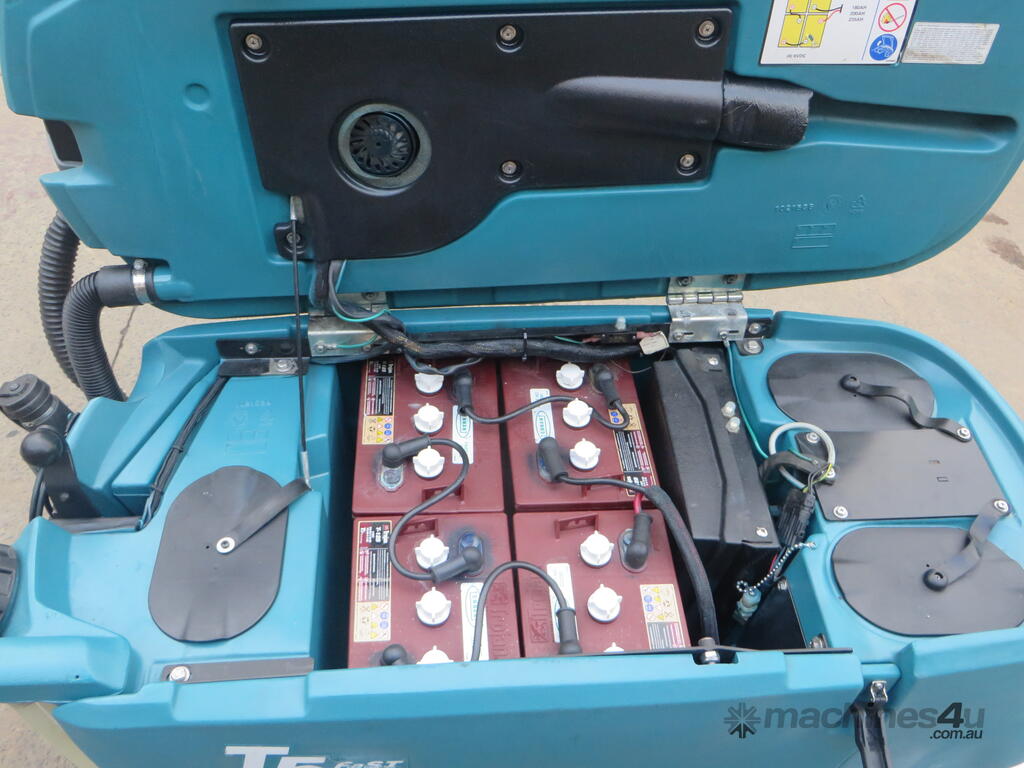

Batteries – 24 V system (4x 6 V batteries), charger included
Standard run time** 6 V, 235 Ah / up to 5.5 hours
Optional sealed (AGM) run time** 6 V, 200 Ah / up to 4.5 hours
Gradeability (ramp climb)
Scrubbing/transporting (full) 3.0° / 5.0°
Trailer ramps (empty) 11°
Dimensions/Weights
Product length (24 in) 52.9 in / 1,340 mm (26 in) 55.4 in / 1,410 mm
(28 in) 55.7 in / 1,410 mm (32 in) 55.4 in / 1,410 mm
(32 in) 58.4 in / 1,480 mm
Product width (scrub head) (24 in) 25.4 in / 640 mm (26 in) 28 in / 710 mm
(28 in) 29 in / 740 mm (32 in) 34 in / 860 mm
(32 in) 33 in / 840 mm
Squeegee width (24 in) 35.7 in / 910 mm (26 in) 41.3 in / 1,050 mm
(28 in) 41.3 in / 1,050 mm (32 in) 46.6 in / 1,180 mm
(32 in) 46.6 in / 1,180 mm
Product height 44 in / 1,120 mm
Product weight (with batteries) (24 in) 580 lb / 263 kg (26 in) 621 lb / 282 kg
(28 in) 609 lb / 276 kg (32 in) 629 lb / 285 kg
(32 in) 621 lb / 282 kg
Sound level*** (operator’s ear) 67 dBA 68 dBA
