TF-750S / TF-900S Radia Arm Drills

TF-750S / TF-900S Radia Arm Drills

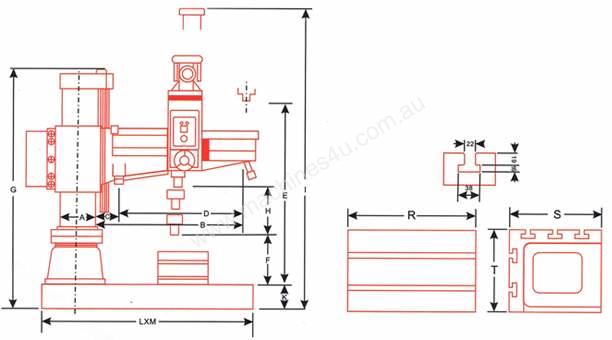

Technical Specs:
Drilling Steel Ø38(11/2")
Drilling cast iron Ø50(2")
Tapping Steel Ø19(3/4")
Tapping cast iron Ø25(1")
Boring Steel Ø75(3")
Boring cast iron Ø105(4 1/8")
Spindle stroke H 200(7 7/8")
Size of morse Taper NO.4
Spindle speed 88-1500(6)
Spindle Feeds (0.005/0.09/0.15) 0.002"/0.0035"/0.006"
Column Diameter A 210(8 1/4")
Max.distance,column sarace spindel center B 775(30 1/2") /920(36 3/16")
Min.distance,column sarace spindel center C 290(11 3/8")
Horiontal Travel of Meadstock D 485(19 1/8") /630(24 13/16")
Max.distance,base to spindel E 1110(43 3/32")
Min.distance,base to spindel F 282(11 3/32")
Overall height of column G 1850(72 7/8")
Machine height of column I 2175(85 11/16")
Dimensions of hase [L x H xK] 1280 x 640 x 150
Effective area of table [ R x S x T ] 550 x 405 x315
Spindle drive motor [HP] 2HP
Arm elevation motor [HP] 1HP
Coolant pump [HP] 1/8HP
Oil motor [HP]
Inverter
Net weight -Approx [kg] 1100kgs / 1170kgs
Groos weight-Approx [kg] 1200kgs / 1270 kgs
Measurement [ L x W x H ] 1430 x 820 x 2060/ 1580 x 820 x2060
