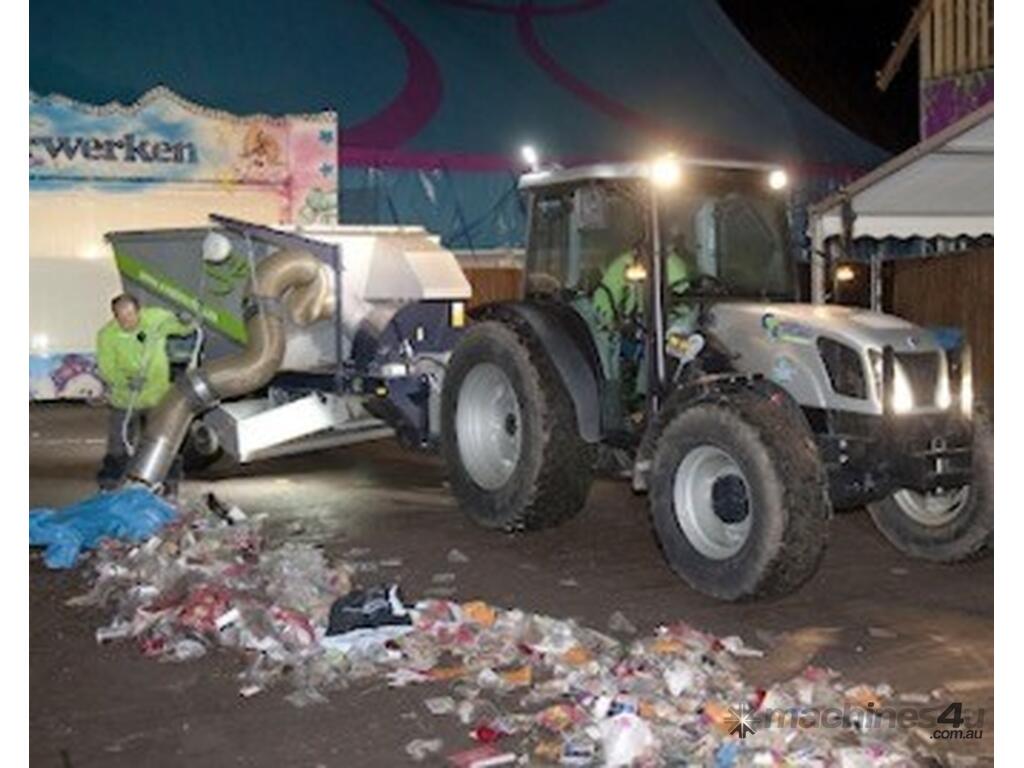

The all new Trilo Vacuum Sweeper S4 is the machine to clean your open areas of litter, leaves or grass clippings. The new design is the result of many years of experience as the leading manufacturer in this market. In creating the S4 the design team have worked hard to meet the requirements of councils, contractors and greenkeepers in an economically challenging environment.
The TRILO towed heavy duty mowing and collection systems are suitable for use on verges, grasslands, heathlands and for airport grass management. The Heavy Duty flail head is made to cut long grass and small branches. In combination with the brush it is possible to cut and collect in one single pass.
TRILO finishing mowing shaft and the verti-cut shaft is made for lighter mowing and verti-cutting collecting in areas where weight and size of the machines is a major factor. This mower shaft can be equipped with twisted flail, Y shaped blades or with a combi blade (y blade in combination with verti-cut blade).

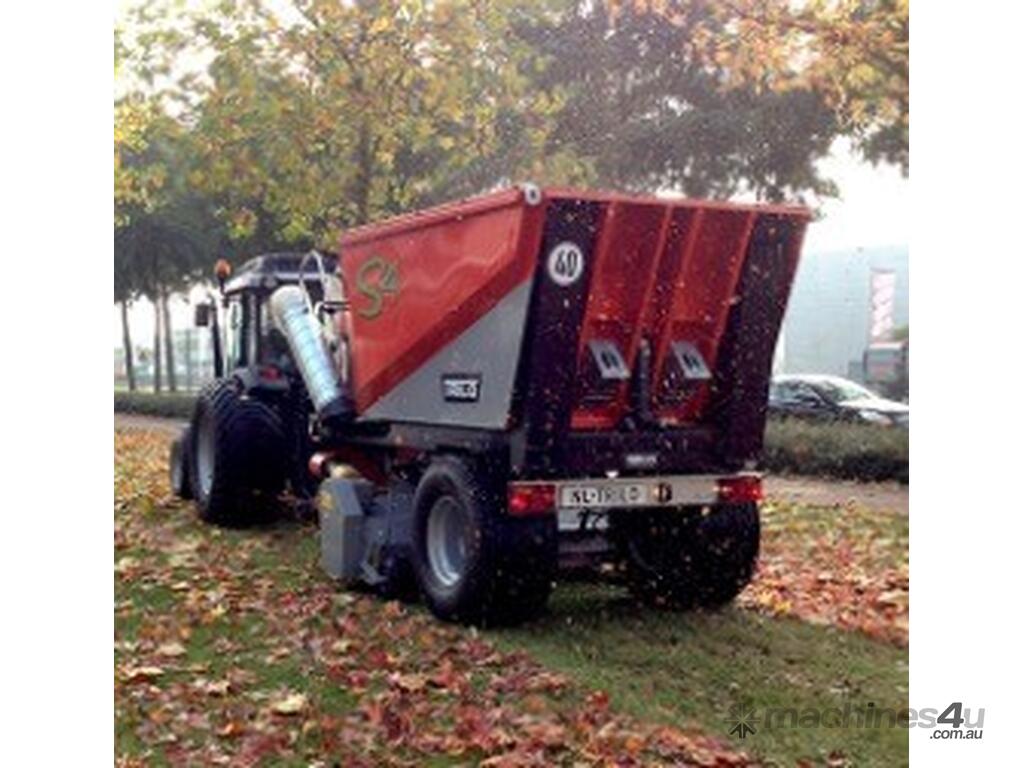

The Trilo S4 is a powerful yet compact machine having wide tyres, which makes it perfectly suitable for use at places where manoeuvrability and low ground pressure are required. A mid-range compact tractor can be used to form an efficient, compact and economical combination with the machine. To cope with the amount of material collected in a 4 m³ container, the machine also features a 2.23 meter high tip facility meaning it can unload into the back of a truck or skip, keeping downtime to minimum.
Technical specifications
Fan diameter: Ø 850 mm
Number of fan blades: 4
PTO output: >58 Kw – 80 Hp
PTO: 540 / 1000 RPM
Drive: Power take-off
Required hydraulics: 180 bar - 40 l/min.
Required hydraulic connections: 1 x double acting
Measurements (LxWxH): 4,75 x 2,05 / 2,35 x 2,23 m
Air capacity: 315 m3/min.
Noise level: 84 dB(A)
Loading capacity: 4 m3
Wander hose: Ø 250 mm, length 5 + 1 meter
Working width: 1,80 / 2,10 / 2,40 m
Tyres: 500/50R17
