If you want the best in Panel Saws, You Want a Casolin Panel Saw!
The Casolin Astra 500 Range is now available from Tuckwell Machinery Pty Ltd with 12 month warranty
Casolin Panel Saws feature a patented sliding table design that others can only dream of, the smooth motion, the distinctively solid feel and the extreme accuracy put the Casolin range miles ahead of the competition.
100% Italian Manufacture means long lasting quality. The Casolin saws have been manufactured in Italy since their creation, no cheap offshore “under license” components here just 100% Italian quality & perfection.
The Astra 500 5 AXIS Panel Saw offers the famous Casolin Chromed Rod sliding table for the smoothest operation for a life time. Choice of 2600, 3200, 3800, 4000 & 5000mm Sliding Tables all on chromed rods and a huge 400mm wide. There is no better sliding table on the market.

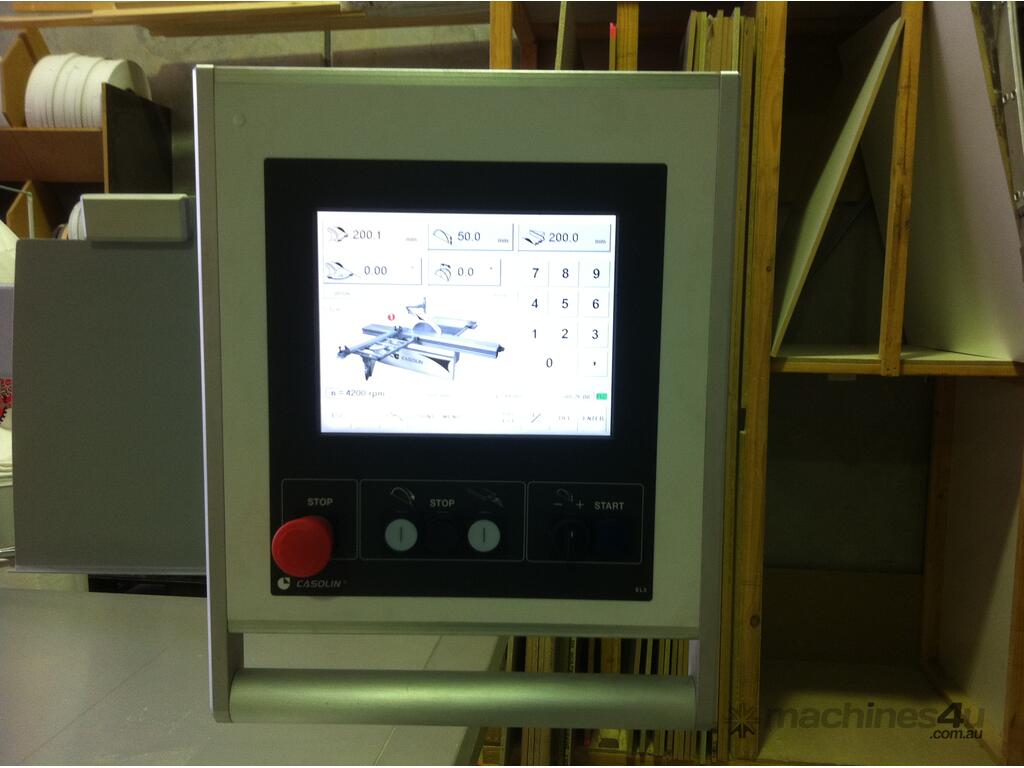

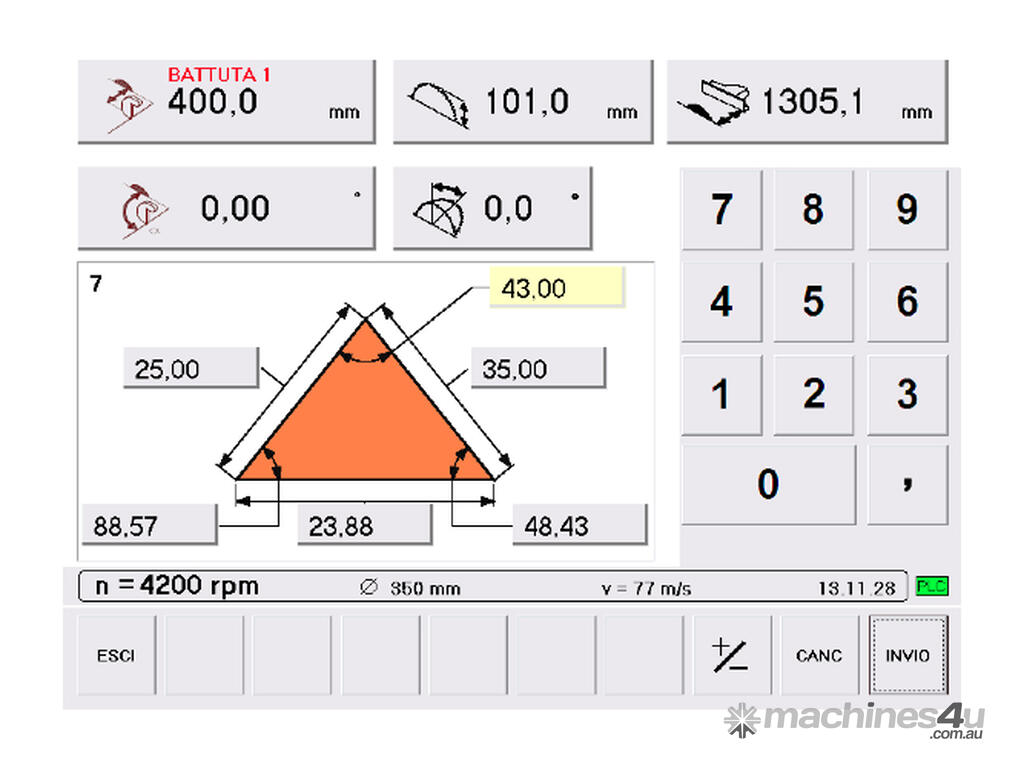

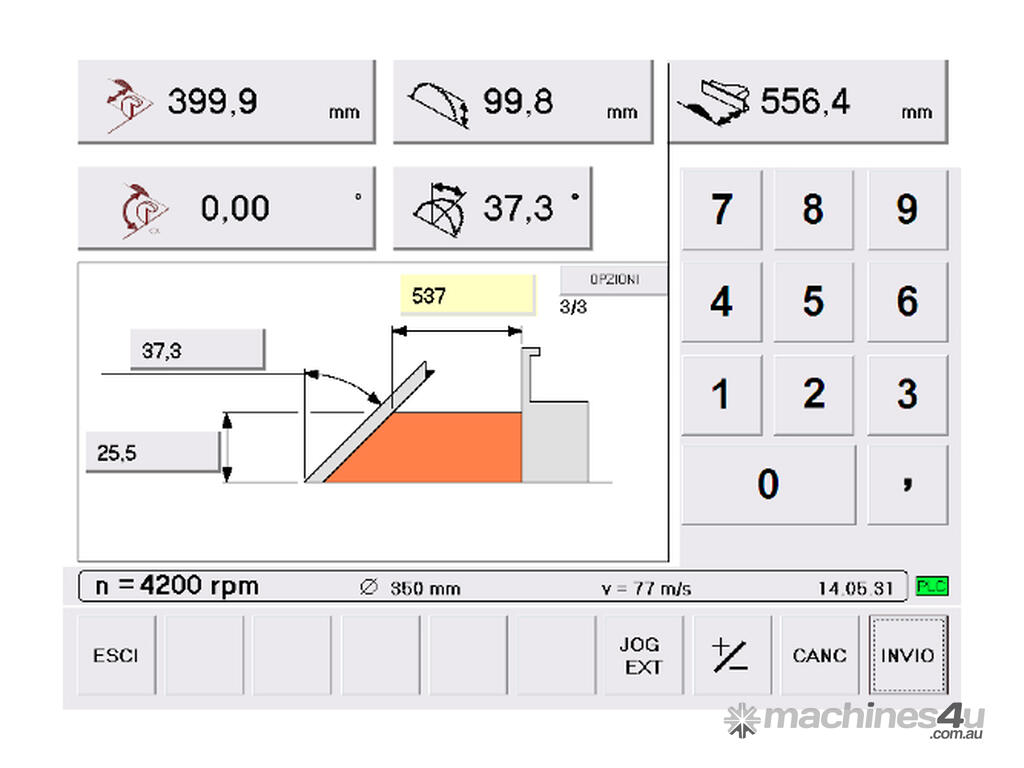

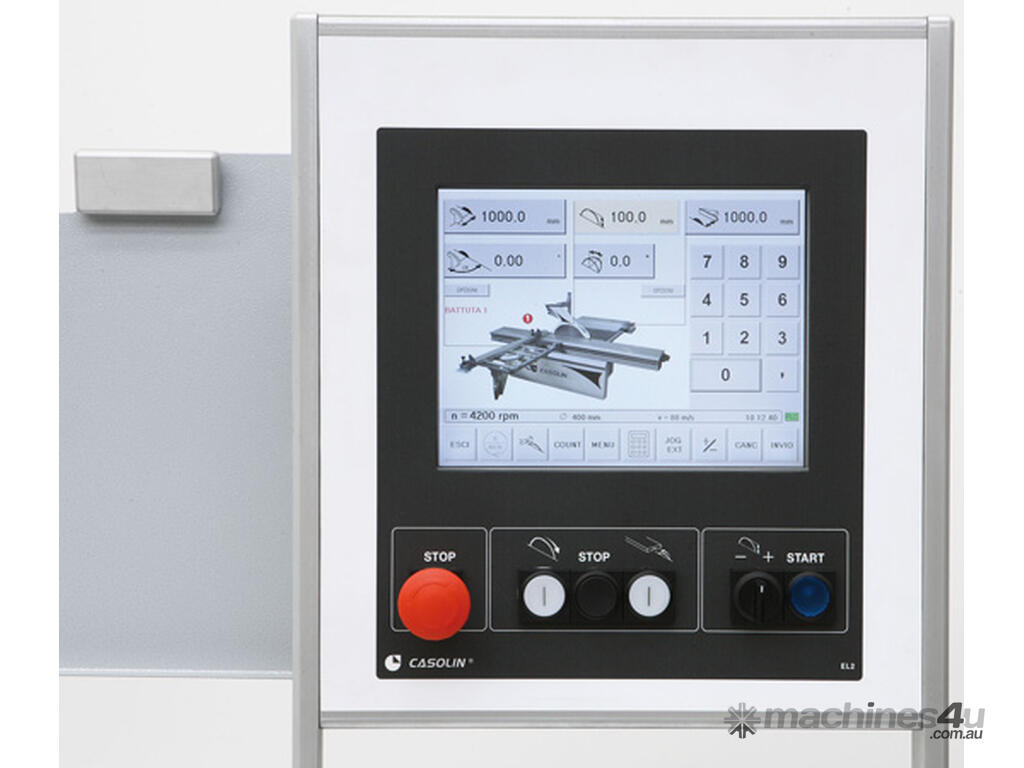

Astra 5 AXIS Overhead Touch Screen Control Panel, features HD Display, Programmable Memory, Calculator & Automation.
5 Axis Astra Over Head Touch Screen Control Panel which controls:
Rip Fence
Blade Height
Blade Angle
Scribe Height
Scribe Lateral

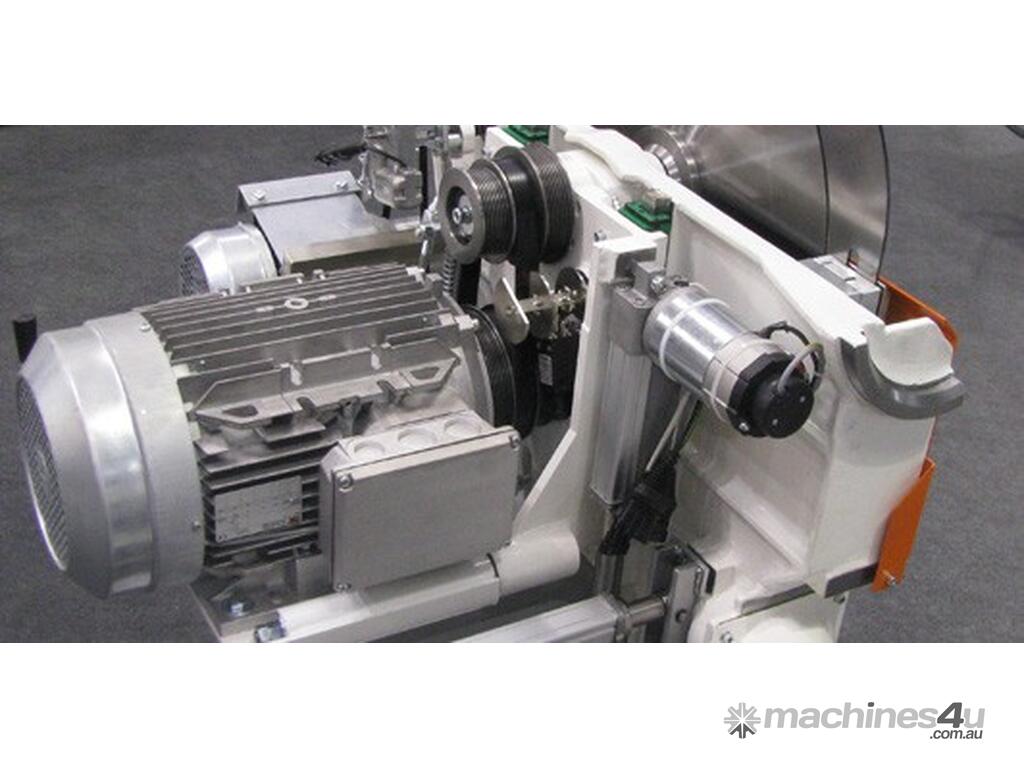

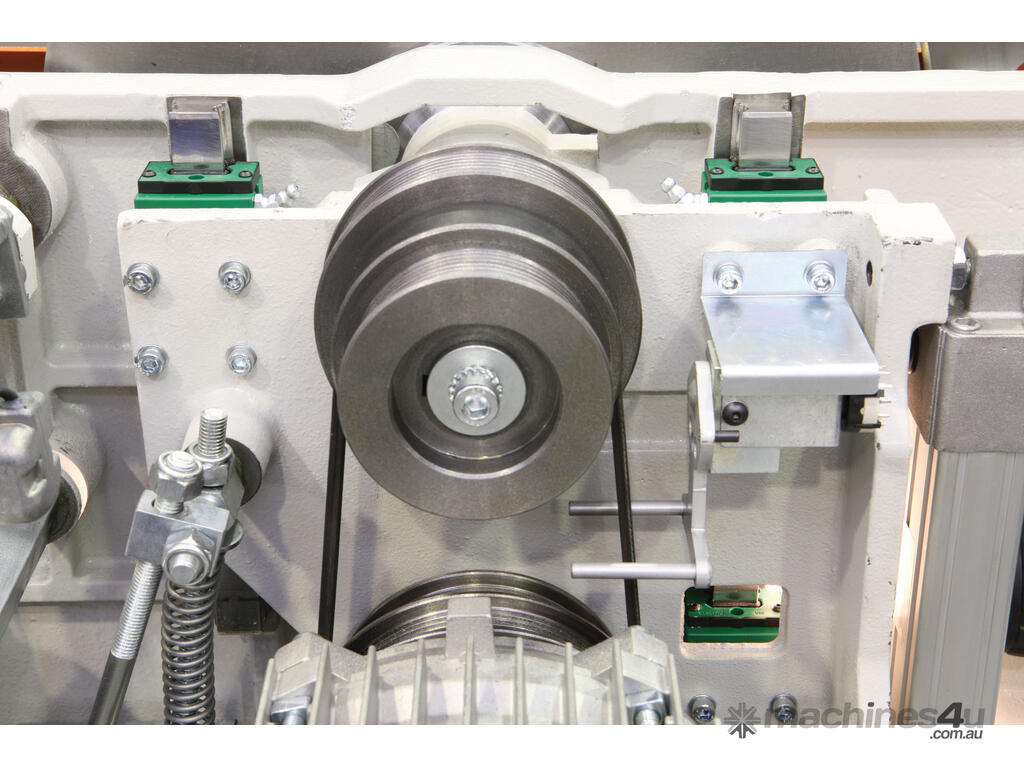

Heavy Cast Iron Sawing Unit with electronically balanced shafts to ensure vibration free operation. The heavy closed ribbed design of the saw unit ensures long lasting clean cutting operations. The saw unit moves on precision THK guideways and features a multi-v belt for superior grip. The saw unit can house a massive 500mm or optional 550mm Blade!

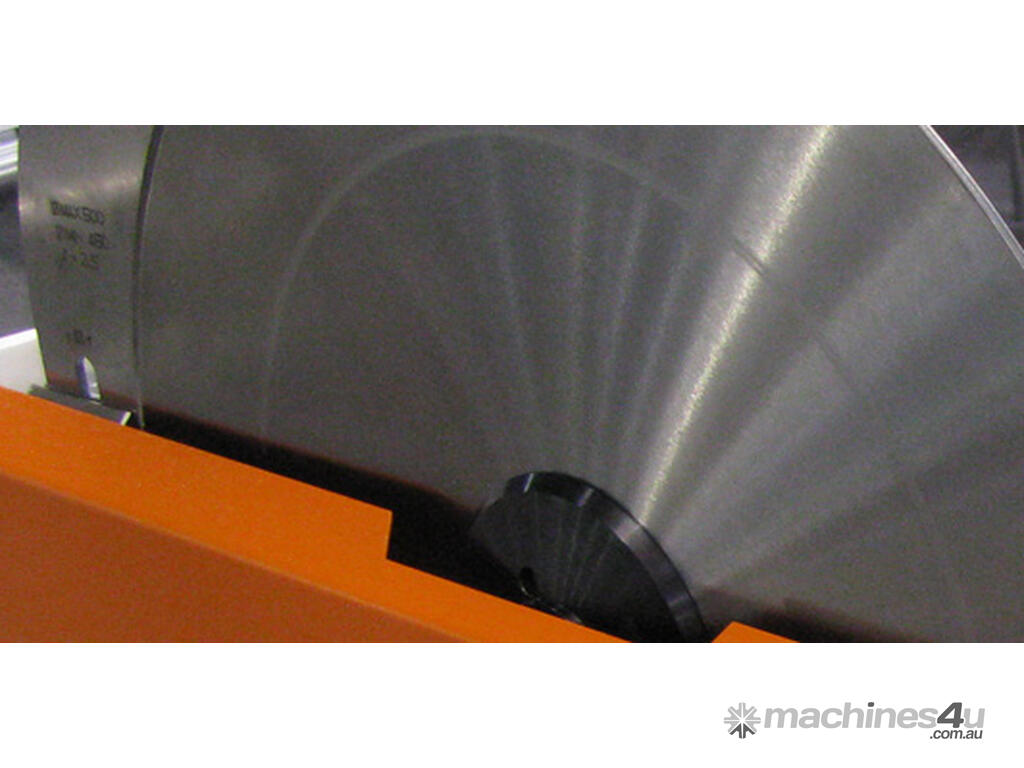

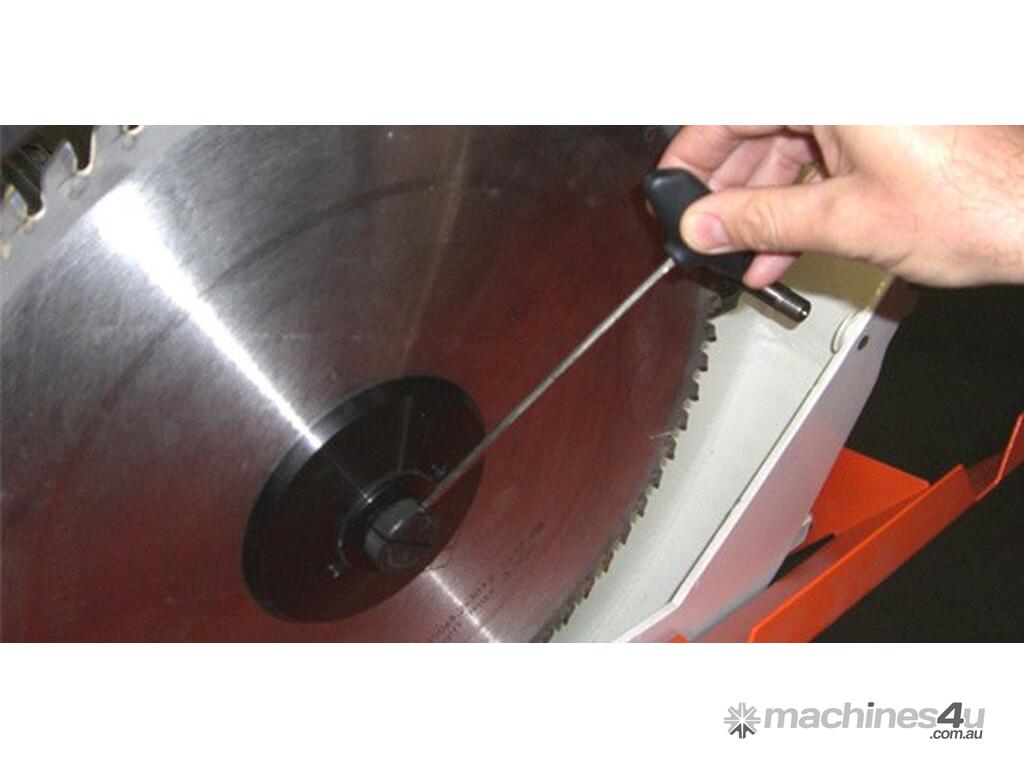

Quick Release clamping system, no nut is used to clamp the saw blade!
Programmable Scribe Unit which can either be jogged or programmed via the key pad. This scribe unit features a 1hp Motor and will only come into the working position when needed. Electronic setup saves huge amounts of setup time!

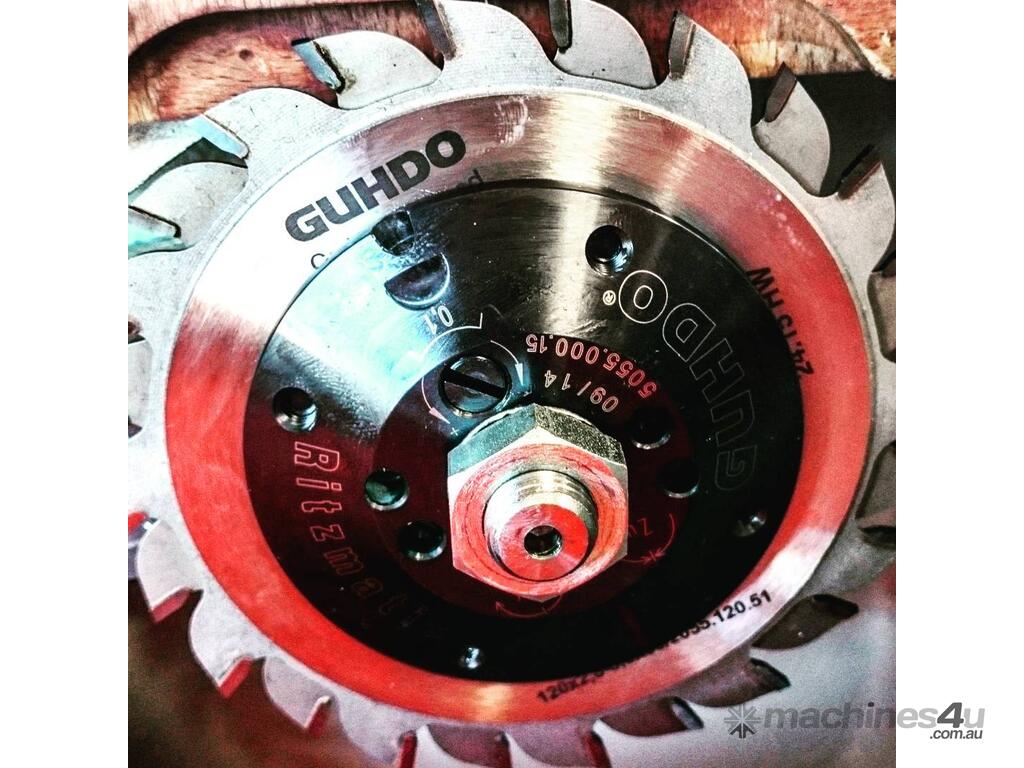

Shimless Scribe System - Quick & Easy Adjustments without Removing the Blade!
Programmable Rip Fence on THK Guideways and Ball Screw. This allows for quick and accurate positioning of the fence. It can also be programmed for repetitions. The Rip Fence is a heavy cast iron unit. Automatic compensation is standard when cutting angles.

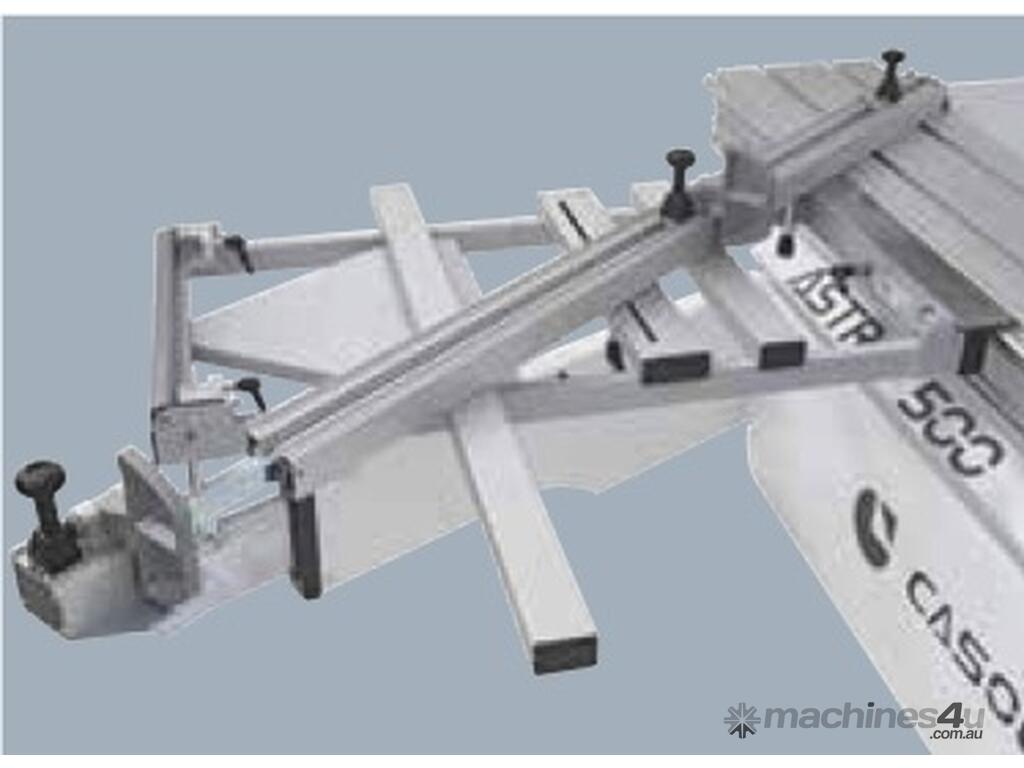

Trigonomical Cross Cut Table with Digital Readout of angle, both +45 & -45. This table has to be seen to be believed, no more mounting separate mitre fences to the sliding table, this table allows the operator to quickly release a clamp and find the right angle for the job. Automatic compensation for the cross cut stops is also included. (optional)

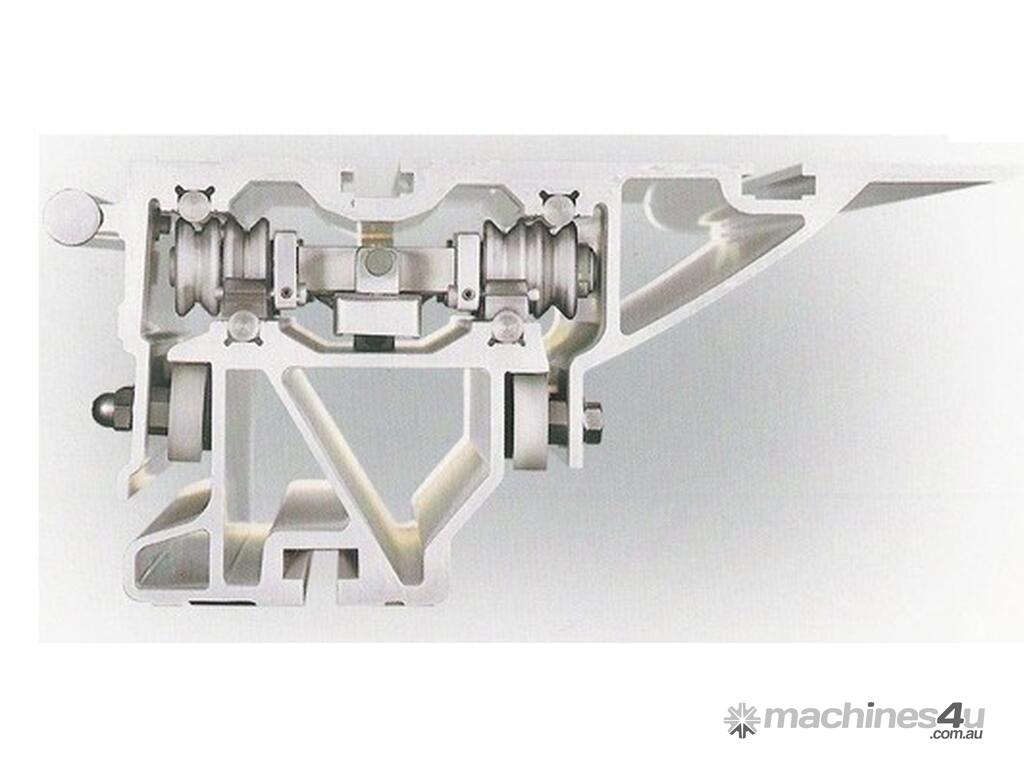

Casolin's Patented Out Rigger Assembly which features the same chromed rods and steel rollers which are used on the sliding table. This design eliminates nylon rollers which wear flat spots and create a lumpy sliding table.
Heavy Cast Iron Rip Table Assembly with aluminum extension tables for added strength.
Overhead Guard with extraction port to assist with operator comfort and keep your workspace tidy. The overhead guard can also be excluded for special operations.
Many, Many Options, let us customize a Casolin Panel Saw to suit you!
Specifications:
Max Main Blade: 500mm (550 opt)
Main Saw Blade Spindle: 30mm
Max Height of Cut: 200mm
Scribe Blade: 120mm
Scribe Blade Spindle: 20mm
Main Blade Speed: 3200, 4200 & 5000rpm
Scribe Blade Speed: 8,500rpm
Weight: Starts at 1300kgs
At Tuckwell Machinery, our commitment to excellence is unwavering, supported by a stellar team dedicated to providing your business with premium industry knowledge and the best machinery that will elevate your operations. Each machine, meticulously chosen by Tuckwell, undergoes rigorous scrutiny.Our range of brands are selected for speed, quality build, superior output and value for money for the Flat Panel, Aluminium, and Timber Industries. Benefit from our comprehensive workshop facilities and expertly-equipped service vehicles. Our devoted staff prioritizes your needs, ensuring unparalleled pre-sale and post-sale support. With fully trained technicians and a robust inventory of spare parts, we deliver prompt, reliable service with a personalized touch that sets us apart. Based in Brisbane, Queensland, Tuckwell Machinery is your ultimate partner in productivity and performance.Go to the Tuckwell showroom on Machines4u to see the full range of machinery that is available, send us a message about the item you are interested in or give Tuckwell a call. We are happy to answer any of your questions and provide you with professional advice for your business solution.
*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
