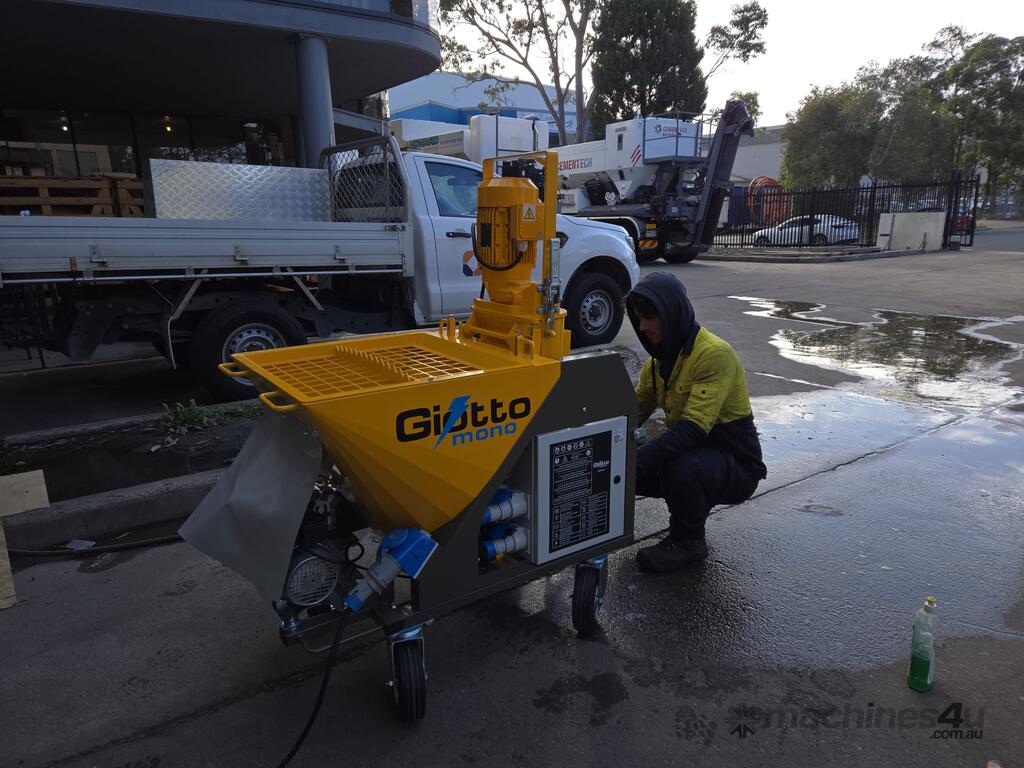

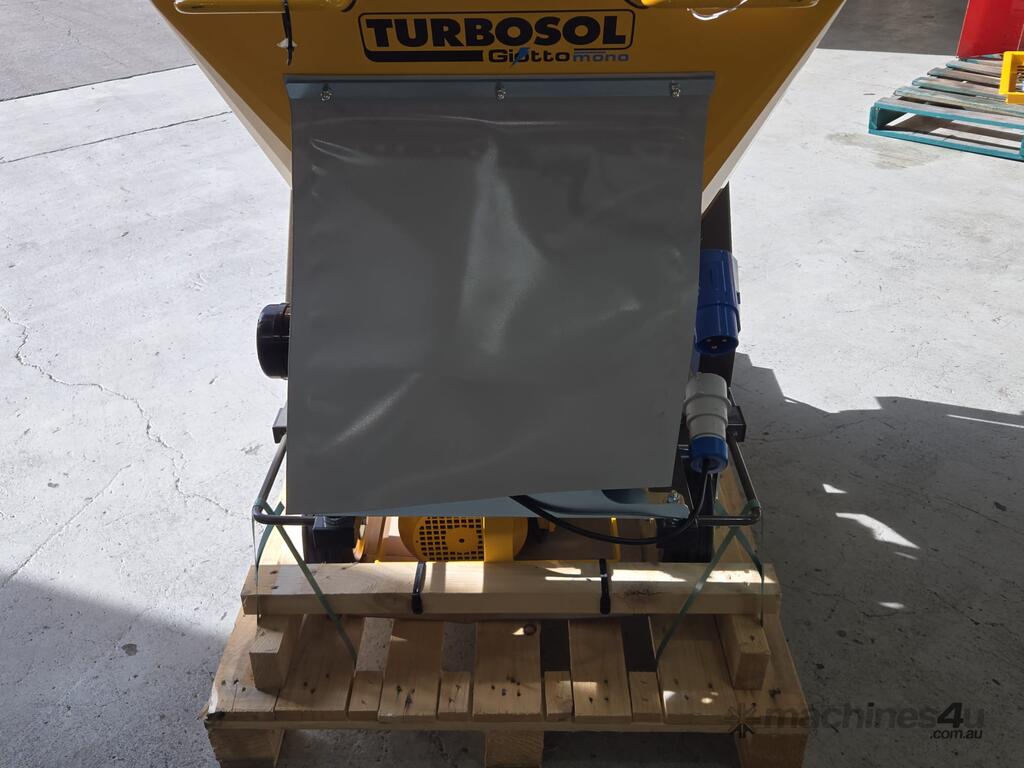

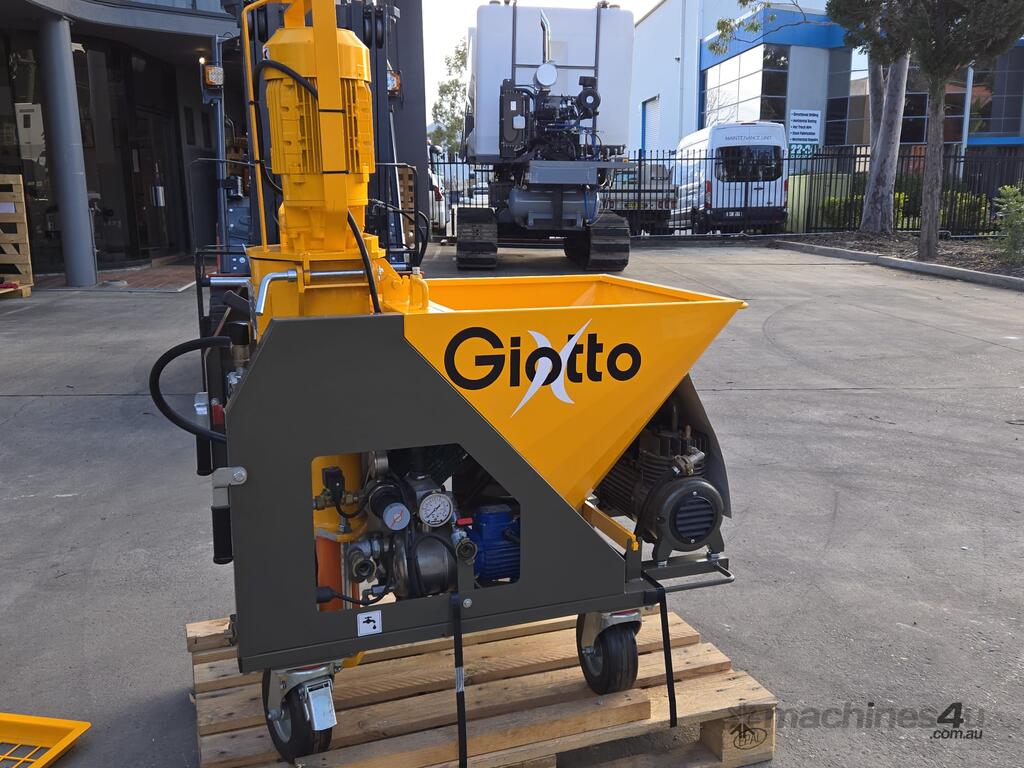

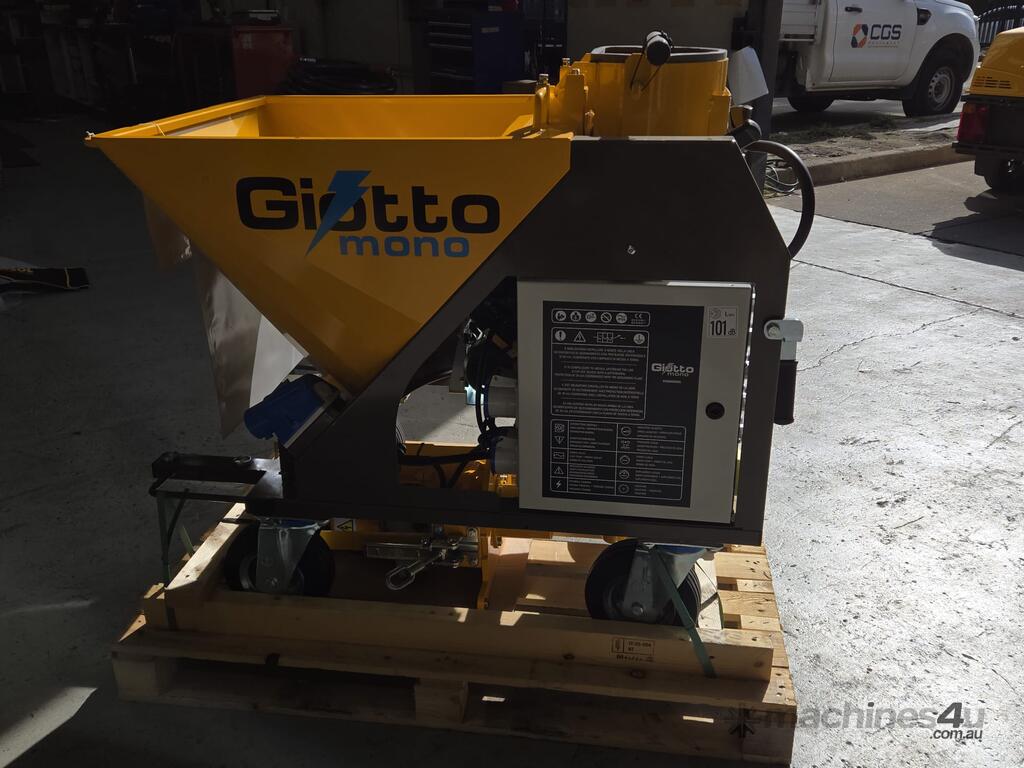

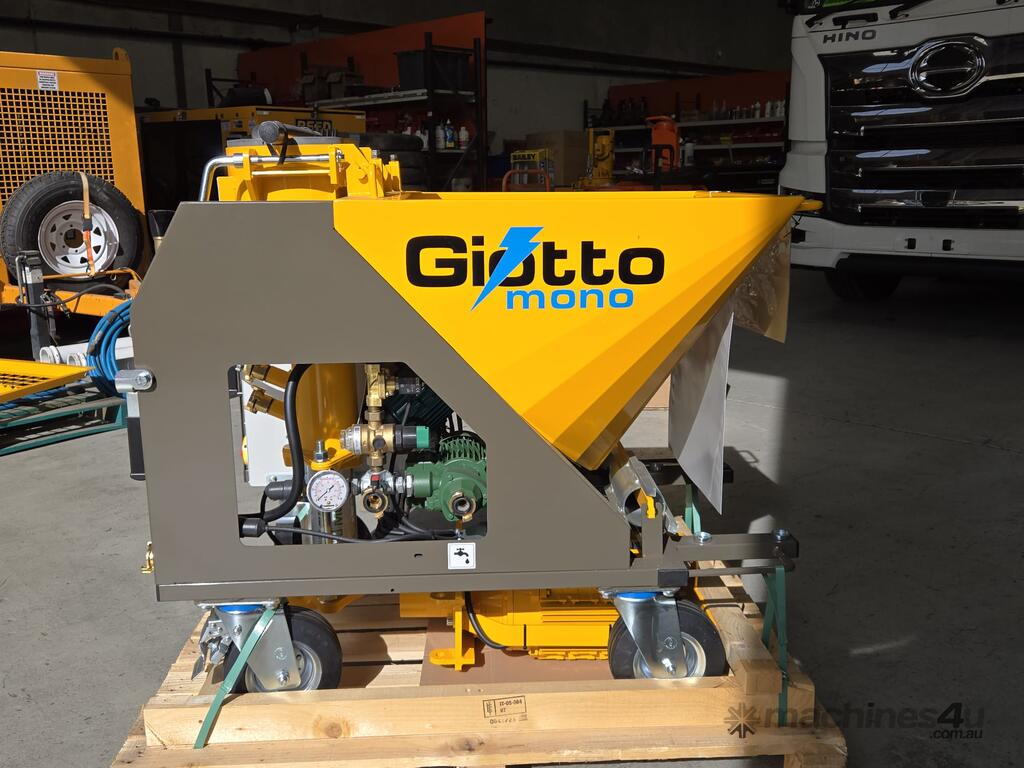

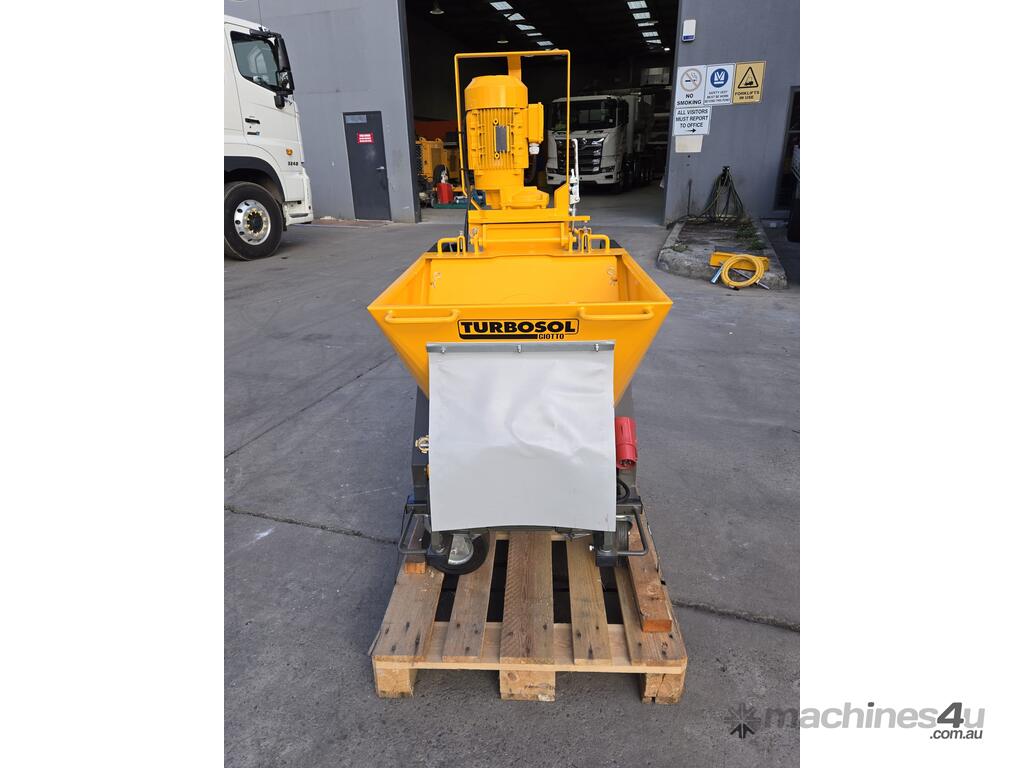

The Turbosol Giotto is a plastering machine ideal for dosing, mixing, pumping and spraying dry mix materials from a bag or silo. Available in single-phase or three-phase.

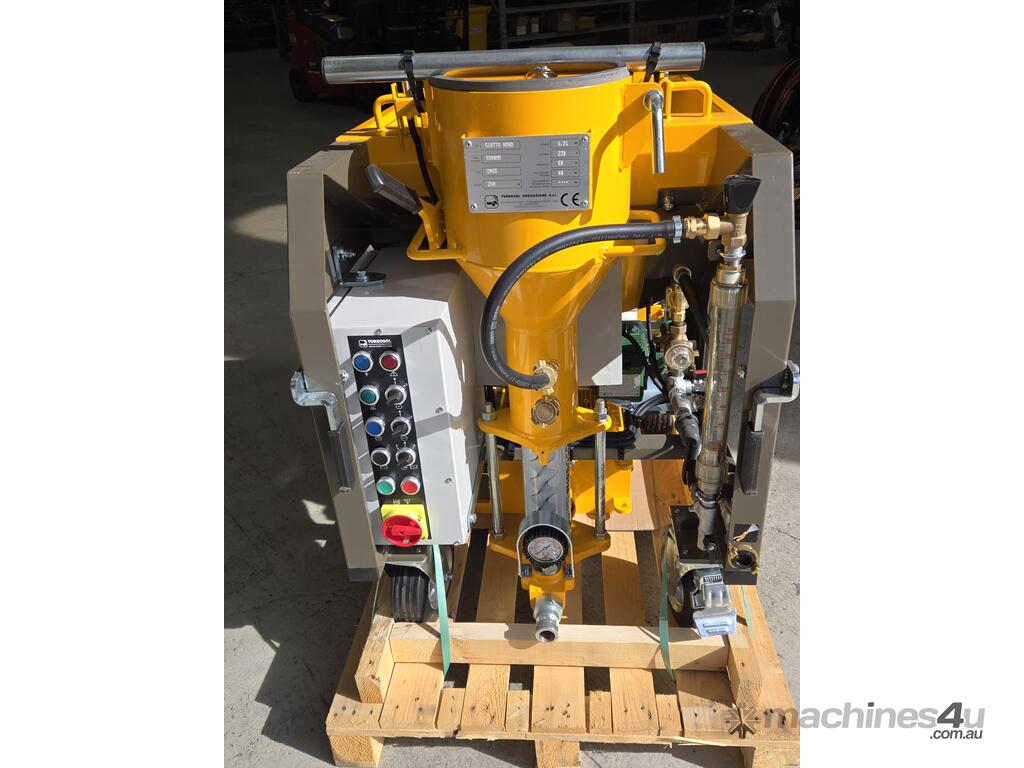

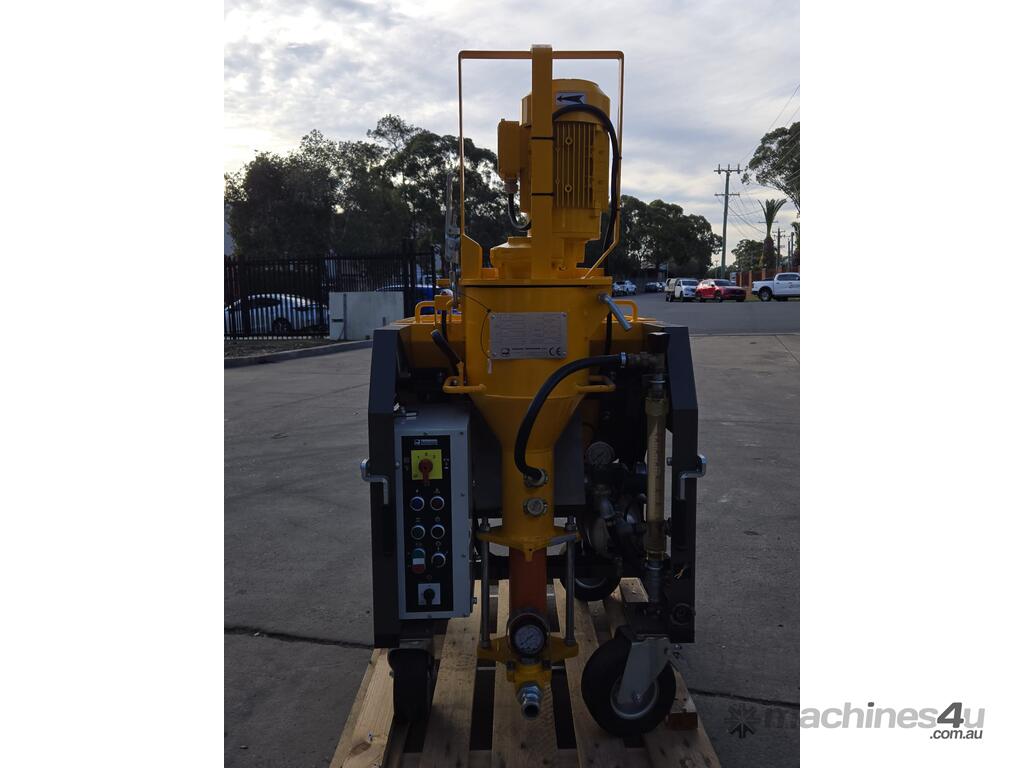

Built with a modular bent trolled steel body, equipped with a highly efficient geared motor and 3-speed frequency inverter. It can be disassembled into parts to facilitate transport.
Specifications:
• Power Supply - single or three phase
• Auxiliary controls tensions - 24 V
• Electric motor - 3.0 - 5.5 kW
• Worm gear pump - D5 2.5 Eco or D 6.3
• Max. aggregate size - 4 - 5 mm
• Output - 13–30 l/min
• Max. working pressure - 40 bar

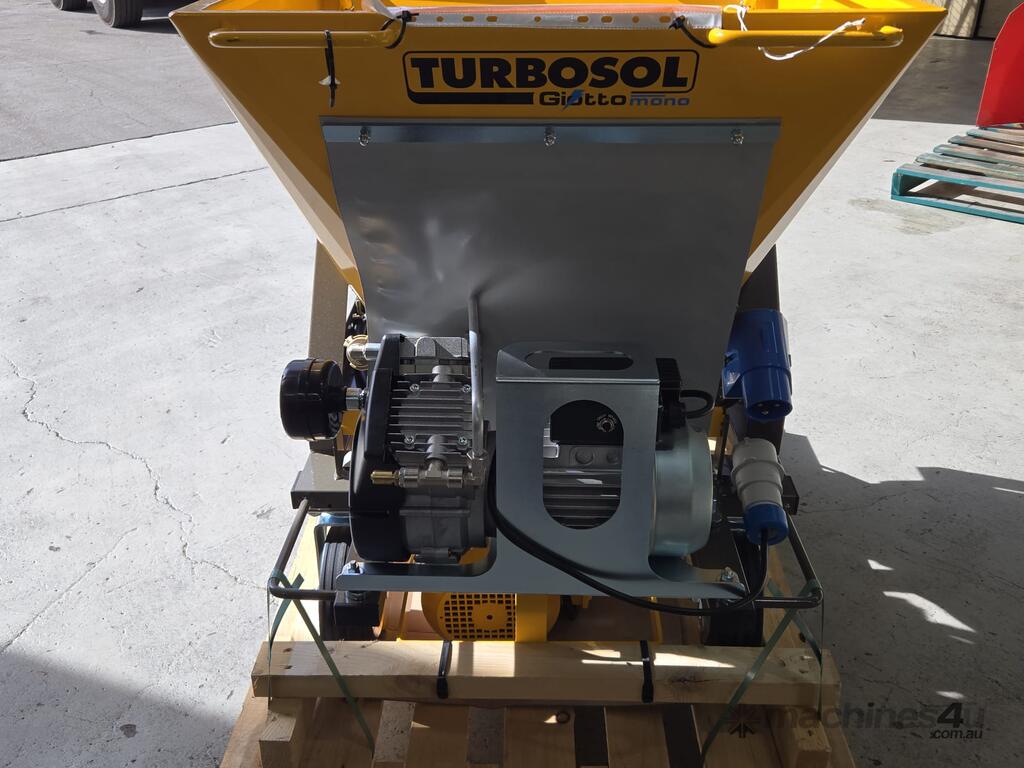

• Water pump 45 - 60 l/min

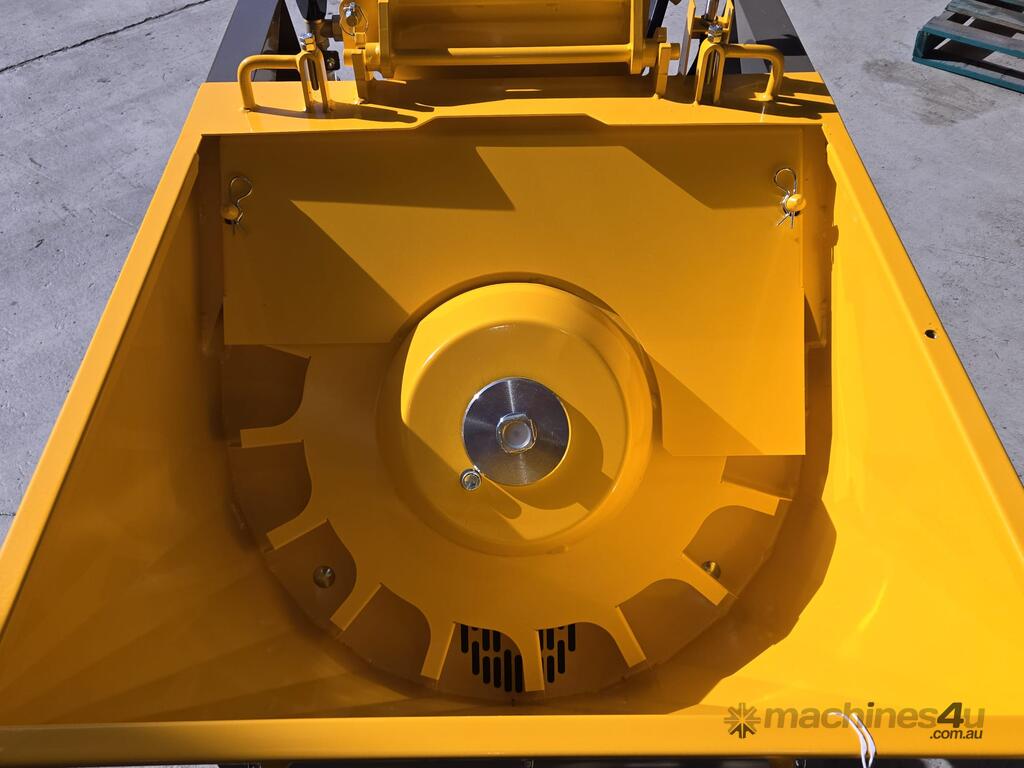

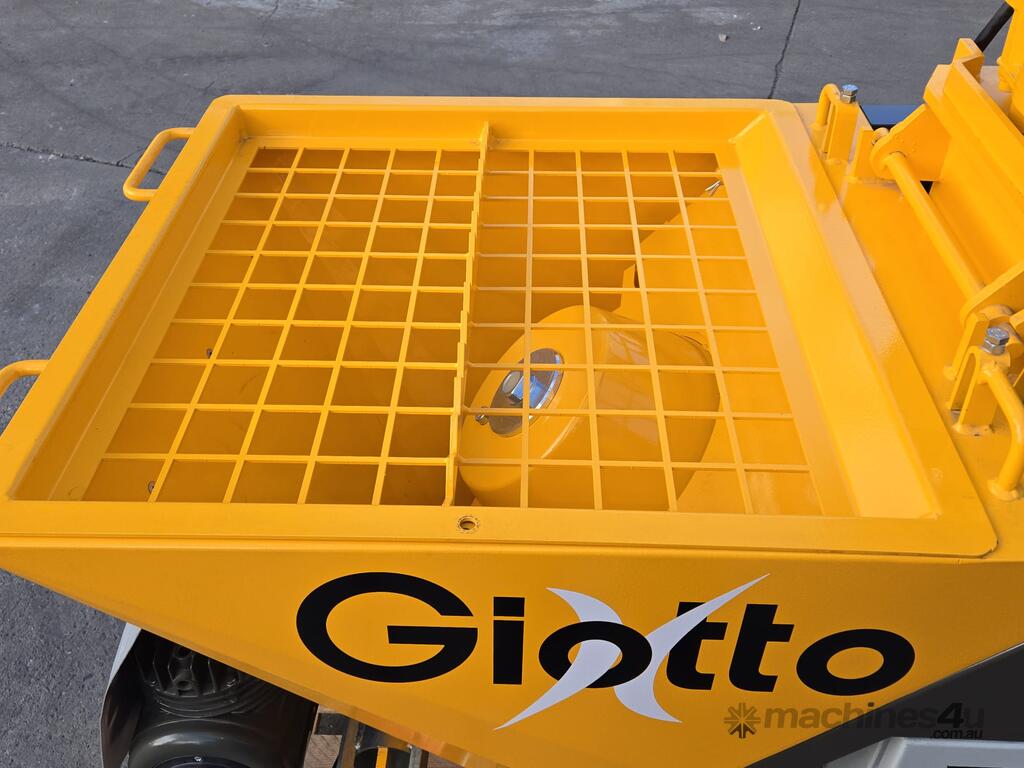

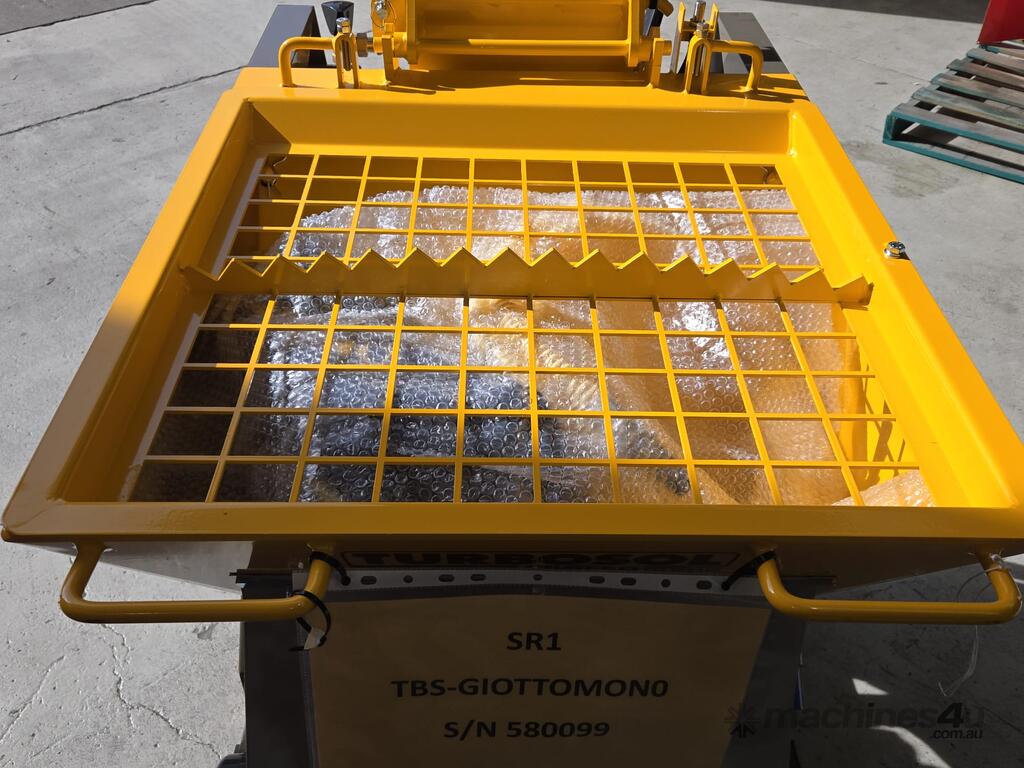

• Hopper capacity - 110 l
• Delivery Distance - Up to 20 - 40 m
• Delivery height - Up to 10 - 15 m
• Filling height - 99 cm
• Delivery manifold - Ø 25 mm
• Size (L x W x H) - 115 x 65 x 147 cm
• Weight - 247 kg
