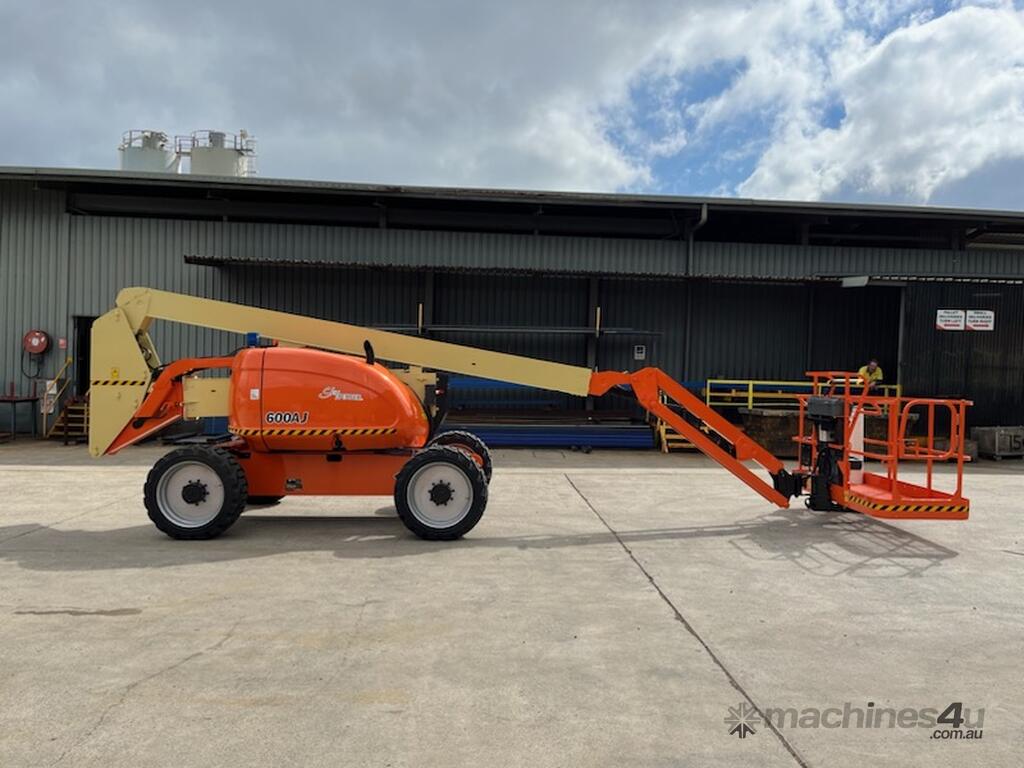

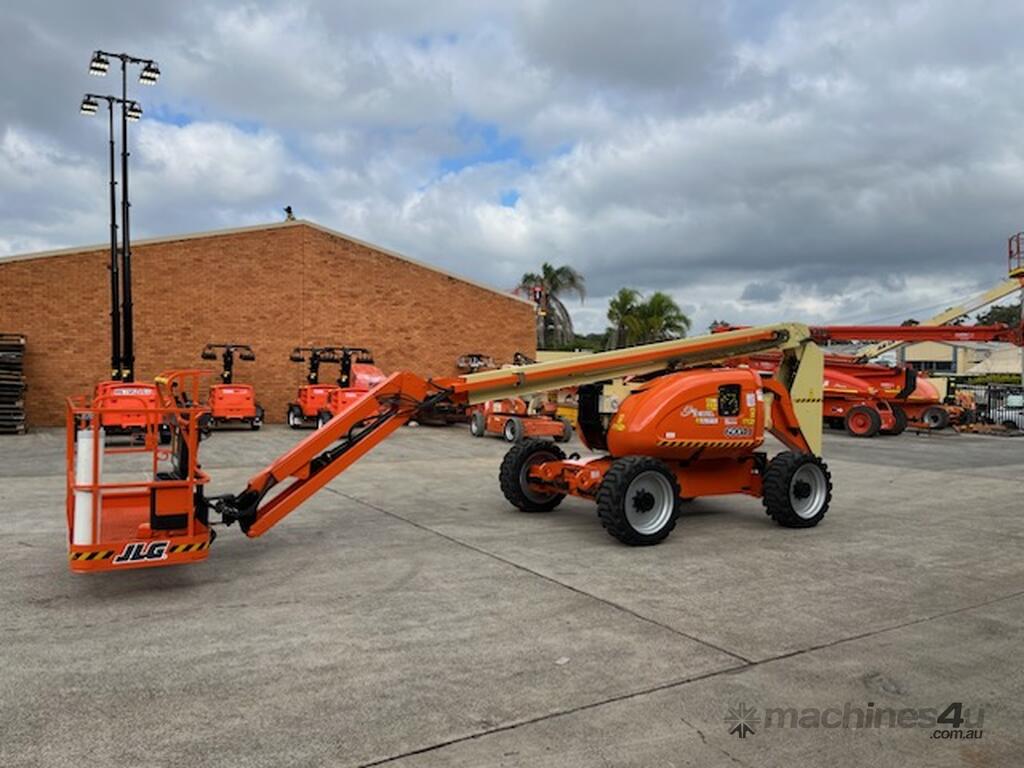

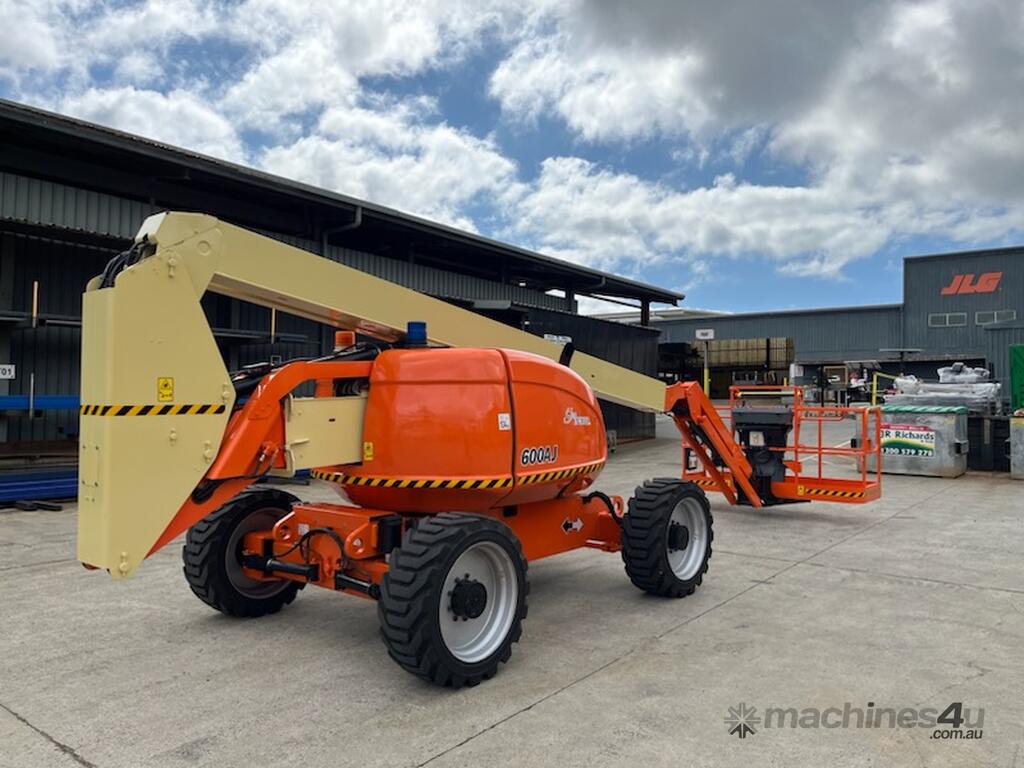

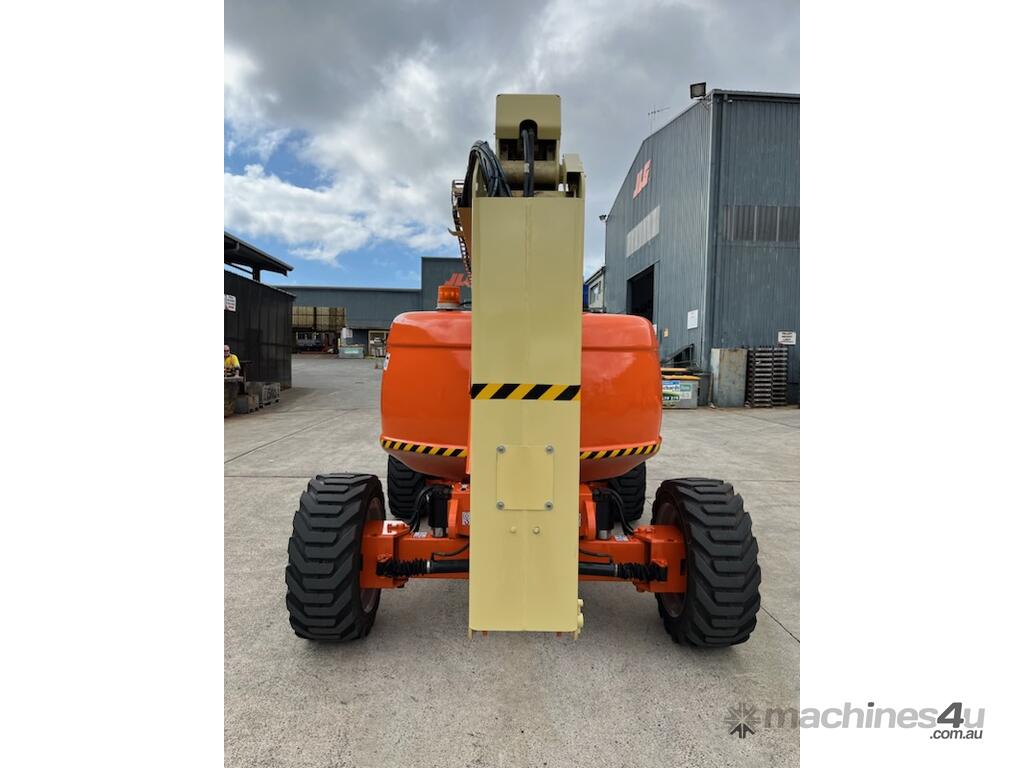

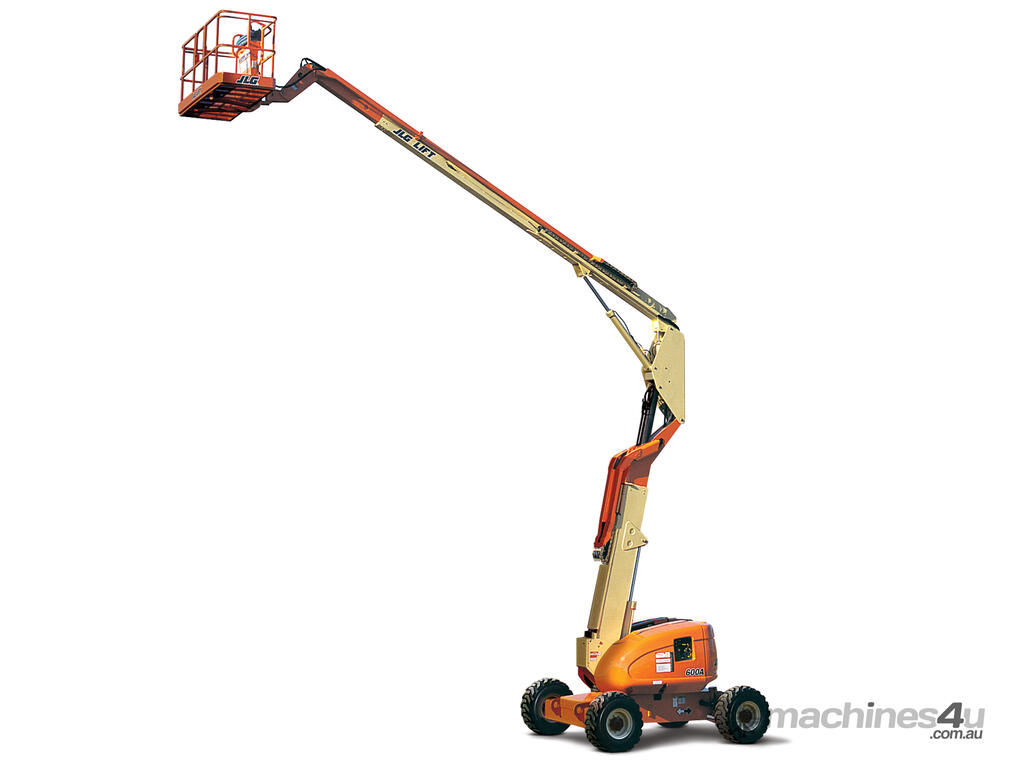

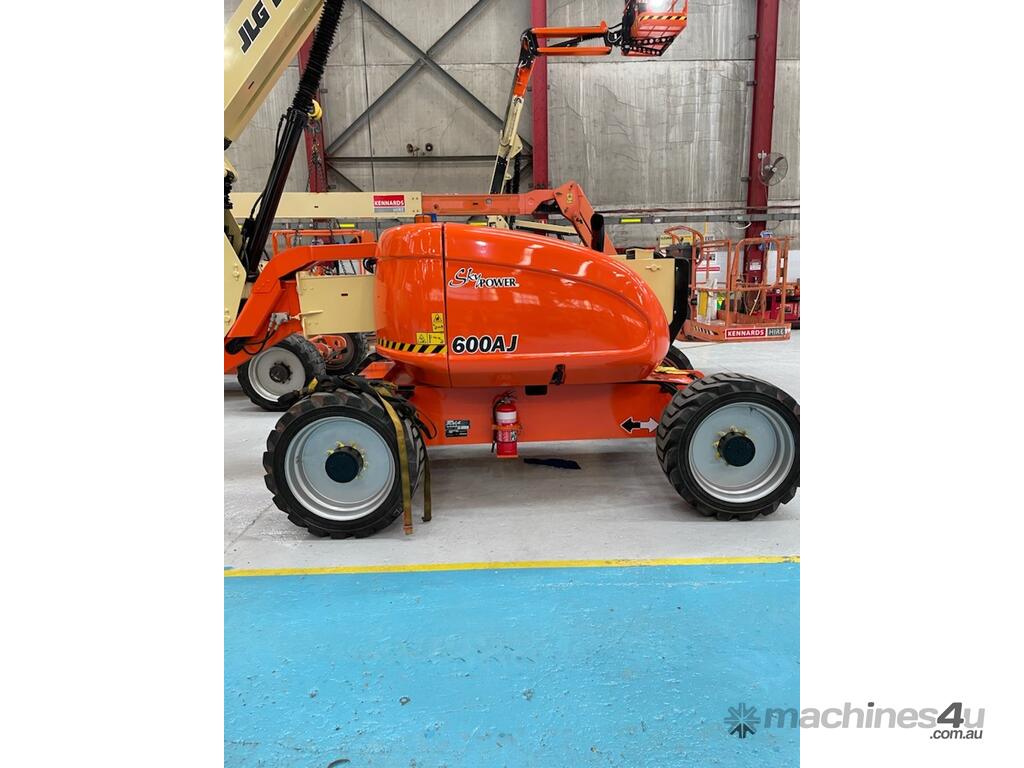

Used OEM re-certified 600AJ Articulating Boom Lift
Major inspected, fully serviced and repainted
Low hours
Will have 5 years compliance from sale
Located in NSW
Freight available Australia wide - POA

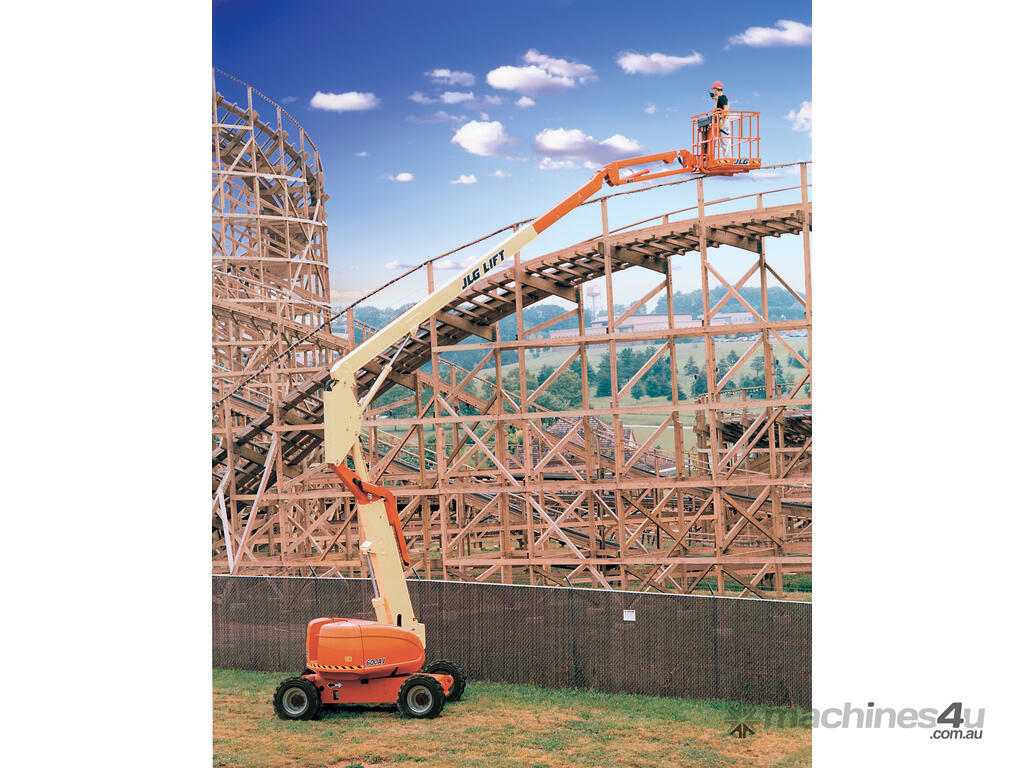

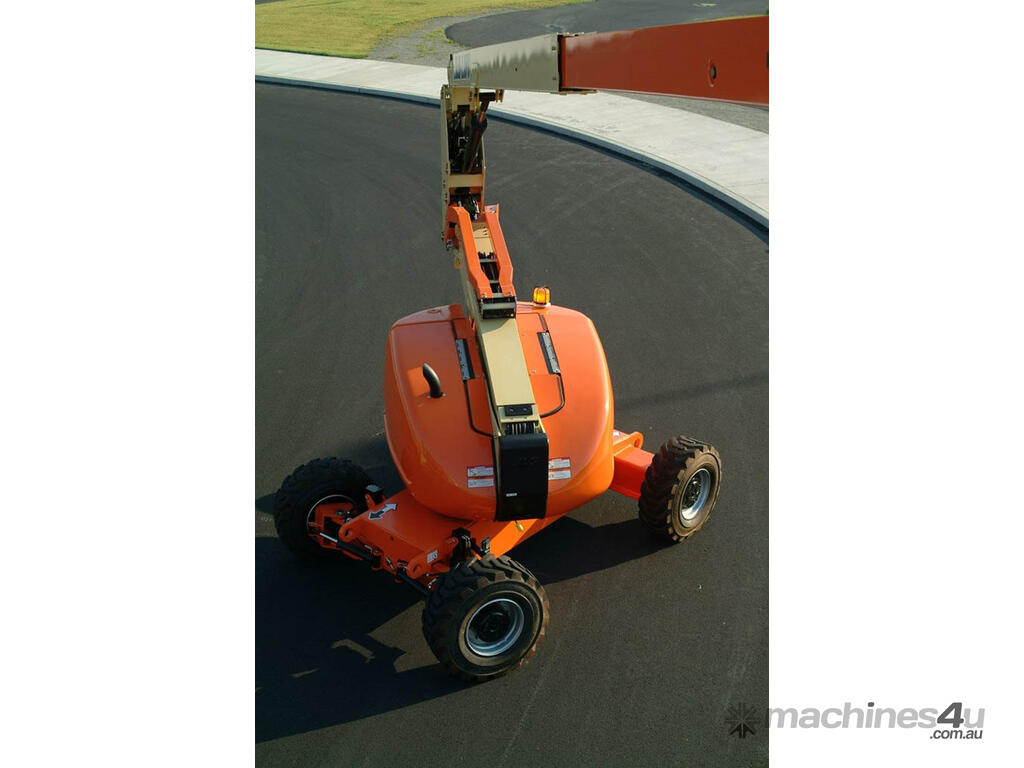

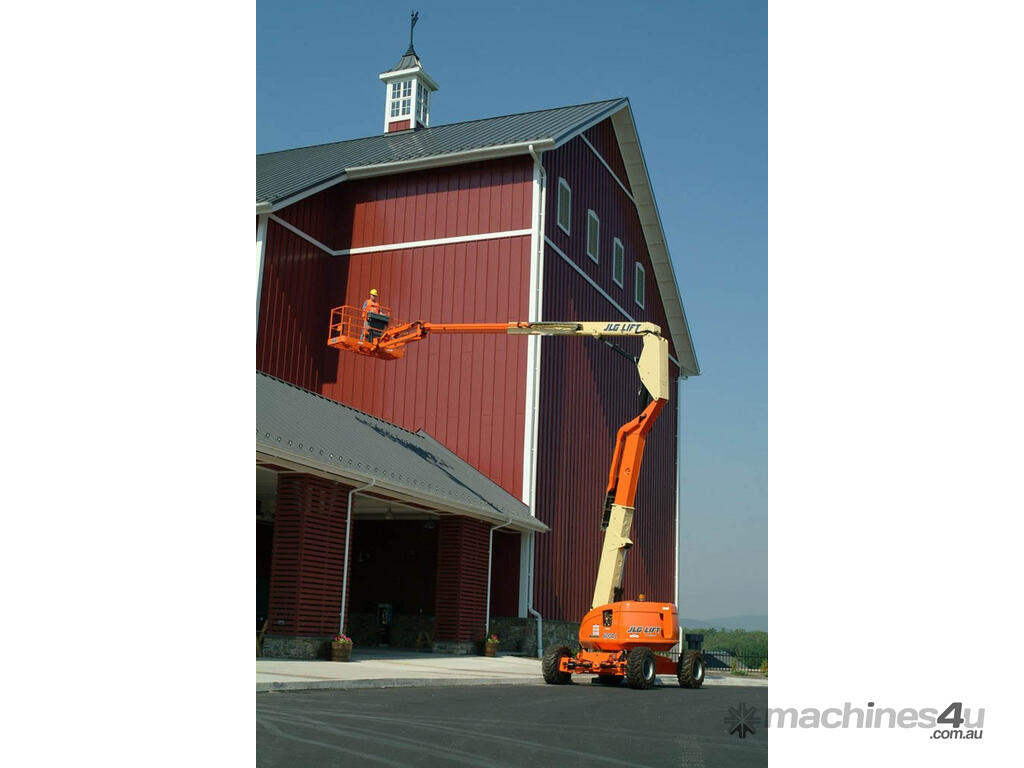

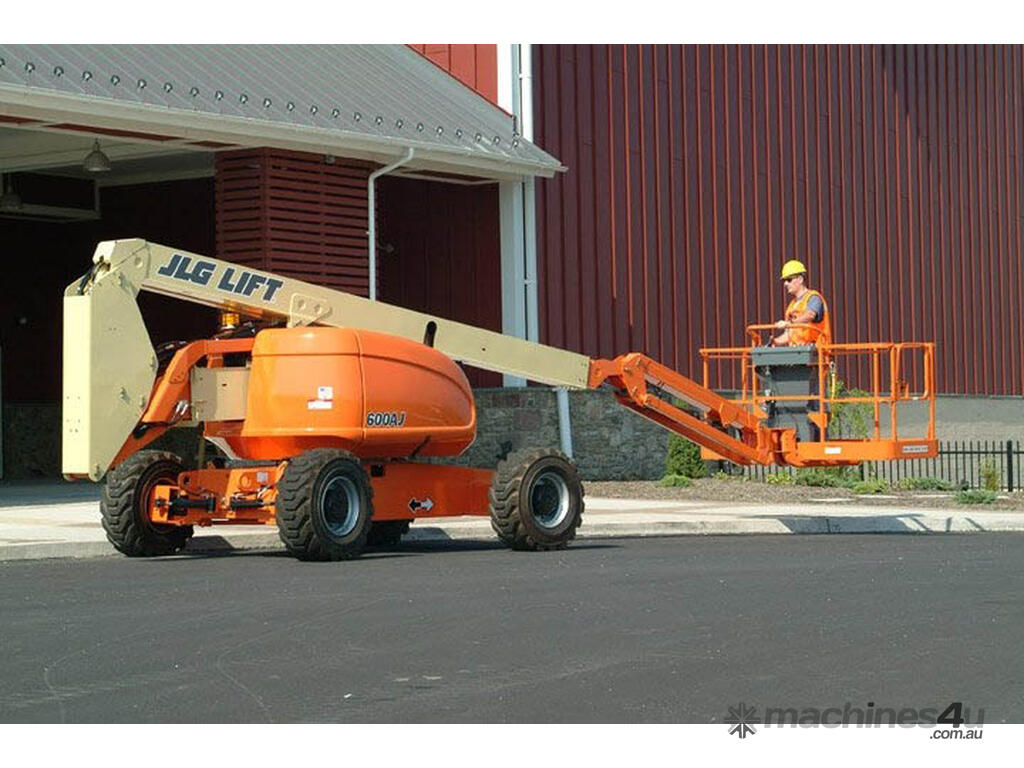

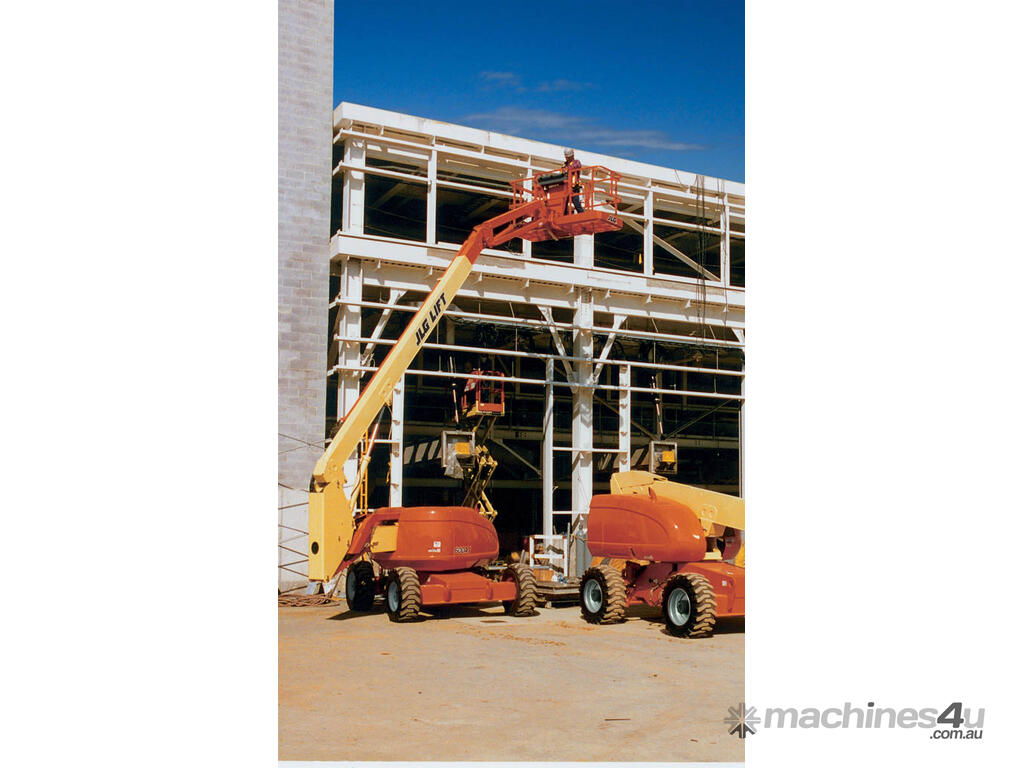

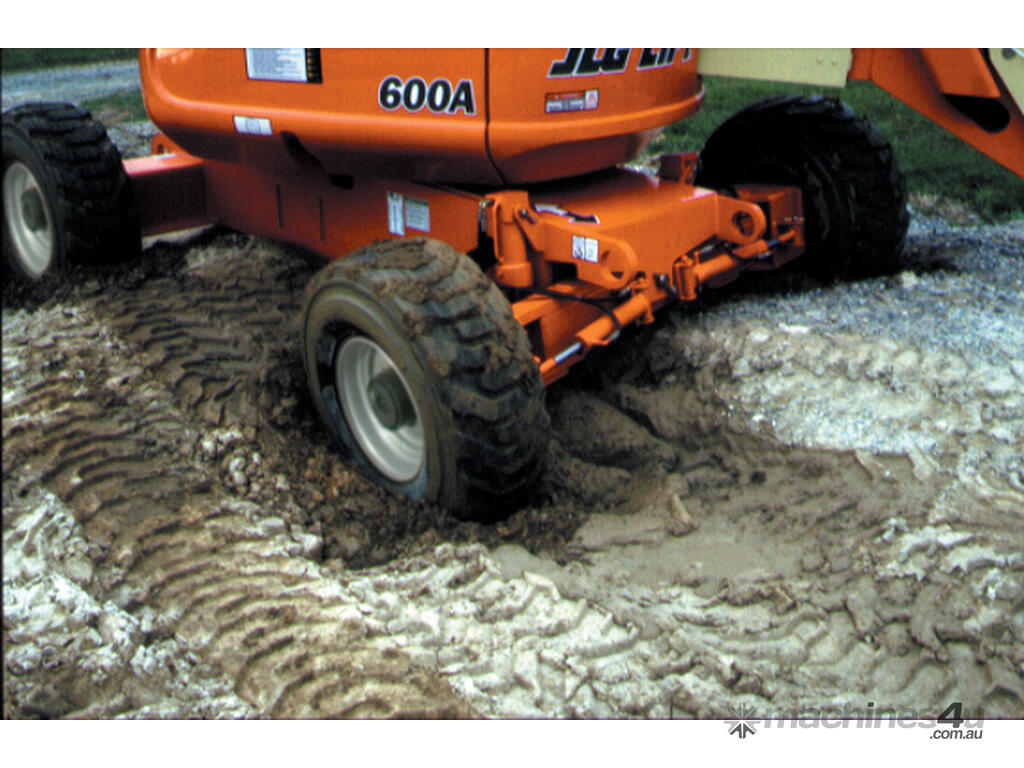

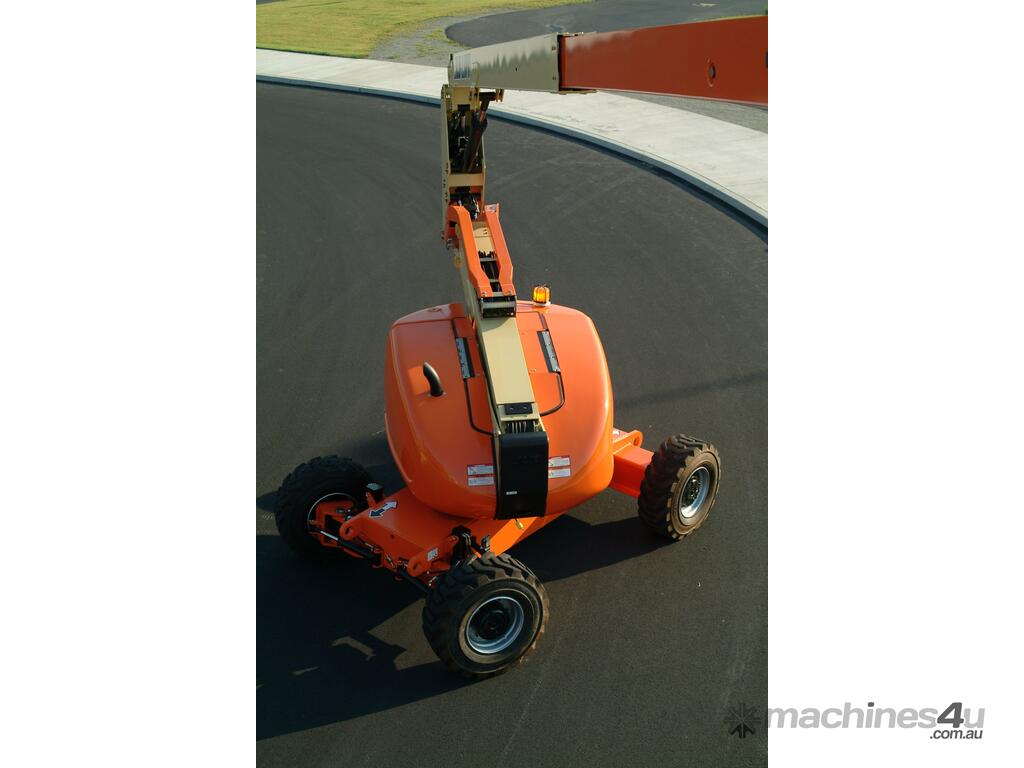

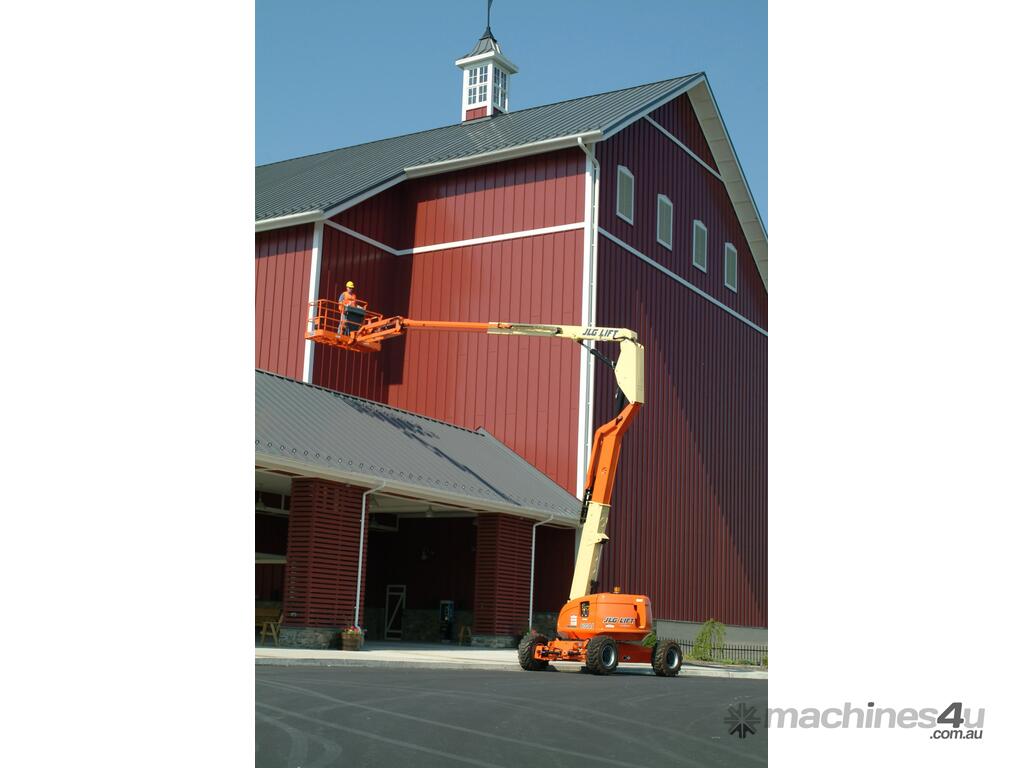

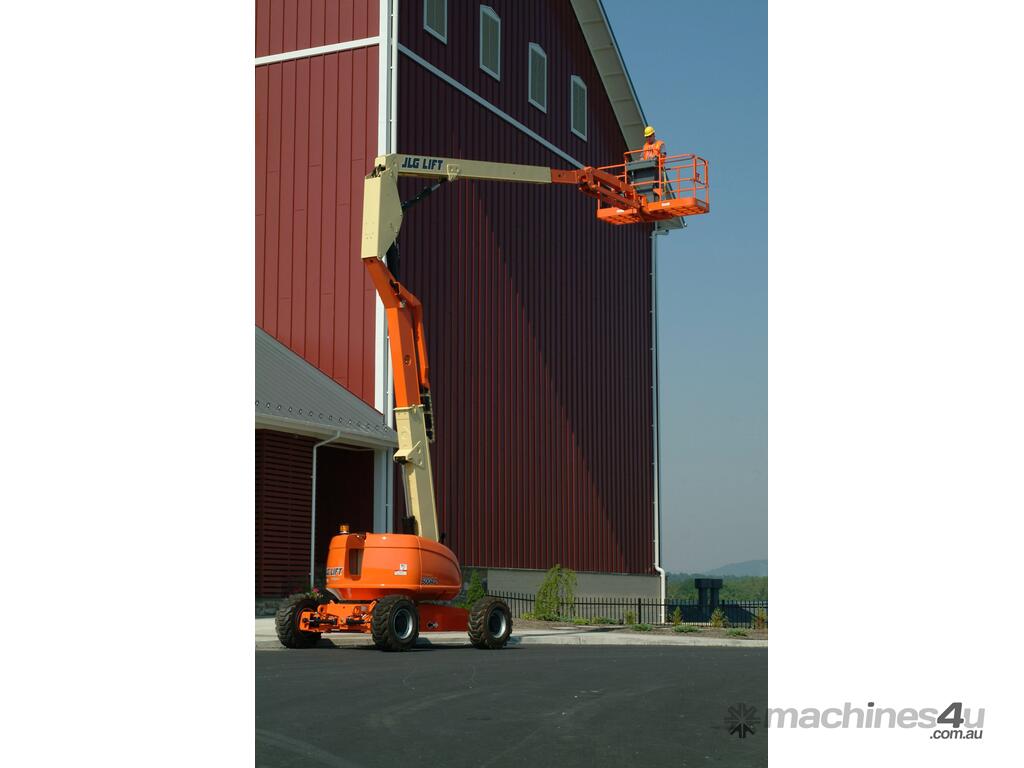

File photos shown - indicative of finished machines
Quick Specs:
Platform Height Elevated – 60 ft
Overall Width – 8 ft
Platform Capacity – 500 lb
Chassis:
Drive Speed 2WD 4.25 mph / 6.8 kmph
Drive Speed 4WD 4.25 mph / 6.8 kmph
Gradeability 2WD 30%
Gradeability 4WD 45%
Turning Radius (Inside)
Turning Radius (Inside) - 2WS 11' 5" / 3.48 m
Turning Radius (Inside) - 4WS 5' 6" / 1.68 m
Turning Radius (Outside)
Turning Radius (Outside) - 2WS 17' 8" / 5.38 m
Turning Radius (Outside) - 4WS 11' 8" / 3.56 m
Axle Oscillation 8" / 20 cm
Tire Size 14 x 17.5
Tyre Type Lug Tread
Dimensions:

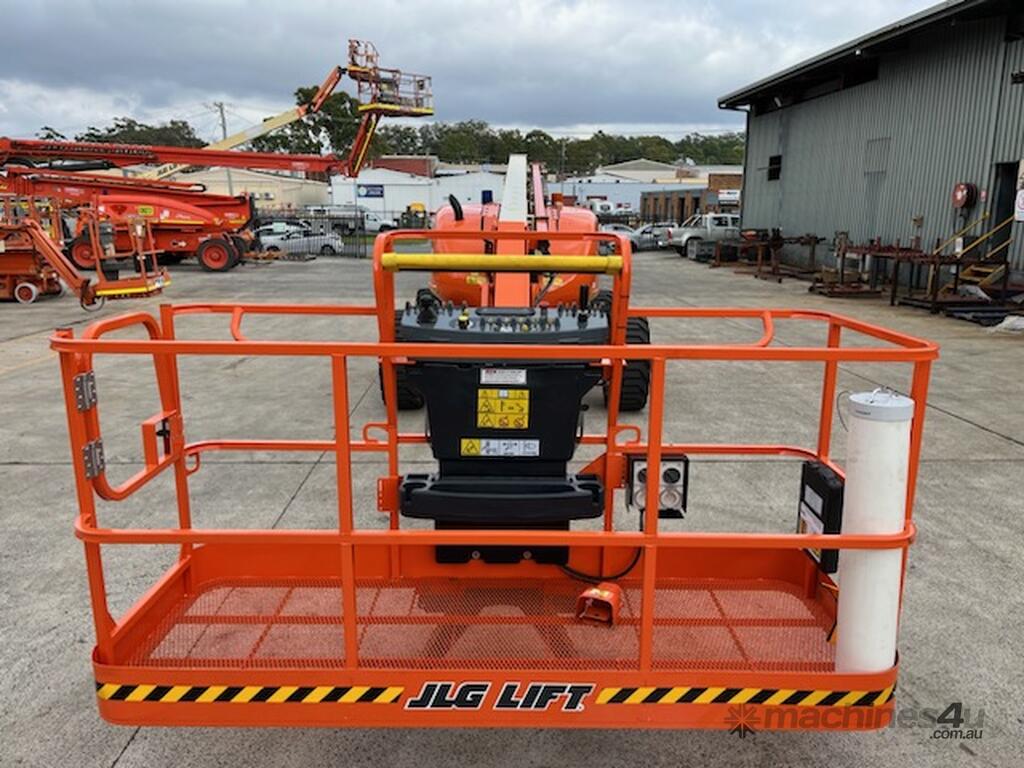

Platform Size- 36 x 96" / 0.91 x 2.44 m
Overall Width- 8' / 2.44 m
Tailswing- Zero
Stowed Height- 8' 4" / 2.54 m
Stowed Length- 28' 11.5" / 8.83 m
Wheelbase- 8' / 2.44 m
Ground Clearance- 12" / 30 cm
Weight*- 23,050 lb / 10,455 kg
Max. Ground Bearing Pressure**- 75 psi / 5.25 kg/cm²
Power Source:
Dual Fuel Engine (GM Vortec 3000 MPFI)- 82 hp / 61 kW
Diesel Engine (Deutz D2011L04) (Caterpillar 3044C)- 65 hp 63.3 hp / 48 kW 47.2 kW
Fuel Tank Capacity- 30 gal. / 113.56 L
Hydraulic Reservoir- 30.6 gal. / 115.83 L
Auxiliary Power- 12V DC
Noise Level- 70dBa 7 meters
JLG Industries is dedicated to delivering top-tier, innovative, and sustainable access equipment that enhances productivity and guarantees safety on job sites around the world. With decades of expertise, a commitment to continuous improvement, and a focus on customer success, JLG stands as a trusted partner in the industry. Order now and experience unmatched quality and reliability with JLG!
