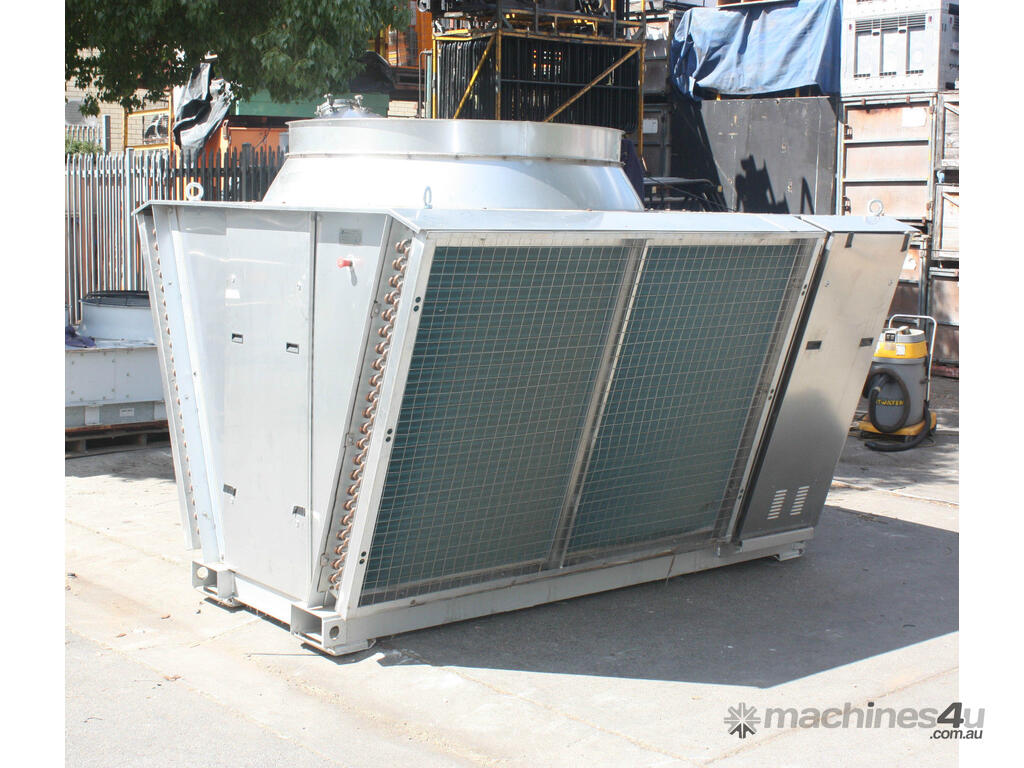

V pack dry cooling tower Radiator heat exchange Circulation Pump

Very Large V Industrial Cooling System Heat Exchange Radiator Circulation Pump

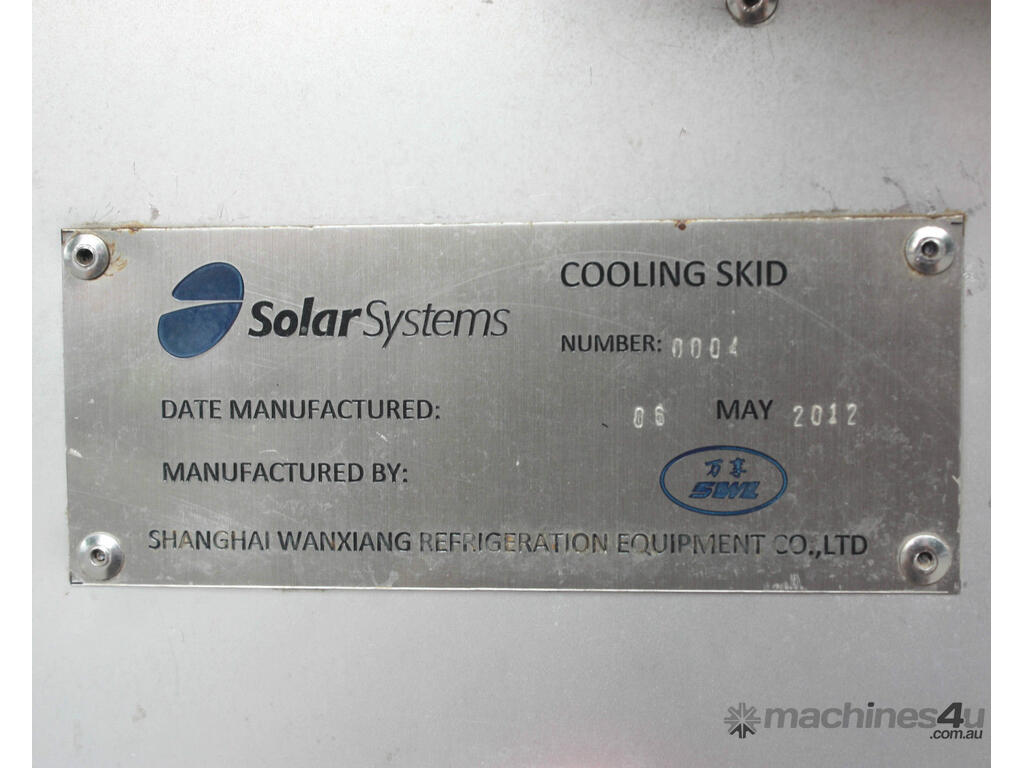

SolarSystems Cooling Skid - Very Large Industrial Cooling System Heat Exchange Radiator Circulation Pump Dry cooling tower chiller
Number: 0004
Date Manufactured 06 May 2012
By SWL (Shanghai Wanxiang Refrigeration Equipment Co Ltd)

Price includes GST and a tax invoice will be issued

Very large fan 1400mm diameter.
Circulation pump
Variable speed drives for the pump and fan.
It incorporates 2 huge radiators, core dimensions 2m x 1390mm x 130mm
Stainless steel pressure vessel tank with level and flow instrumentation.
Filter vessels
Various test and bleed points.
This item is on a skid (1070mm width)
All panels are stainless steel, skid is hot dip galvanized

Orig designed to cool a high intensity photo voltaic system.
Huge cooling capacity, all panels are stainless steel.
We have 5 of these units, the price is for 1.

These units are new, the project they were built for was never completed. They could be used for many industrial cooling applications: Refrigeration heat rejection, plastics machinery, cooling of ultra high power semiconductors, spot welding equipment etc... With some modifications to design they could also serve a very large capacity diesel generator.

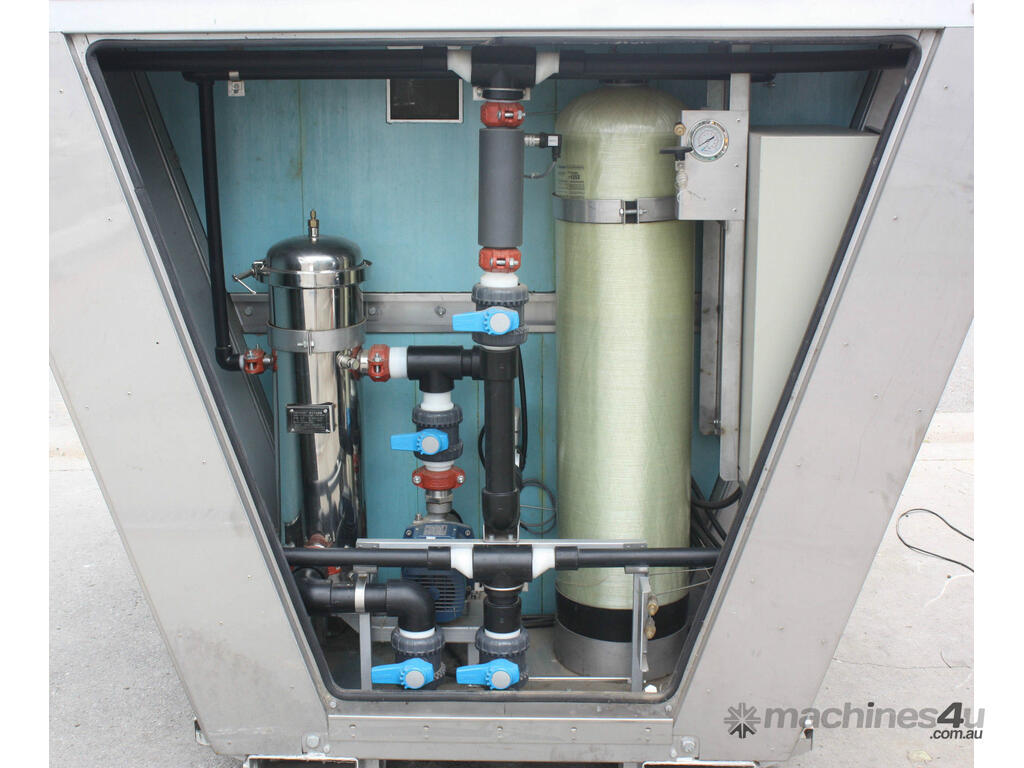

Note there is quite a bit of space inside the main body. at one stage an air compressor was mounted here. there would be enough room for sizable refrigeration compressor and shell and tube if you wanted to convert one into a mobile refrigeration plant room, I think the radiators would also suit refrigeration condenser use if appropriately re plumbed.

Parts are listed here:

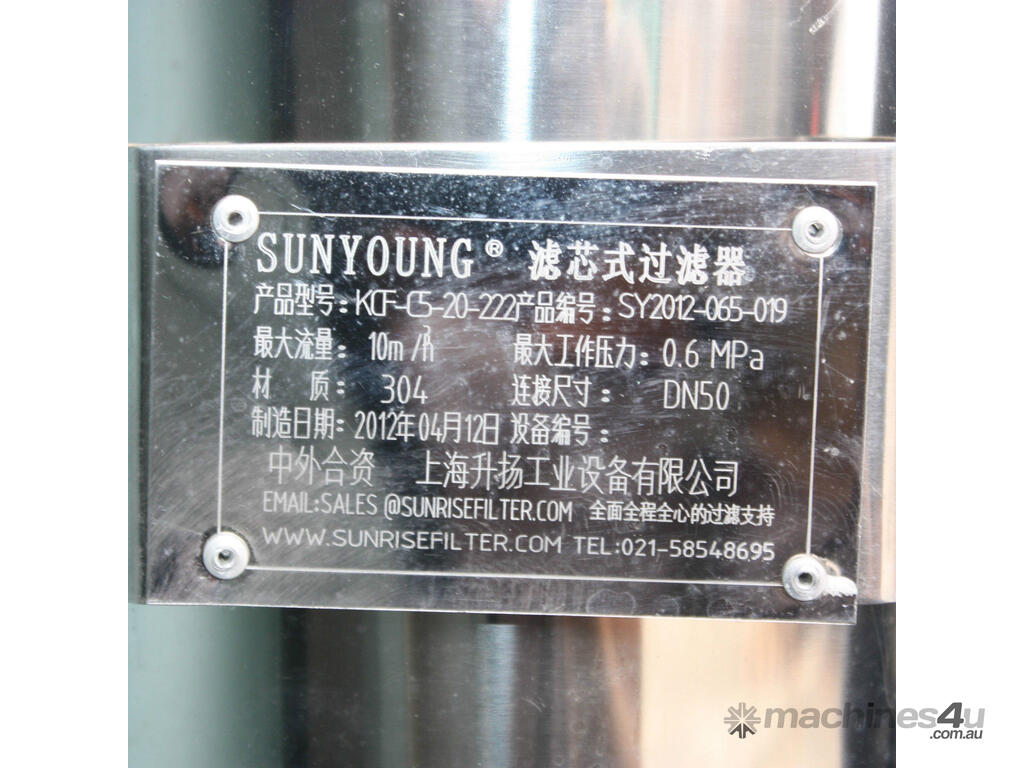

Sunyoung Sunrise Filter KCF-C SY DN50

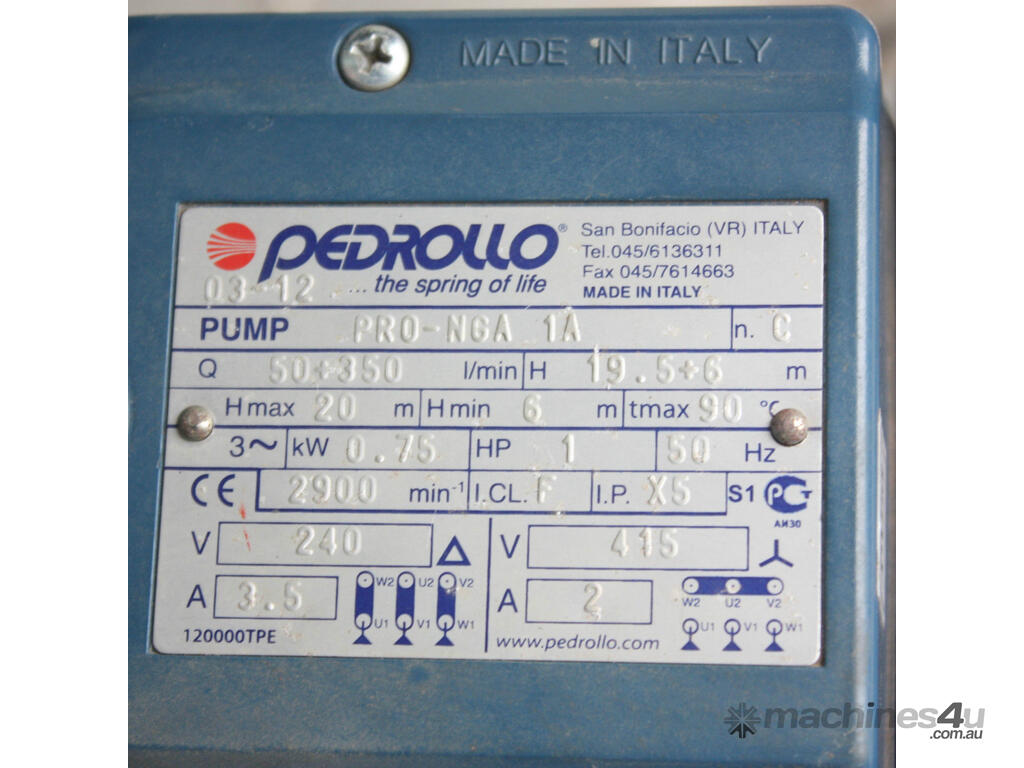

PEDROLLO Pump PRO-NGA 1A 0.75kW 50+350 l/min

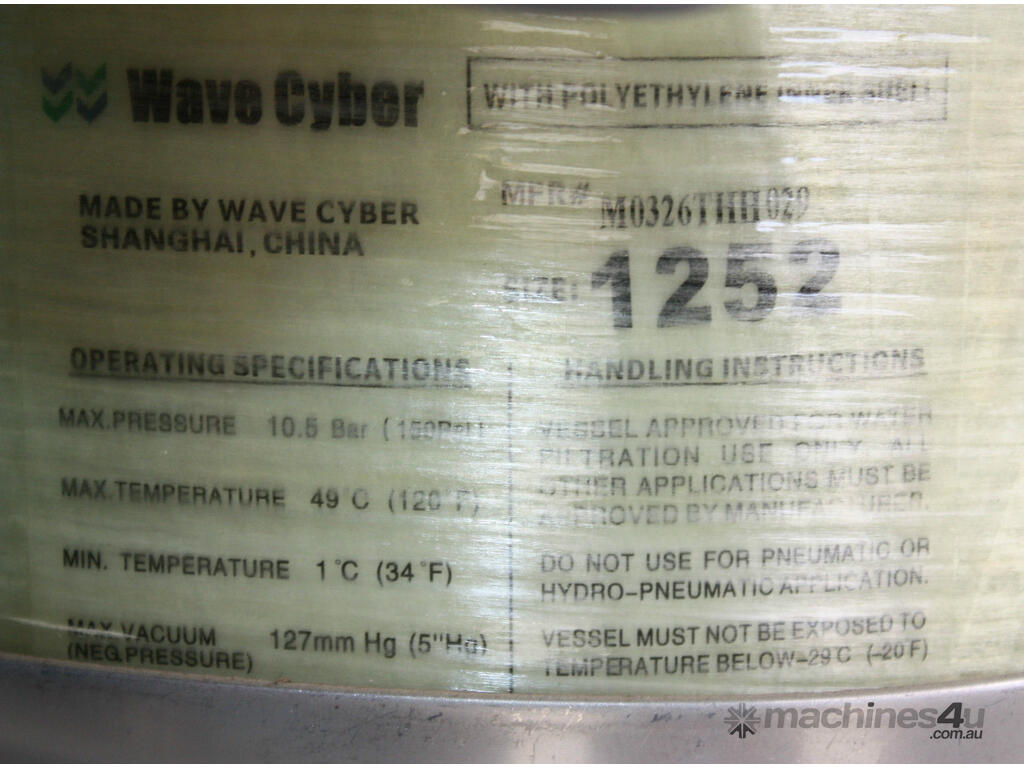

WAVECYBER M0326THH029 SIZE: 1252

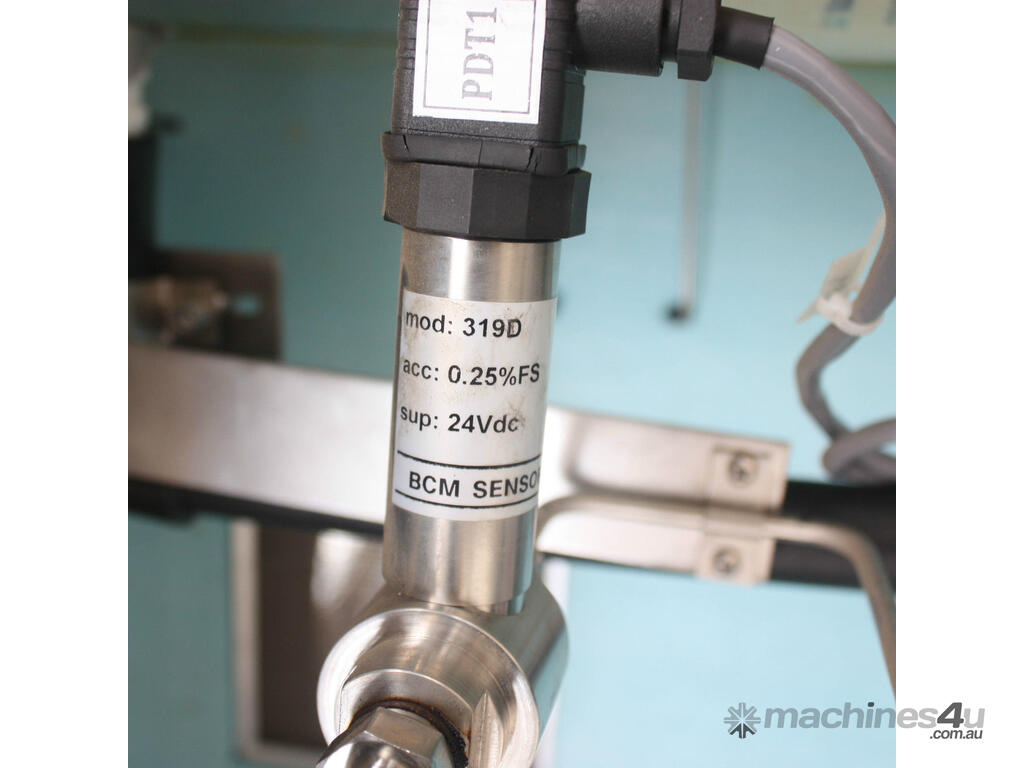

BCM SENSOR MOD: 319D ACC: 0.25%FS SUP: 24Vdc PTD1

WE ANDERSON FS-2 FS01 Flow switch for pipes 1" to 8"

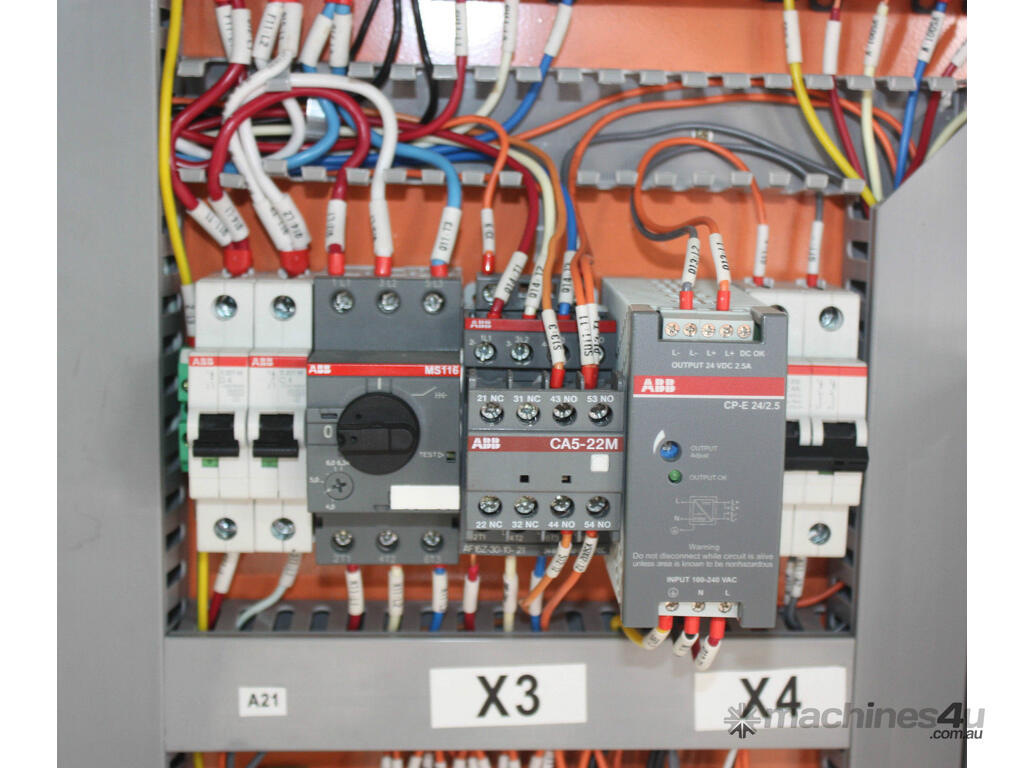

+CS CAB COOLING SKID CABINET:

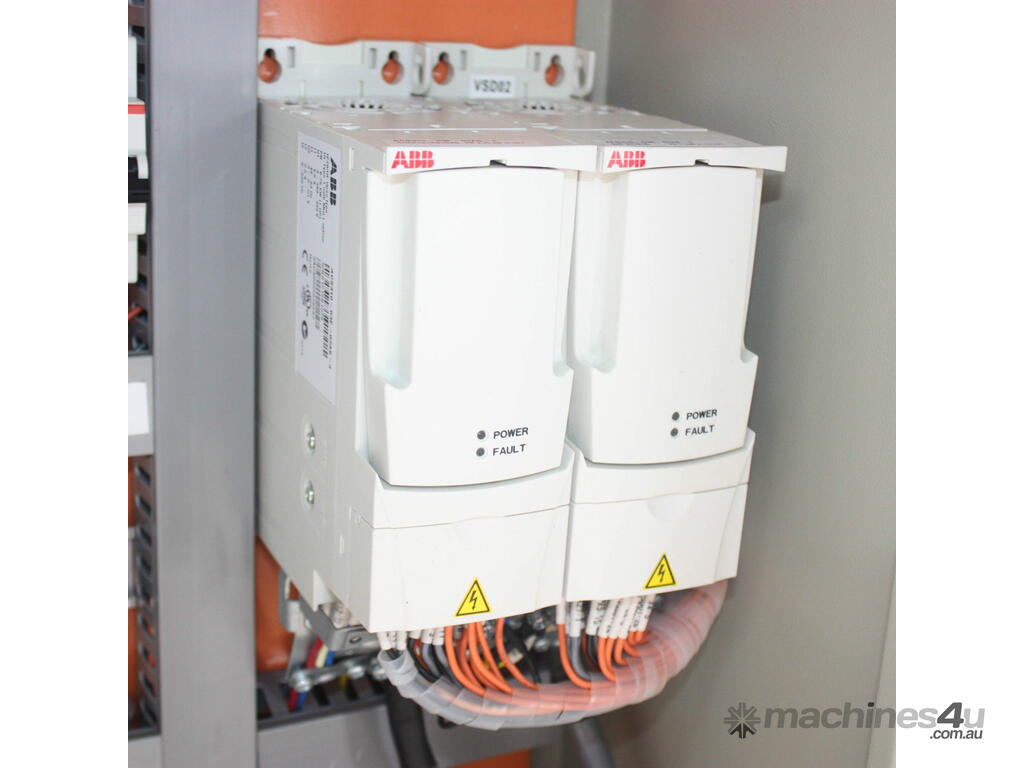

ABB IP20/UL Open Type UL Type1 with MUL1 option ACS310-03E-02A6-4 Variable Speed Drives

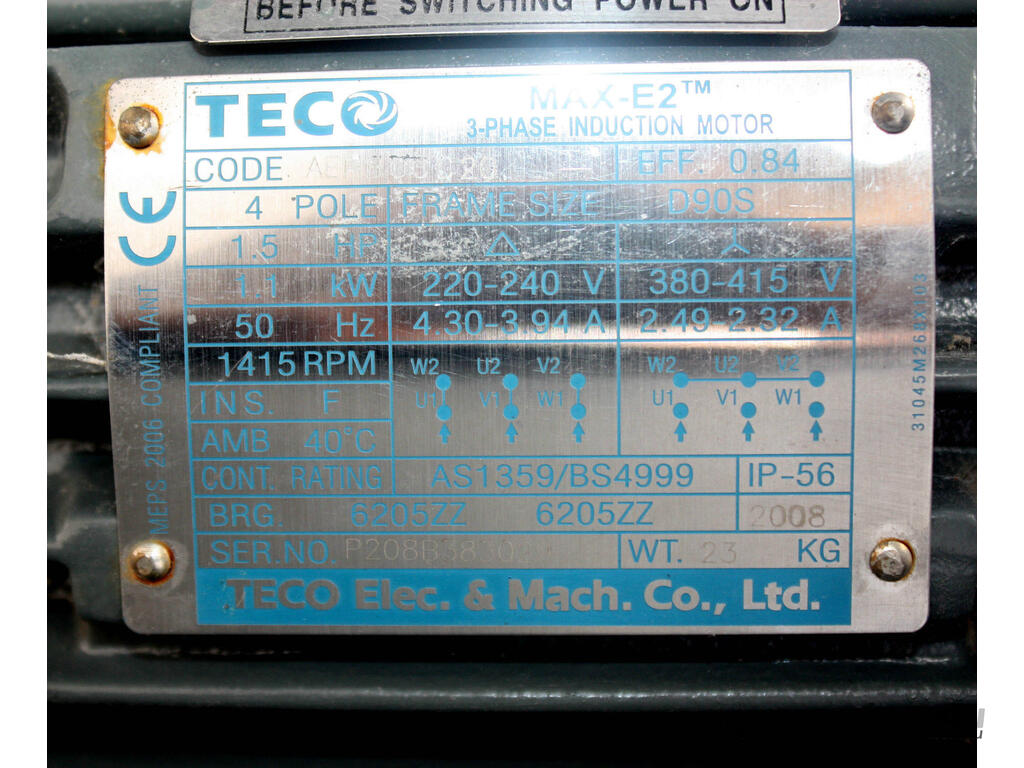

(Fan Motor) TECO 3~ Phase Induction Motor Code AEHBUCC20 4 POLE 1.5HP 1.1kW IP66 protection IM 1011 Mounting

Multi-Wing Fan Blades (cust ID: 20208 Cust No: 1400/8-8/31)



Unit is very heavy and not postable however we can assist with arranging freight or you are welcome to arrange the carrier of your choice. We will strap to a pallet at no charge.
