Specifications:

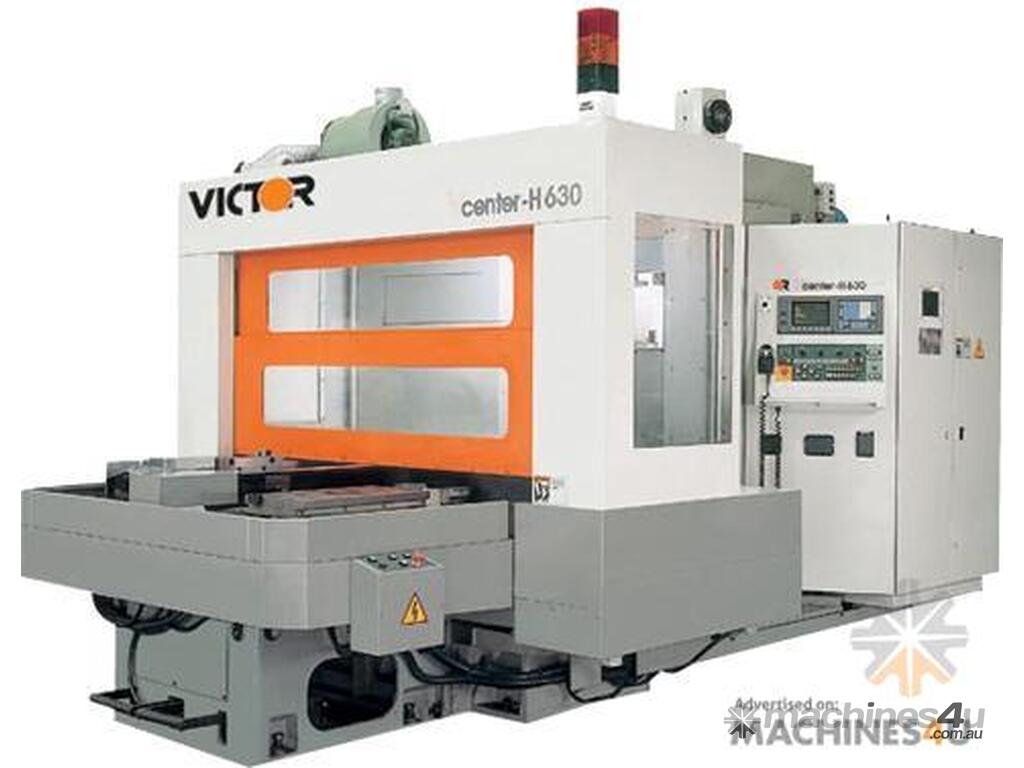

Vcenter-H630
X-axis travel: 900 mm
Y-axis travel: 800 mm
Z-axis travel: 710 mm
Table working area: 630bx630 mm
Rapid feed X/Y/Z: 15/15/15 m/min
Tooling: BT-50
Number of tools: 60
Spindle Speed: 4500 rpm
Spindle Power: 15/18.5 kW
Machine weight: 14000 kg
Vcenter-H1000
X-axis travel: 1350 mm
Y-axis travel: 1050 mm
Z-axis travel: 1050 mm
Table working area: 1000x1000 mm
Rapid feed X/Y/Z: 15/15/15 m/min
Tooling: BT-50
Number of tools: 90
Spindle Speed: 4500 rpm
Spindle Power: 18.5/22 kW
Machine weight: 31420 kg

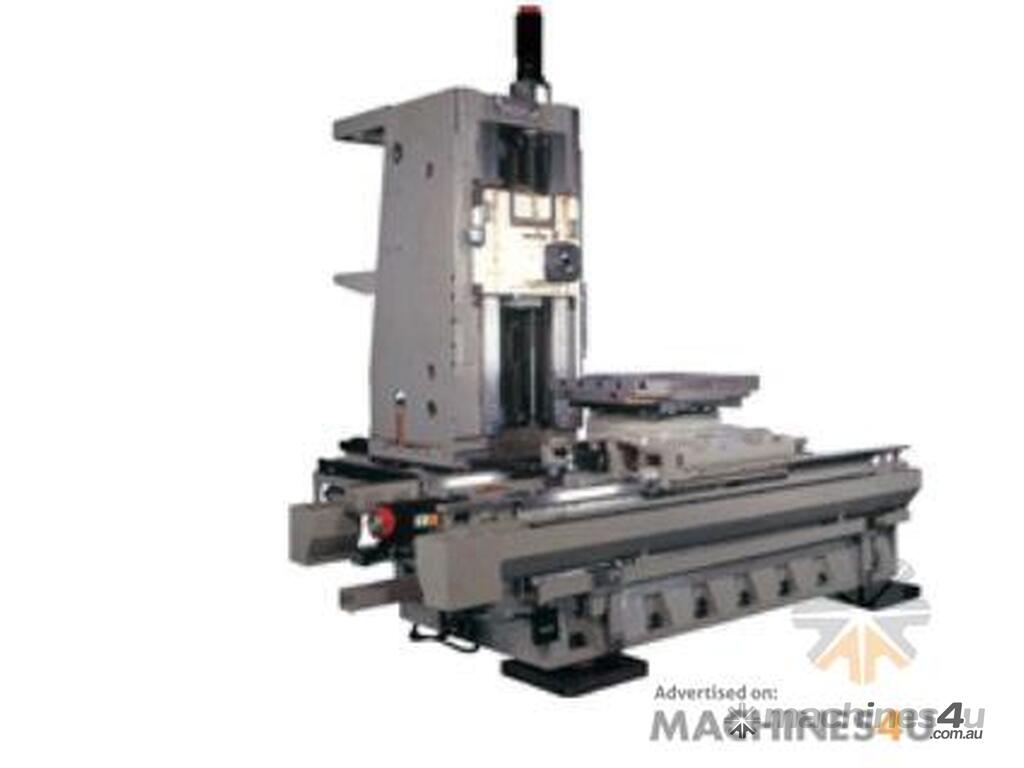

In horizontal machining center, we have launched VCENTER-500/500HS and VCENTER-630/1000. As with all Victor machine tools, VCENTER-H630/H1000 has been designed with the concept of reliability and stability foremost.

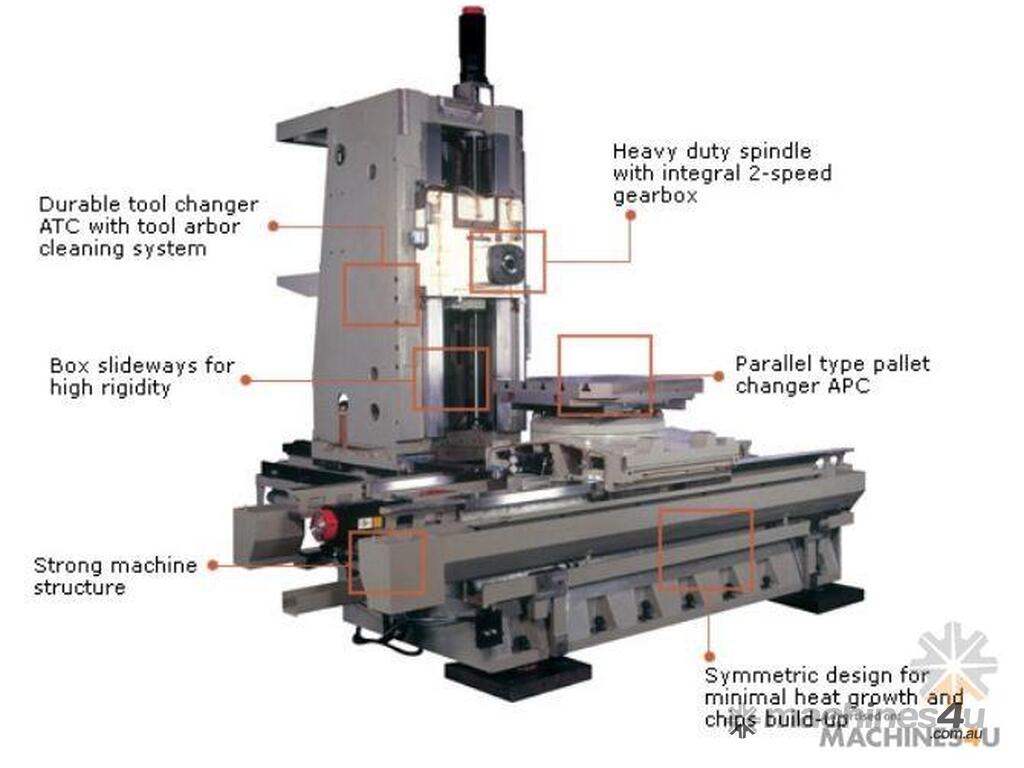

The VCENTER-H630/H1000 mainly emphasizes that placed on continuous cutting ability in selecting machine structure and components. From the bed ribbing to machine assembly, Victor employs over 50 years experience in machine tool building to ensure machine down-time is kept to a minimum.
