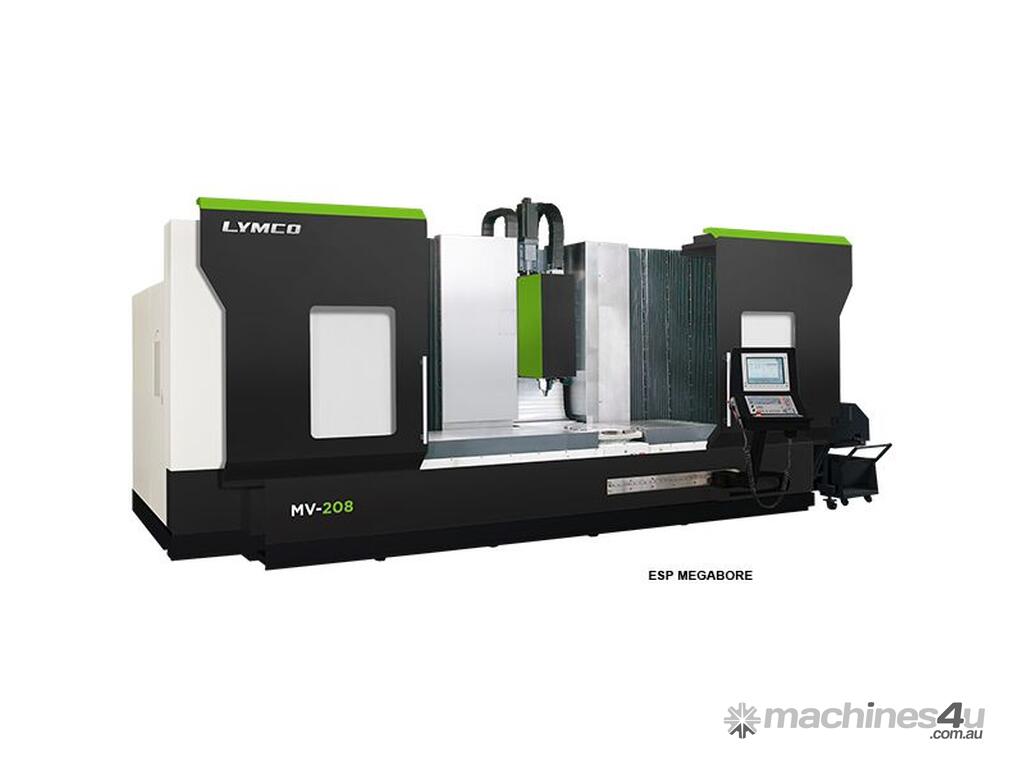

VMC Traveling Column X travel 2000mm to 6000mm

The MV series traveling column machining centers are designed for the application of multi-function vertical milling & machining solutions.

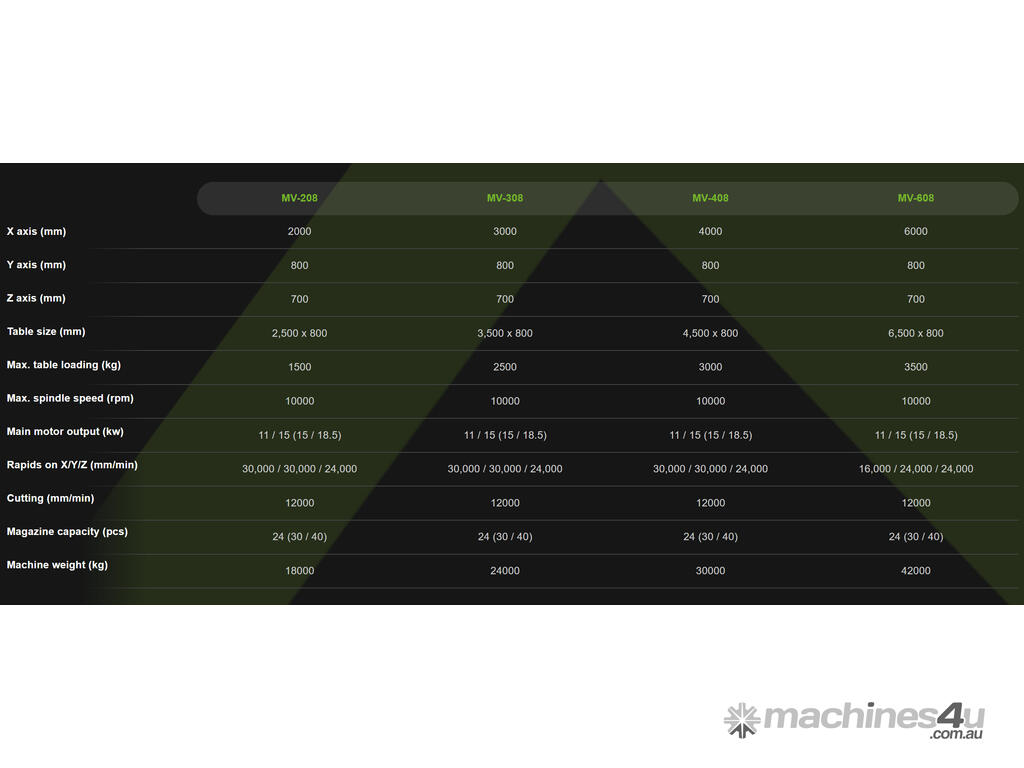

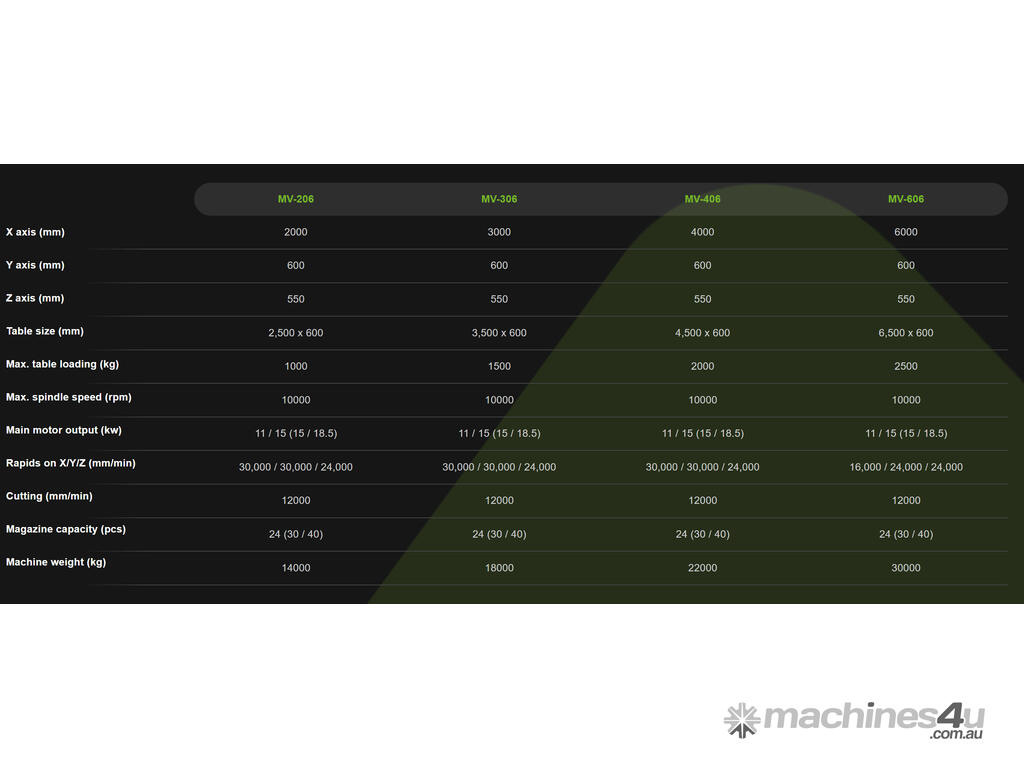

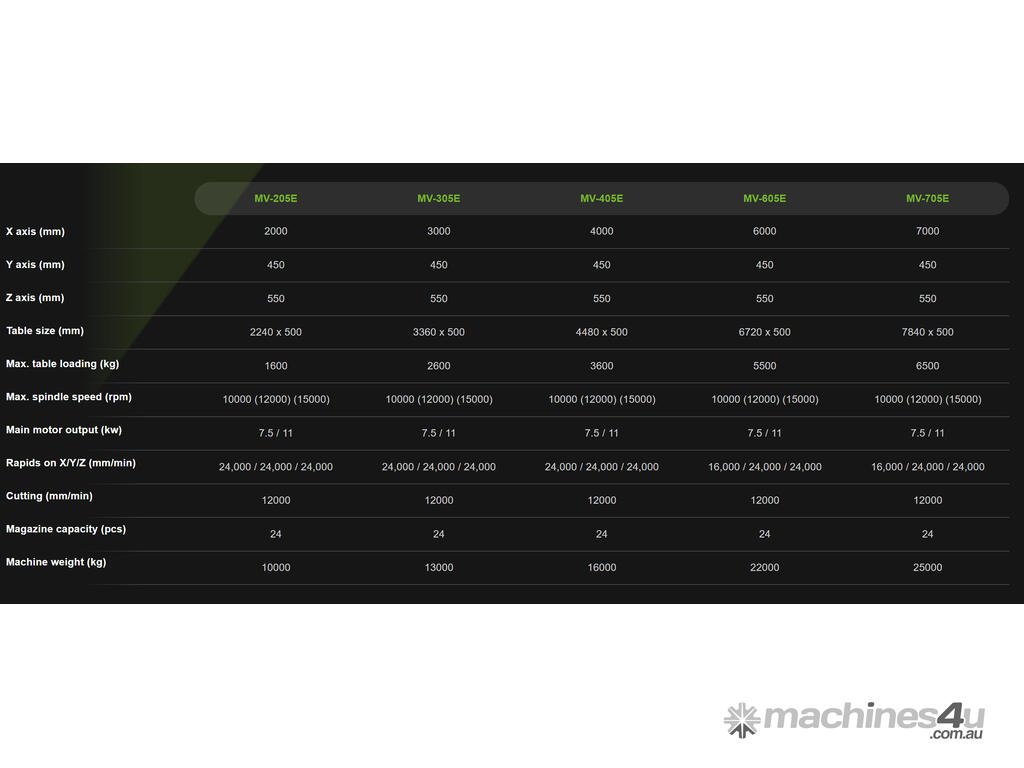

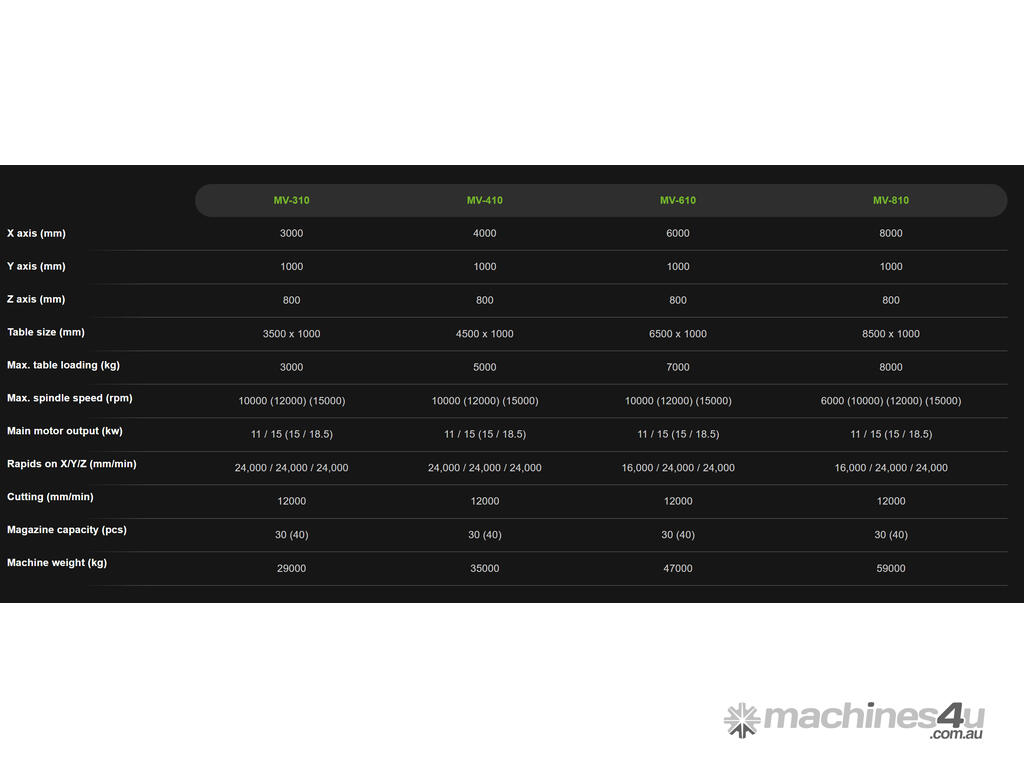

Table sizes range from MV-206 (2500 mm x 800 mm) to (8500 x 1000 mm) MV-810, in 17 models.

This machining center series is equipped with Fanuc Control, The major benefit of this fixed table traveling column machine structure is to have consistent production of long parts and workpieces. The fixed working table allows effortless utilization of various fixtures for easy tool setting.
The increase in productivity will enable shops to quickly turn over parts.
To solve the challenge of high product mix and low volume, LYMCO traveling column machine enables the processing of multiple workpieces at a time. The standard zone splitter as well as standard CNC preset multiple work zone allow loading and unloading simultaneously while the machine cuts at a different work zone.

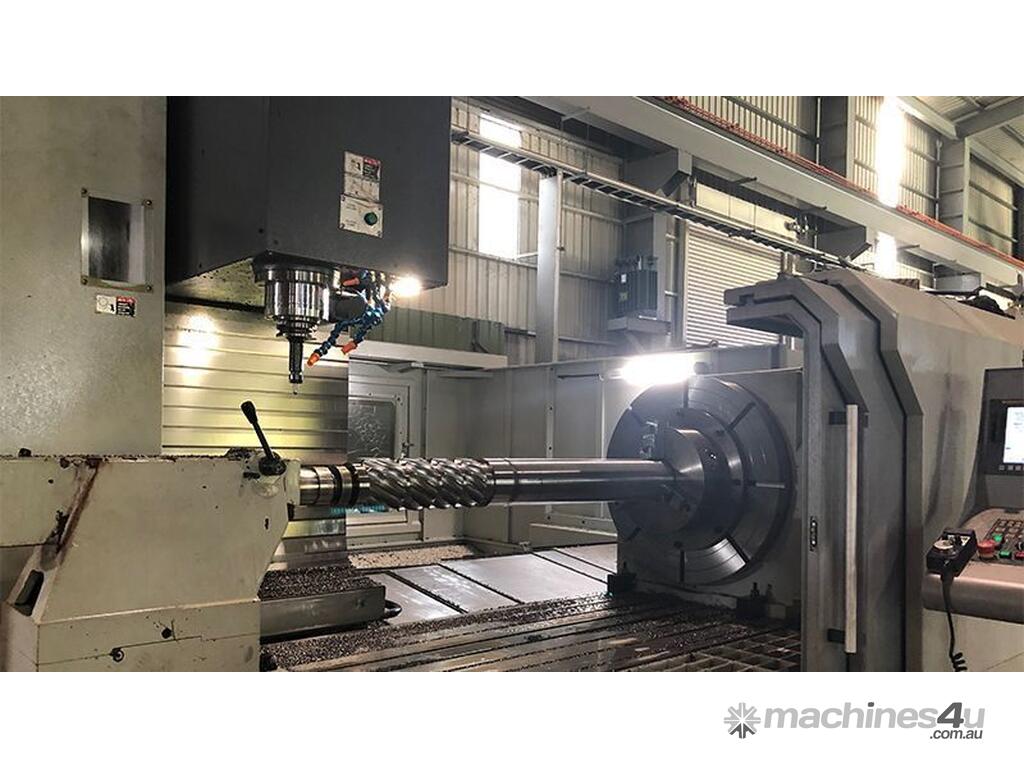

Different customers had diverse needs. For example, the detachable fixed working table will allow a floor type configuration, a dual rotary table as a dual station milling center, or even an extended length as a screw manufacturing machine.

Customer aiming at high productivity could utilize the stationary nature of the work table to implement advanced automation solutions from automated inventory control, guided resupply robots, to autoload and unload, cutting, and inspection.

Reliability
Oversized roller type linear guideway on 3 axes to provide low starting inertia and high acceleration rates.
ATC
The tool magazine and cam box unit are sitting on machine saddle, by moving with the column, the tool change time is minimized.
The flexibility of table detachable design allows various fixturing and auto clamping technologies to be applied to the milling solution.
Long workpiece specialization
Best stability and reliability for long workpieces that requires tight tolerance and long cutting hours.

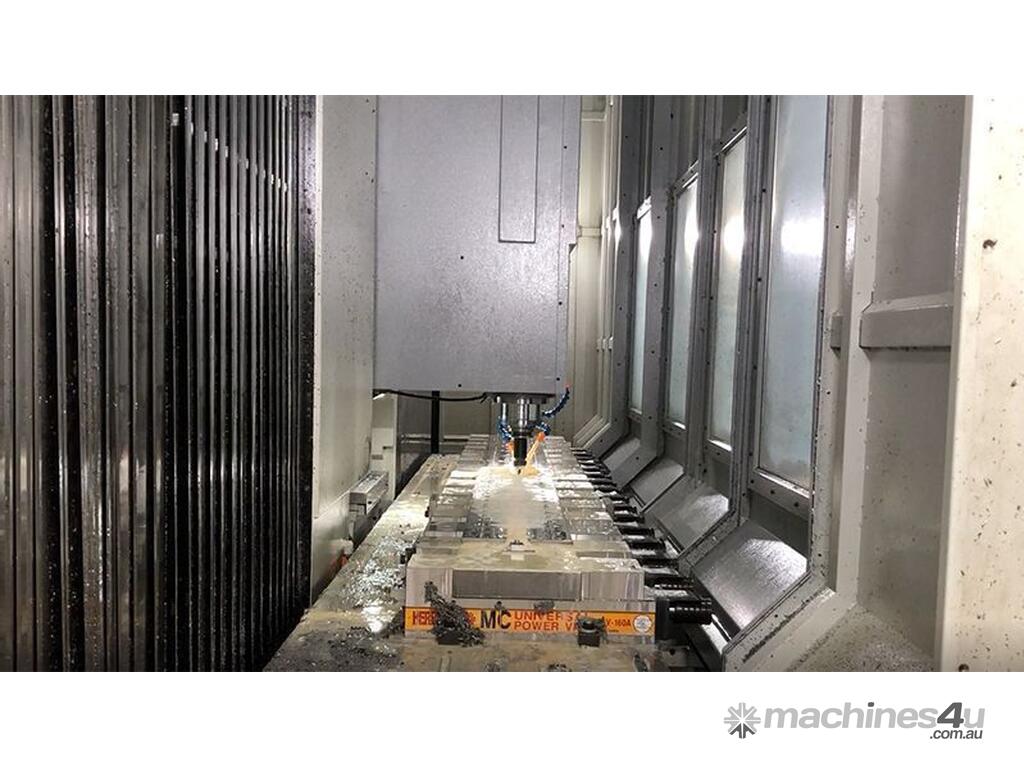

Milti-zone specialization
Standard physical zone splitter and CNC preset multiple work zone setting provides a non-stop part swap to maximize machining hour.
