Variable Speed Metal Cutting Band Saw VS-2012 Vertical Band Saw, Curve Cutting Saw

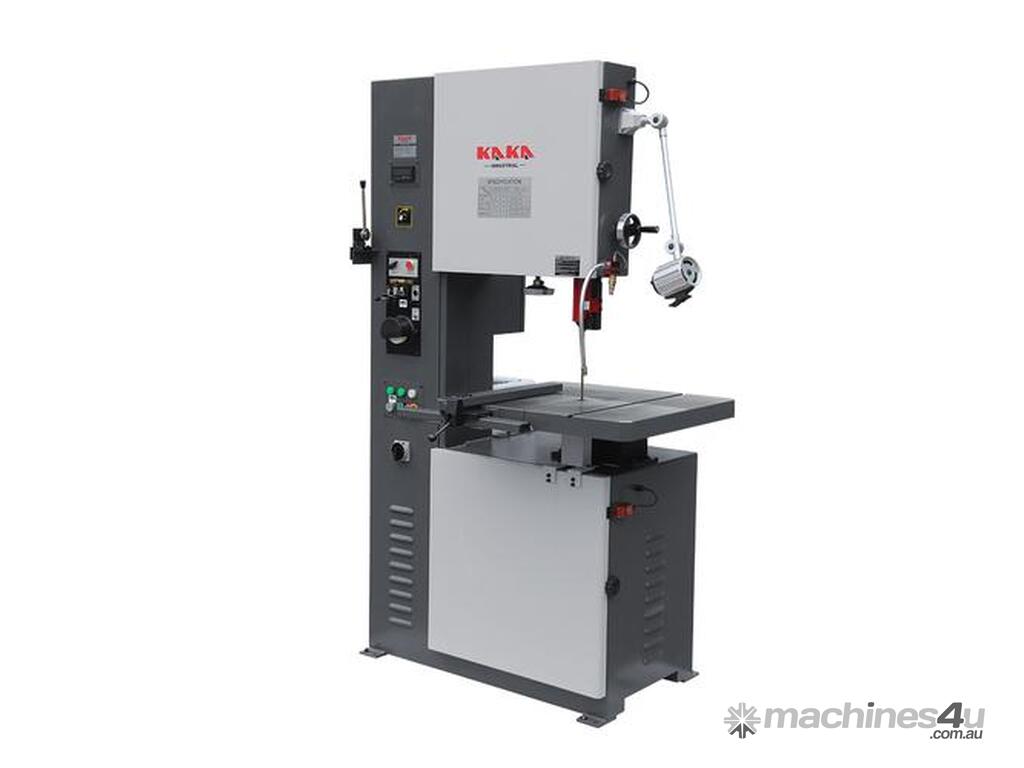

KANG Industrial Vertical Band Saw VS-2012

The Metal Cutting Vertical Bandsaw VS-2012, is a robust, variable-speed vertical bandsaw for industrial metalworking. It's designed for precision contour, shape, and straight cuts in ferrous/non-ferrous materials like steel, aluminum, and profiles. As a vertical model, it prioritizes manual or jig-guided operations on flat or irregular stock. With its large 660mm x 700mm worktable and advanced cutting features, this machine is designed to handle a wide range of metal fabrication tasks, from intricate projects to large-scale industrial applications.

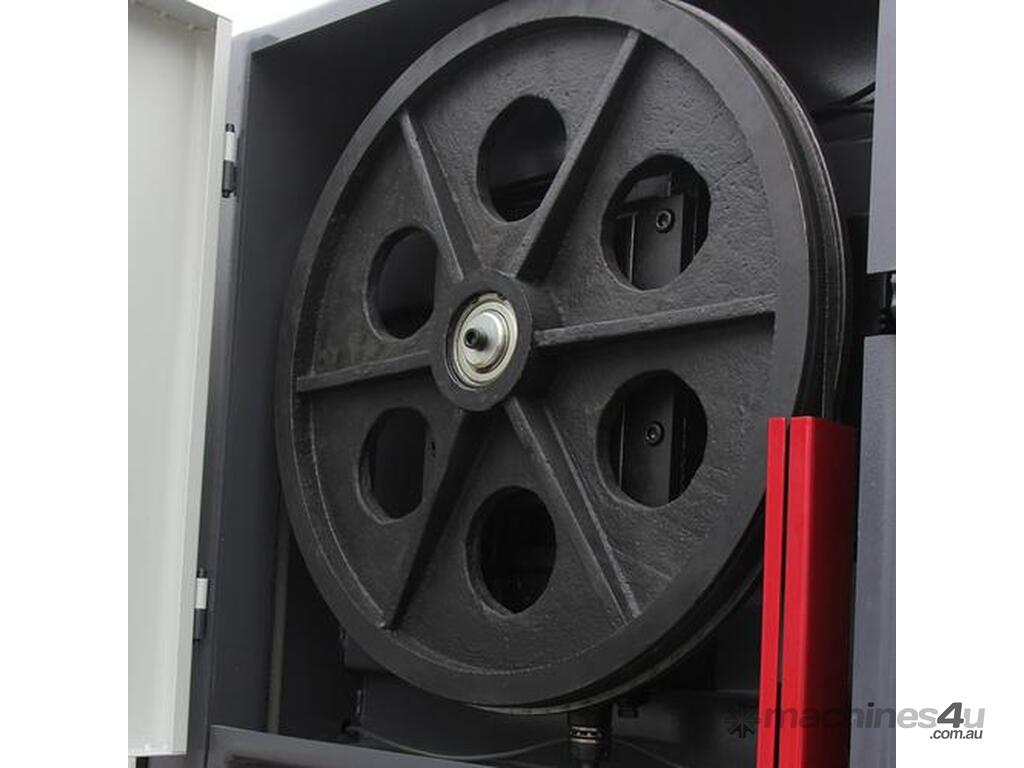

Robust Industrial Frame. Heavy-duty construction with precision bearings for vibration-free, continuous heavy-duty operation on tough materials.

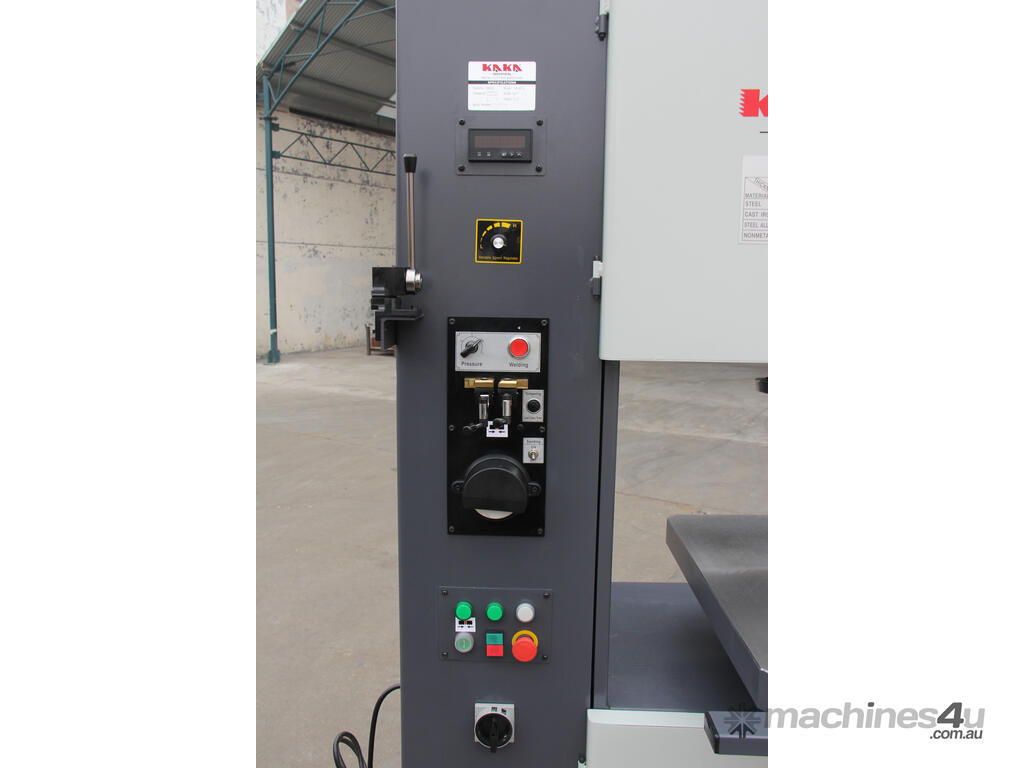

Variable Speed Control Bandsaw. Infinitely adjustable from 15-328 MPM via a dial—perfect for optimizing cuts on metals (e.g., low speeds for stainless steel, high speeds for aluminum). Blade width compatibility (3mm – 16mm) for precision and power

Large Work Area Band Saw.  500mm throat depth (resaw height up to 310mm) and tilting table (45° right / 15° left)  support oversized or angled workpieces

Enhanced Visibility and Efficiency. Adjustable work light; air-assisted swarf (chip) removal to keep the work area clear.

Integrated Blade Maintenance. Built-in all-in-one station with blade shear, butt welder (3–16 mm capacity with annealing), and grinder—allows on-site blade fabrication/repair to cut costs and downtime.

Features

2HP motor runs on 240V power

Width 500 mm throat depth

Max. cutting thickness up to 310 mm

Accept 3-16 mm width blade

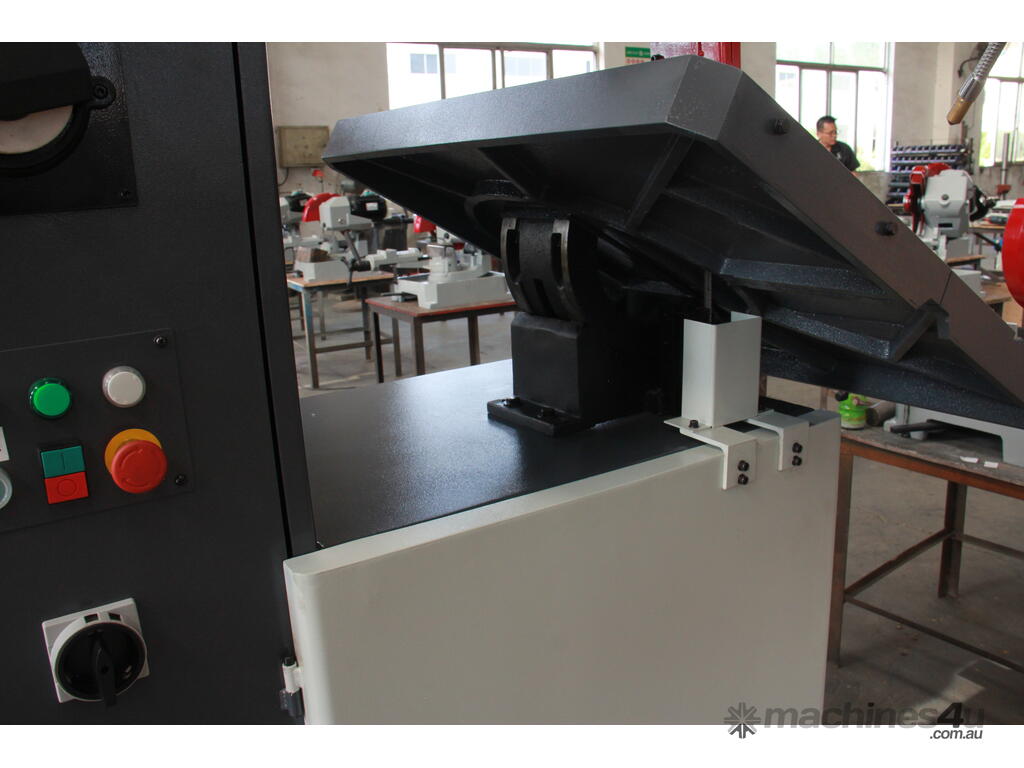

Cast iron table, tilt left to right

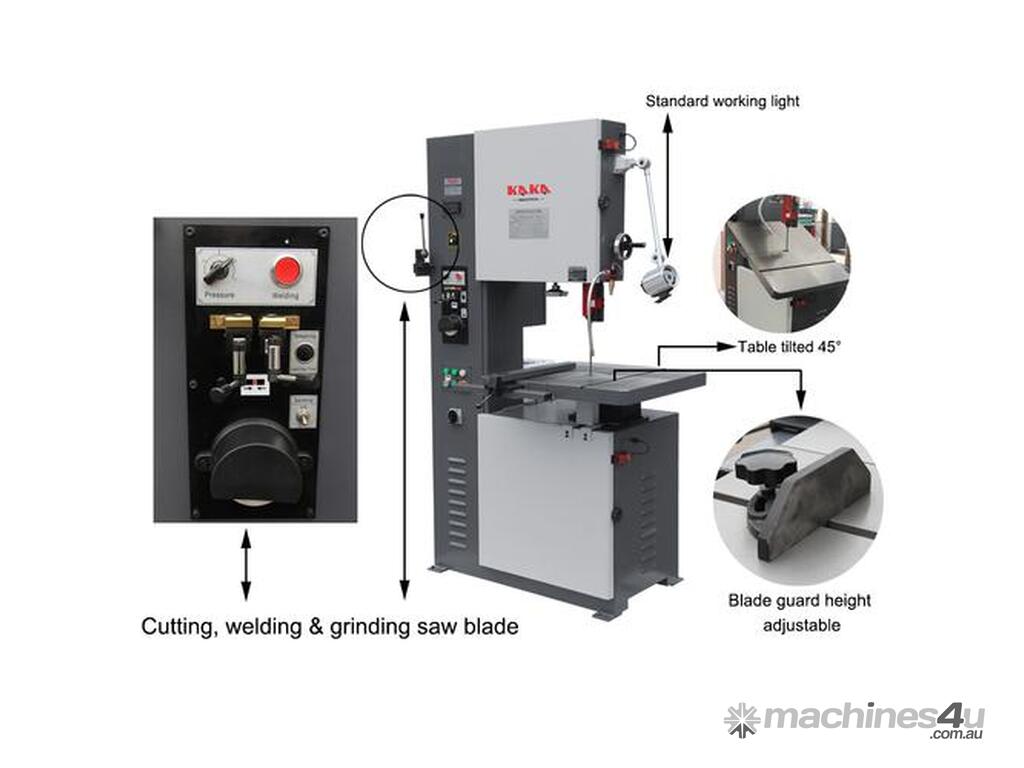

Standard with fully integrated blade welder, built-in grinder for finishing the weld joint

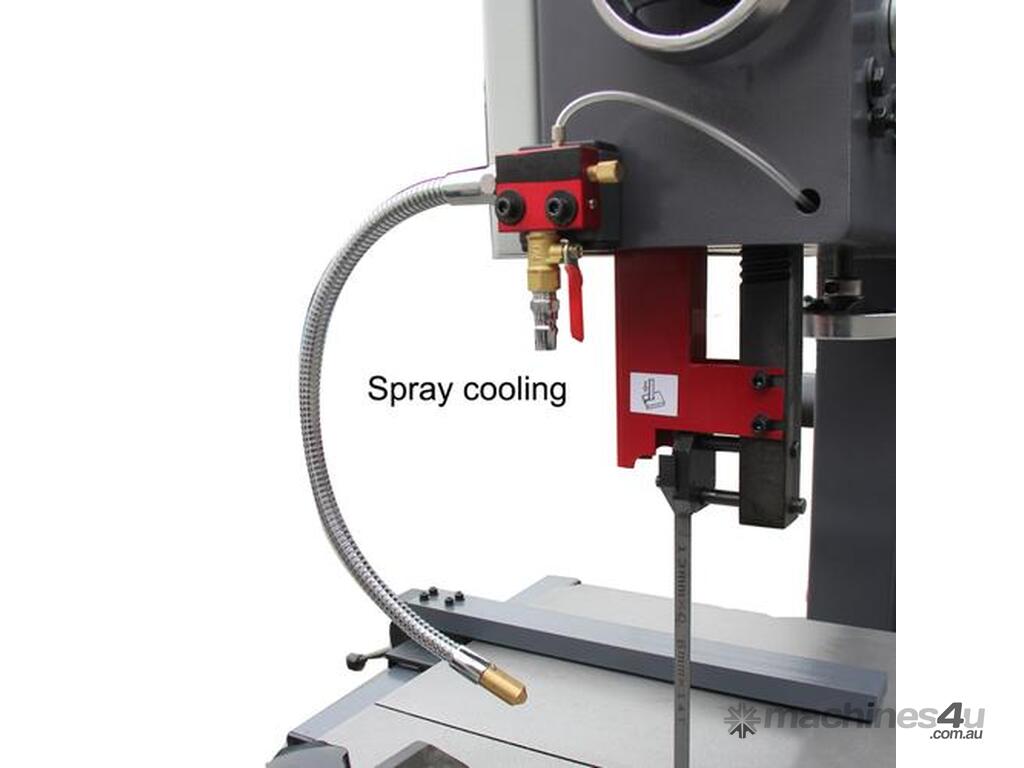

The air blowdown system cools the blade and keeps the saw clean

Halogen work light

Specifications
SKU 188202
Model VS-2012
Max. cutting height 310 mm
Max. cutting width 500 mm
Table size 660x700 mm
Table height 980 mm
Motor speed 0-1400 rpm
Blade speed 15-328 MPM
Length of saw blade 3980-4050 mm
Blade width 3-16 mm
Table tilt R-30°, L-15°
Main motor/ Grinder motor  1.5 kW/0.09 kW
Electric welder 2.4 KVA
Packing size 140x90x220 cm
N.W./G.W. 484/548 kg
