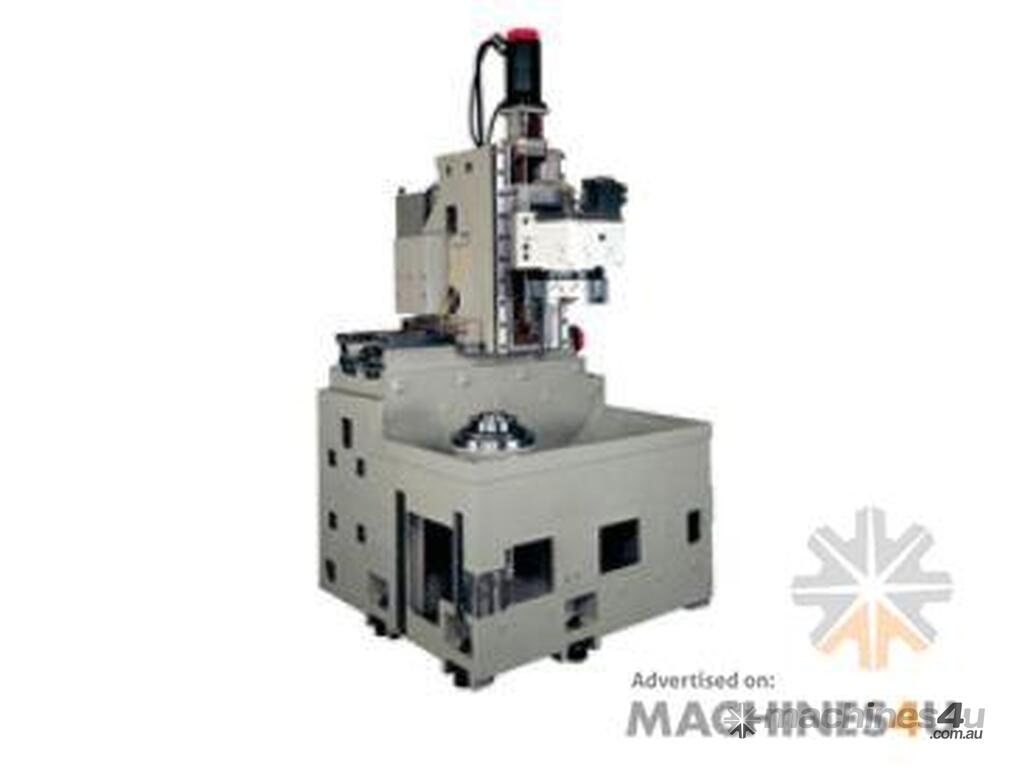

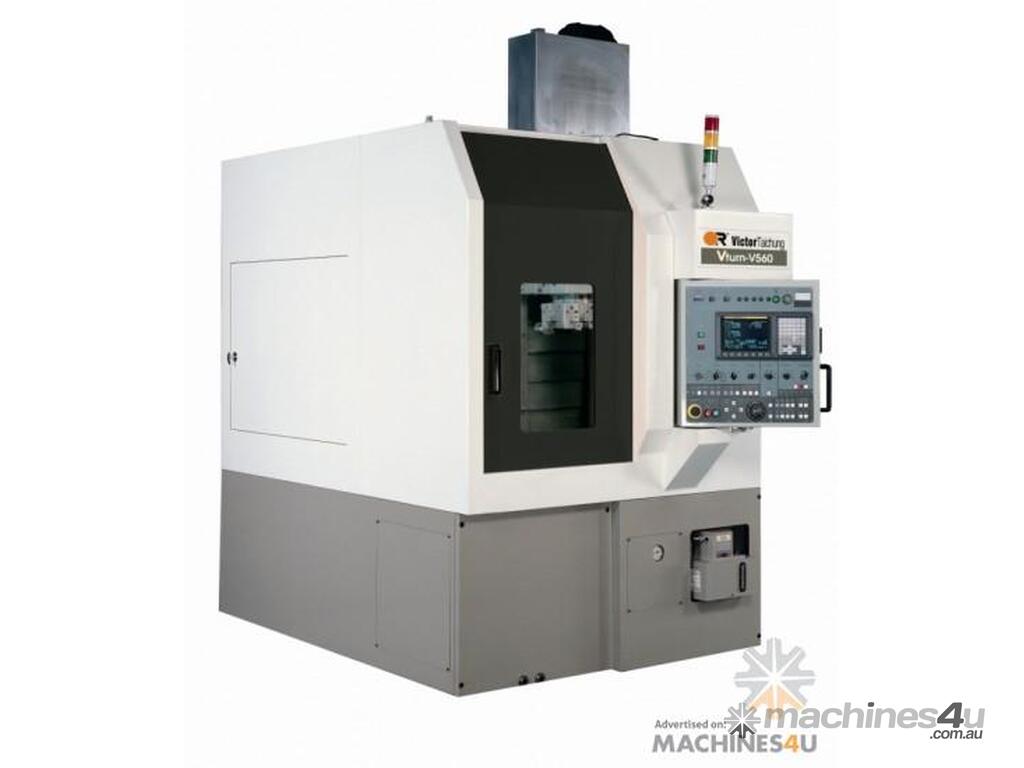

New victor taichung CNC Vertical Lathes for sale - Vturn V560

Specifications:
Capacity:
Swing over bed: 600 mm
Swing over carriage: 540 mm
Max. turning length: 520 mm
Std. turning dia.: 470 mm

Travel:
X axis stroke: 280+130 mm
Z axis stroke: 540 mm
Spindle Max. spindle speed: 2500 rpm
Spindle nose: A2-8 mm
Spindle bore: 86 mm
Inner bearing: 130 mm
Chuck diameter: 12" (Opt. 10"/15"/18") inch
Max. part weight (incl. chuck): 593 kg
Turret No. of tools no.: 8
No. of live tools (opt.) no. 8 (VDI-40) (DIN-5482, axial type, left-hand)
Tool shank size: 32 mm
Max. boring bar dia: 50 mm
Exchange time: 1 (hydraulic) sec.
Feedrate - Rapid feedrate: X/Z = 15/24 m/min
X axis ballscrew: Ø50 x P10 (moving column) mm
Z axis ballscrew: Ø40 x P12 mm
Cutting federate: X/Z=0~1260 mm/min
Motor - Spindle motor: 15/18.5 (P30i) kW
Opt. 18.5/22 (P40i)
Gearbox: Optional
X/Z axis servo motor: X:4, Z:4 kW
Milling motor (opt.): 4 kW
Machine Fanuc controller: 0i-T
Coolant tank Liter: 185
W × L × H (including chip conveyor): 1560 × 3250 × 2918 mm
Power requirement: 40 (45 for CV) kVA
Net weight: 6000 kg

Standard accessories:
- Solid chuck with soft jaws
- Chip conveyor with cart
- Automatic forced lubrication
- Fully enclosed splash guarding
- Tool holders (exch VDI tooling)
- 3 step warning light
- Fanuc 0i-T control
- Remote MPG (handwheel)
- Oil cooler for gearbox (Vturn-V760)

Optional accessories:
- Bigger chucks (21" chuck/1700rpm, 24" chuck/1400rpm, 28" chuck/1200rpm, 32" chuck/1100rpm)
- Oil skimmer
- Bigger spindle motor
- Renishaw tool presetter (detachable)
- High pressure coolant
- Auto door
- VDI turret
- C axis and VDI turret
- Higher column (100mm more)
- Fanuc 21i-T /18i-T control
- Higher outlet chip conveyor (for Vturn-V560)
- Detachable chip conveyor (to reduce the floor space when cleaning)

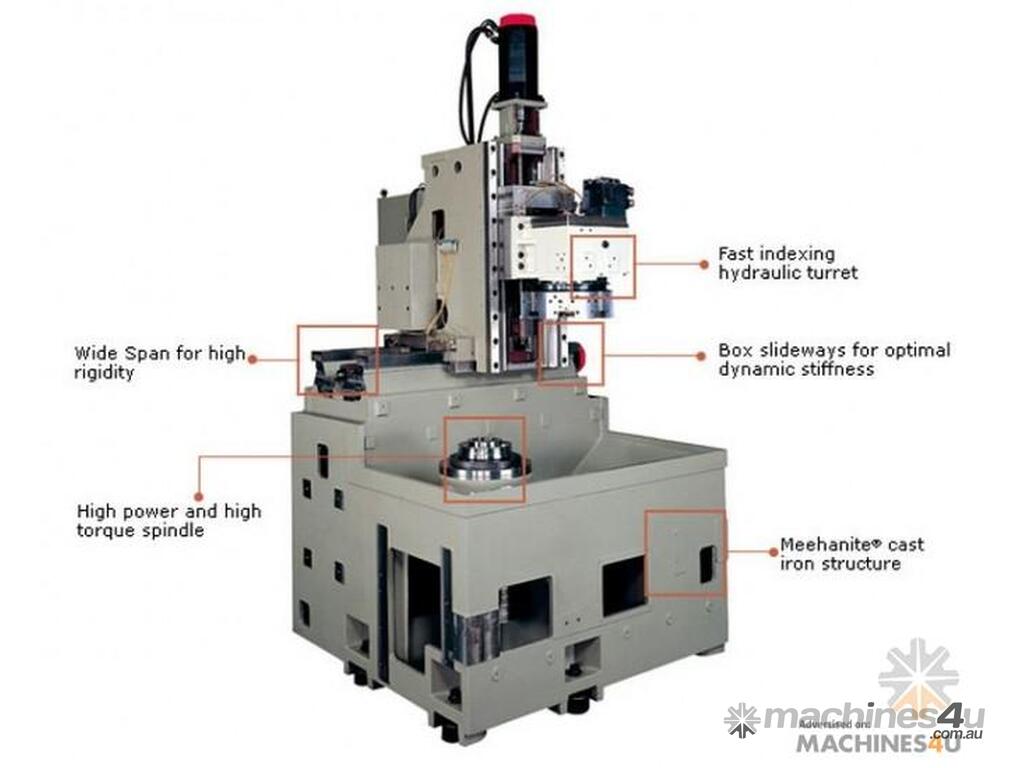

Compact VTL designed for heavy cutting.

Following on from the Victor Taiching extremely successful raange of horizontal lathes, a range of new vertical lathes has been designed yo meet higher roundness requirements.
