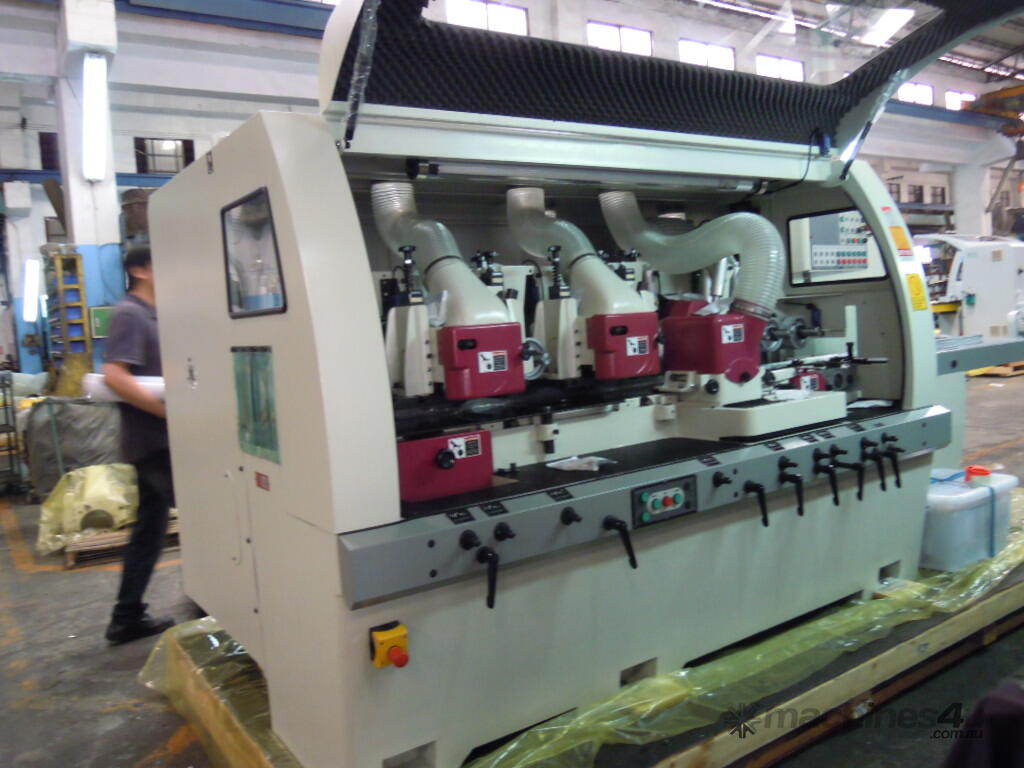

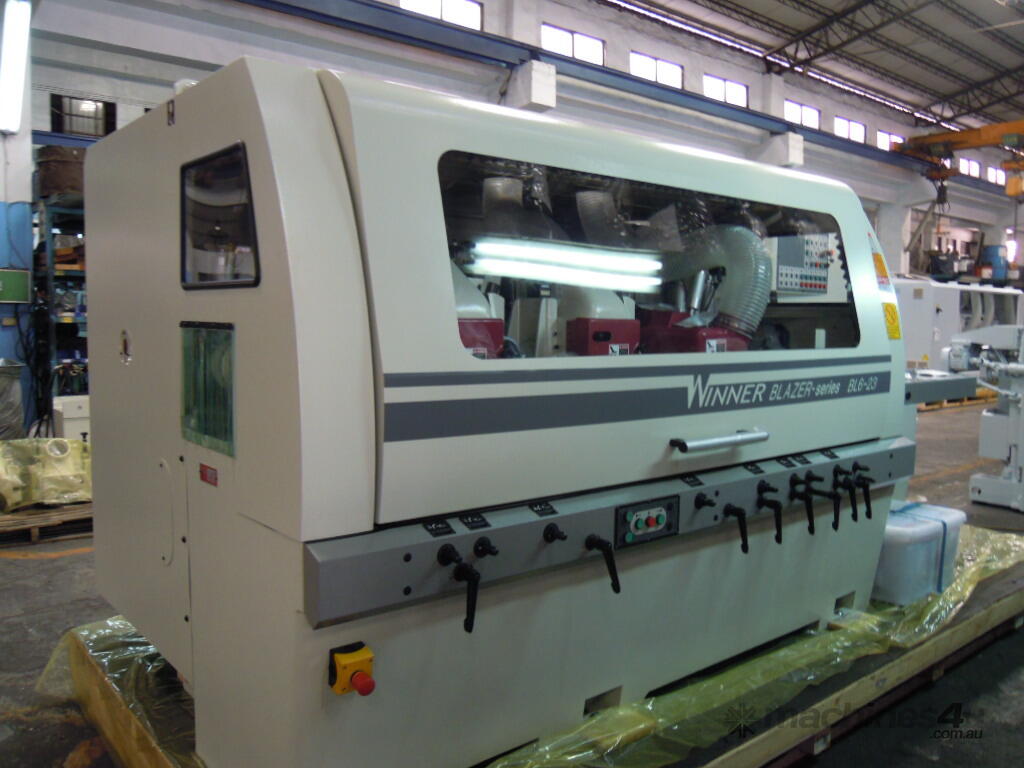

BL heads 4-sides Moulder
A.Capacity :
(1)Moulding spindle number : 5
(2)Working width : 18-230mm
(3)Working thickness : 6-125mm
(4)Min. working length : 200mm
(5)Feed speeds : 7-28mm
B.Motor :
(1)1st bottom horizotal spindle : 7.5HP
(2)2nd right vertical spindle : 7.5HP
(3)3rd left vertical spindle : 10HP
(4)Top horizotal spindle : 10HP
(5)Bottom horizotal spindler : 10HP
(6)Feed : 5HP
(7)Elevation : 1HP
C.Cutting circles :
(1)First bottom horizotal spindle : 100~160mm
(2)Right vertical spindle : 110~180mm
(3)Left vertical spindle : 110~200mm
(4)Top horizotal spindle :110~200mm
(5)Second bottom horizotal spindle :100~180mm

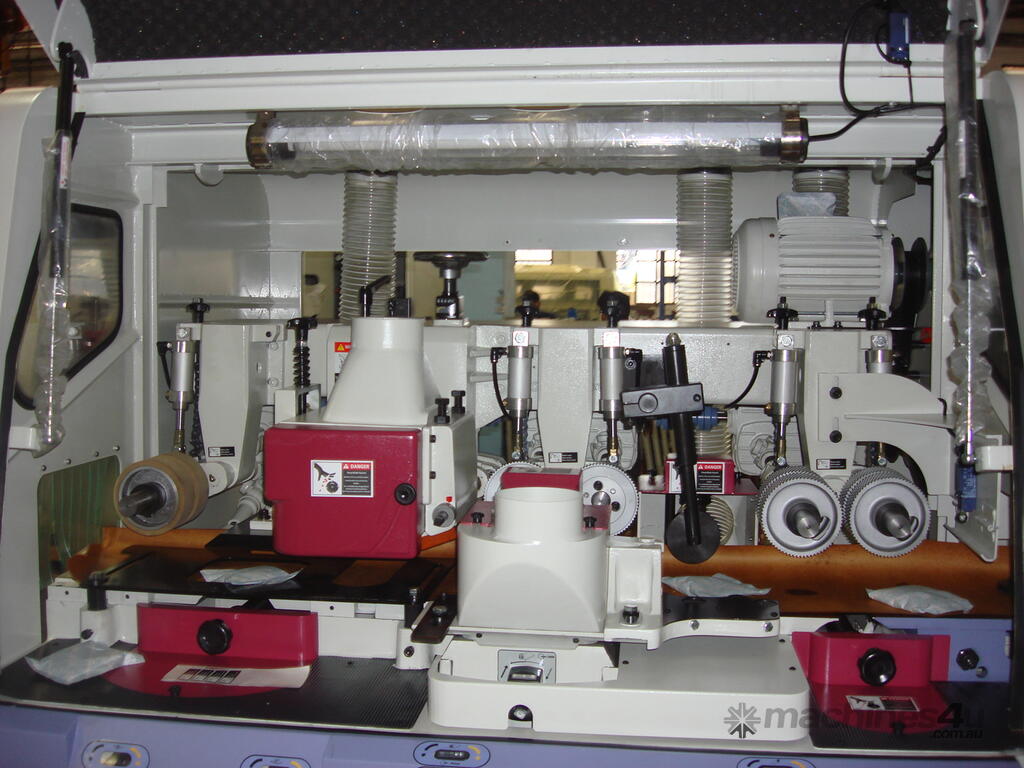

D.Spindle :
(1)Spindle diameter : 40mm
(2)Spindle cutting speed : 6200rpm(50HZ)
(3)Spindle cutting speed : 7200rpm(60HZ)
(4)Adjustment range of vertical spindle :45mm
(5)Adjustment range of horizotal spindle :35mm
E.All other :
(1)Dust outlet diameter : 125mm
(2)Infeed table : 2M
(3)Feed roller diameter : 140mm
(4)Feed roller width : 2*50mm
(5)Pneumatic pressure for feed rollers, max : 6 bar (87psi)
(6)Adjustment range for infeed table and edge-jointing fence : 10mm
(7)Without cutterhead.
(8)Sequence: B-R-L-T-B.
(9)Packing dimensions L*W*H :354*201*211cm
