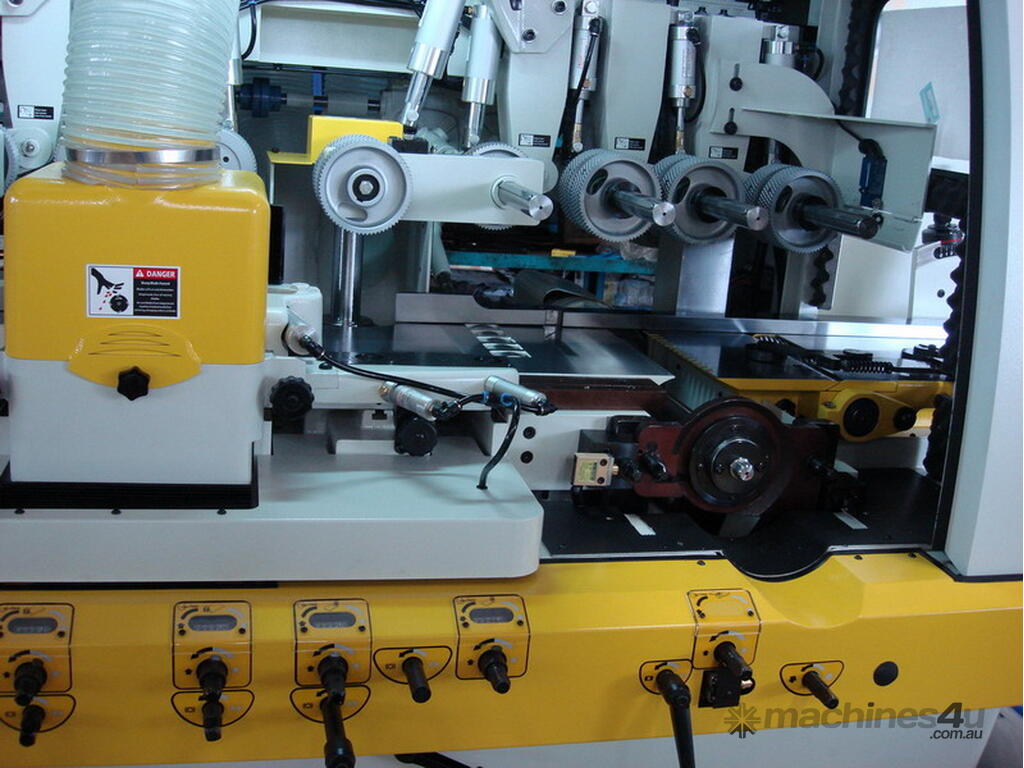

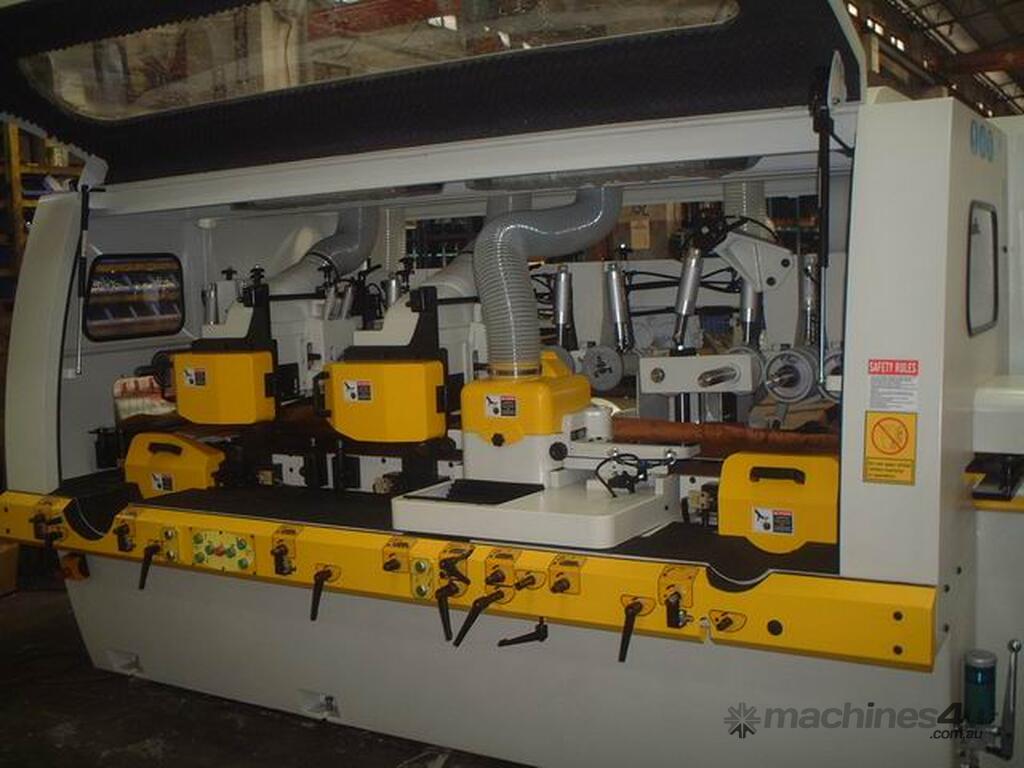

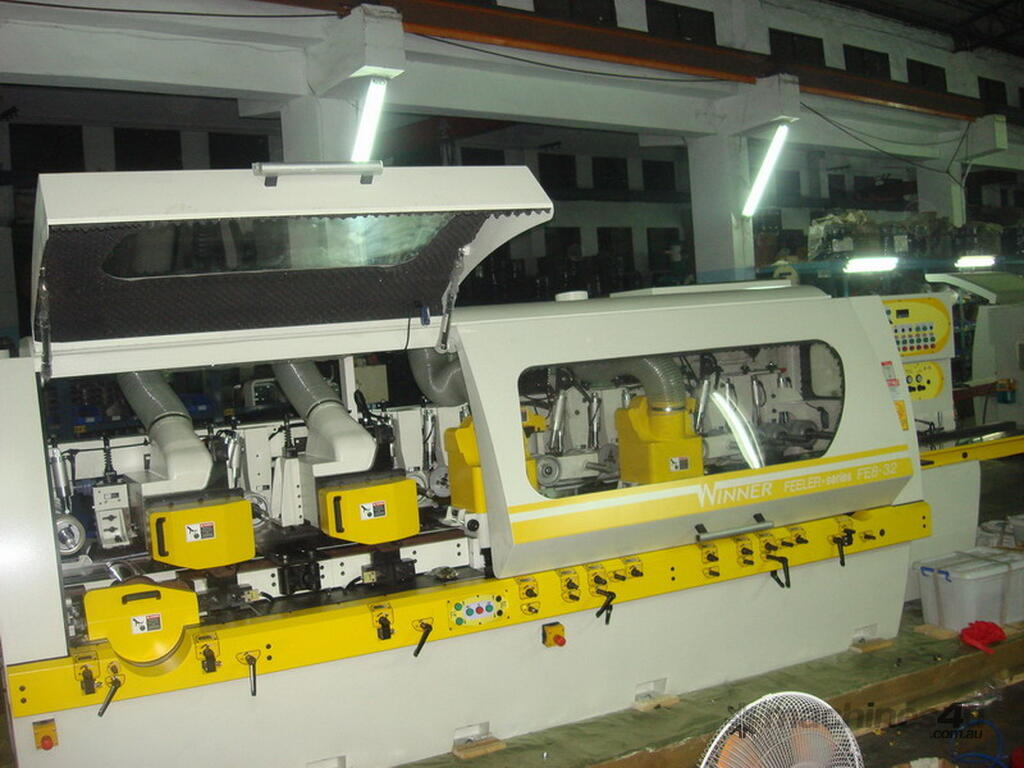

Winner FE 6-23 Feeler Automatic through feed four side planer/Moulder machine .The machine frame is made in one piece from high quality cast iron (FC-25)for maximum stability.
FE6-23 Feeler-series 6 heads Moulder
FEELER -series A. Capacity?
(1)Working width?18-230 mm
(2)Working thickness?6-160 mm
(3)Min. working length?240mm
(4)Feed speed?7-36 M/min
(5)Number of spindle?6
B. Motor?
(1)1st bottom horizontal spindle?10HP
(2)2nd right vertical spindle?10HP
(3)3rd left vertical spindle?10HP
(4)4th top horizontal spindle?10HP
(5)5th top horizontal spindle?10HP
(6)6th bottom horizontal spindle?10HP
(7)Feed speed?10HP
(8)Elevation?1HP
C. Cuttiing circles?
(1)First bottom horizontal spindle?100-180mm
(2)Right vertical spindle?110-250mm
(3)Left vertical spindle?110-250mm
(4)Top horizontal spindle?110-250mm
(5)Second bottom horizontal spindle?100-250mm
D. Spindle?
(1)Spindle Diameter?40mm.
(2)Spindle cutting speed?6200rpm(50hz)
(3)Adjustment range of vertical spindle?80mm
(4)Adjustment range of horizontal spindle?35mm
E. All other?
(1)Dust outlet diameter?140mm
(2)In feed table?2M
(3)Feed roller diameter?140mm
(4)Without cutter head
F. Standard Equipment?
(1)Feed speed digital display-DPRLF-40K
(2)Automatic table lubrication system
(3)Central lubrication-point to point type
** Options **
(1) OP014-10 Variable Feed Speed Controller-10HP Inverter.
(2) OP023B10-15 Motor from 10HP to 15HP per 3rd, 4th, 5th & 6th spindles.
(3) OP017 Digital Position Controller per 3rd, 4th & 5th spindles.
