X200 Fully Automatic Pallet Wrapping Machine (Our Best Selling Model)

NO MORE FILM TALES WITH AUTO CLAMP, CUT AND WIPE
NO NEED FOR THE OPERATOR TO EXIT THE FORKLIFT
THIS IS OUR BEST-SELLING WRAPPER
THE QUALITY/FEATURE/PRICE PACKAGE IS UNBEATABLE
24 MONTHS WARRANTY
OTHER MACHINES WITH THESE FEATURES COST IN EXCESS OF $20,000

Product Application
Our automatic pallet stretch wrapping machine (also called automatic pallet wrapper) use LLDPE stretch film as the main packing material to wrap the bulk cargo stacked on the pallet. The film provides extra support during transportation and storage to protect them from dust, moisture, or damage automatically. Our pallet wrapping machines are widely used in industries such as food & beverage, manufacturing, glassware, tools, electric & electronic, paper, pottery, etc

Main Features
- 250% Powered Pre-stretch 1m stretches to 2.5m
- 1800mm Turntable to suit 1200mm x 1200mm pallet. (2000mm optional)
- 2.350m Wrap Height (2.750m optional)
- 2000kg Capacity
- Ramp (optional extra)
- Weight Scales (optional extra)
- Automatic Cut, Clamp and Wiping of the film
- Film Carriage Safety Door with Sensor
- Remote Control (No need to get off your forklift)
- Touch Screen Operation (can save up to 6 programs for various wrapping needs. The wrapping type and styles can be designed to your requirements.)
- PLC (SIEMENS)
- Inverter (X-LINE)
- Intelligent Alarm System with LED Indicator
- Forklift pockets for easy moving
- High efficiency and low electricity consumption, convenient in operation.
- Photoelectric sensor to detect pallet height (Black wrap sensor optional)
- Auto reset of turntable
- Pallet stretch wrapping machine soft start and soft stop.

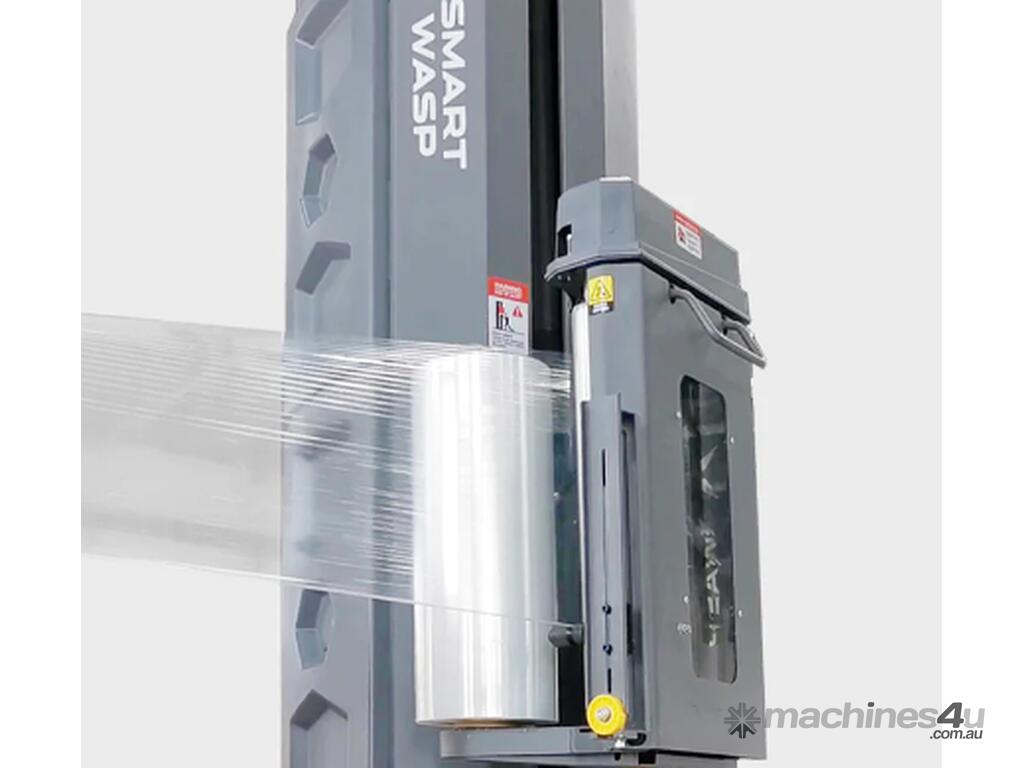

250% Film Stretch Rate
With our standard 250% film stretch rate the standard film can be stretched turning your 10m of film into 25m of film. Of course, some claim their machines will stretch greater amounts but don't be fooled. Most stretch films on the market can't handle a greater stretch rate. The machine may be able to do it, but the chances are your film will not. Not only that but there is no one at this price point that can offer a fixed 250% stretch rate. Our multi-layer wrapping function helps to secure the load better with less film usage but there is more on this feature below. Of course, if your current film cannot handle a 300% wrap rate, we can offer a film that can.

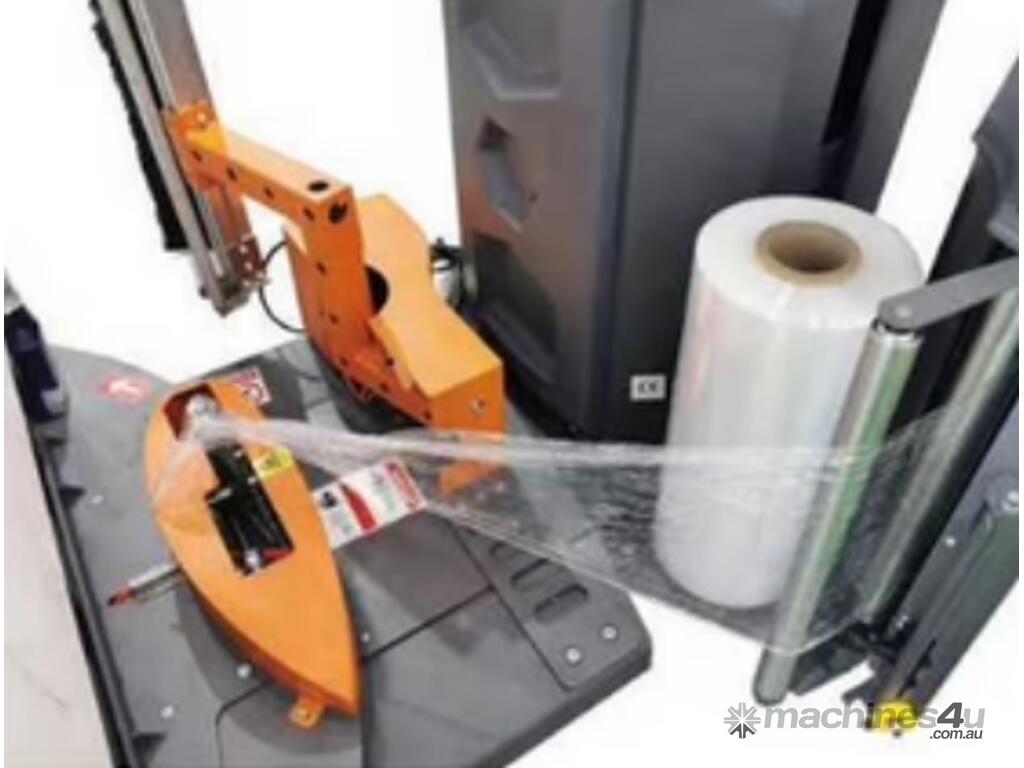

Automatic Cut, Clamp and Film Wipe (Say goodbye to loose film tails)
The X200 has an automatic cut, clamp and film wipe system, which means your operators do not need to hand cut the film or attach the film to the pallet anymore, our cut, clamp and wipe film system will do it automatically. The wiping arm pushes the end of the film up against the wrap on the pallet and in most cases due to the cling of the film it remains in place, so no longer do you need to worry about those unsightly film tails that need to be manually inserted under the film. (Compressed air is required for this function)

Remote control system
The X200 pallet wrap machine comes with a remote control therefore the operator just needs to put the pallet on the turntable and press the remote control start button and the machine will wrap the pallet automatically. This means the forklift operator does not need to continually hop on and off the forklift. This means the operator is at reduced risk of injury as many strains and pains are caused by frequently hopping on and off forklift trucks. Not to mention the operation no longer has a reason to find a way to defeat the seat belt latch on the forklift to avoid putting it on and off 100 times a day. Of course, we are certain that never happens in your workplace.

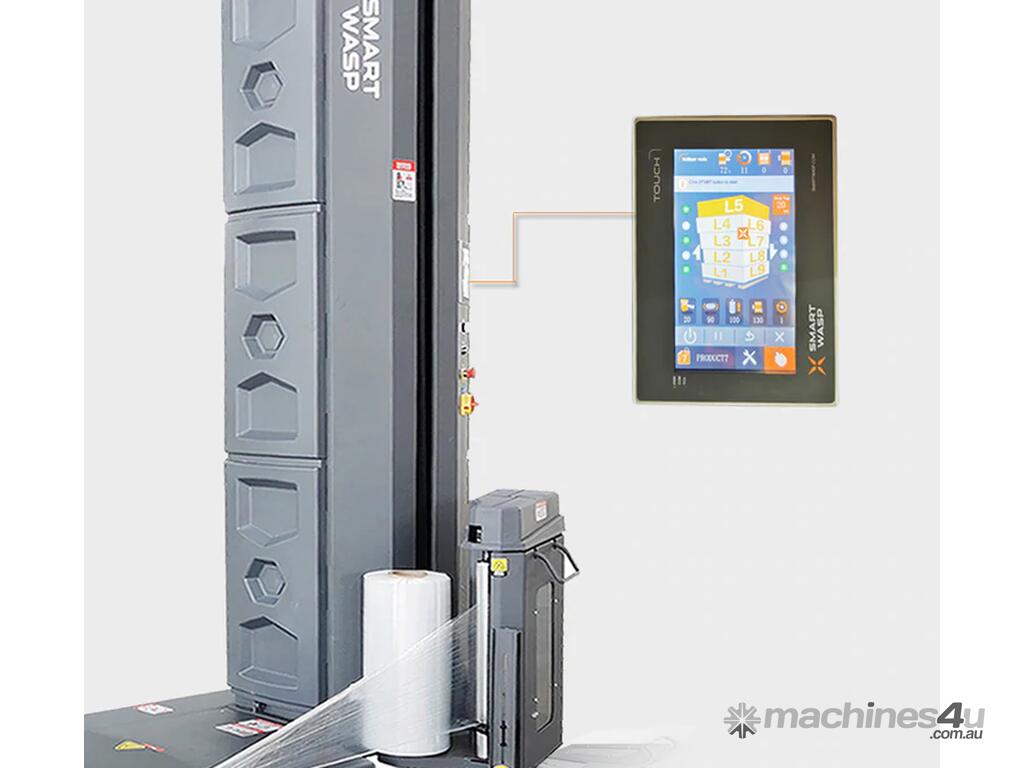

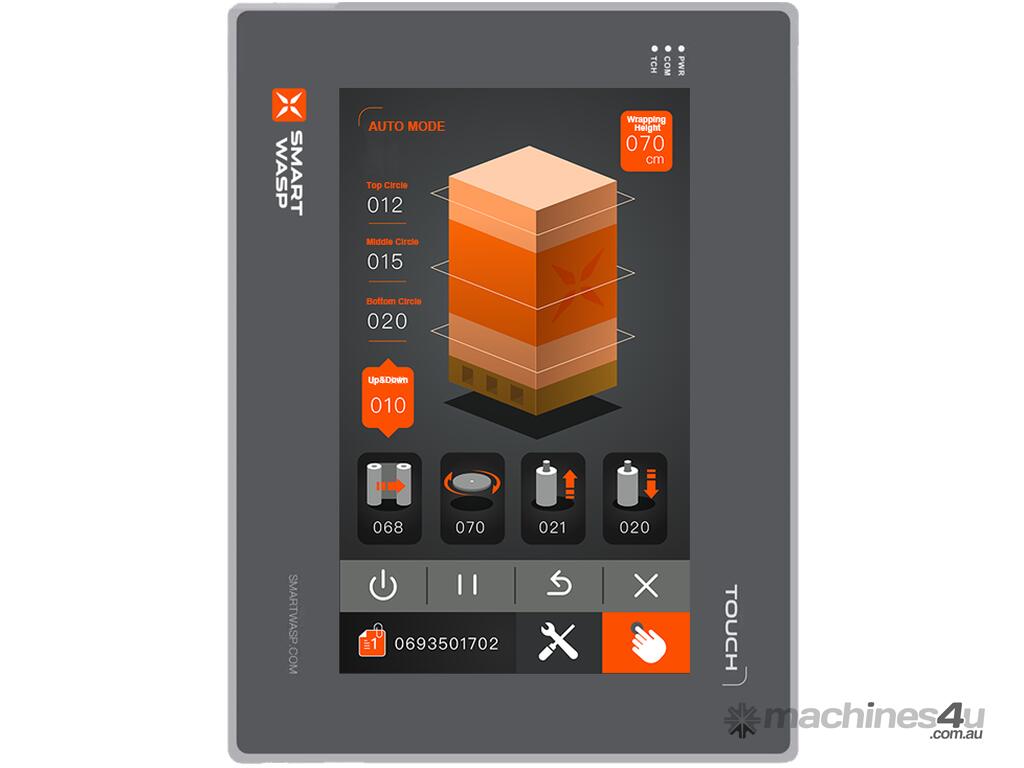

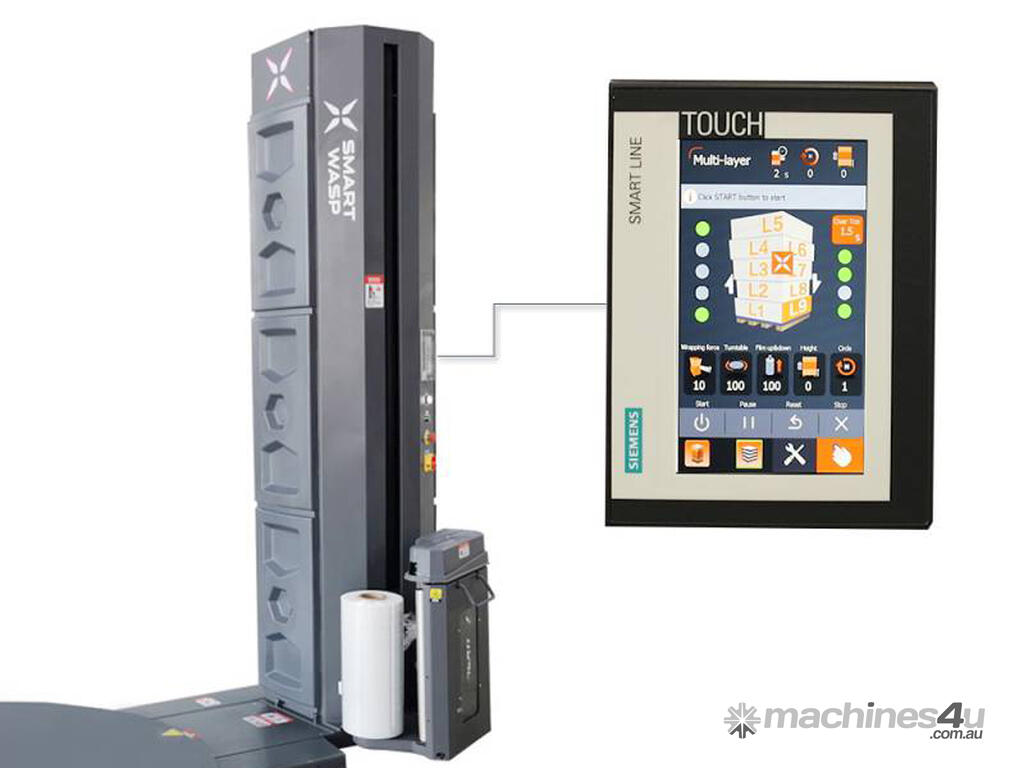

LCD touch operating system
SMART WASP pallet wrapping machine uses the best touch screen "SIEMEN", the reaction of the touch screen and functions is perfect. The touch screen can set the "turntable speed up & down speed and film carriage speed, you can adjust any of the parameters in any program and once you have got the programs just how you want them to be, it is very easy to choose which program you want to use for each of your products. We are confident you can cover all your wrapping needs using one of the 6 programs.

Multi-layer Function
With this function, you can set different wrapping circles, and different wrapping forces at any height that you want on your pallet. The maximum zones on any one pallet is 9. This is an incredible amount of precision wrapping. Normal machines use a consistent wrapping force and speed from bottom to top and they cannot stop or achieve reinforce wrapping functions during the wrapping cycle. This combined with the ability to rope the wrap is just way beyond what our competitors can offer.

We use only the BEST brand components
If you want to buy a good and durable machine, the electric components are very very important. Let's face facts and of pallet wrapper, it is normally the electrics that let you down. No at Smart Wasp we only use the best and most popular brands that are easily sourced. Of course, our Plasquip and Smart Wasp keep a great range of spares but very often you will be able to source a spare part from your local electrical wholesaler before Plasquip have time to get it in an airbag for you. Using only the best and most popular brands is your insurance that your Smart Wasp machine will run long and hard for years to come.
OUR QUALITY BRANDS
SIEMENS PLC
SICK proximity switch
AUTONICS photoelectric switch
WEIDMULLER terminal block
X-LINE Inverter
OMRON 24DC power supply

Advanced Safety Technology

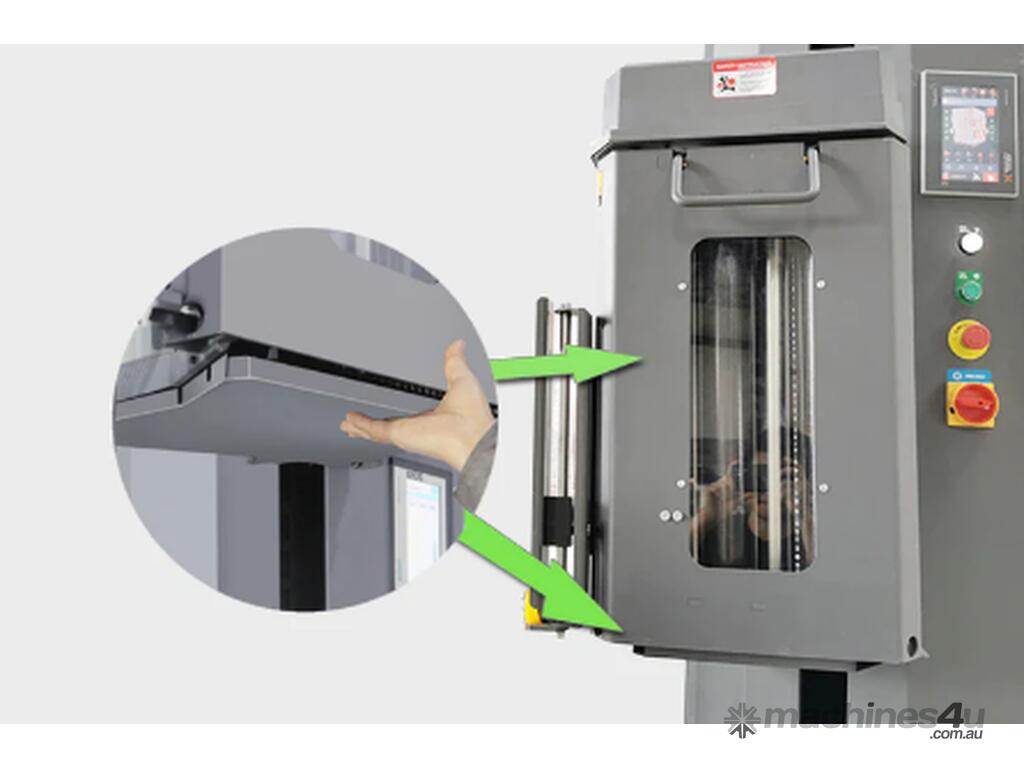

- Safety device under film carriage to protect the foot or head of the operator
- Transparent board makes it easy to find problems without opening the door
- Up and down belt deviation and damaged belt alarm system.
