Zerma PIPE SHREDDER for PVC or HDPE 80/90/120 up to 2000mmDIA

Do you have pipe to shred SAFELY without scary chainsaws, guillotines and tree shredders?

LOOK NO FURTHER!!!

More than 30TPH of Recycled Pipe around Australia knows the name Zerma. Whether you want to shred PE80, PE100, PE120, PVC or MVC or whether you want to shred 200mm or 1300mm Dia SOLID, or 2,000mm DIA Pipe, we have the solution that is right for you. Call David on the above number for a recommendation and get the experience you need to recycle your pipe.

The solution for small and large diameter pipes

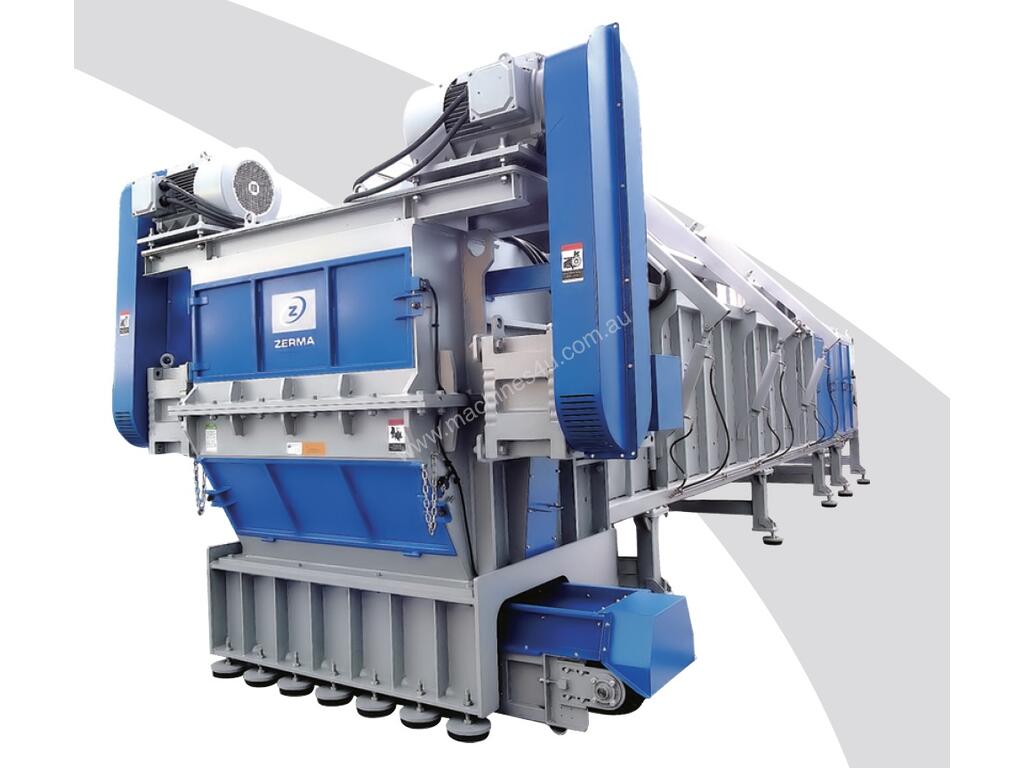

ZRS series shredders have been developed for the size reduction of pipes up to 1,700mm diameter from materials including PE, PP, UPVC, & ABS.
Pipes up to 9 meters in length may be shredded without the need for pre cutting.

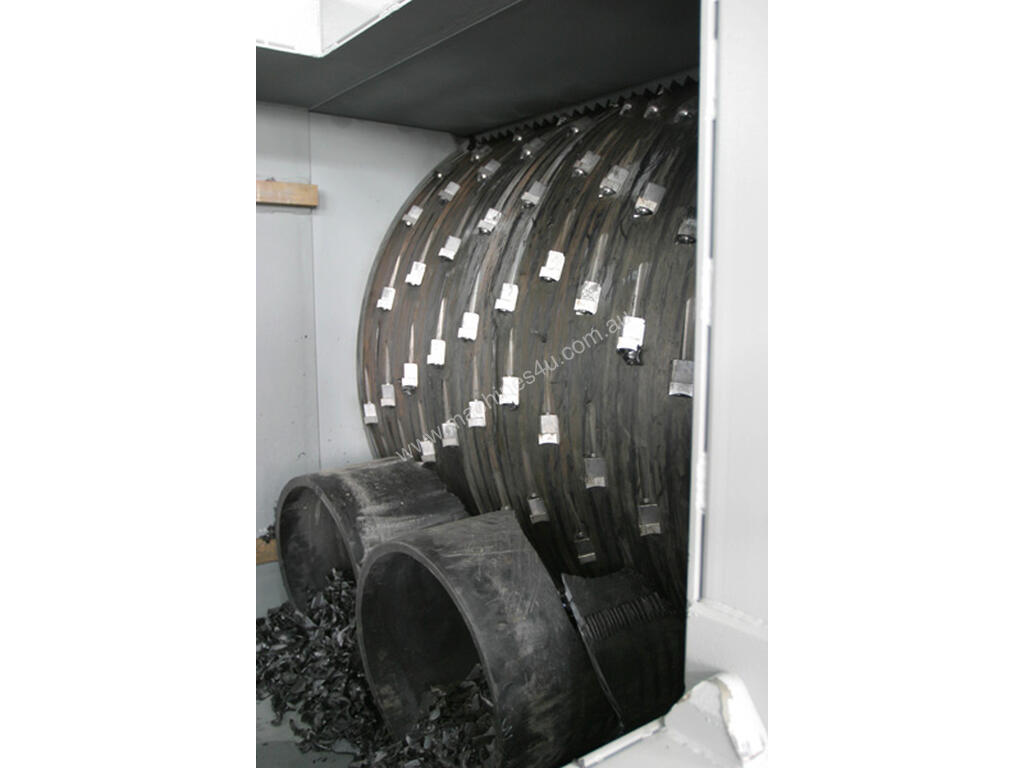

The centre piece of the ZRS1500 is a 1,500mm diameter cutting rotor equipped with 206 rotary cutting tips operating at low speed, ensuring smooth, efficient size reduction of pipes.

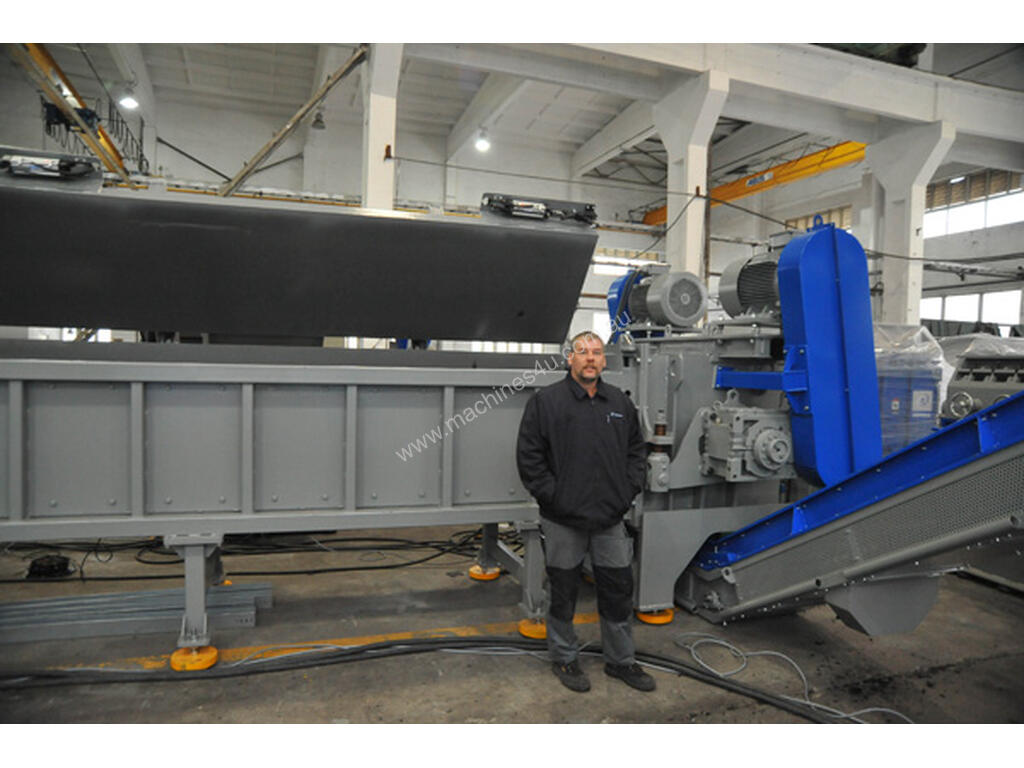

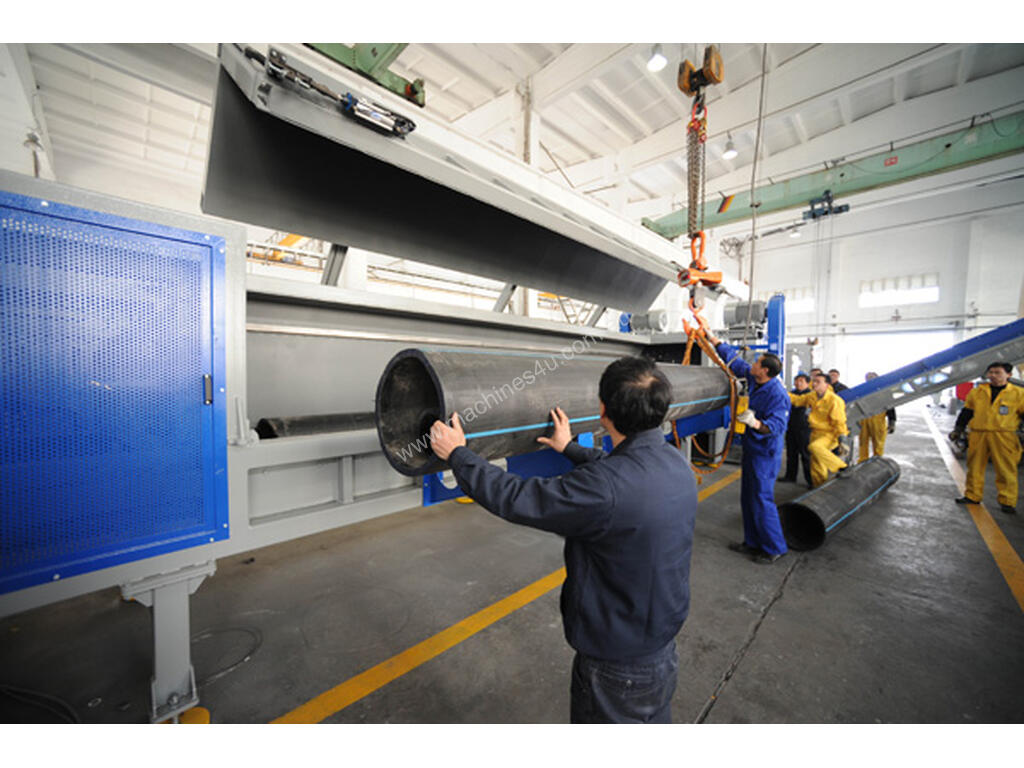

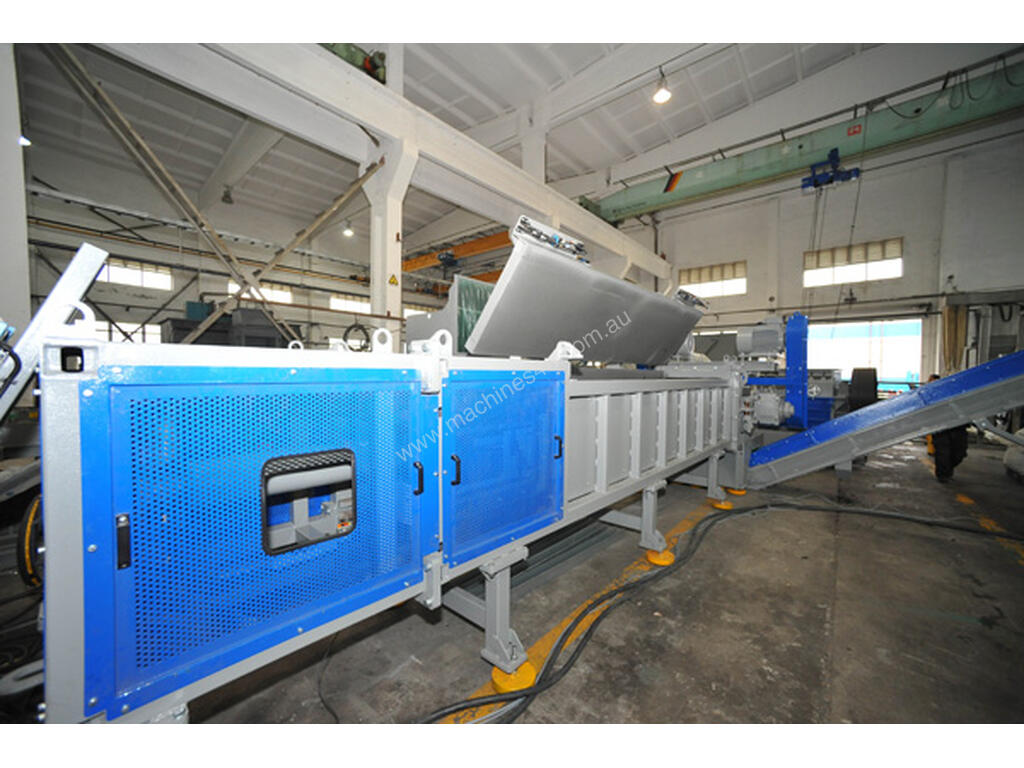

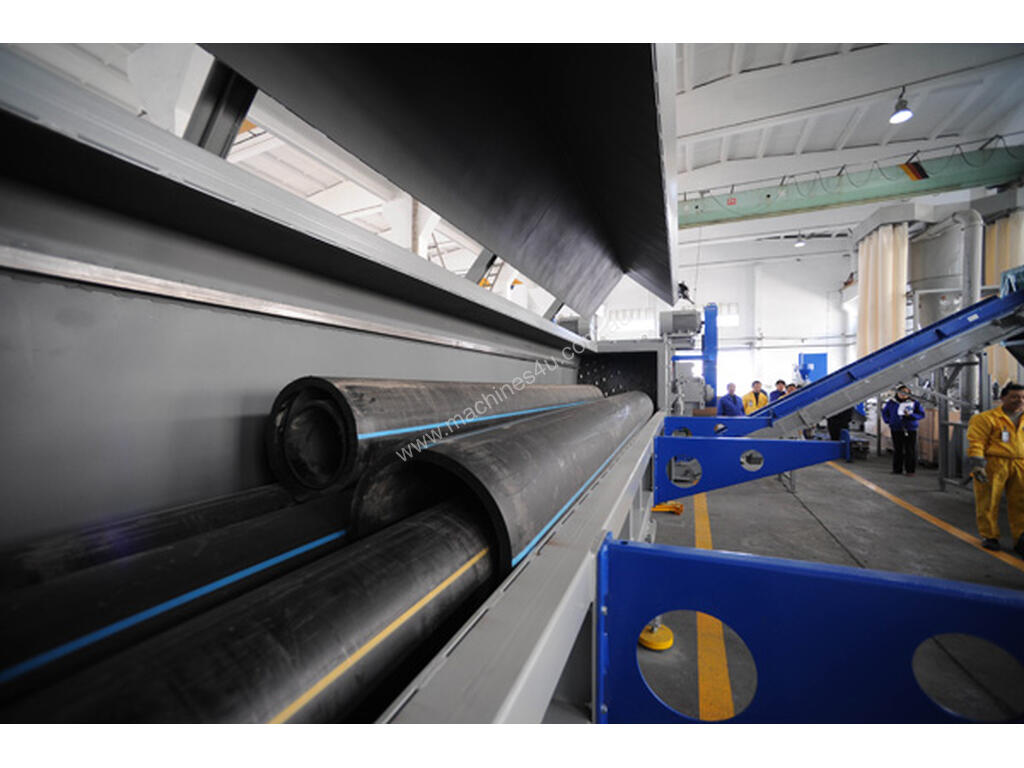

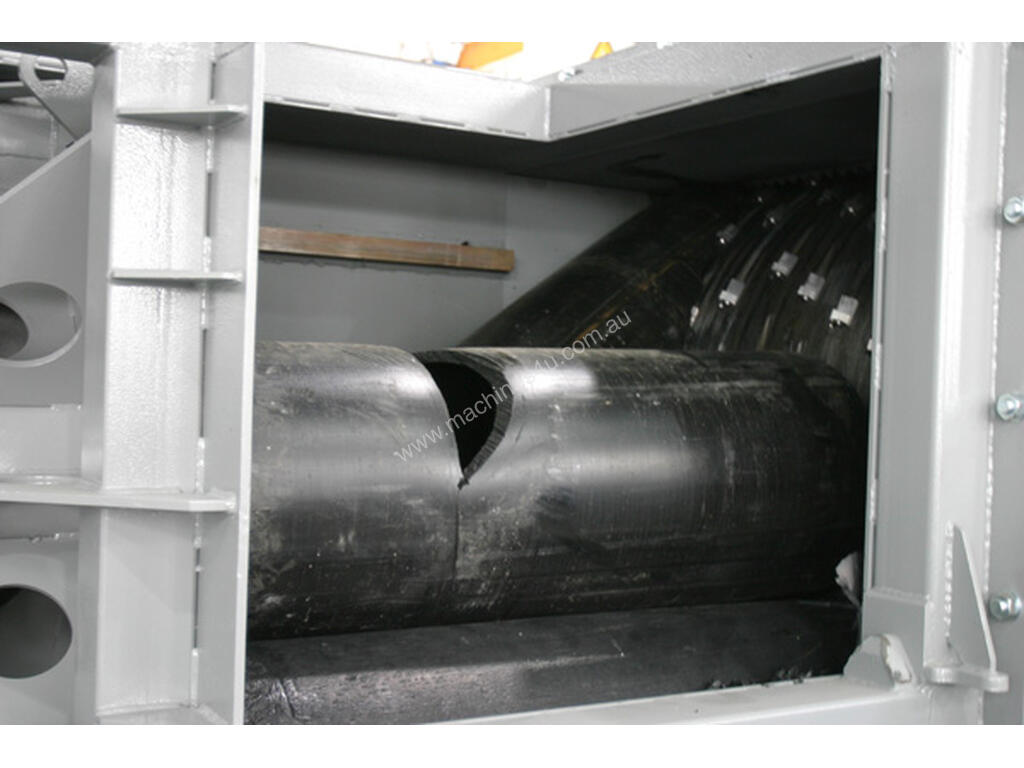

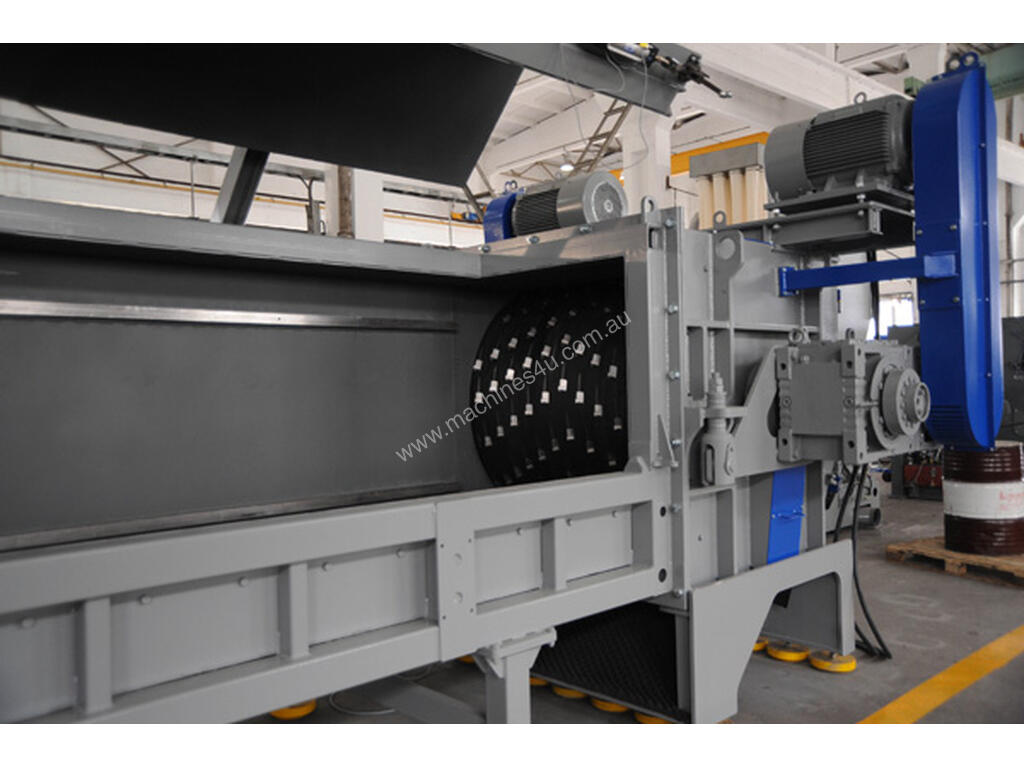

Large pipes or bundles of pipes of smaller diameter are loaded into the horizontal feeding trough, the doors are closed automatically & the hydraulic pusher forces the pipes towards the rotor.

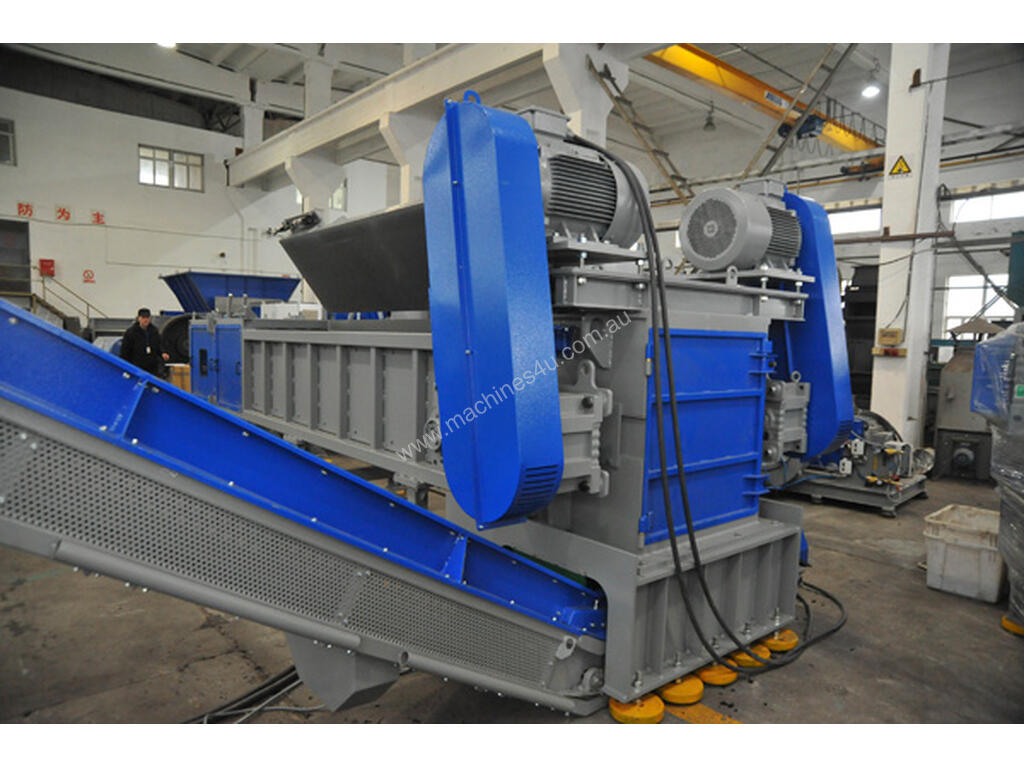

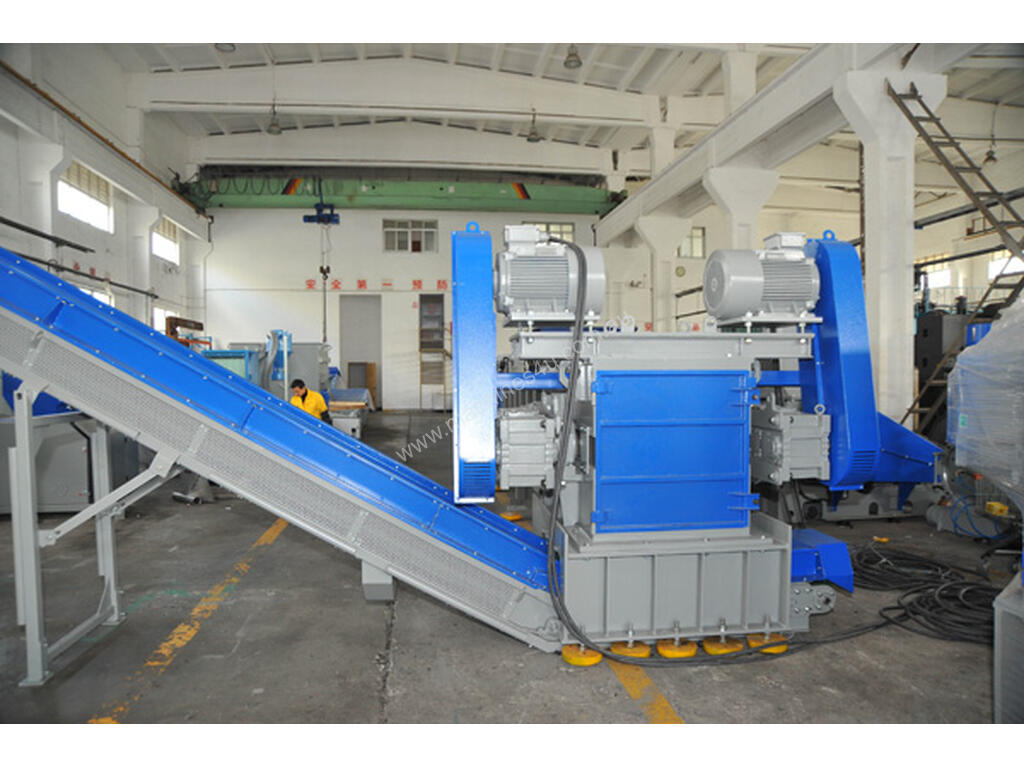

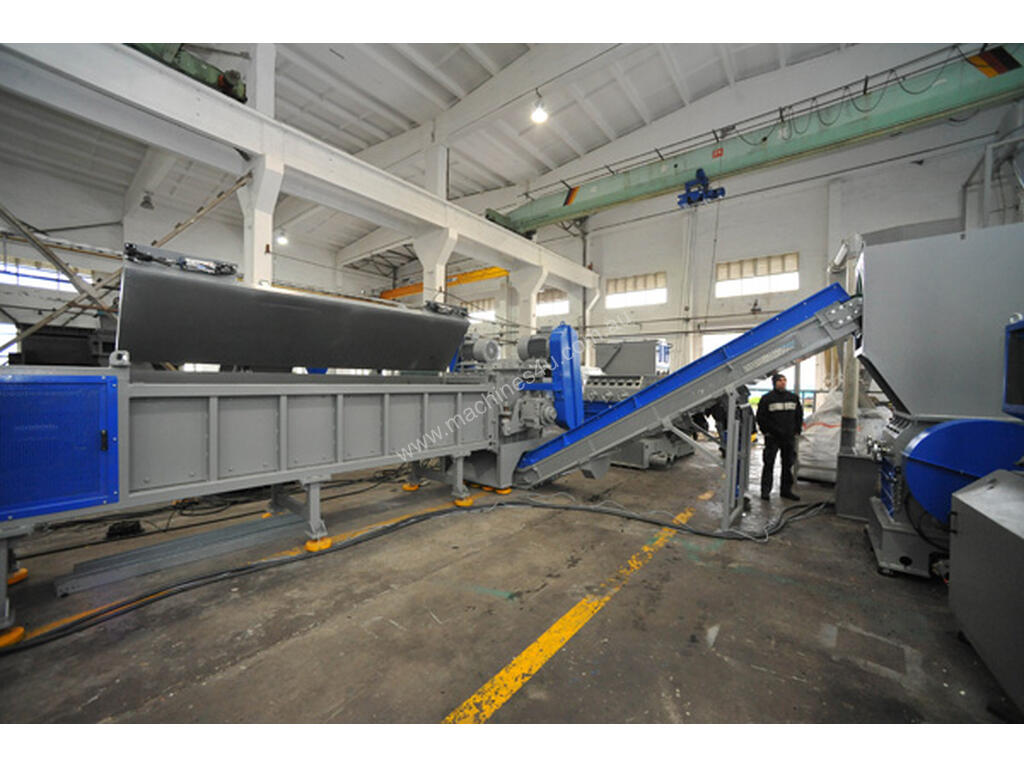

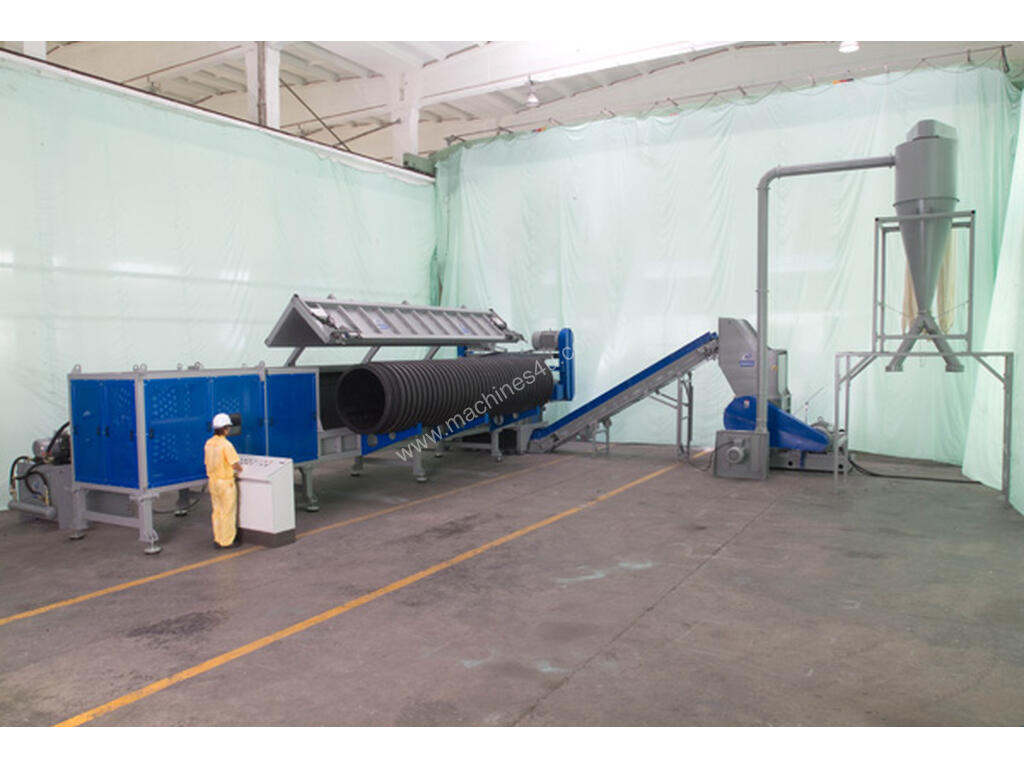

The shredded material is discharged on to a conveyor belt & transferred to a Granulator, reducing it to the final size.
A feature of the ZRS system is a low amperage peak & economical power consumption.
Noise emission is reduced when compared with large granulators due to the low speed & smooth operation of the system.

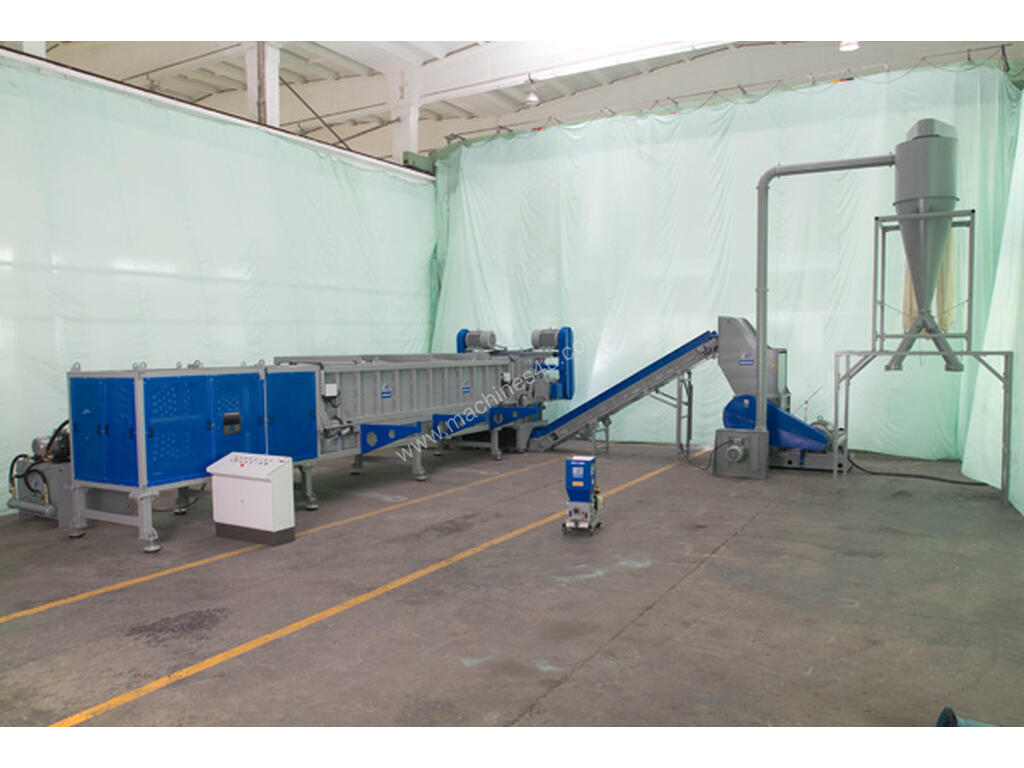

The whole system is operated via a central control panel & as is the case with all our products, operator safety is ensured by approved safety devices.

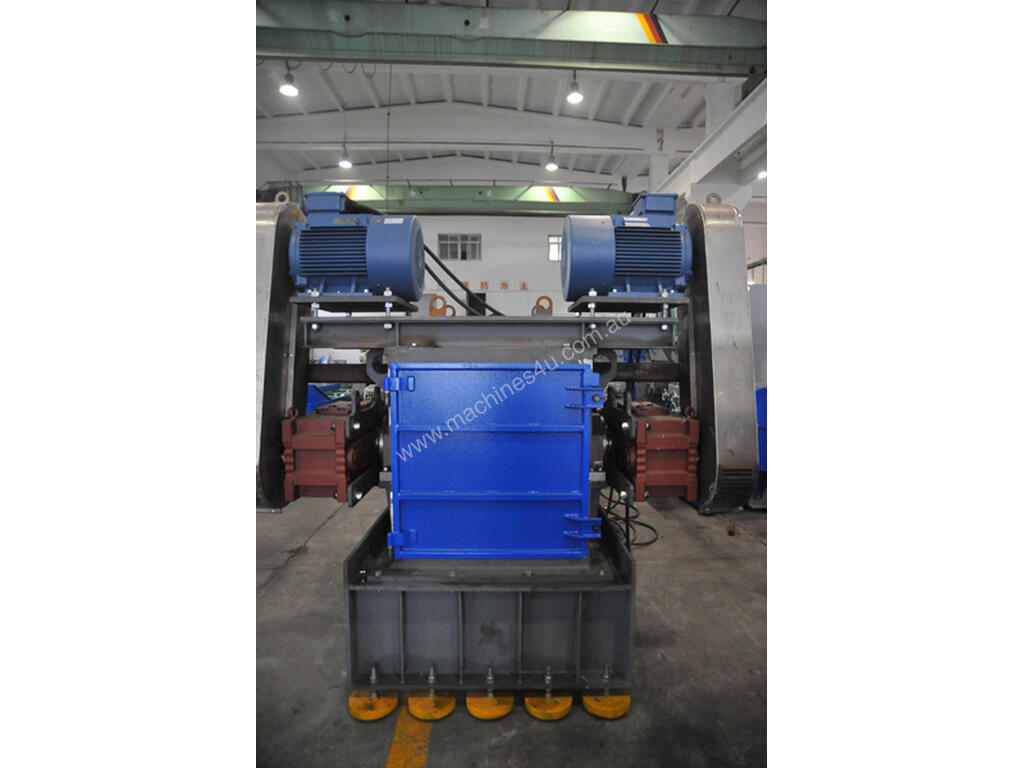

Special foundations are not required for installation because the machines are supported on anti-vibration pads.
Telford Smith provide installation & commissioning assistance in most countries & provide service via our international network of agents
