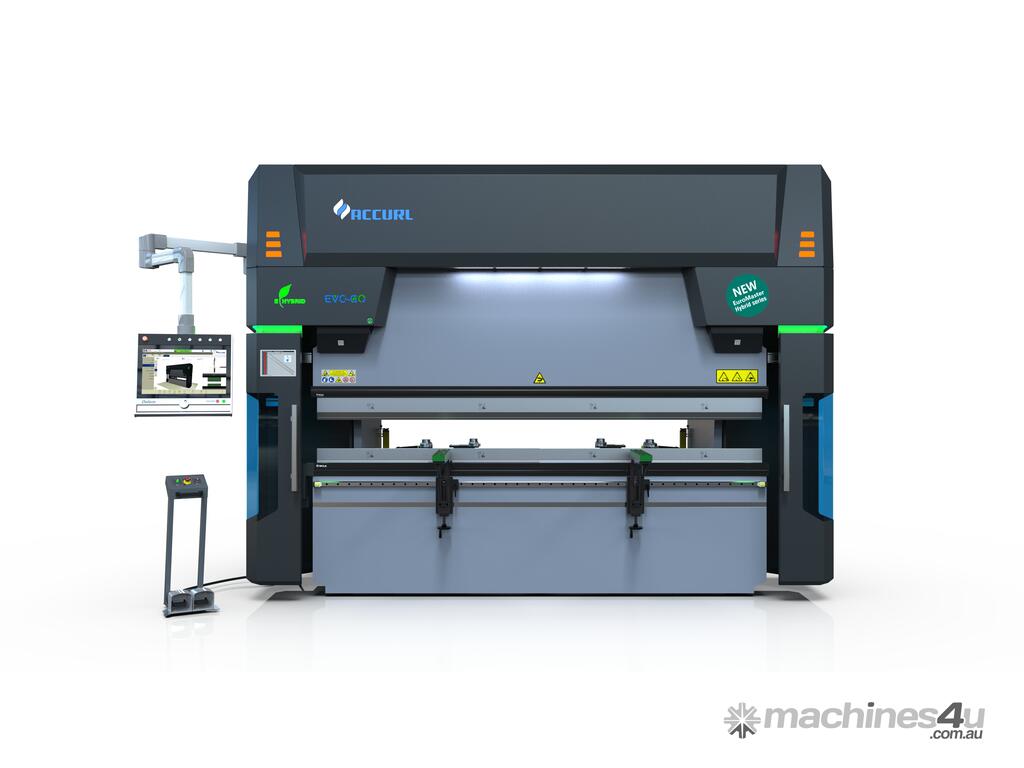

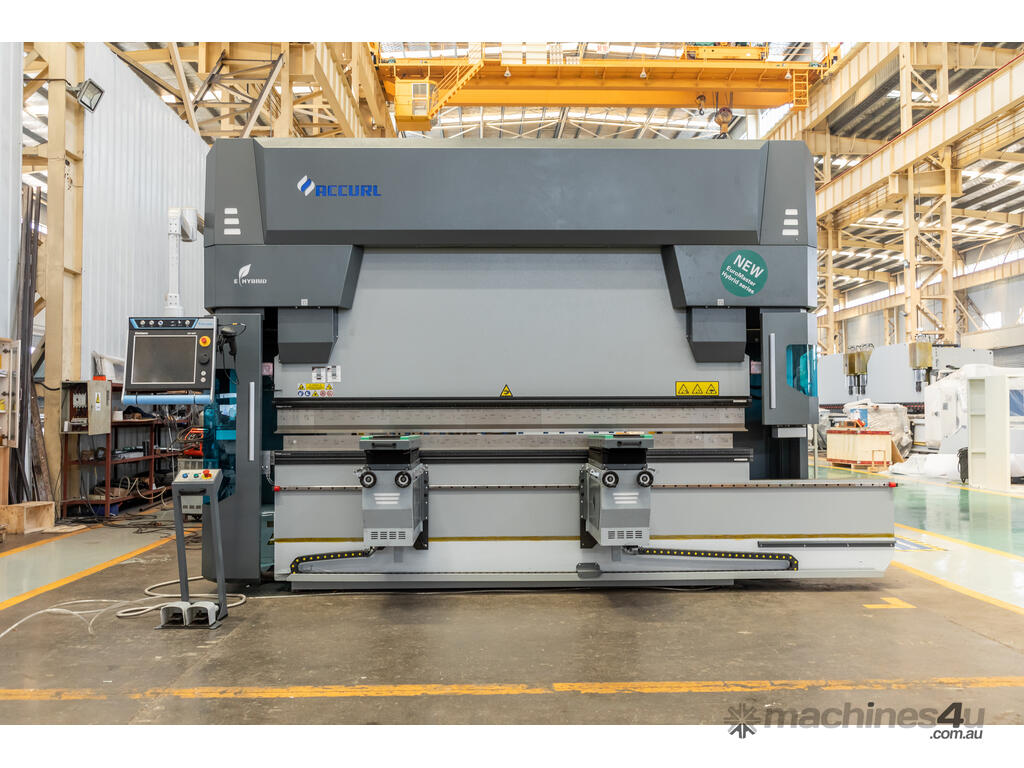

ACCURL EURO MASTER HYBRID CNC PRESS BRAKE | 2 YEAR WARRANTY

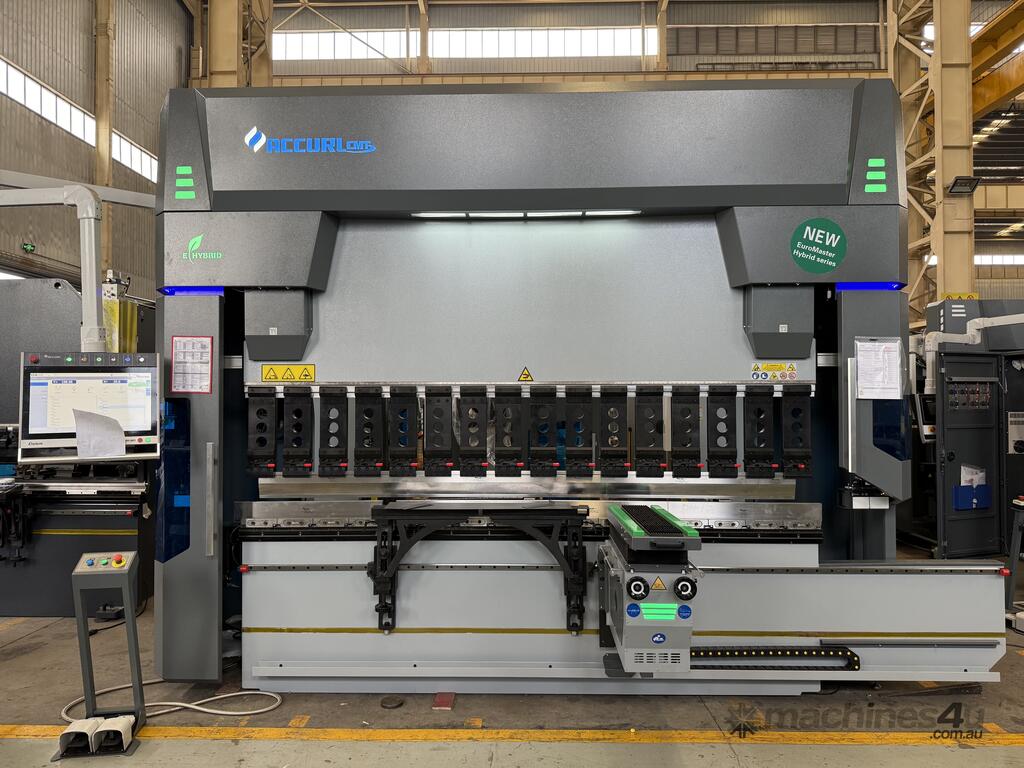

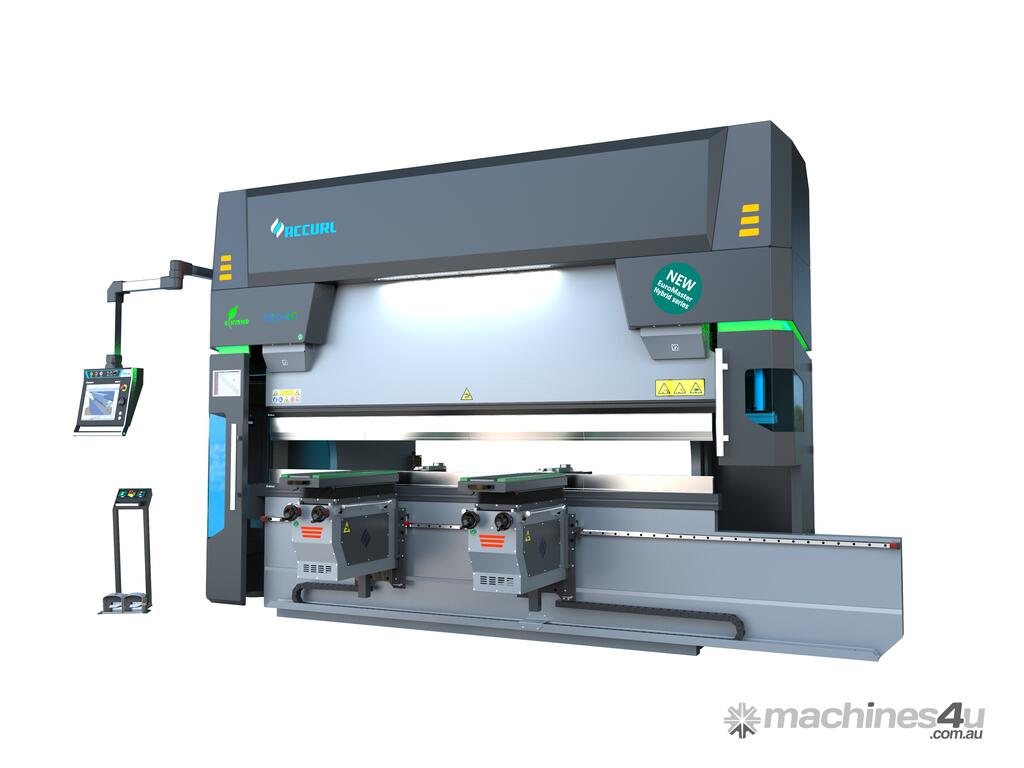

The Accurl Euro Master press brakes are the range topping servo hydraulic hybrid series in the Accurl bending range, these CNC press brakes have an unrivalled price to performance ratio and a design that leaves its competitors wanting. The Accurl Euro Master has all the latest technological advancements available in steel bending and can be optioned up with numerous controller upgrades and process automation allowing the customer to completely customise the machine to their unique needs.

As standard the Euro Master series comes with 7 controllable axis (Y1/Y2/X/R/Z1/Z2 & C), German Hawe true hybrid hydraulic system and a Delem DA-66S 2D/3D controller.

All features are meticulously thought out on the Euro Master series which is why you also get a scanning device which connects to the controller that has the ability to scan QR codes which will automatically load the required job making it simple and error free for the operator.

The upper beam slideways have an automatic greasing system that ensures the slideways are never left to go dry and to further increase the slideway lifespan the pads are graphite / copper which is self lubricating. Accurl has even gone to the extent of using a paint that has a type of plastic in it which allows the machine to be easily cleaned because dirt, grime and dust is not absorbed by the paint keeping your investment looking newer for longer.

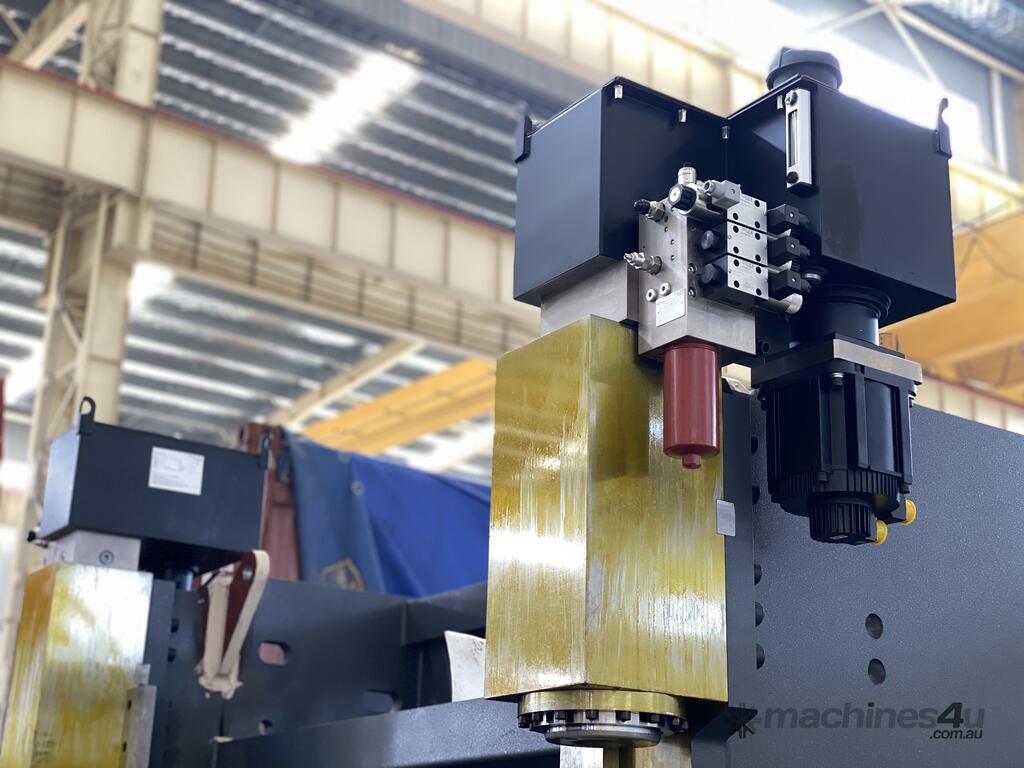

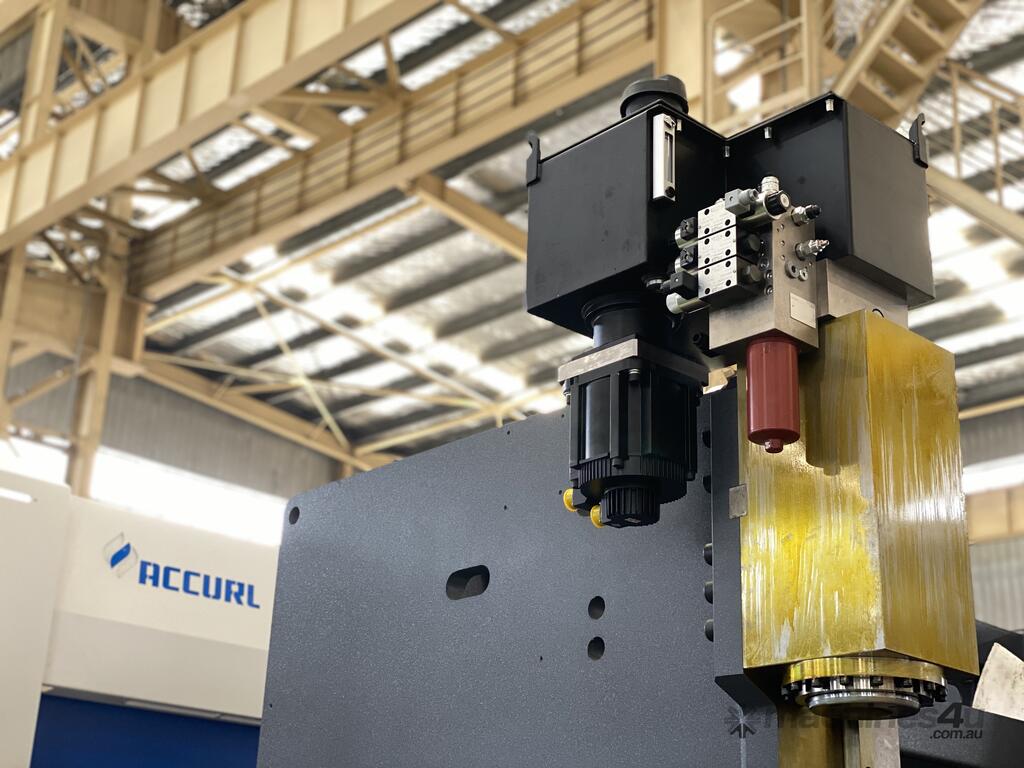

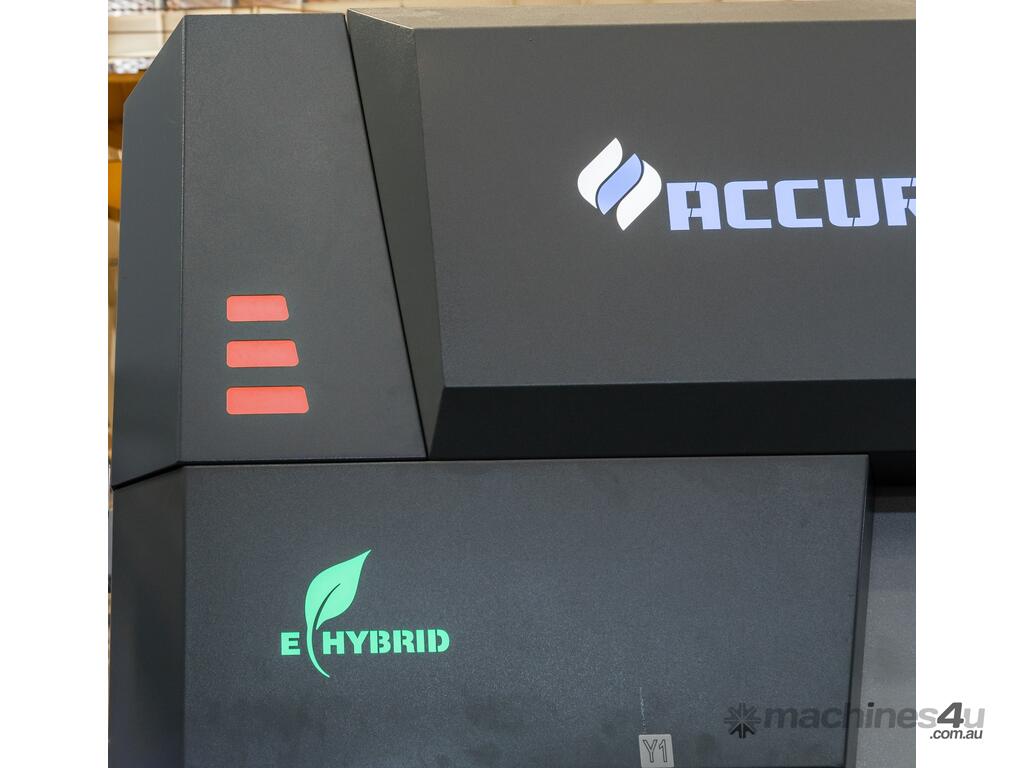

The stand out feature on the Accurl Euro Master series is the utilisation of the newest hydraulic technology available on the market. The hybrid system use a small 20 litre oil tank on each cylinder with a bank of valves and a servo motor to drive the cylinder up and down giving you the power of hydraulics but without the large hydraulic tank and also a very quite and energy efficient press brake. In todays high electricity costs this helps keep money in your pocket allowing for a quicker ROI.

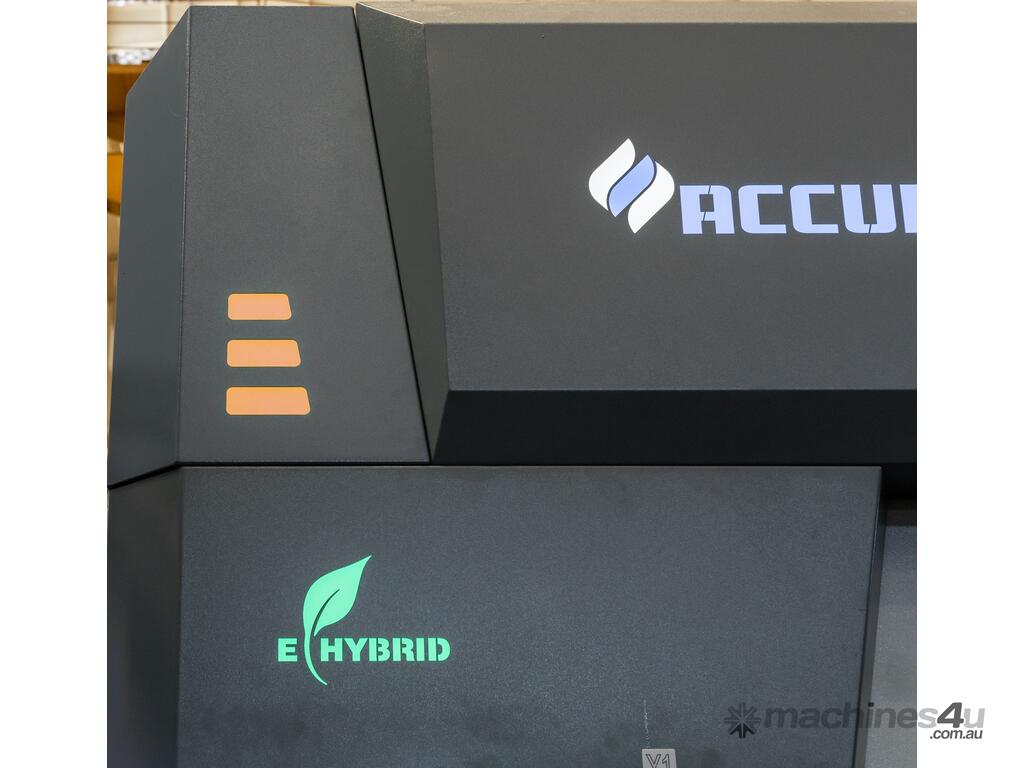

An industry 4.0 module is also included in the price which allows for remote monitoring of the machines function and productivity. A 3 colour status light is inbuilt into the covers which shows the status of the machine at any given time.

The Next Gen upper tool clamping system offers a quick release system which has a lever that swivels in order to release the upper clamp (this is what machines generally are supplied with and requires the tools to be removed from the side of the machine needing additional space requirements and is time consuming) however what makes our clamping system a cut above the rest is the ability to then push down on a safety button located on the top of the swivel lever which then opens the clamping system further allowing the tool to be removed at the point where the tool is located ….. the benefit is a massive reduction in time taken to change over tooling for different jobs and a reduction in floor space needed saving valuable factory space. In any manufacturing scenario time is money and where you can reduce time consuming tasks that equates to a better bottom line!

All Accurl machines are fitted with our very own local AUSTRALIAN made guarding system which is manufactured in Perth called Lazersafe. We were one of the very first to start using this system 20+ years ago and can proudly state we still use it now, trying to do our bit to support Aussie manufacturing. Not only is Lazersafe made in our back yard but it is arguably the best press brake guarding system in the world used by a large proportion of press brake builders around the world.

In a nut shell what you get from this system is an Australian compliant press brake that ensures the safety of the operator and also is developed to be as efficient and quick and to not hinder the bending process.

Being that Accurl is a high technology manufacturer and met all Lazersafe’s requirements to supply the CNC integrated systems (this is the Lazersafe product that only certified Lazersafe partners can use that work with the CNC controller and seamlessly works without having any direct input saving time setting up mute points) all of the press brakes supplied are fitted with this system.

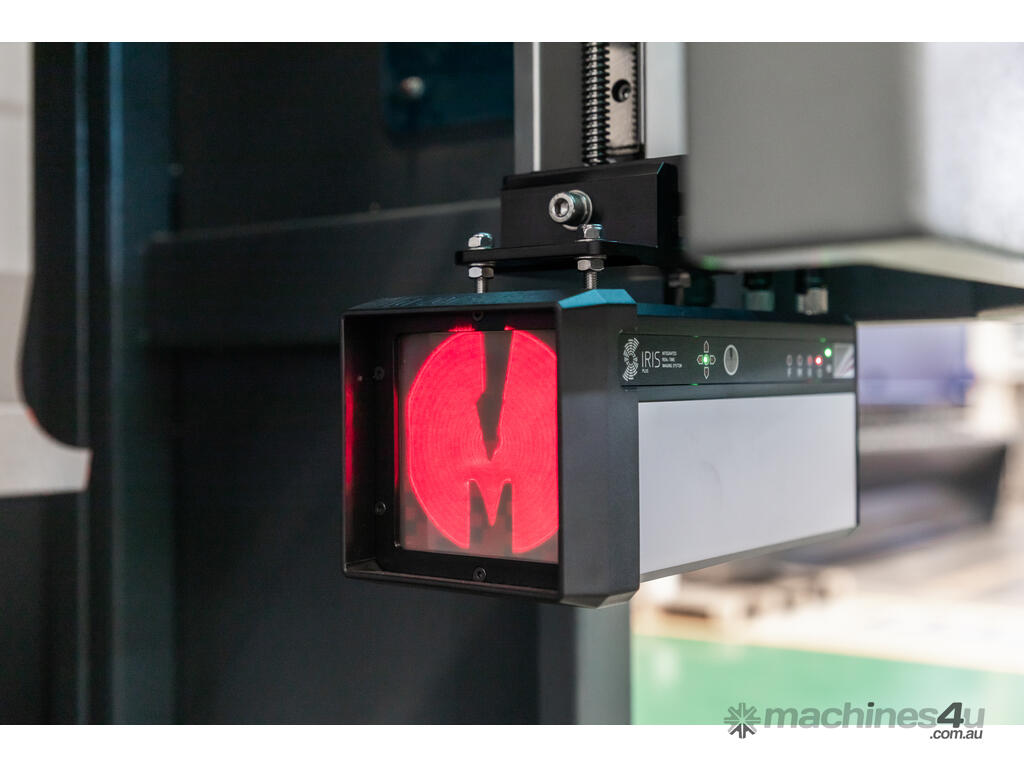

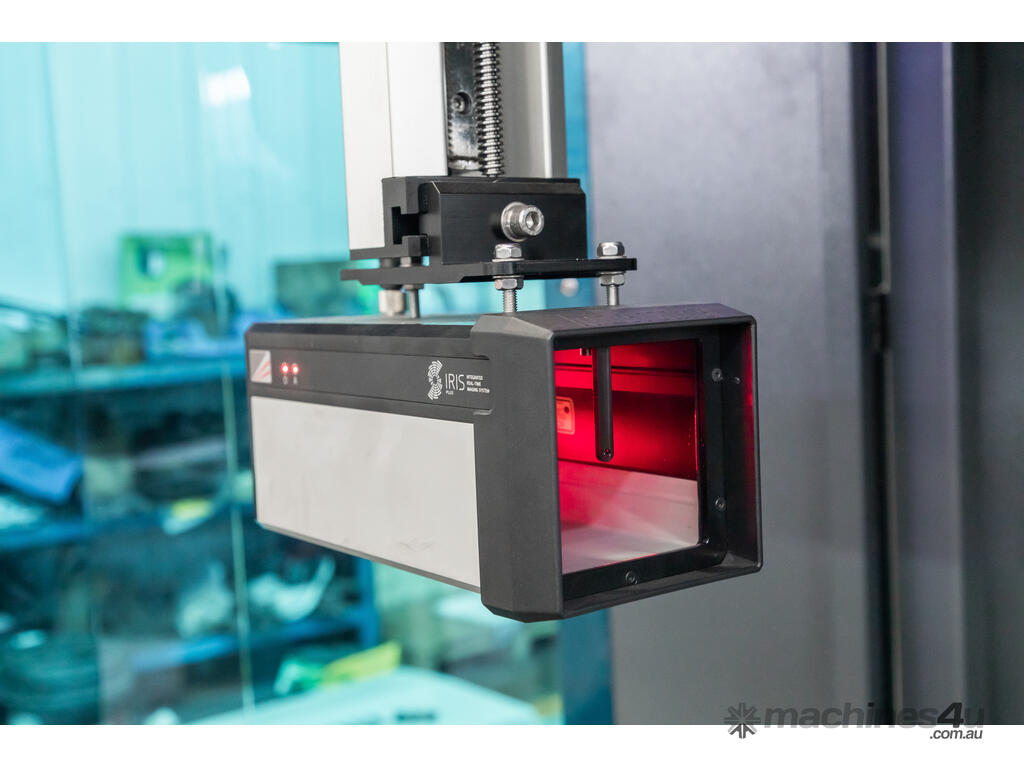

What the Lazersafe integrated guarding system does is save time and programming complexity, all you do is program the controller like you normally would and the guarding system automatically knows what it needs to do without any further operator input. The top of the range system is also uses from Lazersafe called the Iris system which is a camera that sits on the sides on the top tooling and allows for a very close mute point to the material for added productivity.

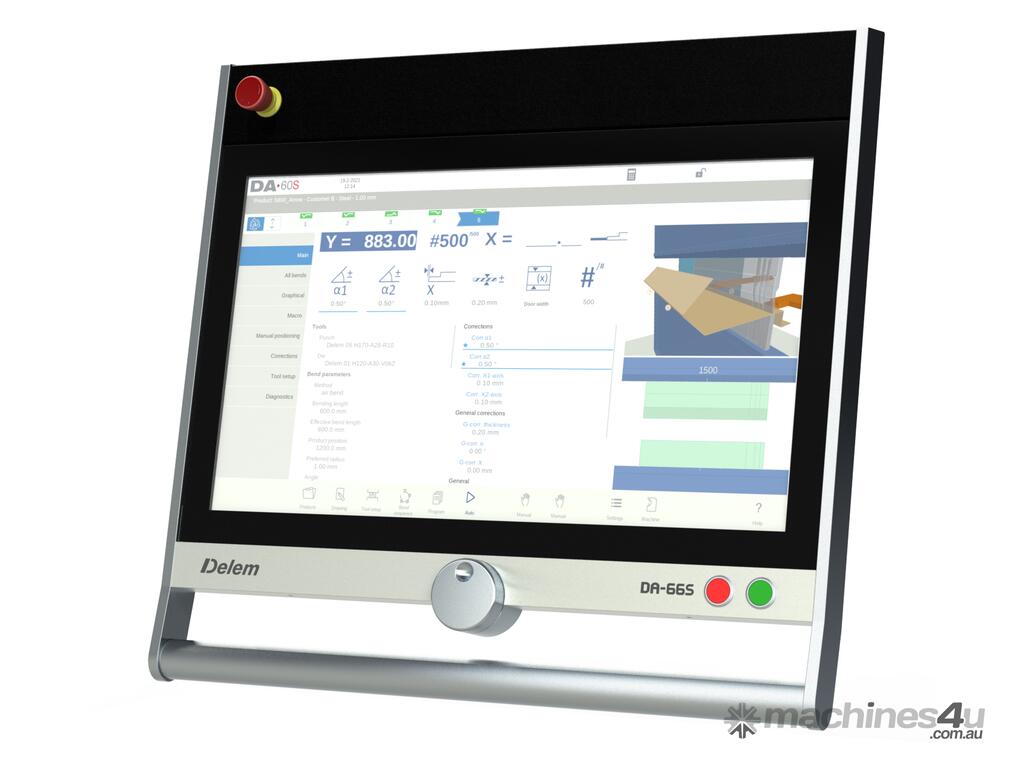

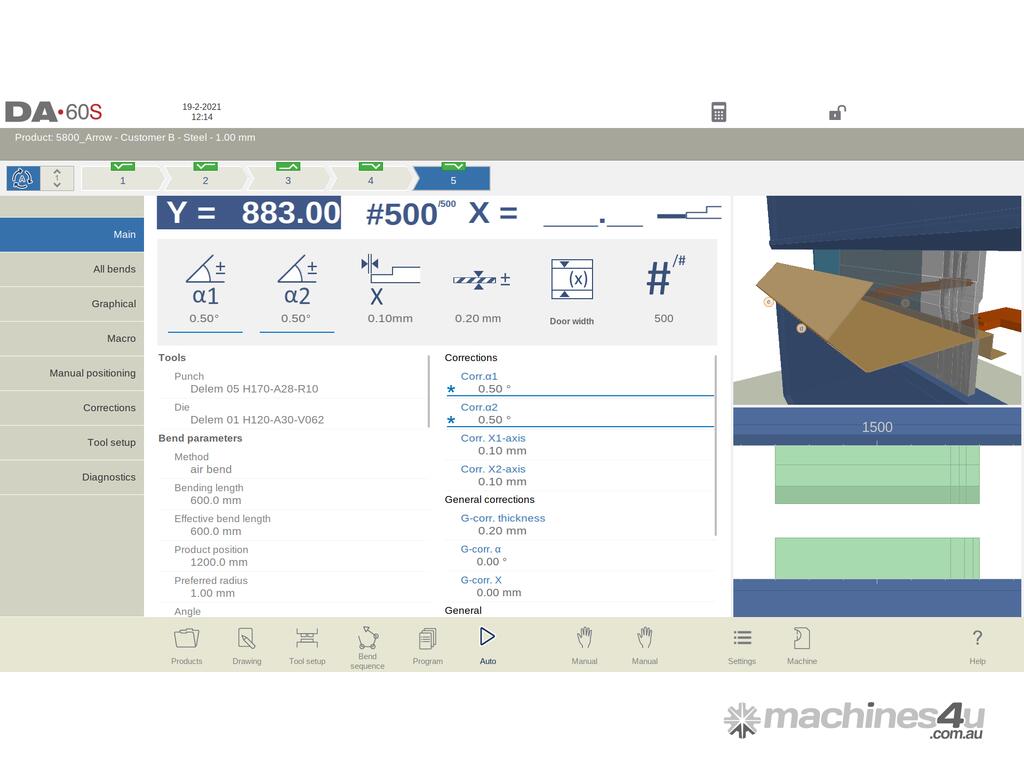

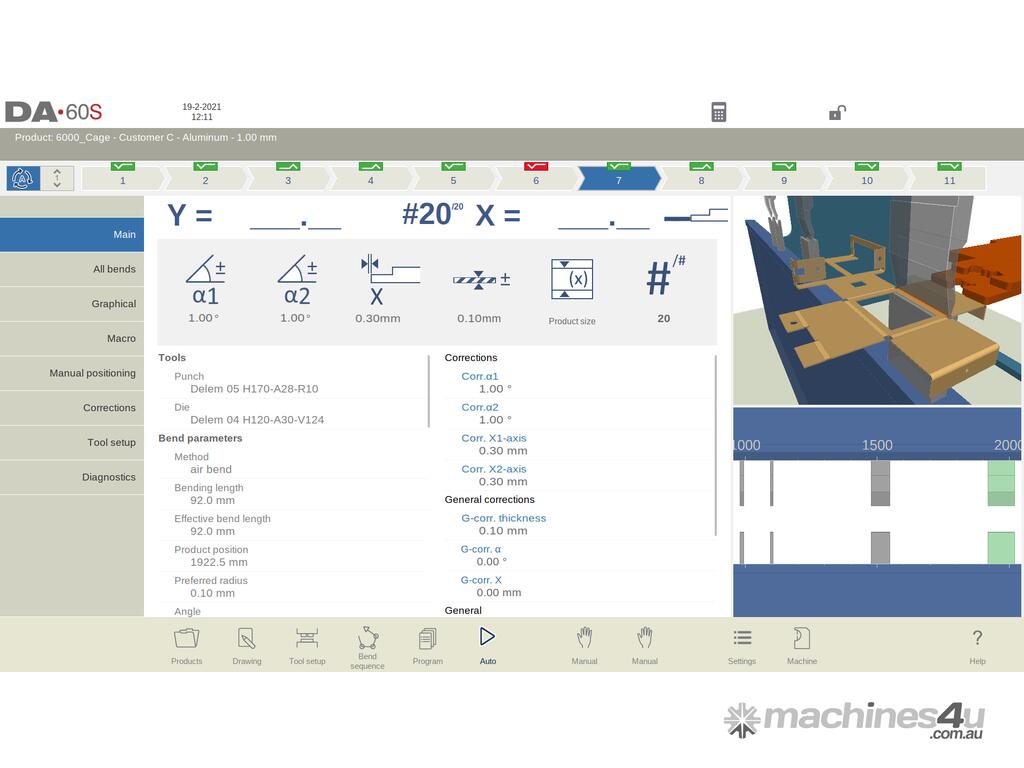

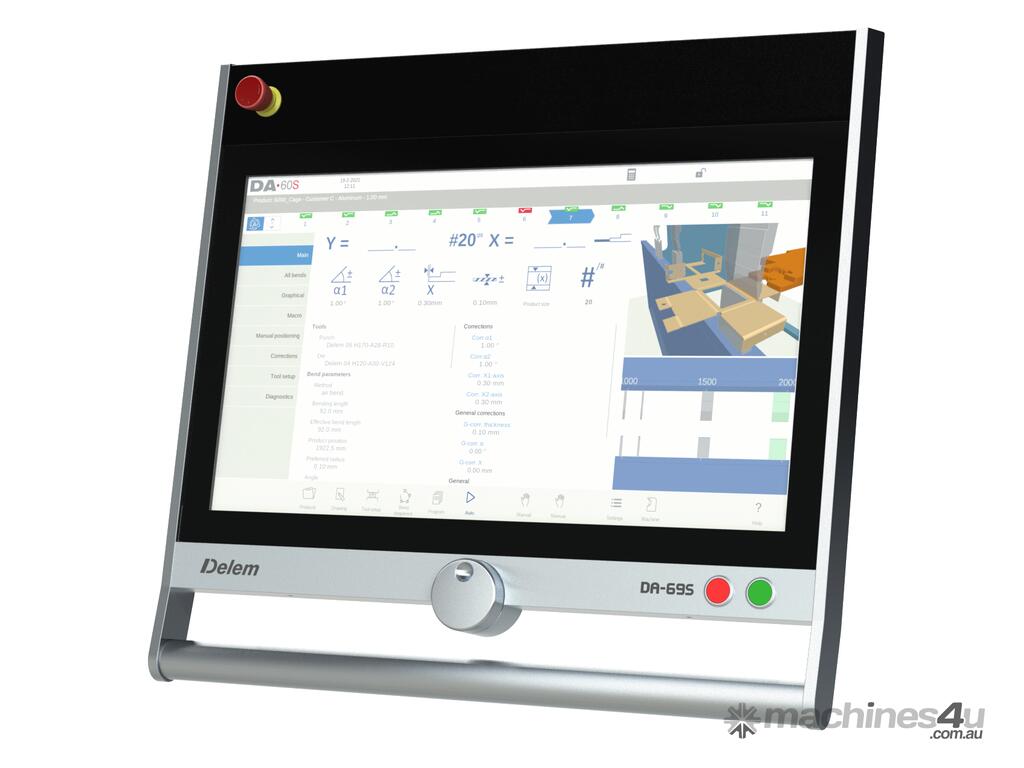

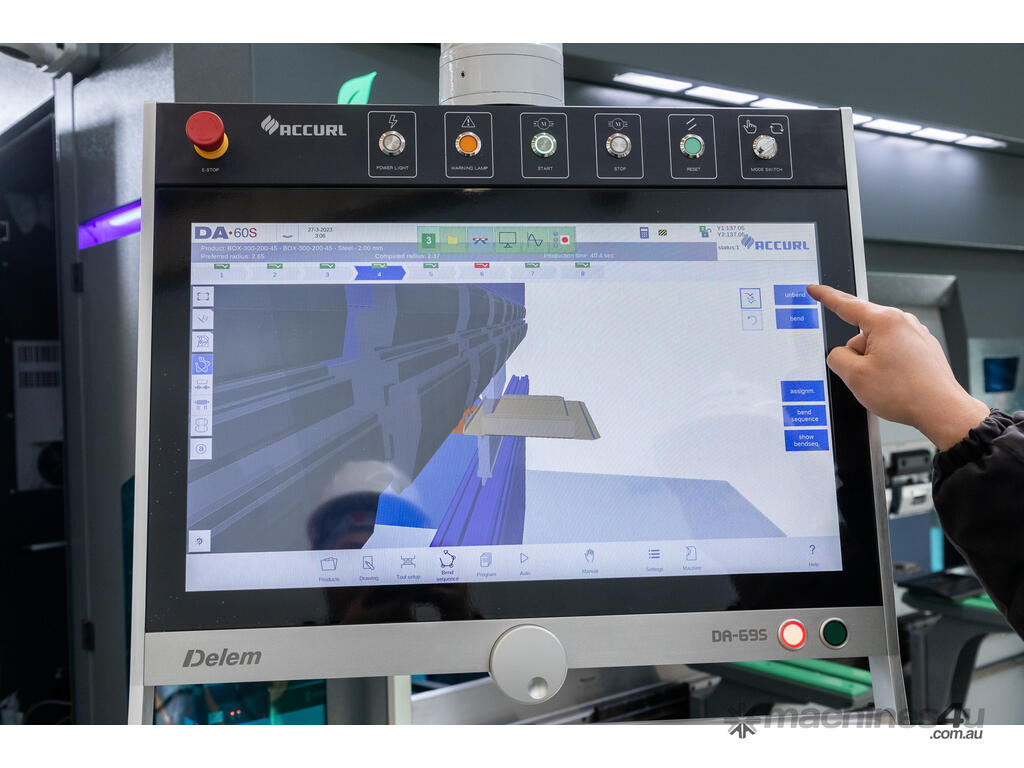

The Delem DA-66S controller is a 2D programming 3D viewing controller that has optional 2D offline software available that can import DXF files and covert and then transferred to the Delem controller, alternatively the press brake can be optioned up with the DA-69S which is a full 3D controller and comes standard with 3D offline software that allows DXF and STEP file to be used.
The Accurl range of press brakes have painstakingly been optioned up and configured to combine the best of both worlds, a fast, accurate and efficient press brake that is surprisingly well priced for its design and features.

At Complete Machine Tools the benefit of dealing with us and purchasing the Accurl range of sheet metal working machinery is that a full suite of sheet metal machinery is offered that can grow with your business. You may start with a press brake and guillotine and then get a flat bed laser, tube laser and turret punch down the track and then maybe even a panel bender, with Accurl you have the option of buying these all from the same supplier making it easier to manage your entire factory of machinery.

We know that your machines is the heart of your business so we also have our own in house service division giving you piece of mind that your machinery if in the unlikely event does go down will be back up and running in a short amount of time.

With growth comes growing pains and complexity but buying machinery doesn’t need to be difficult because here at Complete Machine Tools we pride ourselves on our sales and after sales support and our ability to grow and support our customers through that journey.

Buy from a company who knows CNC press brakes and sheet metal machinery and has been selling them for well over 25 years.

This machine as with all Accurl machines uses quality components and comes with a comprehensive list of standard features

The EuroMaster – Benefits:

1. 60 % less energy consumption thanks to new innovative drive system
2. 40 % faster cycle time
3. 90 % less oil consumption for more environment friendly
4. Lowered sound pressure level at 50 dB
5. Increased speed of descent and ascent up to 250 mm/s (Dependent on machine tonnage)
6. QR code scanning system
7. New intuitive and user-friendly touch screen control system (Delem DA-66S)
8. Lasersafe IRIS camera tool guarding (stopping distance up to 2mm above the job)
9.Tool crash protection
10. CNC crowning system
11. Standard 7 axis (Y1/Y2/X/R/Z1/Z2 & C)
12. Next gen upper tool mechanical quick release clamps
13. 60mm tri tool bottom table

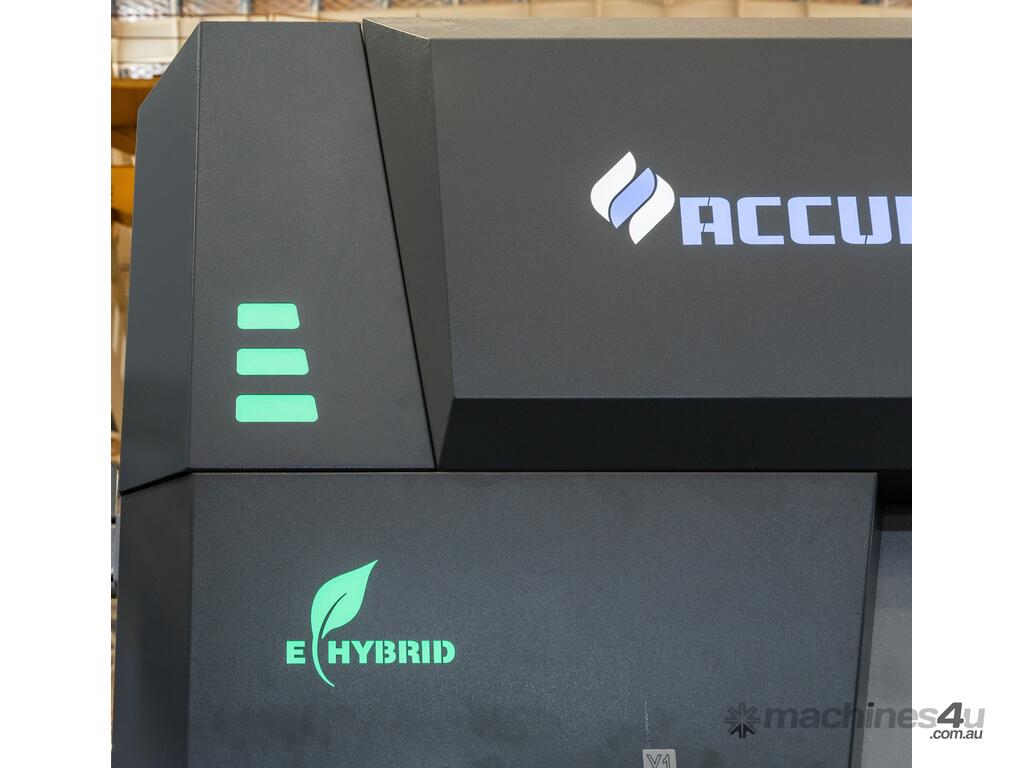

14. Status LED lights inbuilt into the covers
15. Modern streamlined design

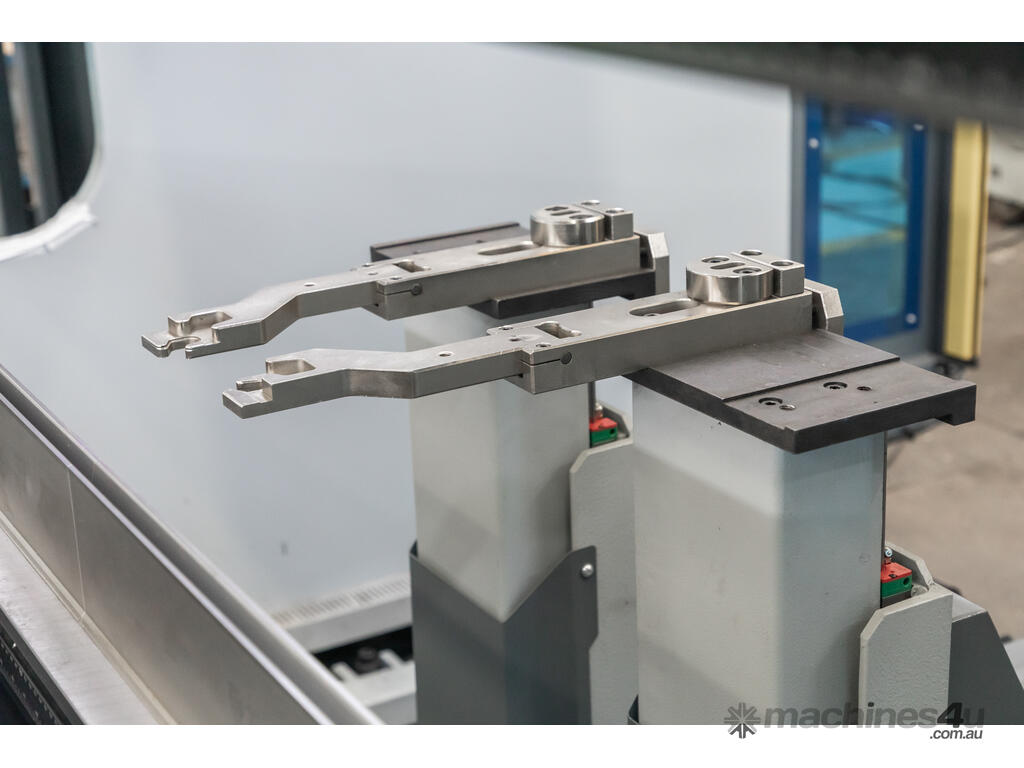

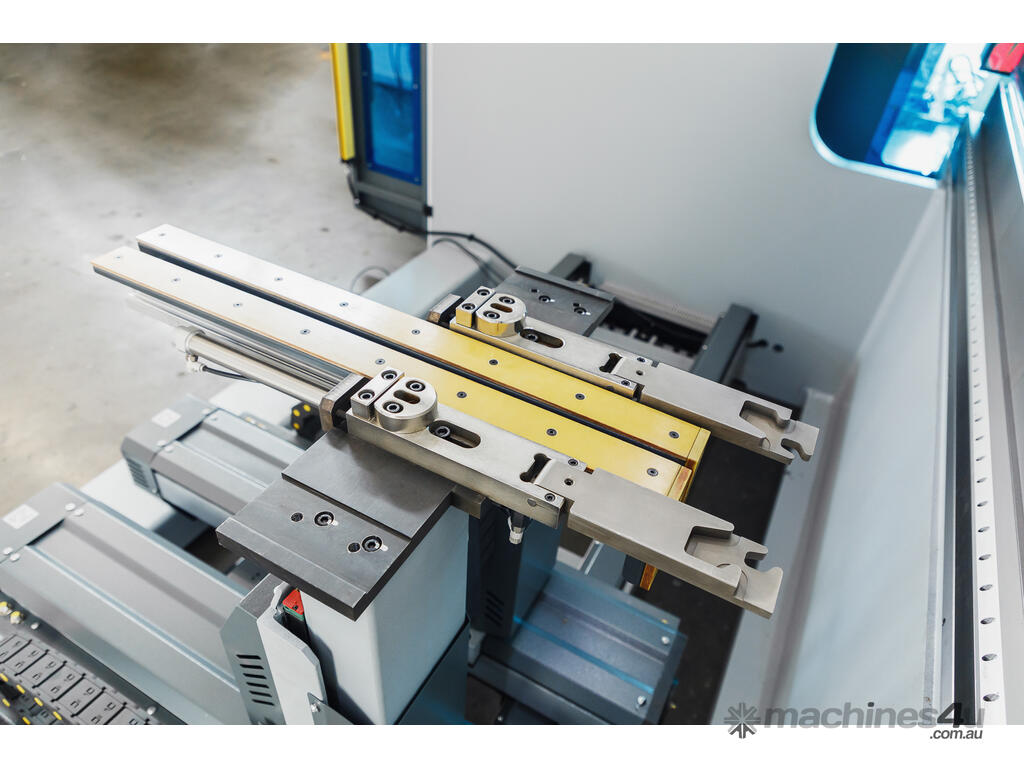

16. Back gauge fingers with multi position design
17. Top quality componentry

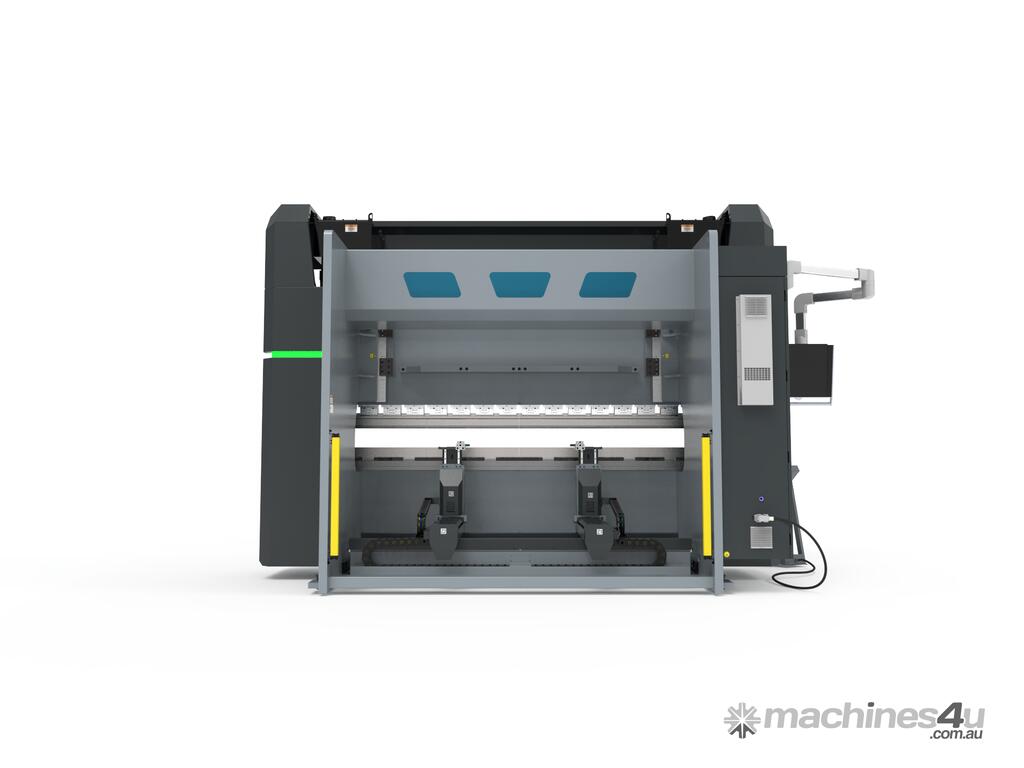

18. Open style design at rear of the machine

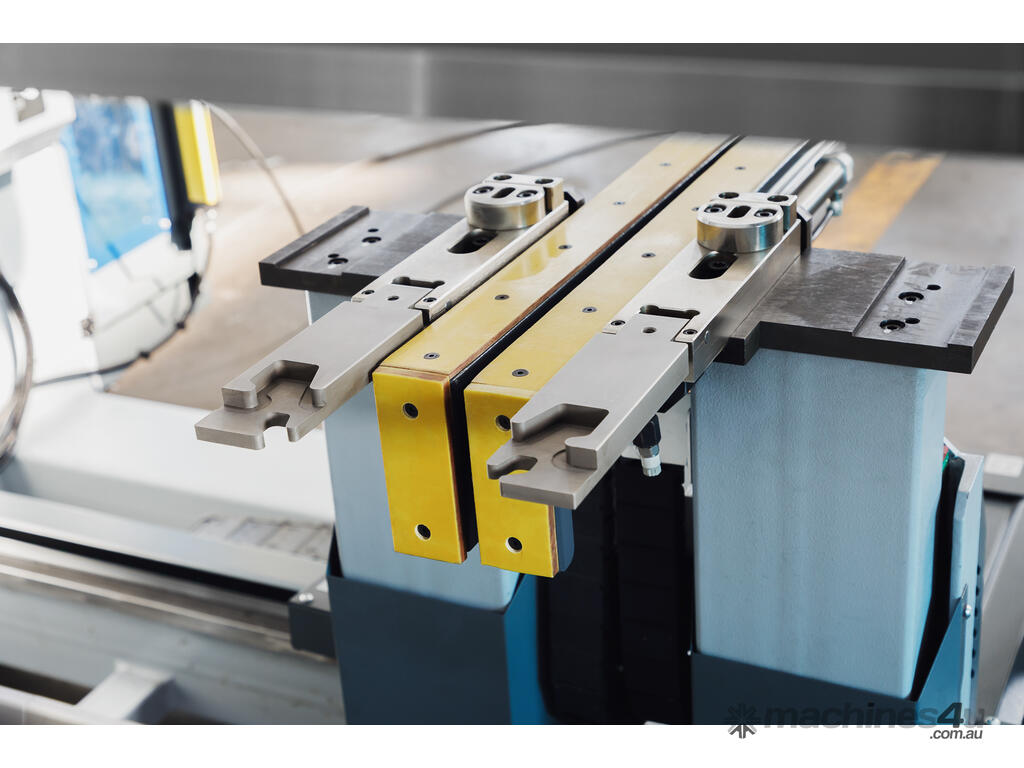

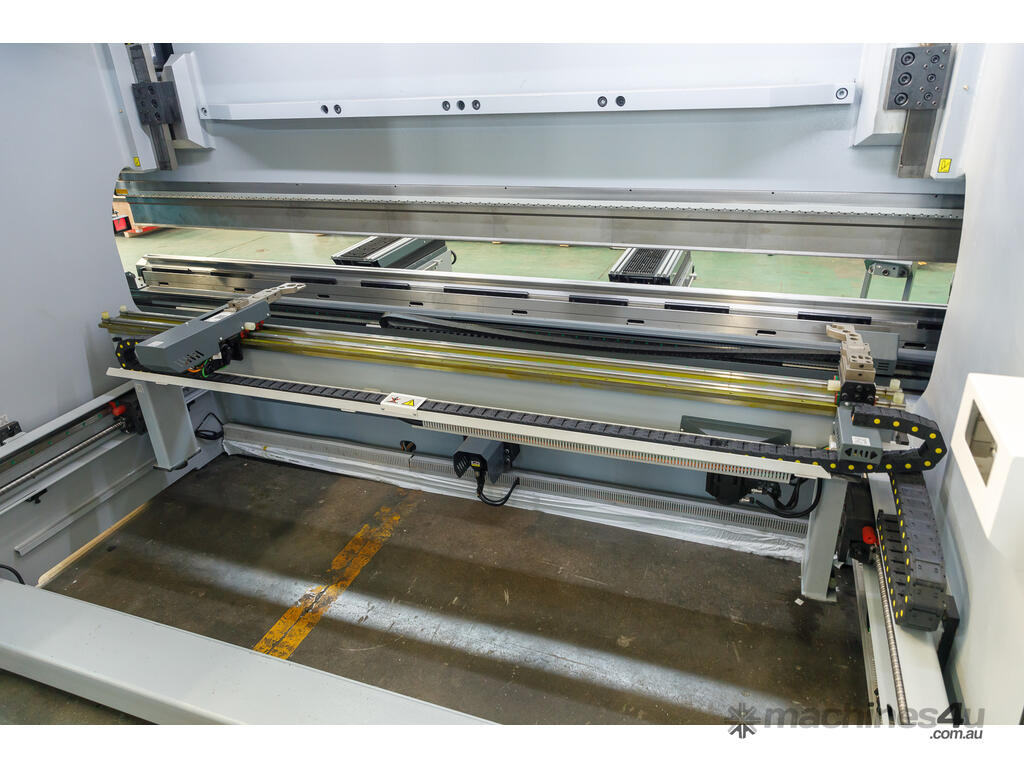

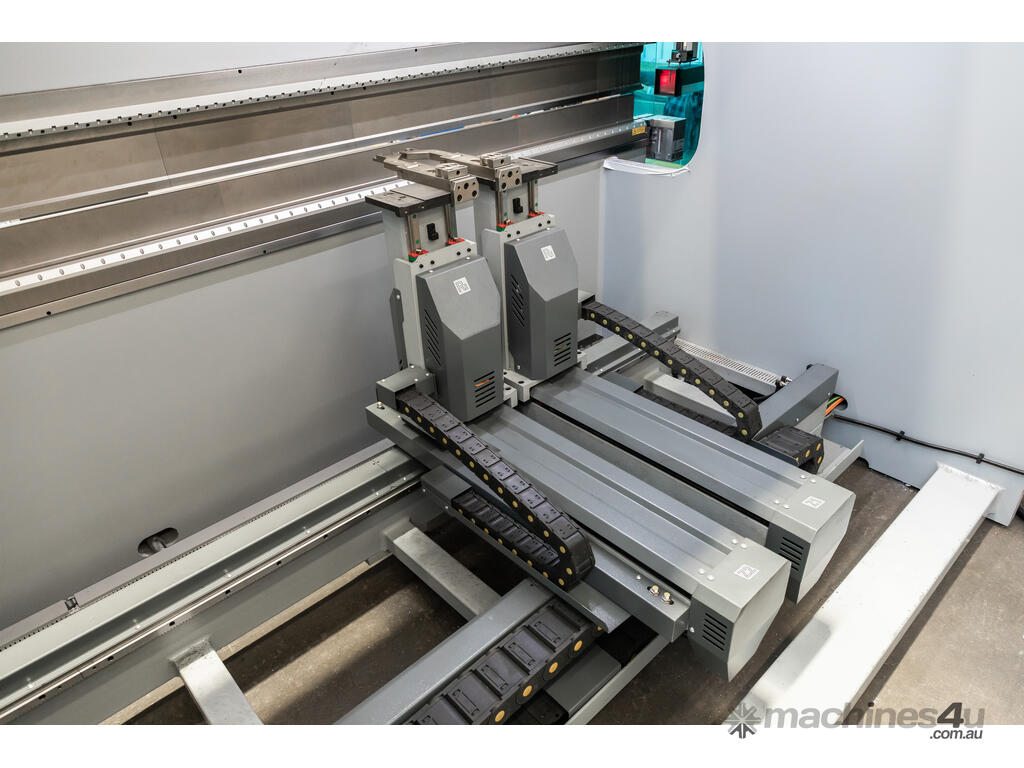

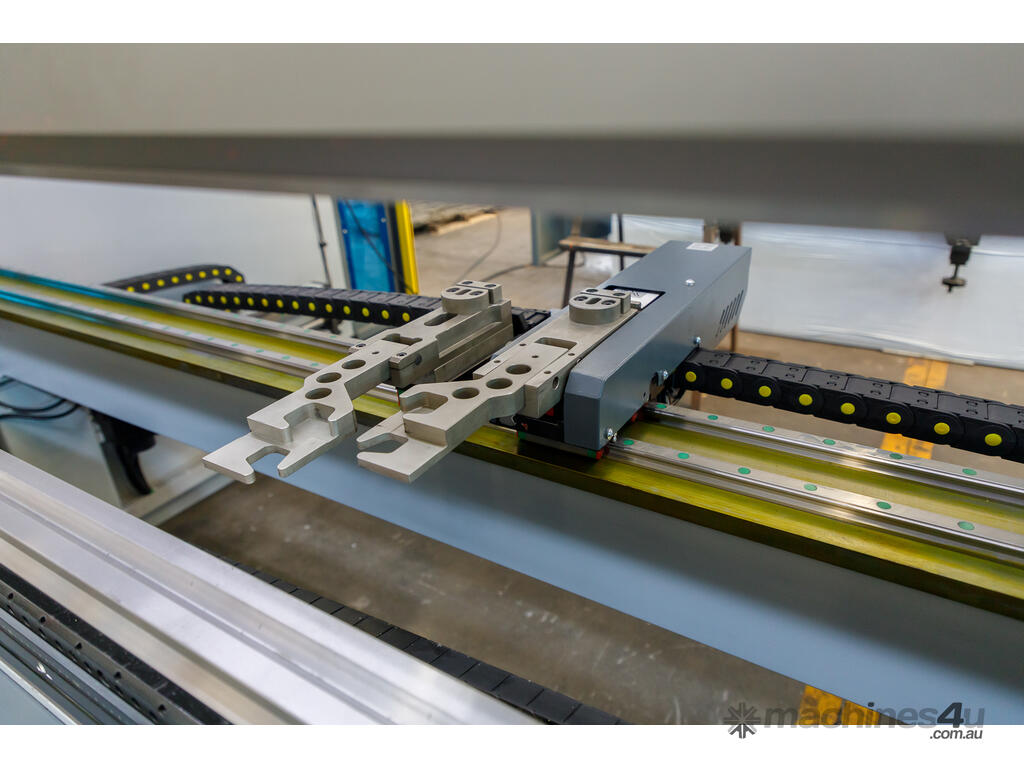

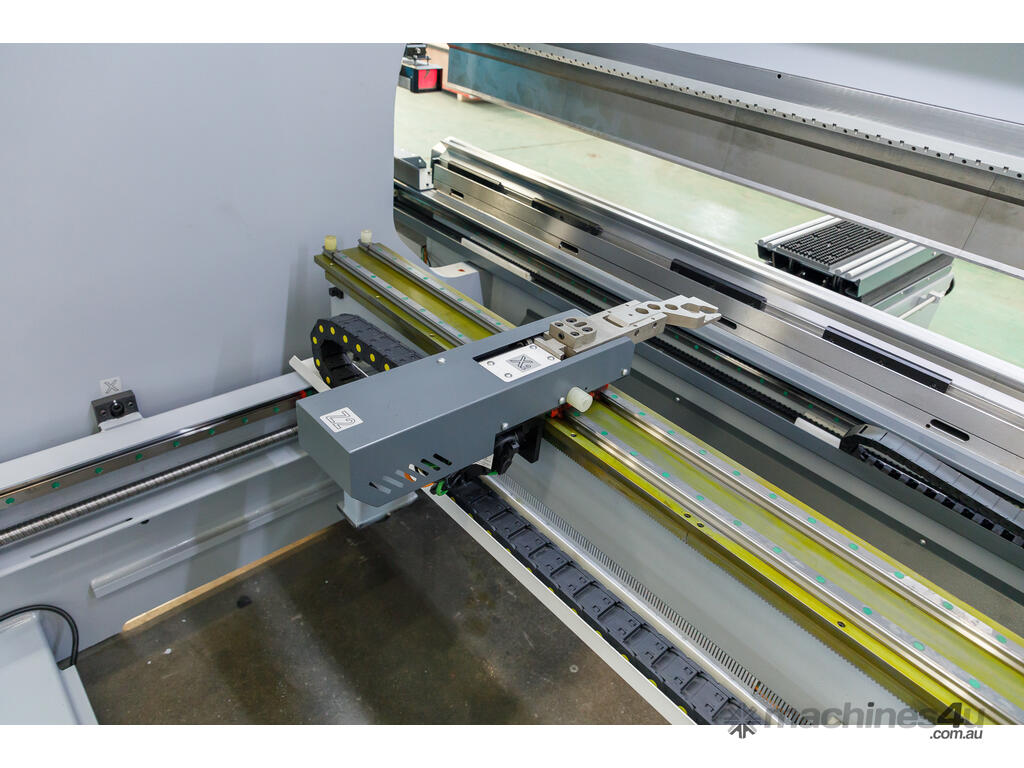

19. Ball screw and linear guided back gauge system
20. 60 x 60mm self centring multi vee bottom tool
21. Full length segmented top tooling
22. Double upper beam slideway design for extra rigidity
23. Copper upper beam slideways with graphite pads for better lubrication and free movement
24. Large opening and cylinder stroke
25. Adjustment tooling storage unit mounted on the front of the machine

Options available -

1. Delem DA-69S (Full 3D programming with 3D offline software)

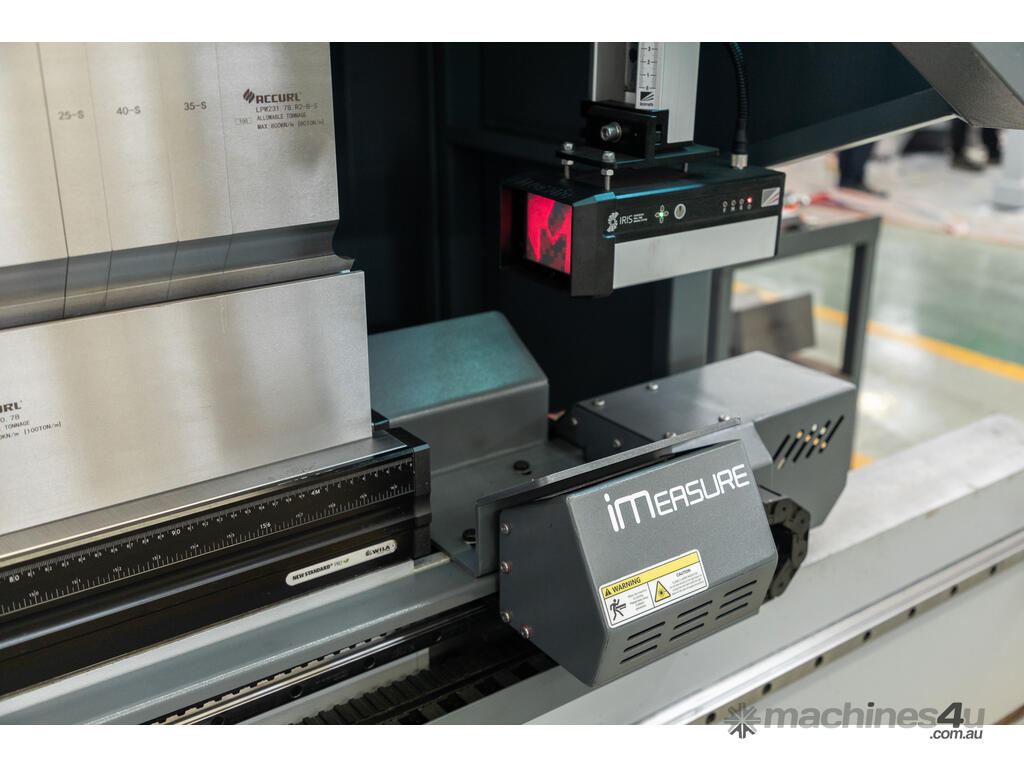

2. Lazersafe IRIS PLUS with angle measurement system which auto checks the angle and makes necessary adjustments
4. Upper tool clamping pneumatic or hydraulic (Wila or Rolleri)
5. Lower die clamping pneumatic or hydraulic (Wila or Rolleri)
6. Additional CNC controlled axis (10+ axis available)
7. Additional beam opening distance
8. Additional cylinder stroke distance
9. Larger throat opening
10. Custom design tooling
11. Angle detection system

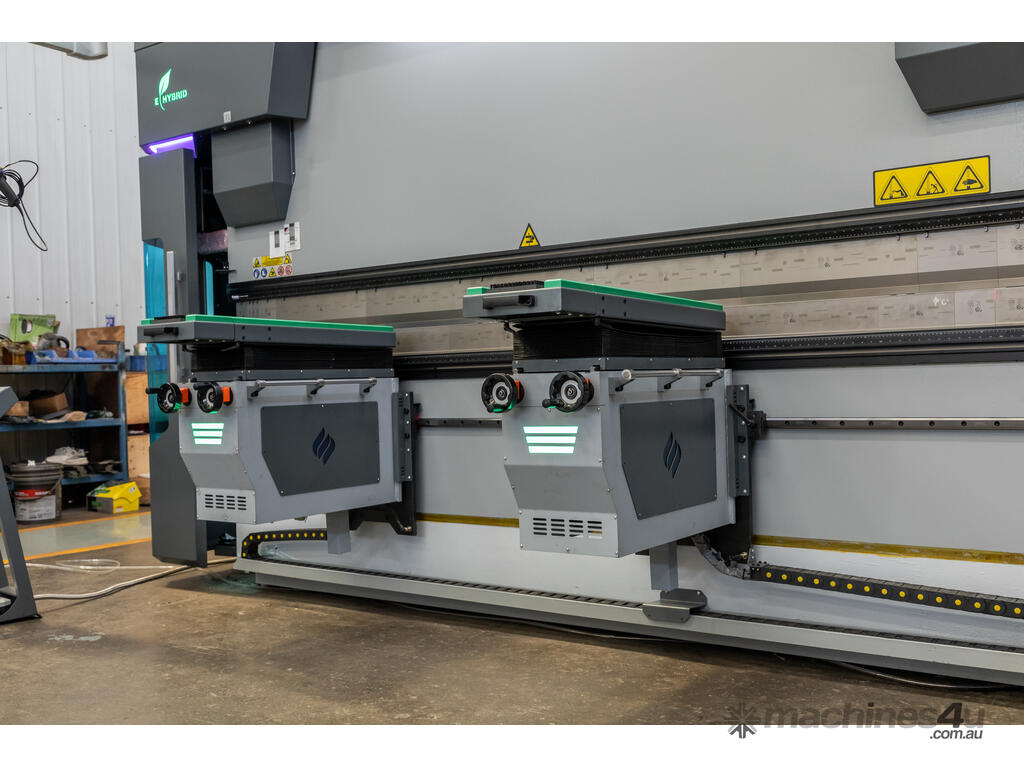

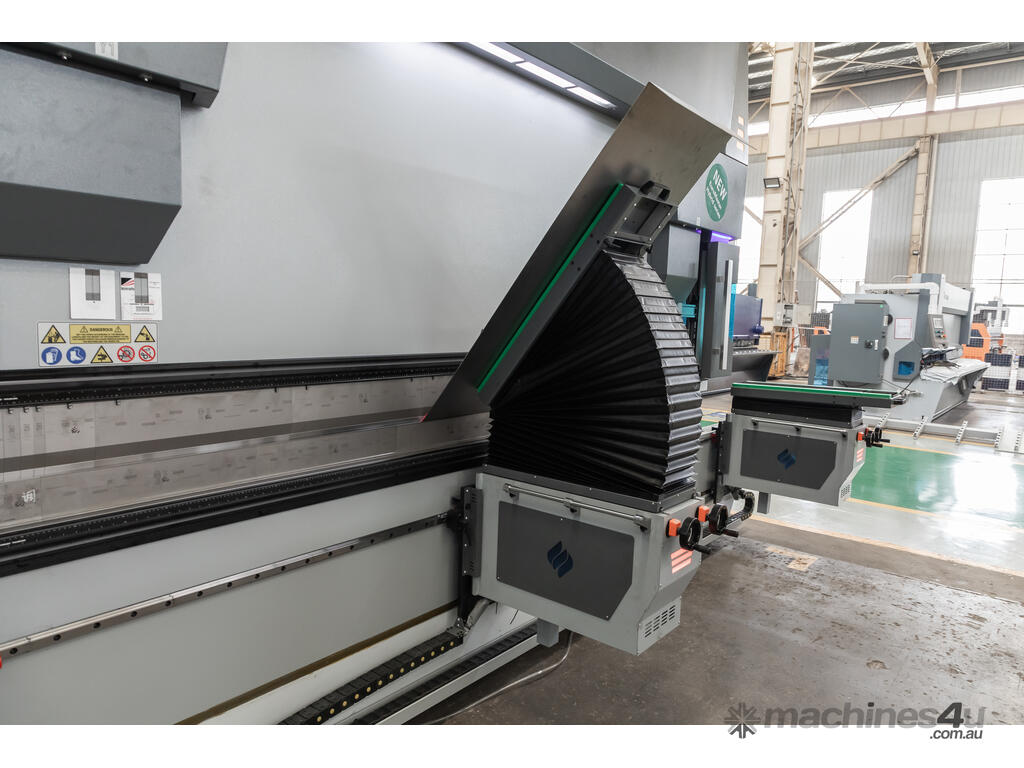

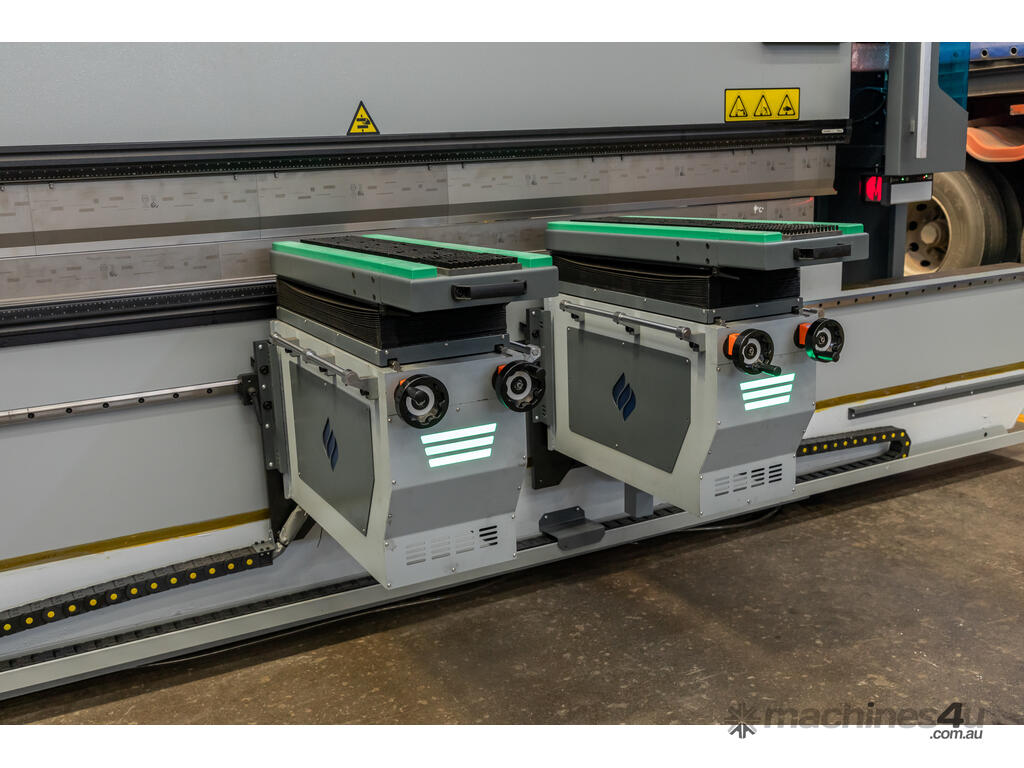

12. Automatic servo sheet support followers
13. Pneumatic sheet support system on the back gauge for thin material

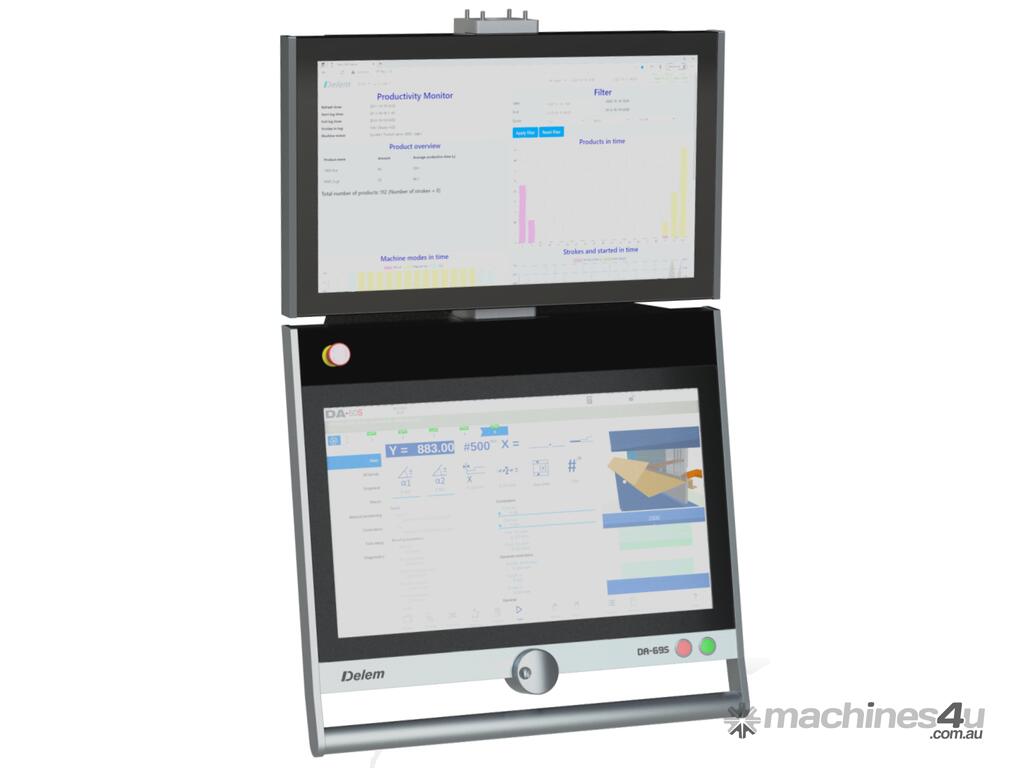

14. Dual screen allowing for increased productivity

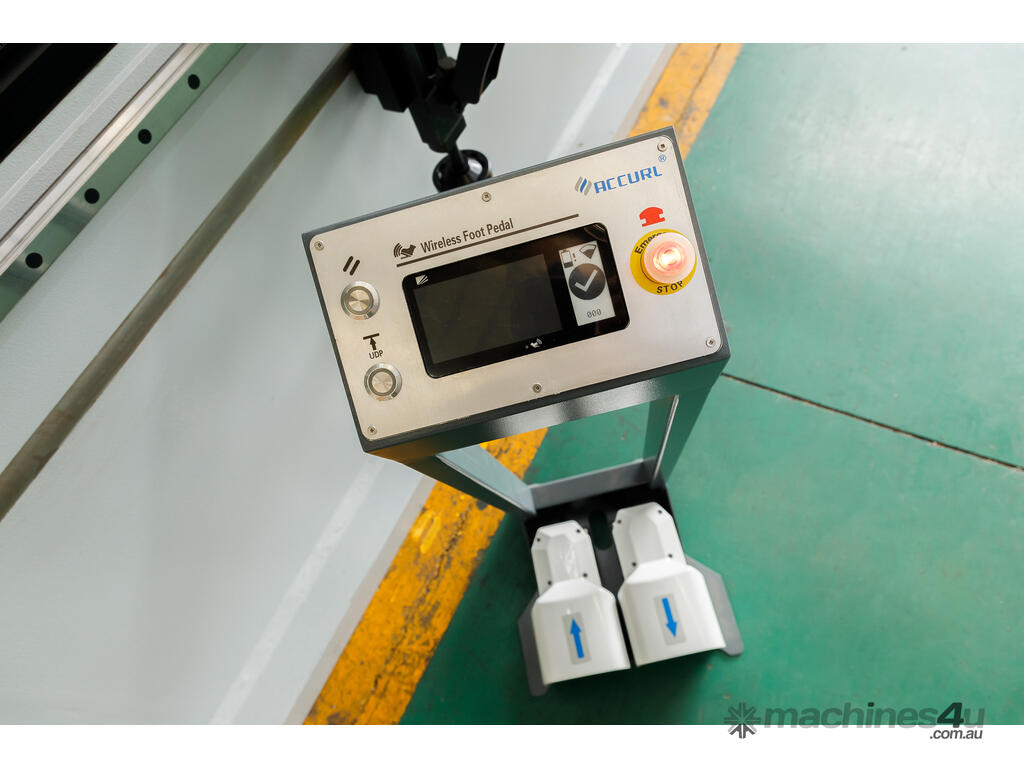

15. Wireless foot pedal

NB - Some pictures display optional extras, for a clear indication on what is included and for accurate pricing please contact us for an official quote. If price is listed as "PRICED FROM" this is purely a broad indication of price
