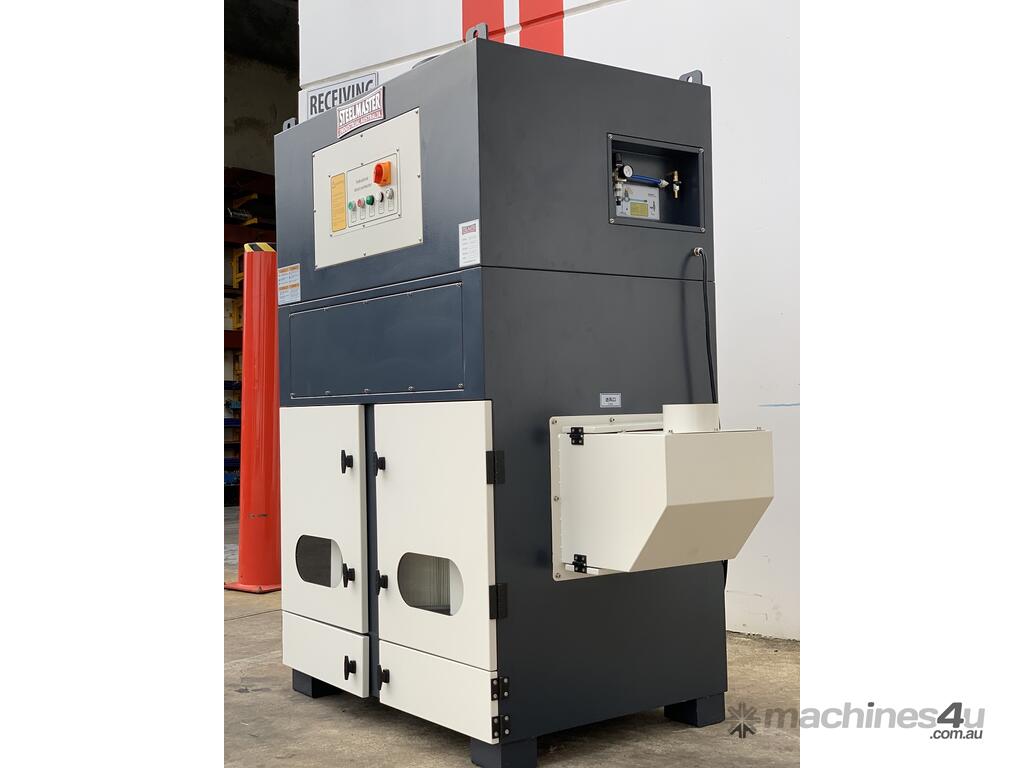

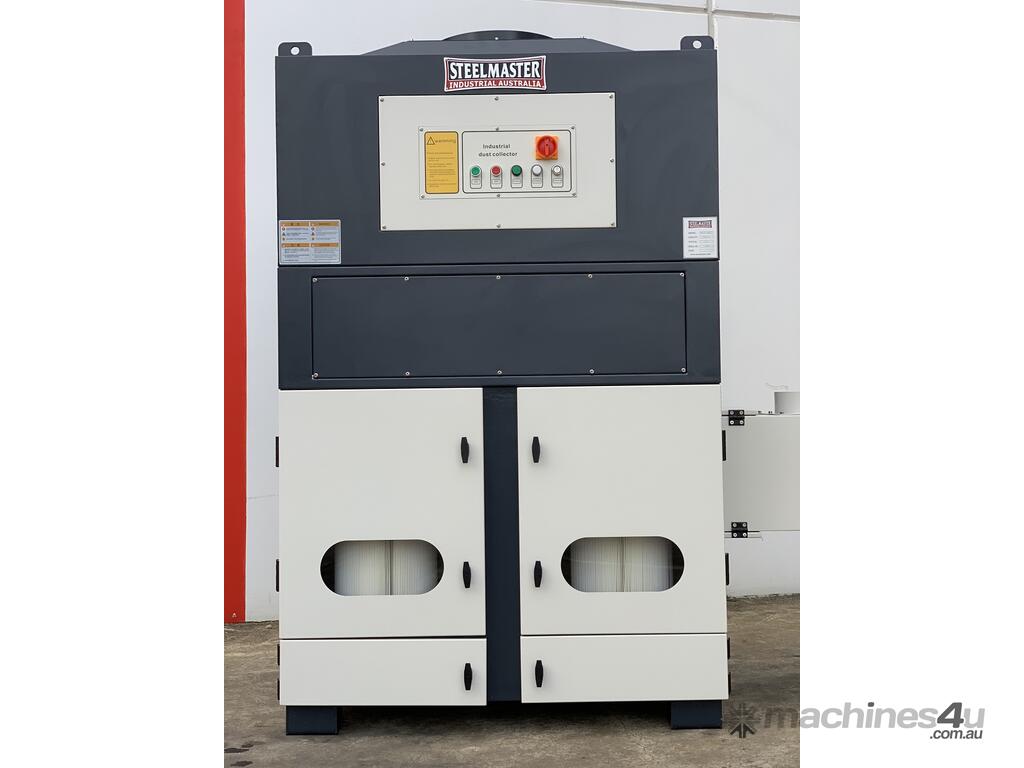

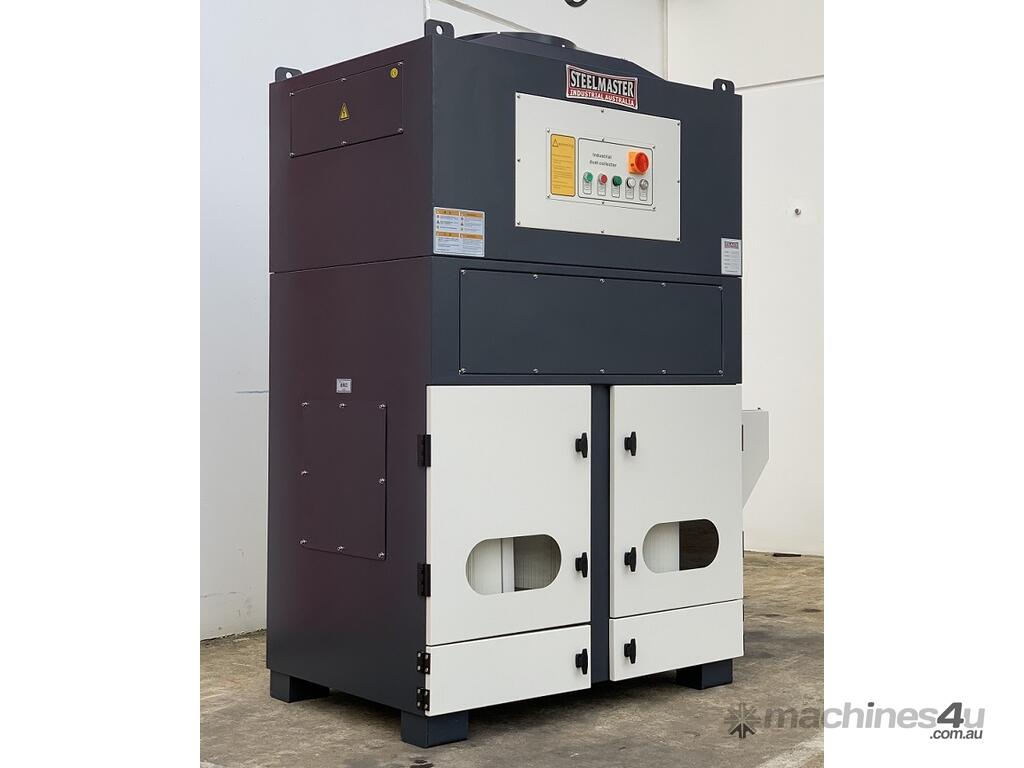

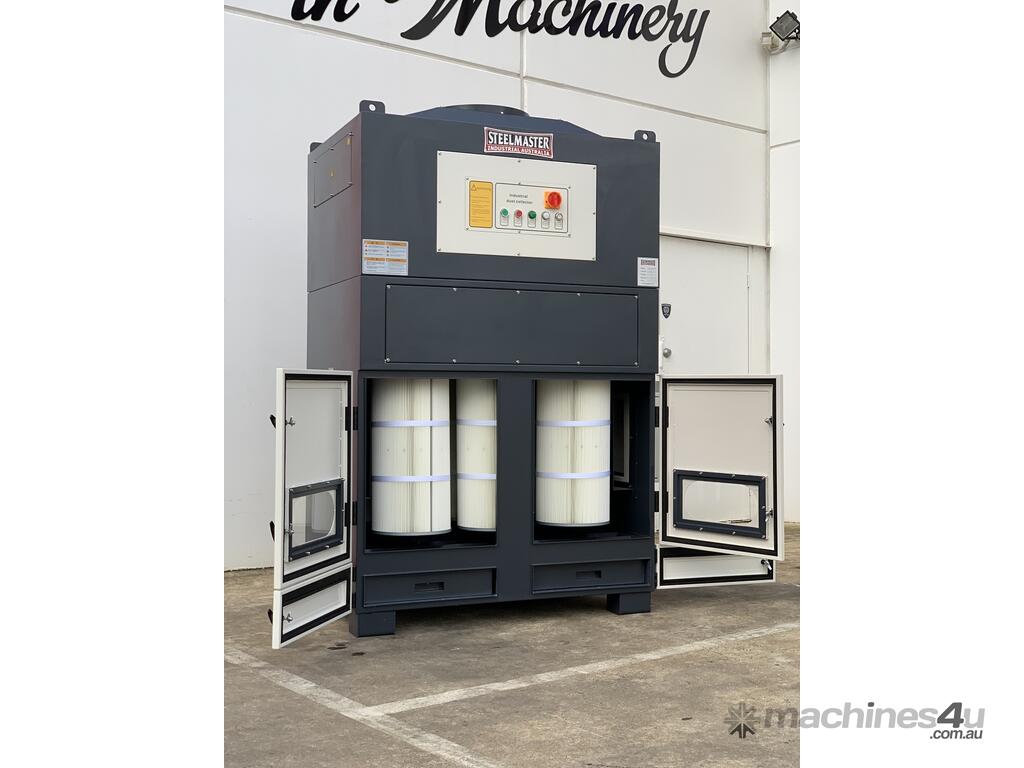

CLEARMASTER SM-PA-6000CT Laser / Plasma Fume Extraction System, 6000m/Hr. Anti-Spark Arrestor

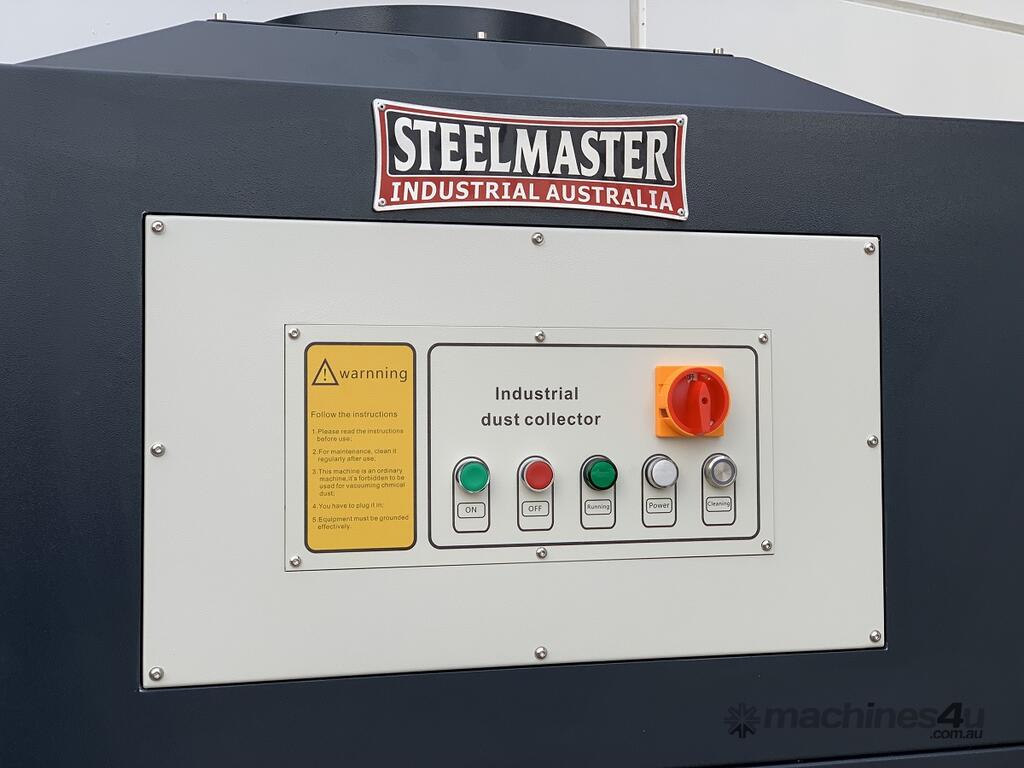

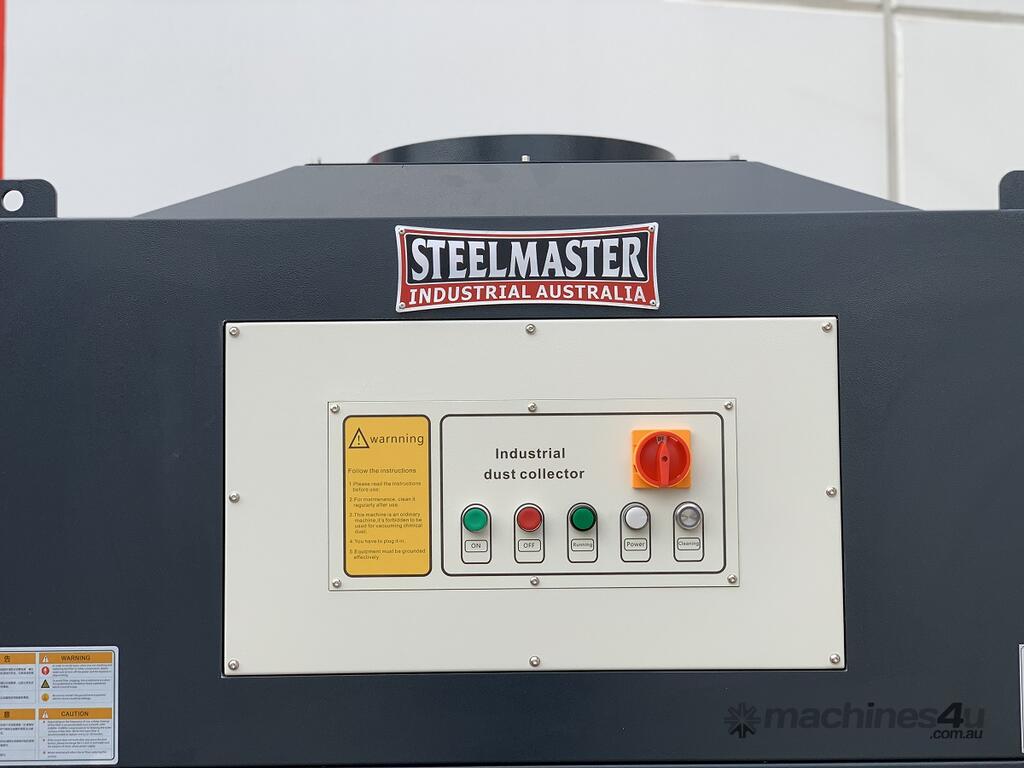

Touch Pad Control Panel, Vertical Coated Cartridge Filter, Pulse Auto Blowback Cleaning, 7.5Kw V
Description:

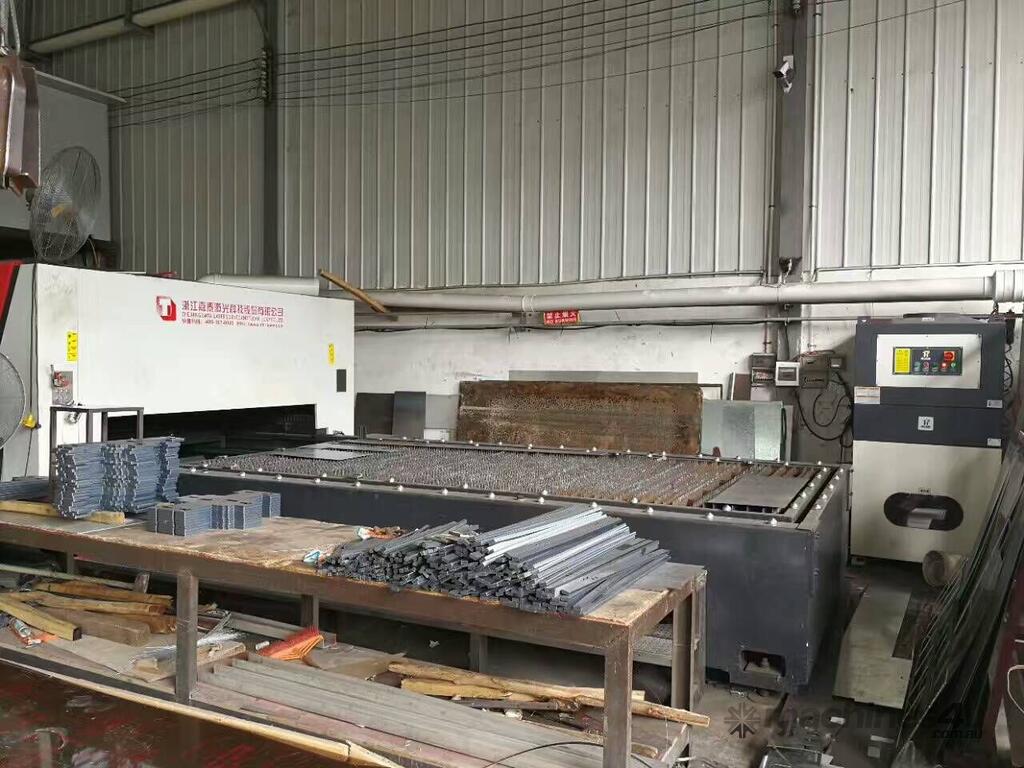

A workplace must for all CNC Plasma Laser Profilers - suits table size up to 2000mm x 4000mm
Simply power up and connect your ducting for a cleaner, safer workplace.
Fitted off with spark arrestors and providing a clean, safe, healthy work environment.
Model: SM-DR-6000
- Extraction Type – Spark, Smoke, Fume, Dust
- Suit Plasma, Laser Table Area 4000mm x 2000mm
- Air Volume – 6000m3/Hr
- Noise dB Rating - 80±2A

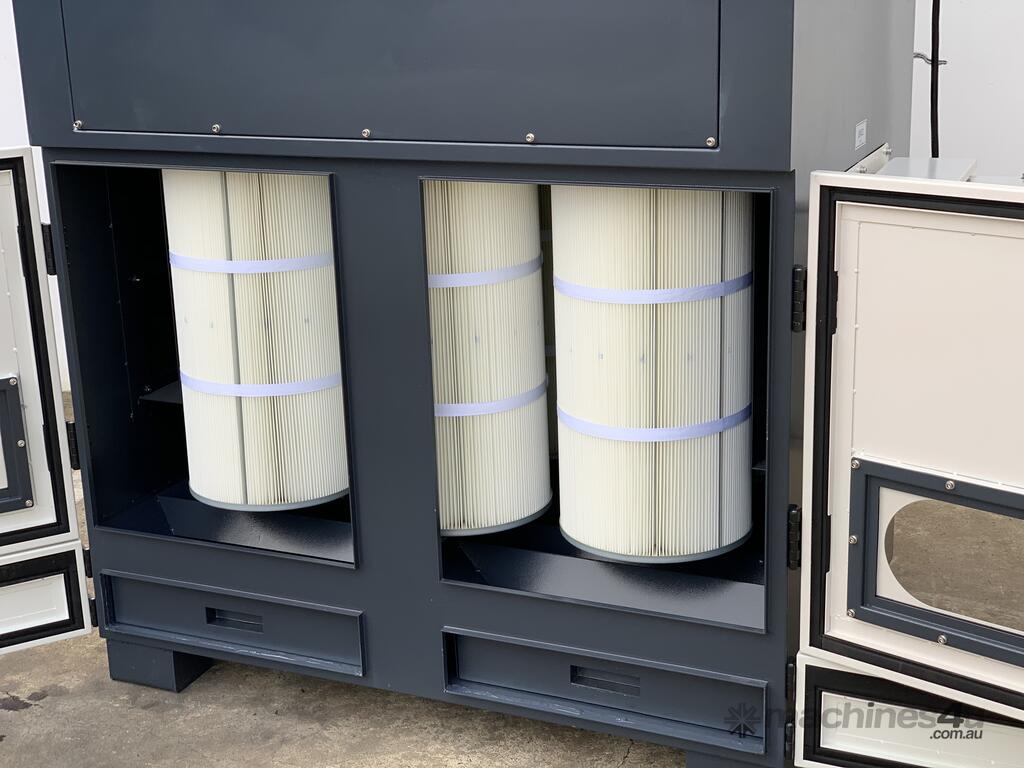

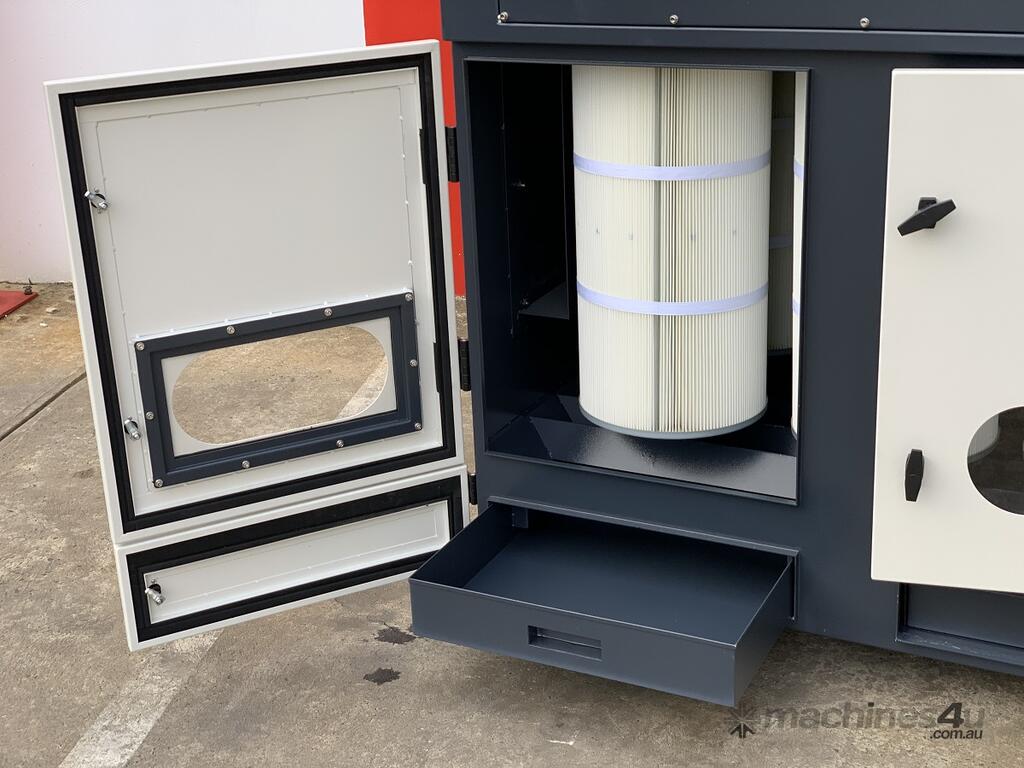

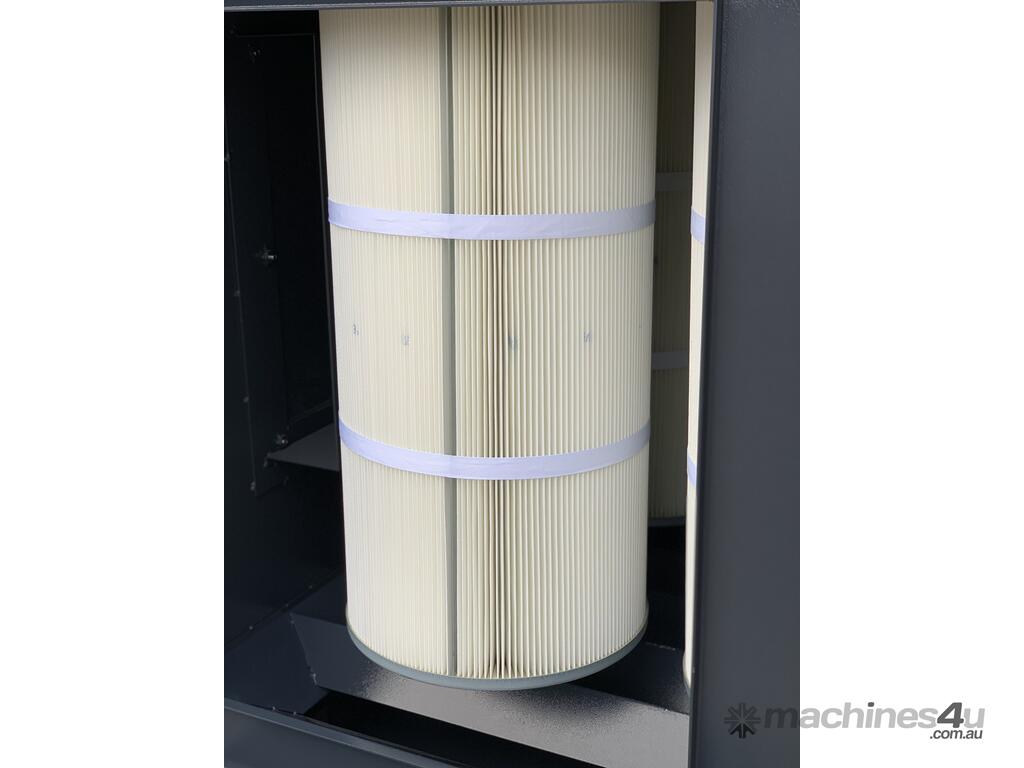

- Filter Material – PTFE Coated Folded Cartridge
- Filter Installation – Vertical
- Filter Area – 22m3
- Filter Efficiency – 99.9%
- Compressed Air – 0.5 ~ 0.6Mpa
- Solenoid Valves – 2 off
- Extra replaceable Vertical Filters & Spark Arrestors - Available

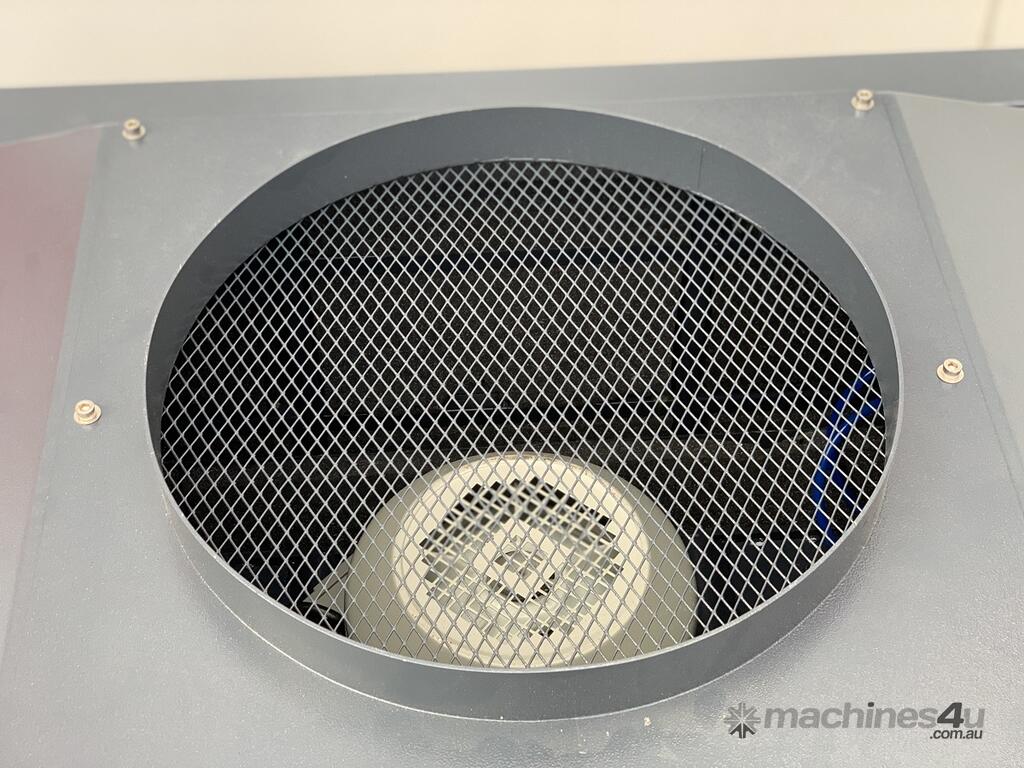

- Inlet Vent Position Left or Right Hand Side - Inlet 150mm Diameter.
- Dimensions – 1620mm x 880mm x 2020mm x 895Kg
- Freight Dimensions – 1720mm x 980mm x 2120mm x 910Kg
- Power – 3Kw – V
- Stock Ordering Code - 21-0806
- Excludes Duct connections from unit to Plasma / Laser
Aftersales replaceable Filters

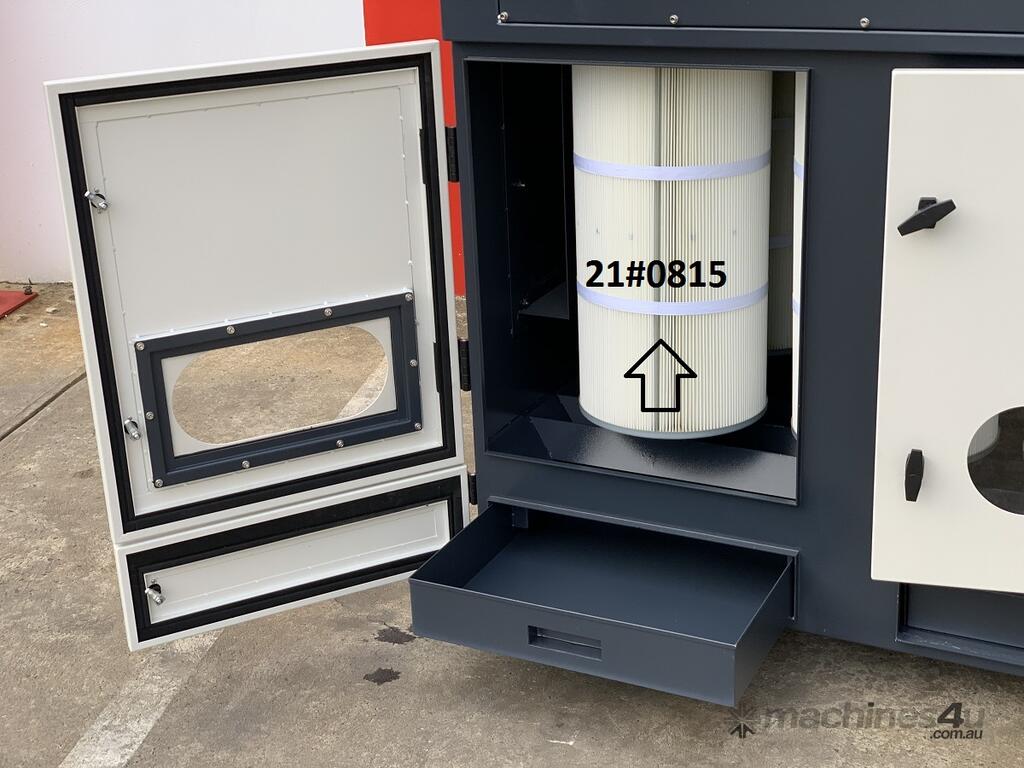

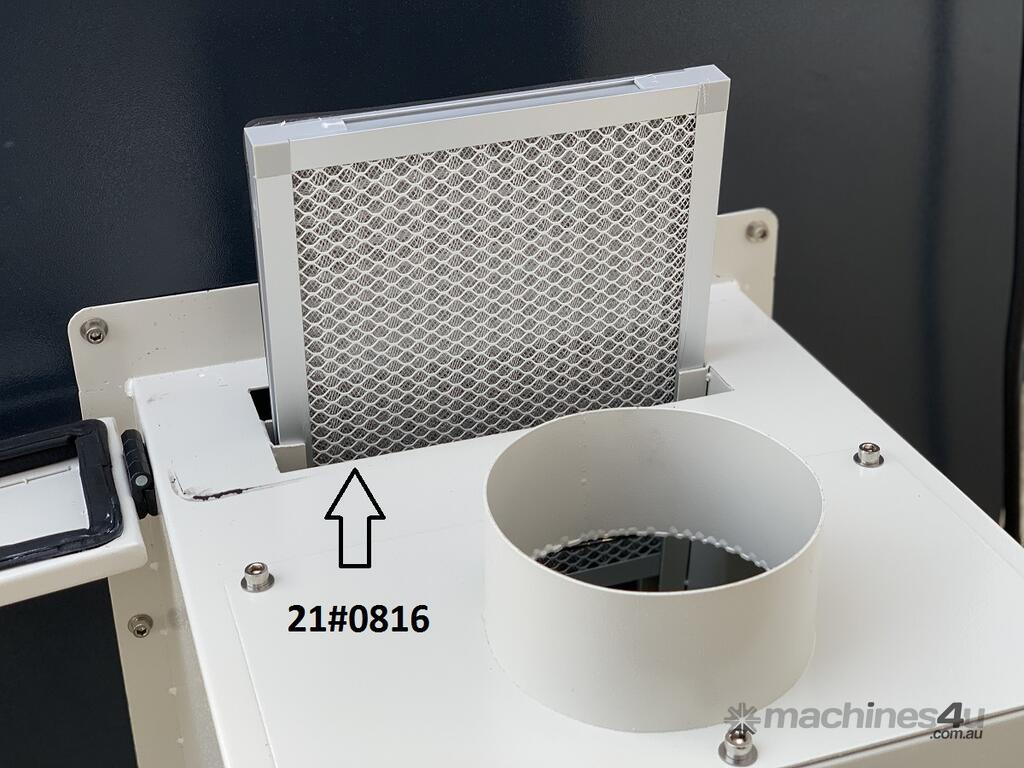

- STEELMASTER SM-PA-6000CT Fume Extraction System Vertical Filters - 6 Set - Sold Per Piece - Ordering Code 21#0815 (780+GST Each) / Aluminium Slide Spark Arrestor Filter - 21#0816

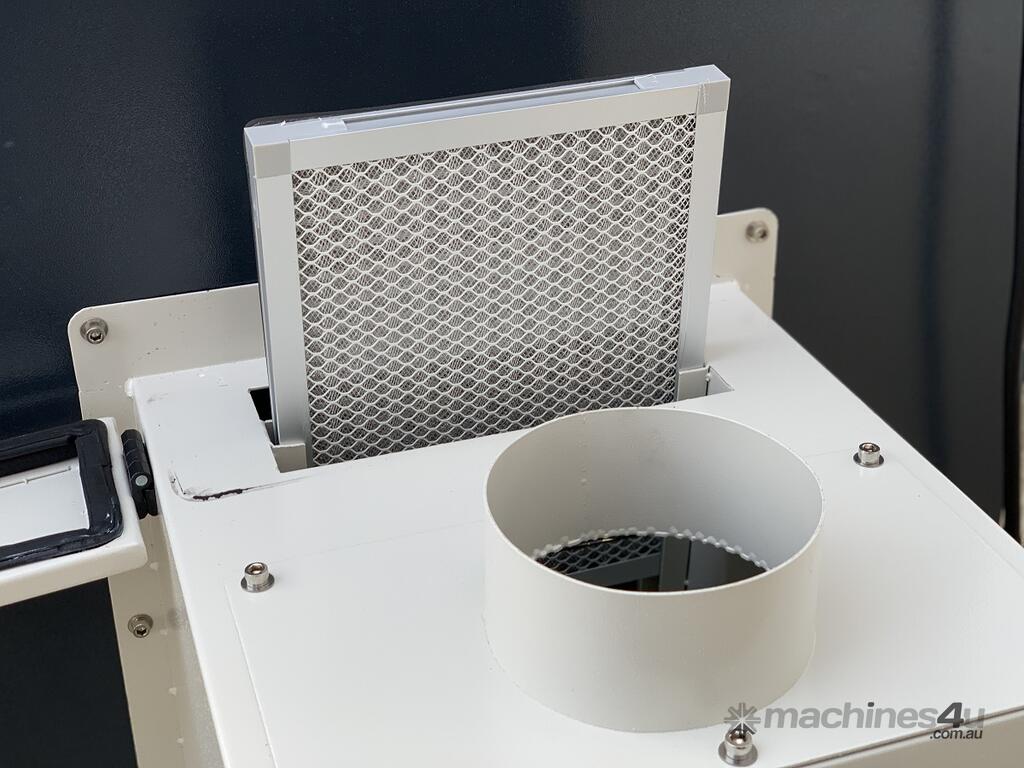

- STEELMASTER SM-DR-6000 Fume Extraction System Spark Arrestor Inlet Filter / 330mm x 395mm Flat - Aluminium. - Ordering Code 21#0814
