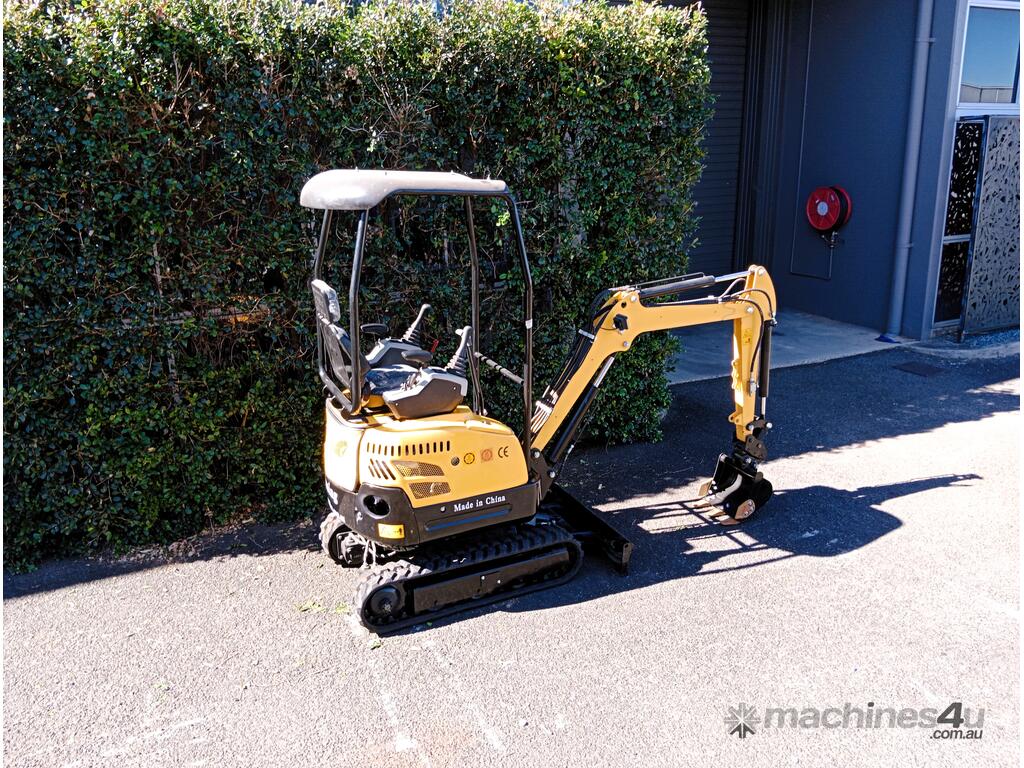

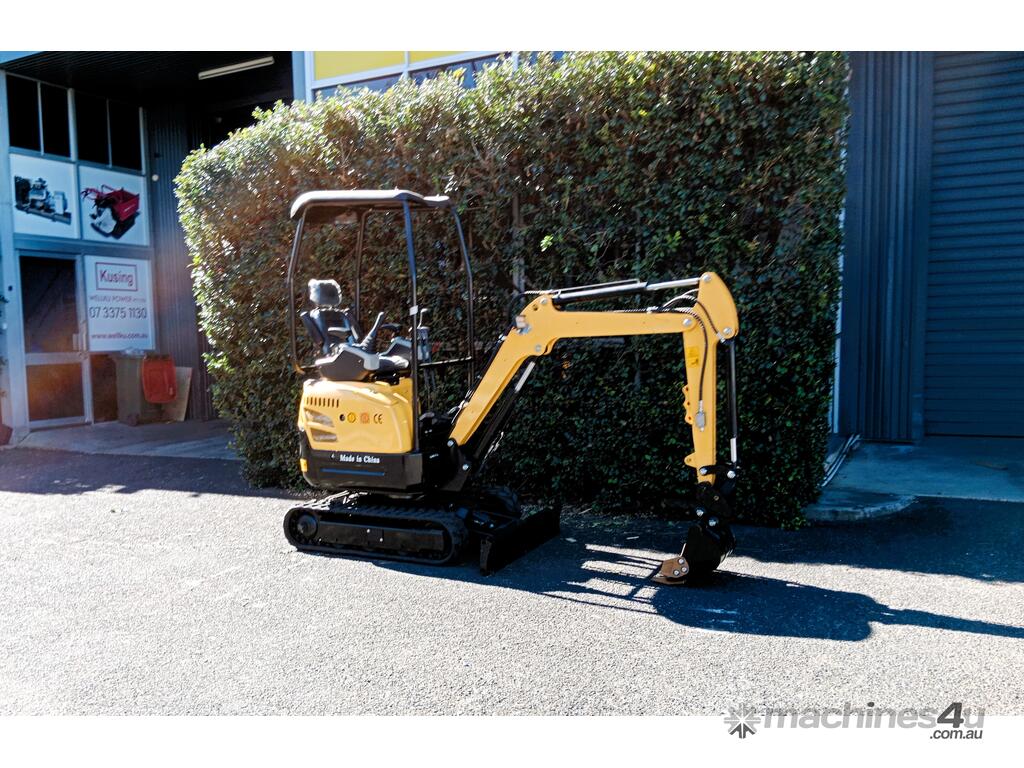

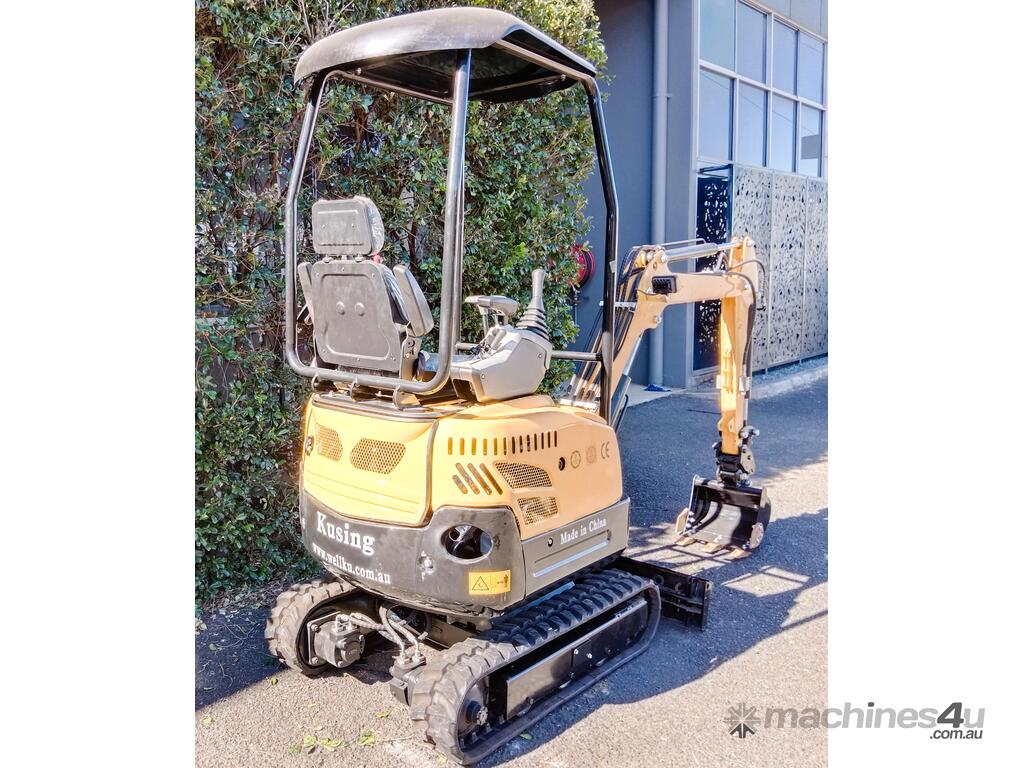

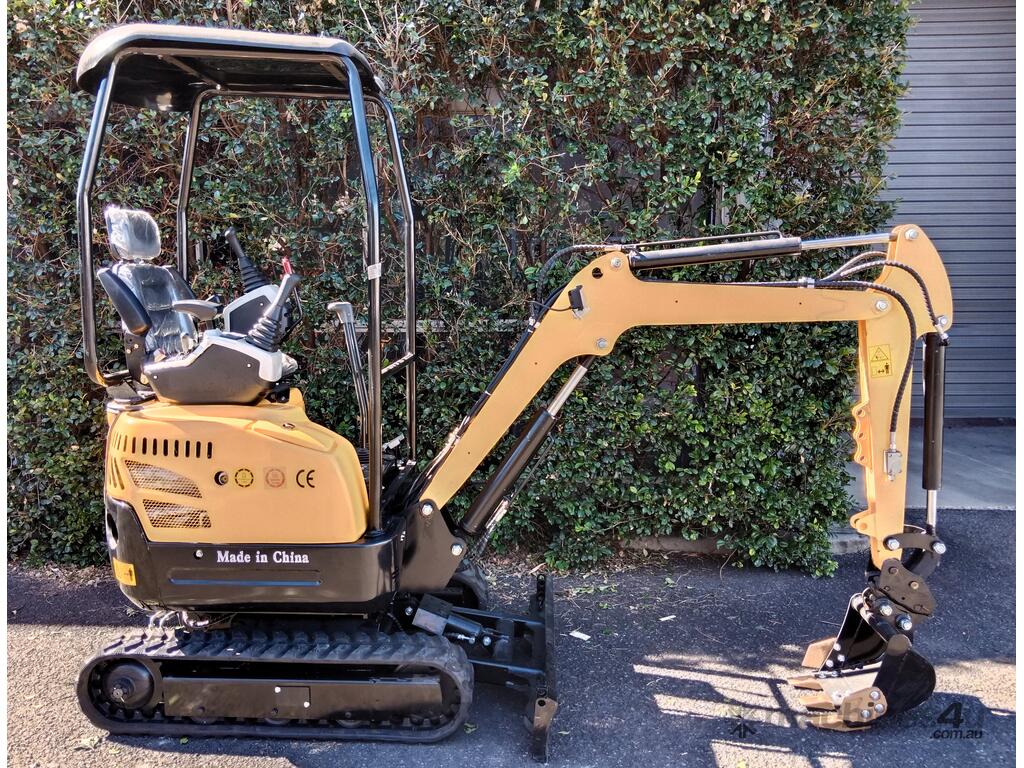

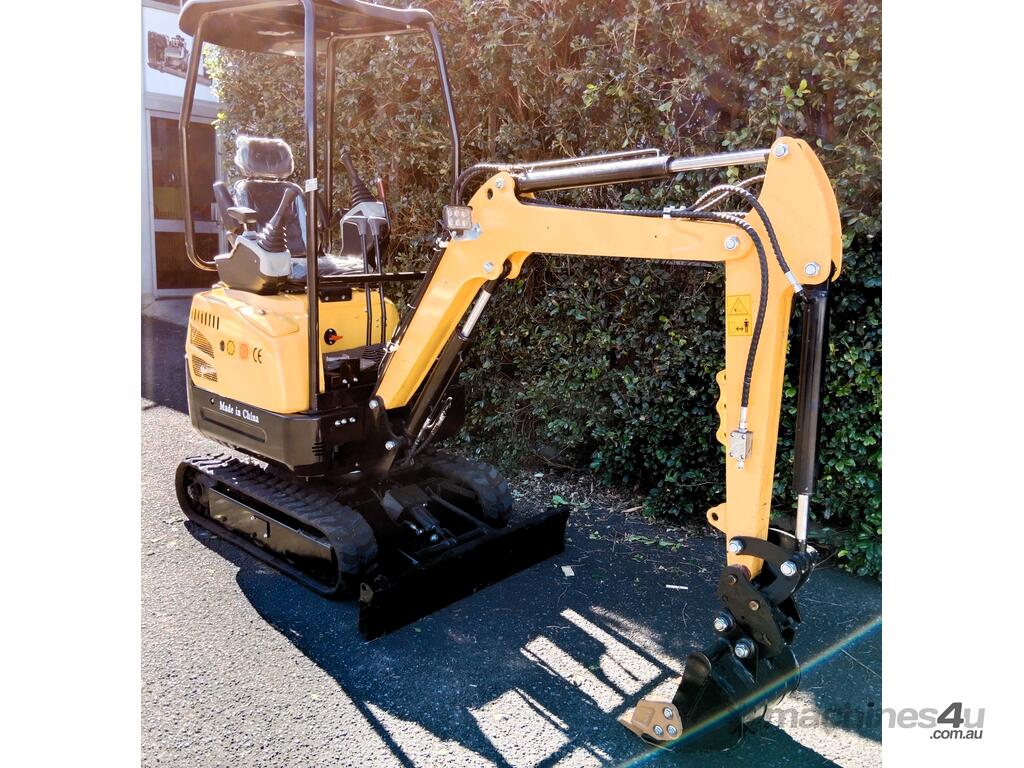

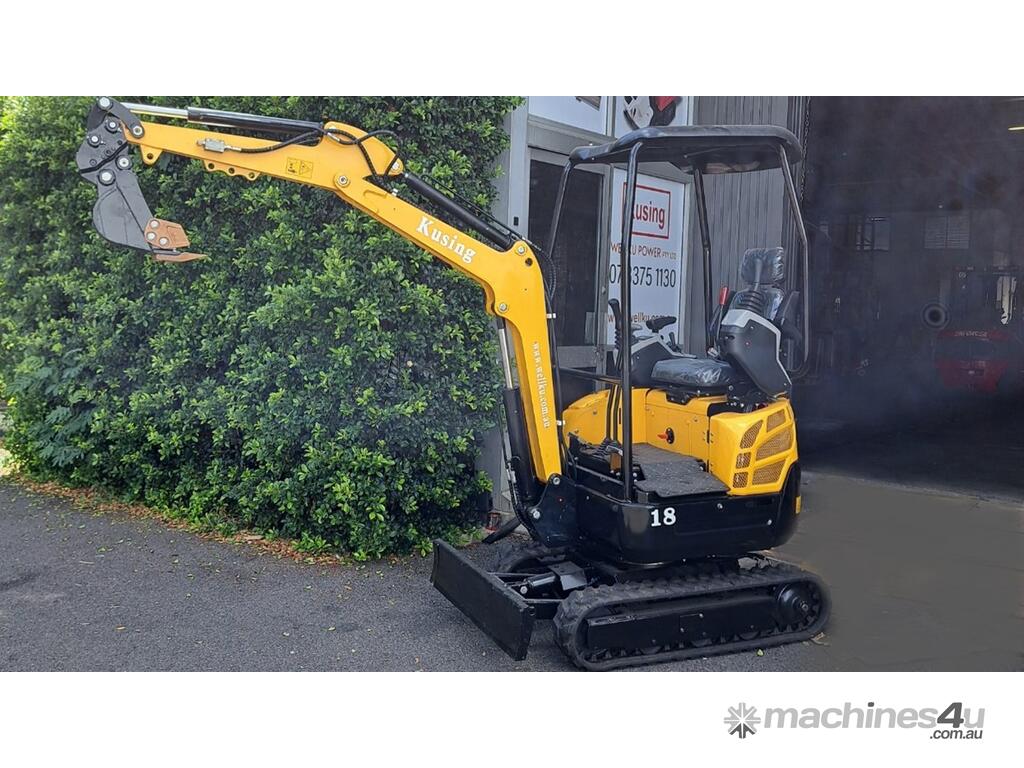

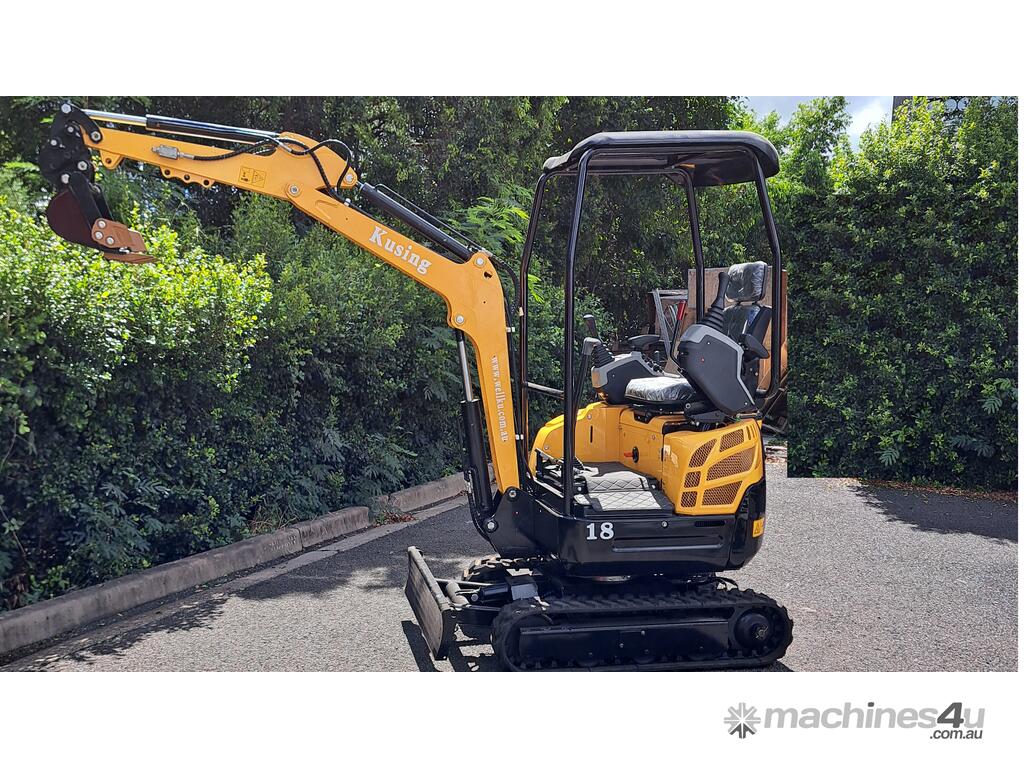

Whether you need to dig, grade, or dump the KV18 D722 15HP mini excavator is a compact unit you can operate it where space is limited, with a large load capacity as our units come standard with a selection of attachments included + Toolbox.
The KV18 can meet a variety of work scenarios for Commercial landscaping and excavation.
Standard Attachments:
Ripper spike 50mm
Rake 490mm
Bucket sizes: 200mm, 300mm, 400mm & 580mm

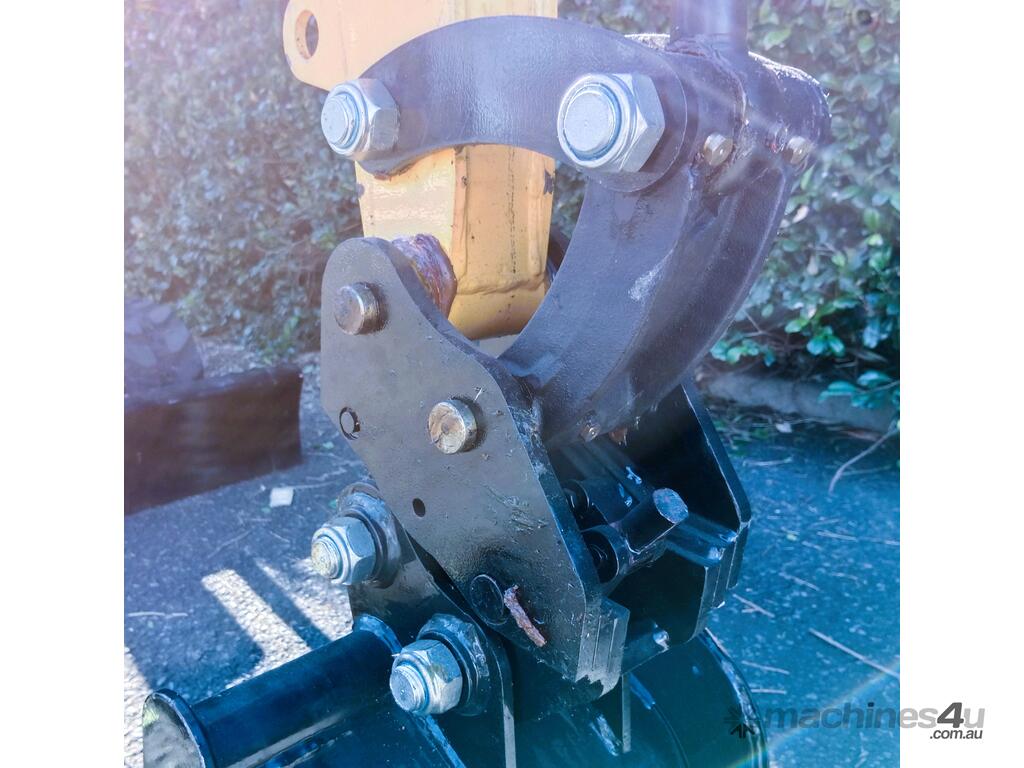

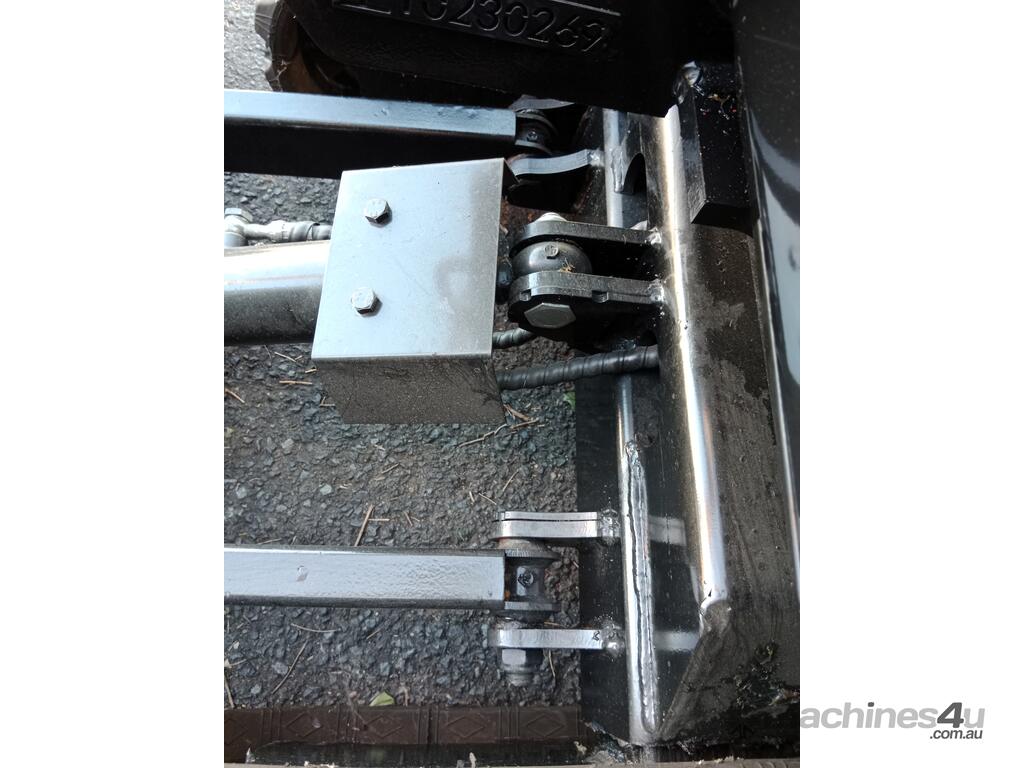

Mechanical Quick Hitch

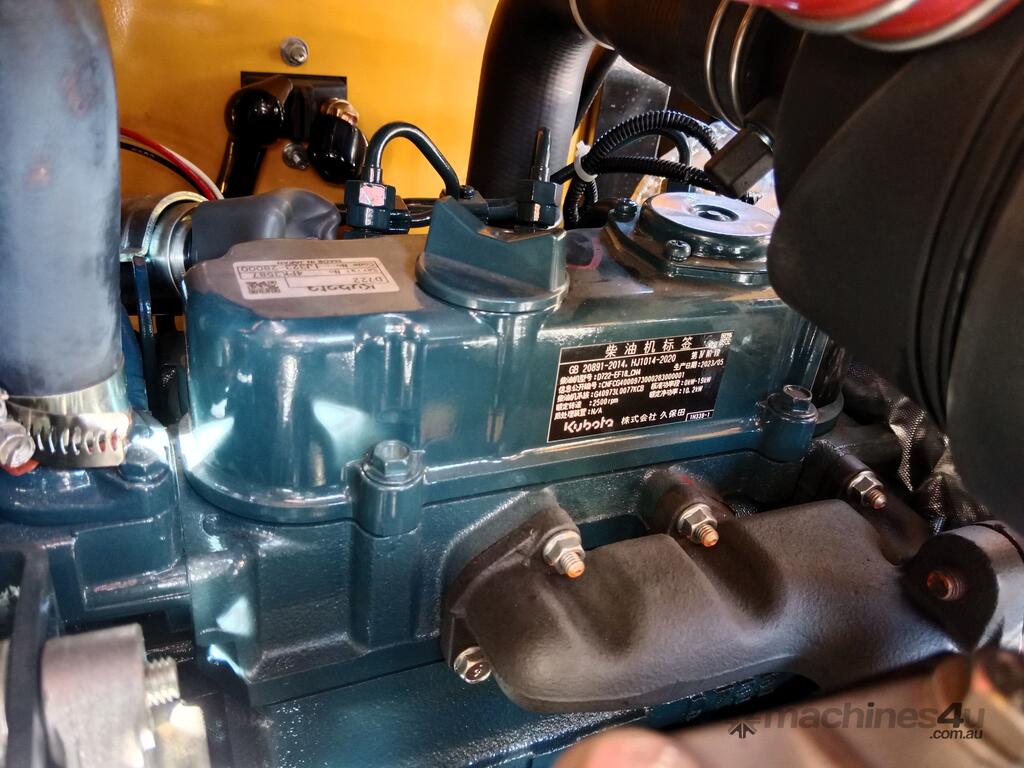

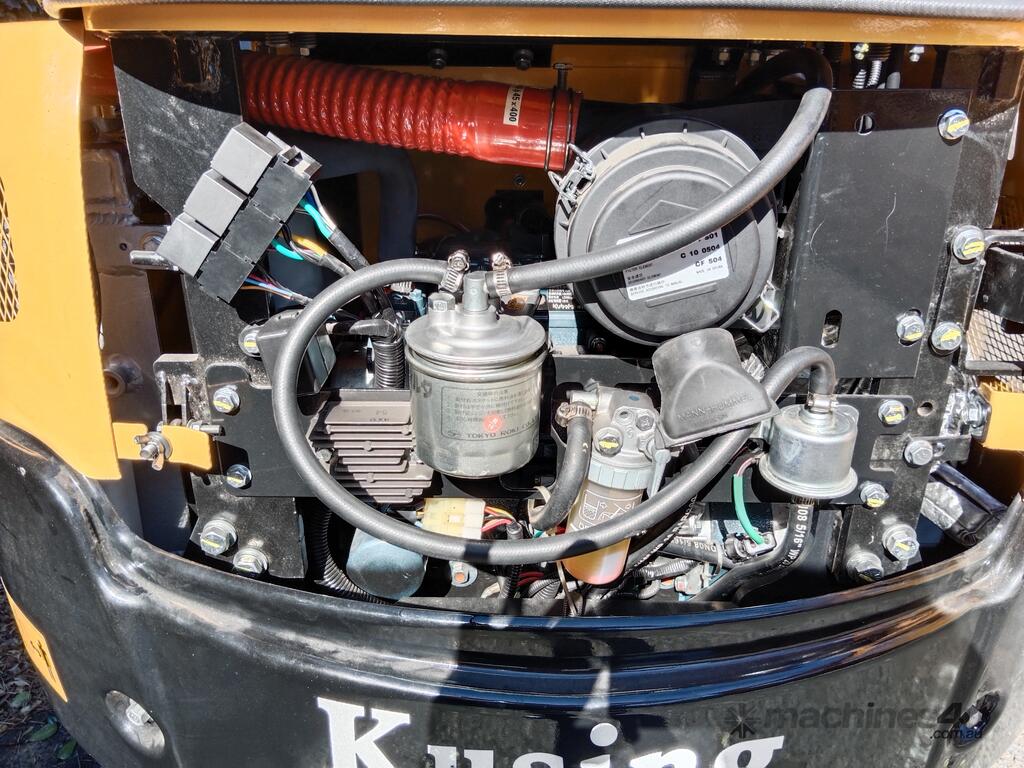

10.2KW / 15HP Diesel Engine
Machine Weight 1325kg
Machine Height 2200mm
Fuel Tank Volume 18L
Hydraulic Pressure 16 MPA / 22320 PSI
Hydraulic Flow Rate 26.4 LPM
Hydraulic Tank Volume 16L
Turret Slew Speed 11 RPM
Maximum Climbing Angle 35°
Forward / Reverse Speed 1.8 km/h

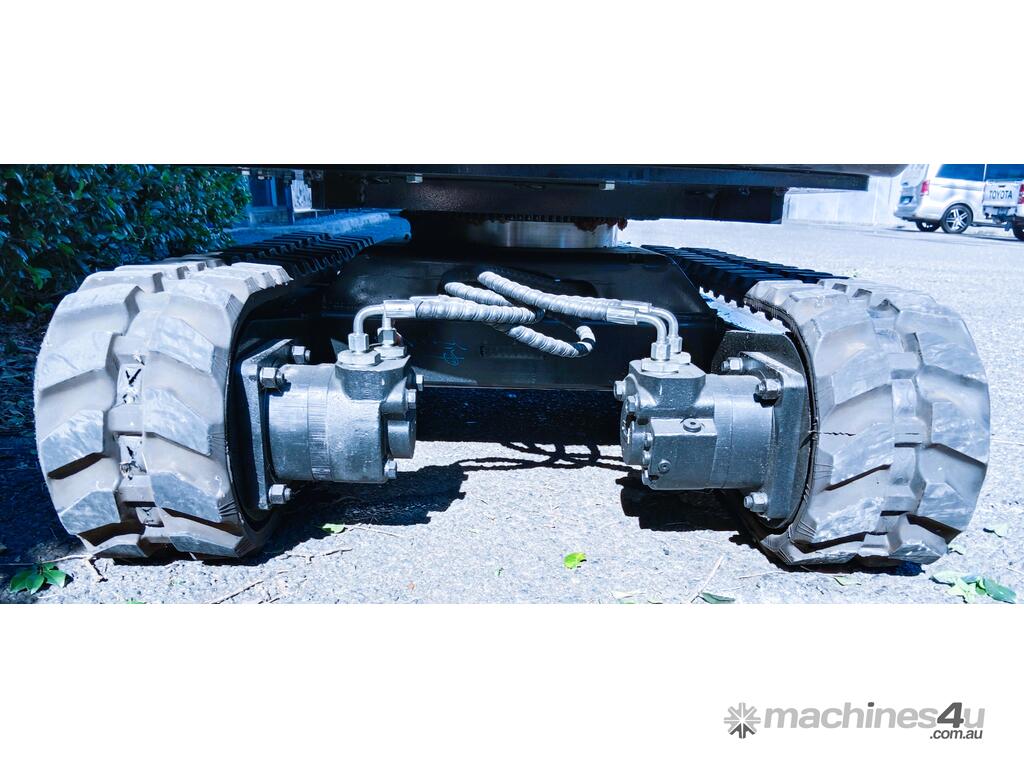

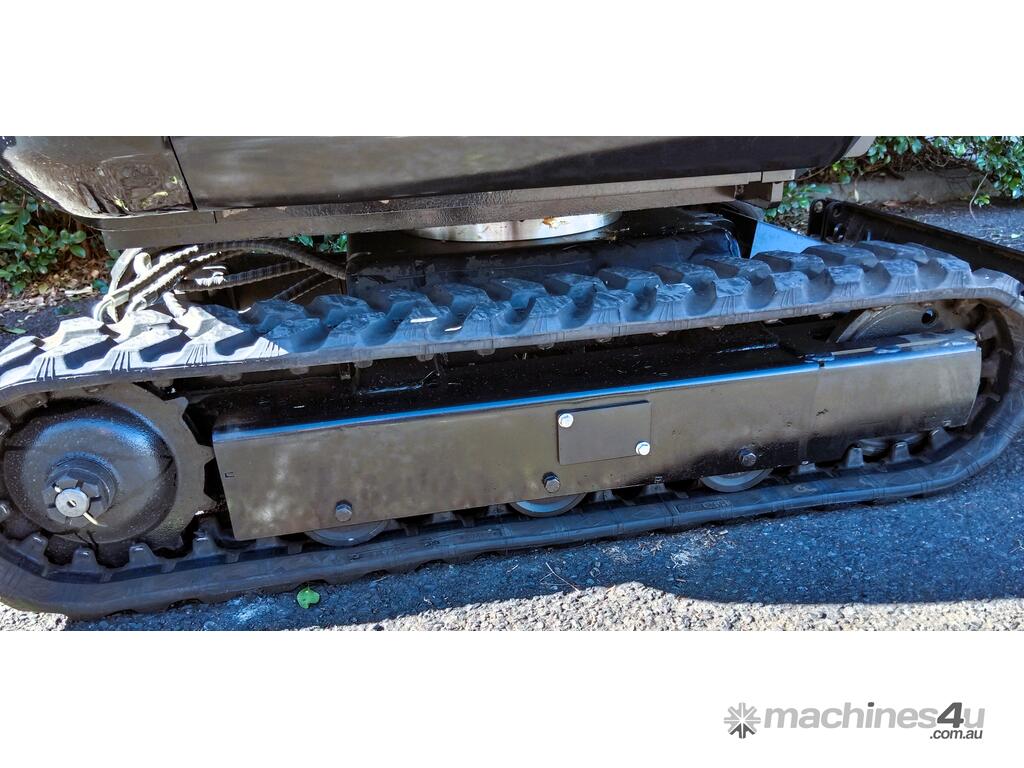

Steel Belted Rubber Tracks
Wheelbase 820mm
Track Length 1300mm
Track Width 180mm

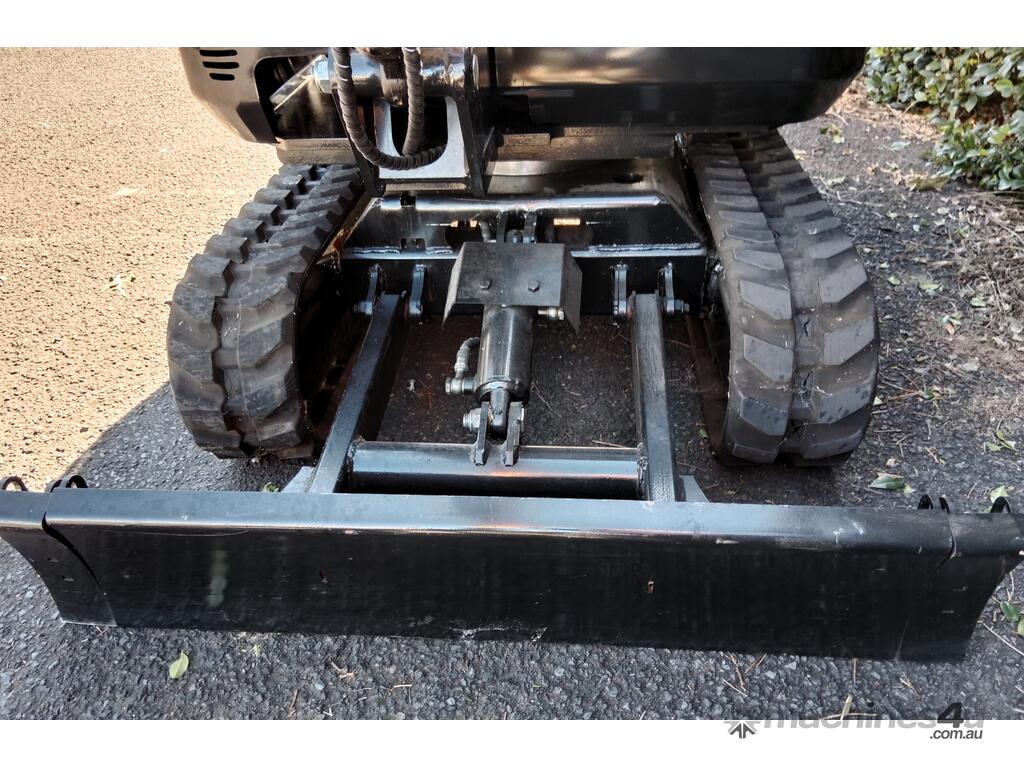

Adjustable Hydraulic Track Shift 990mm to 1165mm Wide
Undercarriage Ground Clearance 400mm
Operating Range Specifications
Digging Radius 2400mm Max.
Digging Depth 1850mm Max.
Digging Height 2740mm Max.
Dumping Height 2400mm

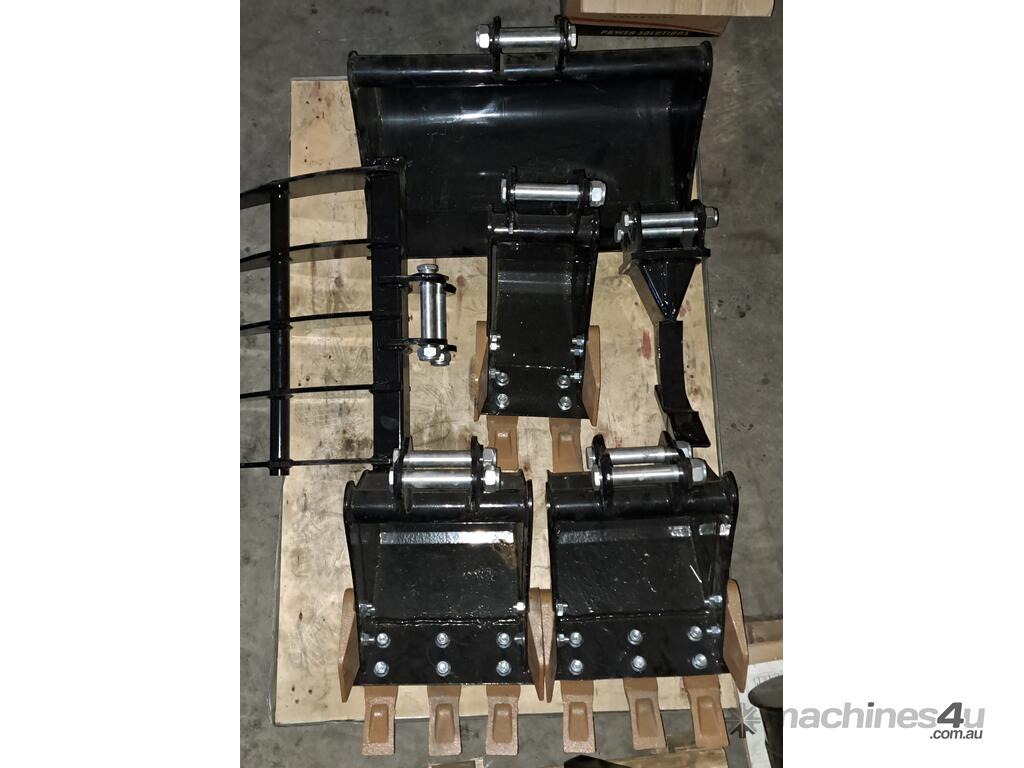

7 attachments included + Toolbox
Ripper Spike 50mm
Rake 490mm
Bucket Sizes: 200mm, 300mm, 400mm & 580mm

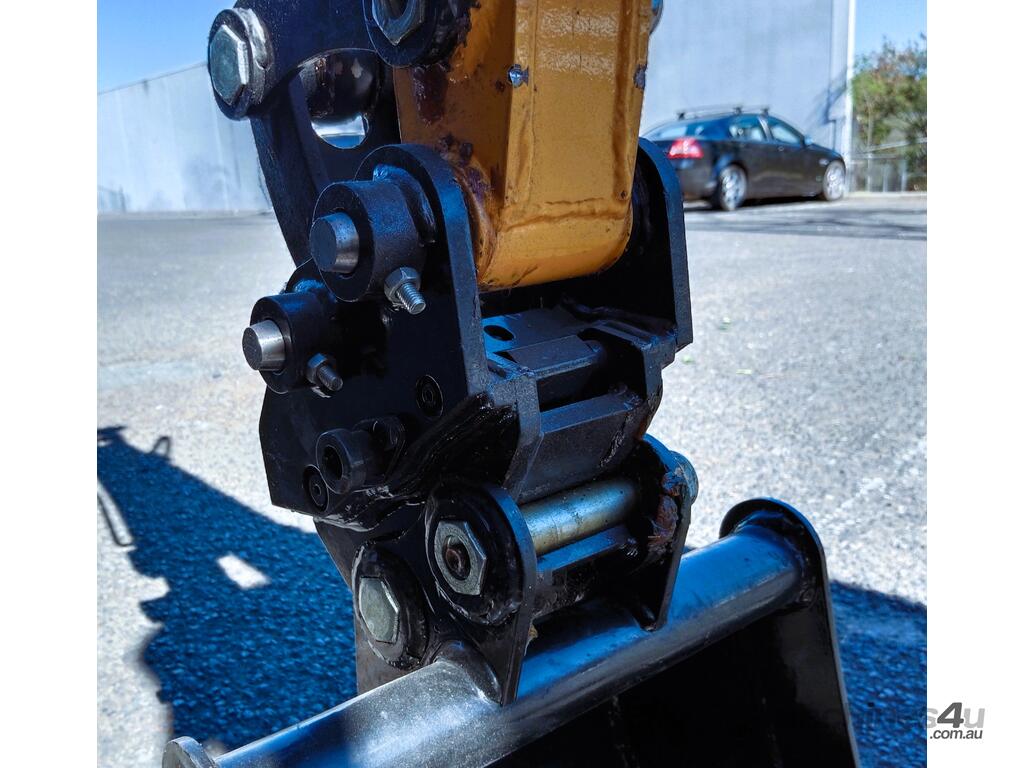

Mechanical Quick Hitch 25mm Pins

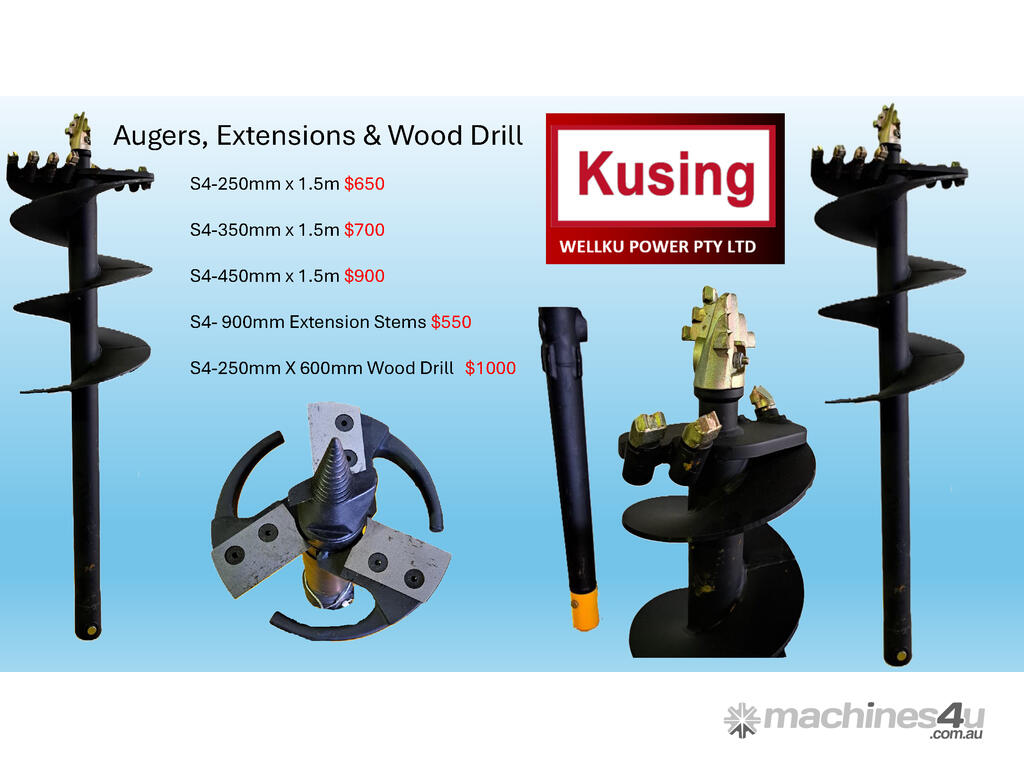

Optional Attachments
Auger Drive Motor W2500 PDX2
Mounting Cradle & S4 Drill Bits
Speed Range 40-82 RPM
Maximum Oil Pressure 205 Bar
Torque Range ? 2432Nm
Warranty: 12 Months
