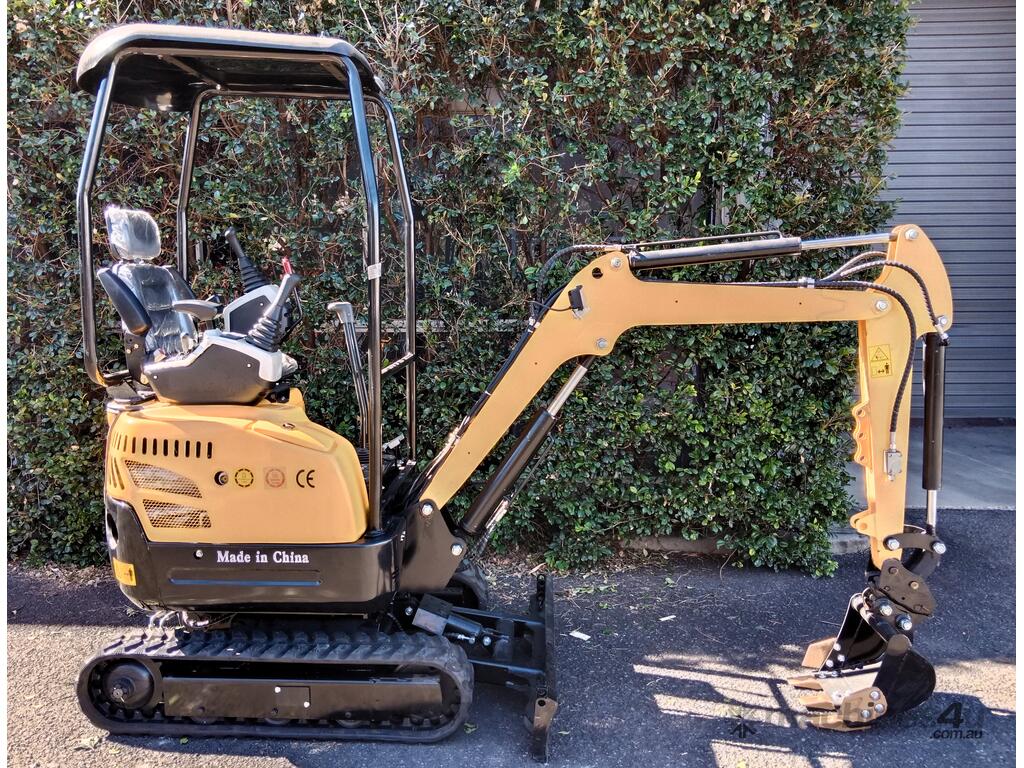

Whether you need to dig, grade, or dump the KV18 D72215HP mini excavator is a compact unit you can operate it where space is limited, with a large load capacity as our units come standard with a selection of attachments included + Toolbox.
The KV18 can meet a variety of work scenarios for Commercial landscaping and excavation.
Water cooled 3-cylinder Kubota Engine power 10.2kw/ 15HP.
Width of chassis 1000mm to 1100mm hydraulically adjustable
Machine Weight 1200kg
Machine height 2200mm
Standard Attachments:
Ripper spike 50mm
Rake 490mm
Bucket sizes: 200mm, 300mm, 400mm & 580mm
Mechanical Quick Hitch
Operating Range Specification
Digging Radius 2400mm Max.
Digging Depth 1850mm Max.
Digging Height 2740mm Max.
Dumping Height 2400mm
Bucket capacity 0.035m³
System pressure 16 MPA
Swing speed 11 RPM
Maximum climbing angle 35°
Walking speed (high speed/low speed) 1.5 km/h
Hydraulic oil tank volume 22L
Fuel tank volume 18L
Wheel base 820mm
Track material steel belted rubber.
Total track length 1300mm
Width of track 180mm
Platform ground clearance 400mm.
Warranty: 12 Months
